  1. Digital Signage A Simple Sony Training Presentation John Holmes & John Morali Presenting Sept 12, 2007

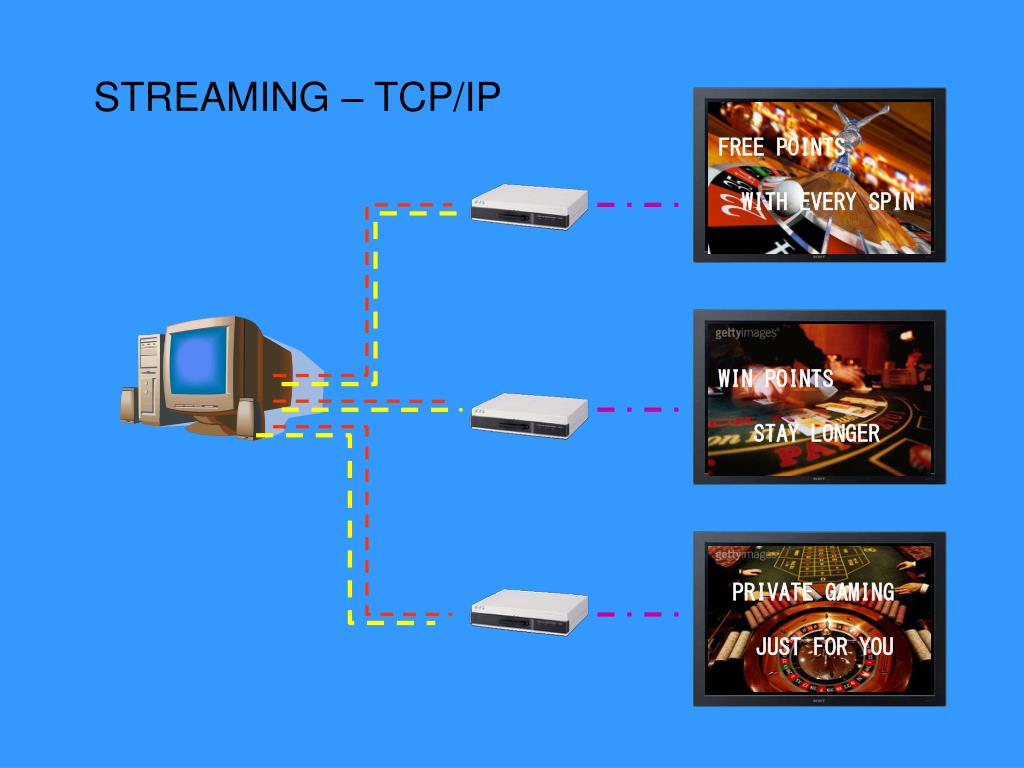

  2. FREE POINTS WITH EVERY SPIN WIN POINTS STAY LONGER PRIVATE GAMING JUST FOR YOU STREAMING – TCP/IP

  3. FREE POINTS WITH EVERY SPIN WIN POINTS STAY LONGER PRIVATE GAMING JUST FOR YOU STREAMING – TCP/IP STREAMING – TCP/IP Advantages: Status & Failure Available Disadvantages: Network Load - Inefficient

  4. FREE POINTS WITH EVERY SPIN WIN POINTS STAY LONGER PRIVATE GAMING JUST FOR YOU STREAMING – UDP/IP

  5. FREE POINTS WITH EVERY SPIN WIN POINTS STAY LONGER STREAMING – UDP/IP Advantages: Network Efficiency Disadvantages: Status & Failure Not Available X

  6. Very Simple Still Images / Video Loop Playback BKM-FW50 “Sneaker Net” + +

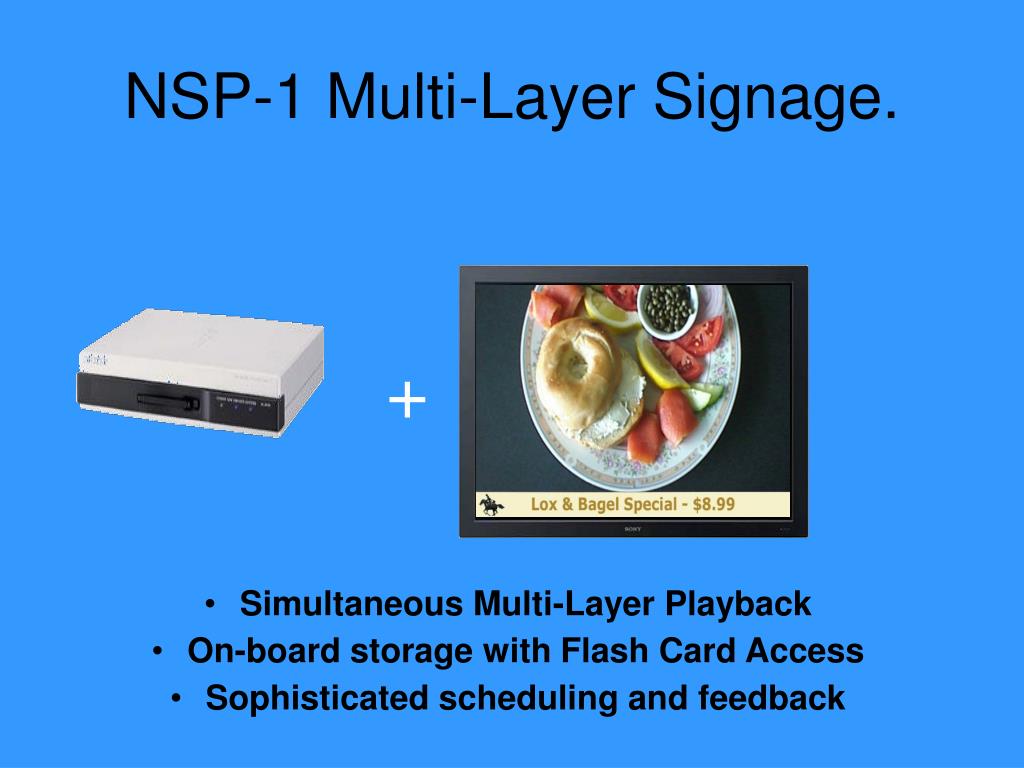

  7. Simultaneous Multi-Layer Playback On-board storage with Flash Card Access Sophisticated scheduling and feedback NSP-1 Multi-Layer Signage. +

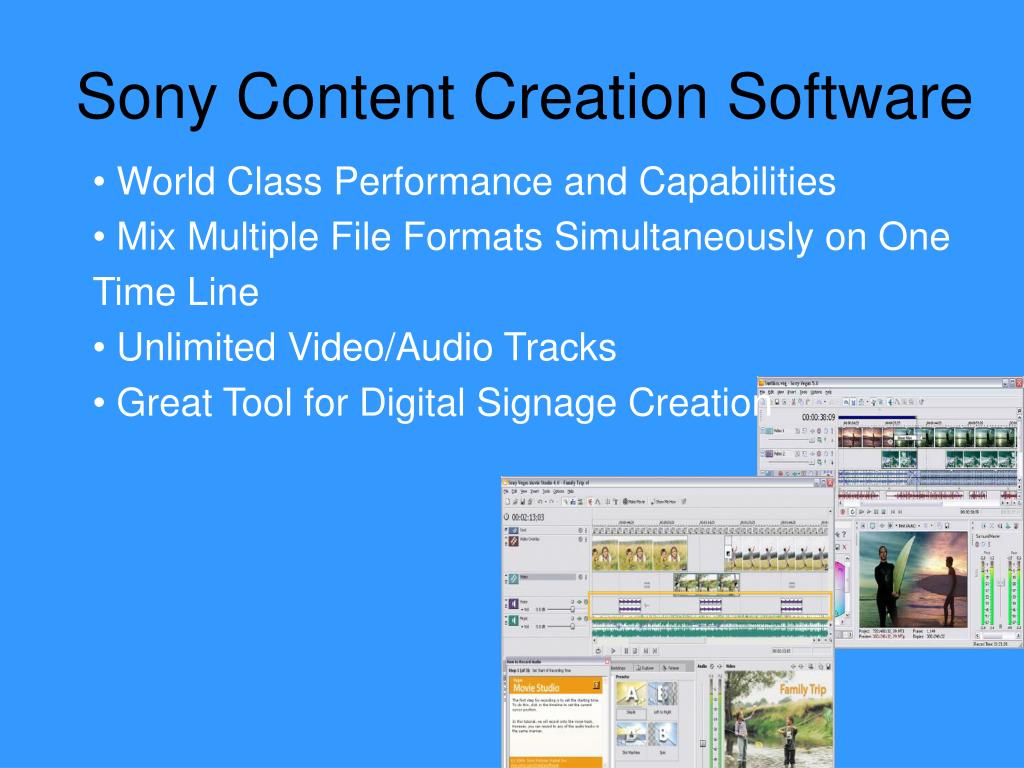

  8. Sony Content Creation Software • World Class Performance and Capabilities • Mix Multiple File Formats Simultaneously on One Time Line • Unlimited Video/Audio Tracks • Great Tool for Digital Signage Creation

  9. = + 2nd Quarter Sony Simple Signage Promo • End User buys a qualifying professional display and Sony Simple Signage Card: • Gets Sony Vegas Content Creation Software • AT NO ADDITIONAL CHARGE!

  10. Sony Professional Display Accessories Detachable Speakers Optional Cards BKM-FW115xBNC Component/RGB Card BKM-FW32Network Control Card BKM-FW12Active Loop Through Card (Component / RGB) SS-SPxxFW/S or /B Wall Mounts & Table Stands ICS-SP30HD TV Tuner with Lodging Support SFM1, SFM3Flat Wall Mount SFM2Flat Wall Mount Content Networking / Digital Signage PLP-91/DTilt Wall Mount EBS-N200DNetwork Media Player BKM-FW50Network Media Card ICS-FW40DHD Network Media Card SPM-TRI/CClear Acrylic Base SPM-TRI/ESilver Color Base SPOM1Pullout Wall Mount

  11. Digital Signage and Public Display Roadmap FY07 1H FY07 2H FY06 2H Pro-Signage Market GXDL52H1 07 New 40LX2 32LX2 Volume Market FWD-50PX3 50PX2 Jul/E 07 New 42PX2 42PV1 VSP-NS7 NSP-1 BKM-FW50 Dec/E Hospitality Market KLH-W32 KLH-W26 Timing : Ex-factory basis

  12. Where Do Customers Go For Help? • 1-800-883-3817 POSC (Product Operations Support Center) Operational Support for Customers who have purchased products

  13. FWD-32LX2F FWD-40LX2F features: SONY Professional LCD Displays • Picture-And-Picture • Various Side-by-Side settings for multiple input viewing • Long Lasting Sleek Flat Finish • Available in Silver or Black • PC and Video resolutions supported • 2 x HDMI digital inputs (PC or Video) • RS232 Control • 2 x Expansion Card Slots • Discrete Power On/Off • Enhanced Audio: SRS™ WOW • Illuminated Logo: High, Low, Off

  14. FWD-32LX2F & FWD-40LX2F Specifications SONY Professional LCD Displays Panel Resolution 1366 x 768 Response Time 8ms Brightness 450 nits Contrast Ratio 1,300:1 Viewing Angle (H/V) 178 degree x 178 degree

  15. FWD-32LX2F & FWD-40LX2F Interfaces SONY Professional LCD Displays Inputs HDMI 1.3 (HDCP) 2 (Support for Digital PC and Digital Video) 3.5mm audio input provided for PC Analog (Component/RGB) 1 (D-Sub / HD15 Connector) Option Video Card 1 S-Video (in/out) / Composite (BNC In/Out) (BNC adapter provided)Option Control Card 1 RS232C Serial (9 pin) Control-S (In/Out)

  16. OTHER OFFERING FOR SONY DISPLAYSHD Tuner Card for HospitalityICS-SP30 • Internal High Definition TV Tuner • Pro:Idiom Support • MTI Port for interface with Pay-Per-View systems • Compatible with all major PPV providers • Channel Mapping for connectivity • Stand-Alone and LodgingMode • ICS-SP30RS adds RS232 capabilities • Designed for touch panel support with AMX and Crestron • Perfect seamless solution for guest suites

  17. THANK YOU!
