  1. TulipPad DR1 TulipPad project team 09-09-2011

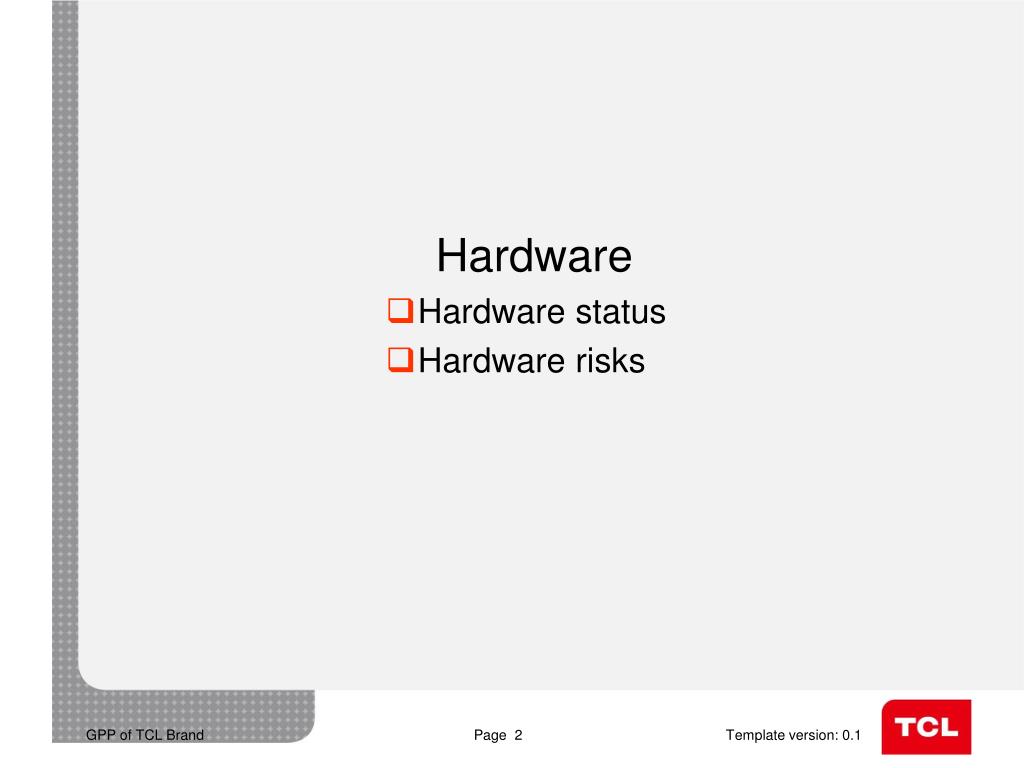

  2. Hardware • Hardware status • Hardware risks

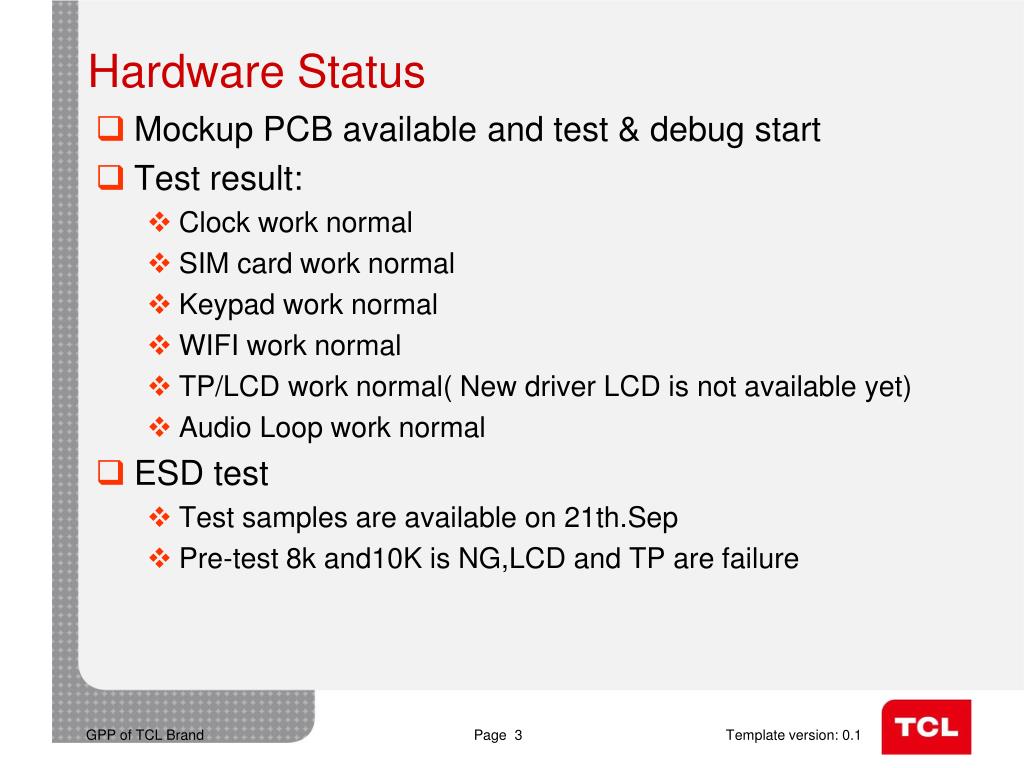

  3. Hardware Status • Mockup PCB available and test & debug start • Test result: • Clock work normal • SIM card work normal • Keypad work normal • WIFI work normal • TP/LCD work normal( New driver LCD is not available yet) • Audio Loop work normal • ESD test • Test samples are available on 21th.Sep • Pre-test 8k and10K is NG,LCD and TP are failure

  4. Hardware Status • MU509 module GSM conductive test

  5. Hardware Status • MU509 module 3G conductive test • WIFI/BLUETOOTH not test

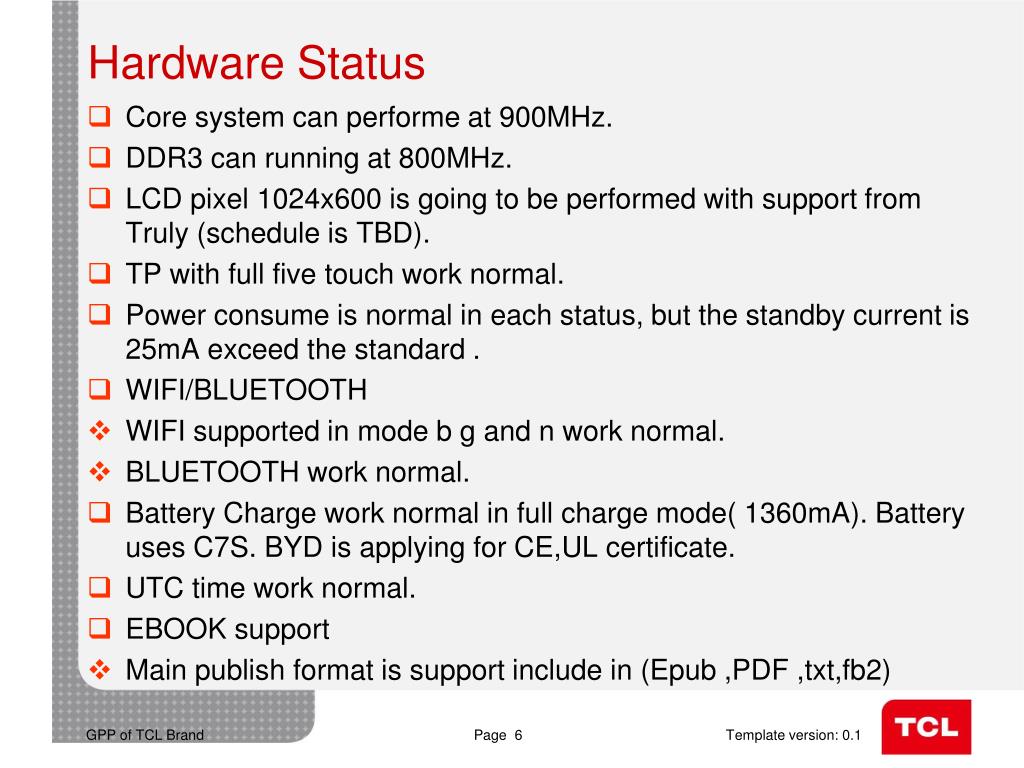

  6. Hardware Status • Core system can performe at 900MHz. • DDR3 can running at 800MHz. • LCD pixel 1024x600 is going to be performed with support from Truly (schedule is TBD). • TP with full five touch work normal. • Power consume is normal in each status, but the standby current is 25mA exceed the standard . • WIFI/BLUETOOTH • WIFI supported in mode b g and n work normal. • BLUETOOTH work normal. • Battery Charge work normal in full charge mode( 1360mA). Battery uses C7S. BYD is applying for CE,UL certificate. • UTC time work normal. • EBOOK support • Main publish format is support include in (Epub ,PDF ,txt,fb2)

  7. Hardware Status • Multimedia • MP3 work normal. • H.264 decode work normal. • Full format video player support RMVB, mp4, mpg and mkv. • Accessory • Charger,USB cable are special components. • Headset common uses Alcatel STD . • Antenna evaluation from CNC (TCL) • Test data!???

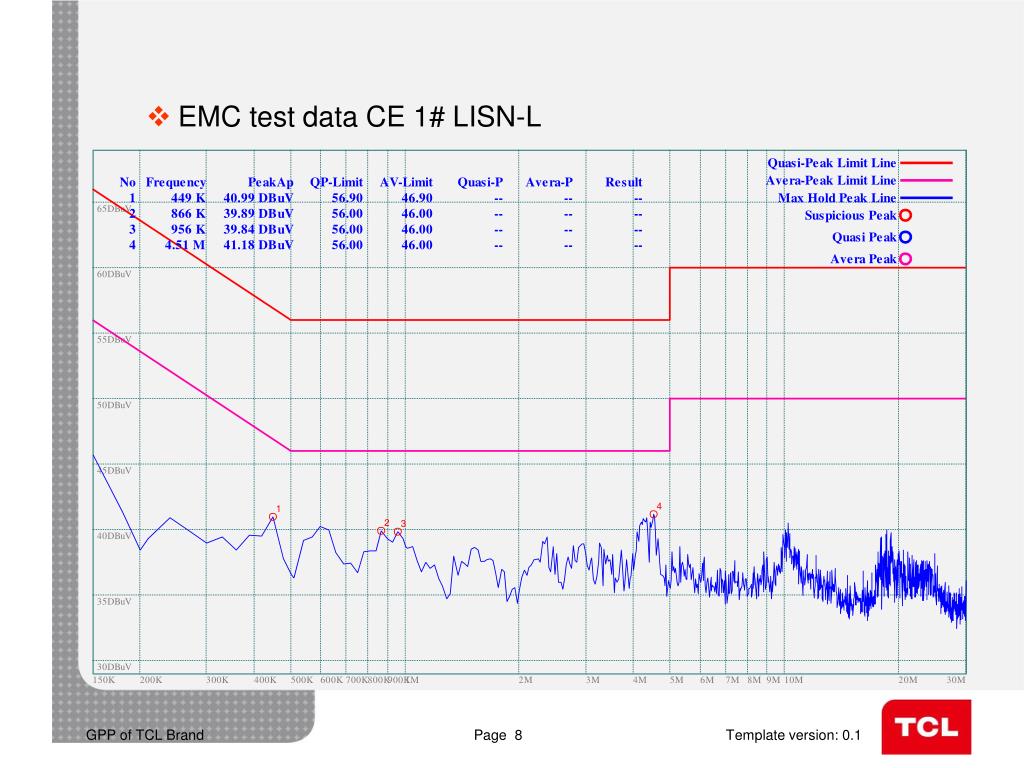

  8. EMC test data CE 1# LISN-L

  9. EMC test data CE 1# LISN-N

  10. EMC test data RE 1# CE ANT-H 30M-6G

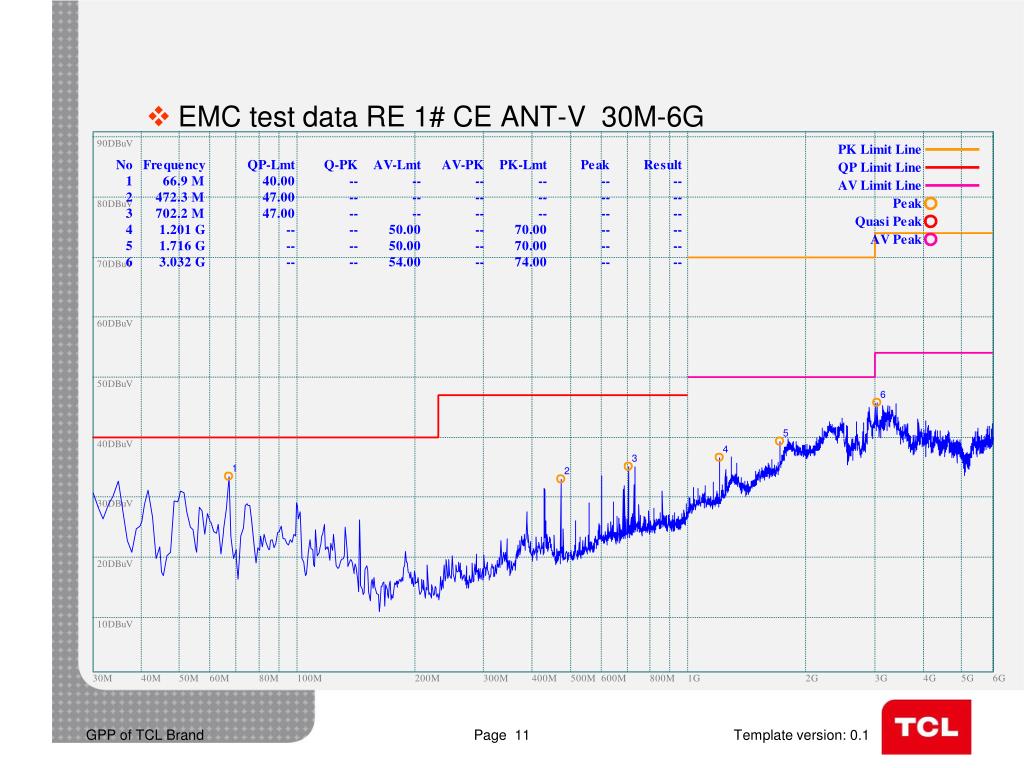

  11. EMC test data RE 1# CE ANT-V 30M-6G
