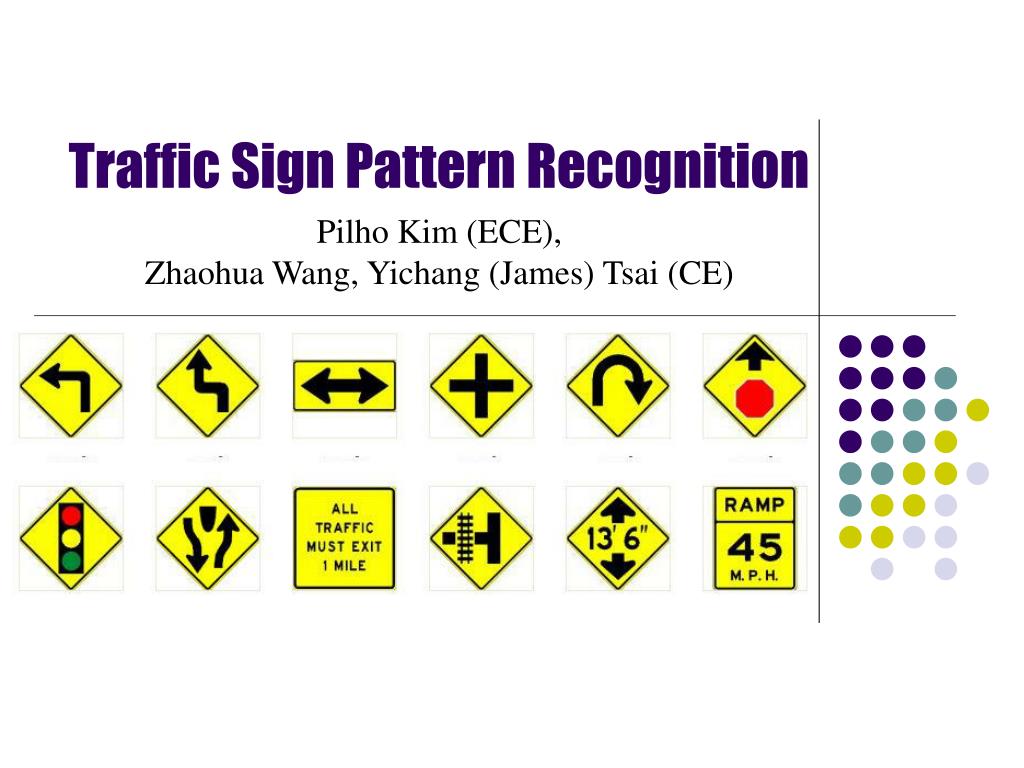

  1. Traffic Sign Pattern Recognition Pilho Kim (ECE), Zhaohua Wang, Yichang (James) Tsai (CE)

  2. CONTENTS • Introduction and Motivation • Preliminary Works • Build the project collaboration environment • Construct the traffic sign database from MUTCD • Reviews on related works using ANN • Search proper image abstractions for sign recognition • Develop the ANN modules • Proposed Approaches • Closed convex polygon detection algorithms for precise traffic sign region extraction • Color-coded line receptors as image features for ANN • Concluding Remarks

  3. Introduction and Motivation • Traffic asset management • High demands on the efficient and cost-saving traffic asset management system • Safe driving and autonomous land vehicle (ALV) • Driver assistant system can reduce car accidents to save lives of drivers • ALV should have this technology to make it practical • So we need “Automatic geographical traffic sign location and type logging system using computer vision.”

  4. Preliminary Works:Build the project collaboration environment • TSPR Project Wiki:http://www.pilhokim.com/project/signpattern/signwiki/

  5. Preliminary Works:Construct the traffic sign database from MUTCD • Build the traffic sign database from MUTCD (Manual on uniform traffic control devices) • Prepare two sets for the computation and the database (MySQL)

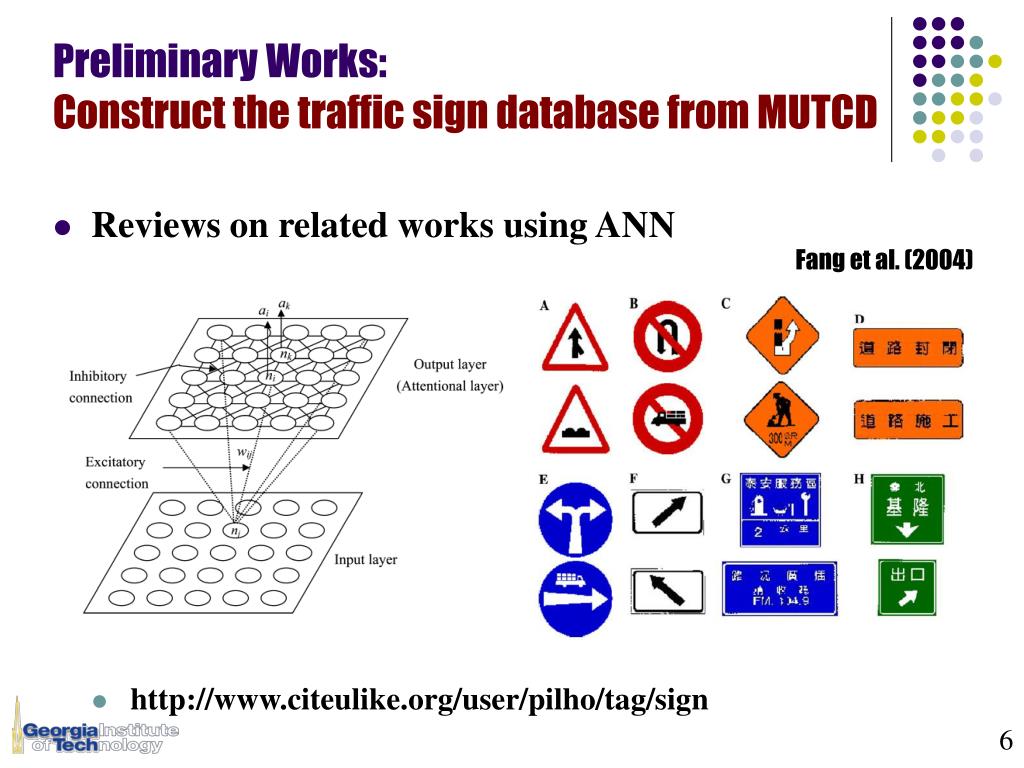

  6. Preliminary Works:Construct the traffic sign database from MUTCD • Reviews on related works using ANN • http://www.citeulike.org/user/pilho/tag/sign Fang et al. (2004)

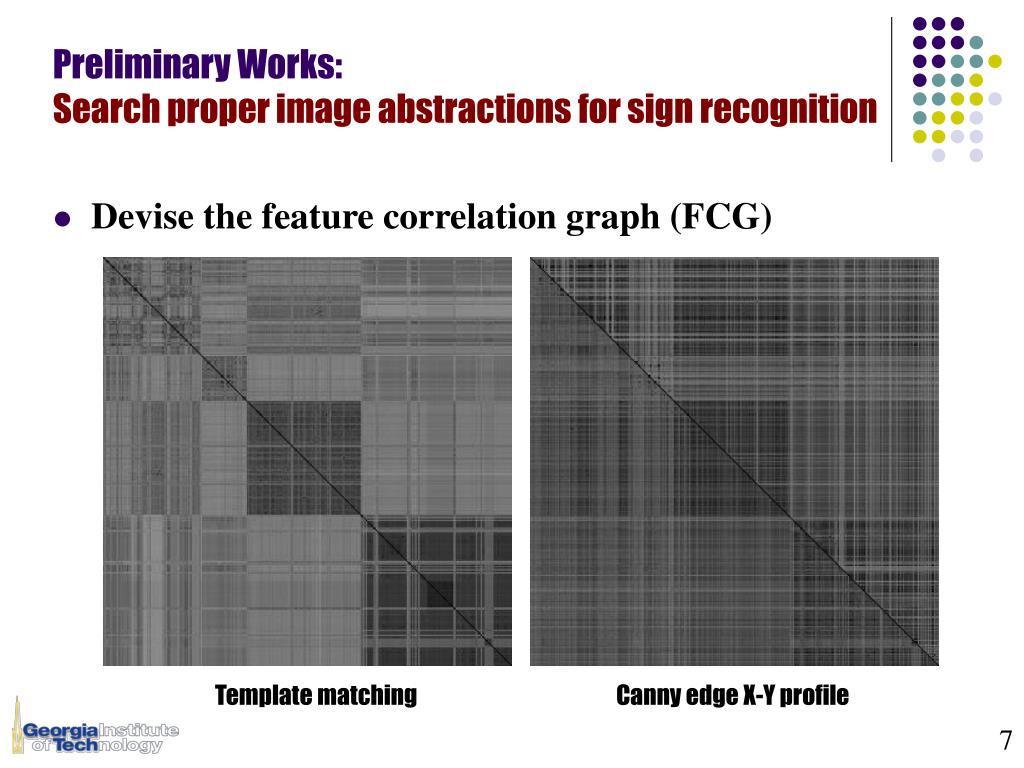

  7. Preliminary Works:Search proper image abstractions for sign recognition • Devise the feature correlation graph (FCG) Template matching Canny edge X-Y profile

  8. Preliminary Works:Develop the ANN modules • Choose the proper ANN engine

  9. PROPOSED PLAN • Closed convex polygon detectionfor the accurate traffic sign boundary detection • Color-coded line receptors as image features

  10. Proposed Approaches:Closed convex polygon detection algorithms for precise traffic sign region extraction

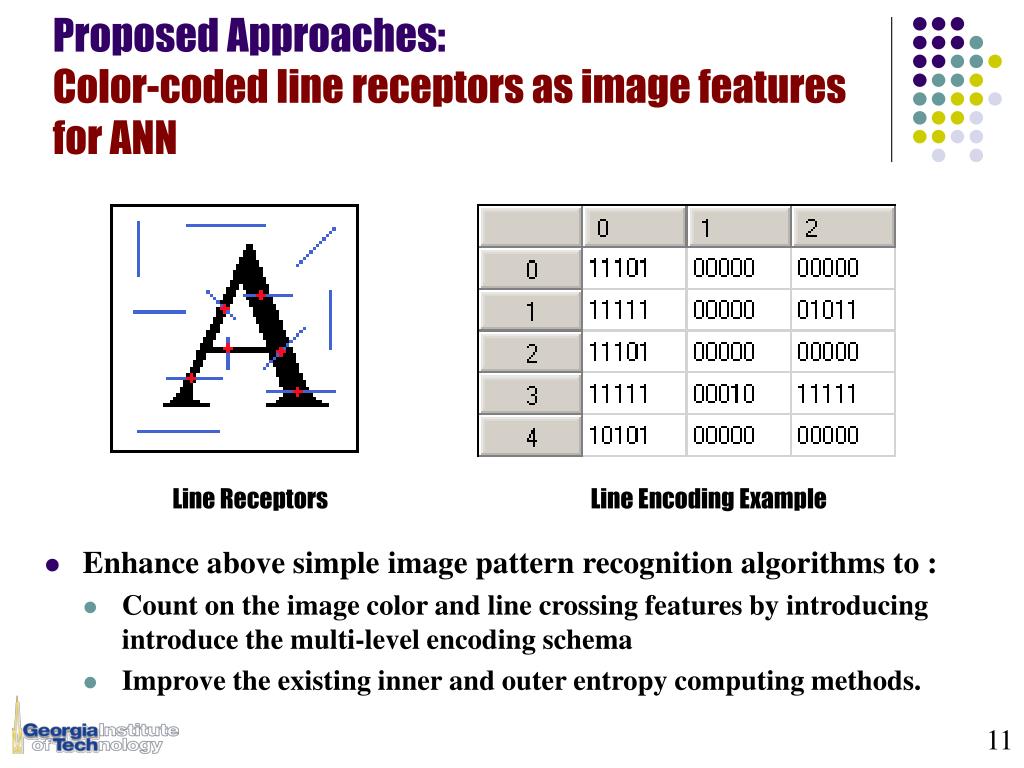

  11. Proposed Approaches:Color-coded line receptors as image features for ANN • Enhance above simple image pattern recognition algorithms to : • Count on the image color and line crossing features by introducing introduce the multi-level encoding schema • Improve the existing inner and outer entropy computing methods. Line Receptors Line Encoding Example

  12. Concluding Remarks for future investigation • Traffic sign pattern recognition in the real scene capture is very challenging • Finding the proper robust features for the ANN training is the key to solve the problem • Multi-level image processing and recursive result enhancements are required. • Understanding the context of image capturing environment will give clues for recognition
