  1. HUNTING FOR METAMORPHIC ENGINES Mark Stamp & Wing Wong September 13, 2006

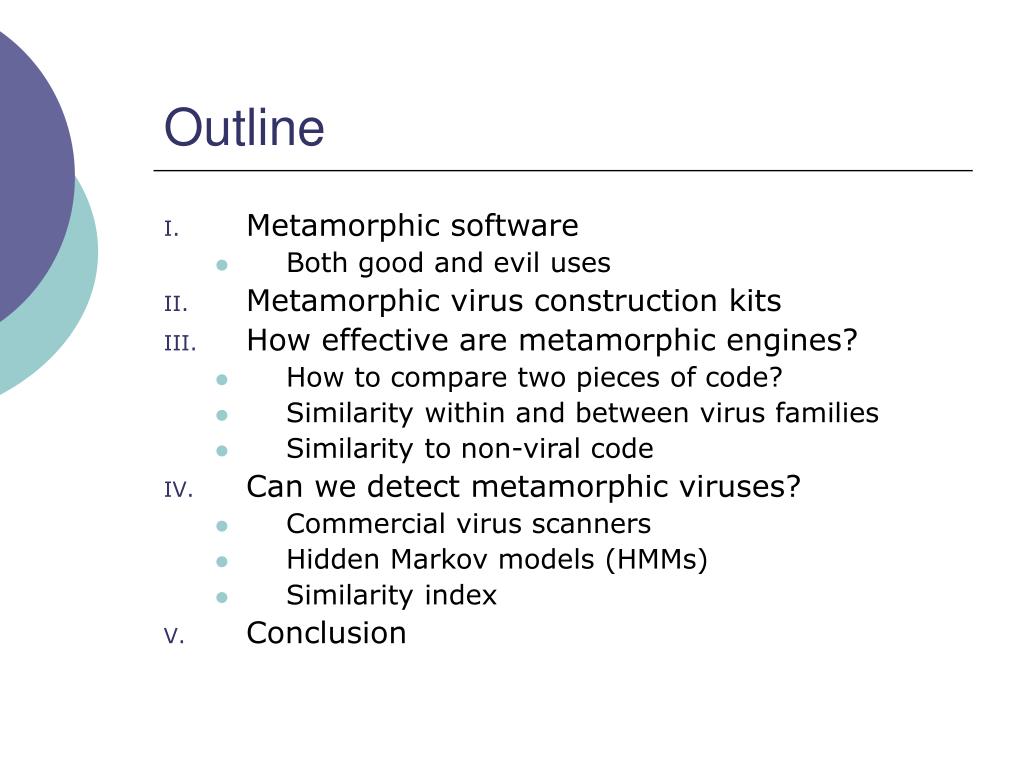

  2. Outline • Metamorphic software • Both good and evil uses • Metamorphic virus construction kits • How effective are metamorphic engines? • How to compare two pieces of code? • Similarity within and between virus families • Similarity to non-viral code • Can we detect metamorphic viruses? • Commercial virus scanners • Hidden Markov models (HMMs) • Similarity index • Conclusion

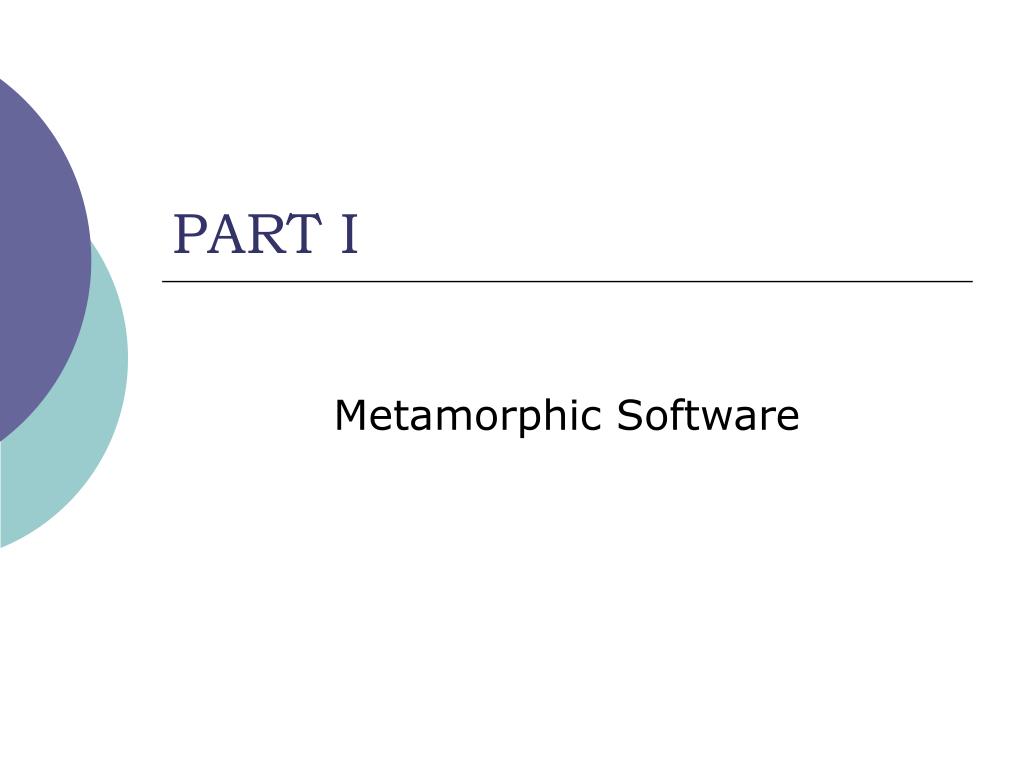

  3. PART I Metamorphic Software

  4. What is Metamorphic Software? • Software is metamorphic provided • All copies do the same thing • Internal structure of copies differs • Today almost all software is cloned • “Good” metamorphic software… • Mitigate buffer overflow attacks • “Bad” metamorphic software… • Avoid virus/worm signature detection

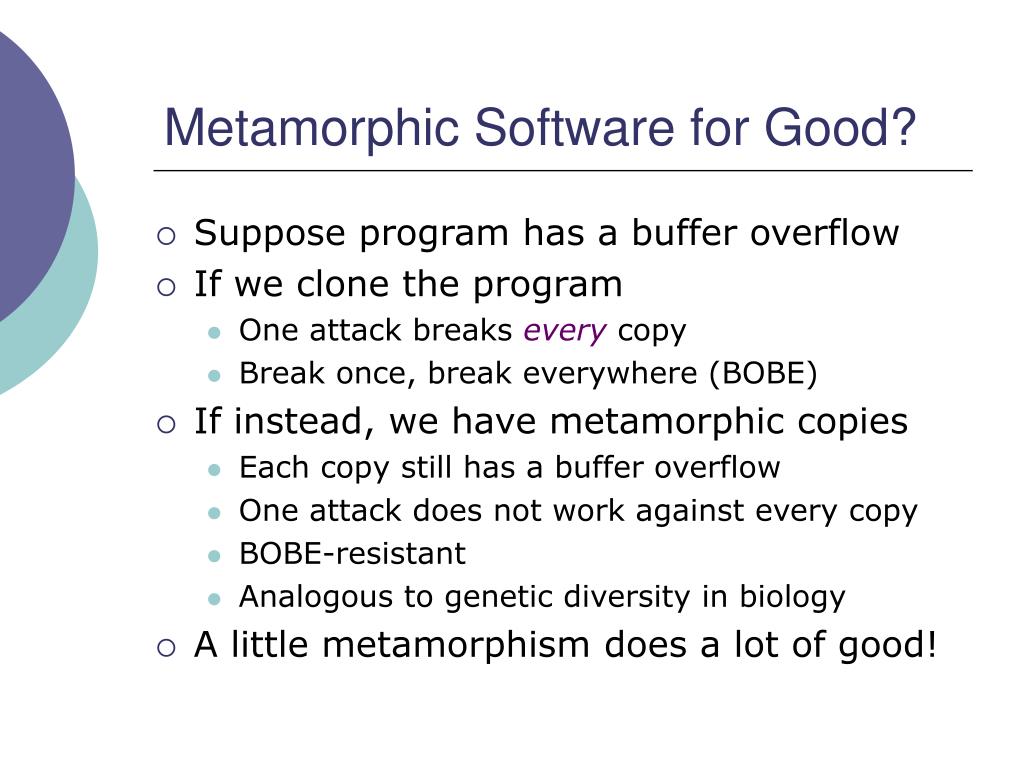

  5. Metamorphic Software for Good? • Suppose program has a buffer overflow • If we clone the program • One attack breaks every copy • Break once, break everywhere (BOBE) • If instead, we have metamorphic copies • Each copy still has a buffer overflow • One attack does not work against every copy • BOBE-resistant • Analogous to genetic diversity in biology • A little metamorphism does a lot of good!

  6. Metamorphic Software for Evil? • Cloned virus/worm can be detected • Common signature on every copy • Detect once, detect everywhere (DODE?) • If instead virus/worm is metamorphic • Each copy has different signature • Same detection does not work against every copy • Provides DODE-resistance • Analogous to genetic diversity in biology • But, effective use of metamorphism here is tricky!

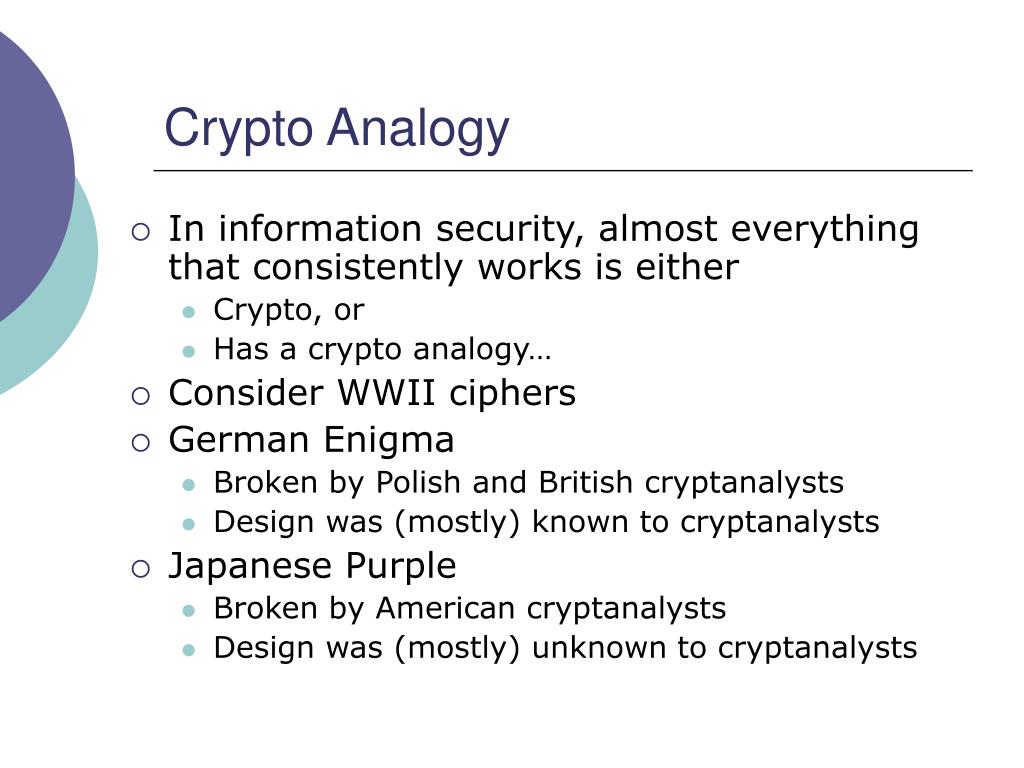

  7. Crypto Analogy • In information security, almost everything that consistently works is either • Crypto, or • Has a crypto analogy… • Consider WWII ciphers • German Enigma • Broken by Polish and British cryptanalysts • Design was (mostly) known to cryptanalysts • Japanese Purple • Broken by American cryptanalysts • Design was (mostly) unknown to cryptanalysts

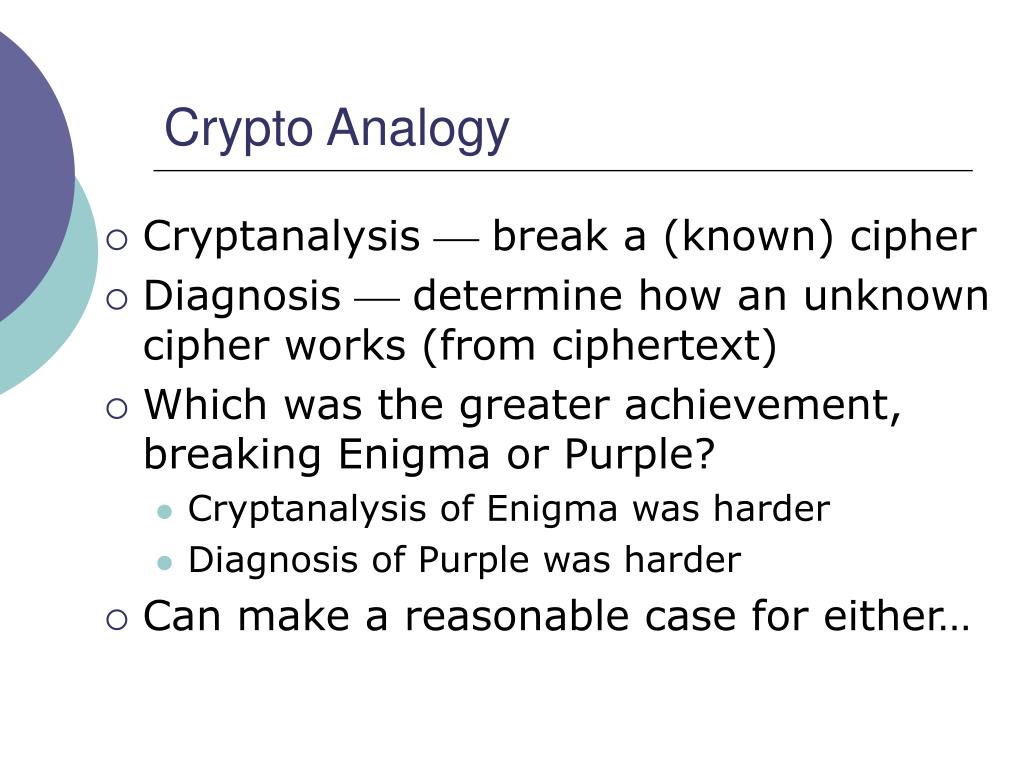

  8. Crypto Analogy • Cryptanalysis  break a (known) cipher • Diagnosis  determine how an unknown cipher works (from ciphertext) • Which was the greater achievement, breaking Enigma or Purple? • Cryptanalysis of Enigma was harder • Diagnosis of Purple was harder • Can make a reasonable case for either…

  9. Crypto Analogy • What does this have to do with metamorphic software? • Suppose we (the good guys) generate metamorphic copies of our software • Bad guys can attack individual copies • Can bad guys attack all copies? • Bad guys can try to diagnose our metamorphic generator

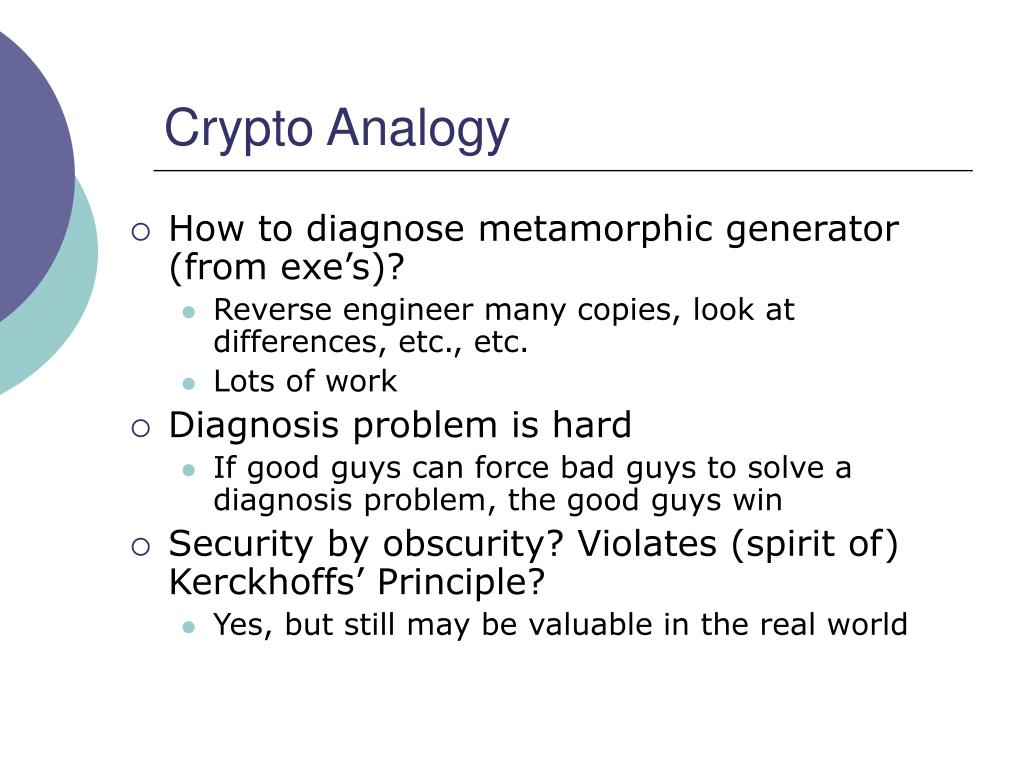

  10. Crypto Analogy • How to diagnose metamorphic generator (from exe’s)? • Reverse engineer many copies, look at differences, etc., etc. • Lots of work • Diagnosis problem is hard • If good guys can force bad guys to solve a diagnosis problem, the good guys win • Security by obscurity? Violates (spirit of) Kerckhoffs’ Principle? • Yes, but still may be valuable in the real world

  11. Crypto Analogy • What about case where bad guys write metamorphic code? • Metamorphic viruses, for example • Do good guys need to solve diagnosis problem? • If so, good guys are in trouble • Not if good guys “only” need to detect the metamorphic code (not diagnose) • Not claiming the good guys job is easy • Just claiming that there is hope…

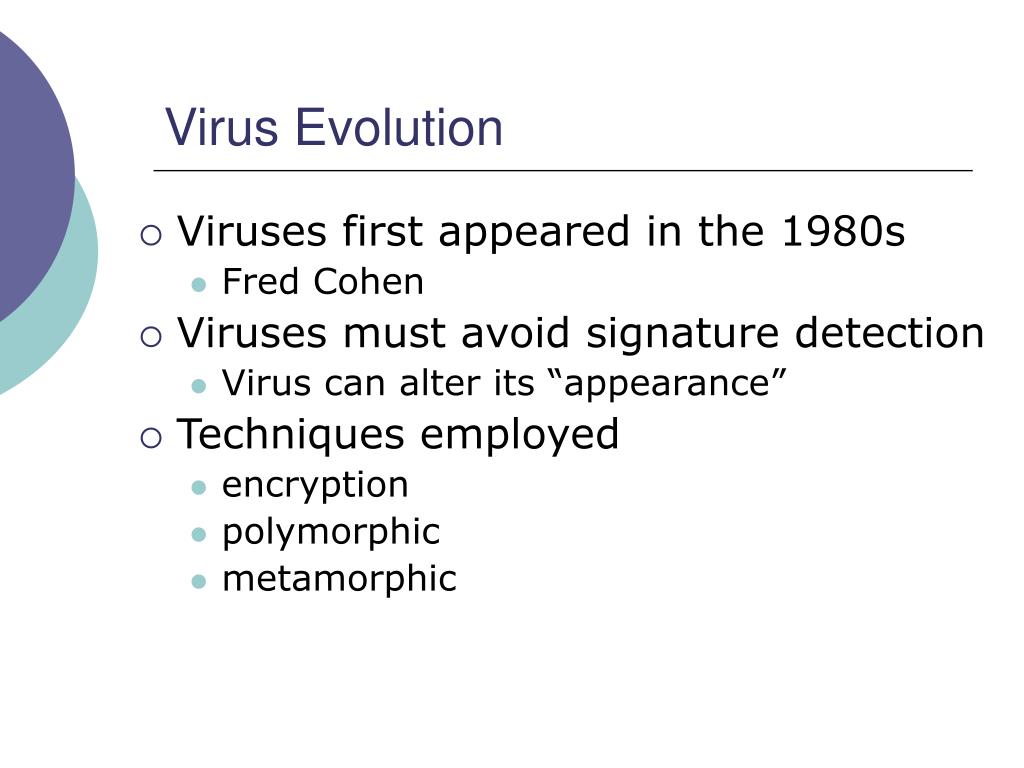

  12. Virus Evolution • Viruses first appeared in the 1980s • Fred Cohen • Viruses must avoid signature detection • Virus can alter its “appearance” • Techniques employed • encryption • polymorphic • metamorphic

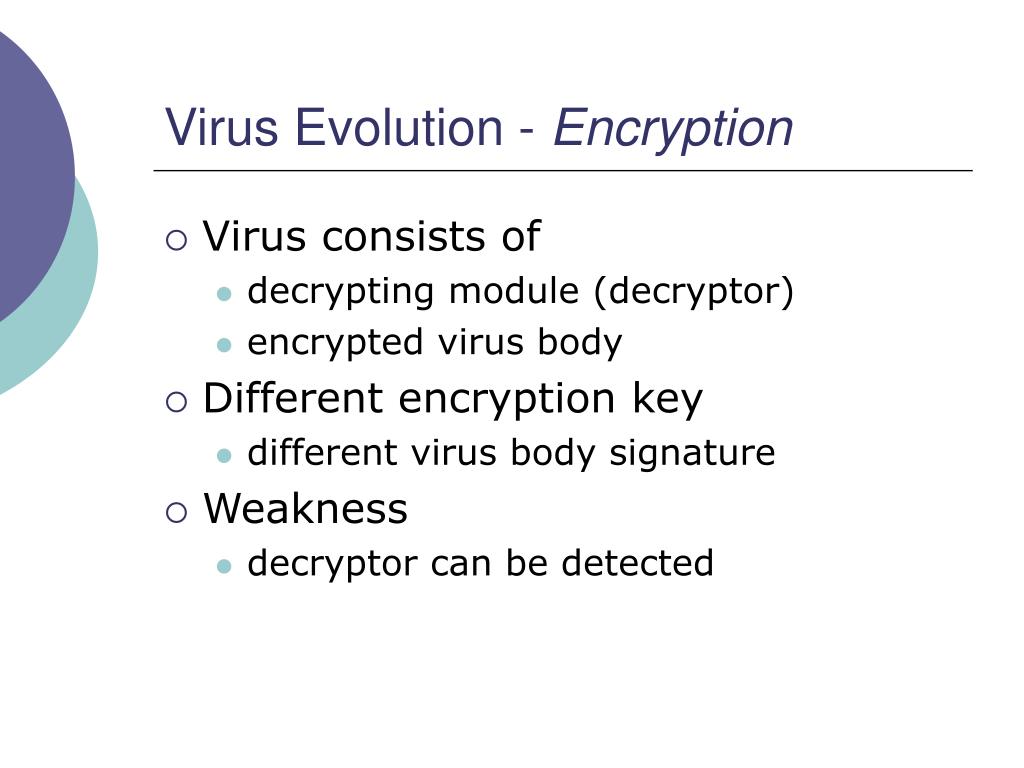

  13. Virus Evolution - Encryption • Virus consists of • decrypting module (decryptor) • encrypted virus body • Different encryption key • different virus body signature • Weakness • decryptor can be detected

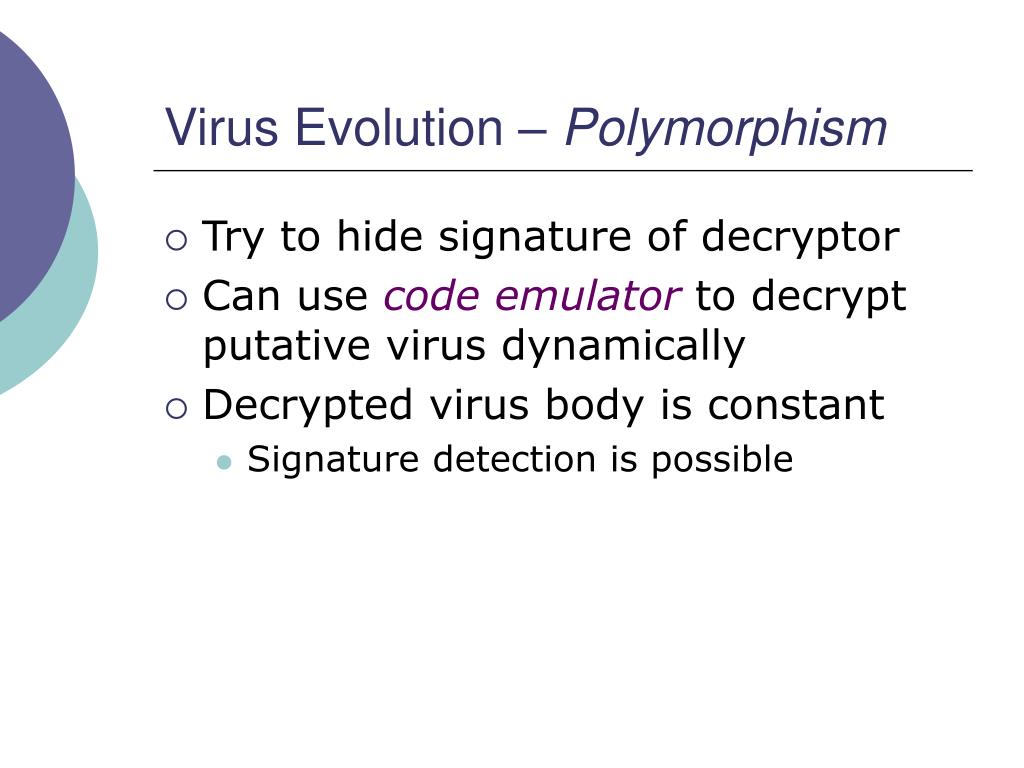

  14. Virus Evolution – Polymorphism • Try to hide signature of decryptor • Can use code emulator to decrypt putative virus dynamically • Decrypted virus body is constant • Signature detection is possible

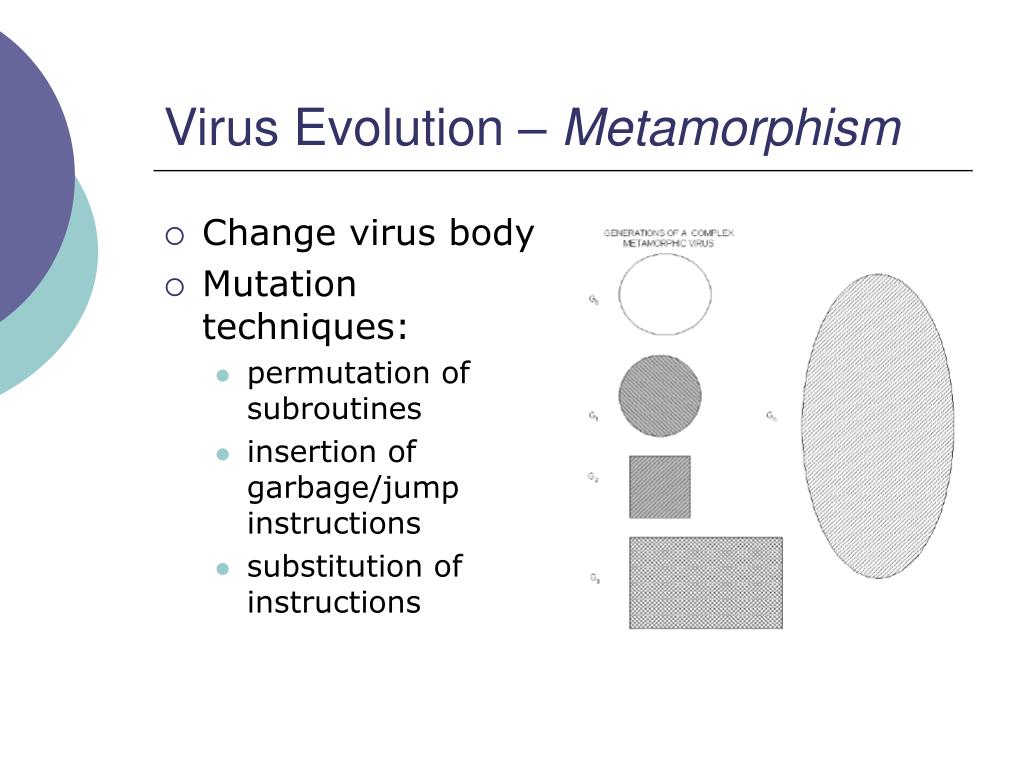

  15. Virus Evolution – Metamorphism • Change virus body • Mutation techniques: • permutation of subroutines • insertion of garbage/jump instructions • substitution of instructions

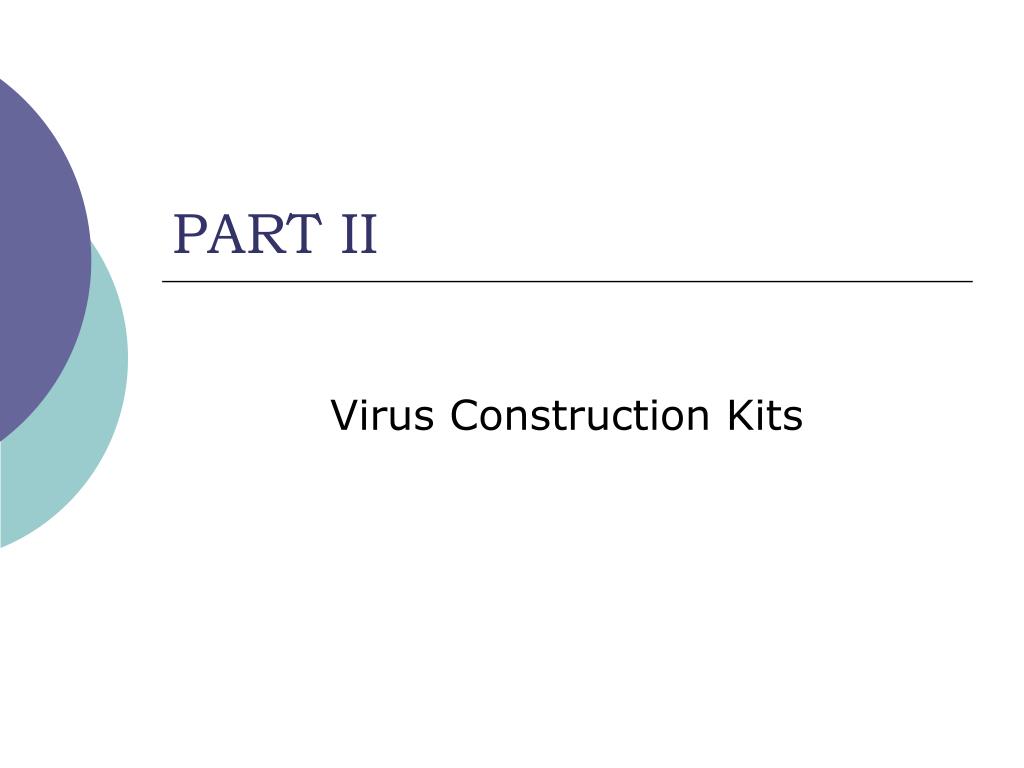

  16. PART II Virus Construction Kits

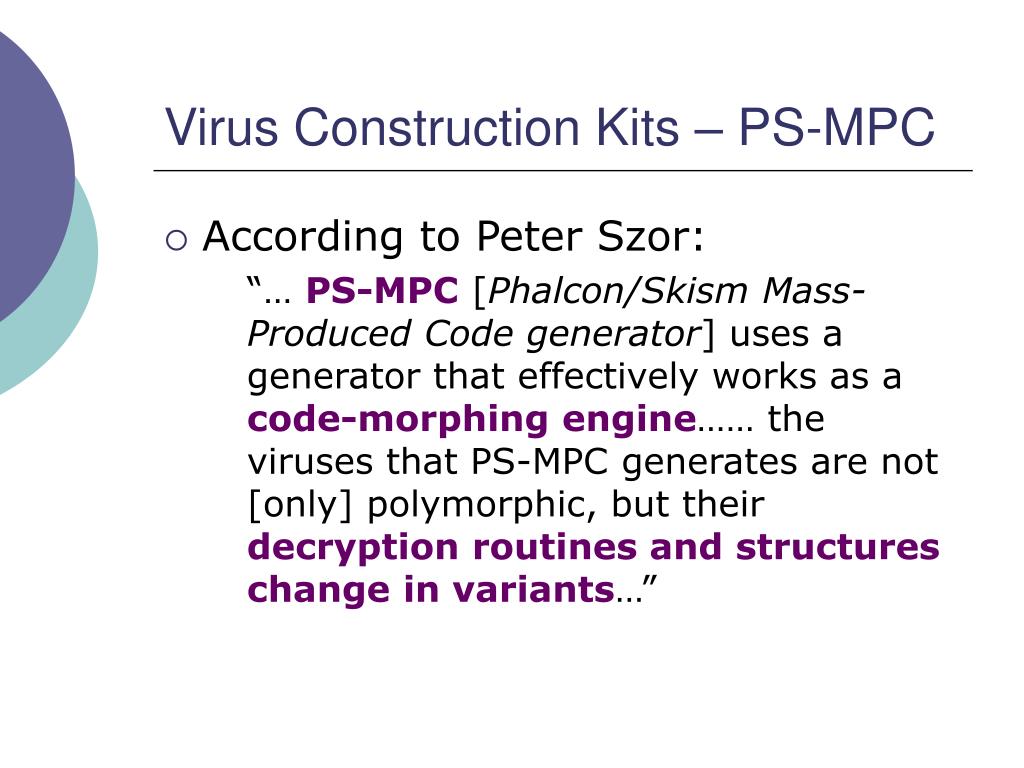

  17. Virus Construction Kits – PS-MPC • According to Peter Szor: “… PS-MPC [Phalcon/Skism Mass-Produced Code generator] uses a generator that effectively works as a code-morphing engine…… the viruses that PS-MPC generates are not [only] polymorphic, but their decryption routines and structures changein variants…”

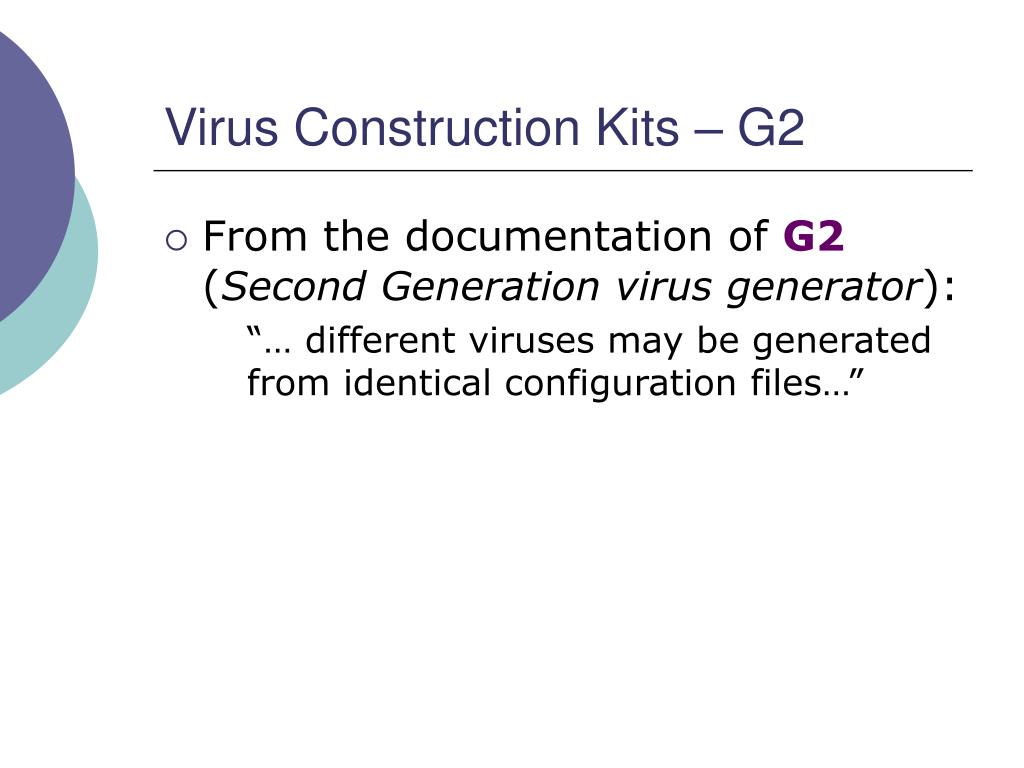

  18. Virus Construction Kits – G2 • From the documentation of G2 (Second Generation virus generator): “… different viruses may be generated from identical configuration files…”

  19. Virus Construction Kits - NGVCK • From the documentation for NGVCK(Next Generation Virus Creation Kit): “… all created viruses are completely different in structure and opcode…… impossible to catch all variants with one or more scanstrings.…… nearly 100% variability of the entire code” • Oh, really?

  20. PART III How Effective Are Metamorphic Engines?

  21. How We Compare Two Pieces of Code

  22. Virus Families – Test Data • Four generators, 45 viruses • 20 viruses by NGVCK • 10 viruses by G2 • 10 viruses by VCL32 • 5 viruses by MPCGEN • 20 normal utility programs from the Cygwin bin directory

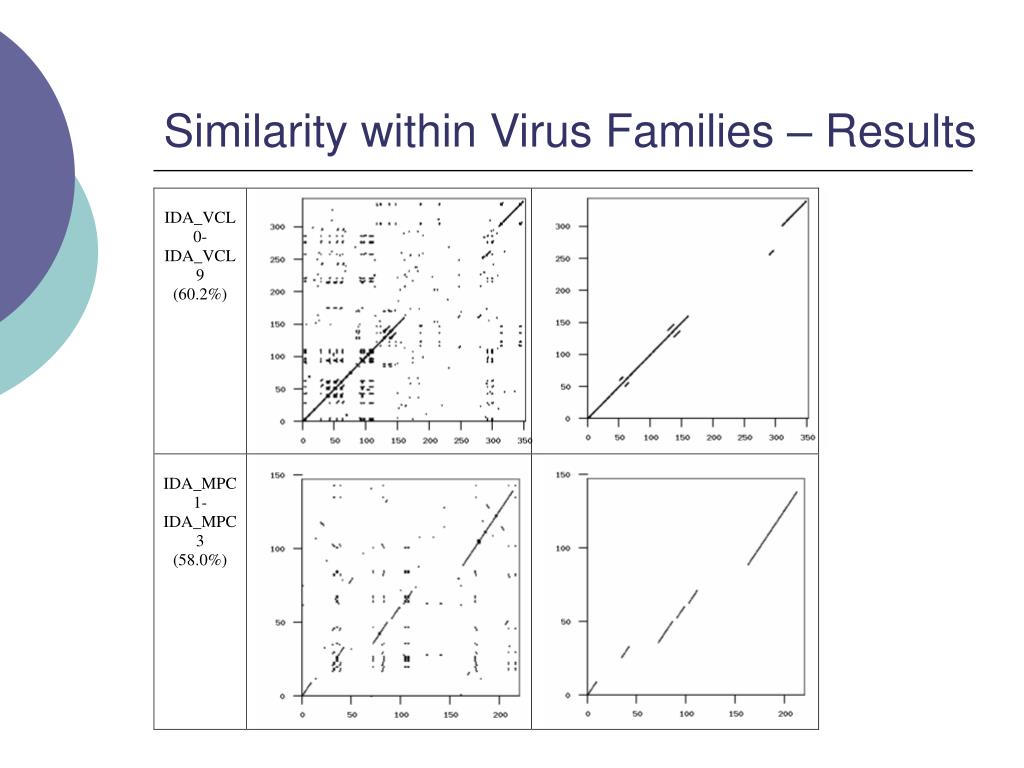

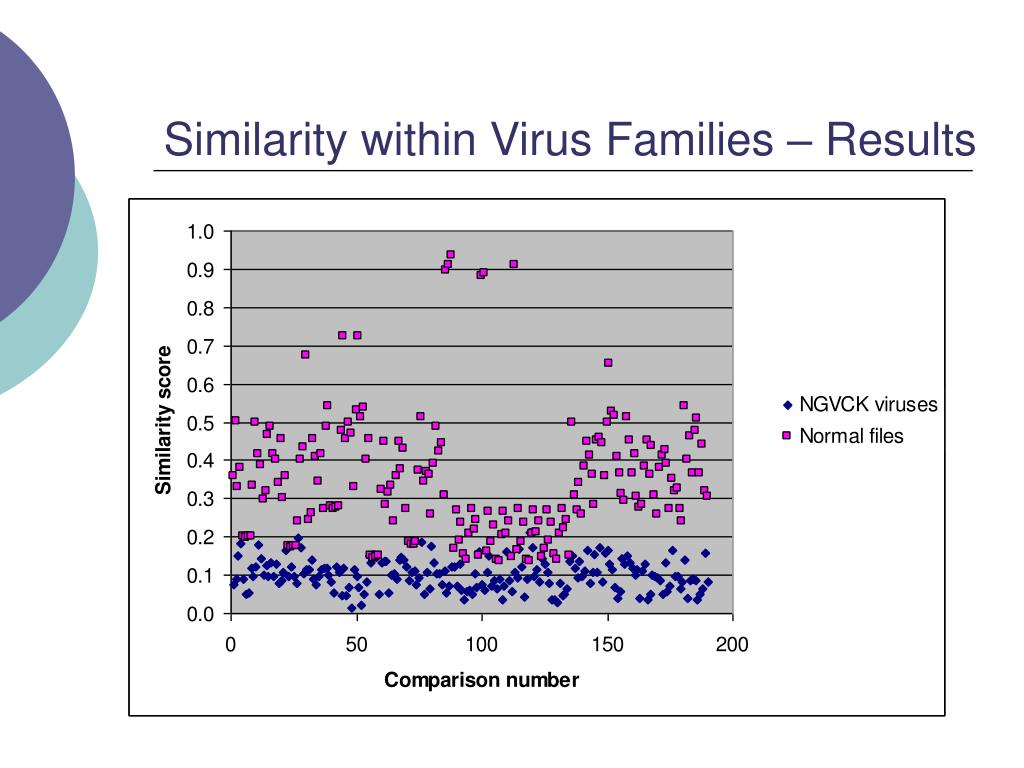

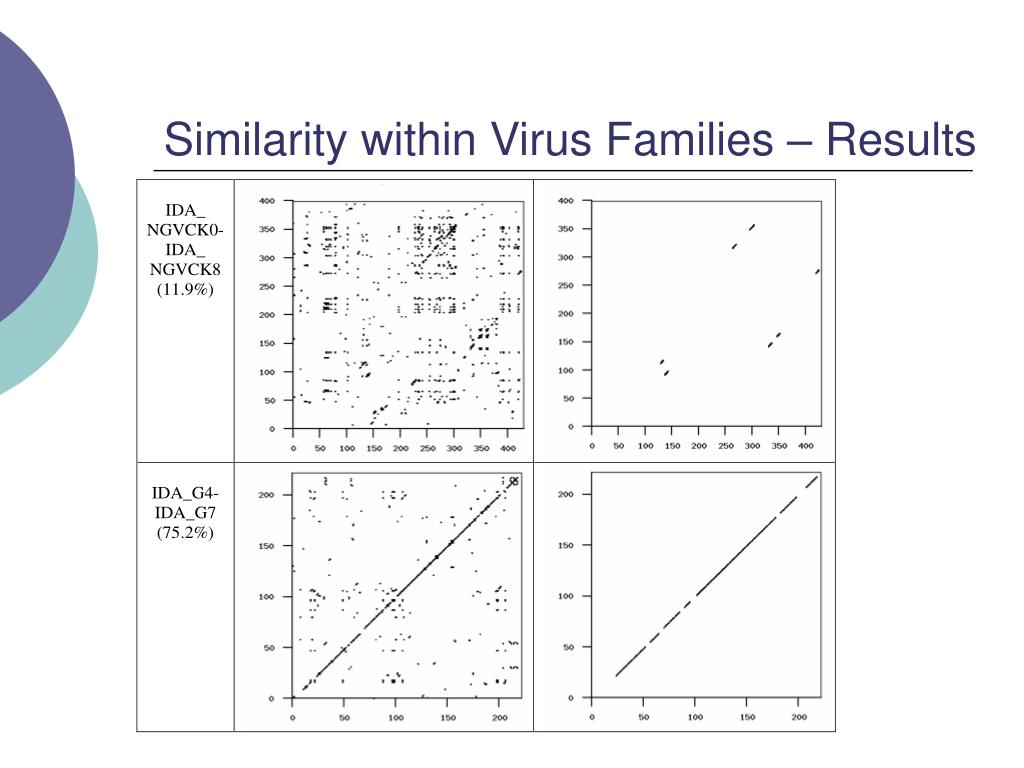

  23. Similarity within Virus Families – Results

  24. Similarity within Virus Families – Results

  25. Similarity within Virus Families – Results

  26. Similarity within Virus Families – Results

  27. Similarity within Virus Families – Results

  28. NGVCK Similarity to Virus Families • NGVCK versus other viruses • 0% similar to G2 and MPCGEN viruses • 0 – 5.5% similar to VCL32 viruses (43 out of 100 comparisons have score > 0) • 0 – 1.2% similar to normal files (only 8 out of 400 comparisons have score > 0)

  29. NGVCK Metamorphism/Similarity • NGVCK • By far the highest degree of metamorphism of any kit tested • Virtually no similarity to other viruses or normal programs • Undetectable???

  30. PART IV Can Metamorphic Viruses Be Detected?

  31. Commercial Virus Scanners • Tested three virus scanners • eTrust version 7.0.405 • avast! antivirus version 4.7 • AVG Anti-Virus version 7.1 • Each scanned 37 files • 10 NGVCK viruses • 10 G2 viruses • 10 VCL32 viruses • 7 MPCGEN viruses

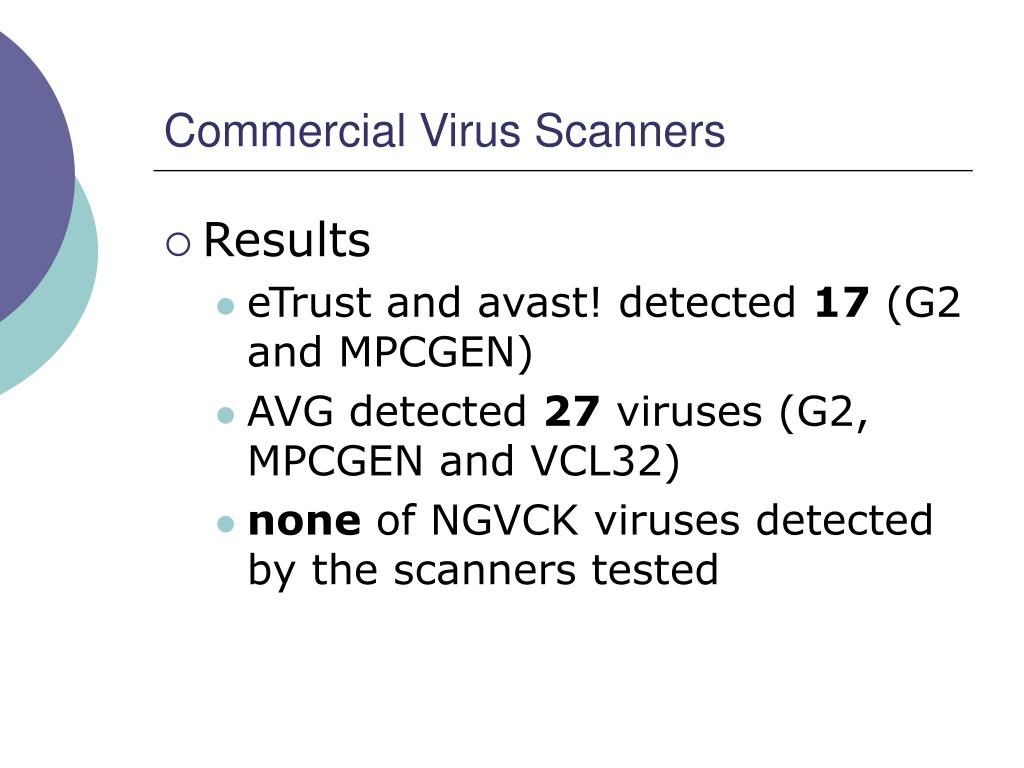

  32. Commercial Virus Scanners • Results • eTrust and avast! detected 17 (G2 and MPCGEN) • AVG detected 27 viruses (G2, MPCGEN and VCL32) • none of NGVCK viruses detected by the scanners tested

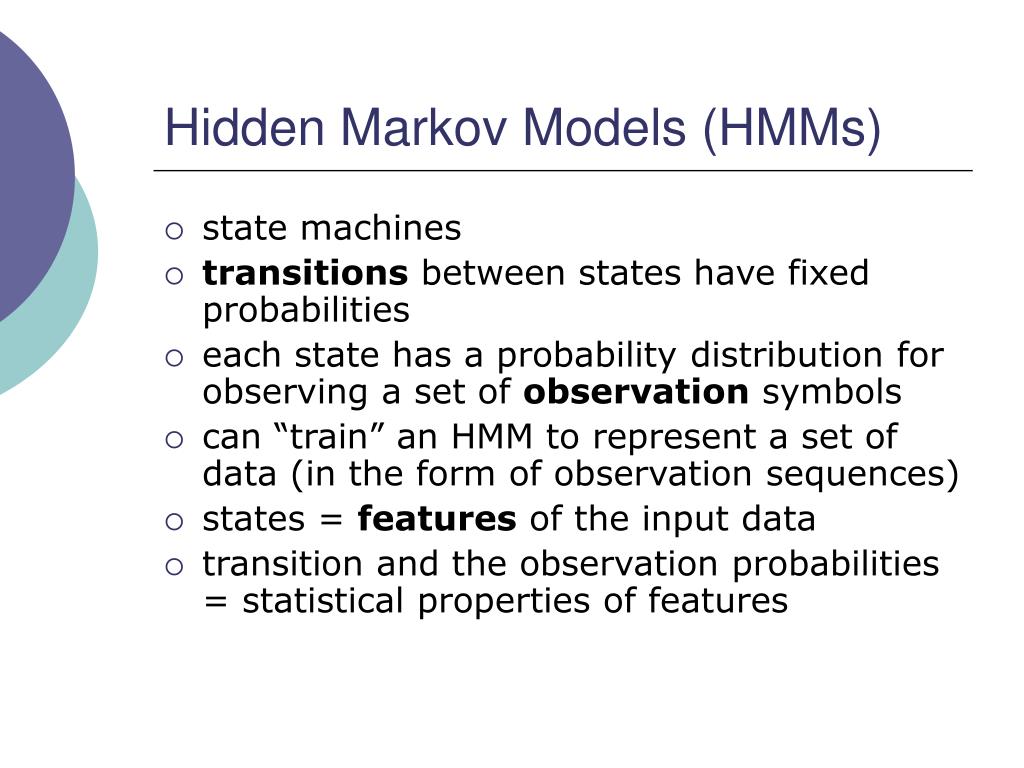

  33. Hidden Markov Models (HMMs) • state machines • transitions between states have fixed probabilities • each state has a probability distribution for observing a set of observation symbols • can “train” an HMM to represent a set of data (in the form of observation sequences) • states = features of the input data • transition and the observation probabilities = statistical properties of features

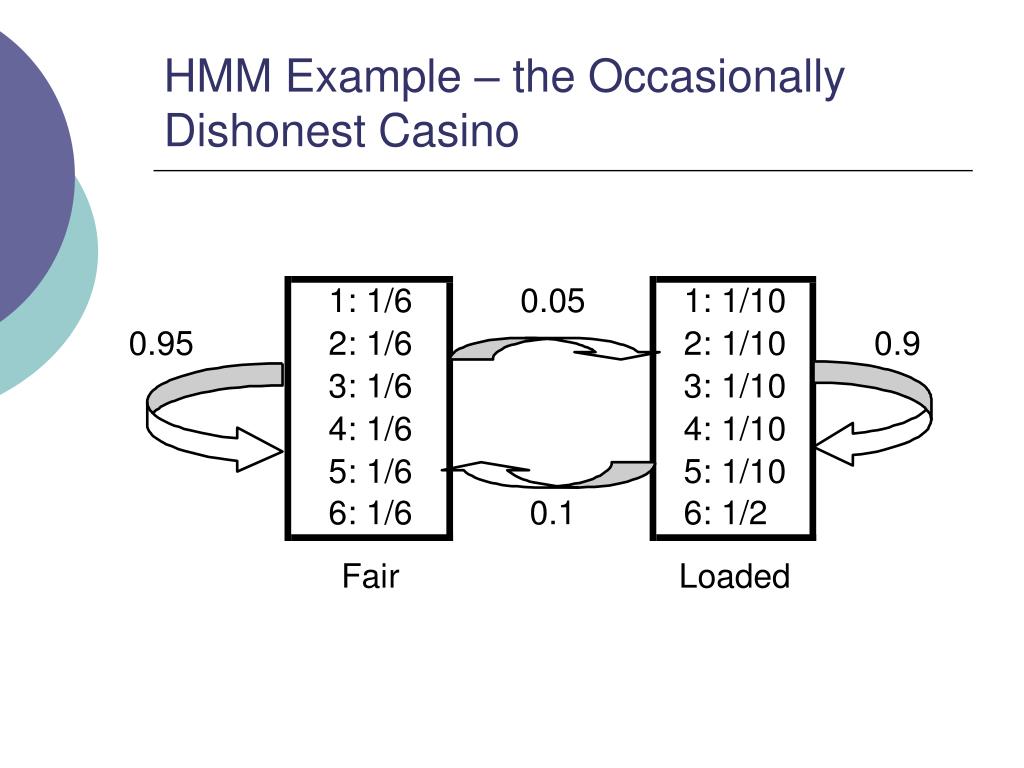

  34. HMM Example – the Occasionally Dishonest Casino

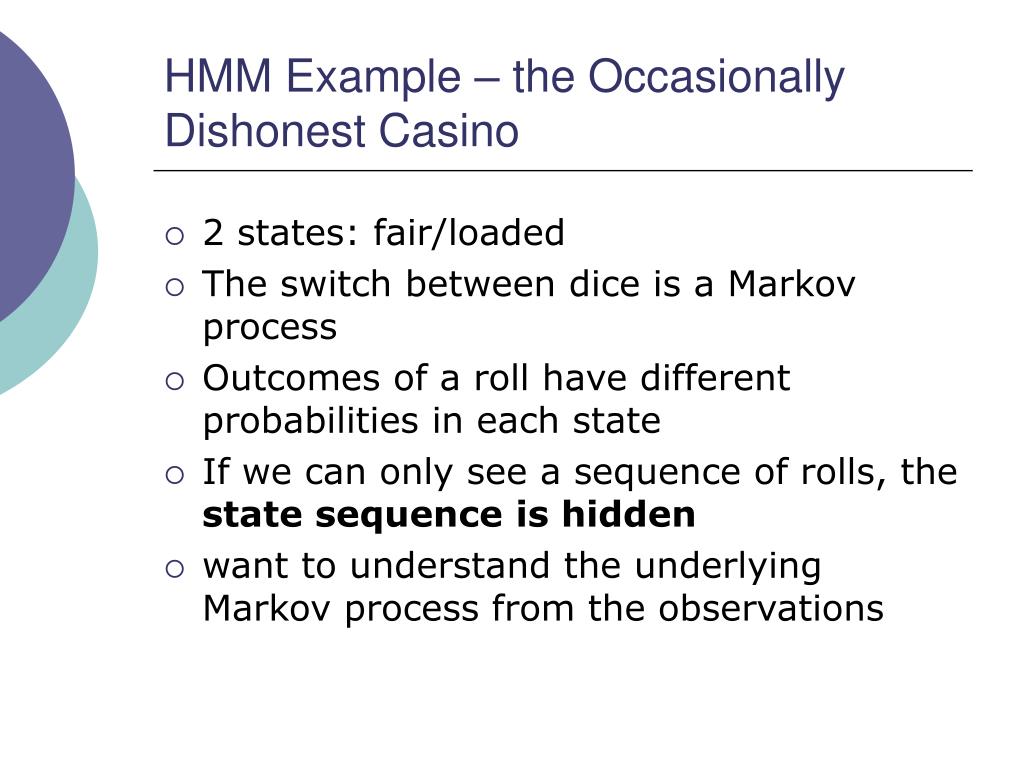

  35. HMM Example – the Occasionally Dishonest Casino • 2 states: fair/loaded • The switch between dice is a Markov process • Outcomes of a roll have different probabilities in each state • If we can only see a sequence of rolls, the state sequence is hidden • want to understand the underlying Markov process from the observations

  36. HMMs – the Three Problems • Find the likelihood of seeing an observation sequence O given a model , i.e. P(O | ) • Find an optimal state sequence that could have generated a sequence O • Find the model parameters given a sequence O, i.e. find transition and observation probabilities that maximize the probability of observing O • There exist efficient algorithms to solve the three problems

  37. HMM Application – Determining the Properties of English Text • Given: a large quantity of written English text • Input: a long sequence of observations consisting of 27 symbols (the 26 lower-case letters and the word space) • Train a model to find the most probable parameters (i.e., solve Problem 3) • Use trained model to score any unknown sequence of letters (and spaces) to determine whether it corresponds to English text. (i.e., solve Problem 1)

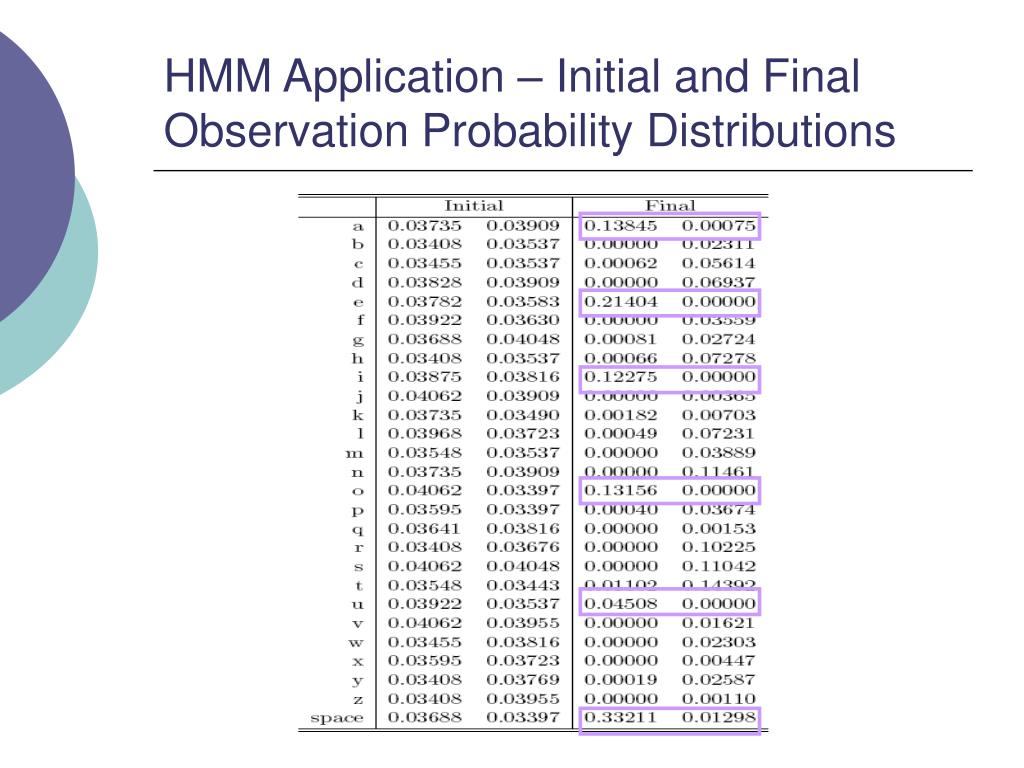

  38. HMM Application – Initial and Final Observation Probability Distributions

  39. HMM Application - Results • Observation probabilities converged, each letter belongs to one of the two hidden states • The two states correspond to consonants and vowels • Note: • no a priori assumption was made • HMM effectively recovered the statistically significant feature inherent in English

  40. HMM Application - Results • Probabilities can be sensibly interpreted for up to n = 12 hidden states • Trained model could be used to detect English text, even if the text is “disguised” by, say, a simple substitution cipher or similar transformation

  41. Virus Detection with HMMs • Use hidden Markov models (HMMs) to represent statistical properties of a set of metamorphic virus variants • Train the model on family of metamorphic viruses • Use trained model to determine whether a given program is similar to the viruses the HMM represents

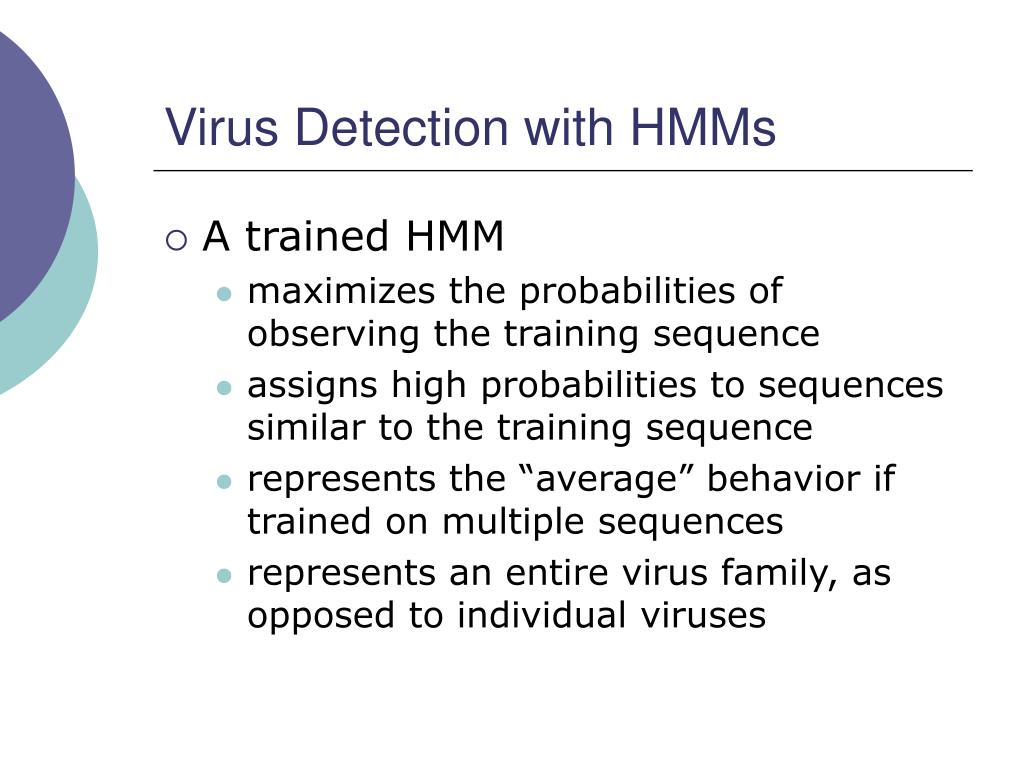

  42. Virus Detection with HMMs • A trained HMM • maximizes the probabilities of observing the training sequence • assigns high probabilities to sequences similar to the training sequence • represents the “average” behavior if trained on multiple sequences • represents an entire virus family, as opposed to individual viruses

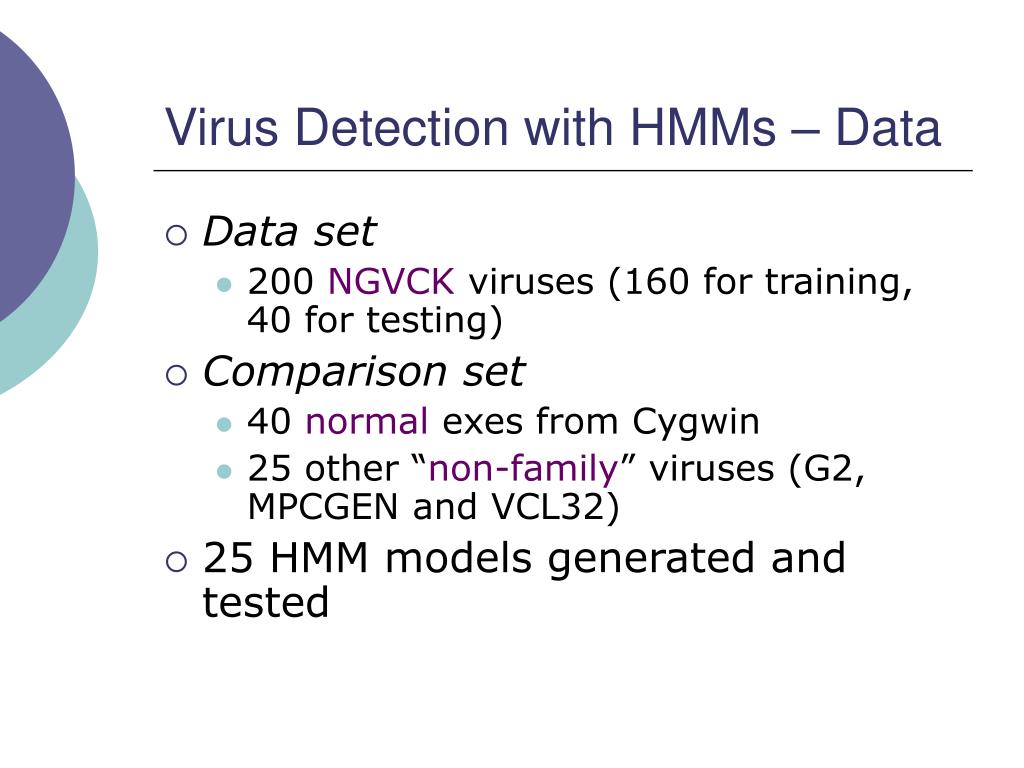

  43. Virus Detection with HMMs – Data • Data set • 200 NGVCK viruses (160 for training, 40 for testing) • Comparison set • 40 normal exes from Cygwin • 25 other “non-family” viruses (G2, MPCGEN and VCL32) • 25 HMM models generated and tested

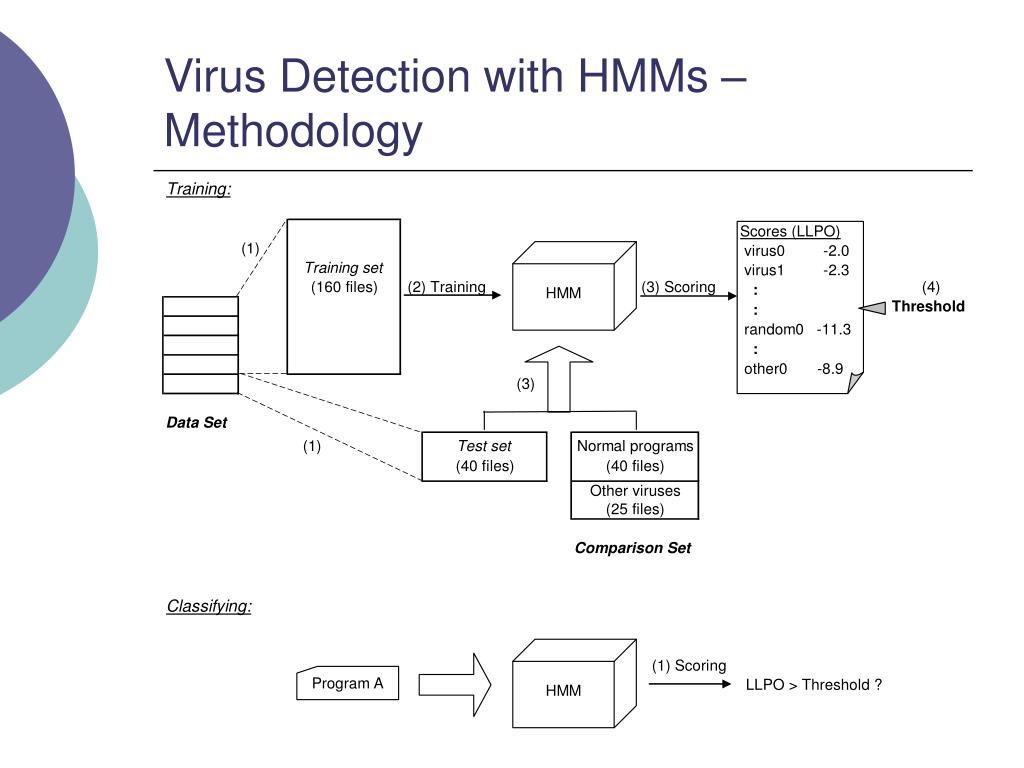

  44. Virus Detection with HMMs – Methodology

  45. Virus Detection with HMMs – Results

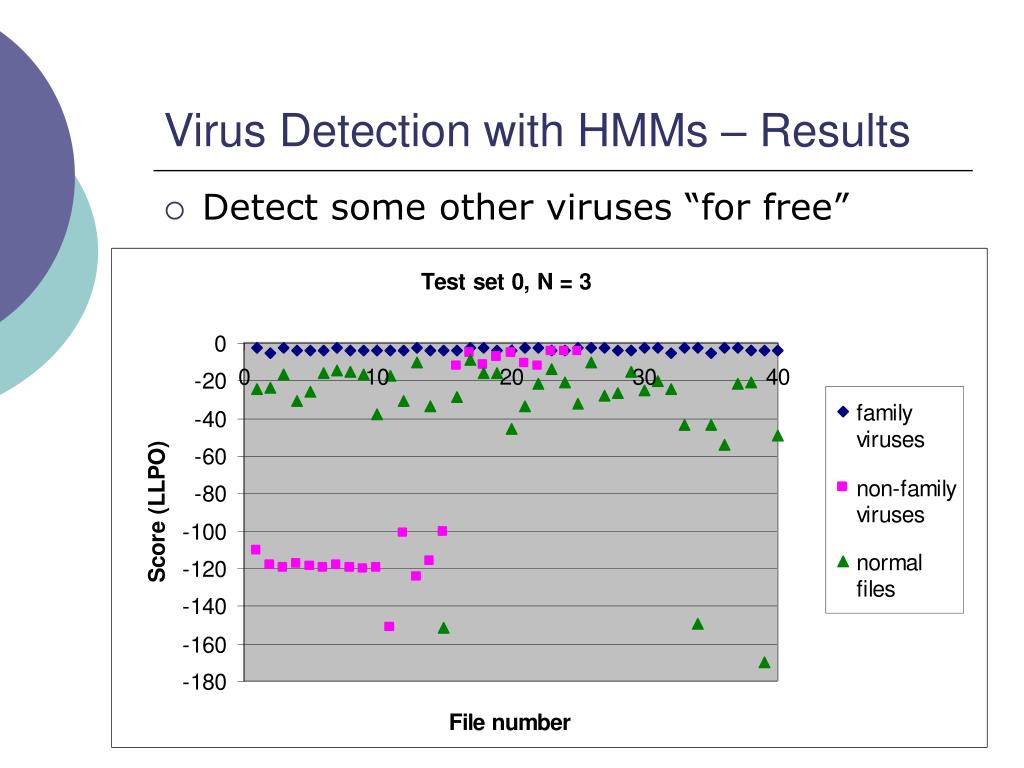

  46. Virus Detection with HMMs – Results • Detect some other viruses “for free”

  47. Virus Detection with HMMs • Summary of experimental results • All normal programs distinguished • VCL32 viruses had scores close to NGVCK family viruses • With proper threshold, 17 HMM models had 100% detection rate and 10 models had 0% false positive rate • No significant difference in performance between HMMs with 3 or more hidden states

  48. Virus Detection with HMMs – Trained Models • Converged probabilities in HMM matrices may give insight into the features of the represented viruses • We observe • opcodes grouped into “hidden” states • most opcodes in one state only • What does this mean? • We are not sure…

  49. HMMs – The Trained Models

  50. Detection via Similarity Index • Straightforward similarity indexcan be used as detector • To determine whether a program belongs to the NGVCK virus family, compare it to any randomly chosen NGVCK virus • NGVCK similarity to non-NGVCK code is small • Can use this fact to detect metamorphic NGVCK variants
