  1. Interfaces and Synchronization Martin Weiss

  2. EIA 232D Interface Standard • Synonymous with ITU V.24 • Asynchronous interface • Up to 19.2kbps • 50 foot maximum distance between DCE and DTE

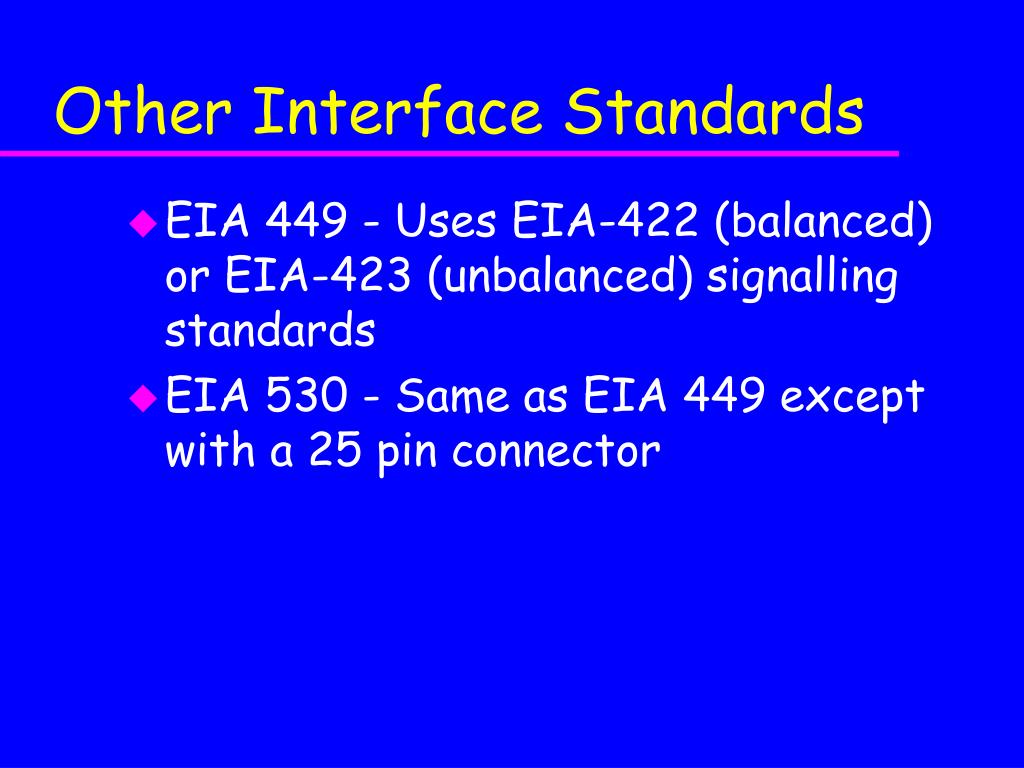

  3. Other Interface Standards • EIA 449 - Uses EIA-422 (balanced) or EIA-423 (unbalanced) signalling standards • EIA 530 - Same as EIA 449 except with a 25 pin connector

  4. Signalling Standards Circuit Type Max. Separation (m) Max. Bit Rate EIA-423 10 100 1000 100kbps 10kbps 1kbps EIA-422 10 100 1000 10Mbps 1Mbps 100kbps

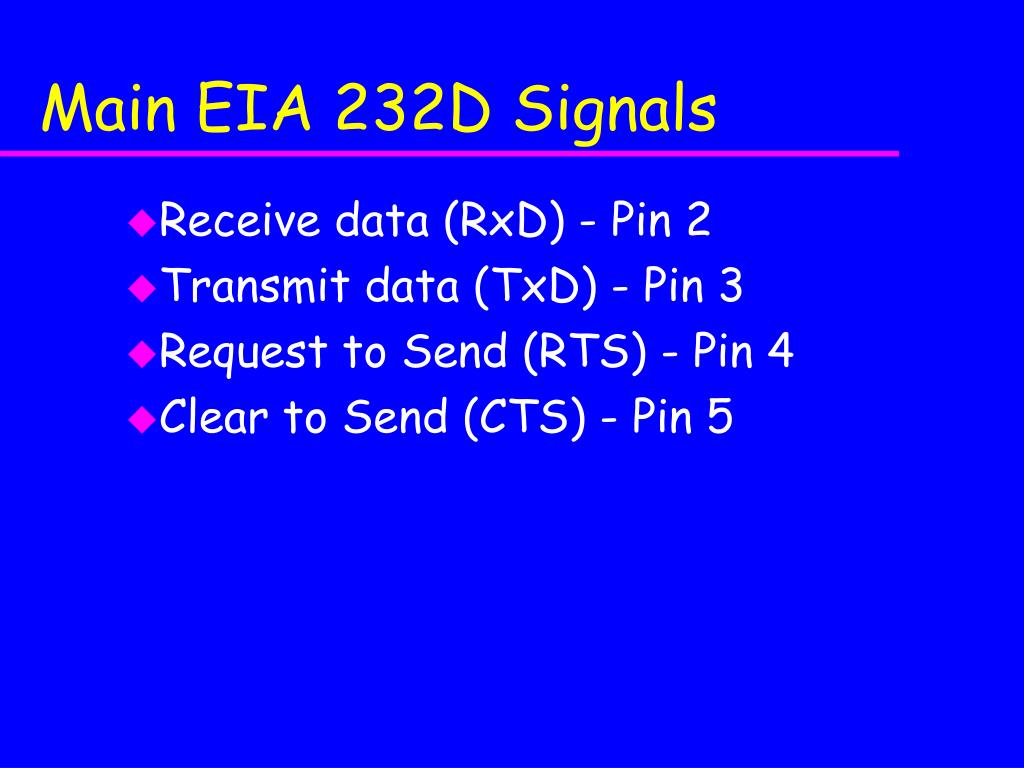

  5. Main EIA 232D Signals • Receive data (RxD) - Pin 2 • Transmit data (TxD) - Pin 3 • Request to Send (RTS) - Pin 4 • Clear to Send (CTS) - Pin 5

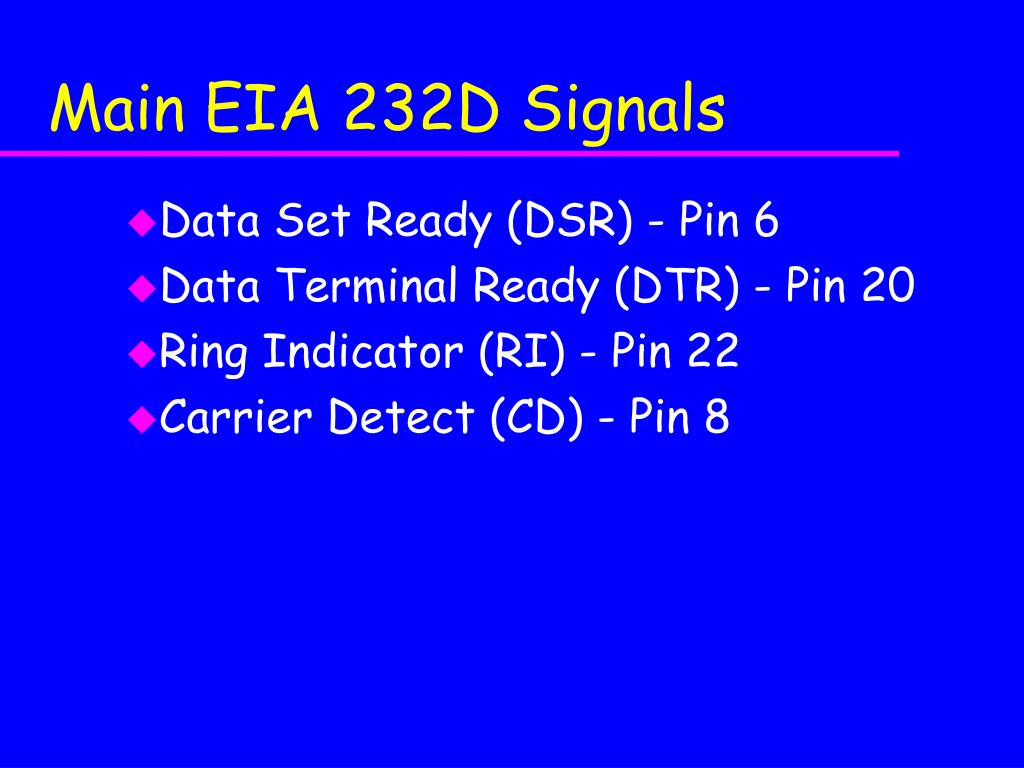

  6. Main EIA 232D Signals • Data Set Ready (DSR) - Pin 6 • Data Terminal Ready (DTR) - Pin 20 • Ring Indicator (RI) - Pin 22 • Carrier Detect (CD) - Pin 8

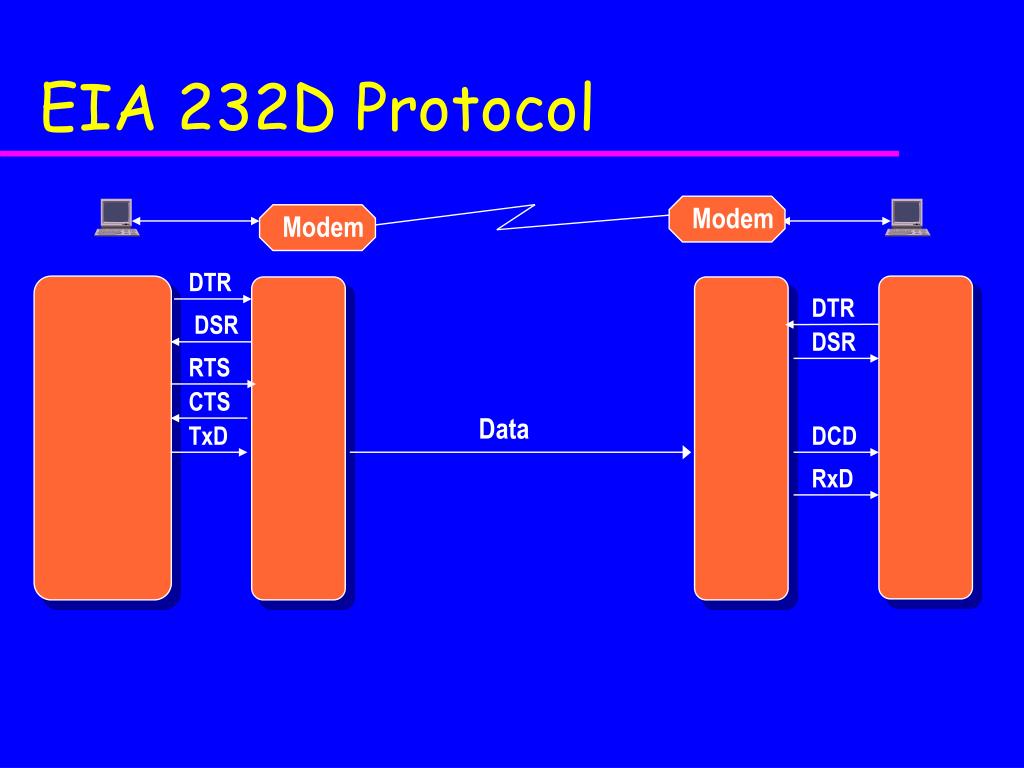

  7. Modem Modem DTR DTR DSR RTS CTS DSR Data TxD DCD RxD EIA 232D Protocol

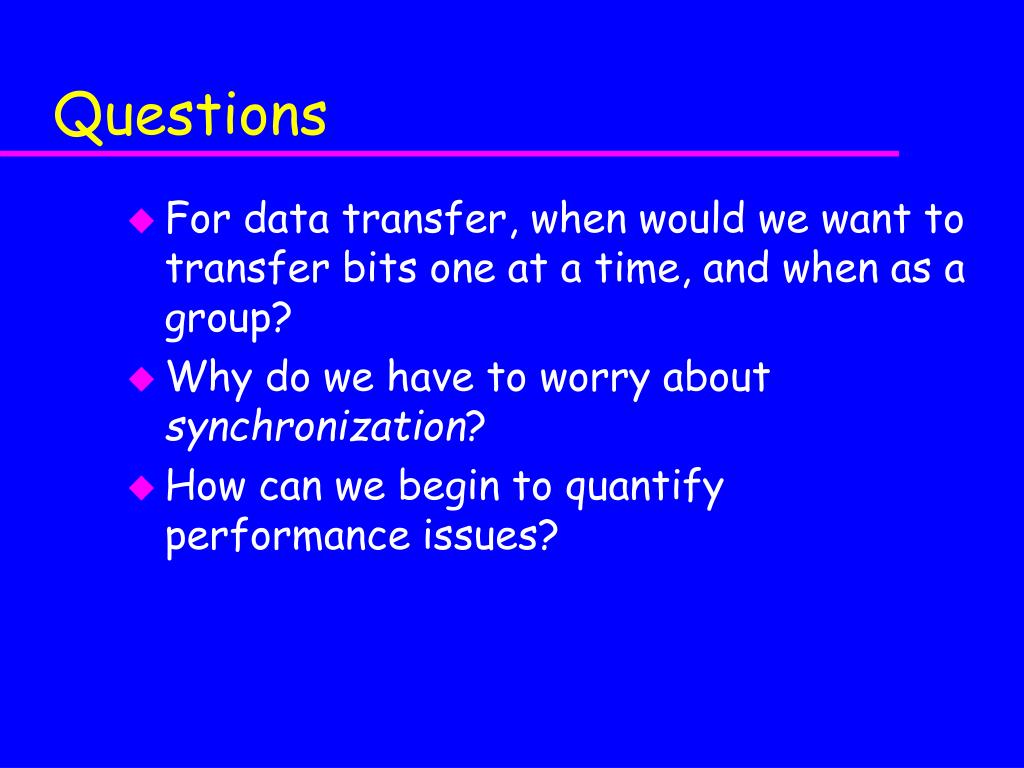

  8. Questions • For data transfer, when would we want to transfer bits one at a time, and when as a group? • Why do we have to worry about synchronization? • How can we begin to quantify performance issues?

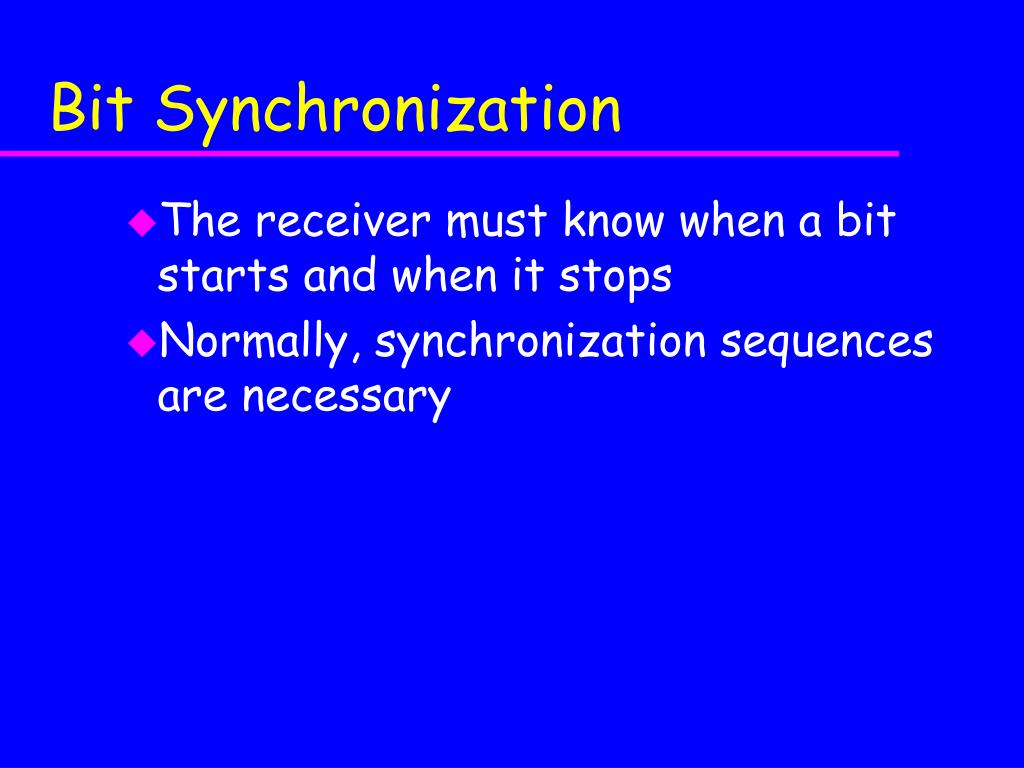

  9. Bit Synchronization • The receiver must know when a bit starts and when it stops • Normally, synchronization sequences are necessary

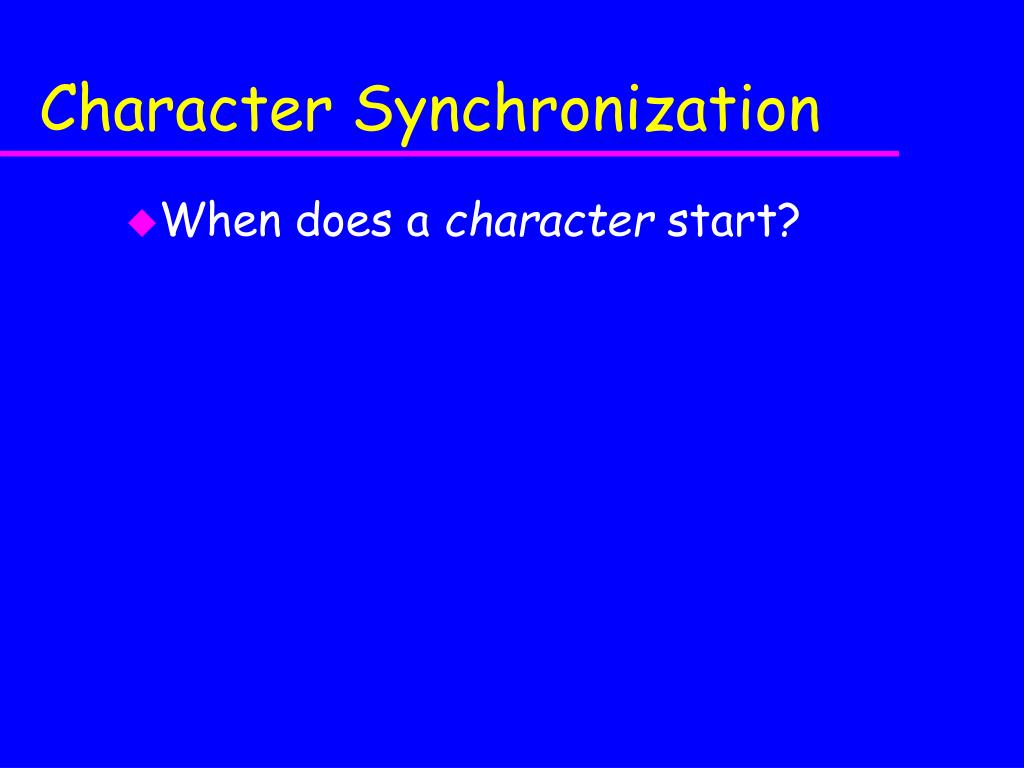

  10. Character Synchronization • When does a character start?

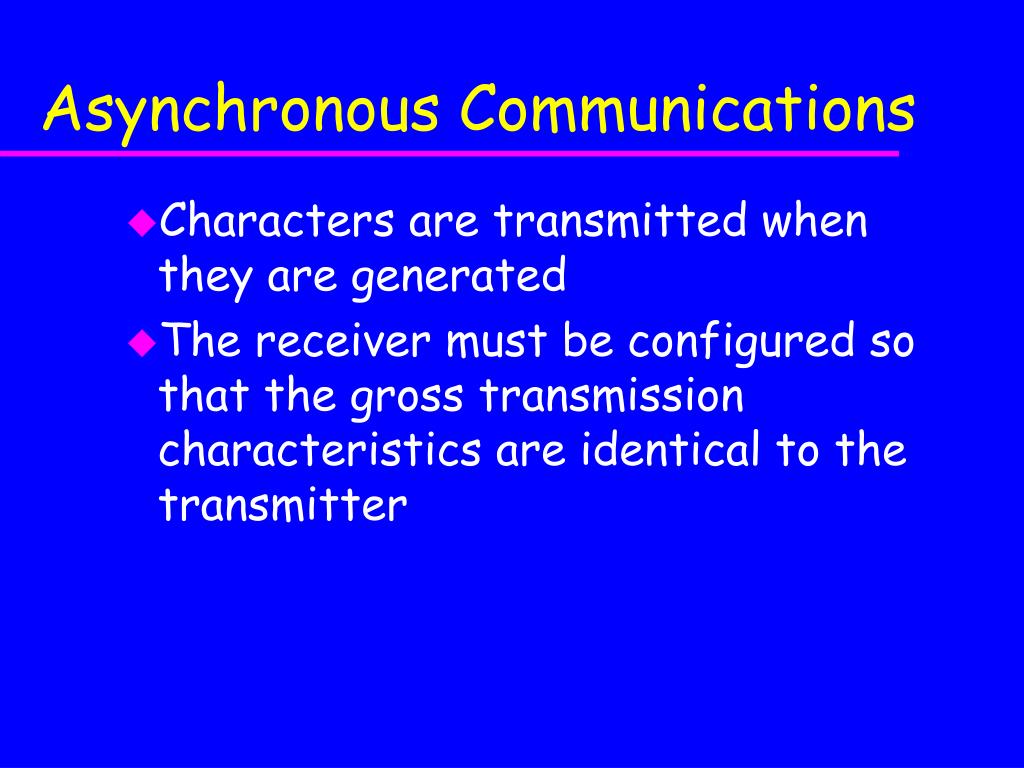

  11. Asynchronous Communications • Characters are transmitted when they are generated • The receiver must be configured so that the gross transmission characteristics are identical to the transmitter

  12. Implementation of Async • Line is normally in a logical “High” state • Preceding a character is a “Start Bit” (Low for one bit time) • Subsequent bits may be low or high • Character may be ended by stop bit(s)

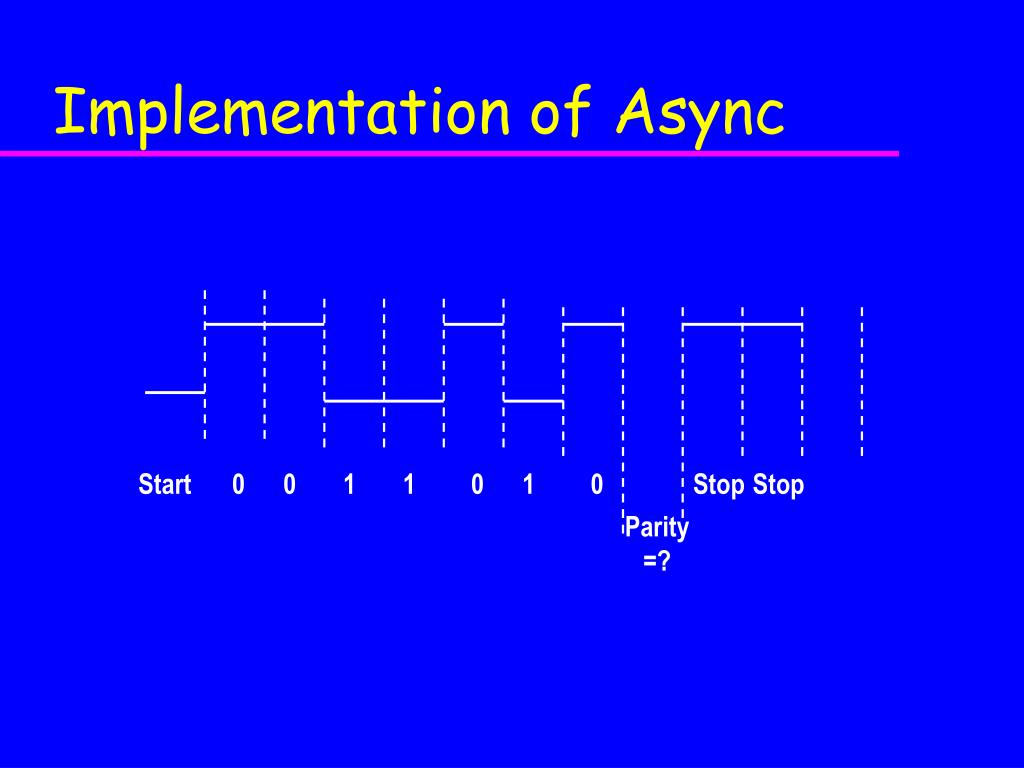

  13. Implementation of Async Start 0 0 1 1 0 1 0 Stop Stop Parity =?

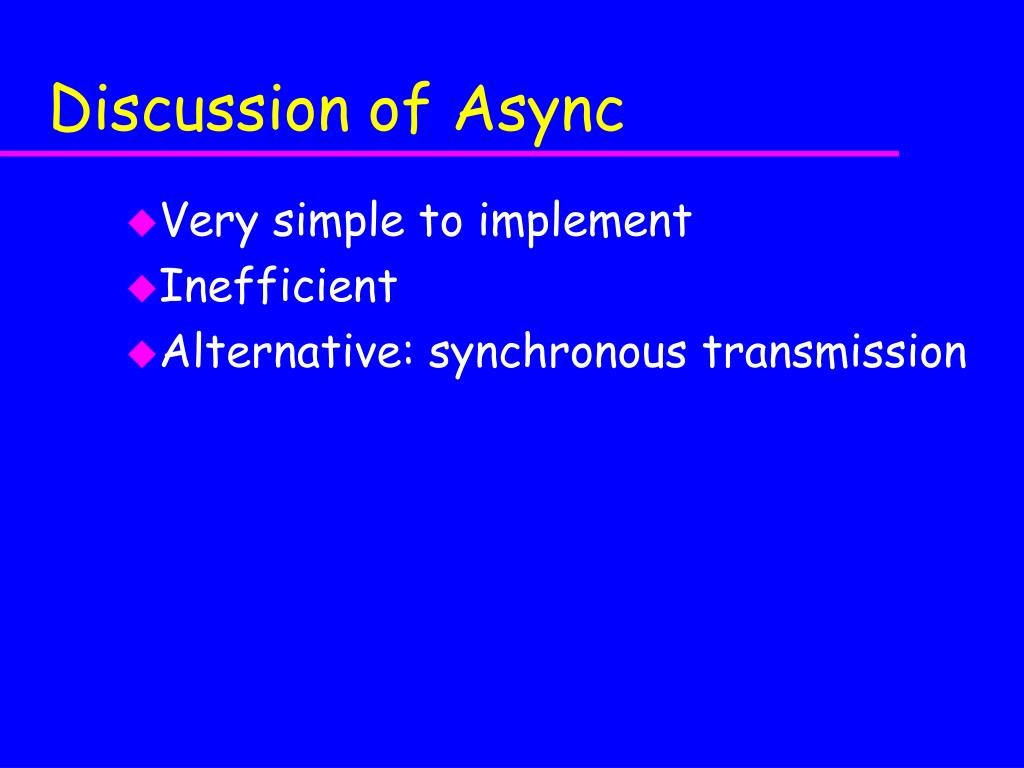

  14. Discussion of Async • Very simple to implement • Inefficient • Alternative: synchronous transmission

  15. Discussion of Async

  16. Synchronous Transmission • Transmitter and receiver are synchronized at the bit and character level prior to transmission • Messages may still arrive asynchronously • Synchronous systems are normally more complex

  17. Propagation time a = Transmission time Performance Analysis of Communications Links • Consider the effect of propagation delay and transmission rate Recall that

  18. Definitions • Let U = (throughput)/(capacity) = T/R • Throughput is the number of bits actually transmitted per unit time • Capacity is the number of bits that could be transmitted per unit time • R = data rate of the channel • d = maximum distance between any two stations

  19. frame length = transmission time + propagation delay Definitions • V = velocity of signal propagation • L = frame length (average or fixed) • T = throughput • Assuming no overhead, Number of bits T = Time from source to destination

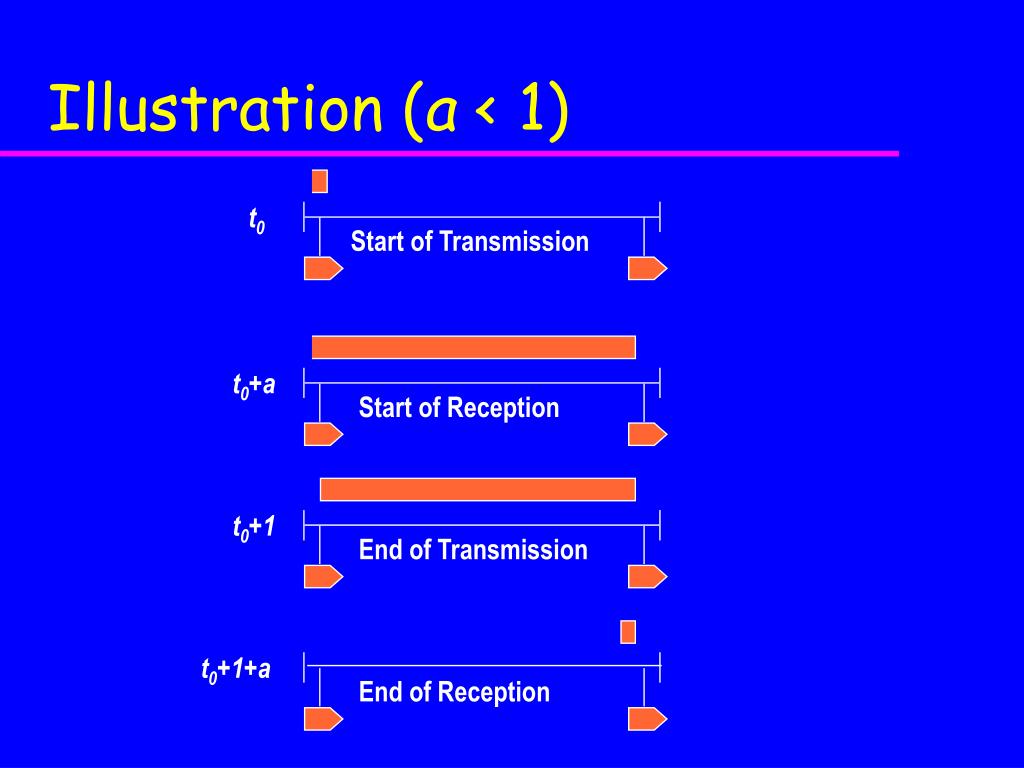

  20. Illustration (a < 1) t0 Start of Transmission t0+a Start of Reception t0+1 End of Transmission t0+1+a End of Reception

  21. Illustration (a > 1) t0 Start of Transmission t0+1 End of Transmission t0+a Start of Reception t0+1+a End of Reception

  22. frame length T = Propagation delay + transmission time Utilization of a Baseband Bus Utilization = Throughput/Capacity

  23. U vs. a U 1.0 0.8 0.6 0.4 0.2 a 1 5 10 15 20
