Collections and classes

1. Collections and classes

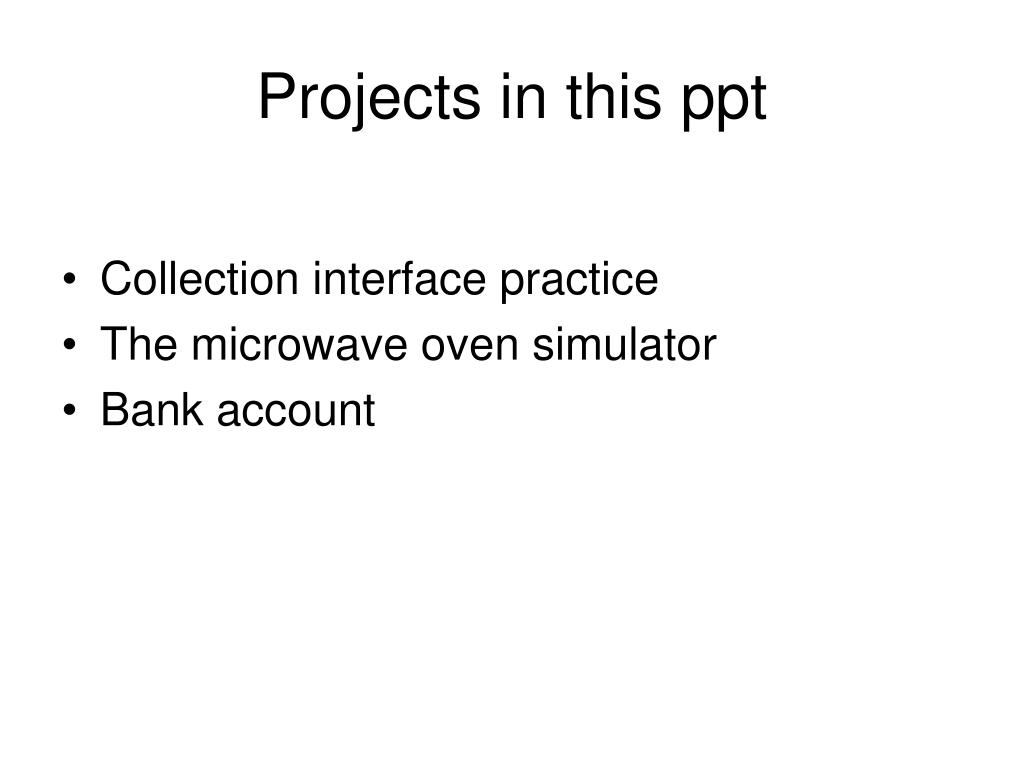

2. Projects in this ppt • Collection interface practice • The microwave oven simulator • Bank account

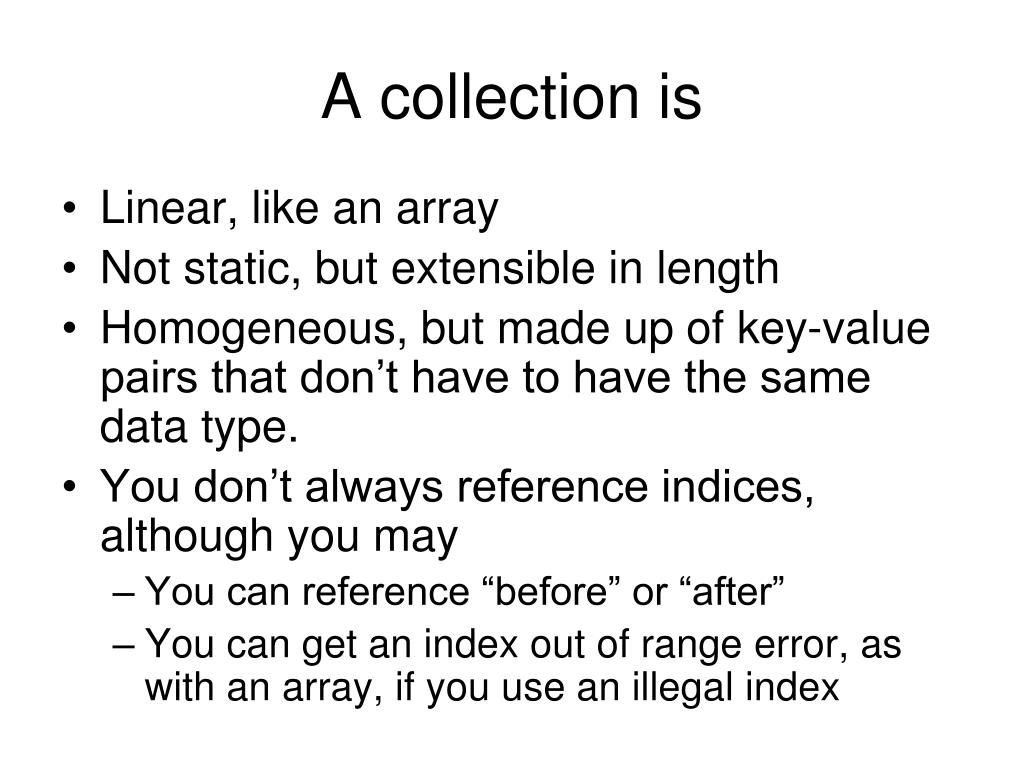

3. A collection is • Linear, like an array • Not static, but extensible in length • Homogeneous, but made up of key-value pairs that don’t have to have the same data type. • You don’t always reference indices, although you may • You can reference “before” or “after” • You can get an index out of range error, as with an array, if you use an illegal index

4. Adding items • Given Dim guys as Collection guys= new Collection • Then use: mycollection.add(theItem) • Or mycollection.add(theItem, keyval) • Or mycollection.add(theItem, keyval,beforeguy) • Or mycollection.add(theItem, keyval,,afterguy)

5. An interface to test collection

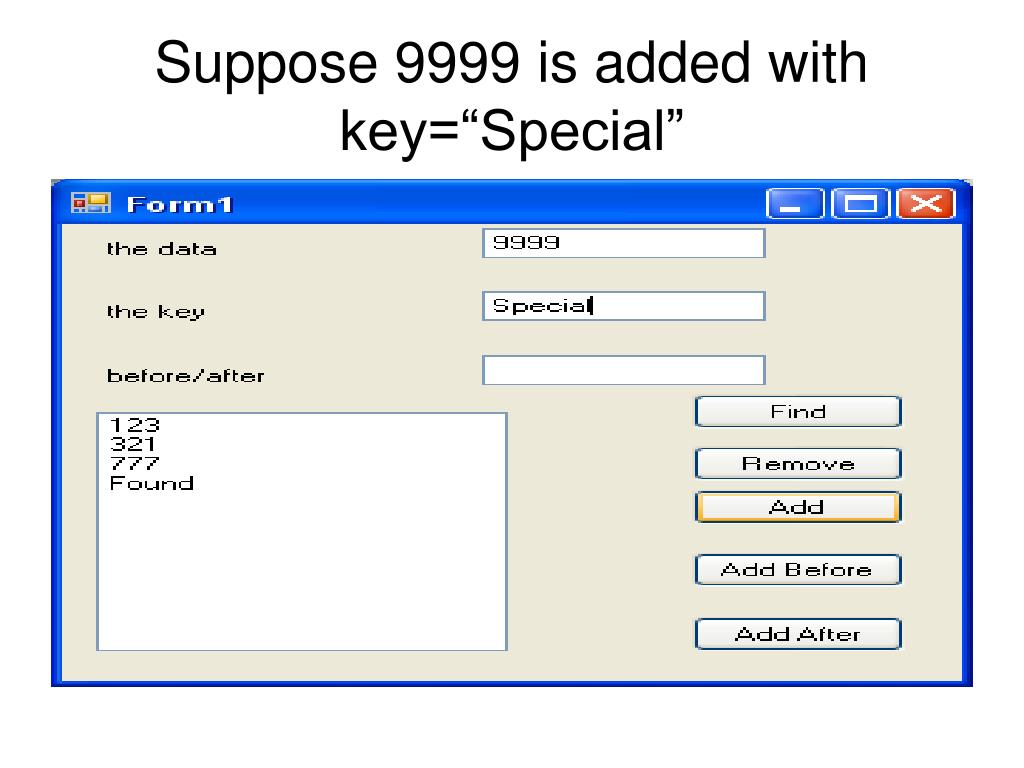

6. Suppose 9999 is added with key=“Special”

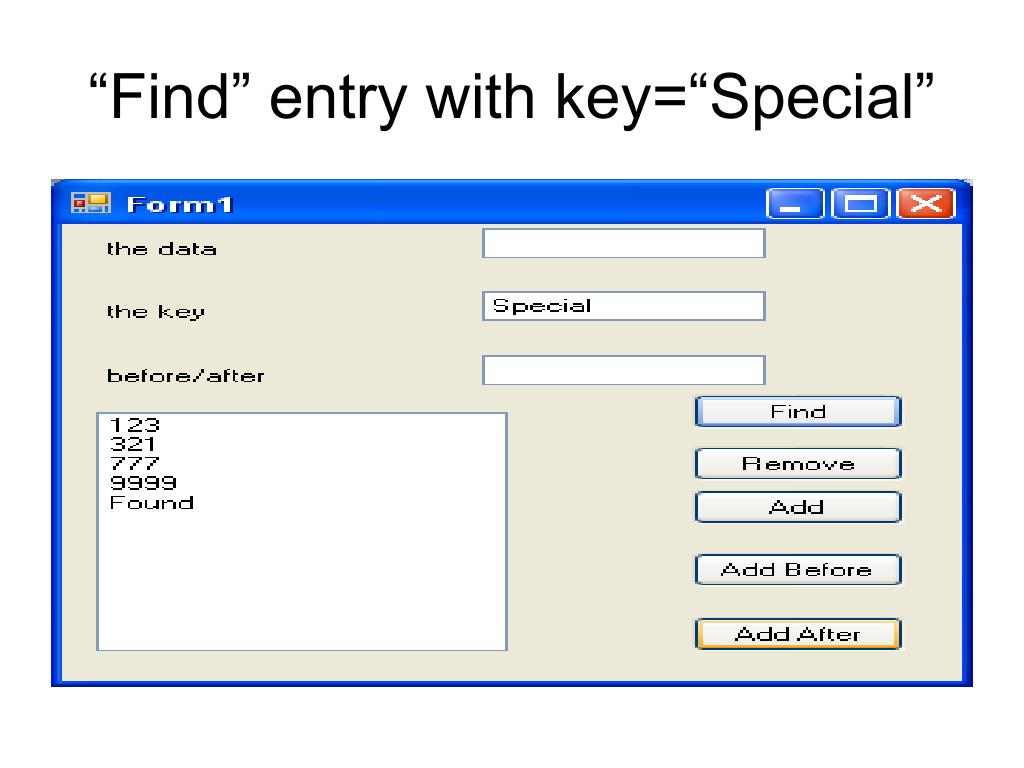

7. “Find” entry with key=“Special”

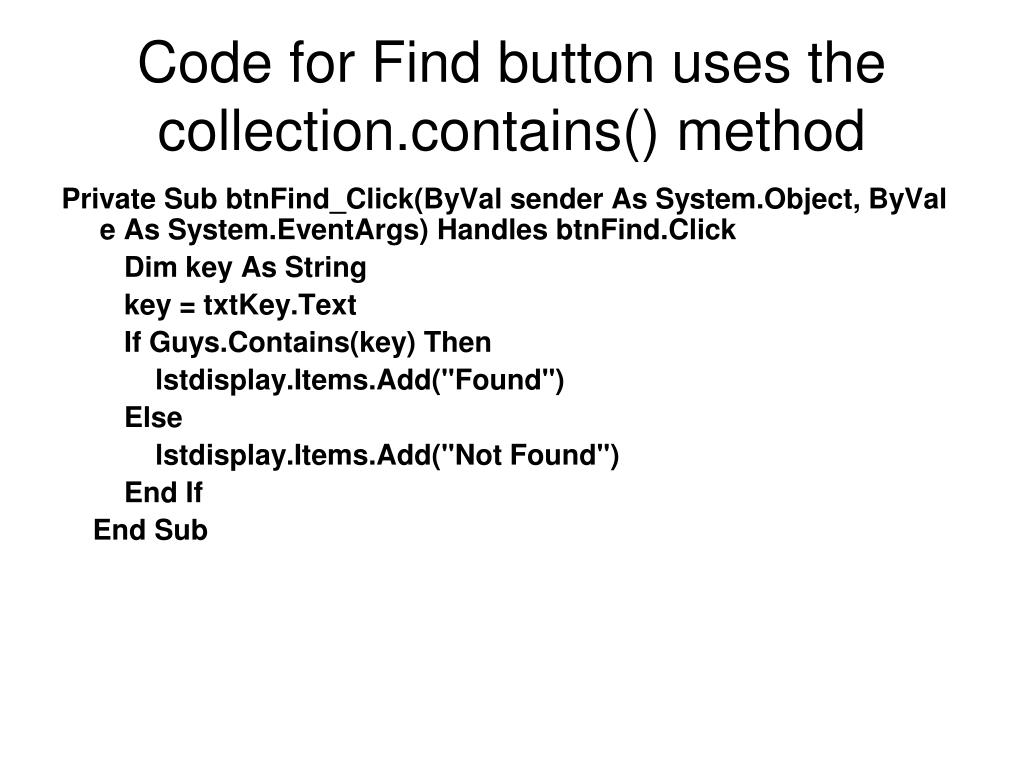

8. Code for Find button uses the collection.contains() method Private Sub btnFind_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnFind.Click Dim key As String key = txtKey.Text If Guys.Contains(key) Then lstdisplay.Items.Add("Found") Else lstdisplay.Items.Add("Not Found") End If End Sub

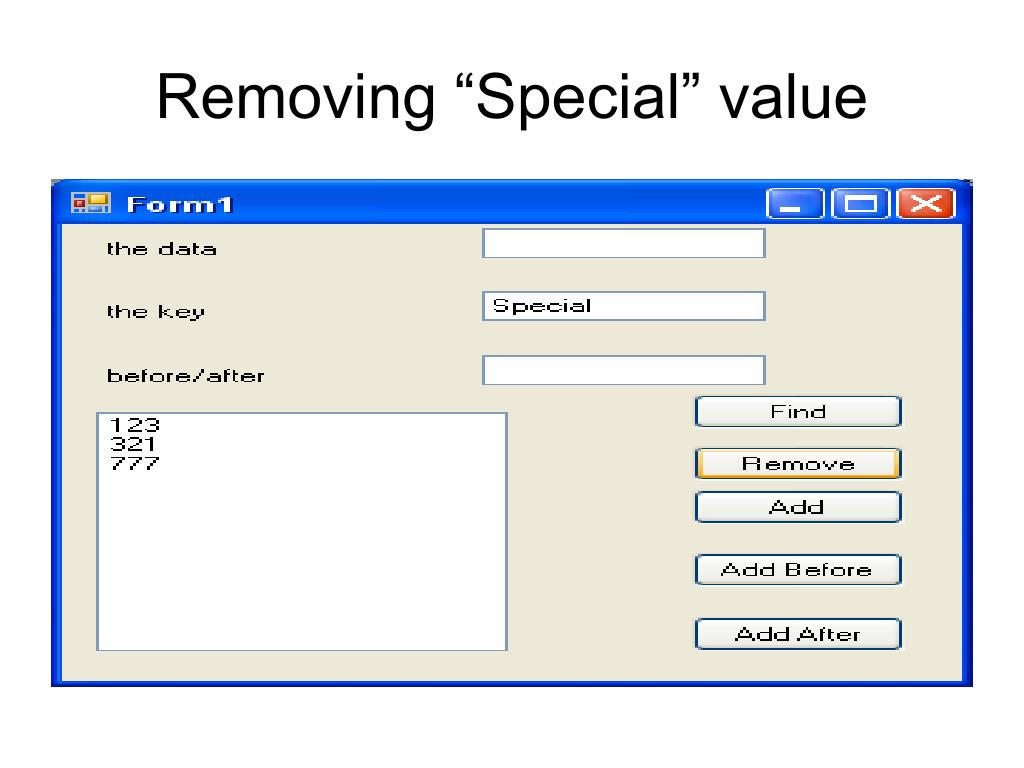

9. Removing “Special” value

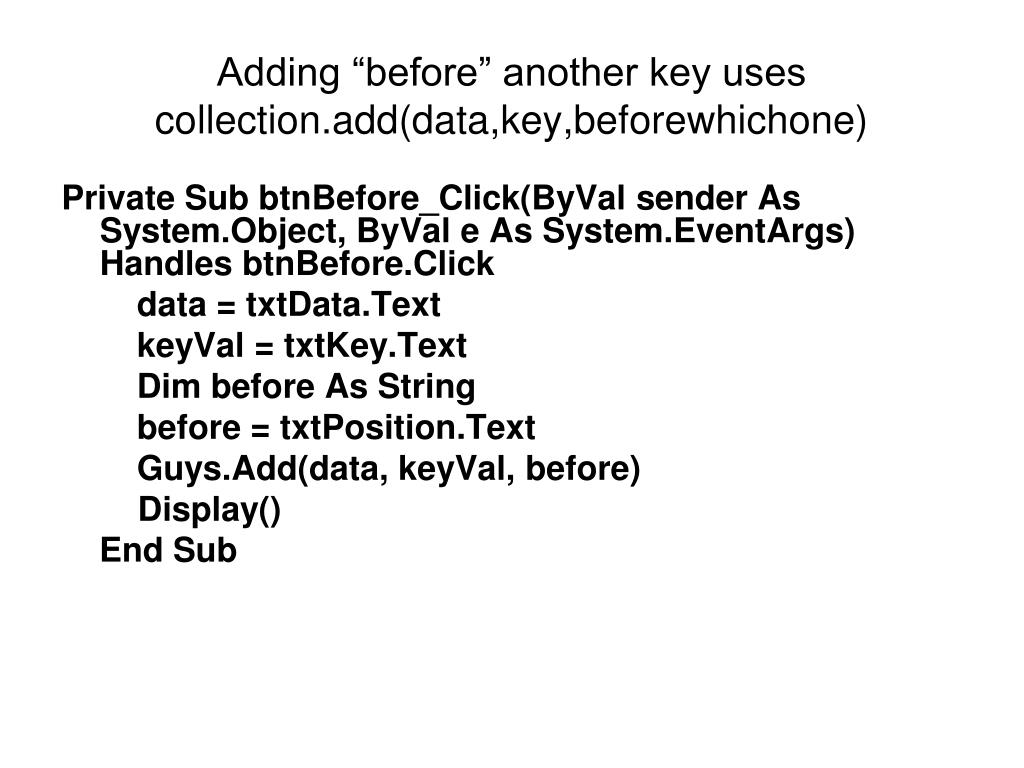

10. Adding “before” another key uses collection.add(data,key,beforewhichone) Private Sub btnBefore_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnBefore.Click data = txtData.Text keyVal = txtKey.Text Dim before As String before = txtPosition.Text Guys.Add(data, keyVal, before) Display() End Sub

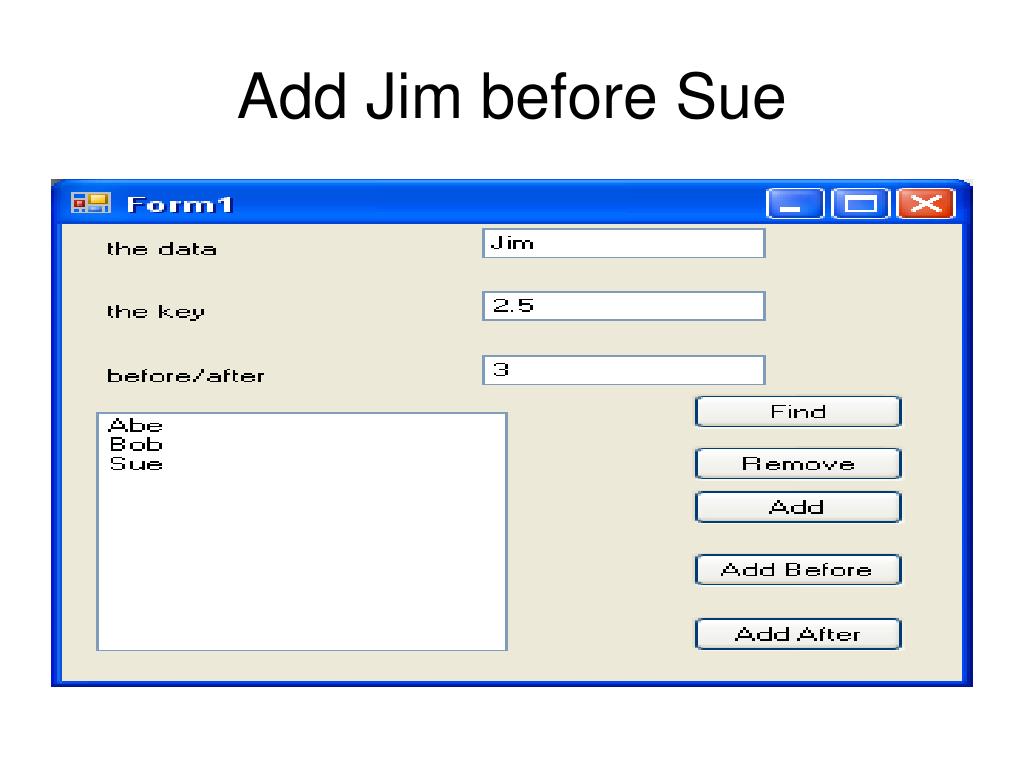

11. Add Jim before Sue

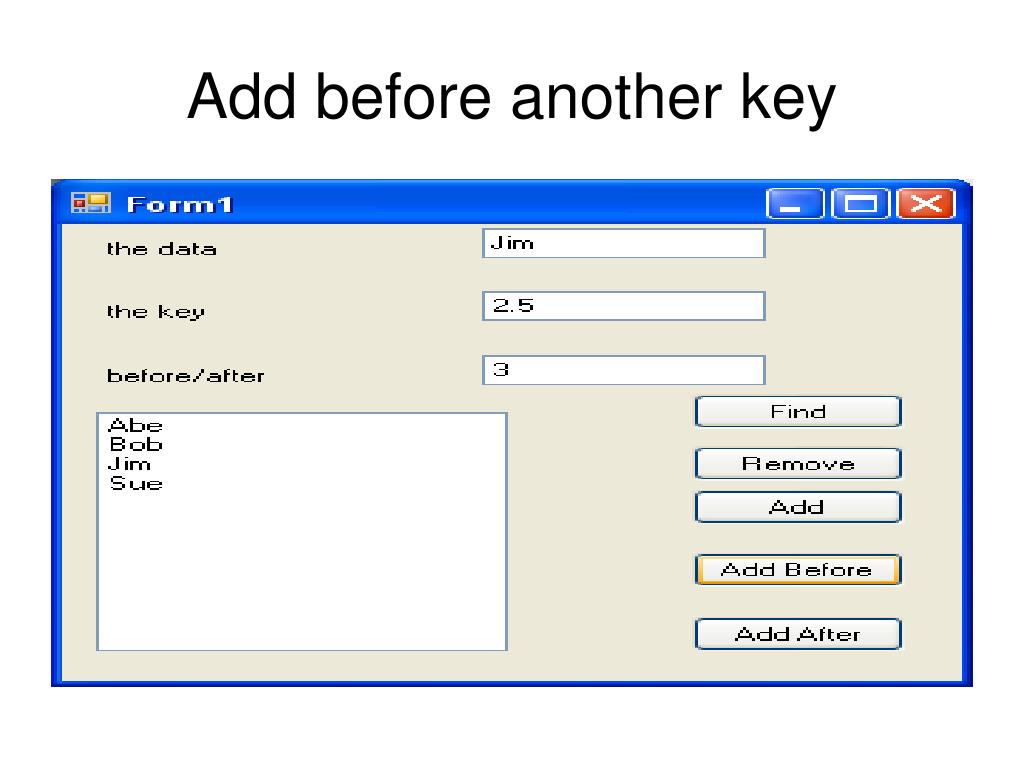

12. Add before another key

13. Object-Oriented programming • Object-oriented languages make abstractions and simplifications of real world entities which need to be modeled to define “objects” in the software. • Essential features of the real-world “object” are “properties” of the software object. • Essential functionality of the real-world entity becomes a service or method or function of the software entity. • Objects have fields and methods. Fields hold values, methods do stuff. • A “student” object might have fields: name, address, GPA, and so on.

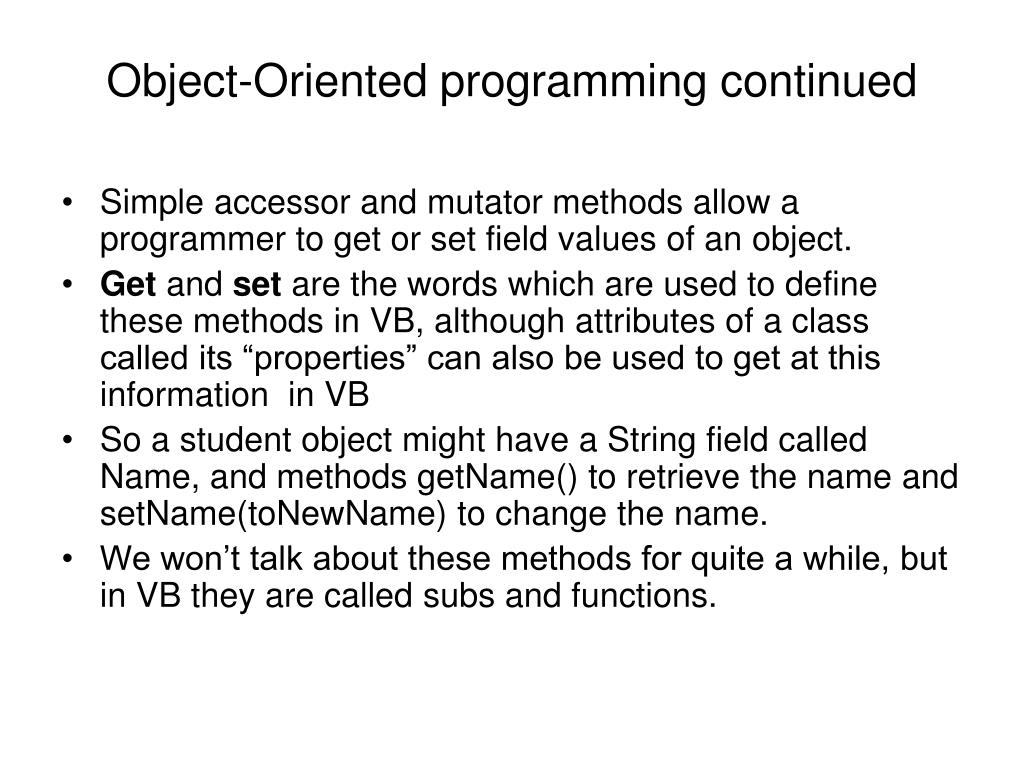

14. Object-Oriented programming continued • Simple accessor and mutator methods allow a programmer to get or set field values of an object. • Get and set are the words which are used to define these methods in VB, although attributes of a class called its “properties” can also be used to get at this information in VB • So a student object might have a String field called Name, and methods getName() to retrieve the name and setName(toNewName) to change the name. • We won’t talk about these methods for quite a while, but in VB they are called subs and functions.

15. OOP…building your own classes in VB • OOP refers to object-oriented programming. A class is a definition of an object. • Objects are programmatic analogies to real-life entities. • Objects have fields, constructors and methods. • VB supports objects. Notice, your form is a “class”. • A class is an instantiation of an object

16. Microwave project

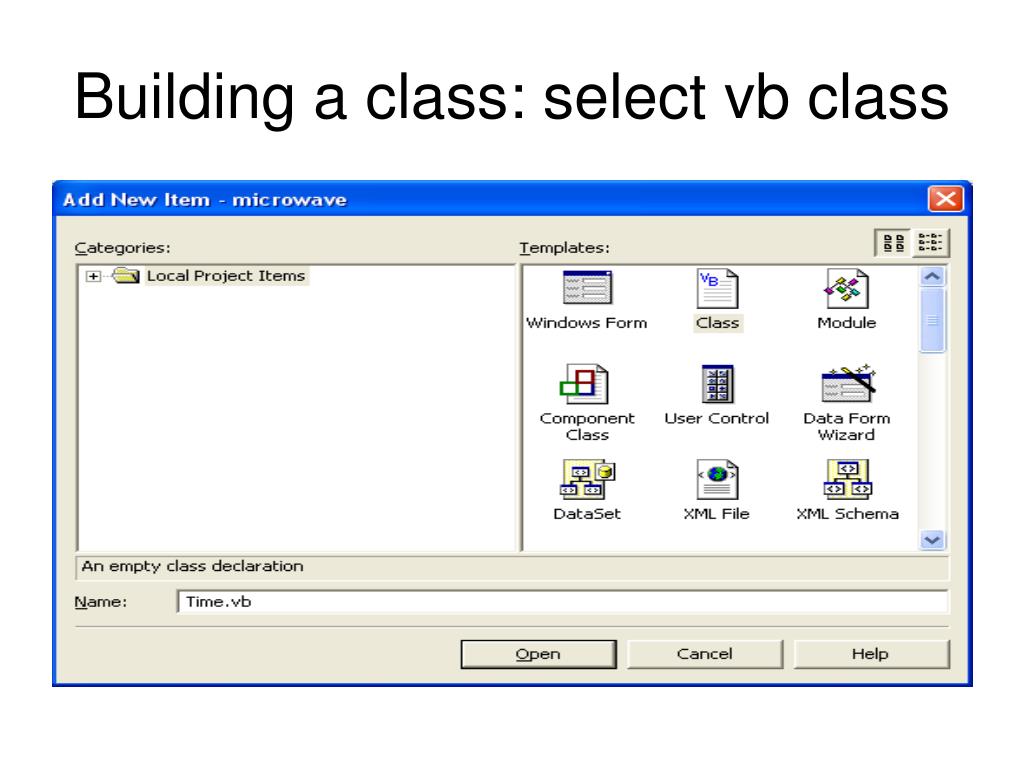

17. Building a class: select vb class

18. Code for time class Public Class Time Dim minutes, seconds As Integer Public Sub New(ByVal mtmp As Integer, ByVal sectmp As Integer) minutes = mtmp seconds = sectmp End Sub Public Sub New() minutes = 0 seconds = 0 End Sub End Class

19. constructor • Constructor for a class is New() • Multiple constructors are allowed – see previous slide • Arguments passed depend on the class being constructed

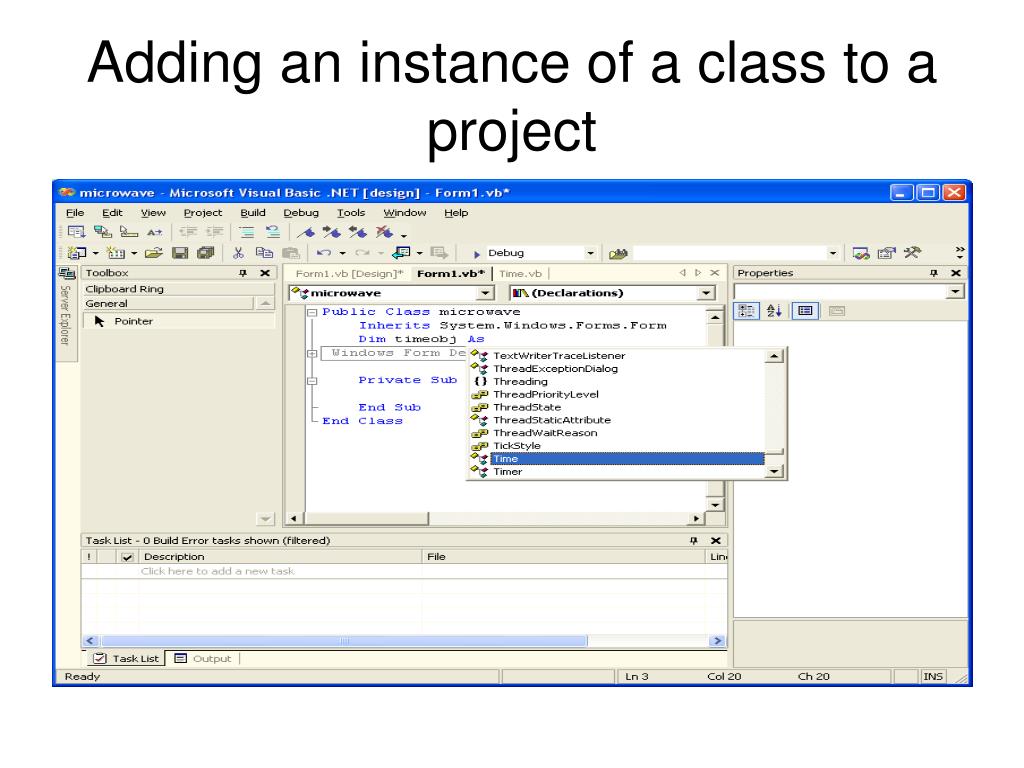

20. Adding an instance of a class to a project

21. Getter/Setter methods (Accessor and mutator methods) • Accessor methods are called get • Mutator methods are called set • These appear in VB as properties of fields

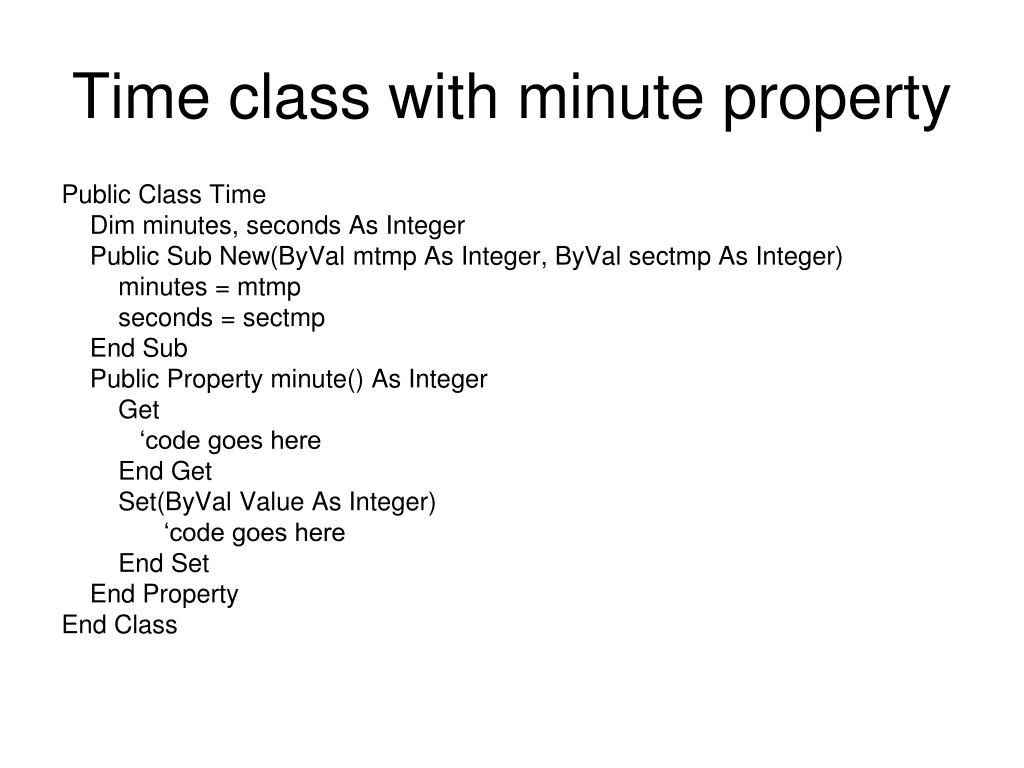

22. Time class with minute property Public Class Time Dim minutes, seconds As Integer Public Sub New(ByVal mtmp As Integer, ByVal sectmp As Integer) minutes = mtmp seconds = sectmp End Sub Public Property minute() As Integer Get ‘code goes here End Get Set(ByVal Value As Integer) ‘code goes here End Set End Property End Class

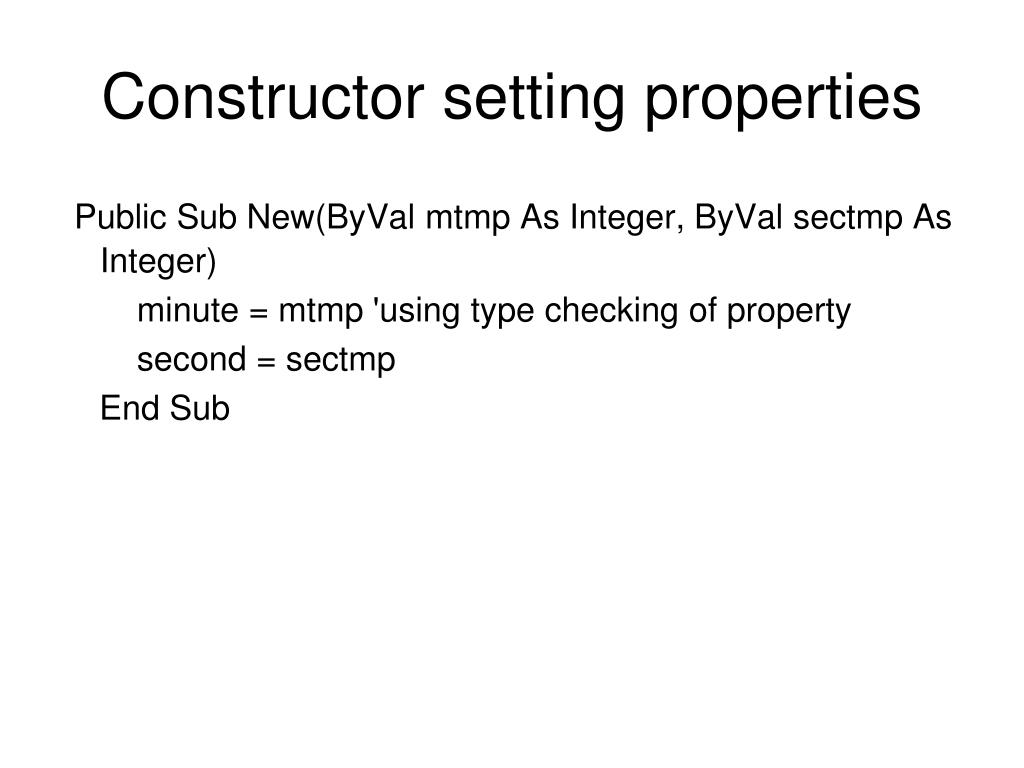

23. Constructor setting properties Public Sub New(ByVal mtmp As Integer, ByVal sectmp As Integer) minute = mtmp 'using type checking of property second = sectmp End Sub

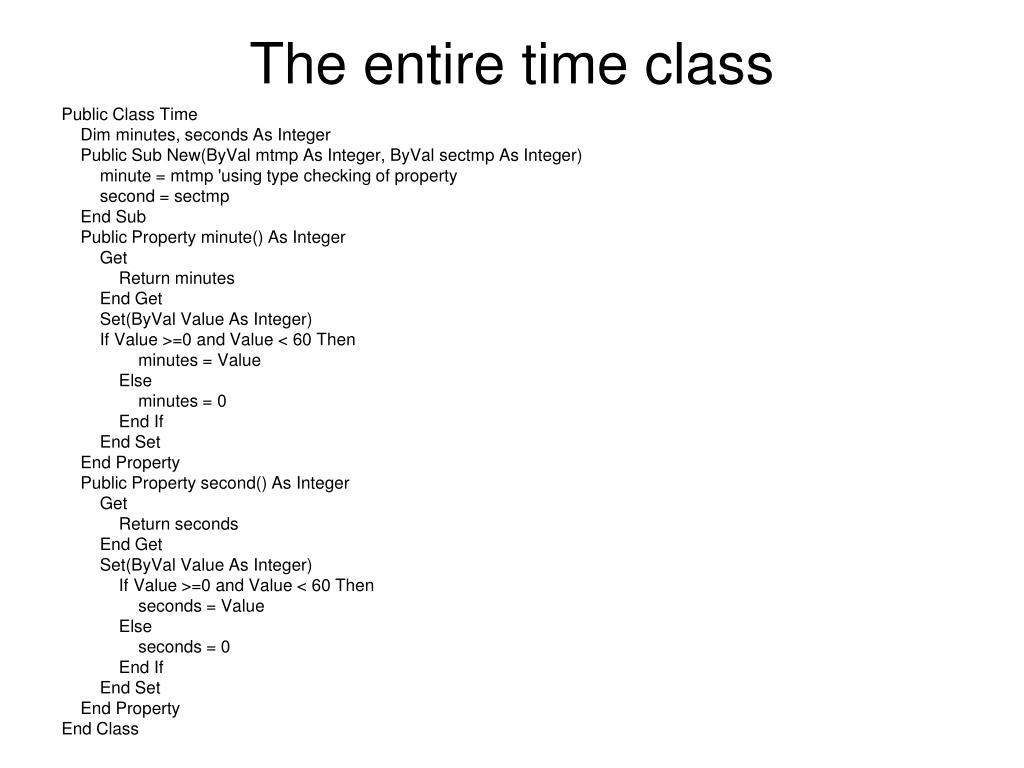

24. The entire time class Public Class Time Dim minutes, seconds As Integer Public Sub New(ByVal mtmp As Integer, ByVal sectmp As Integer) minute = mtmp 'using type checking of property second = sectmp End Sub Public Property minute() As Integer Get Return minutes End Get Set(ByVal Value As Integer) If Value >=0 and Value < 60 Then minutes = Value Else minutes = 0 End If End Set End Property Public Property second() As Integer Get Return seconds End Get Set(ByVal Value As Integer) If Value >=0 and Value < 60 Then seconds = Value Else seconds = 0 End If End Set End Property End Class

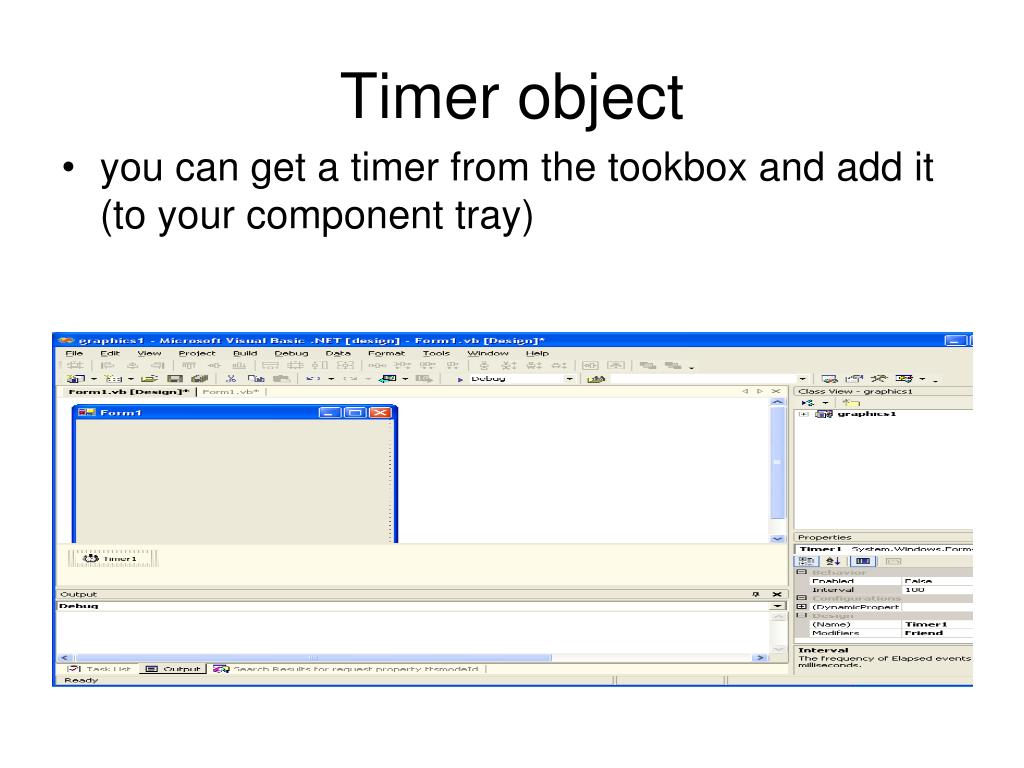

25. Timer object • you can get a timer from the tookbox and add it (to your component tray)

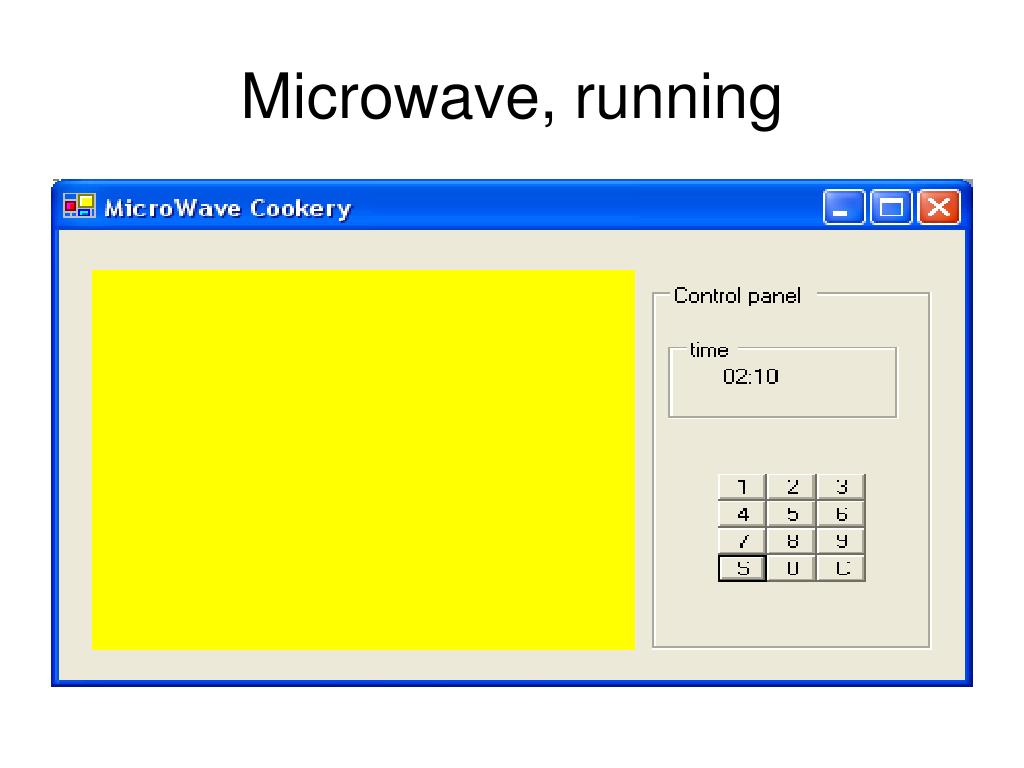

26. Microwave, running

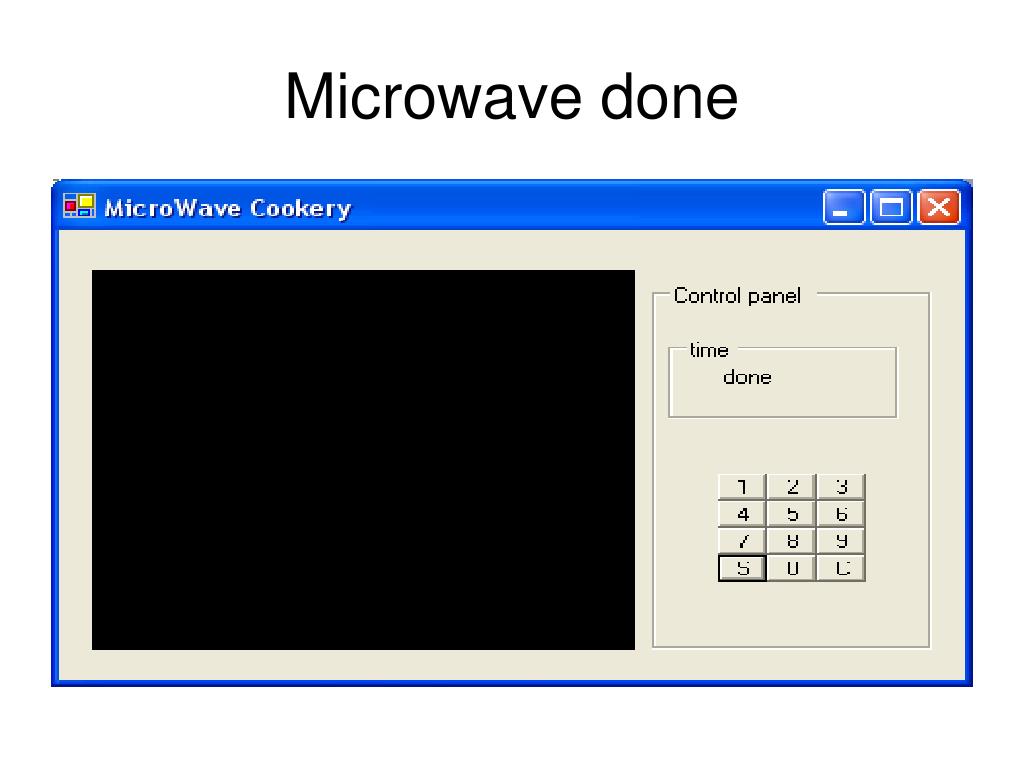

27. Microwave done

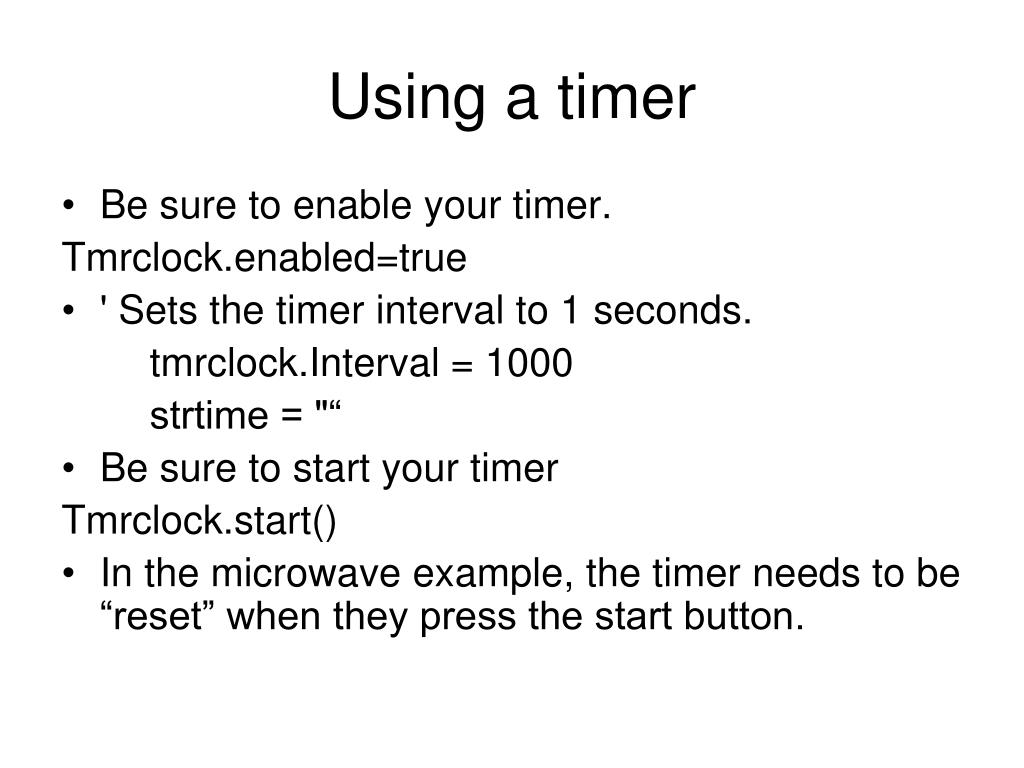

28. Using a timer • Be sure to enable your timer. Tmrclock.enabled=true • ' Sets the timer interval to 1 seconds. tmrclock.Interval = 1000 strtime = "“ • Be sure to start your timer Tmrclock.start() • In the microwave example, the timer needs to be “reset” when they press the start button.

29. The clock tick sub Private Sub tmrClock_Tick(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles tmrclock.Tick If timeobj.second > 0 Then timeobj.second -= 1 ElseIf timeobj.minute > 0 Then timeobj.minute -= 1 timeobj.second = 59 Else tmrclock.Enabled = False Beep() Lbl.Text = "done" pnl.BackColor = Color.Black Return End If Lbl.Text = String.Format("{0:d2}:{1:d2}", timeobj.minute, timeobj.second) End Sub

30. Display time sub Sub displayTime() Dim intsec, intmin As Integer Dim strdisplay As String If strtime.length > 4 Then strtime = strtime.substring(0, 4) End If strdisplay = strtime.padleft(4, convert.tochar("0")) intsec = Convert.ToInt32(strdisplay.Substring(2)) intmin = Convert.ToInt32(strdisplay.Substring(0, 2)) timeobj = New Time(intmin, intsec) Lbl.Text = String.Format("{0:D2}:{1:D2}", intmin, intsec) End Sub

31. Start button Private Sub start_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles start.Click Dim intsec As Integer Dim intmin As Integer strtime = strtime.PadLeft(4, Convert.ToChar("0")) intsec = Convert.ToInt32(strtime.substring(2)) intmin = Convert.ToInt32(strtime.Substring(0, 2)) timeobj = New Time(intmin, intsec) Lbl.Text = String.Format("{0:d2}:{1:d2}", timeobj.minute, timeobj.second) strtime = "" tmrClock.enabled = True pnl.BackColor = Color.Yellow End Sub

32. Clear button Private Sub clear_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles clear.Click Lbl.Text = "Microwave" strtime = "" timeobj = New Time(0, 0) tmrClock.enabled = False pnl.BackColor = Color.Black End Sub

33. A button click Private Sub Btn1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Btn1.Click Beep() strtime &= "1" displayTime() End Sub

34. A sort of bank account project

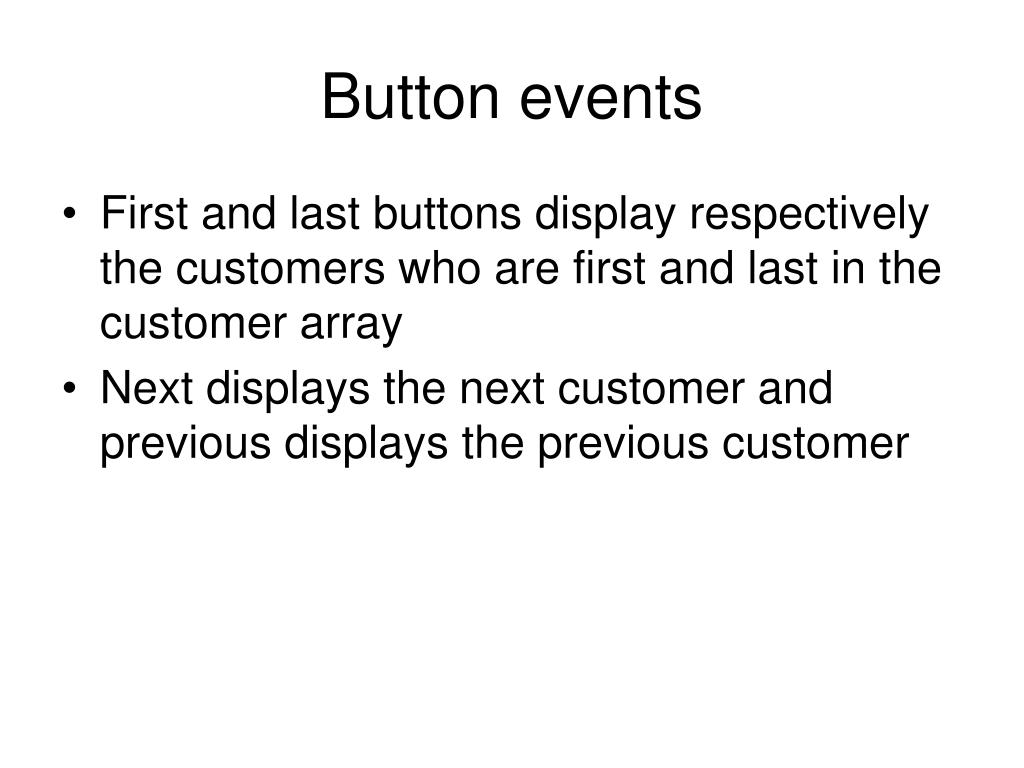

35. Button events • First and last buttons display respectively the customers who are first and last in the customer array • Next displays the next customer and previous displays the previous customer

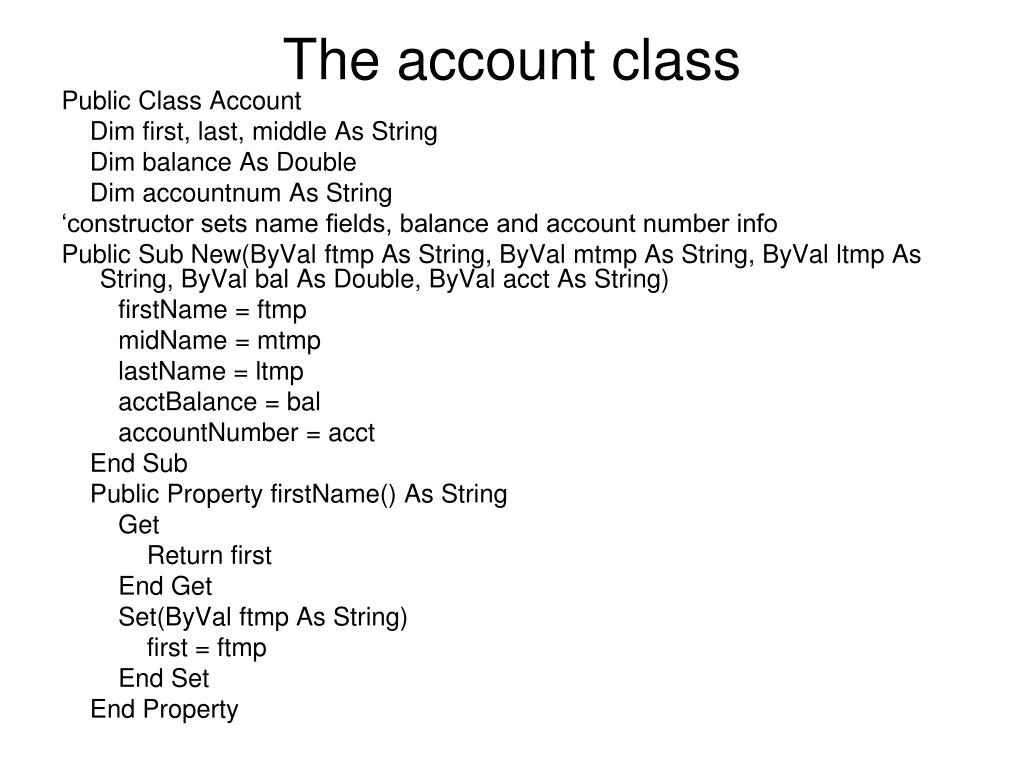

36. The account class Public Class Account Dim first, last, middle As String Dim balance As Double Dim accountnum As String ‘constructor sets name fields, balance and account number info Public Sub New(ByVal ftmp As String, ByVal mtmp As String, ByVal ltmp As String, ByVal bal As Double, ByVal acct As String) firstName = ftmp midName = mtmp lastName = ltmp acctBalance = bal accountNumber = acct End Sub Public Property firstName() As String Get Return first End Get Set(ByVal ftmp As String) first = ftmp End Set End Property

37. Account class continued Public Property midName() As String Get Return middle End Get Set(ByVal ftmp As String) middle = ftmp End Set End Property Public Property lastName() As String Get Return last End Get Set(ByVal ftmp As String) last = ftmp End Set End Property Public Property acctBalance() As Double Get Return balance End Get Set(ByVal ftmp As Double) balance = ftmp End Set End Property Public Property accountNumber() As String Get Return accountnum End Get Set(ByVal ftmp As String) accountnum = ftmp End Set End Property End Class

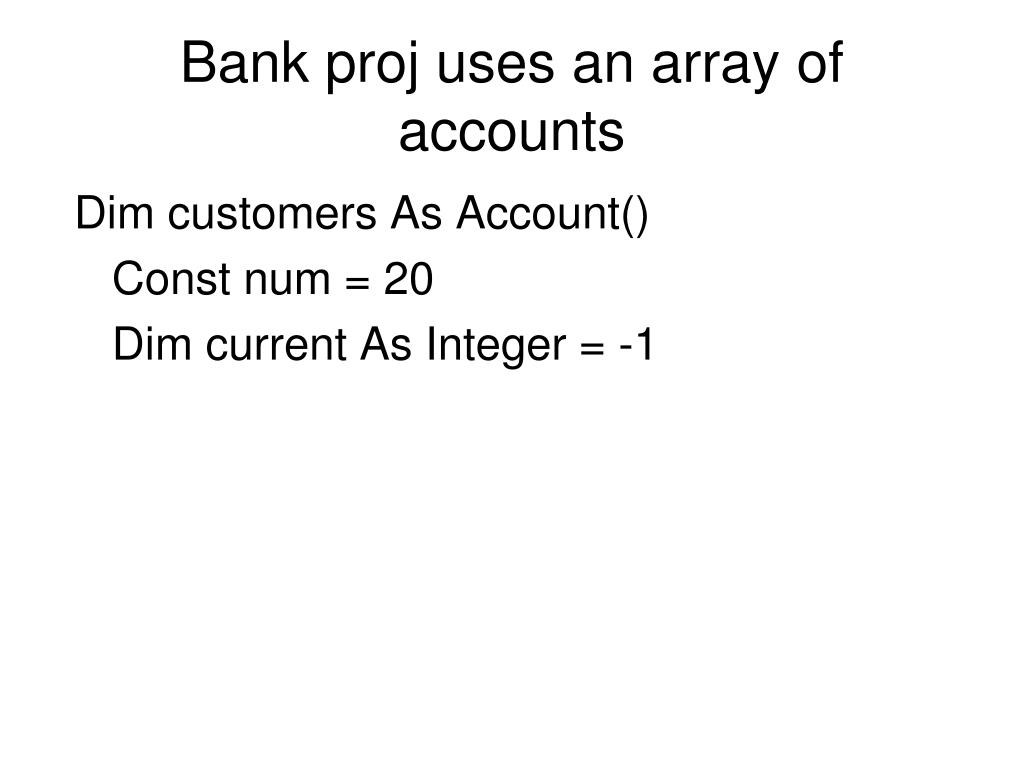

38. Bank proj uses an array of accounts Dim customers As Account() Const num = 20 Dim current As Integer = -1

39. accounts Dim i As Integer For i = 1 To num customers(i) = New Account("bob" & i, "micky" & i, "jones" & i, 1.0, "0" & i & "0" & i) Next

40. The set button sets current customer fields to updated content

41. Revisiting this entry shows updated data

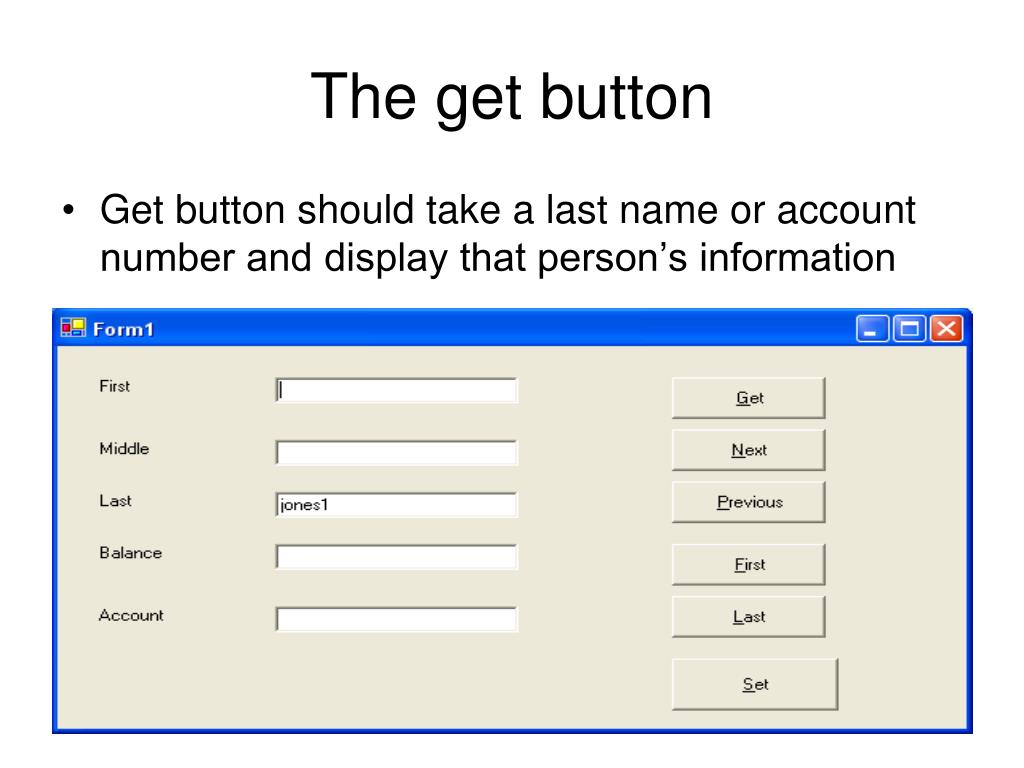

42. The get button • Get button should take a last name or account number and display that person’s information

43. Data is retrieved

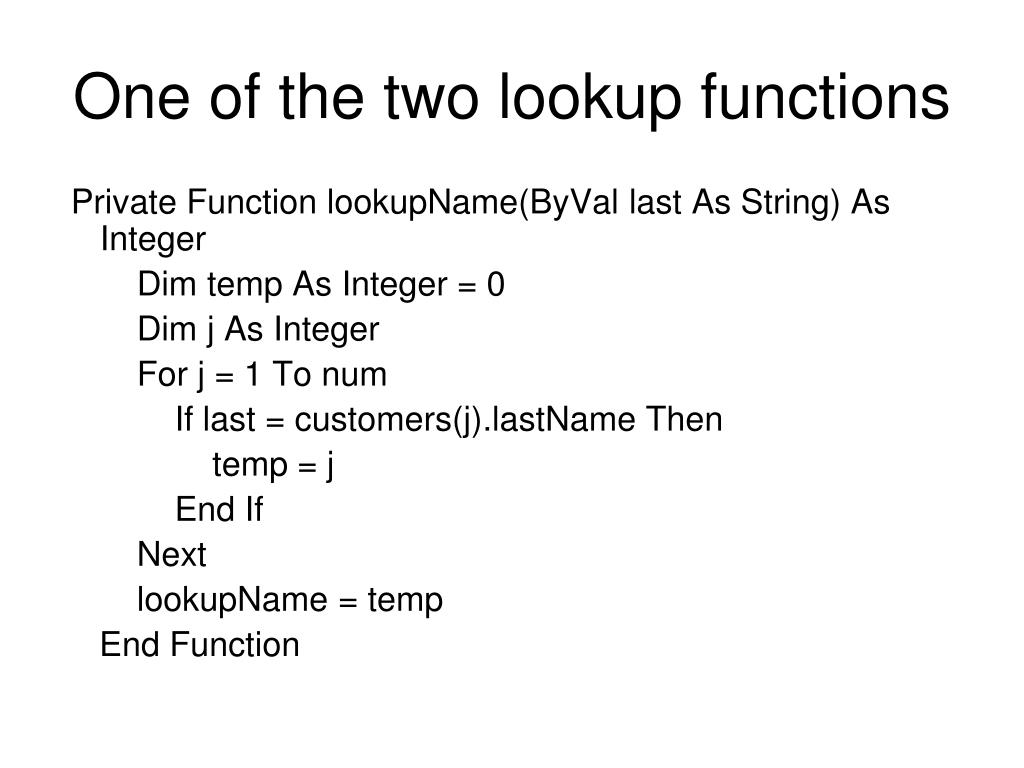

44. One of the two lookup functions Private Function lookupName(ByVal last As String) As Integer Dim temp As Integer = 0 Dim j As Integer For j = 1 To num If last = customers(j).lastName Then temp = j End If Next lookupName = temp End Function

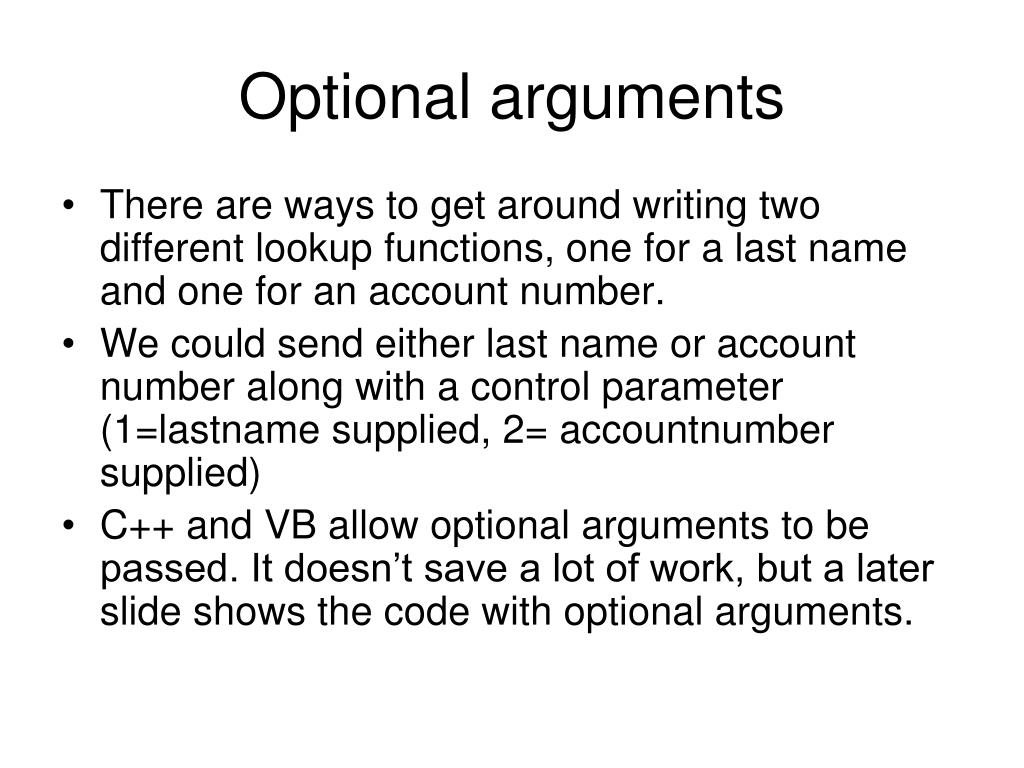

45. Optional arguments • There are ways to get around writing two different lookup functions, one for a last name and one for an account number. • We could send either last name or account number along with a control parameter (1=lastname supplied, 2= accountnumber supplied) • C++ and VB allow optional arguments to be passed. It doesn’t save a lot of work, but a later slide shows the code with optional arguments.

46. Preparing to look for a name

47. Customer is found by last name or acct

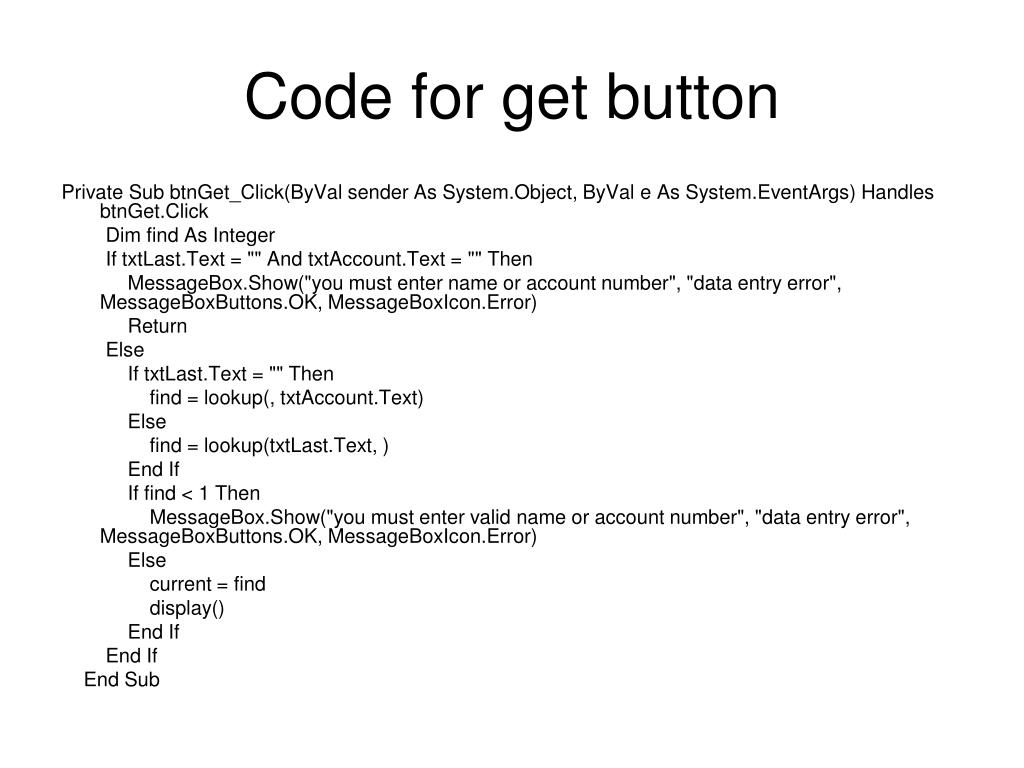

48. Code for get button Private Sub btnGet_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnGet.Click Dim find As Integer If txtLast.Text = "" And txtAccount.Text = "" Then MessageBox.Show("you must enter name or account number", "data entry error", MessageBoxButtons.OK, MessageBoxIcon.Error) Return Else If txtLast.Text = "" Then find = lookup(, txtAccount.Text) Else find = lookup(txtLast.Text, ) End If If find < 1 Then MessageBox.Show("you must enter valid name or account number", "data entry error", MessageBoxButtons.OK, MessageBoxIcon.Error) Else current = find display() End If End If End Sub
