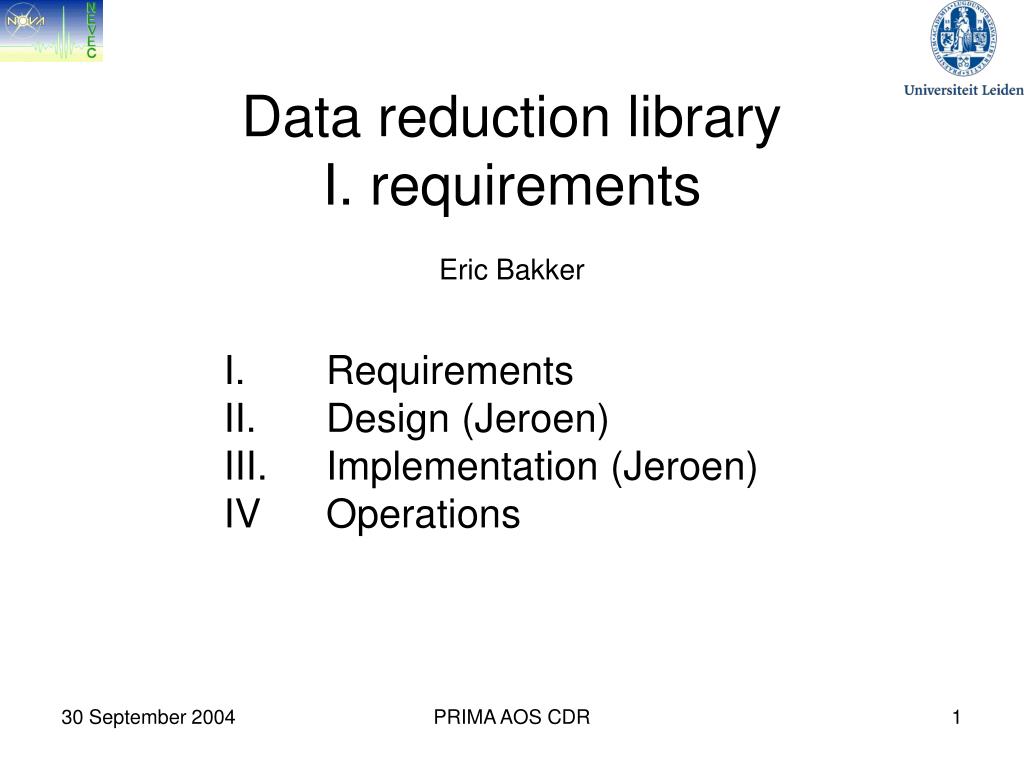

  1. Data reduction libraryI. requirementsEric Bakker I. RequirementsII. Design (Jeroen)III. Implementation (Jeroen)IV Operations PRIMA AOS CDR

  2. PRIMA AOS CDR

  3. Categories • Scientific performance • Technical performance • User interfaces • Data flow interfaces • Quality control • Simulations • Trend analysis • Calibration • Software design • Software implementation PRIMA AOS CDR

  4. Category 1/10Scientific performance • 10 micro-arcsecond calibrated data • Verification of performance • sets of visual binaries • simulated data sets PRIMA AOS CDR

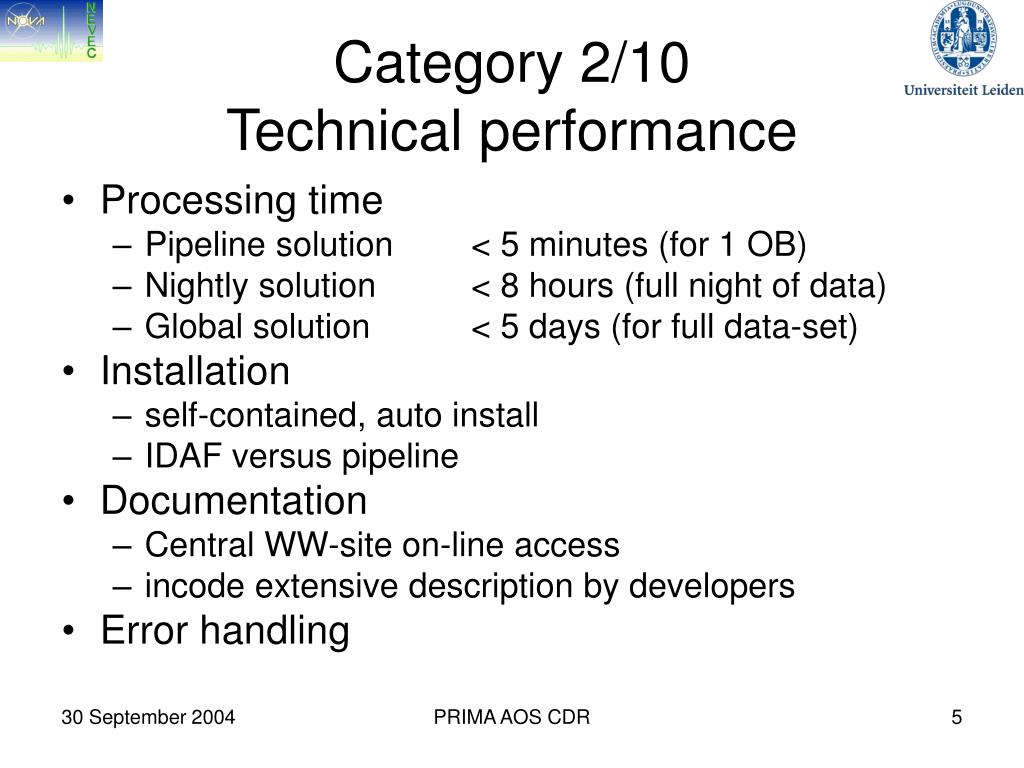

  5. Category 2/10Technical performance • Processing time • Pipeline solution < 5 minutes (for 1 OB) • Nightly solution < 8 hours (full night of data) • Global solution < 5 days (for full data-set) • Installation • self-contained, auto install • IDAF versus pipeline • Documentation • Central WW-site on-line access • incode extensive description by developers • Error handling PRIMA AOS CDR

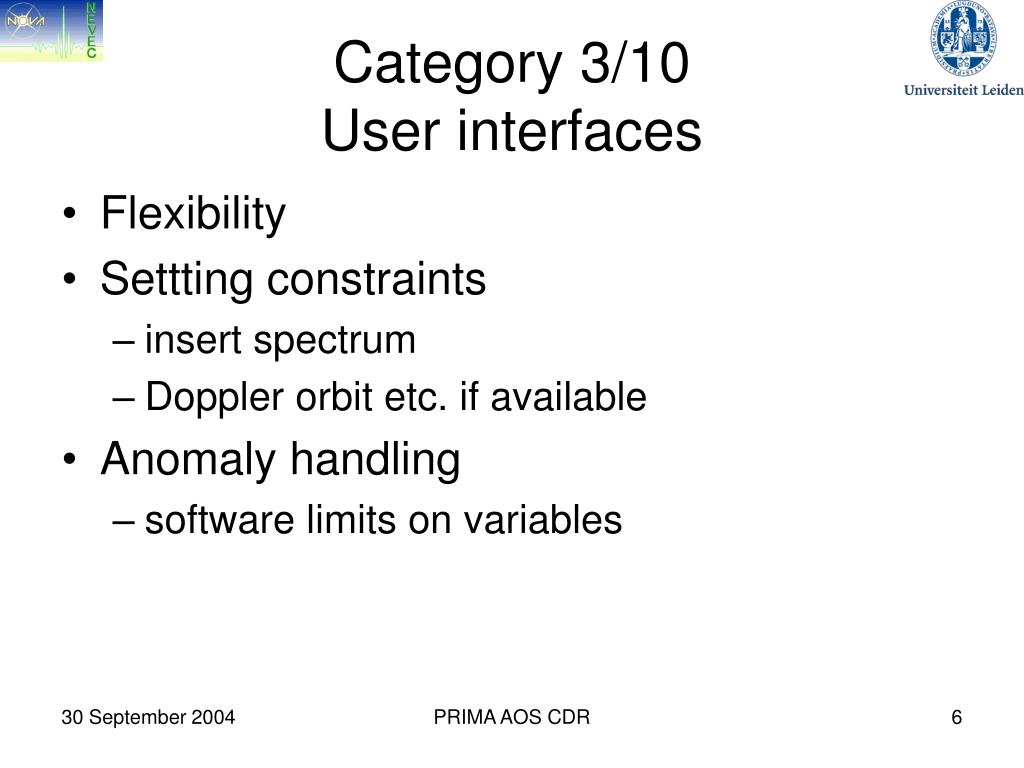

  6. Category 3/10User interfaces • Flexibility • Settting constraints • insert spectrum • Doppler orbit etc. if available • Anomaly handling • software limits on variables PRIMA AOS CDR

  7. Category 4/10Data flow interfaces • Data flow in to the DRS/pipeline • ESO PRIMA OS product • Data flow within the DRS/pipeline • calibration engine, format TBD • Data flow out of the DRS/pipeline • IAU standard astrometric FITS PRIMA AOS CDR

  8. Category 5/10Quality control • Quality control (both IDAF as pipeline) on the subsystem performance should be quantified • STS, MET, FSU, DDL • Quality control on the data reduction chain • Long-term stability, repeatability • Quality control on the observing efficiency • TBD PRIMA AOS CDR

  9. Category 6/10Simulations • Sets of simulated data should be produced • 3 sets • These sets can be feed back to the DRS • Each module should have a simulation mode PRIMA AOS CDR

  10. Category 7/10Trend analysis • Determination of parallax • Determination of proper motion • Extensive (manual) trending of parameter A versus B, and other non-linear combinations. PRIMA AOS CDR

  11. Category 8/10Calibration analysis • IDAF uniformly calibrates data over the period of the program • Pipeline uses the calibration parameters of the IDAF (the calibration engine concept) • Correct for dispersion effects • Correct for polarization effects • Correct for elevation effects • Correct for the color of the star PRIMA AOS CDR

  12. Category 9/10Software design • Allow evolution of DRS PRIMA AOS CDR

  13. Category 9/10Software implementation • Version control • Weekly builds • Comply with ESO standards • If no ESO standards available, define standards to be proposed to ESO PRIMA AOS CDR

  14. Closing words • Requirements do not provide new insights • Requirements aim to define the deliverable • Sabine will continue this work • Next steps • Try to quantify the requirements PRIMA AOS CDR
