  1. EnviroGrid™ Energy Management Naturally™ Take your world by swarm™

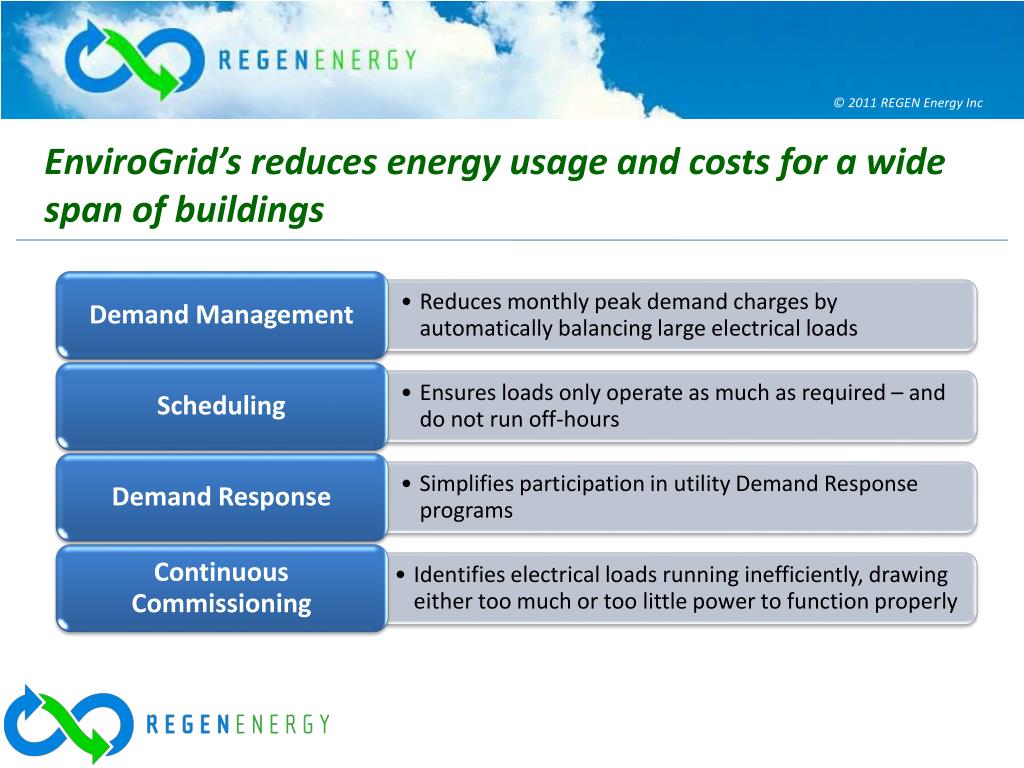

  2. EnviroGrid’s reduces energy usage and costs for a wide span of buildings

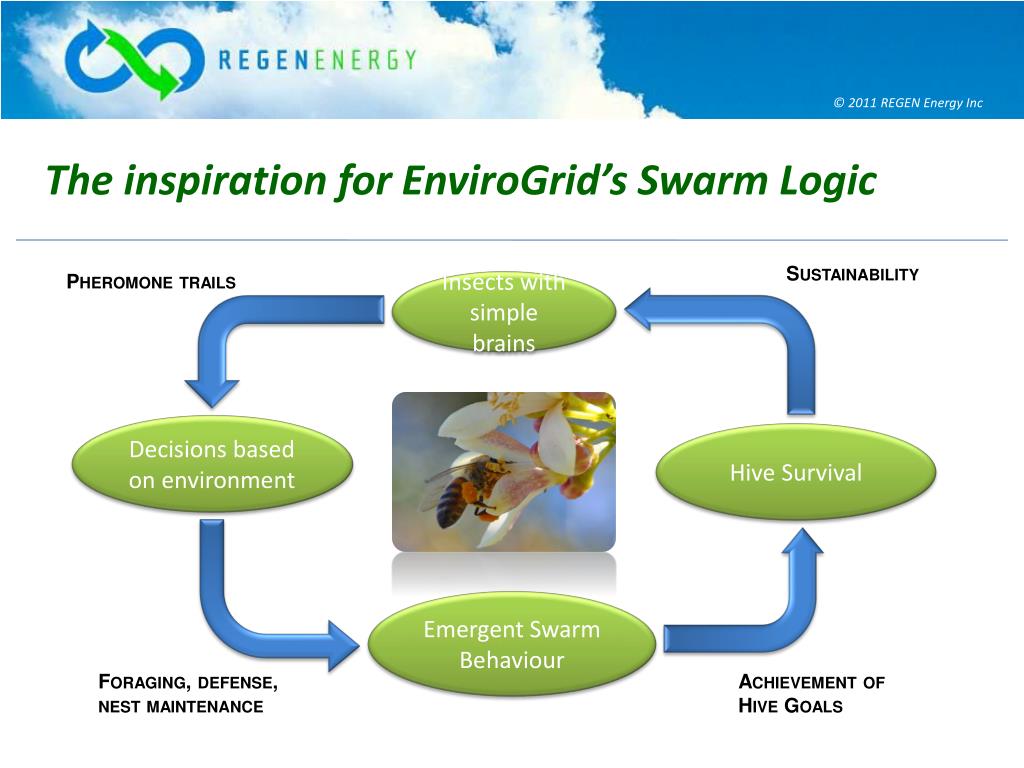

  3. The inspiration for EnviroGrid’s Swarm Logic Sustainability Pheromone trails Insects with simple brains Decisions based on environment Hive Survival Emergent Swarm Behaviour Foraging, defense, nest maintenance Achievement of Hive Goals

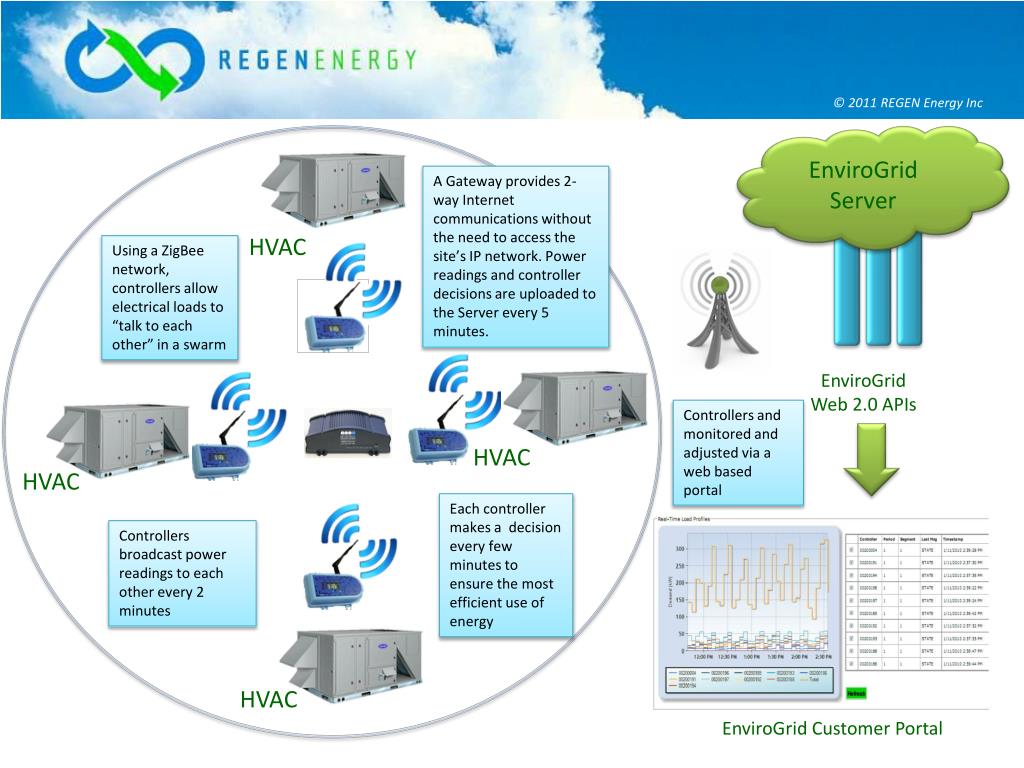

  4. EnviroGrid Server A Gateway provides 2-way Internet communications without the need to access the site’s IP network. Power readings and controller decisions are uploaded to the Server every 5 minutes. HVAC Using a ZigBee network, controllers allow electrical loads to “talk to each other” in a swarm EnviroGrid Web 2.0 APIs Controllers and monitored and adjusted via a web based portal HVAC HVAC Each controller makes a decision every few minutes to ensure the most efficient use of energy Controllers broadcast power readings to each other every 2 minutes HVAC EnviroGrid Customer Portal

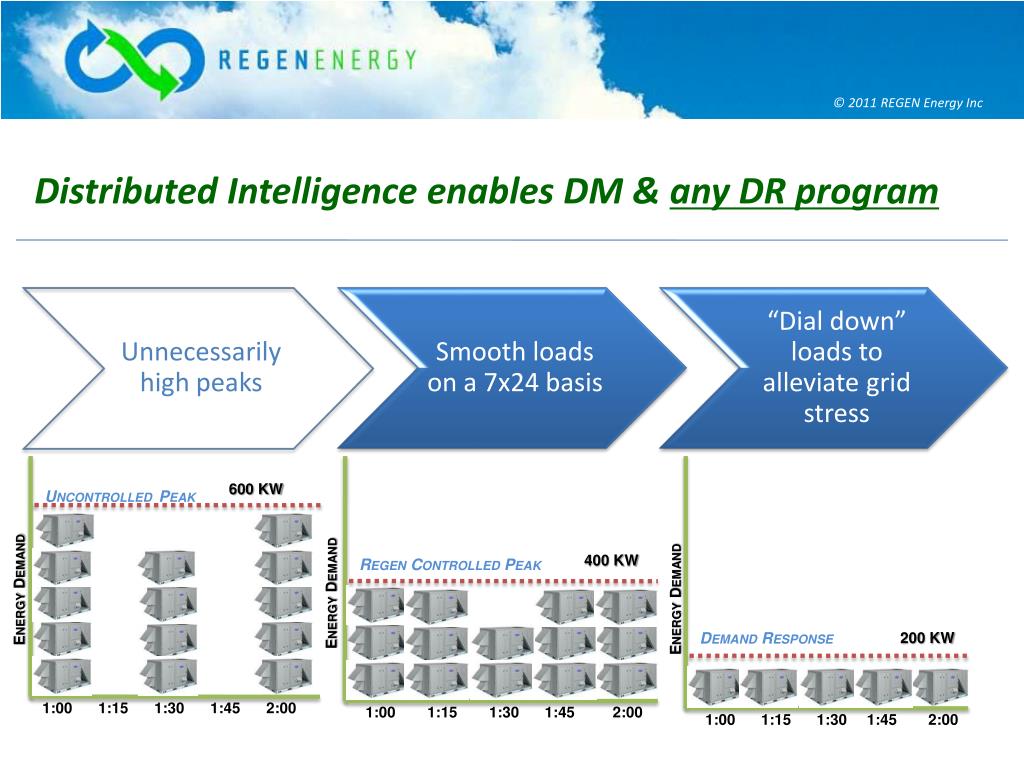

  5. Unnecessarily high peaks Smooth loads on a 7x24 basis “Dial down” loads to alleviate grid stress Distributed Intelligence enables DM & any DR program Regen Controlled Peak Demand Response UncontrolledPeak 600 KW Energy Demand Energy Demand Energy Demand 400 KW 200 KW 1:00 1:15 1:30 1:45 2:00 1:00 1:15 1:30 1:45 2:00 1:00 1:15 1:30 1:45 2:00

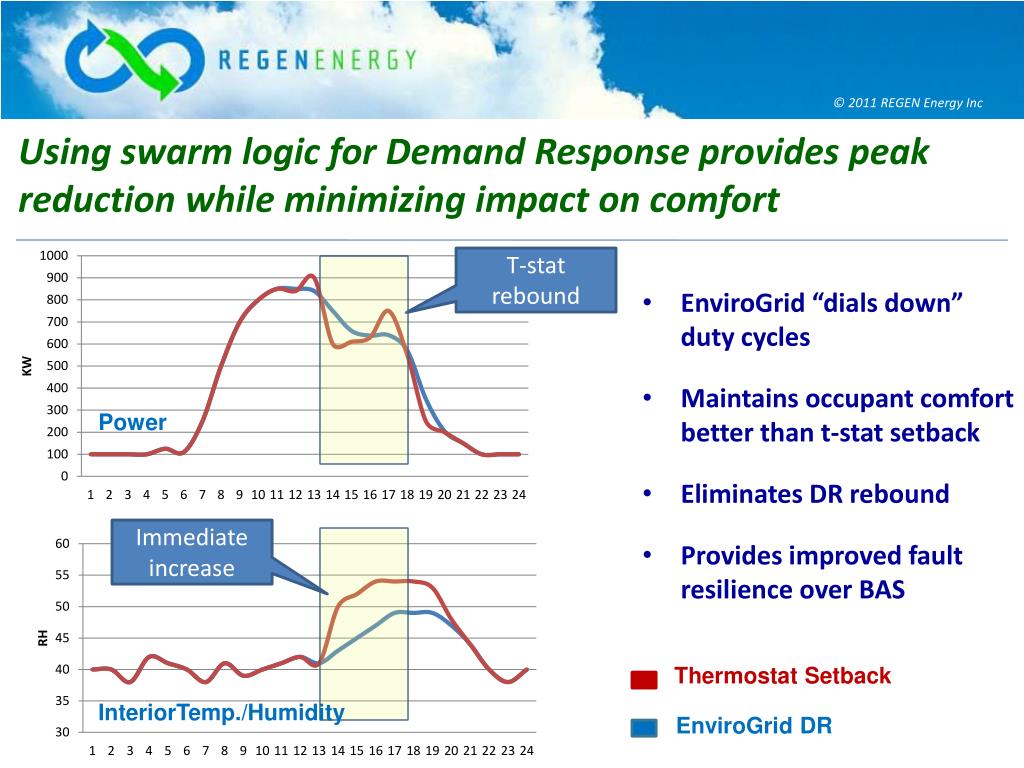

  6. Using swarm logic for Demand Response provides peak reduction while minimizing impact on comfort T-stat rebound • EnviroGrid “dials down” duty cycles • Maintains occupant comfort better than t-stat setback • Eliminates DR rebound • Provides improved fault resilience over BAS Power Immediate increase Thermostat Setback InteriorTemp./Humidity EnviroGrid DR

  7. The EnviroGrid Portal provides easy, simple access to a broad range of users

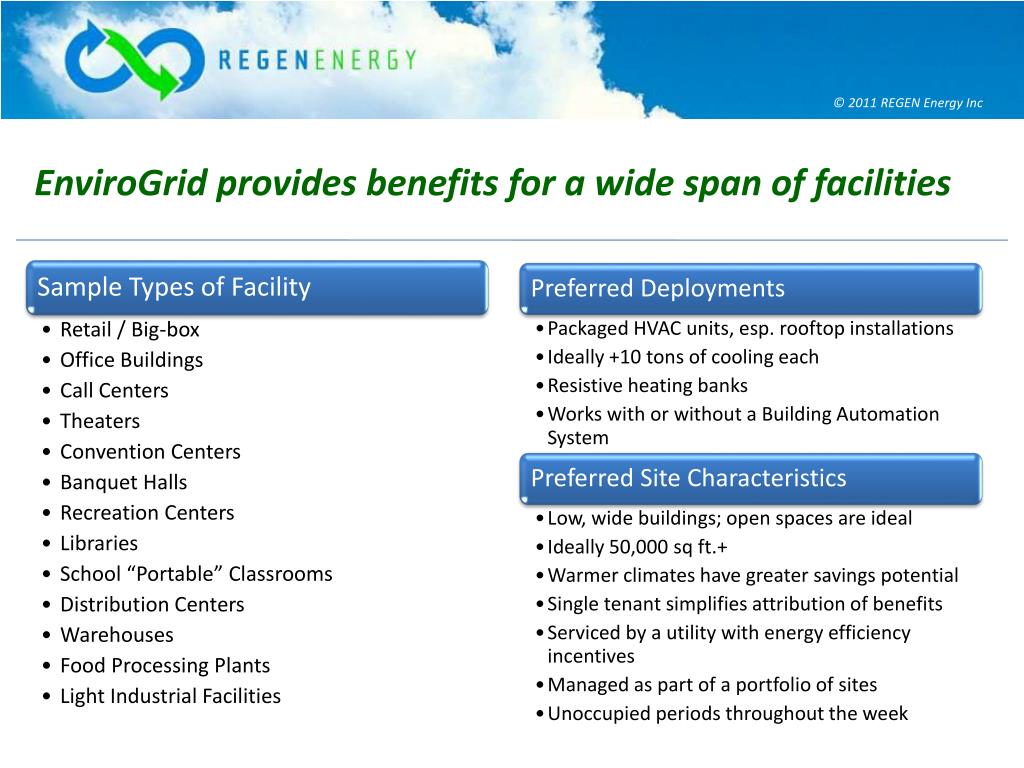

  8. EnviroGrid provides benefits for a wide span of facilities

  9. Join the rapidly growing number of facilities already enjoying EnviroGrid’s benefits! For more information: www.REGENenergy.com info@REGENenergy.com +1 416.934-1040
