  1. Using a Beagle to sniff for Bacterial Promoters Stefan R. Maetschke, Michael Towsey and James M. Hogan Queensland University of Technology

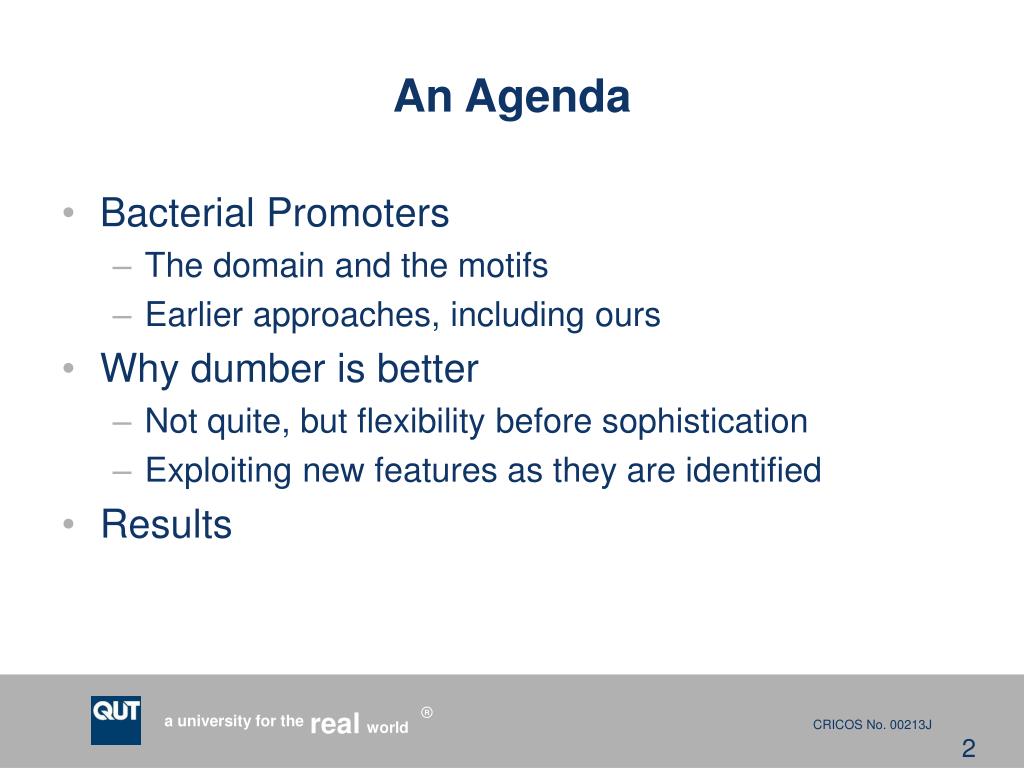

  2. An Agenda • Bacterial Promoters • The domain and the motifs • Earlier approaches, including ours • Why dumber is better • Not quite, but flexibility before sophistication • Exploiting new features as they are identified • Results

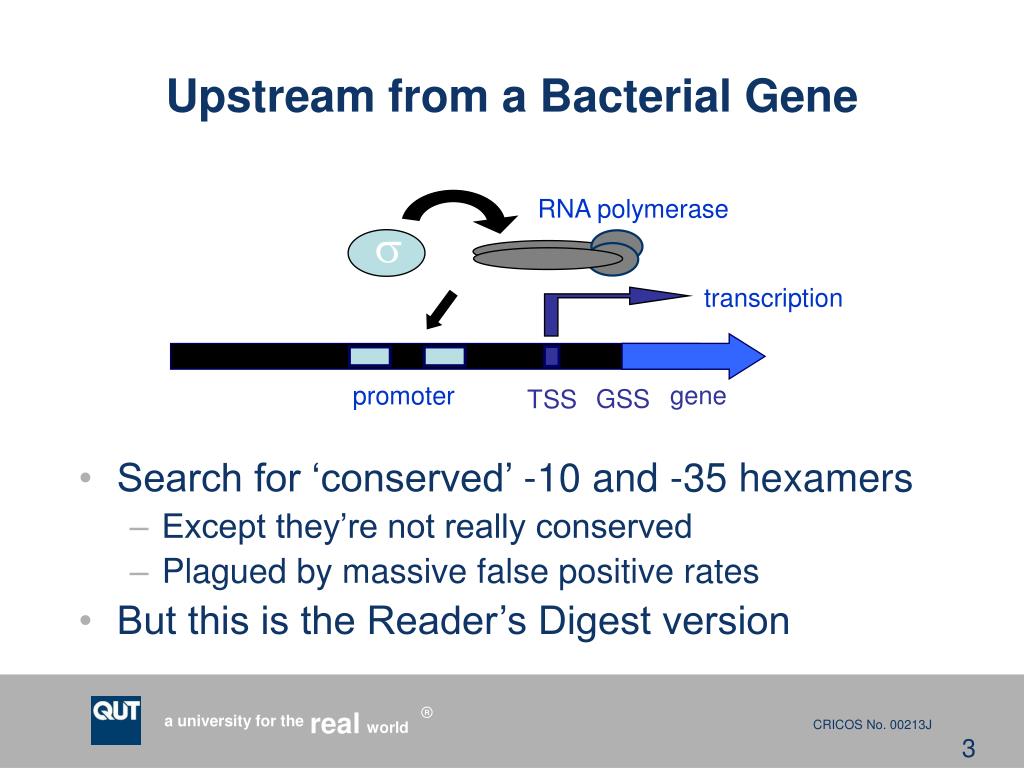

  3. RNA polymerase s transcription gene promoter GSS TSS Upstream from a Bacterial Gene • Search for ‘conserved’ -10 and -35 hexamers • Except they’re not really conserved • Plagued by massive false positive rates • But this is the Reader’s Digest version

  4. Previous Work s70 • Mainly in the E. coli system • PWMs – simple, but poor discrimination • Good performance if compound structure used • (Collado-Vides et. al.: State of the art pre 2006) • HMMs – less successful than in eukaryotes • TDNNs – boosted by GSS offset distribution • SVMs – spectrum kernel ensemble • (Gordon et. al. (us): state of the art, but at a price)

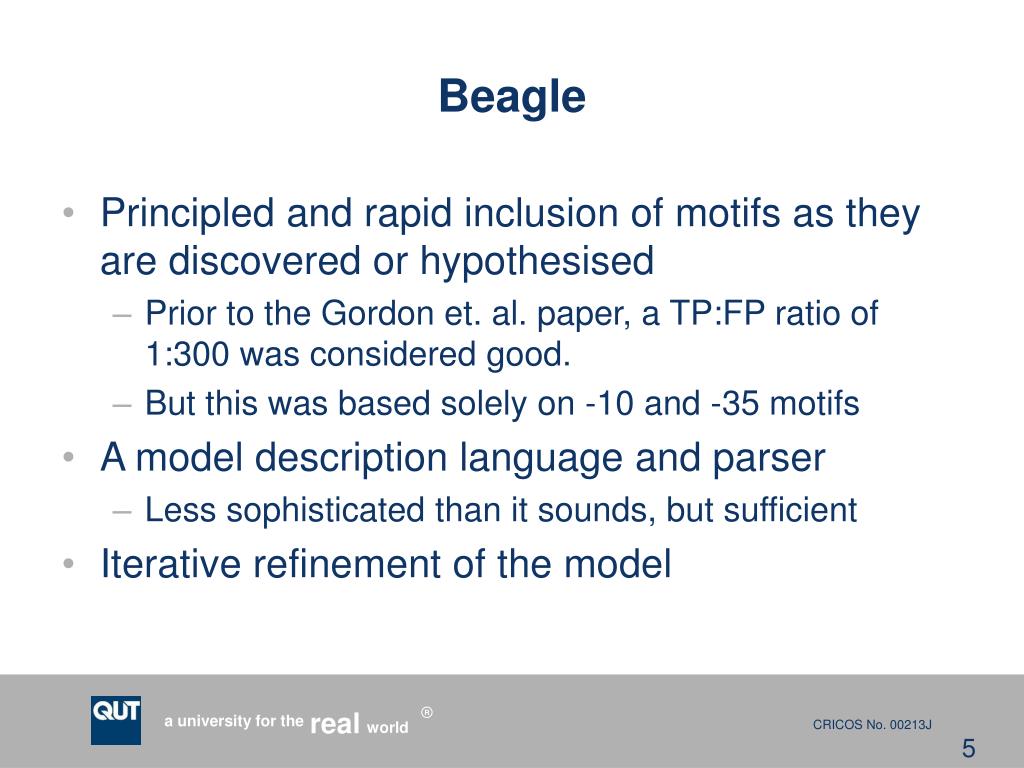

  5. Beagle • Principled and rapid inclusion of motifs as they are discovered or hypothesised • Prior to the Gordon et. al. paper, a TP:FP ratio of 1:300 was considered good. • But this was based solely on -10 and -35 motifs • A model description language and parser • Less sophisticated than it sounds, but sufficient • Iterative refinement of the model

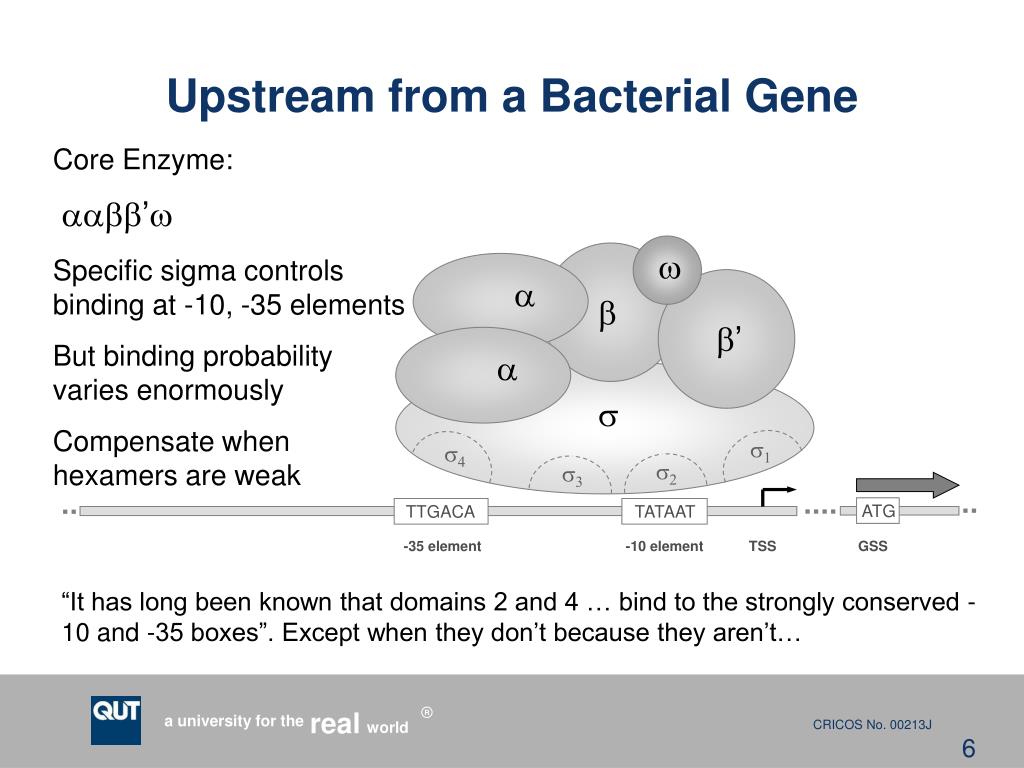

  6. Upstream from a Bacterial Gene Core Enzyme: aabb’w w Specific sigma controls binding at -10, -35 elements But binding probability varies enormously Compensate when hexamers are weak a b b’ a s s1 s4 s2 s3 ATG TTGACA TATAAT -35 element -10 element TSS GSS “It has long been known that domains 2 and 4 … bind to the strongly conserved -10 and -35 boxes”. Except when they don’t because they aren’t…

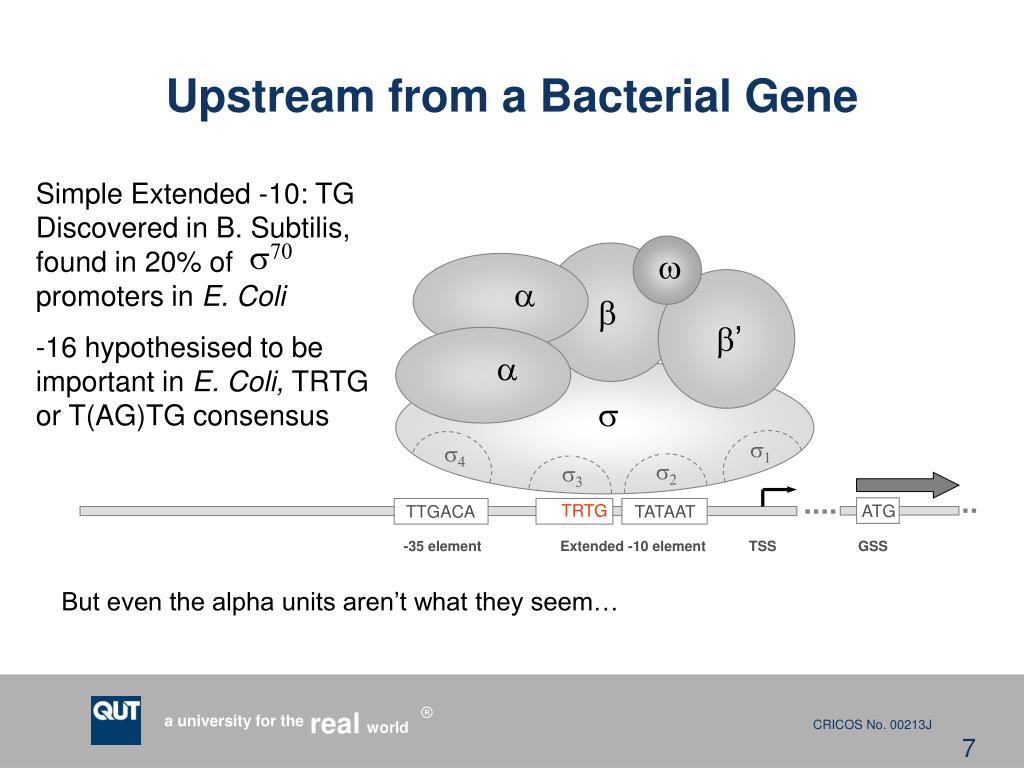

  7. Upstream from a Bacterial Gene Simple Extended -10: TG Discovered in B. Subtilis, found in 20% of promoters in E. Coli -16 hypothesised to be important in E. Coli, TRTG or T(AG)TG consensus s70 w a b b’ a s s1 s4 s2 s3 TRTG ATG TTGACA TATAAT -35 element Extended -10 element TSS GSS But even the alpha units aren’t what they seem…

  8. Upstream from a Bacterial Gene aCTDs are carboxy terminal domains, binding to UP elements AT-rich region, proximal element more important w a aNTD2 b b’ a aNTD1 s s1 s4 aCTD1 aCTD2 s2 s3 AAAAAARNR TRTG AWWWWWTTTTT ATG TTGACA TGTATAAT distal UP element proximal UP element -35 element -16 Extended -10 element TSS GSS

  9. The Data • E. Coli and B. Subtilis • Confirmed TSS locations within 250bp of the nearest gene start • No overlapping reading frames • N=492 (E. Coli), 205 (B. Subtilis) • 250 bp USRs available

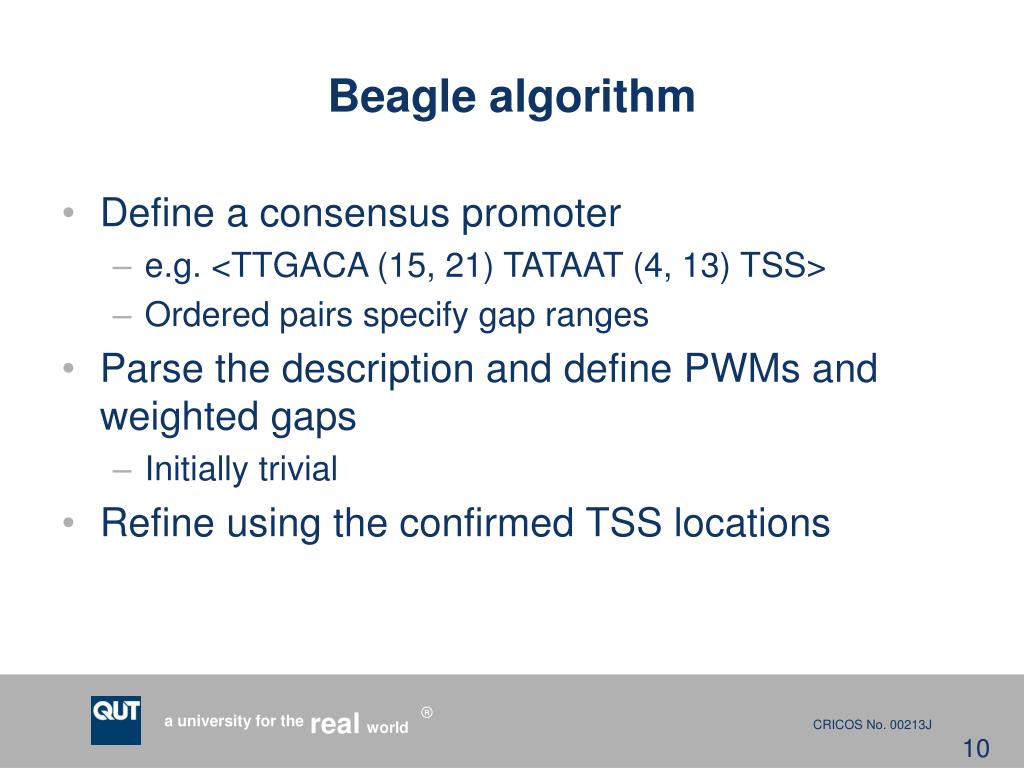

  10. Beagle algorithm • Define a consensus promoter • e.g. <TTGACA (15, 21) TATAAT (4, 13) TSS> • Ordered pairs specify gap ranges • Parse the description and define PWMs and weighted gaps • Initially trivial • Refine using the confirmed TSS locations

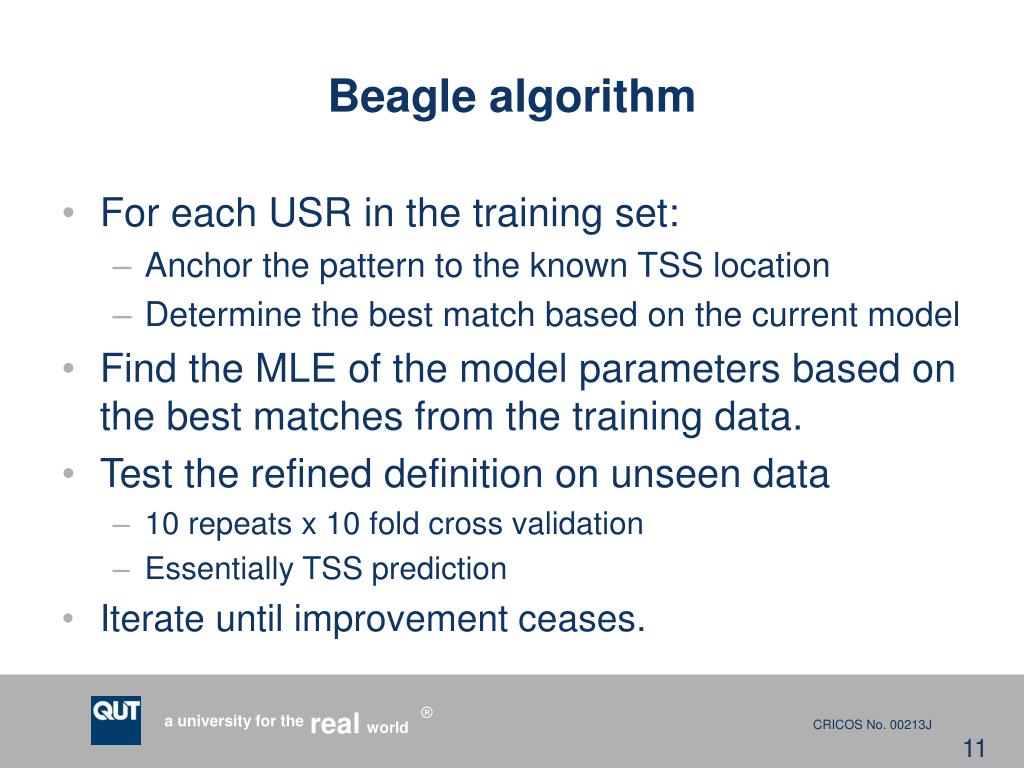

  11. Beagle algorithm • For each USR in the training set: • Anchor the pattern to the known TSS location • Determine the best match based on the current model • Find the MLE of the model parameters based on the best matches from the training data. • Test the refined definition on unseen data • 10 repeats x 10 fold cross validation • Essentially TSS prediction • Iterate until improvement ceases.

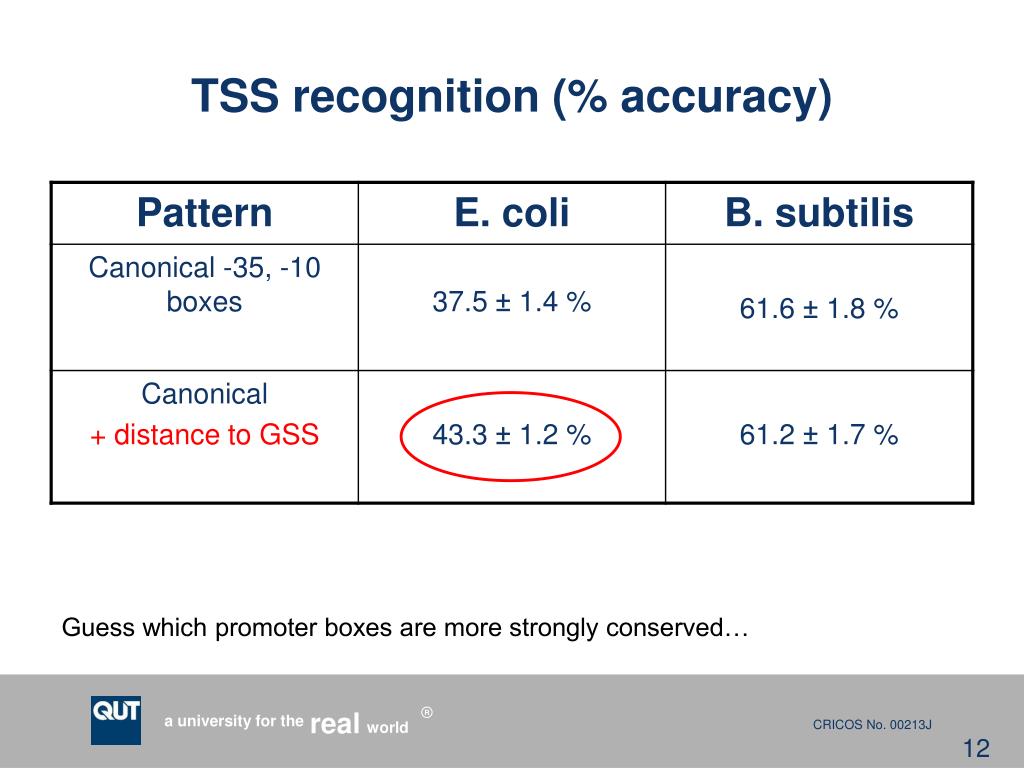

  12. TSS recognition (% accuracy) Guess which promoter boxes are more strongly conserved…

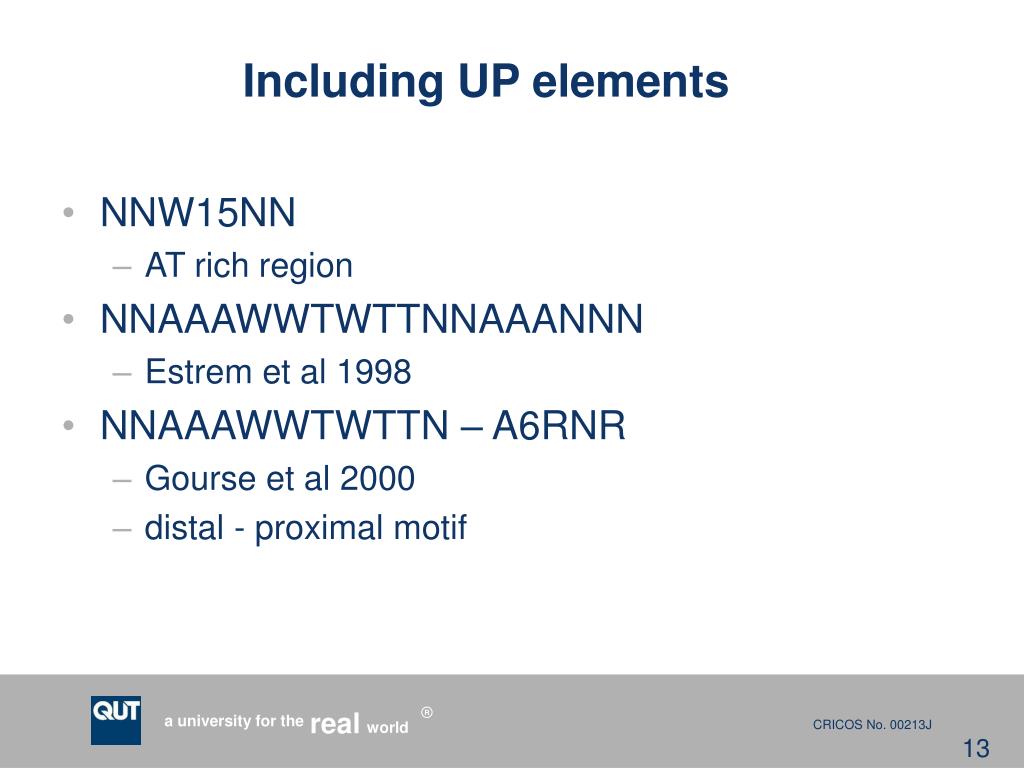

  13. Including UP elements • NNW15NN • AT rich region • NNAAAWWTWTTNNAAANNN • Estrem et al 1998 • NNAAAWWTWTTN – A6RNR • Gourse et al 2000 • distal - proximal motif

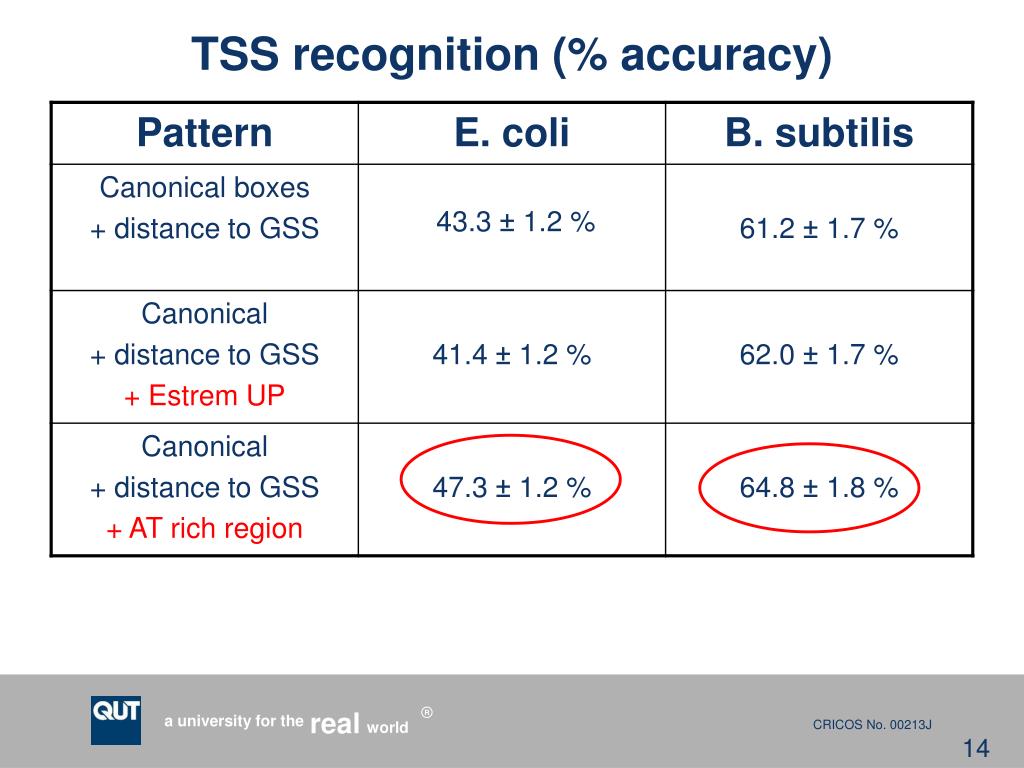

  14. TSS recognition (% accuracy)

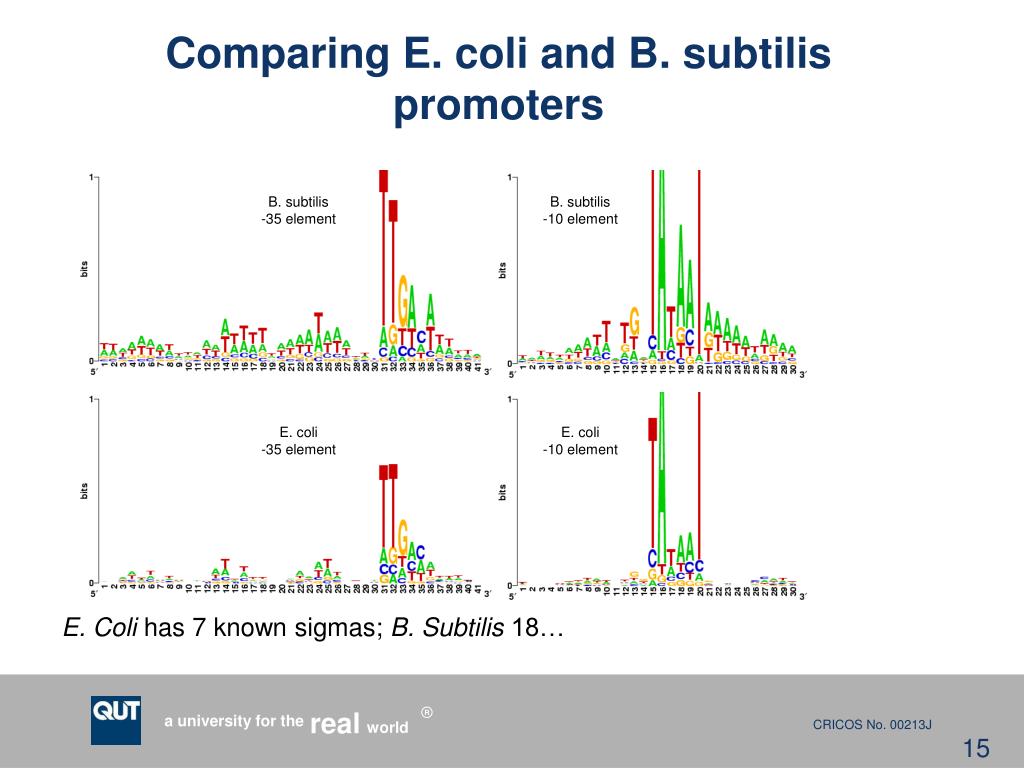

  15. Comparing E. coli and B. subtilis promoters B. subtilis -35 element B. subtilis -10 element E. coli -35 element E. coli -10 element E. Coli has 7 known sigmas; B. Subtilis 18…

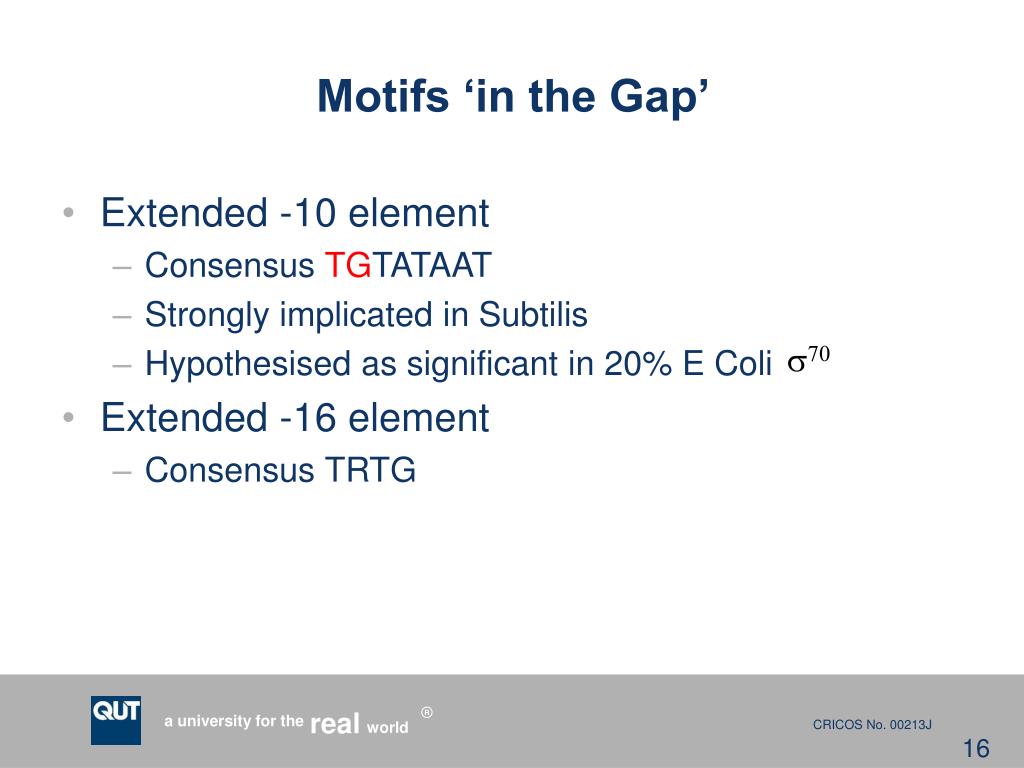

  16. Motifs ‘in the Gap’ • Extended -10 element • Consensus TGTATAAT • Strongly implicated in Subtilis • Hypothesised as significant in 20% E Coli • Extended -16 element • Consensus TRTG s70

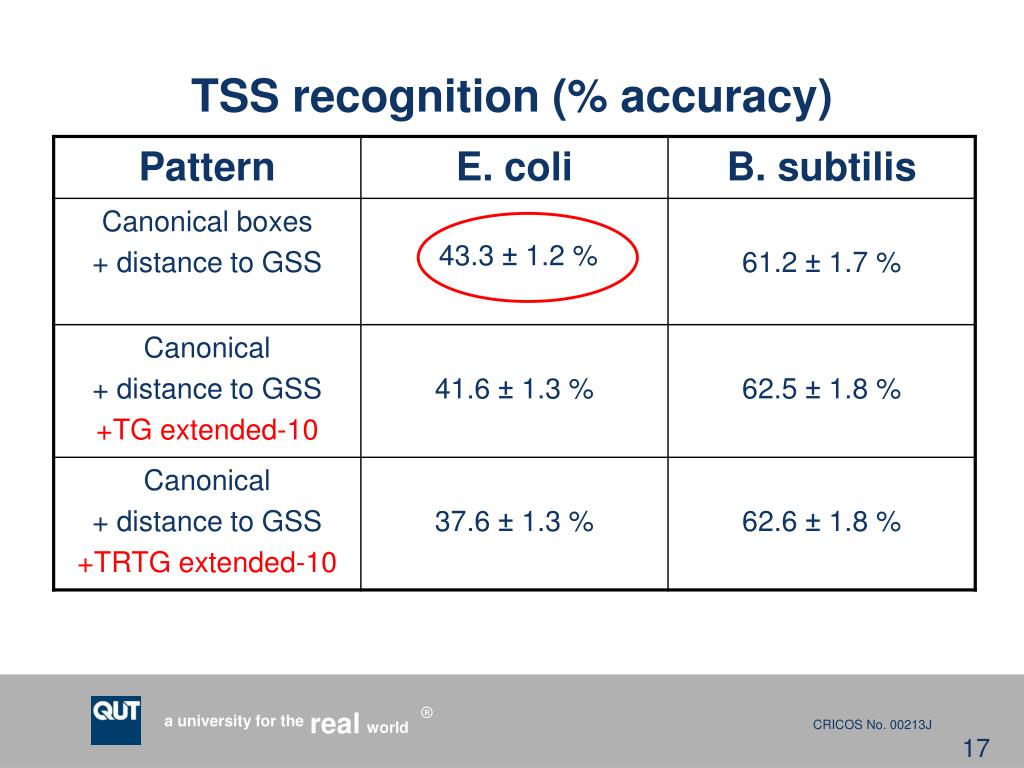

  17. TSS recognition (% accuracy)

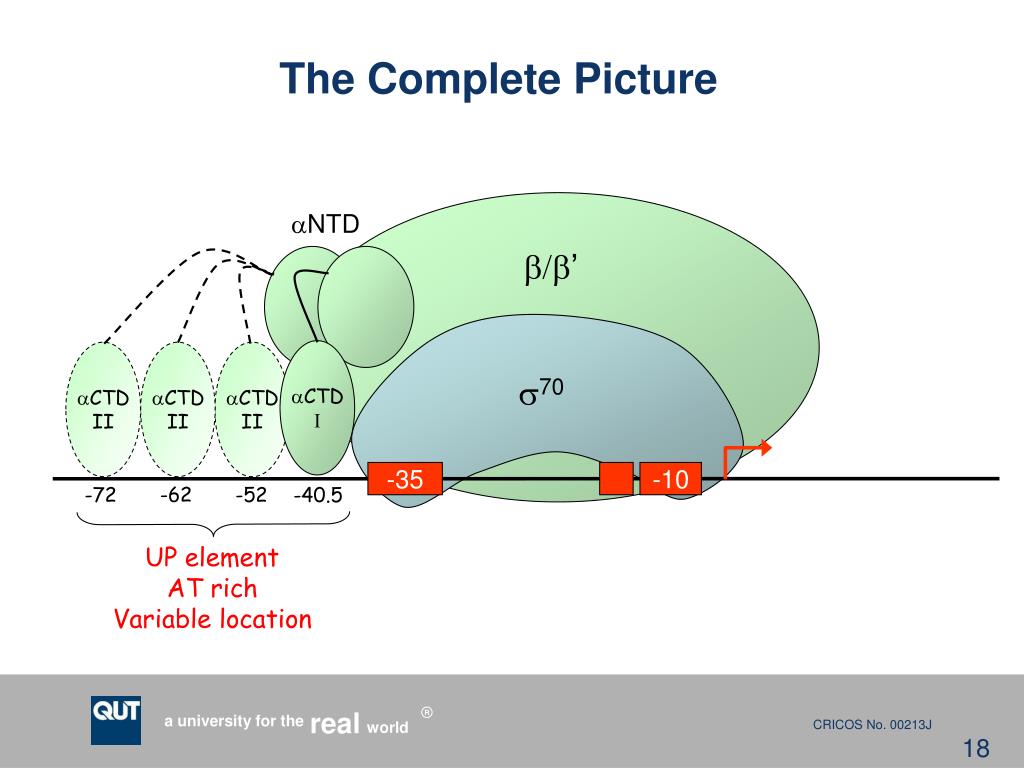

  18. The Complete Picture aNTD b/b’ aCTD I aCTD II aCTD II aCTD II s70 -35 -10 -62 -72 -52 -40.5 UP element AT rich Variable location

  19. TSS recognition (% accuracy)

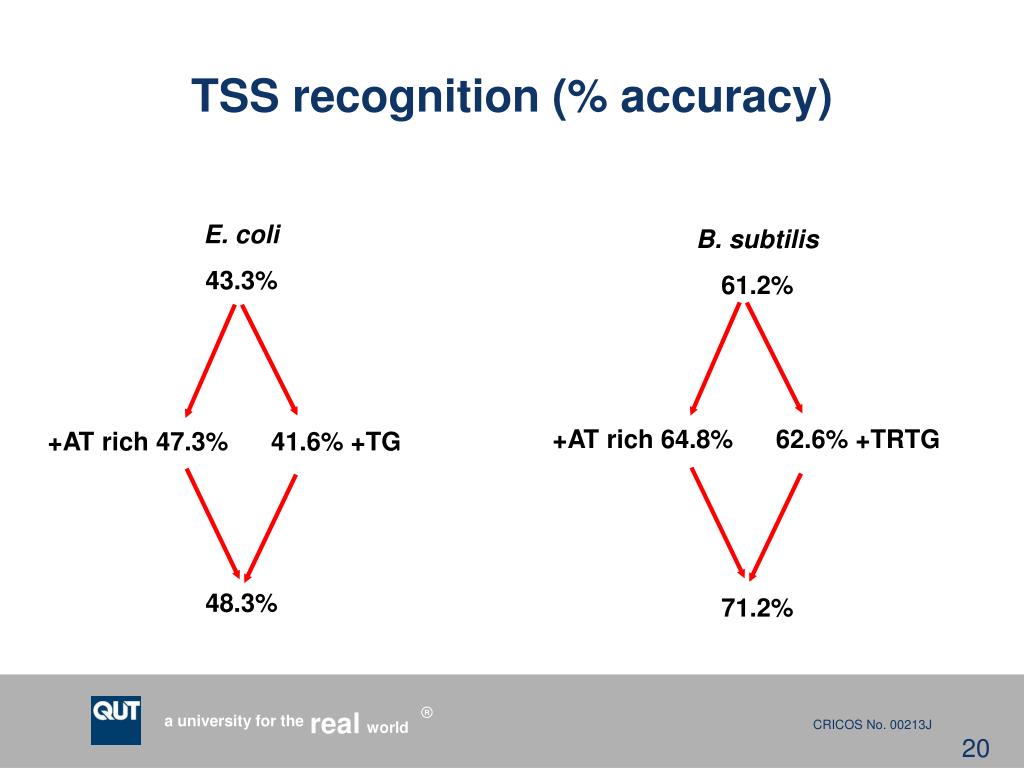

  20. TSS recognition (% accuracy) E. coli 43.3% 48.3% B. subtilis 61.2% 71.2% +AT rich 64.8% 62.6% +TRTG +AT rich 47.3% 41.6% +TG

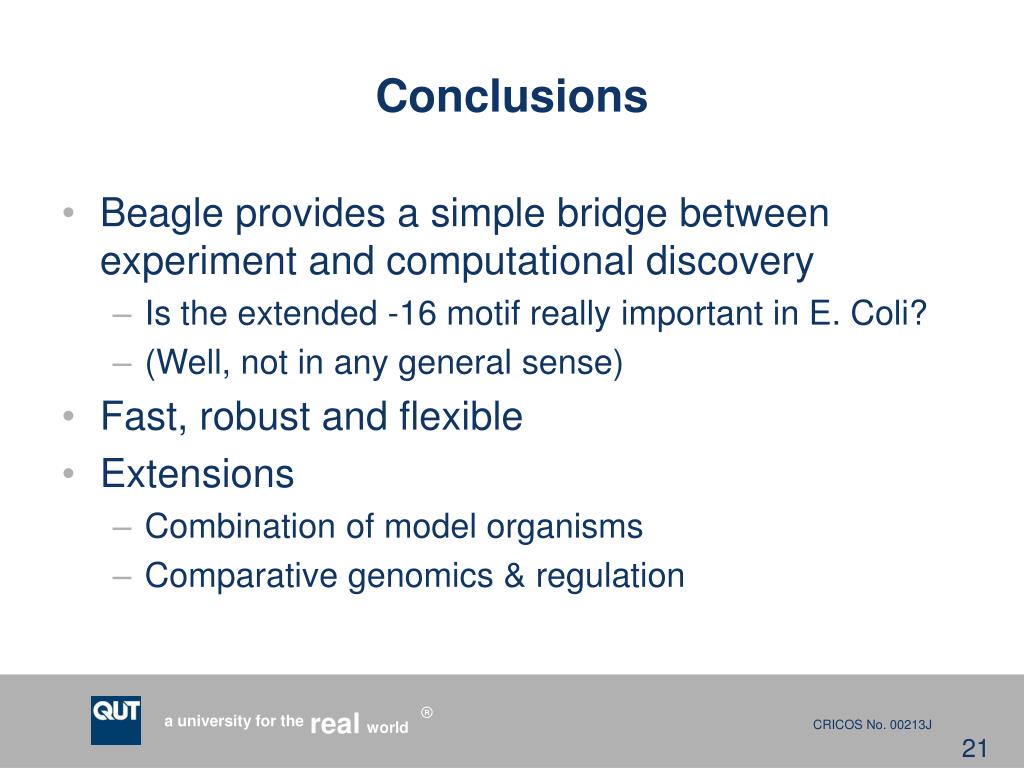

  21. Conclusions • Beagle provides a simple bridge between experiment and computational discovery • Is the extended -16 motif really important in E. Coli? • (Well, not in any general sense) • Fast, robust and flexible • Extensions • Combination of model organisms • Comparative genomics & regulation
