  1. WSDL : Web Service Definition Language Dr. Yuhong Yan NRC-IIT-Fredericton Internet logic

  2. WSDL: describe a web services • Initialized by IBM, Microsoft, Ariba and 6~ other companies • 2004.8: w3c releases WSDL 2.0

  3. Interoperability Using WSDL Service Client HTTP WSDL description Get WSDL doc Invoke Service SOAP Service J2EE Container Service Objects

  4. WSDL: Describe a web service • Interface information describing all publicly available functions • Data type information for all message requests and message responses • Binding information about the transport protocol to be used • Address information for locating the specified services

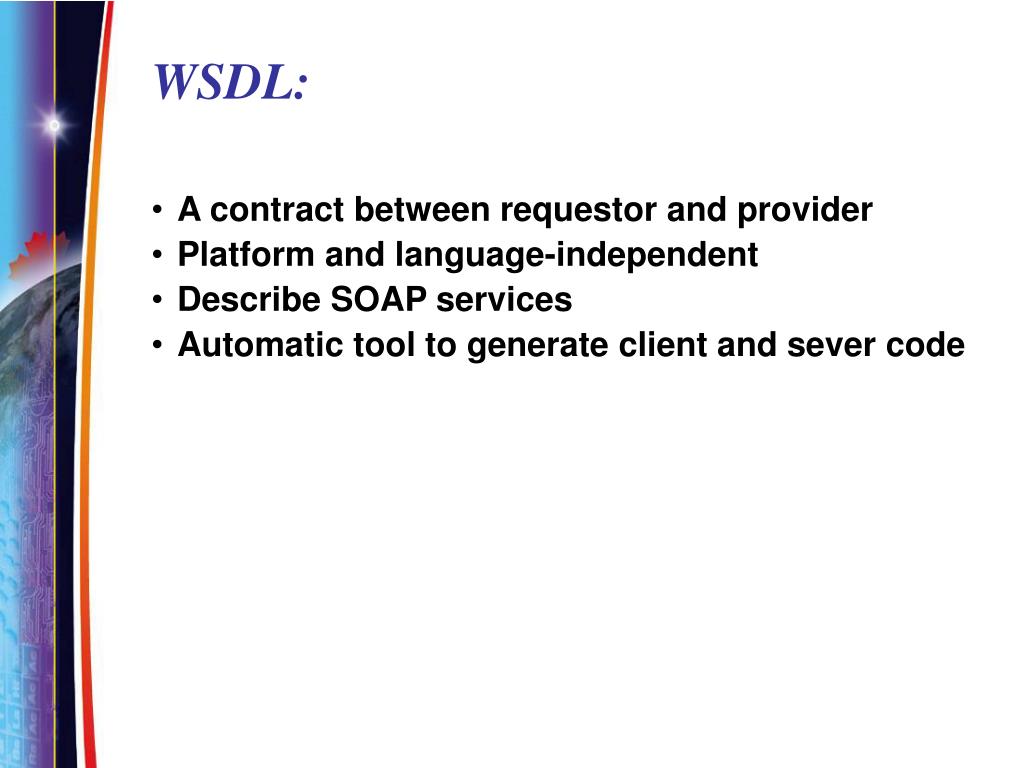

  5. WSDL: • A contract between requestor and provider • Platform and language-independent • Describe SOAP services • Automatic tool to generate client and sever code

  6. What do we learn? • WSDL specification • Generate WSDL for a service (from java objects to WSDL) • Generate java classes from WSDL • Other ways for distributed system: rmi, and CORBA

  7. An example of WSDL: HelloWorld Root element, defines namespaces <wsdl:definitions targetNamespace="http://localhost:8080/axis/services/urn:HelloWorld" xmlns:apachesoap="http://xml.apache.org/xml-soap" xmlns:impl="http://localhost:8080/axis/services/urn:HelloWorld" xmlns:intf="http://localhost:8080/axis/services/urn:HelloWorld" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/" xmlns:tns1="http://www.w3.org/1999/XMLSchema" xmlns:tns2="http://www.w3.org/2003/05/soap-encoding" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:wsdlsoap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:xsd="http://www.w3.org/2001/XMLSchema"> Convention, refer to itself (?) WSDL uses it to generate package name WSDL schema WSDL-SOAP binding xmlschema

  8. <Service> Where is the service located? <wsdl:service name="HelloWorldServiceService"> <wsdl:port binding="impl:urn:HelloWorldSoapBinding" name="urn:HelloWorld"> <wsdlsoap:address location="http://localhost:8080/axis/services/urn:HelloWorld" />   </wsdl:port> </wsdl:service> The service location: the endpoint of the SOAP message

  9. <Binding> Bind messages to operations Use SOAP HTTP protocol <wsdl:binding name="urn:HelloWorldSoapBinding" type="impl:HelloWorldService">   <wsdlsoap:binding style="rpc" transport="http://schemas.xmlsoap.org/soap/http" /> - <wsdl:operation name="sayHello">   <wsdlsoap:operation soapAction="" /> - <wsdl:input name="sayHelloRequest">   <wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://HelloWorld.samples" use="encoded" />   </wsdl:input> - <wsdl:output name="sayHelloResponse">   <wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://localhost:8080/axis/services/urn:HelloWorld" use="encoded" />   </wsdl:output>   </wsdl:operation> -  </wsdl:binding>

  10. <portType> Bind messages to operations Operation: sayHello <wsdl:portType name="HelloWorldService"> - <wsdl:operation name="sayHello" parameterOrder="in0 in1">   <wsdl:input message="impl:sayHelloRequest" name="sayHelloRequest" />   <wsdl:output message="impl:sayHelloResponse" name="sayHelloResponse" />   </wsdl:operation> </wsdl:portType> Input Message: sayHelloRequest Output Message: sayHelloResponse

  11. <message> Define message: sayHelloRequest Content of message Parameter 1, type string <wsdl:message name="sayHelloRequest">   <wsdl:part name="in0" type="tns2:string" />   <wsdl:part name="in1" type="tns2:string" />   </wsdl:message> <wsdl:message name="sayHelloResponse">   <wsdl:part name="sayHelloReturn" type="tns2:string" />   </wsdl:message> Parameter 2, type string Define massage: sayHelloResponse Parameter 1, type string

  12. Structure of WSDL <definitions>:Root WSDL Element <types>:What data types will be transmitted? <message>:What message will be transmitted? <portType>:What operations (functions) will be supported? <binding>:How will the messages be transmitted on the wire? What SOAP-specific details are there? <service>:Where is the service located? P121 fig 6-1

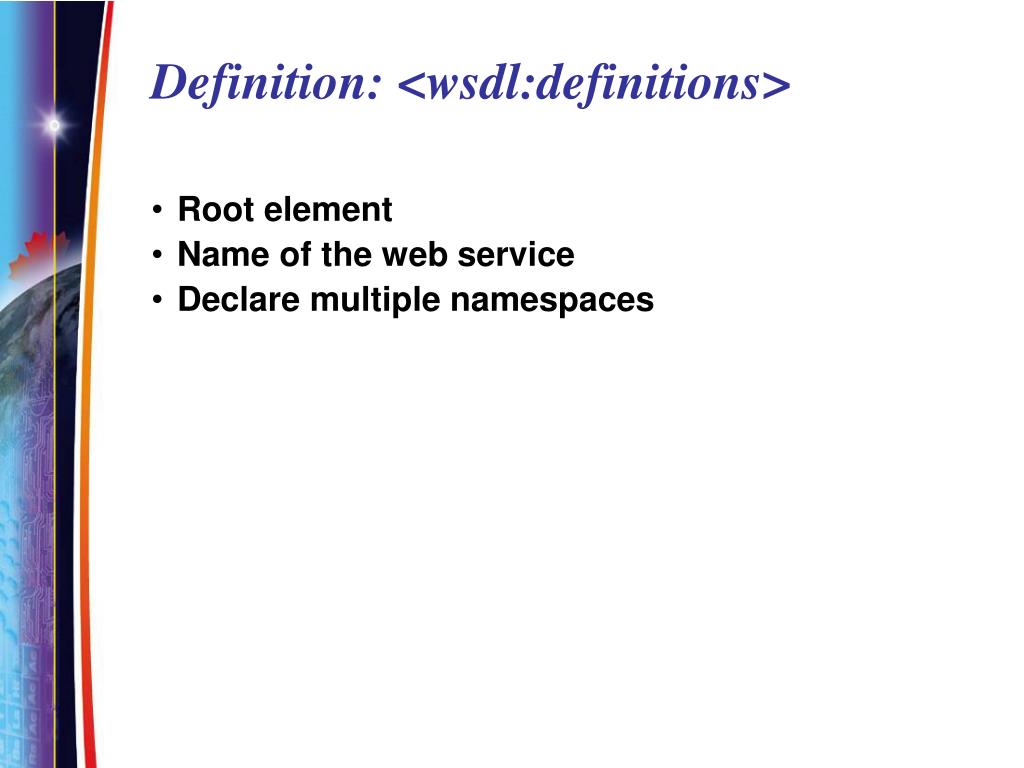

  13. Definition: <wsdl:definitions> • Root element • Name of the web service • Declare multiple namespaces

  14. Complex data types: <types> • Not used if limit to XML schema • Define complex types (correspondent to a class in java)

  15. Message definitions: <message> • A request message or a response message • Name of the message • Element <part> defines the data types used in the message • Types of the parameters for the request message • Types of the return values for the response message

  16. Operation definitions: <portType> • Operations: the remote methods • Input/output messages for operations <wsdl:portType name="HelloWorldService"> - <wsdl:operation name="sayHello" parameterOrder="in0 in1">   <wsdl:input message="impl:sayHelloRequest" name="sayHelloRequest" />   <wsdl:output message="impl:sayHelloResponse" name="sayHelloResponse" />   </wsdl:operation> </wsdl:portType>

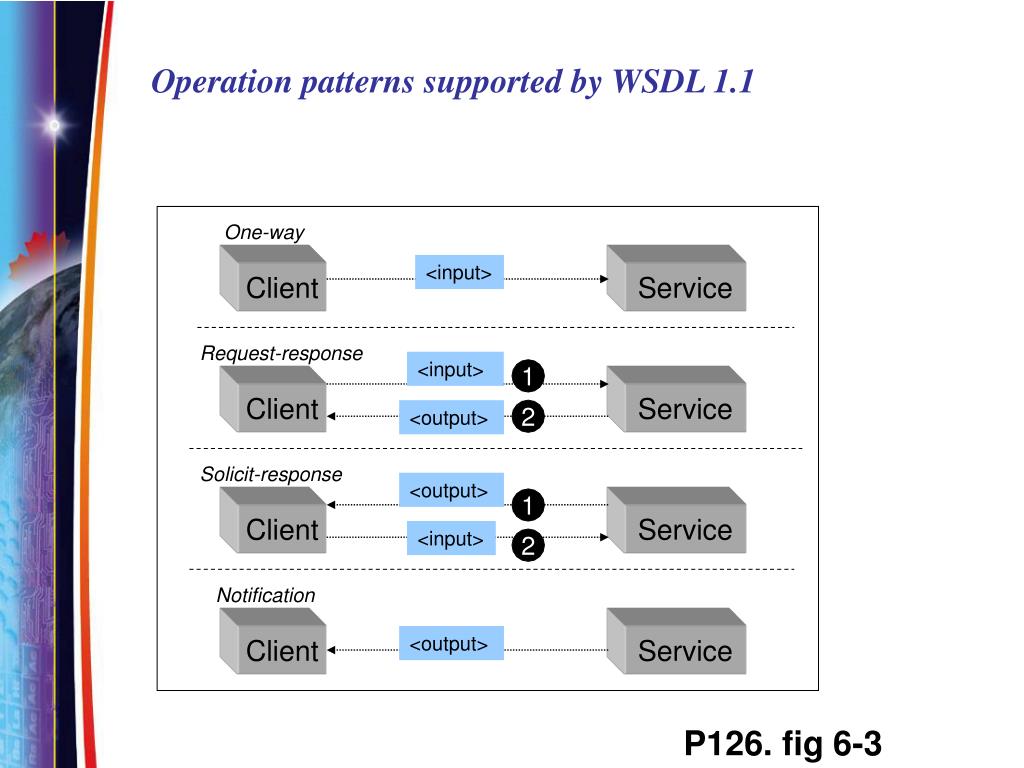

  17. Operation patterns supported by WSDL 1.1 One-way <input> Client Service Request-response <input> 1 Client Service <output> 2 Solicit-response <output> 1 Client Service <input> 2 Notification Client <output> Service P126. fig 6-3

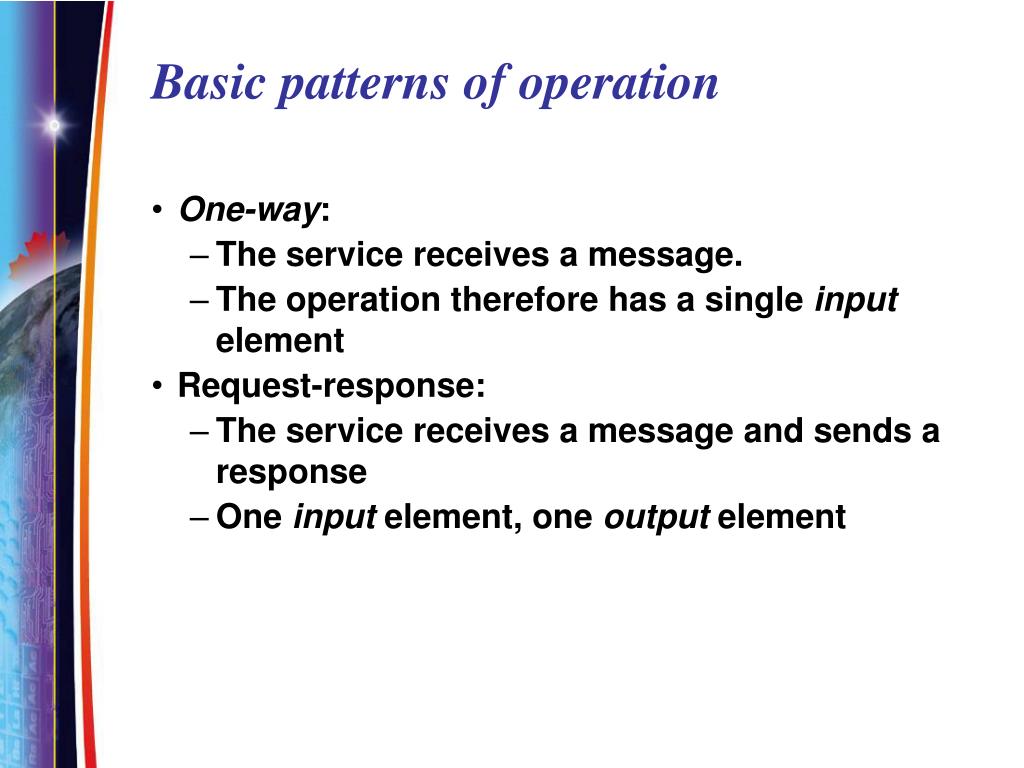

  18. Basic patterns of operation • One-way: • The service receives a message. • The operation therefore has a single input element • Request-response: • The service receives a message and sends a response • One input element, one output element

  19. Basic patterns of operation (2) • Solicit-response • The service sends a message and receives a response • The operation has one output message, followed by one input message • Notification • The service sends a message. • The operation has one output message

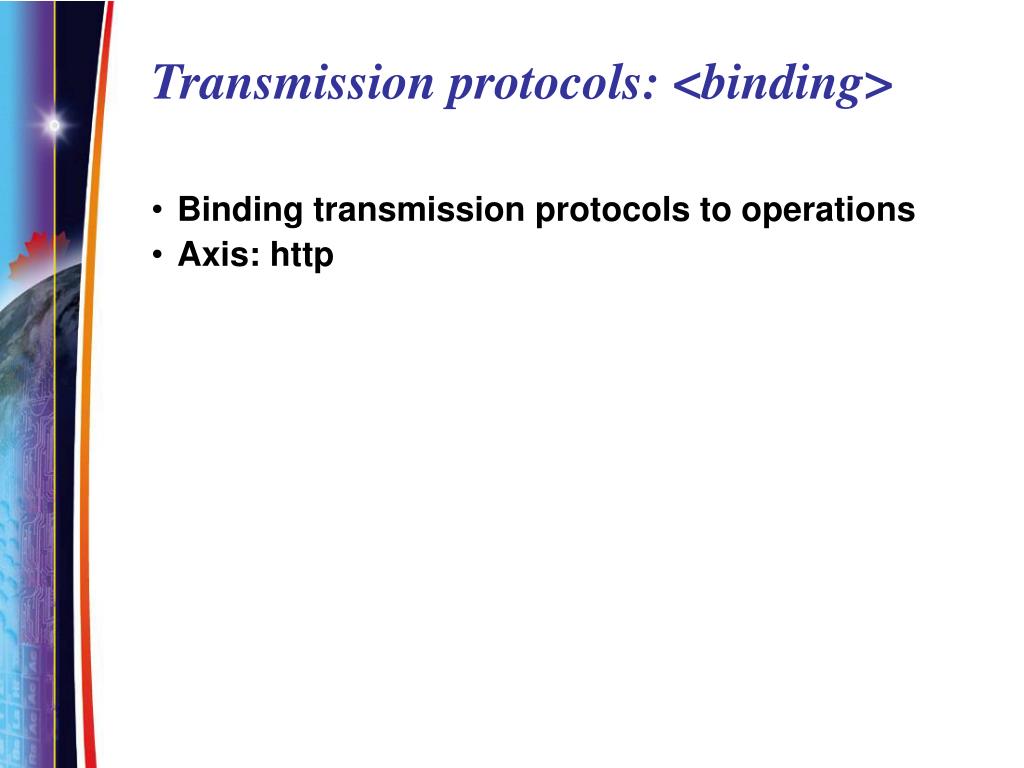

  20. Transmission protocols: <binding> • Binding transmission protocols to operations • Axis: http

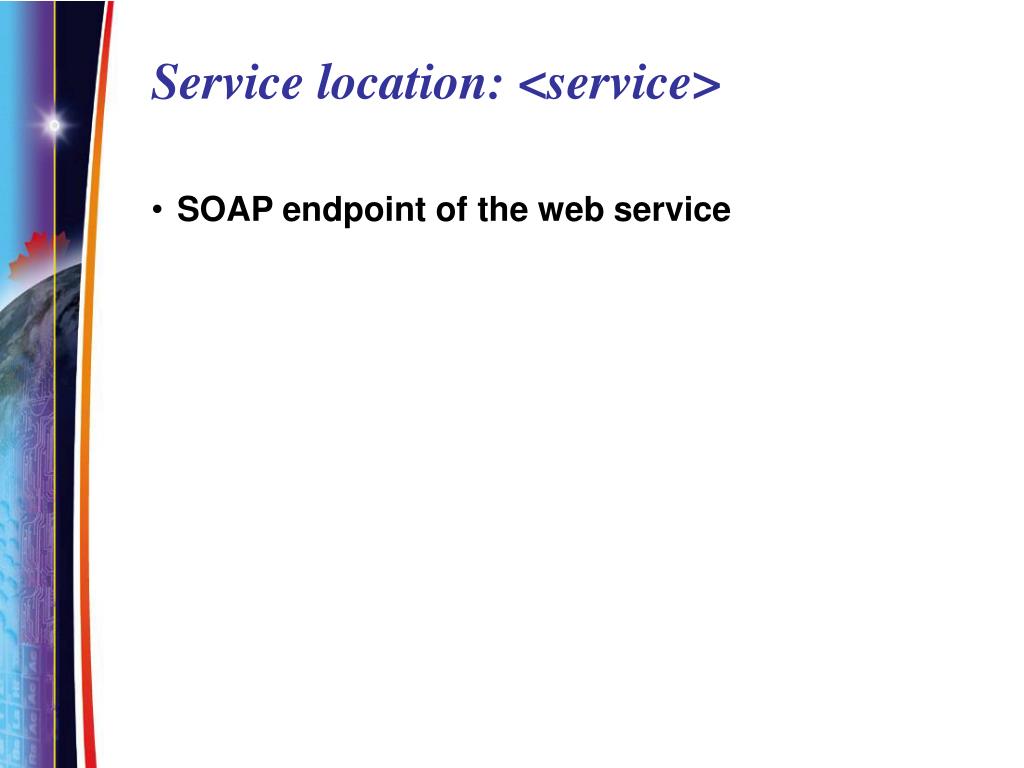

  21. Service location: <service> • SOAP endpoint of the web service

  22. Second example: WSDL of StockQuote • Deploy the sample StockQuoteService • The WSDL is at http://localhost:8080/axis/services/urn:xmltoday-delayed-quotes?wsdl

  23. Messages <wsdl:message name="getQuoteRequest">   <wsdl:part name="symbol" type="tns2:string" /> </wsdl:message> <wsdl:message name="getQuoteResponse">   <wsdl:part name="getQuoteReturn" type="xsd:float" />   </wsdl:message>

  24. Operations <wsdl:portType name="StockQuoteService"> - <wsdl:operation name="getQuote" parameterOrder="symbol">   <wsdl:input message="impl:getQuoteRequest" name="getQuoteRequest" />   <wsdl:output message="impl:getQuoteResponse" name="getQuoteResponse" />   </wsdl:operation> </wsdl:portType>

  25. Binding <wsdl:binding name="GetQuoteSoapBinding" type="impl:StockQuoteService">   <wsdlsoap:binding style="rpc" transport="http://schemas.xmlsoap.org/soap/http" /> <wsdl:operation name="getQuote">   <wsdlsoap:operation soapAction="" /> - <wsdl:input name="getQuoteRequest">   <wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://stock.samples" use="encoded" />   </wsdl:input> - <wsdl:output name="getQuoteResponse">   <wsdlsoap:body encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" namespace="http://localhost:8080/axis/services/urn:xmltoday-delayed-quotes" use="encoded" />   </wsdl:output>   </wsdl:operation>   </wsdl:binding>

  26. Service location <wsdl:service name="StockQuoteServiceService"> - <wsdl:port binding="impl:GetQuoteSoapBinding" name="GetQuote">   <wsdlsoap:address location="http://localhost:8080/axis/services/urn:xmltoday-delayed-quotes" />   </wsdl:port>   </wsdl:service>

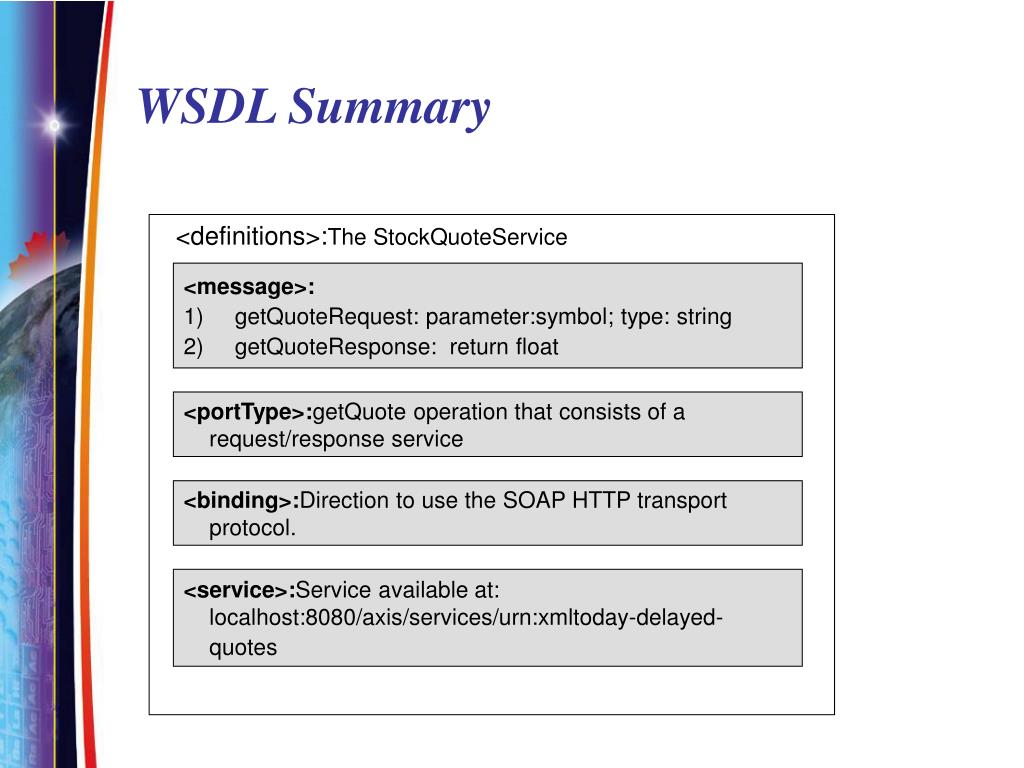

  27. WSDL Summary <definitions>:The StockQuoteService • <message>: • getQuoteRequest: parameter:symbol; type: string • getQuoteResponse: return float <portType>:getQuote operation that consists of a request/response service <binding>:Direction to use the SOAP HTTP transport protocol. <service>:Service available at: localhost:8080/axis/services/urn:xmltoday-delayed-quotes

  28. Using WSDL with Axis • Obtaining WSDL for deployed services • WSDL2Java: Building stubs, skeletons, and data • Java2WSDL: Building WSDL from Java

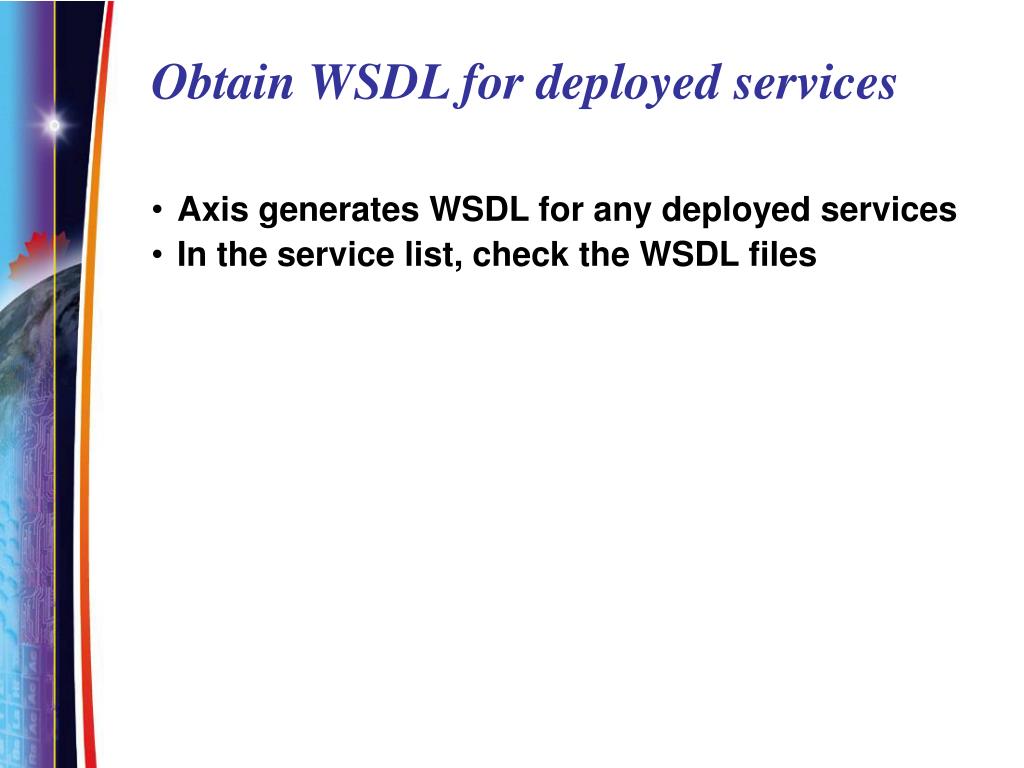

  29. Obtain WSDL for deployed services • Axis generates WSDL for any deployed services • In the service list, check the WSDL files
