  1. NextGen Weather Evaluation Capabilities (NWEC) Environment National Weather Service Tri Nguyen, AJP-6840 January 7, 2010

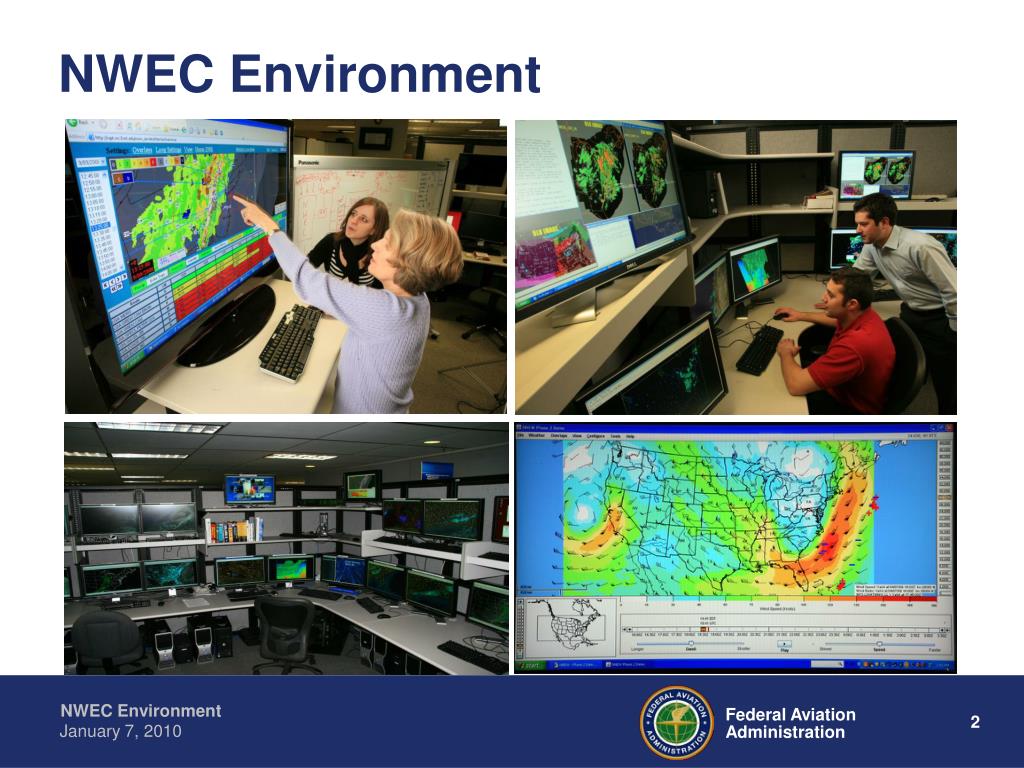

  2. NWEC Environment

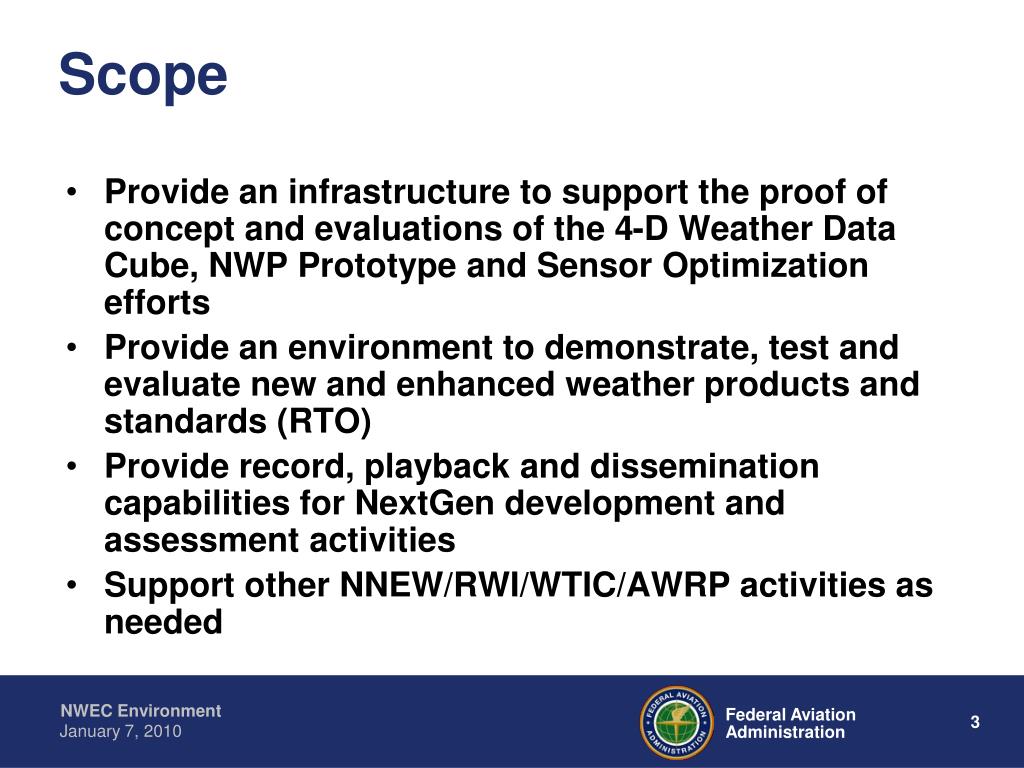

  3. Scope • Provide an infrastructure to support the proof of concept and evaluations of the 4-D Weather Data Cube, NWP Prototype and Sensor Optimization efforts • Provide an environment to demonstrate, test and evaluate new and enhanced weather products and standards (RTO) • Provide record, playback and dissemination capabilities for NextGen development and assessment activities • Support other NNEW/RWI/WTIC/AWRP activities as needed

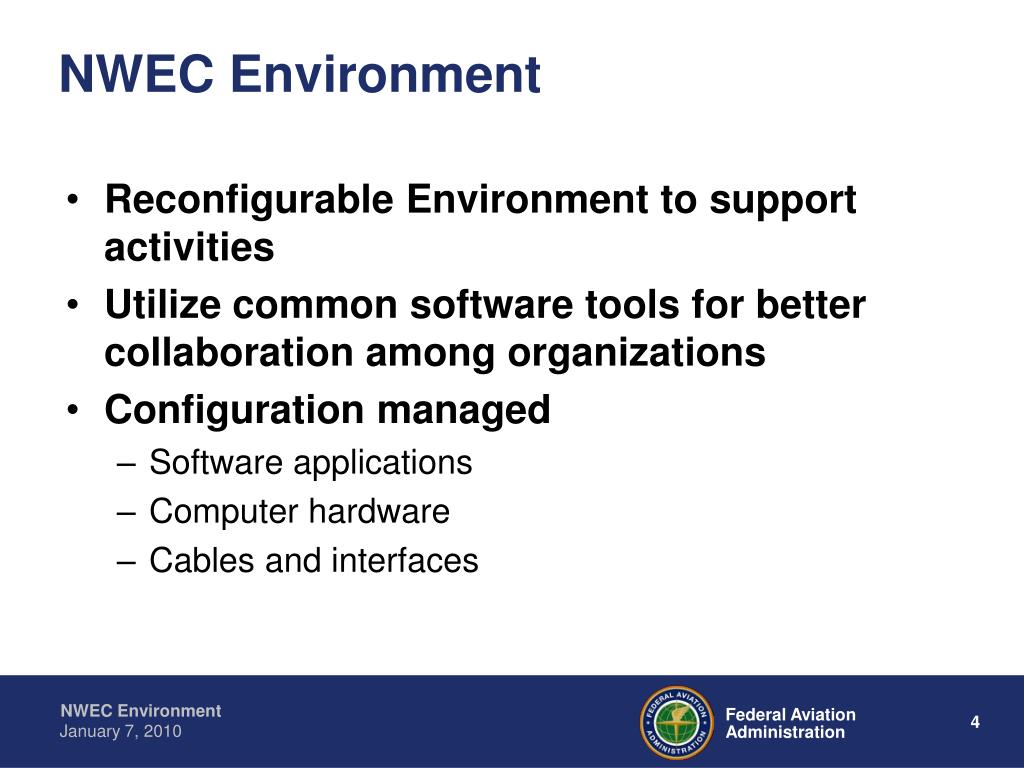

  4. NWEC Environment • Reconfigurable Environment to support activities • Utilize common software tools for better collaboration among organizations • Configuration managed • Software applications • Computer hardware • Cables and interfaces

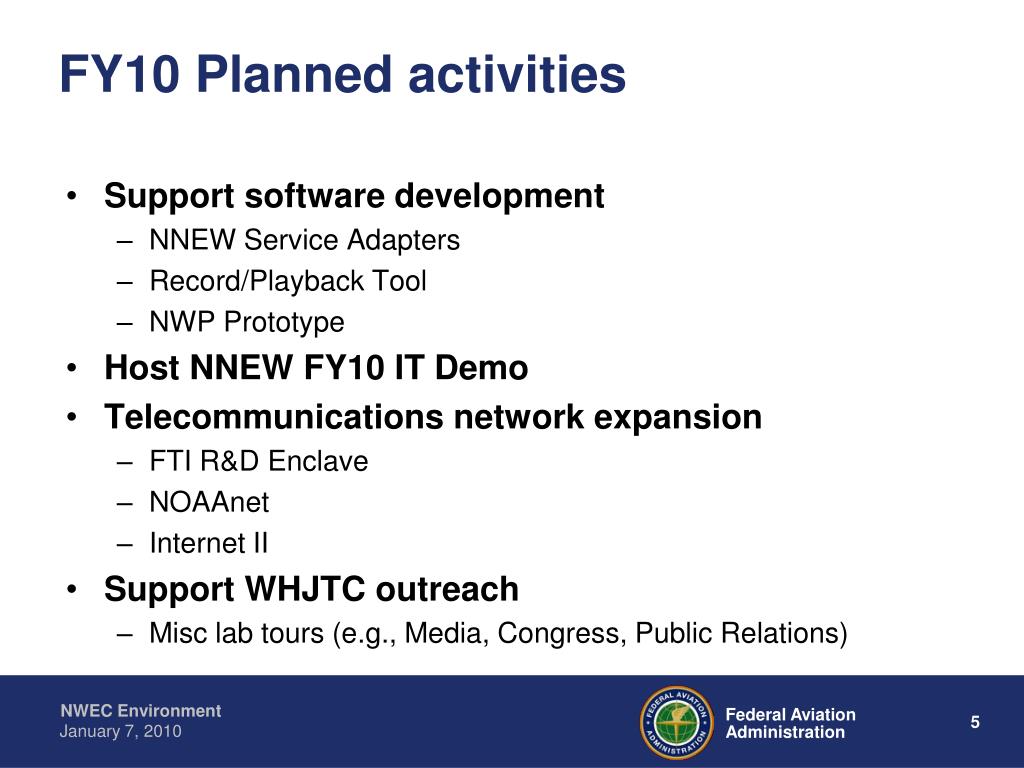

  5. FY10 Planned activities • Support software development • NNEW Service Adapters • Record/Playback Tool • NWP Prototype • Host NNEW FY10 IT Demo • Telecommunications network expansion • FTI R&D Enclave • NOAAnet • Internet II • Support WHJTC outreach • Misc lab tours (e.g., Media, Congress, Public Relations)

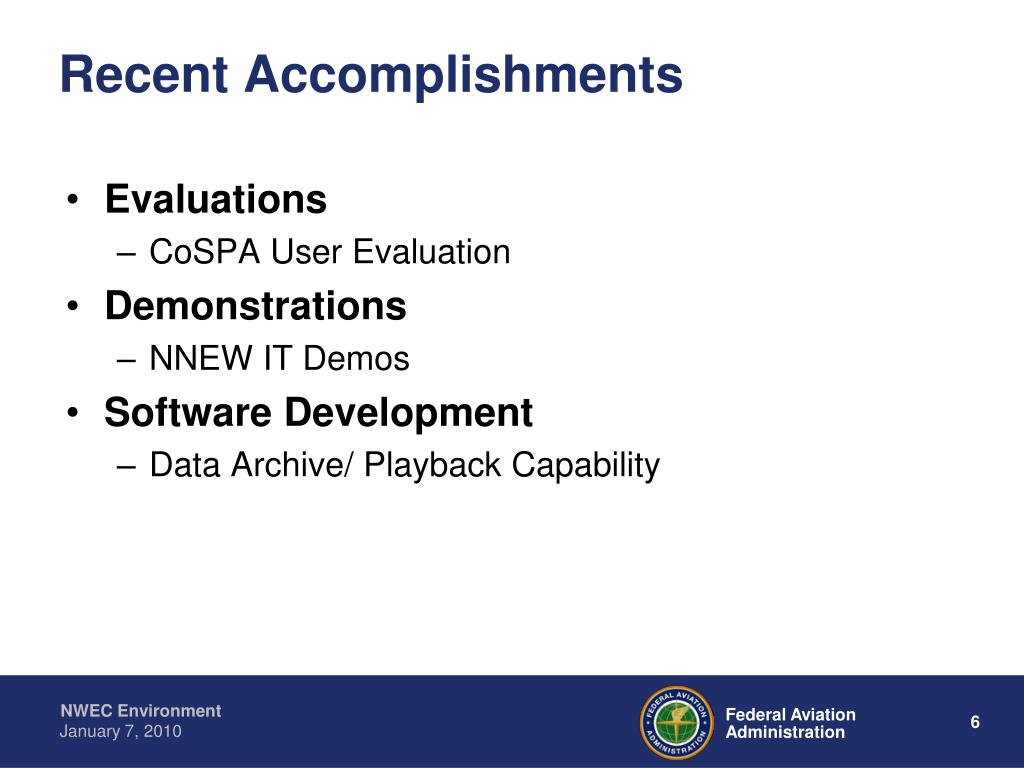

  6. Recent Accomplishments • Evaluations • CoSPA User Evaluation • Demonstrations • NNEW IT Demos • Software Development • Data Archive/ Playback Capability

  7. Weather Data to NWEC NOAAPort GRID Products (RUC, GFS, NAM, UKMET, etc.) GOES Satellite Imagery NEXRAD Level 3 TDWR NLDN NOAA All GOES Satellite Imagery SeaSpace Corp (in progress) GOES East Satellite Imagery GOES West Satellite Imagery NEXRAD RPG NEXRAD Level 3 data University of Oklahoma (in progress) NEXRAD Level 2 data WSI NowRAD (Radar Mosaic)

  8. Weather Data to NWEC (cont.) NSSL 3D Radar Mosaic MADIS Surface Observations UCAR Alphanumeric Products (Airmets, Sigmets, etc) RASP One Minute Observation Lightning WARP / WINS GOES Satellite Images NEXRAD Mosaic GRID Products (RUC, GFS, UKMET, etc) Alphanumeric Products (METAR, PIREP, etc) Other data to the NWEC Lab ADS-B flight tracks ETMS flight tracks

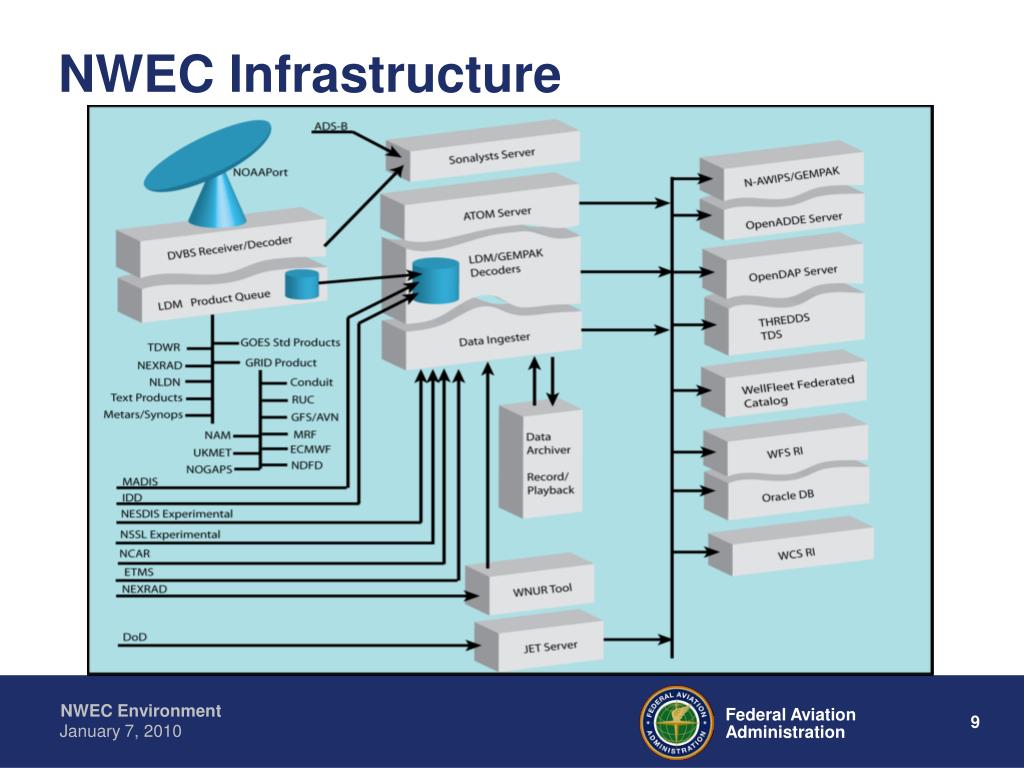

  9. NWEC Infrastructure

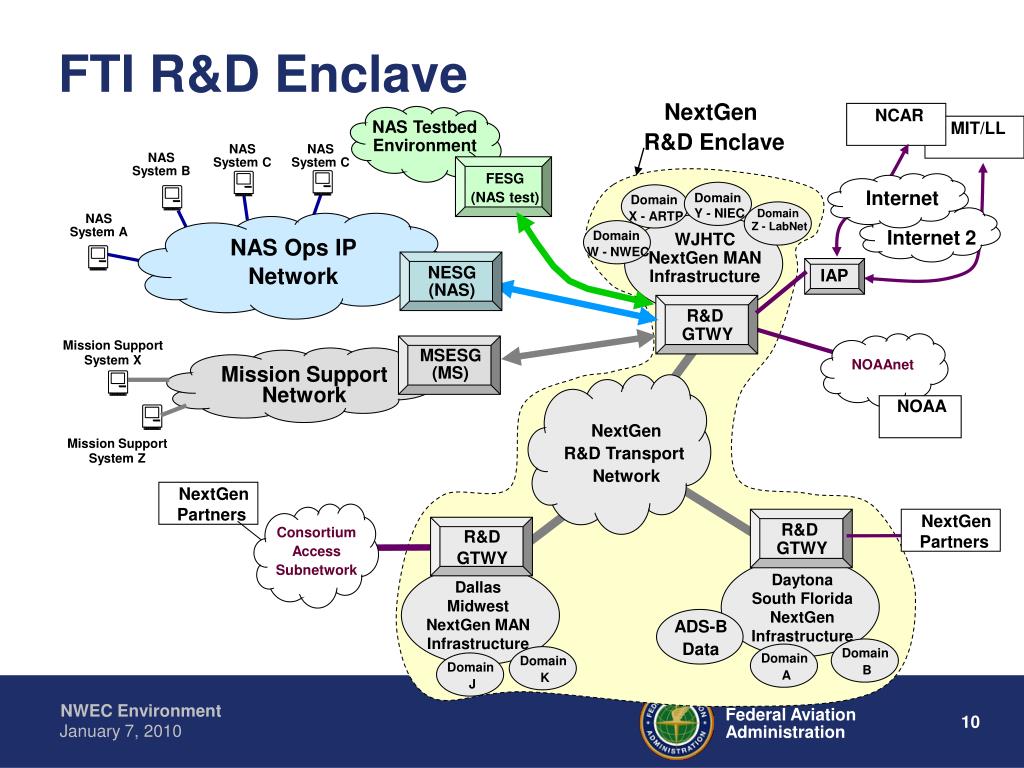

  10. NextGen Partners MIT/LL NCAR Domain Y - NIEC Domain Z - LabNet Domain K Domain B Domain A Domain J Domain W - NWEC Domain X - ARTP IAP NESG (NAS) MSESG (MS) NOAA R&D GTWY R&D GTWY R&D GTWY Consortium Access Subnetwork ADS-B Data FTI R&D Enclave NextGen R&D Enclave NAS Testbed Environment NAS System C NAS System C NAS System B FESG (NAS test) Internet NAS System A Internet 2 WJHTC NextGen MAN Infrastructure NAS Ops IP Network Mission Support System X NOAAnet Mission Support Network NextGen R&D Transport Network Mission Support System Z NextGen Partners Daytona South Florida NextGen Infrastructure Dallas Midwest NextGen MAN Infrastructure

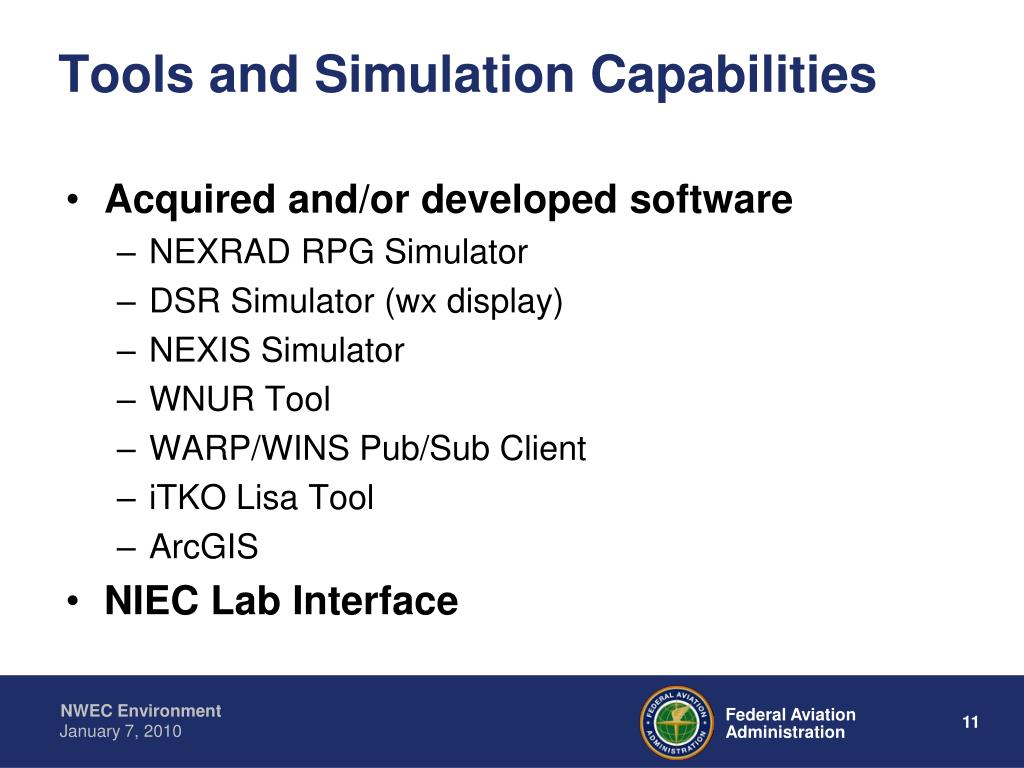

  11. Tools and Simulation Capabilities • Acquired and/or developed software • NEXRAD RPG Simulator • DSR Simulator (wx display) • NEXIS Simulator • WNUR Tool • WARP/WINS Pub/Sub Client • iTKO Lisa Tool • ArcGIS • NIEC Lab Interface

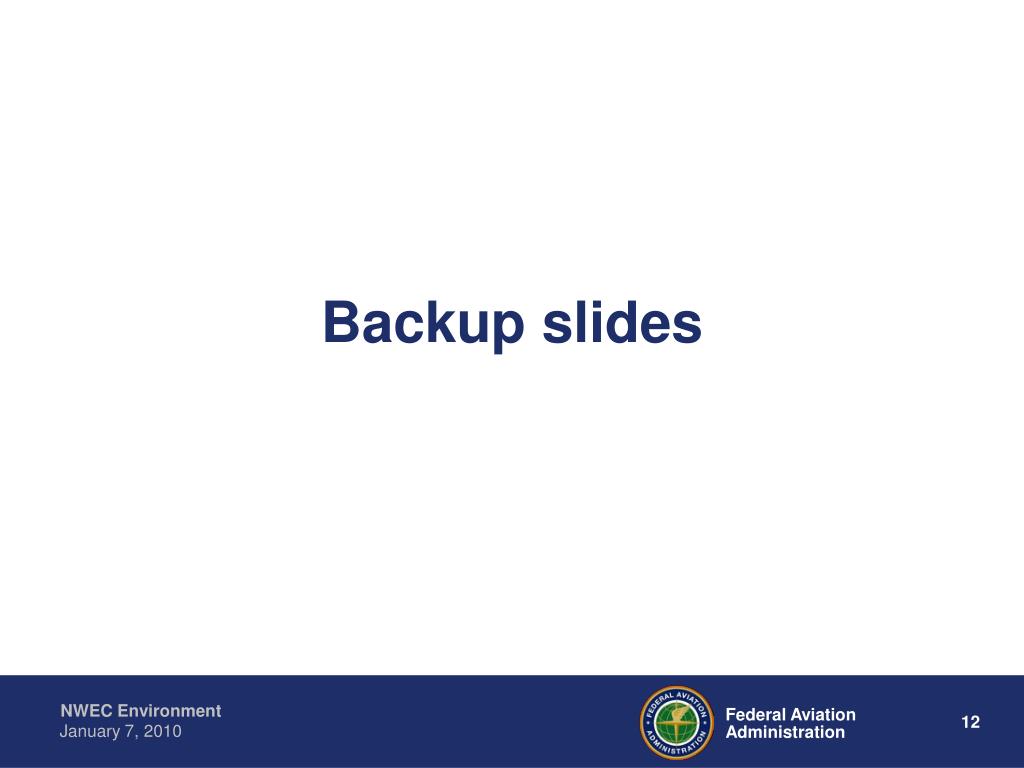

  12. Backup slides

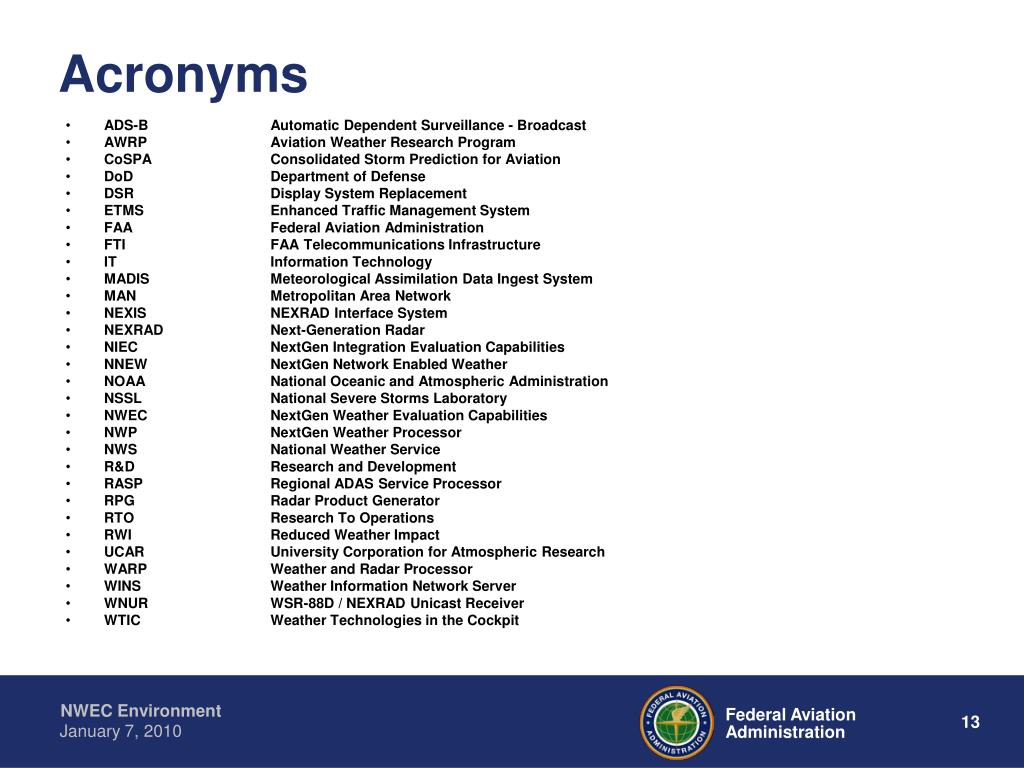

  13. Acronyms • ADS-B Automatic Dependent Surveillance - Broadcast • AWRP Aviation Weather Research Program • CoSPA Consolidated Storm Prediction for Aviation • DoD Department of Defense • DSR Display System Replacement • ETMS Enhanced Traffic Management System • FAA Federal Aviation Administration • FTI FAA Telecommunications Infrastructure • IT Information Technology • MADIS Meteorological Assimilation Data Ingest System • MAN Metropolitan Area Network • NEXIS NEXRAD Interface System • NEXRAD Next-Generation Radar • NIEC NextGen Integration Evaluation Capabilities • NNEW NextGen Network Enabled Weather • NOAA National Oceanic and Atmospheric Administration • NSSL National Severe Storms Laboratory • NWEC NextGen Weather Evaluation Capabilities • NWP NextGen Weather Processor • NWS National Weather Service • R&D Research and Development • RASP Regional ADAS Service Processor • RPG Radar Product Generator • RTO Research To Operations • RWI Reduced Weather Impact • UCAR University Corporation for Atmospheric Research • WARP Weather and Radar Processor • WINS Weather Information Network Server • WNUR WSR-88D / NEXRAD Unicast Receiver • WTIC Weather Technologies in the Cockpit
