  1. DAMS Dams are built for one or more of the following purposes: • Irrigation • Flood Control • Power Generation • Water Supply

  2. Types of Dams • Classification according to height: • Low dams up to 15m height • Medium dams up to 90 m height • High dams > 90 m height

  3. Concrete Gravity Dam • Classification according to building material: • Concrete gravity dams

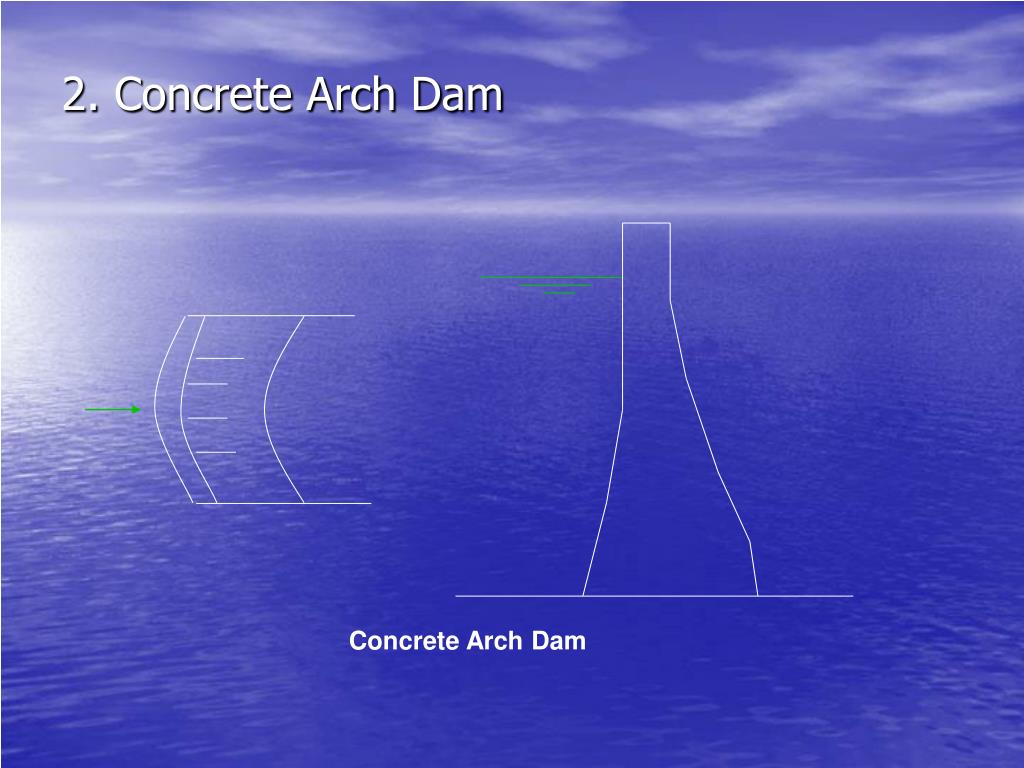

  4. 2. Concrete Arch Dam Concrete Arch Dam

  5. Sand & Gravel Clay Core Earthfill Dam 3. Earthfill Dam

  6. Broken Rocks Rockfilll Dam 4. Rockfill Dam
