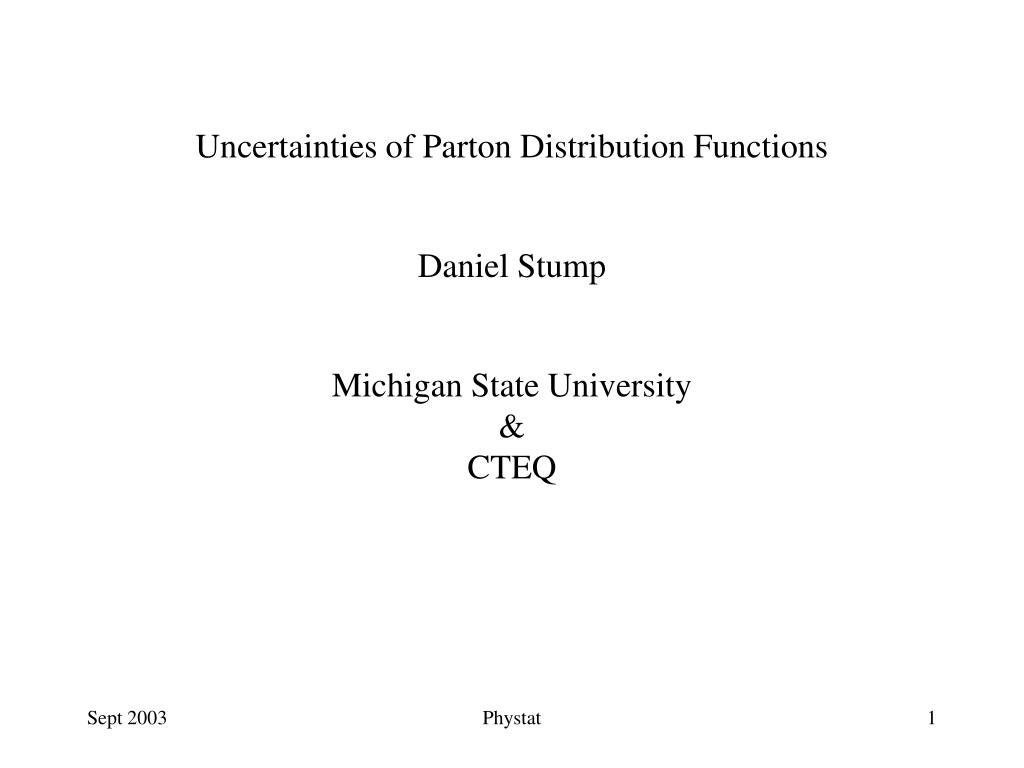

1. Uncertainties of Parton Distribution Functions Daniel Stump Michigan State University & CTEQ Phystat

2. High energy particles interact through their quark and gluon constituents – the partons. Asymptotic freedom : the parton cross sections can be approximated by perturbation theory. Factorization theorem : Parton distribution functions in the nucleon are the link between the PQCD theory and measurements on nucleons. Phystat

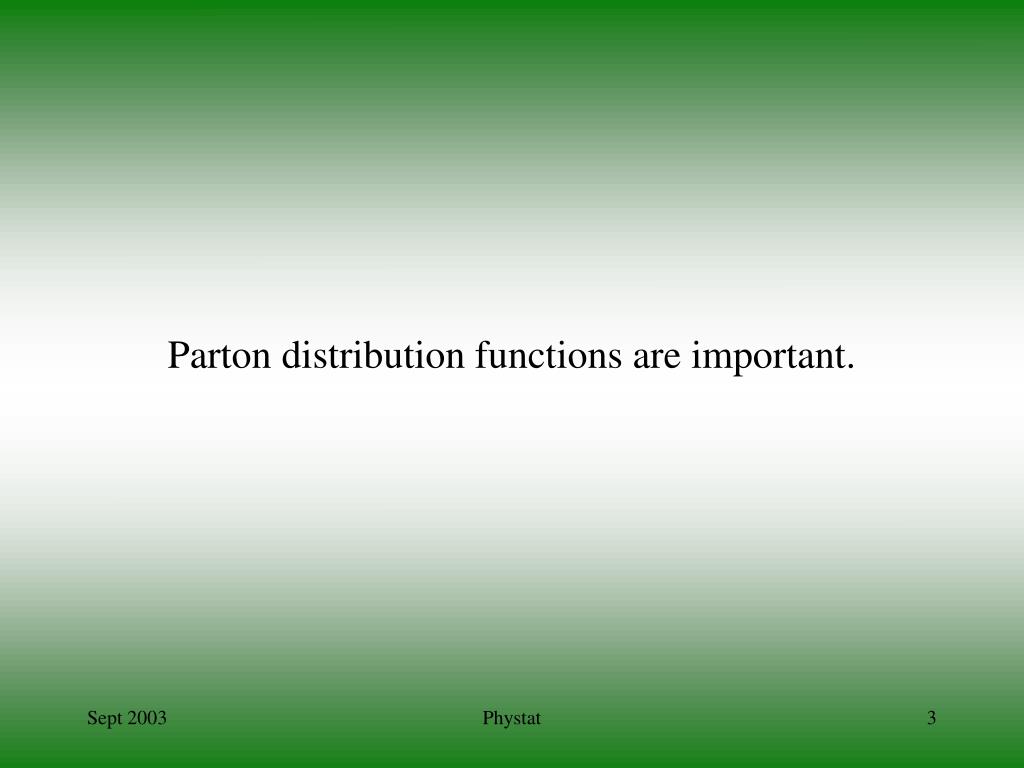

3. Parton distribution functions are important. Phystat

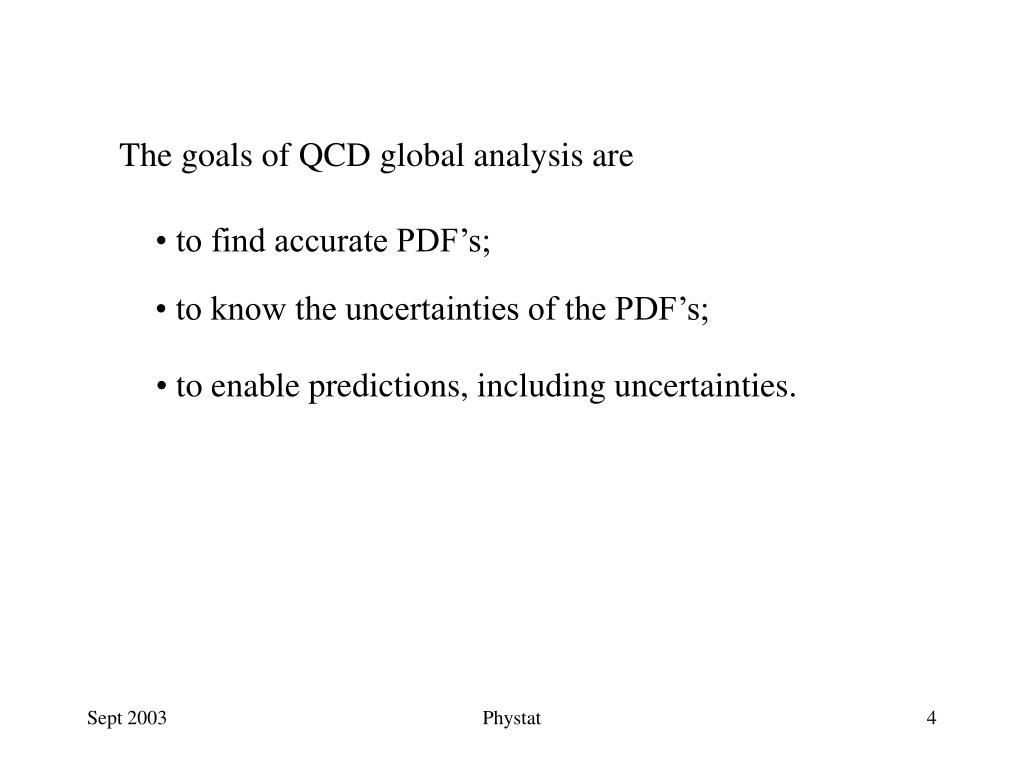

4. The goals of QCD global analysis are • to find accurate PDF’s; • to know the uncertainties of the PDF’s; • to enable predictions, including uncertainties. Phystat

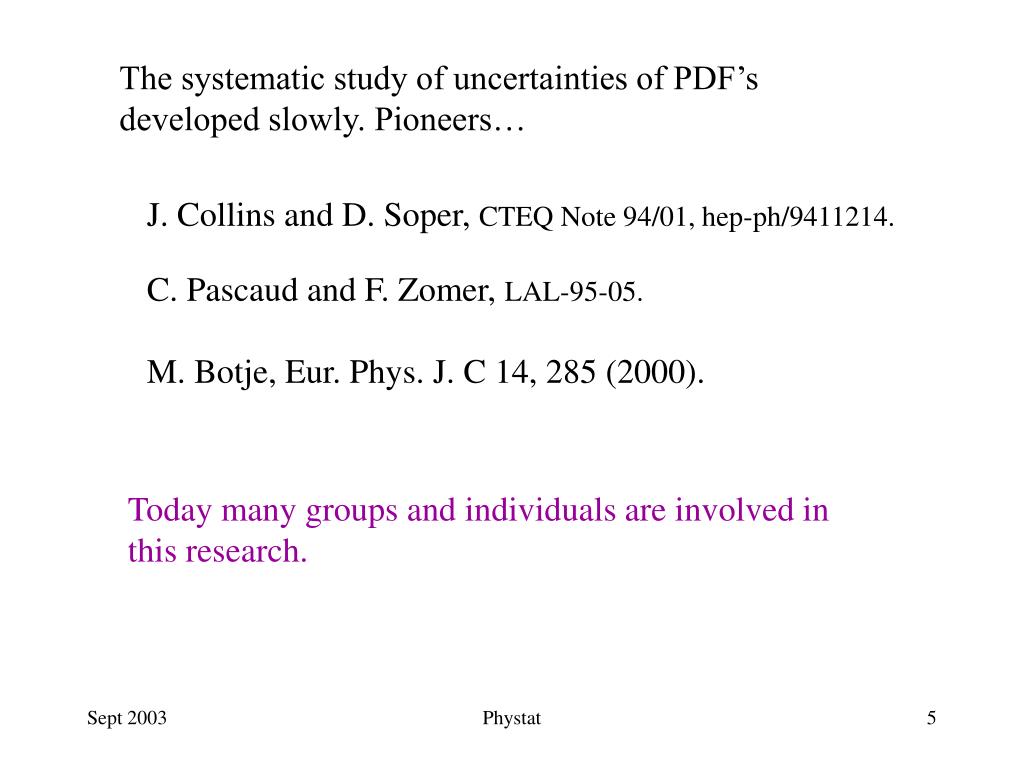

5. The systematic study of uncertainties of PDF’s developed slowly. Pioneers… J. Collins and D. Soper, CTEQ Note 94/01, hep-ph/9411214. C. Pascaud and F. Zomer, LAL-95-05. M. Botje, Eur. Phys. J. C 14, 285 (2000). Today many groups and individuals are involved in this research. Phystat

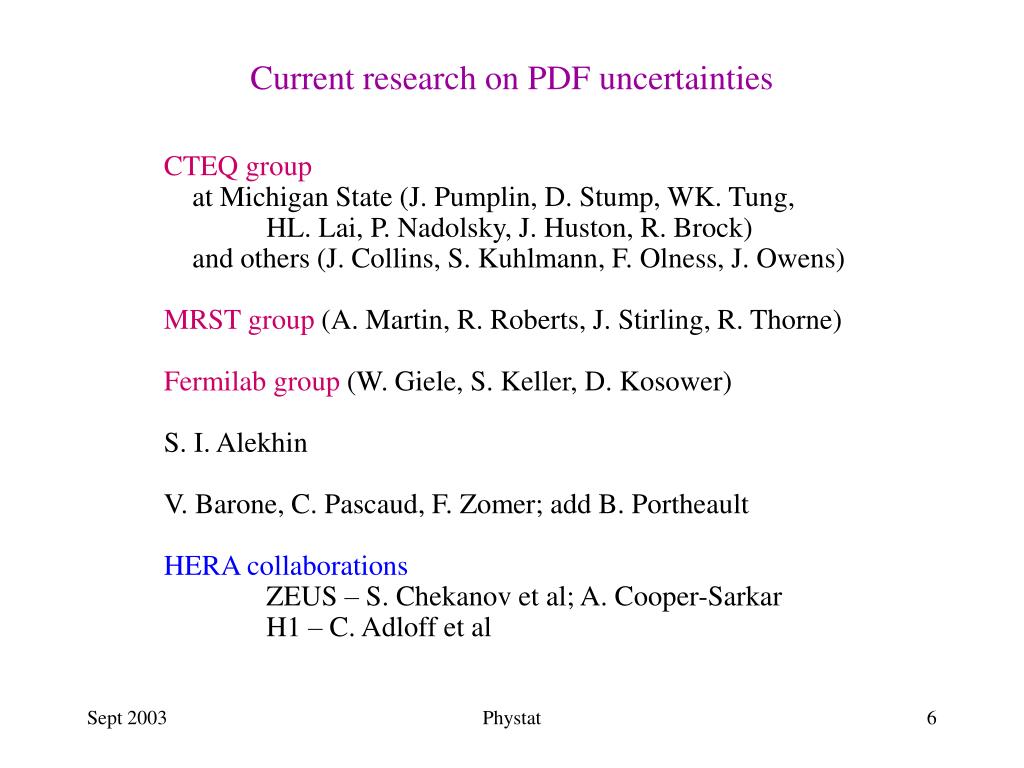

6. Current research on PDF uncertainties CTEQ group at Michigan State (J. Pumplin, D. Stump, WK. Tung, HL. Lai, P. Nadolsky, J. Huston, R. Brock) and others (J. Collins, S. Kuhlmann, F. Olness, J. Owens) MRST group (A. Martin, R. Roberts, J. Stirling, R. Thorne) Fermilab group (W. Giele, S. Keller, D. Kosower) S. I. Alekhin V. Barone, C. Pascaud, F. Zomer; add B. Portheault HERA collaborations ZEUS – S. Chekanov et al; A. Cooper-Sarkar H1 – C. Adloff et al Phystat

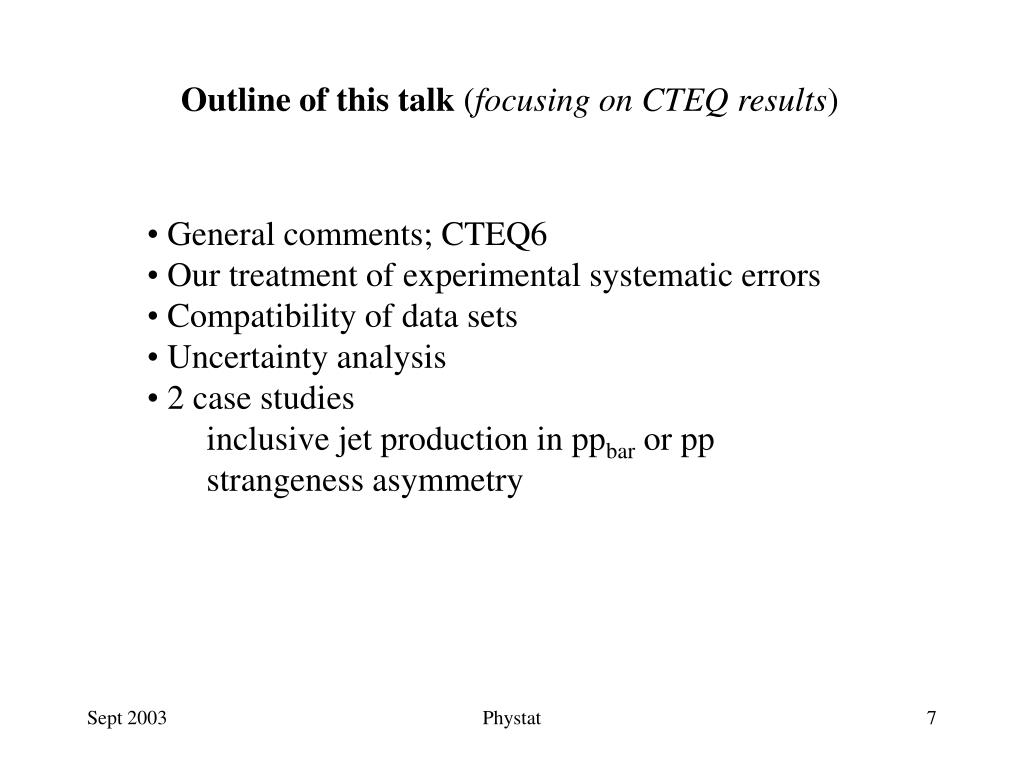

7. Outline of this talk (focusing on CTEQ results) • General comments; CTEQ6 • Our treatment of experimental systematic errors • Compatibility of data sets • Uncertainty analysis • 2 case studies • inclusive jet production in ppbar or pp • strangeness asymmetry Phystat

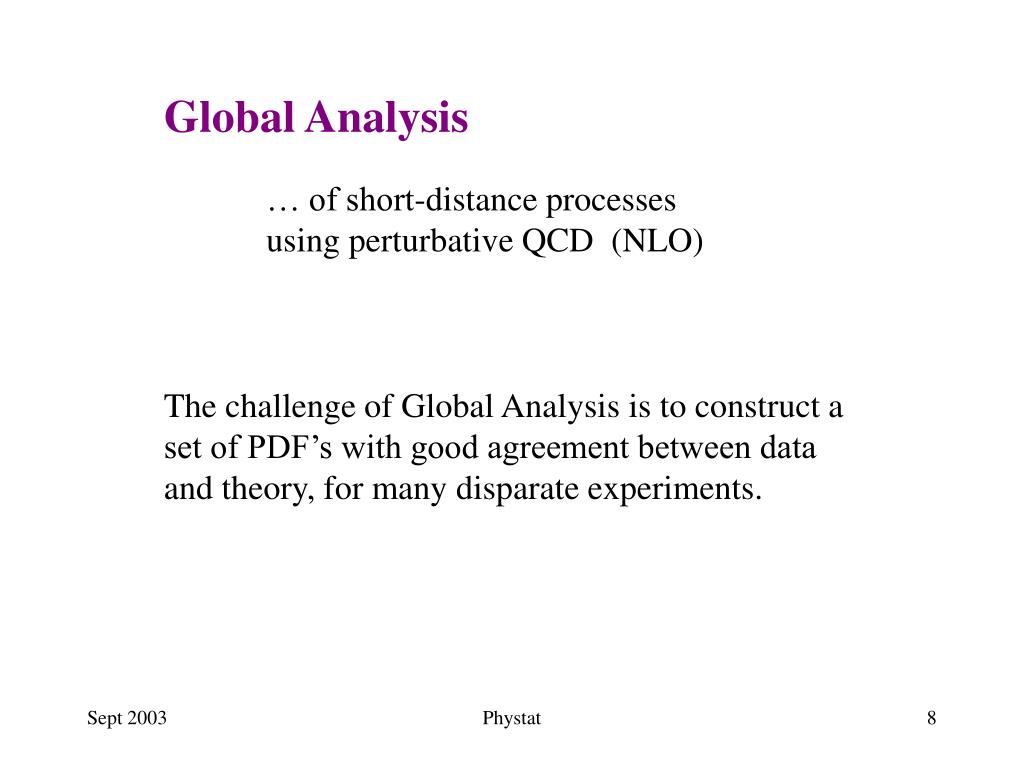

8. Global Analysis … of short-distance processes using perturbative QCD (NLO) The challenge of Global Analysis is to construct a set of PDF’s with good agreement between data and theory, for many disparate experiments. Phystat

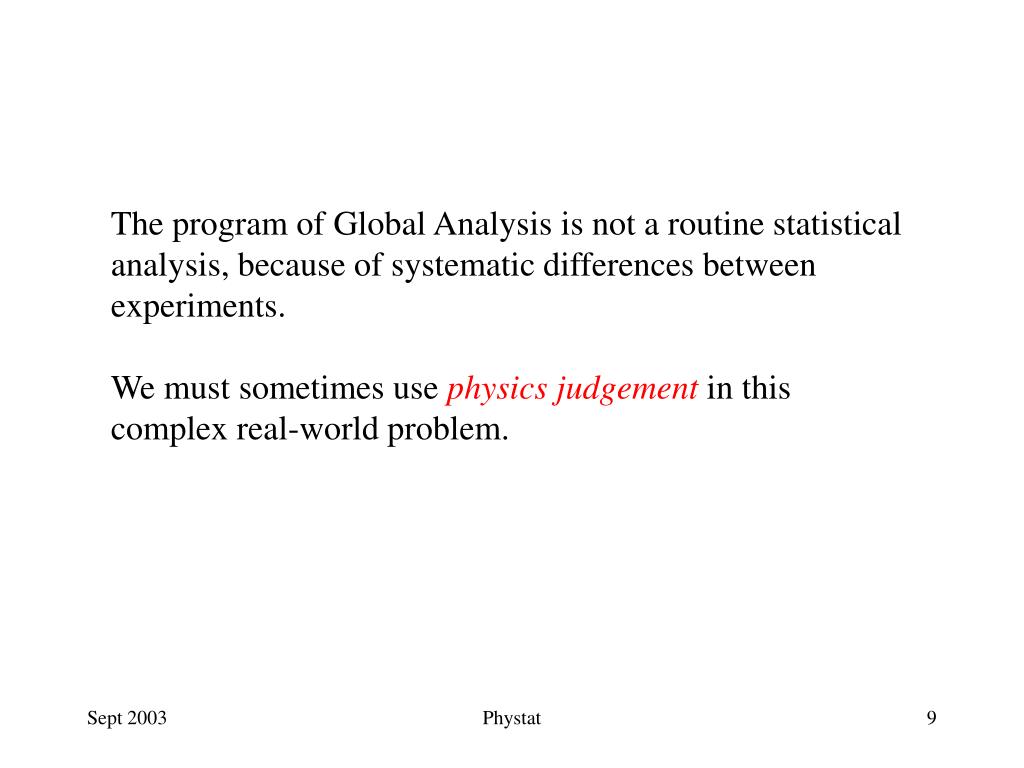

9. The program of Global Analysis is not a routine statistical analysis, because of systematic differences between experiments. We must sometimes use physics judgement in this complex real-world problem. Phystat

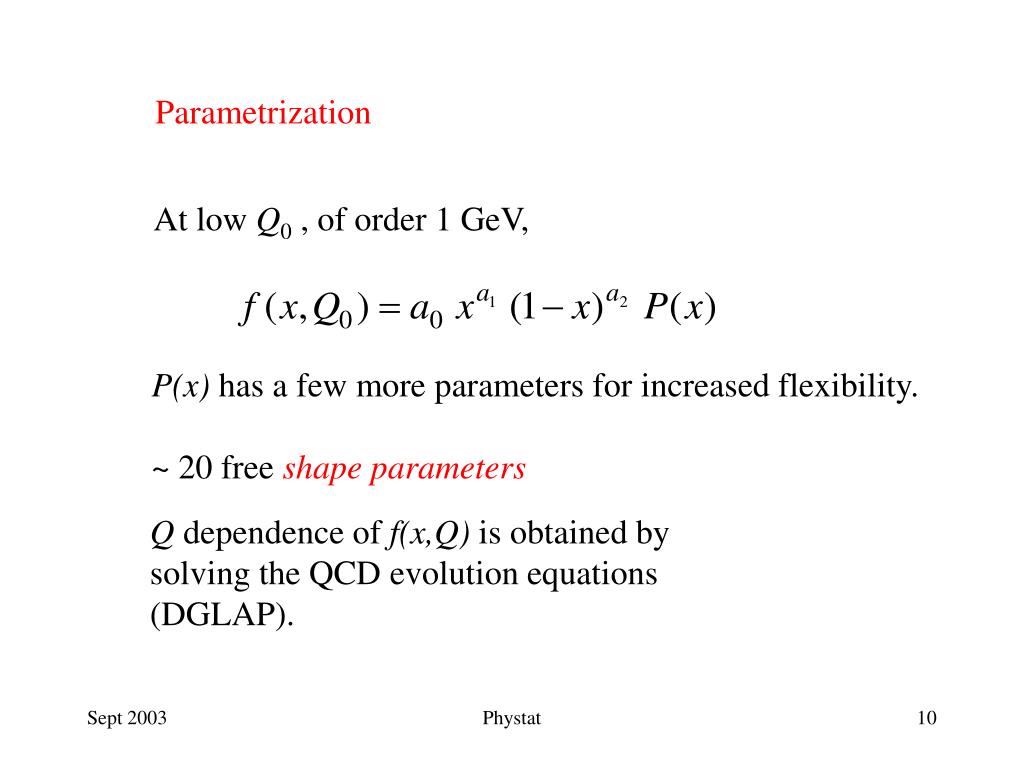

10. Parametrization At low Q0 , of order 1 GeV, P(x) has a few more parameters for increased flexibility. ~ 20 free shape parameters Q dependence of f(x,Q) is obtained by solving the QCD evolution equations (DGLAP). Phystat

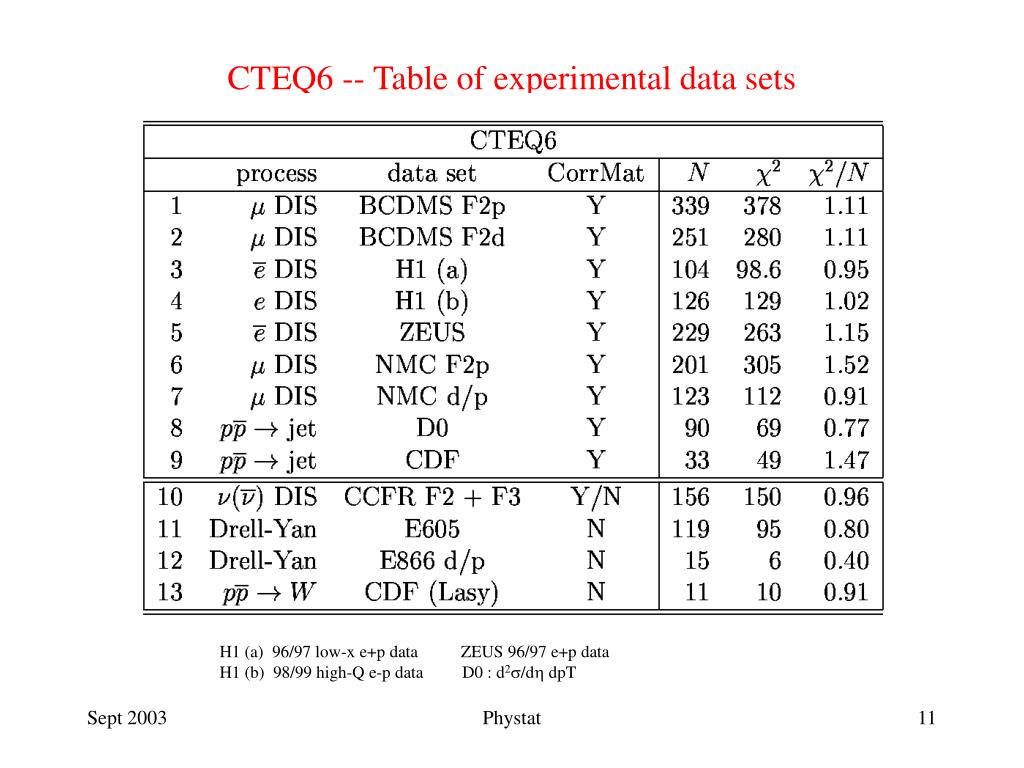

11. CTEQ6 -- Table of experimental data sets H1 (a) 96/97 low-x e+p data ZEUS 96/97 e+p data H1 (b) 98/99 high-Q e-p data D0 : d2s/d dpT Phystat

12. Global Analysis data from many disparate experiments Phystat

13. The Parton Distribution Functions Phystat

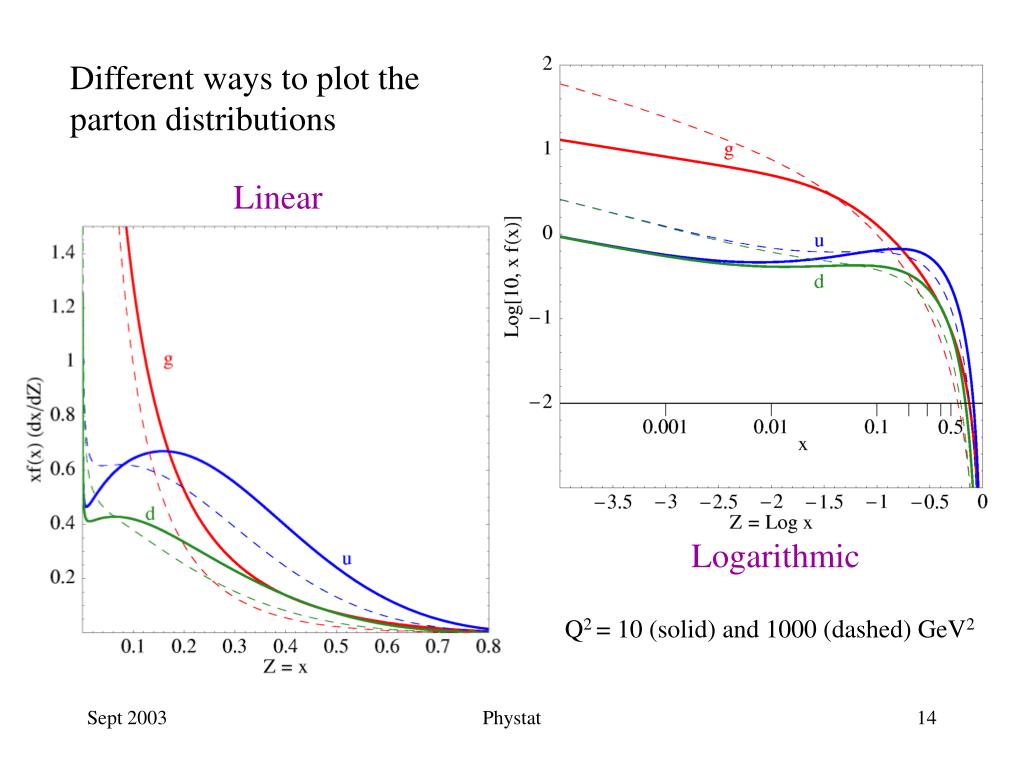

14. Different ways to plot the parton distributions Linear Logarithmic Q2 = 10 (solid) and 1000 (dashed) GeV2 Phystat

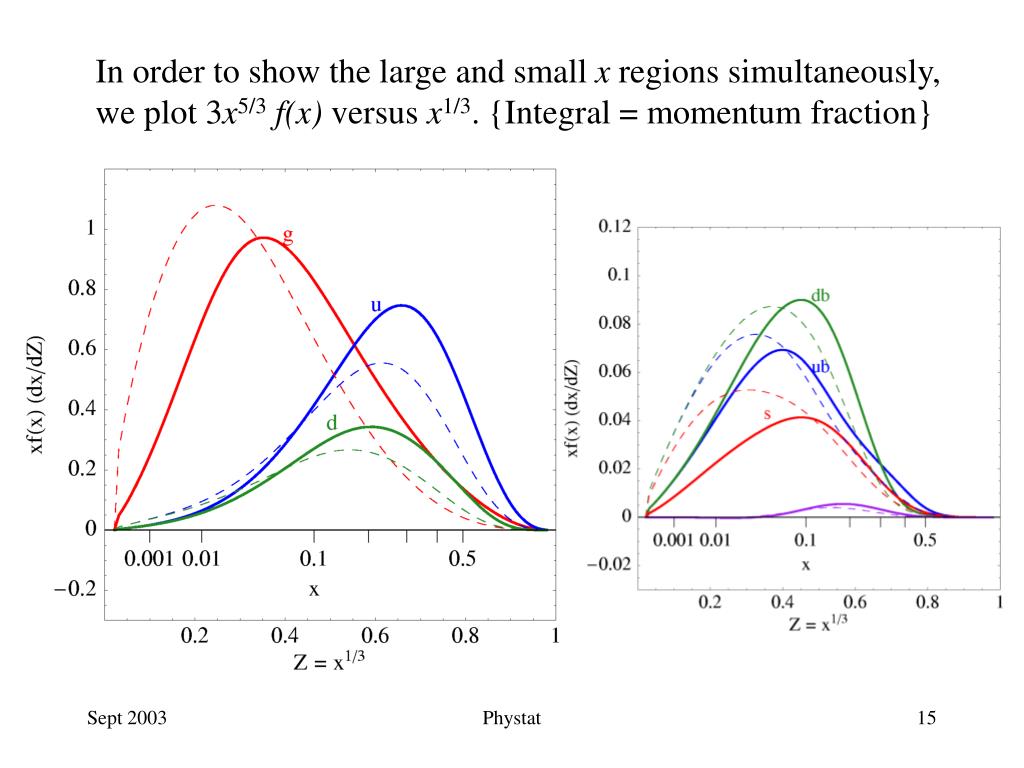

15. In order to show the large and small x regions simultaneously, we plot 3x5/3f(x) versus x1/3. {Integral = momentum fraction} Phystat

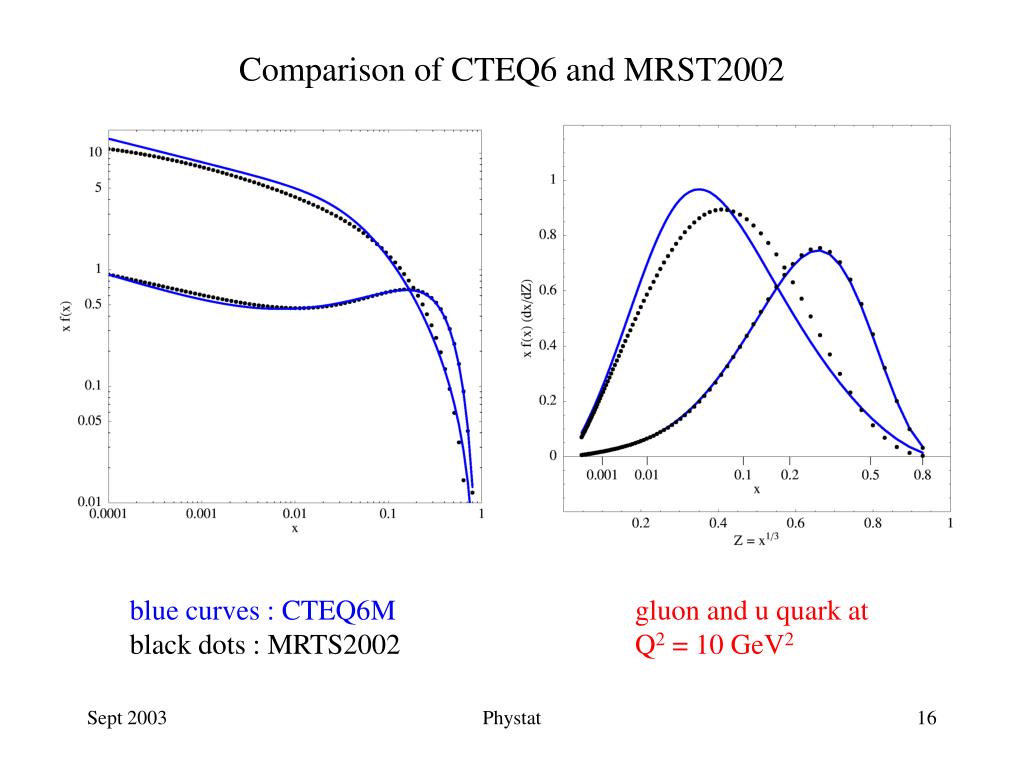

16. Comparison of CTEQ6 and MRST2002 blue curves : CTEQ6M black dots : MRTS2002 gluon and u quark at Q2 = 10 GeV2 Phystat

17. Our treatment of systematic errors Phystat

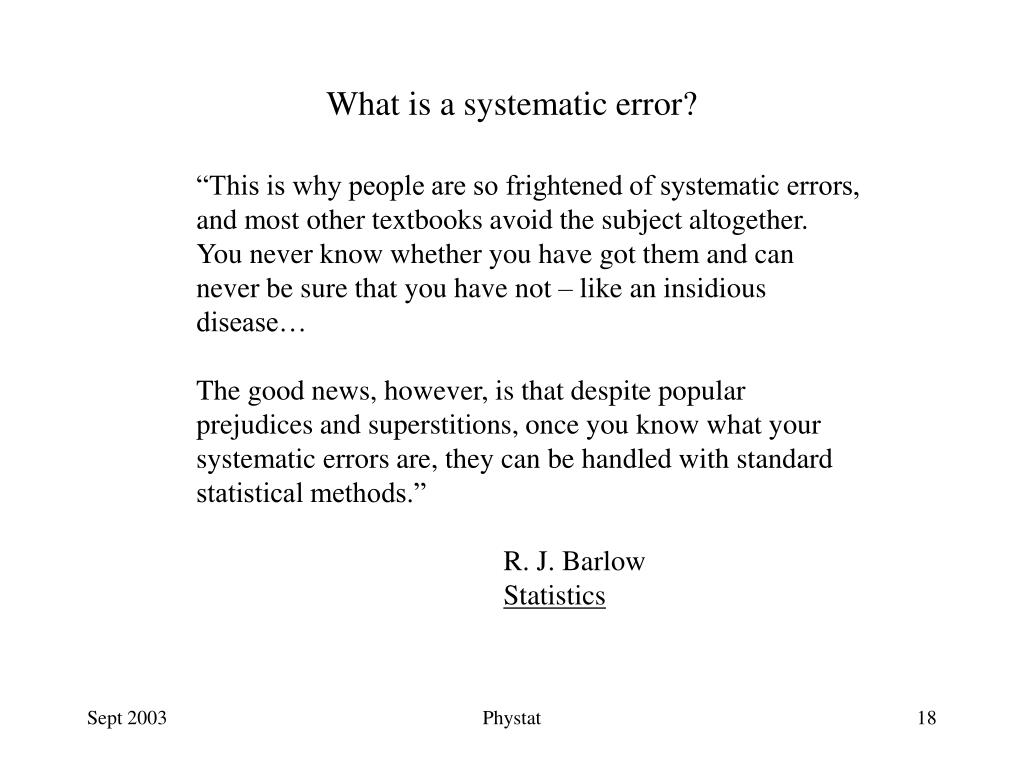

18. What is a systematic error? “This is why people are so frightened of systematic errors, and most other textbooks avoid the subject altogether. You never know whether you have got them and can never be sure that you have not – like an insidious disease… The good news, however, is that despite popular prejudices and superstitions, once you know what your systematic errors are, they can be handled with standard statistical methods.” R. J. Barlow Statistics Phystat

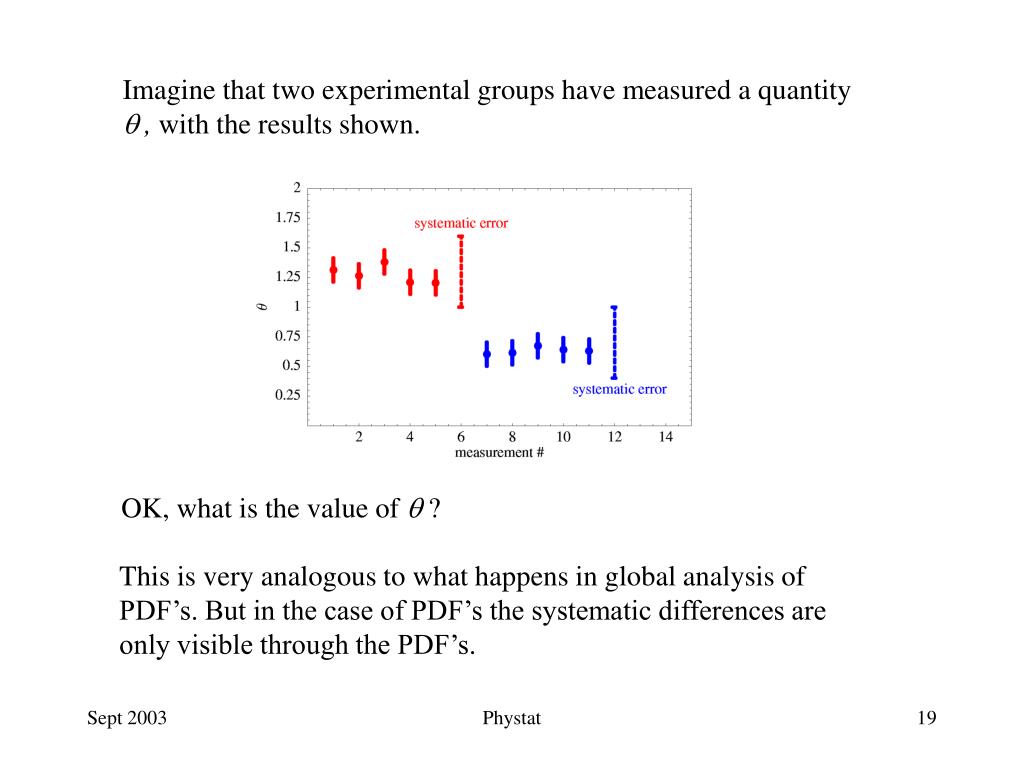

19. Imagine that two experimental groups have measured a quantity  , with the results shown. OK, what is the value of  ? This is very analogous to what happens in global analysis of PDF’s. But in the case of PDF’s the systematic differences are only visible through the PDF’s. Phystat

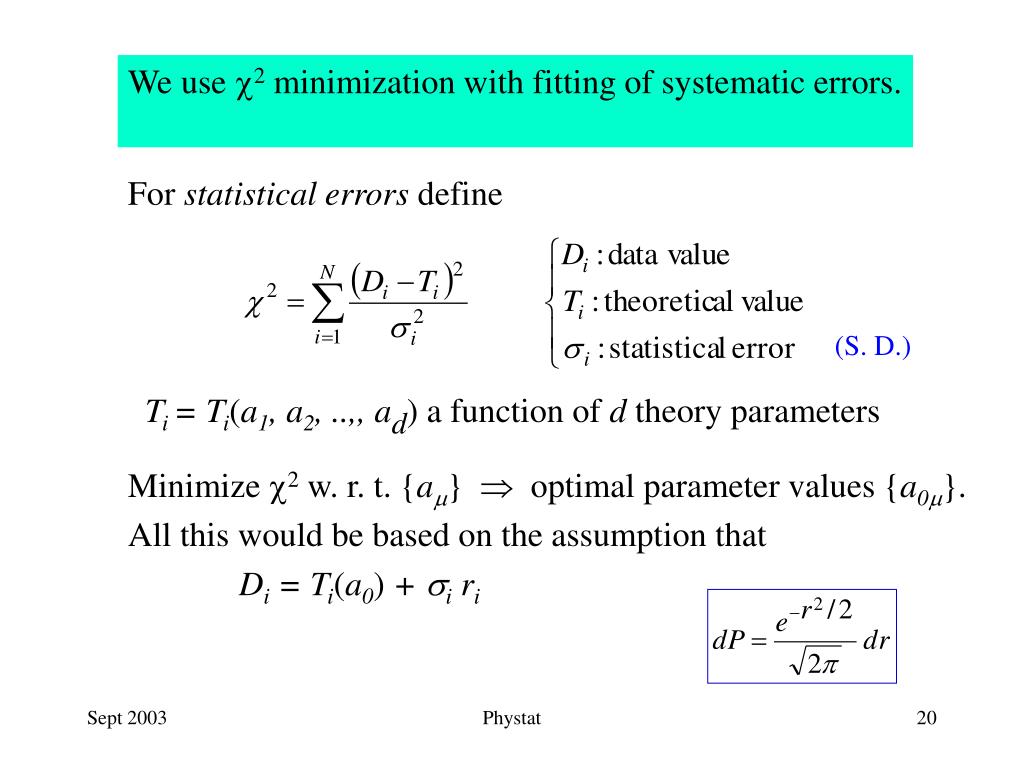

20. We use 2 minimization with fitting of systematic errors. For statistical errors define (S. D.) Ti = Ti(a1, a2, ..,, ad)a function of d theory parameters Minimize 2 w. r. t. {am}  optimal parameter values {a0m}. All this would be based on the assumption that Di = Ti(a0) + i ri Phystat

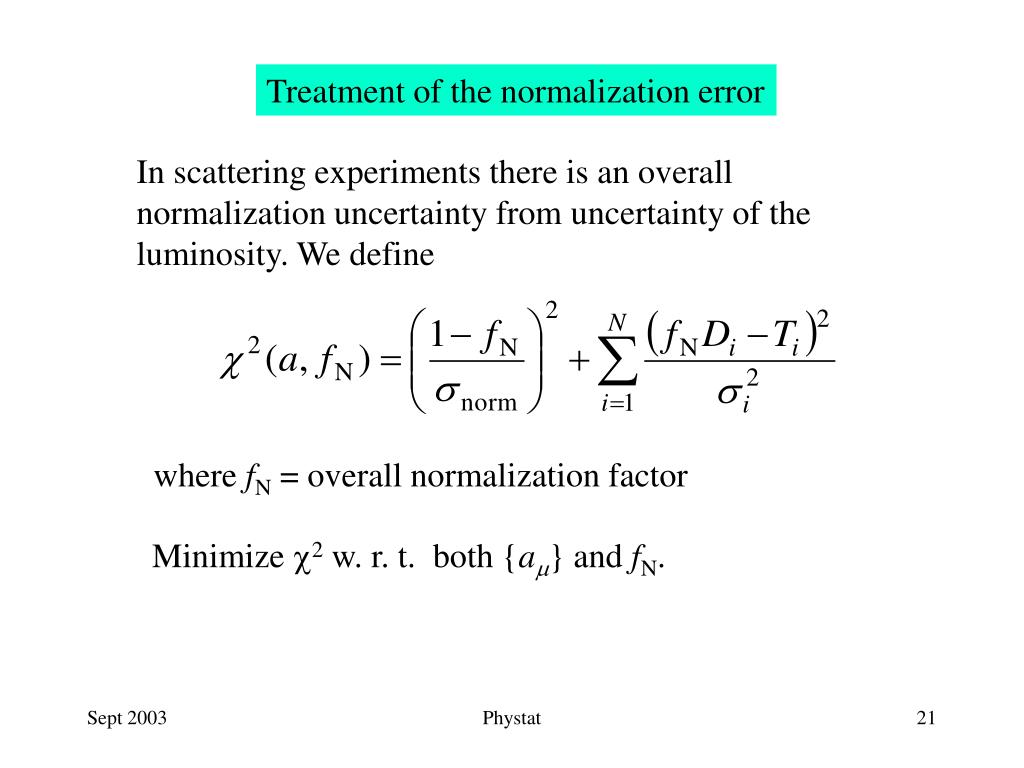

21. Treatment of the normalization error In scattering experiments there is an overall normalization uncertainty from uncertainty of the luminosity. We define where fN = overall normalization factor Minimize 2 w. r. t. both {am} and fN. Phystat

22. A method for general systematic errors ai : statistical error of Di bij : set of systematic errors (j=1…K) of Di Define quadratic penalty term Minimize c2 with respect to both shape parameters {am} and optimized systematic shifts {sj}. Phystat

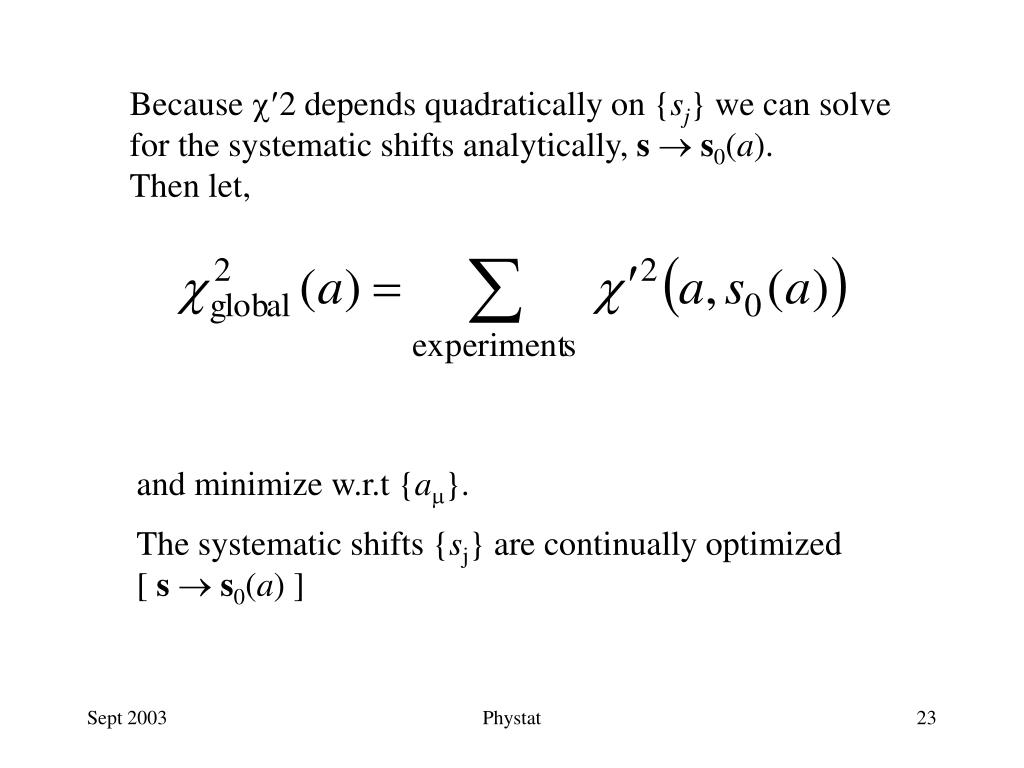

23. Because c2 depends quadratically on {sj} we can solve for the systematic shifts analytically, ss0(a). Then let, and minimize w.r.t {am}. The systematic shifts {sj} are continually optimized [ ss0(a) ] Phystat

24. So, we have accounted for … • Statistical errors • Overall normalization uncertainty (by fitting {fN,e}) • Other systematic errors (analytically) We may make further refinements of the fit with weighting factors Default : we and wN,e = 1 The spirit of global analysis is compromise – the PDF’s should fit all data sets satisfactorily. If the default leaves some experiments unsatisfied, we may be willing to reduce the quality of fit to some experiments in order to fit better another experiment. (We use this sparingly!) Phystat

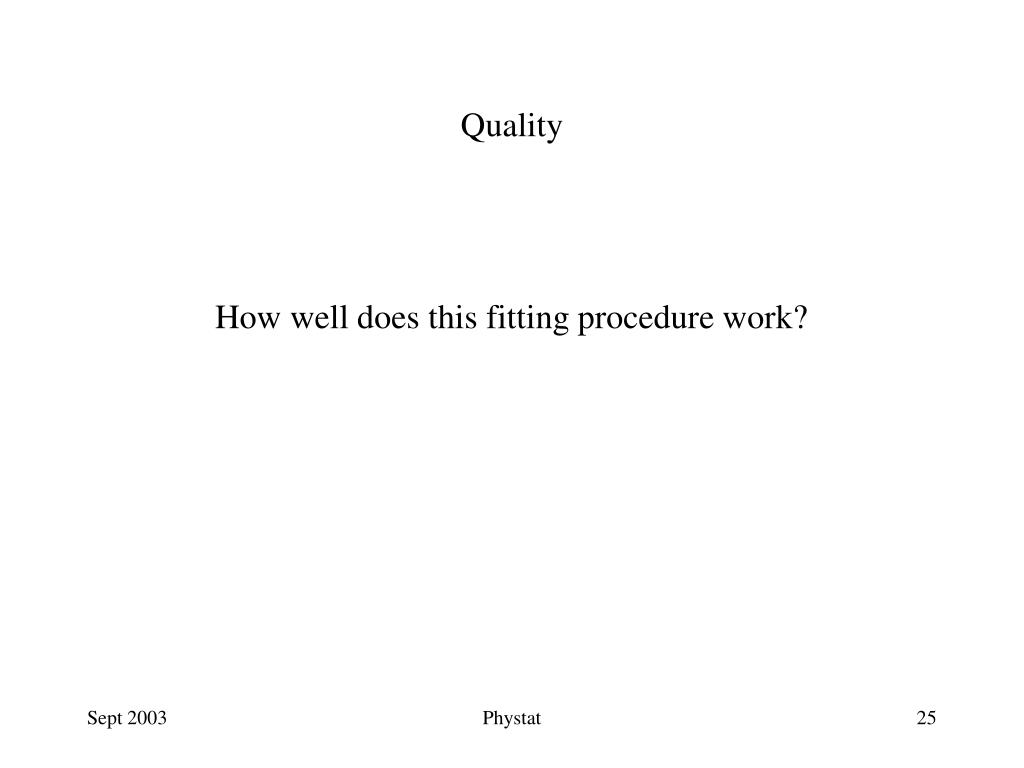

25. Quality How well does this fitting procedure work? Phystat

26. Comparison of the CTEQ6M fit to the H1 data in separate x bins. The data points include optimized shifts for systematic errors. The error bars are statistical only. Phystat

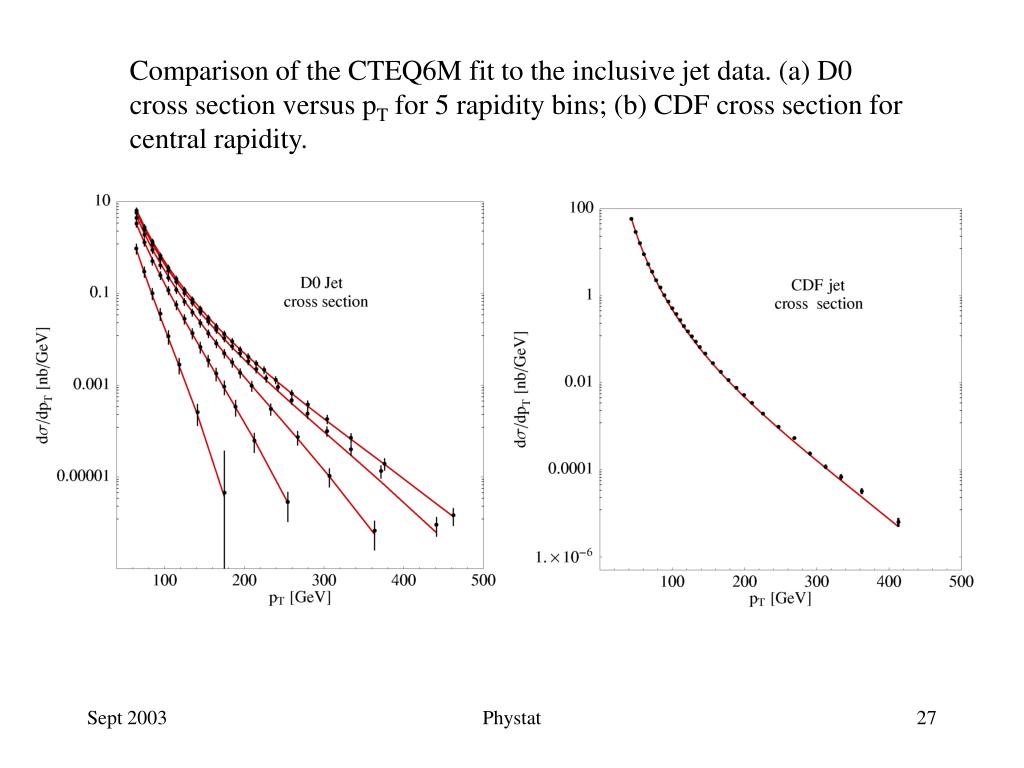

27. Comparison of the CTEQ6M fit to the inclusive jet data. (a) D0 cross section versus pT for 5 rapidity bins; (b) CDF cross section for central rapidity. Phystat

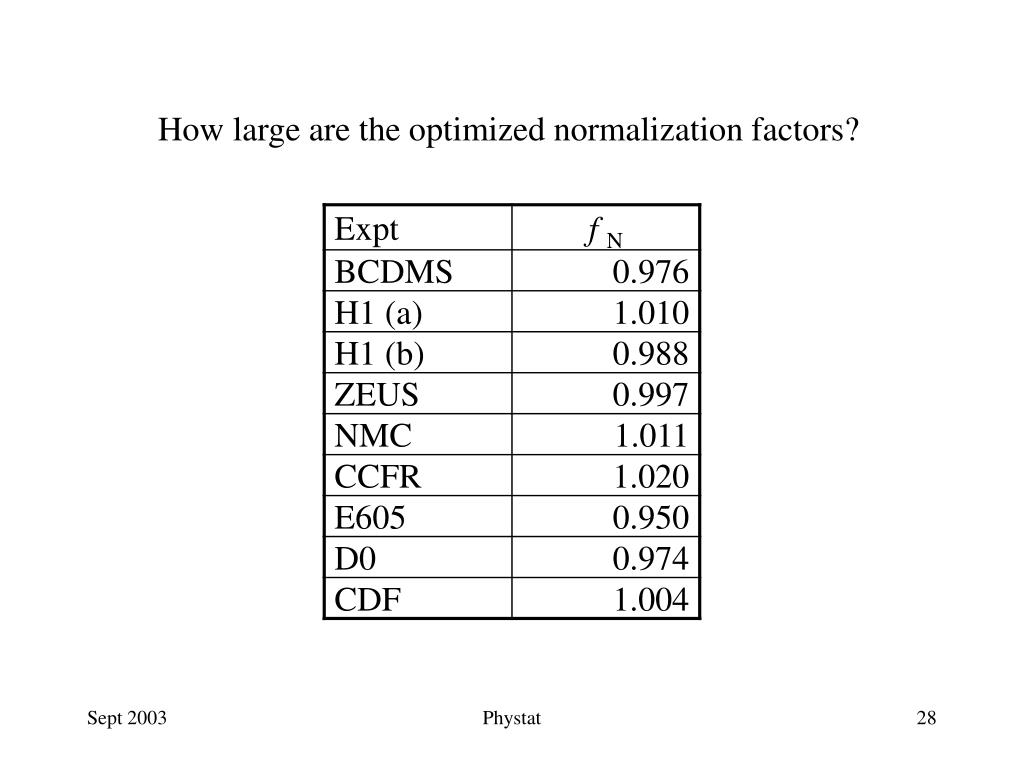

28. How large are the optimized normalization factors? Phystat

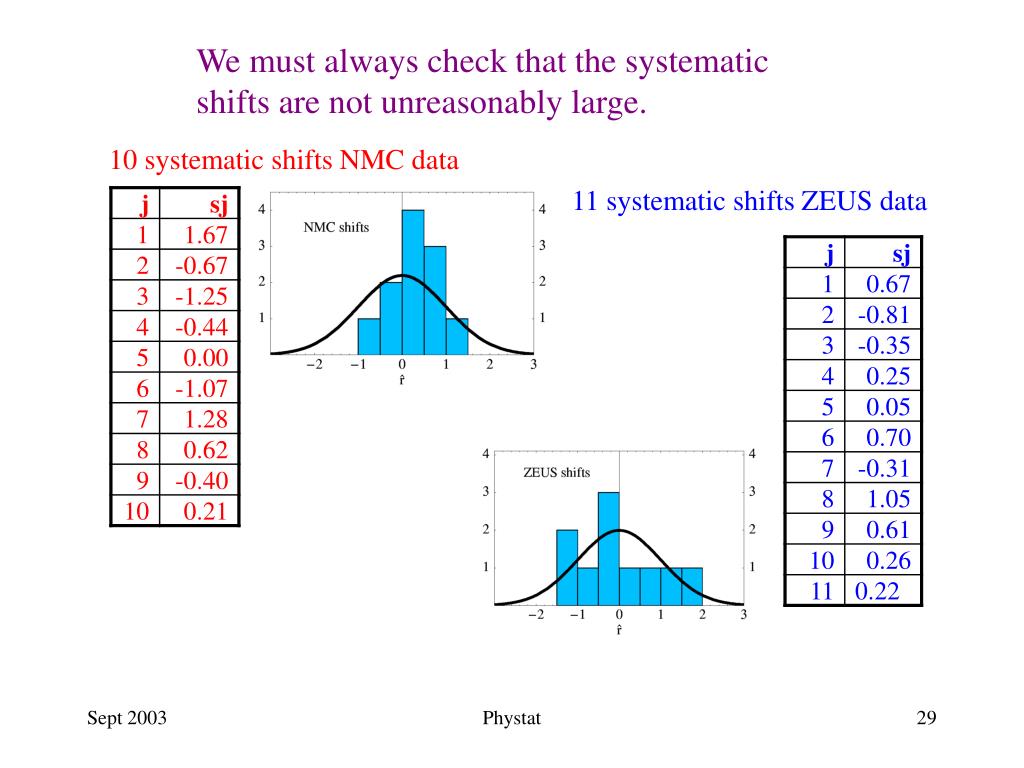

29. We must always check that the systematic shifts are not unreasonably large. 10 systematic shifts NMC data 11 systematic shifts ZEUS data Phystat

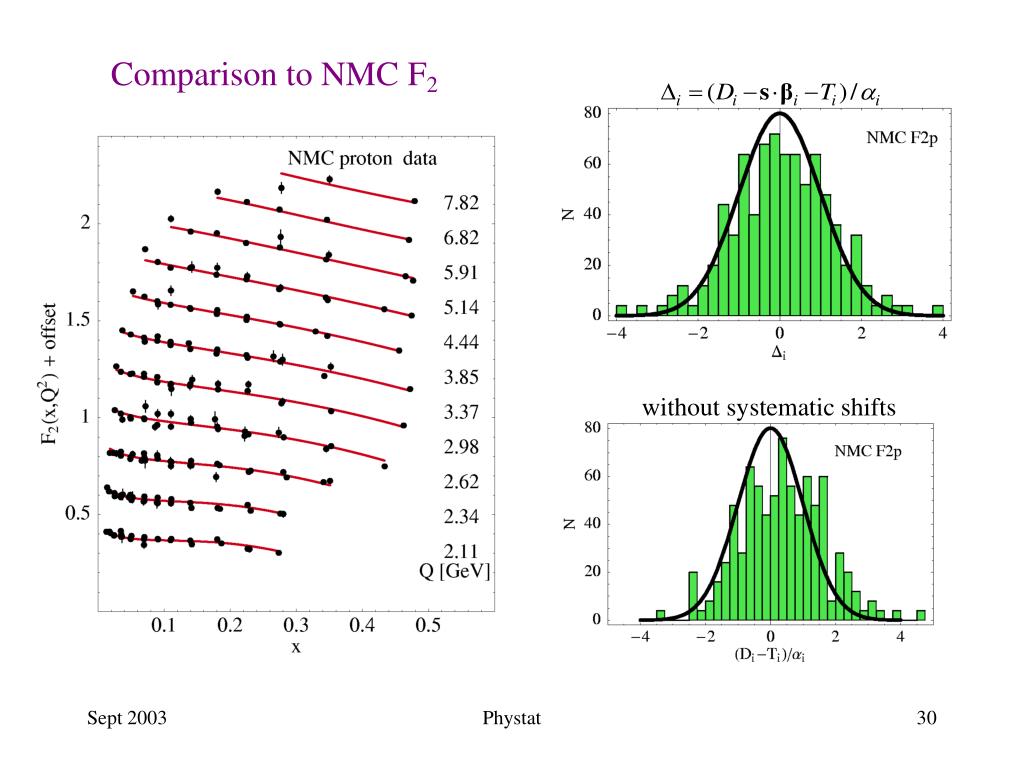

30. Comparison to NMC F2 without systematic shifts Phystat

31. A study of compatibility Phystat

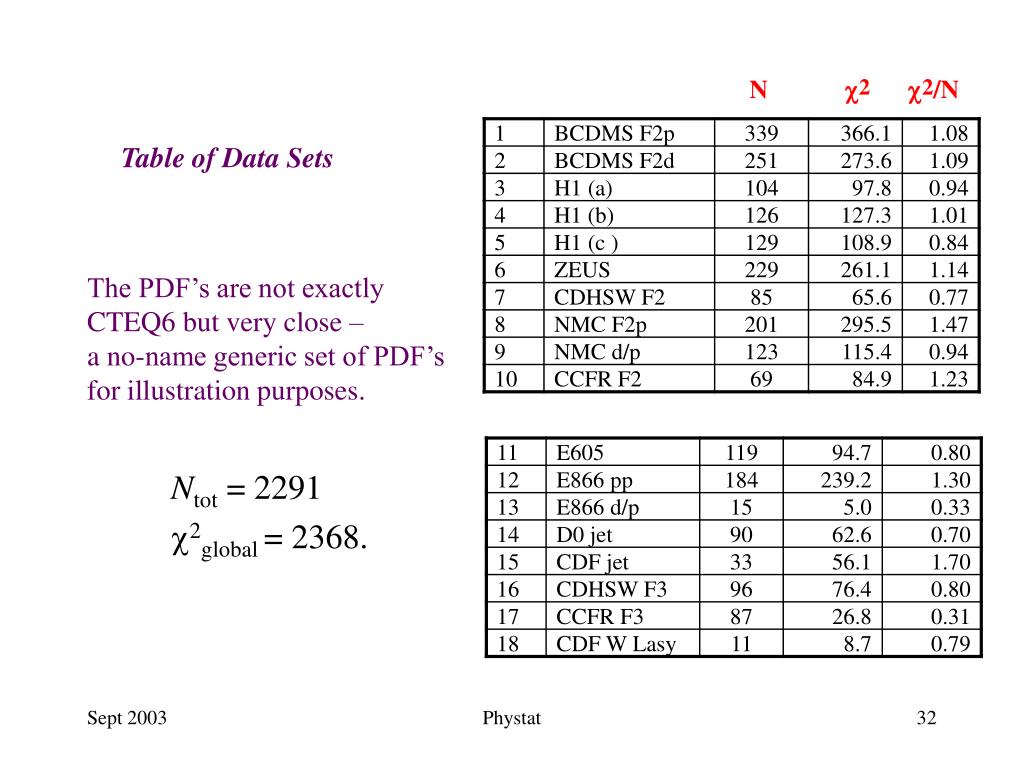

32. N c2 c2/N Table of Data Sets The PDF’s are not exactly CTEQ6 but very close – a no-name generic set of PDF’s for illustration purposes. Ntot = 2291 c2global= 2368. Phystat

33. The effect of setting all normalization constants to 1. Dc2 c2(opt. norm) = 2368. c2(norm 1) = 2742. Dc2 = 374.0 Phystat

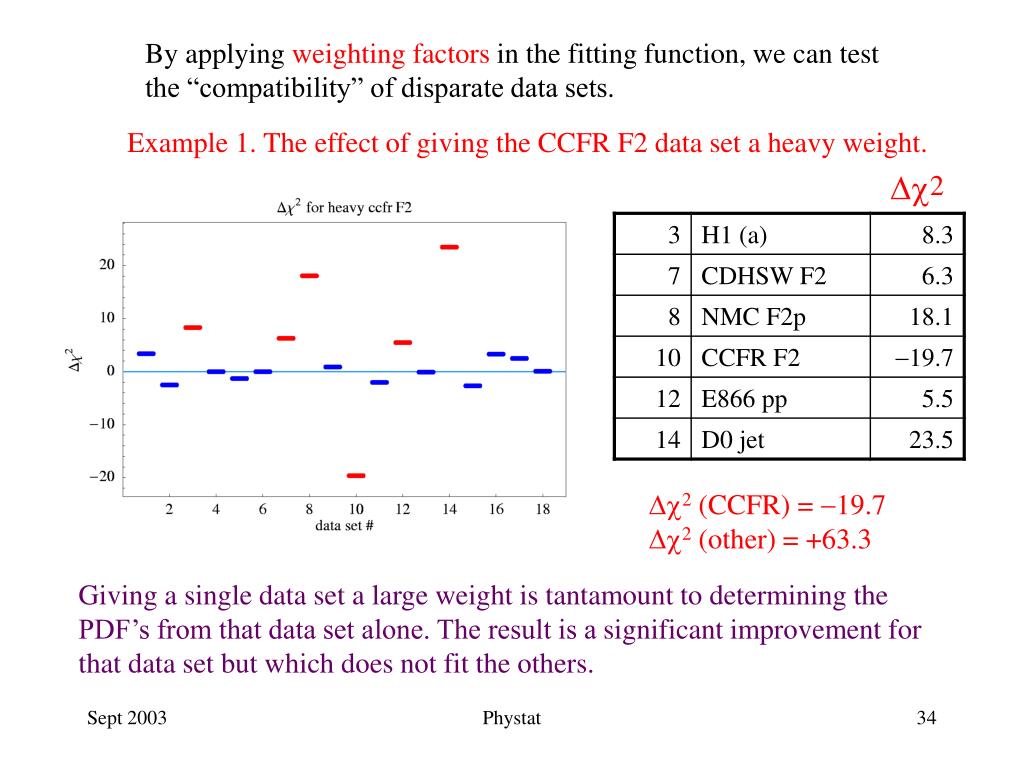

34. By applying weighting factors in the fitting function, we can test the “compatibility” of disparate data sets. Example 1. The effect of giving the CCFR F2 data set a heavy weight. Dc2 Dc2 (CCFR) = -19.7 Dc2 (other) = +63.3 Giving a single data set a large weight is tantamount to determining the PDF’s from that data set alone. The result is asignificant improvement for that data set but which does not fit the others. Phystat

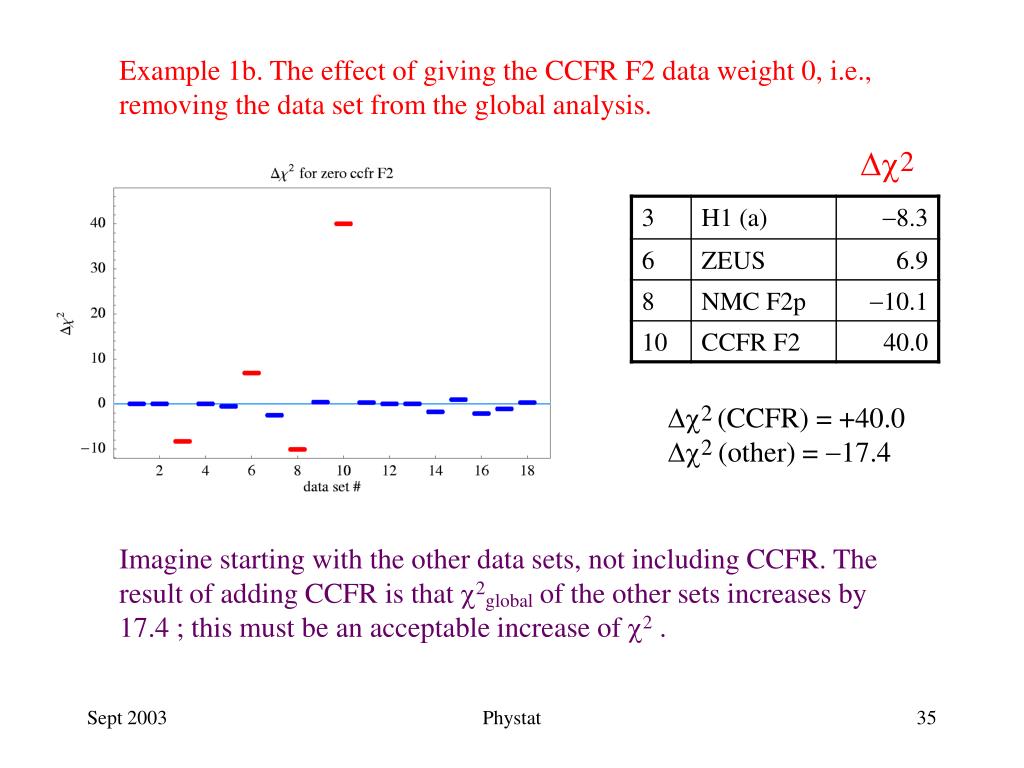

35. Example 1b. The effect of giving the CCFR F2 data weight 0, i.e., removing the data set from the global analysis. Dc2 Dc2(CCFR) = +40.0 Dc2 (other) = -17.4 Imagine starting with the other data sets, not including CCFR. The result of adding CCFR is that c2global of the other sets increases by 17.4 ; this must be an acceptable increase of c2 . Phystat

36. Example 5. Giving heavy weight to H1 and BCDMS Dc2 Dc2 for all data sets Dc2(H & B) = -38.7 Dc2(other) = +149.9 Phystat

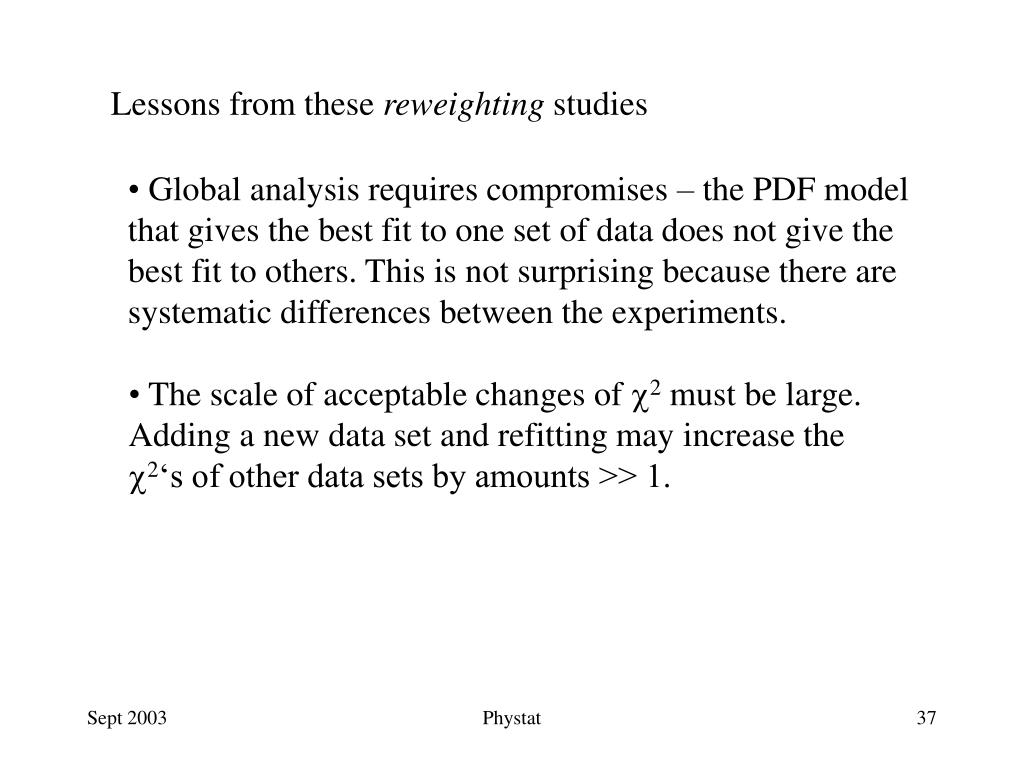

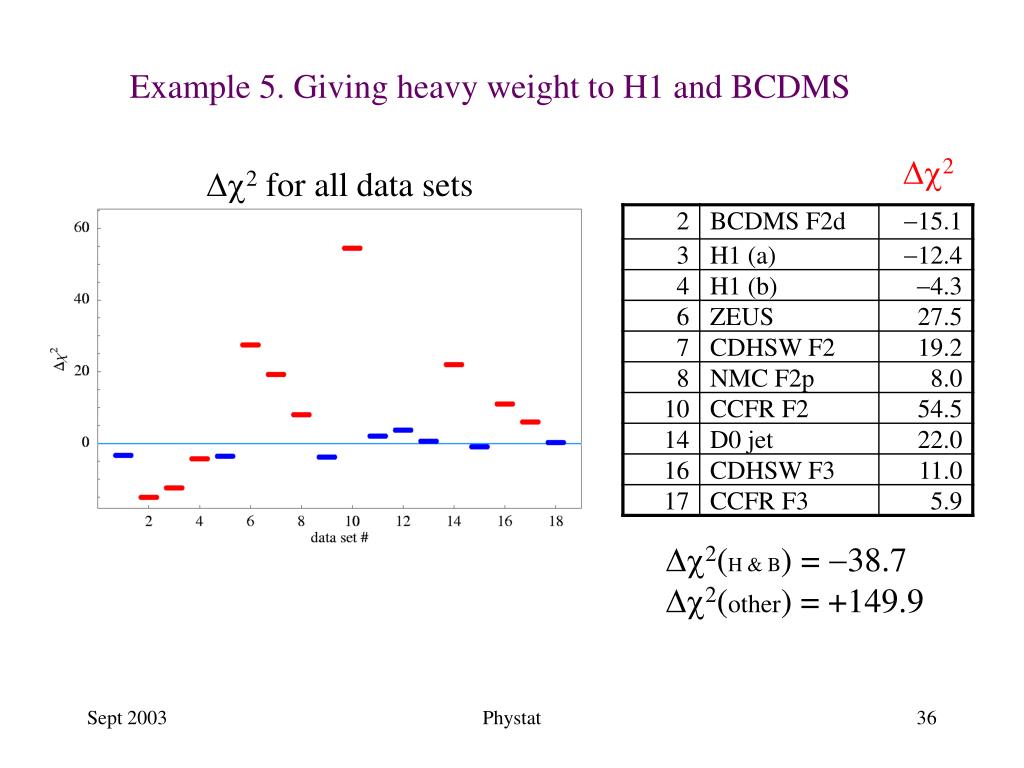

37. Lessons from these reweighting studies • Global analysis requires compromises – the PDF model that gives the best fit to one set of data does not give the best fit to others. This is not surprising because there are systematic differences between the experiments. • The scale of acceptable changes of c2 must be large. Adding a new data set and refitting may increase the c2‘s of other data sets by amounts >> 1. Phystat

38. Clever ways to test the compatibility of disparate data sets • Plot c2 versus c2 J Collins and J Pumplin (hep-ph/0201195) • The Bootstrap Method Efron and Tibshirani, Introduction to the Bootstrap (Chapman&Hall) Chernick, Bootstrap Methods (Wiley) Phystat

39. (I)Methods Uncertainty Analysis Phystat

40. a2 nearby points are also acceptable the standard fit, minimum c2 a1 We continue to use 2globalas figure of merit. Explore the variation of 2global in the neighborhood of the minimum. The Hessian method (m, n = 1 2 3 … d) Phystat

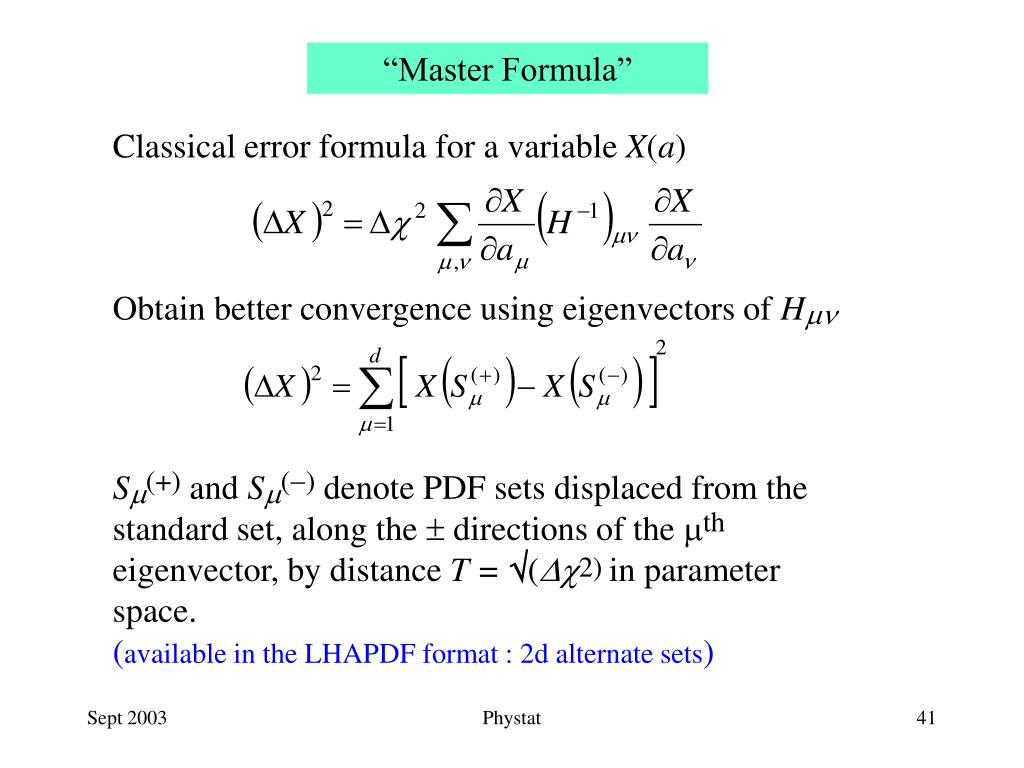

41. “Master Formula” Classical error formula for a variable X(a) Obtain better convergence using eigenvectors of Hmn Sm(+) and Sm(-) denote PDF sets displaced from the standard set, along the  directions of the mth eigenvector, by distance T = (Dc2) in parameter space. (available in the LHAPDF format : 2d alternate sets) Phystat

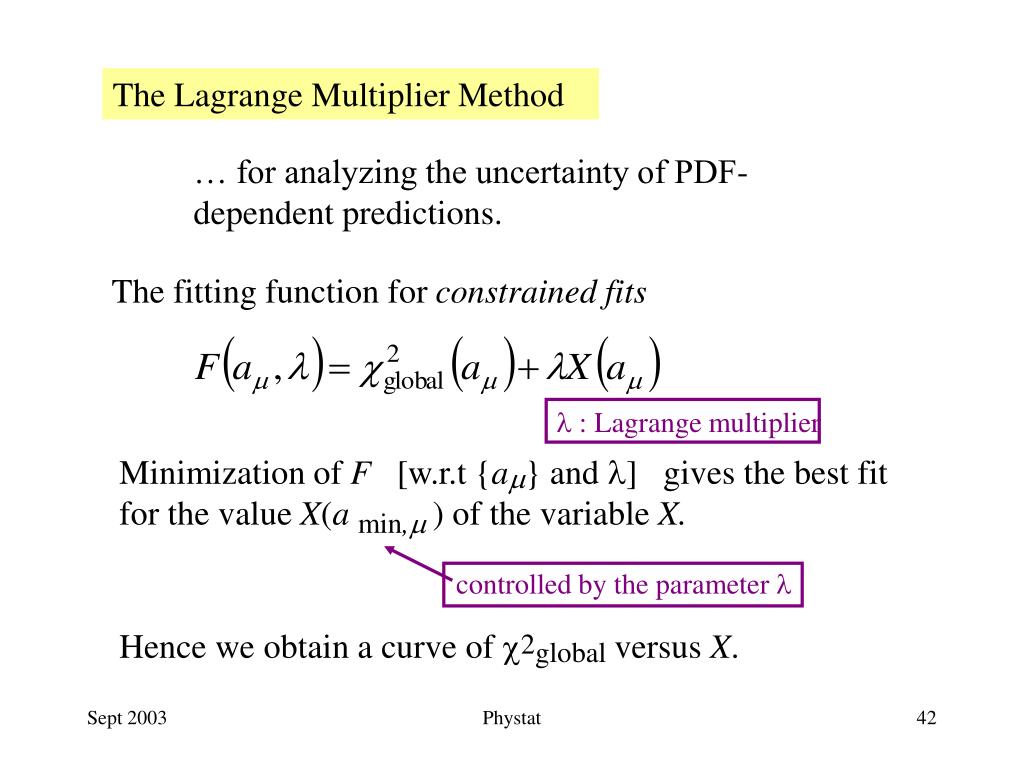

42. l : Lagrange multiplier controlled by the parameter l The Lagrange Multiplier Method … for analyzing the uncertainty of PDF-dependent predictions. The fitting function for constrained fits Minimization of F [w.r.t {am} and l] gives the best fit for the value X(a min,m ) of the variable X. Hence we obtain a curve of c2global versus X. Phystat

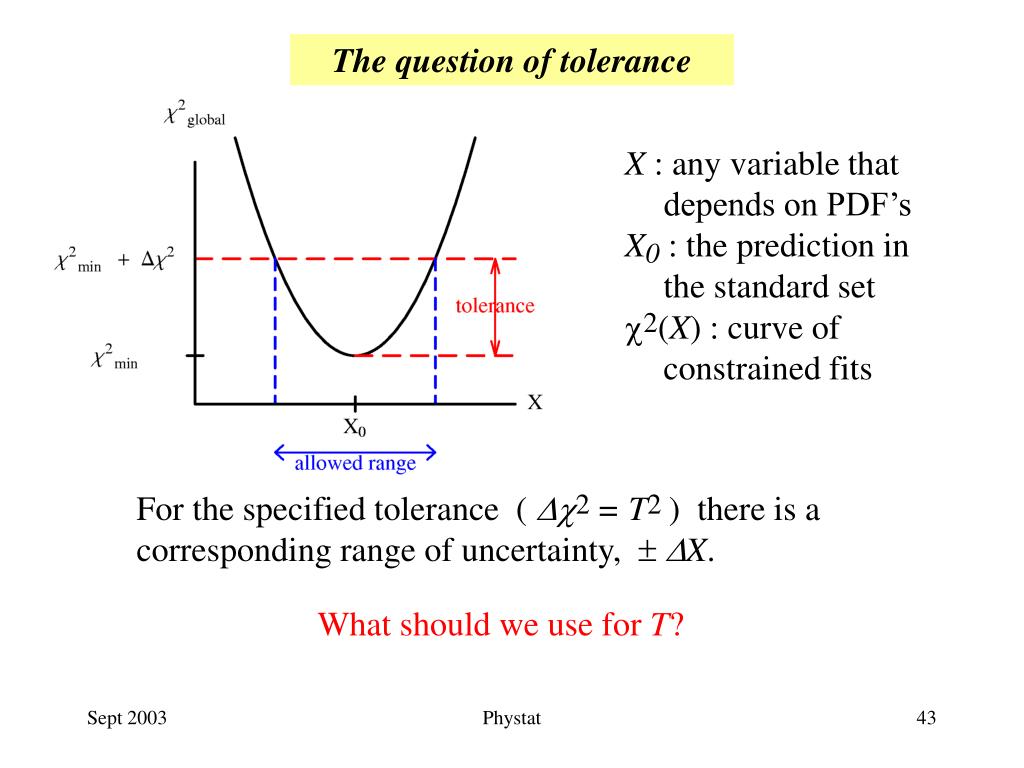

43. The question of tolerance X : any variable that depends on PDF’s X0 : the prediction in the standard set 2(X) : curve of constrained fits For the specified tolerance ( c2 = T2 ) there is a corresponding range of uncertainty,  DX. What should we use for T? Phystat

44. Estimation of parameters in Gaussian error analysis would have T = 1 We do not use this criterion. Phystat

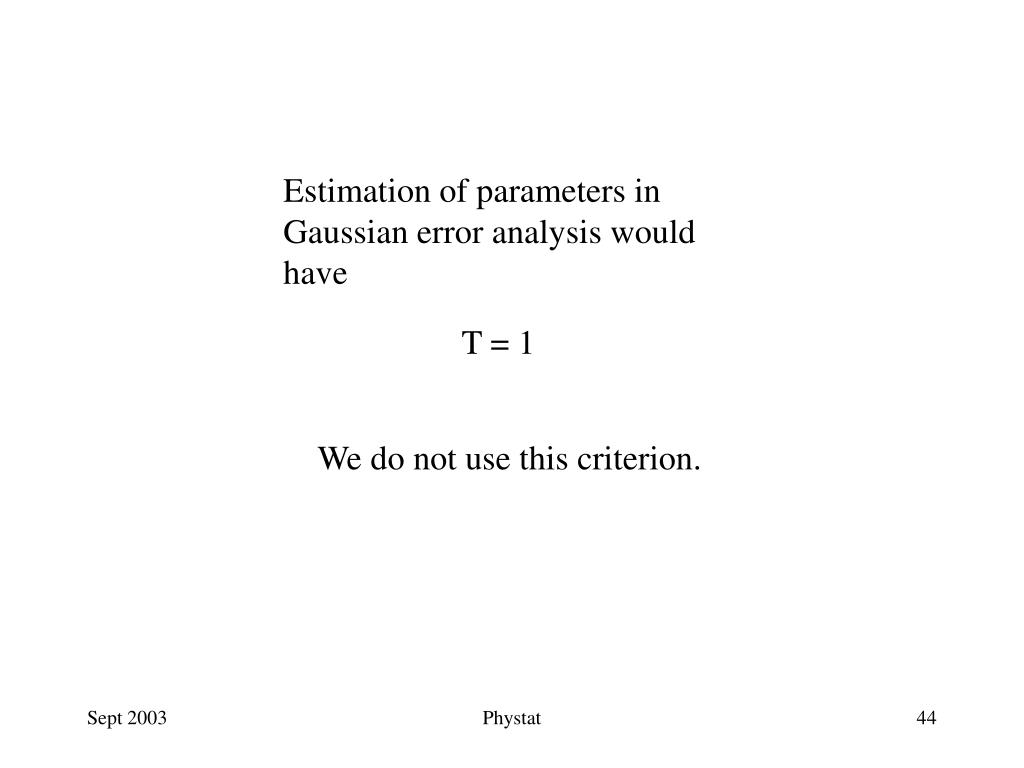

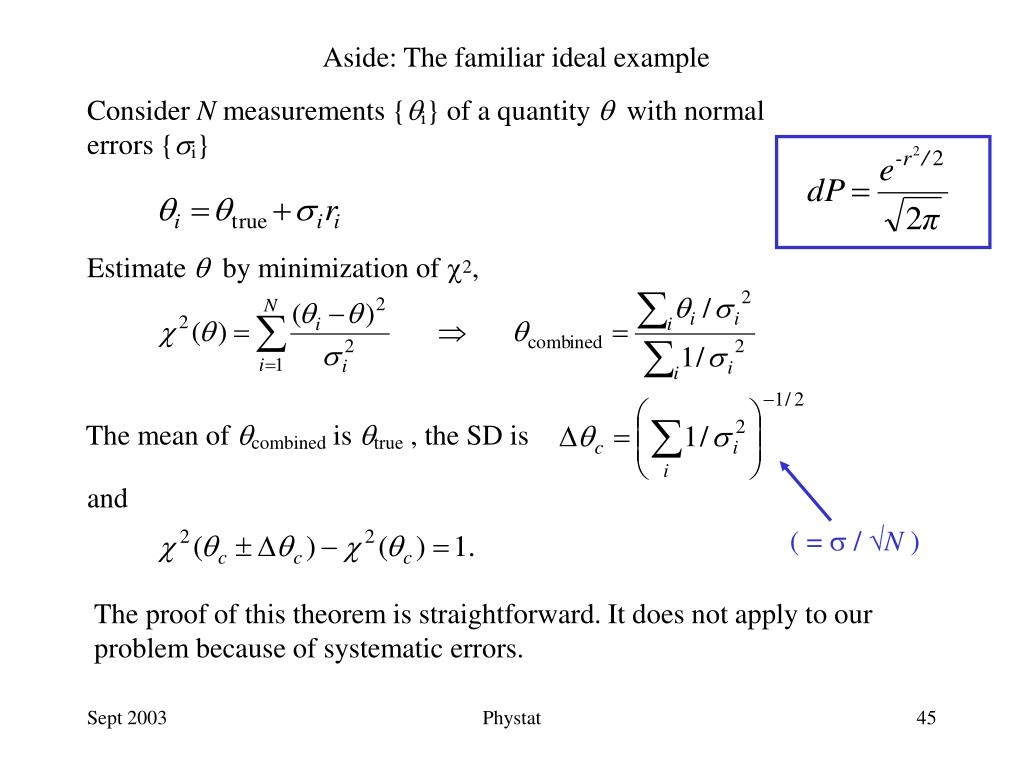

45. ( = s / N ) Aside: The familiar ideal example Consider N measurements {i} of a quantity q with normal errors {si} Estimate q by minimization of c2, The mean of qcombined is qtrue , the SD is and The proof of this theorem is straightforward. It does not apply to our problem because of systematic errors. Phystat

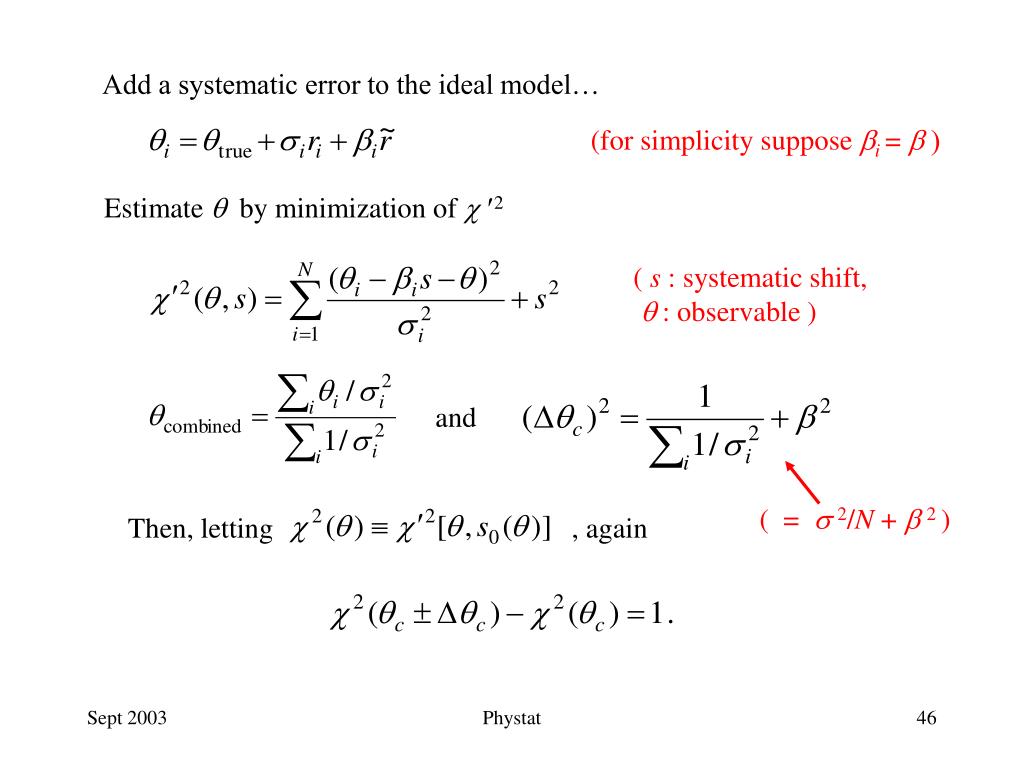

46. Add a systematic error to the ideal model… (for simplicity suppose bi = b ) Estimate q by minimization of c 2 ( s : systematic shift, q : observable ) and ( = s 2/N + b 2 ) Then, letting , again Phystat

47. Still we do not apply the criterion Dc2 = 1 ! • Reasons • We keep the normalization factors fixed as we vary the point in parameter space. The criterion Dc2= 1 requires that the systematic shifts be continually optimized versus {am}. • Systematic errors may be nongaussian. • The published “standard deviations” bij may be inaccurate. • We trust our physics judgement instead. Phystat

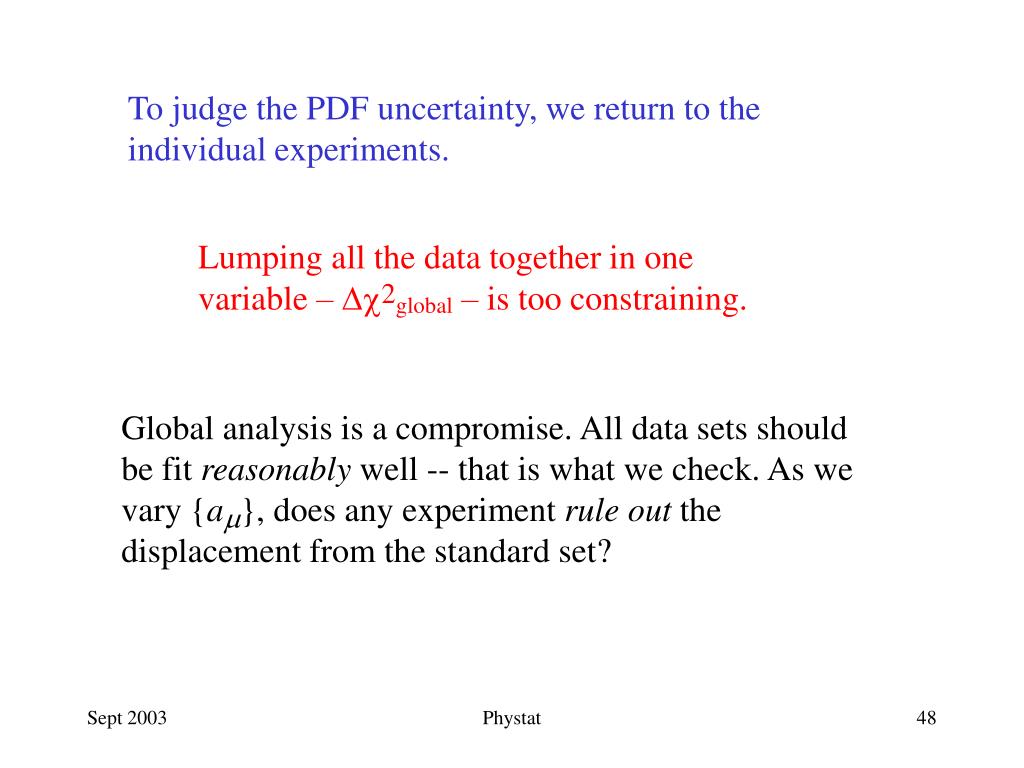

48. To judge the PDF uncertainty, we return to the individual experiments. Lumping all the data together in one variable – Dc2global – is too constraining. Global analysis is a compromise. All data sets should be fit reasonably well -- that is what we check. As we vary {am}, does any experiment rule out the displacement from the standard set? Phystat

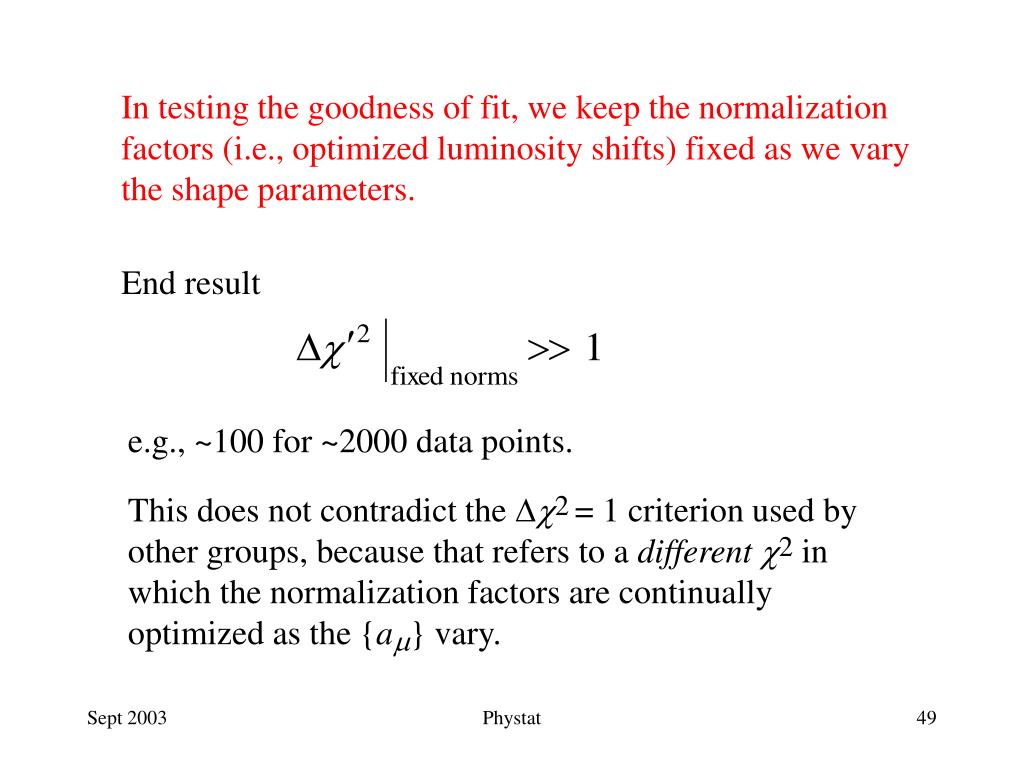

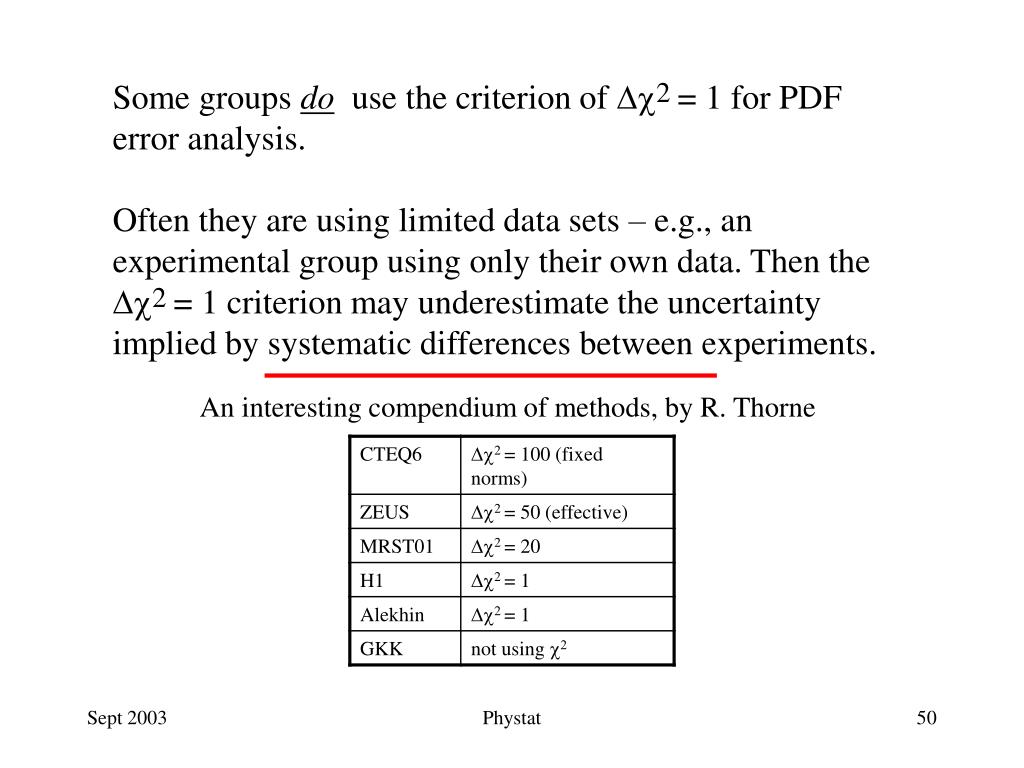

49. In testing the goodness of fit, we keep the normalization factors (i.e., optimized luminosity shifts) fixed as we vary the shape parameters. End result e.g., ~100 for ~2000 data points. This does not contradict the Dc2= 1 criterion used by other groups, because that refers to a differentc2 in which the normalization factors are continually optimized as the {am} vary. Phystat
