  1. The RHESSI Imaging Concept Rick Pernak Laboratory for Solar and Space Physics Goddard Space Flight Center And The Catholic University of America

  2. RHESSI • NASA SMEX mission • Designed to observe solar flares in X-rays and Gamma Rays • Unprecedented Resolution • Spatial • Spectral • Temporal • Launch: February 5, 2002

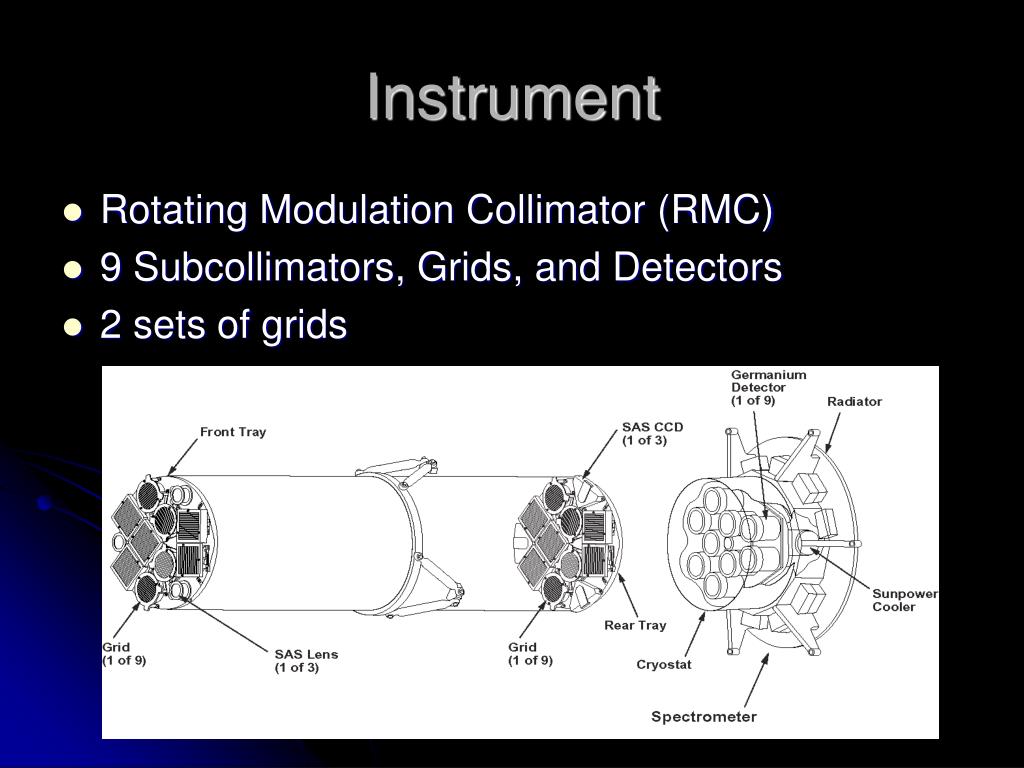

  3. Instrument • Rotating Modulation Collimator (RMC) • 9 Subcollimators, Grids, and Detectors • 2 sets of grids

  4. X-ray Imaging • Difficult to focus X-rays (or Gamma Rays) because of such a short wavelength • Focusing Optics not feasible • Need to block X-rays and cast shadows • Use collimator-based Fourier-transform imaging

  5. Detector and Incident Photons

  6. Modulation Profiles

  7. Imaging Software • From data (modulation profiles and/or visibilities), have the desired information to construct an image • Current algorithms: Back Projection, Clean, Pixon, MEM, Forward Fit

  8. Back Projection • Workhorse of RHESSI imaging • “Simplest” image reconstruction procedure • Constructs “probability maps” of incident photons

  9. How Back Projection Works

  10. Clean • First used in Radio Imaging • An extension of Back-Projection • Most-published • Iterative algorithm • Treats extended sources as superposition of point sources • Picks out brightest pixels • Convolves with Clean beam • Adds residuals

  11. Pixon • Most reliable algorithm (theoretically) in terms of photometry • Arranges pixels in map, creates its own modulation profile and tries to match the data (χ2 check) • The tradeoff is efficiency

  12. Visibilities • Radio-based concept • Essentially an amplitude and a phase • Created from modulation profiles • Analogous to radio interferometer visibilities

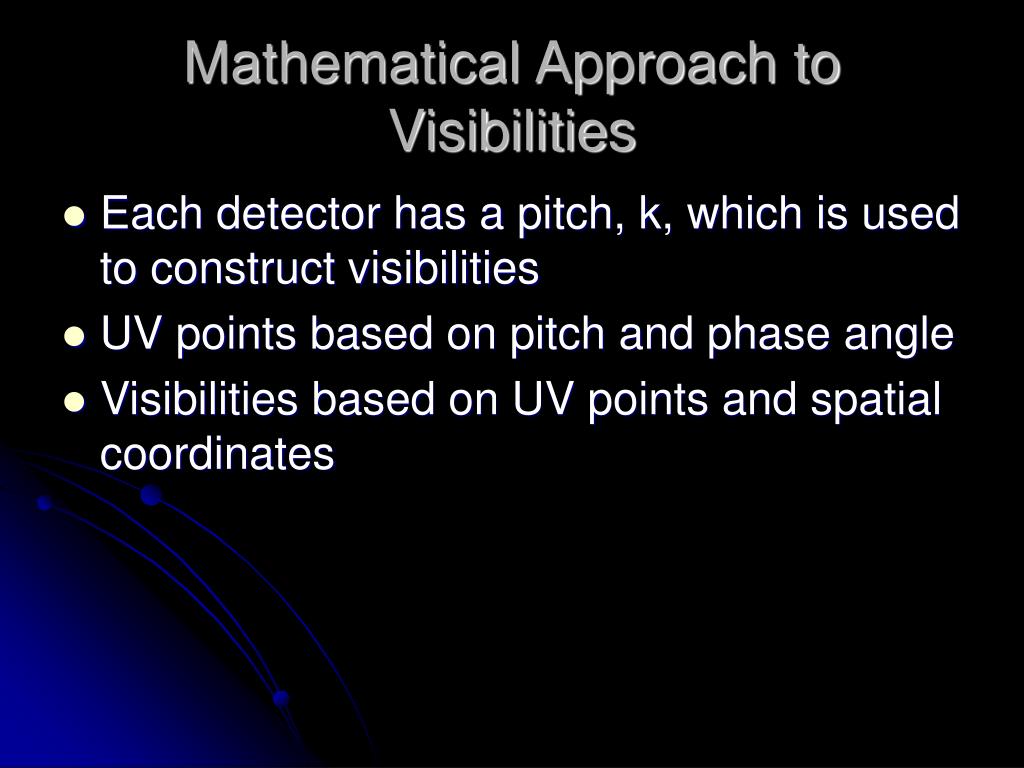

  13. Mathematical Approach to Visibilities • Each detector has a pitch, k, which is used to construct visibilities • UV points based on pitch and phase angle • Visibilities based on UV points and spatial coordinates

  14. MEM • Maximum Entropy Method • Another Radio-based imaging method • RHESSI MEM programs: MEM_VIS, MEM_SATO, MEM_NJIT • Entropy term: log of the map flux • Bayesian: S = H - (λ*χ2) • Cornwell/Evans: S = H – β*χ2 - α*F • H = Σ Fij*log(Fij)

  15. MEM_NJIT • MEM_SATO, MEM_VIS not successful • Both used counts/modulation profiles • MEM_NJIT is visibility-based, designed by New Jersey Institute of Technology • Starting to be used more and more by RHESSI researchers

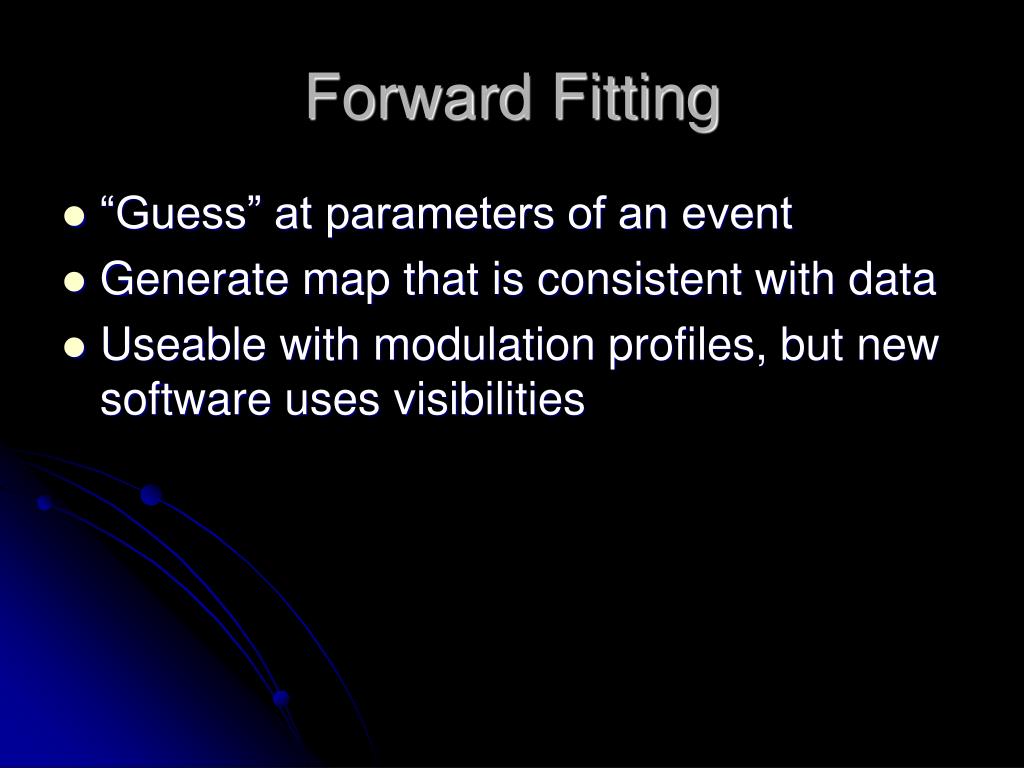

  16. Forward Fitting • “Guess” at parameters of an event • Generate map that is consistent with data • Useable with modulation profiles, but new software uses visibilities

  17. Qualitative Comparison

  18. Scientific Studies • Using MEM_NJIT and Forward Fitting: • Asymmetries in Flux and Source Size • Energy dependence in the asymmetries
