  1. < kazuro.furukawa @ kek.jp > Accelerator Controls at KEKMainly KEKB and Linac Evolution at Tsukuba Site Kazuro Furukawa, KEK KEKB and Linac Control Groups <kazuro.furukawa@kek.jp> Oct. 2009.

  2. Several aspects of Evolution of the Accelerator Controls at the KEK • Communication Networks • Equipment Controllers • EPICS Environments • Scripting Languages • Summary

  3. Mt. Tsukuba J-PARC (at Tokai Site) KEKB ATF STF PF-AR cERL PF Linac

  4. Accelerator / Control Systems Accelerators/Control Systems in KEK • Operational Presently • Linac, PF, PF-AR, ATF, KEKB, J-PARC • Under Construction • STF, cERL • EPICS • KEKB, … Linac PF-AR J-PARC EPICS Group KEKB PF ATF

  5. Accelerator / Control Systems Control Systems • 12GeV Proton Synchrotron (PS): Hardwire + Mini-computers • 2.5GeV Electron Linac (Linac): 8 Mini-computers + >200 Micro-computers, Optical Networks • Photon Factory (PF): Mini-computers -- Workstations • TRISTAN ~33GeV: ~20 Mini-computers, CAMAC + NODAL Interpreter • Upgraded PS: VME/VersaDOS + MAP • Upgraded Linac: Unix servers, VME, PLC, CAMAC + TCP/IP + Home-grown RPC, Tcl/Tk, Gateway to EPICS • ATF: VMS, CAMAC + V-System (Vista) • KEKB: VME, CAMAC, VXI, ARCnet + EPICS + Python, SADscript • PF-AR: the Same architecture as KEKB • PF: Many of the Components with EPICS • STF, cERL, SuperKEKB, …

  6. Accelerator / Control Systems PF, PF-AR, ATF, STF • PF-AR • Mostly the same environment as KEKB • Many CAMAC installations • PF • Moved to EPICS environment • Mainly with Linux-VME • ATF • Vista Controls environment with CAMAC • Linux and socket environment • EPICS devices • STF • Test facility for ILC • Linux, ATCA test, PLC, … • cERL • Being built for ERL development • Will share the same environment with STF

  7. Accelerator / Control Systems J-PARC at Tokai Canpus HD (hadron) 50GeV MR (0.75MW) MLF (neutron & muon) 3GeV RCS (25Hz,1MW) NU (neutrino) CCR(Central Control Room) Linac (181MeV)

  8. Accelerator / Control Systems J-PARC Controls • We started the design in 1998 • But nobody was dedicated at the beginning • EPICS was chosen • The same reason as KEKB, EPICS was successful at KEKB • IP/Ethernet-only field network was chosen • It was successful at Linac • Device support • Development was started with Network-based device supports • WE7000, FAM3 PLC, EMB-Lan etc. • Later, Integrated into NetDev by Odagiri • Mixed application environment with Java, SAD, XAL, Python • Good practice for inter-institute developments with different cultures • Under commissioning, user experiments in 2010

  9. Accelerator / Control Systems EPICS Software Environment

  10. KEKB and Linac Accelerator ATF STF PF-AR PF Linac Mt. Tsukuba B-factory: Electron/Positron Asymmetric Collider for CP-violation Study ~3km Dual-rings: Electron(8GeV - 1.4A) / Positron(3.5GeV - 1.8A) J-PARC KEKB

  11. KEKB and Linac Accelerator KEKB and Linac • KEKB B-factory: Electron/Positron Asymmetric Collider for CP-violation Study • ~3km Dual-rings: Electron(8GeV - 1.4A) / Positron(3.5GeV - 1.8A) • Stable and Robust Operation • Many Active Operation Parameters • Importance of Controls • Linac: • ~600m, 50Hz • 8GeV 2nC Electron, 3.5GeV 1.2nC Positron • Beam switchings for PF and PF-AR rings Increase of Luminosity with Crab Cavities

  12. KEKB and Linac Accelerator Increase of the Luminosity percent by percent Feb.2005 Continuous Injections May.2000 Apr.2003 Dual Bunch e+ Now, Collision with Crab Cavities and with Simultaneous Injection

  13. KEKB / Linac Controls KEKB and Linac Control Systems • Linac • Controls Upgrade, (1990~)1993 • De-facto (and International) Standards, IP-only Networks • No long Shutdown for KEKB upgrade • 3.5-times Energy increase, 10-times current increase • Three indirect User Facilities (KEKB, PF, PF-AR) • Fewer resources • KEKB • 5-year Shutdown after TRISTAN, 1994-1998 • Precision requirements were much different for KEKB • Complete transition of Controls • from Nodal at TRISTAN to EPICS+SADscript at KEKB • from Energy frontier to Luminosity frontier • Basically Single-user (Belle)

  14. Linac Network Communication Network at Linac • Fiber-optic Networks (1982~1996) • Because of High-power modulators for rf systems • ~30 Loops to connect ~300 equipment controllers • However, the fiber-optic Technology was not mature enough yet • Often Failed and Loop Topology made it difficult to identify the trouble • All IP network (1993~) • Still all Fiber-optic • (Faster Ethernet enables shorter packets and less failures) • Inherited at J-PARC Controls as well • Gradual Transition of Technologies • From FDDI + 10Base-FL to 1000Base-LX + 100Base-Fx • Redundancy (1996~) • At more than 50 Ethernet links • Helped continuous operation in spite of a failure at night • Redundant Transceivers, then Rapid Spanning-tree and HSRP/VRRP

  15. KEKB Network Communication Network at KEKB • TRISTAN • Token Ring and CAMAC Serial highways • Token ring between mini-computers • CAMAC serial highways to equipment controllers • KEKB • IP Network for EPICS • FDDI+10BaseT to GbE+100Base-Tx • Single broadcast domain • ARCNet for equipment controllers • More than 200 network segments • MXI-1/2 for VXI-based frames • 20 segments, 200 frames • Keep some CAMAC Serial highways • 10 highways, 50 crates

  16. Linac Controller Equipment Controllers at Linac • 1982~(1997) (1st generation) • 300 microprocessor-based controllers • Linked together with home-grown fiber-optic network • 1993~now (upgrade of controls) • 160 PLCs (programmable logic controller) • Linked via only Fiber-optic Ethernet/IP • Control communication with servers and program development • 1995~ (upgrade for KEKB) • Direct Fiber-optic Ethernet/IP to each Controllers • 30 VXI for rf measurement • 7 VME / 10 CAMAC for Timing (will retire soon) • 20 VME for Beam monitors, etc (will retire soon) • 2007~ (upgrade for 50Hz beam switching) • 17 (increasing) VME for fast “event” handling, timing, llrf controls, etc. • 24 Oscilloscopes with WindowsXP IOC for 100 BPMs • 10Gs/s, 50Hz acquisition, local processing with 25 calibration parameters/BPM

  17. KEKB Controller Equipment Controllers at KEKB • TRISTAN • Mostly CAMAC • Equipment group responsibility: CAMAC module and outside • KEKB • 100 VME/IOC without Analog processing • 200 VXI/MXI mainframes for 900 BPMs • 50 CAMAC crates are kept for rf and vacuum • ARCNet boards for Magnet ps. settings, and others • GPIB for Magnet ps. readback, and other measurements • PLCs for Magnet interlocks, and others

  18. EPICS at Linac EPICS Transition at Linac • Home-grown RPC at Linac (1990~/1993~) • At end of old mini-computer support • Not complete transition to EPICS yet at Linac • Mixed EPICS devices and gateways to middleware and applications • LynxOS Transition was developed (1994~1996) • To cover both RPC and EPICS with pthread, posix • Mostly working, Failed to get funding for Hardware/Software upgrade • Gateways to EPICS in several ways • Software-only IOC and Gateway (Clients to both RPC/CA) • Portable Channel Access Server of EPICS-3.12 (1995~) • Soft-IOC with device support to Linac RPC (2002~) • Redundant EPICS environment as well (2008~) • Real IOCs are increasing • PLC(rf,vacuum,magnet) and Linux, Oscilloscope(bpm) with Windows, VME(event-based llrf and timing) • RPC servers read EPICS IOCs, EPICS gateways read RPC servers

  19. EPICS at KEKB EPICS Transition at KEKB • Some candidates discussed after Nodal at TRISTAN • RPC/CORBA based control design • Reflective memory (hardware shared memory) design • No other choice than EPICS for KEKB • No man-power for control system software • The choice at SSC • International collaboration was attractive

  20. KEKB Controls KEKB Control System (Hardware) • GbE Fiber Optic Networks • Single Broadcast Domain for now • Central Control Room and 26 Local Control Rooms • VME/IOC • ~100 VME/IOC mostly with PowerPC CPU • Fieldbus • VXI thru MXI for BPM Instrumentations • CAMAC for rf and Vacuum (inherited from TRISTAN) • ~180 ArcNet network segments for Magnet Power Supplies, and other field Controllers • GPIB for Instrumentations, RS232C, Modbus+ for PLCs • Host Computers • (HP-UX/PA-Risc,) Linux/x86 Controls Server • (3 Tru64/Alpha with TruCluster) • Several Linux • Many MacOSX • (Solaris/Sparc for VxWorks)

  21. KEKB Controls KEKB Control System (Software) • EPICS 3.13.1 mainly, with increasing 3.14.9 • VxWorks 5.3.1 mainly, with increasing 5.5.1 • Hope to upgrade EPICS/VxWorks Shortly • VxWorks 6.7 is also under testing • IOC Development • CapFast, VDCT, Perl, SADscript for Database Configuration • Oracle as a backend Database (Partially) • Operational Application Development • MEDM(DM2k) for Startup • Python/Tk for Equipment Controls • SADScript/Tk for Beam Operation, etc

  22. KEKB Controls IOC and Records • There are Several Groups in KEKB • Each IOC is Assigned to a Group • MG, RF, VA, BM, etc • About 100 in Total • About 250k Records in Total • Most Groups Follow Naming Convention • Accelerator GroupName DeviceType • DeviceName • Property • Some EPICS Databases are Generated from Oracle Database

  23. KEKB Controls IOC Configuration

  24. KEKB Controls IOC Database with Oracle

  25. KEKB Controls Magnet Controls • ~5000 Magnets, ~2500 Power Supplies • No One-to-one Correspondence • Basic Controls thru ARCnet • Voltmeter Scanner for Analog Read-out • PLC for Interlocks • IOC Manages All Controls • Interlock Status, On/Off, etc • Energy - Field - Current • Synchronous Operation • for Tune change, Orbit Correction, etc. • Standardization • Special Large Subroutine Record • “hugesub” Record and C Routine

  26. KEKB Controls Magnet Controls

  27. Linac Controls Linac Controls • KEKB = Factory Machine => Reliable Operation • Controls should be Robust and Flexible • ~1000 devices and ~10000 signals • Frequent Beam Mode Switches • Four very Different Beam Modes, 360 times/day • Now 20ms switching with event-based controls • Precise Controls of Beam Parameters • Energy, Orbit, Emittance, Charge, Energy spread, Timing, etc.

  28. Linac Controls History and Design Concept • History • 1978-1982: Construction of First Computer-controlled System with 8 mini-computers, >200 micro-computers, >30 optical loop networks • 1989-1992: Design of the next system • 1993-1997: Installation and expansion for KEKB • Design Concept • Use of International and/or de-facto Standards • Use of Optical IP Networks for every Device controllers • No new field Networks, only IP Network (to be inherited by J-PARC) • Both of above should make future upgrade easier • (EPICS was not available widely at that time)

  29. Linac Controls Physical Structure • Multi-tier, Multi-hardware, Multi-client, …

  30. Linac Controls Multi-tier Logical Structure

  31. Linac Controls Software Architecture (old) • Base control software structure for Multi-platform • any Unix, OS9, LynxOS (Realtime), VMS, DOS, Windows, MacOS • TCP - UDP General Communication Library • Shared-Memory, Semaphore Library • Simple Home-grown RPC (Remote Procedure Call) Library • Memory-resident Hash Database Library • Control Server software • Lower-layer servers (UDP-RPC) for control hardware • Upper-layer server (TCP-RPC) for accelerator equipment • Read-only Information on Distributed Shared Memory • Works redundantly on multiple servers • Client Applications • Established applications in C language with RPC • Many of the beam operation software in scripting language, • Tcl/Tk • SADscript/Tk

  32. Linac Controls Why EPICS in my case • We made too much effort on duplicate development on many control systems • Our goal is to achieve high performance in the accelerator and the physics experiments • Reuse of available resources is preferable • Devices in Linac have been modernized, and development of EPICS device supports became possible • Anyway we need interface to down-stream accelerators esp. KEKB • Want to merge several archive formats in Linac • May expect (?) man-power from other groups • May contribute to world-wide EPICS collaboration

  33. Linac Controls Building EPICS Gateway • Common Control System at the Top (of Linac and Ring) • Needs too much resources • Port EPICS onto our VME/OS9-LynxOS (1994) • Failed to get support/budget for LynxOS at Linac • (EPICS Maintenance with an unsupported Platform ?) • Special Gateway Software, which interfaces to both the Linac Controls and EPICS IOCs as a Client • Built to ensure the feasibility at 1995 • Portable Channel Access Server • Implemented with EPICS 3.12 and being used on HP-UX since 1996 • It is being used for several application software including Alarm display • Software IOC with 3.14 • Being used and being extended on Linux since 2003

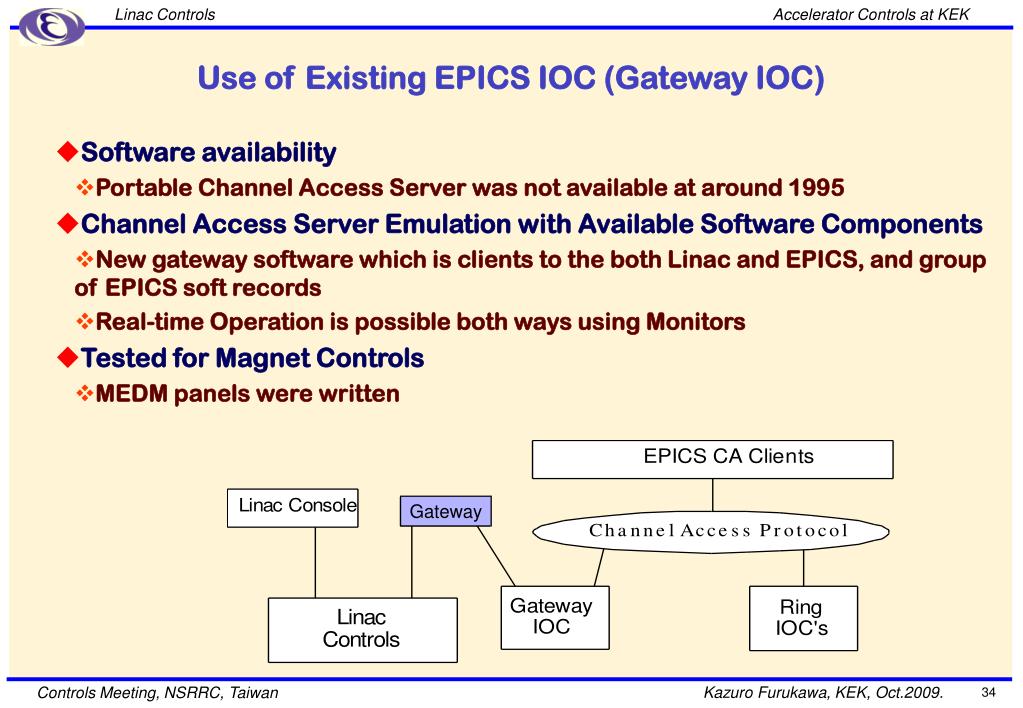

  34. Linac Controls Use of Existing EPICS IOC (Gateway IOC) • Software availability • Portable Channel Access Server was not available at around 1995 • Channel Access Server Emulation with Available Software Components • New gateway software which is clients to the both Linac and EPICS, and group of EPICS soft records • Real-time Operation is possible both ways using Monitors • Tested for Magnet Controls • MEDM panels were written Gateway

  35. Linac Controls Portable Channel Access Server (PCAS) • Protocol Conversion • Client to Linac Controls with Home-grown RPC and Cache Memory, Interface to Upper-level Servers (not directly to Lower-level Hardware Servers) • Server to EPICS environment, with some Name wrapping • Implemented for Linac in 1996- • for Magnets, RF, Beam Instrumentations • >4000 Records are available • Write-access Possible, normally Read-only • Still used for KEKB Unified Alarm,Operation Status, etc. CA Server

  36. Linac Controls Soft IOC • IOCcore is available on Unix in EPICS 3.14 • We have Tru64unix, Linux, HP-UX • Simple • IOCcore hides the complexity of Channel Access, etc • We design the device support to Upper-level Linac Servers, as we access to hardware in normal IOC • All standard EPICS facilities are available • Alarms, Operation Limits, Links, Periodic processing, Monitors, etc. • Implemented for Linac on Linux since 2003 • For RF, Beam Instrumentation, Vacuum, etc. • >5000 Records are available and extending • Most records are archived in Channel Archiver and KBlog • KBlog is used to analyze correlations between Linac/Ring • (Developed Java viewer of the archive at One Time) • Channel Archiver/Viewer from SNS is used for Linac Internals

  37. Linac Controls General Comparisons • Symmetry • Gateway IOC is Symmetric between outside and inside of EPICS • Accessing from/to EPICS goes thru the same Gateway • Others are (somewhat) asymmetric • Name Resolution • PCAS can resolve names dynamically (at run-time) • Consumes less memory (?) • SoftIOC has to be prepared with static database • May be expected to give better response • Can be impossible for a large installations • Database processing and associate fields • SoftIOC provides EPICS database Facilities like Limits, Alarms, Links, etc. • If we archive them, Archive Deadband is most necessary • Implementation of Gateway • SoftIOC is relatively straight forward • Simply adding device supports

  38. Linac Controls Application software • Most records from the Linac Soft IOC are archived both in Channel Archiver and in KBlog • KBlog is used to analyze correlations between Linac/Ring • (Developing Java viewer of the archive) • KEKB Alarm is connected to Linac PCAS • May migrate to Linac SoftIOC (Linac PCAS is currently based on EPICS 3.12) • Some other applications utilize PCAS as well • (Many others access Linac Controls directly now) • Small number of Records are going thru Gateway IOC, historically

  39. Linac Controls Performance • EPICS Gateway and Channel Archiver • are Running on Linux 2.4.20 (Redhat) with Intel Xeon 2.4GHz and Memory of 2GB • About 10% of CPU usage • Monitors/Archives all of ~2200 Channels (partial in Kblog) • Can process 5400~6600 Channel Access Requests over Network • Archive size is about 400MB/day (300MB/day in Kblog) • Both Channel Archiver and KBlog collect Data

  40. Archiver Archiver/Logger • Linac • Several archivers with group-dependent filters • Replaced with two EPICS archivers (2000~) • Channel archiver, with Java viewer, and Web-based viewer • KEKBlog, SADscript-based viewer • Both ~500MB/day, Dynamic ADEL changes • KEKB • KEKBlog, since 1998 • Once there was a plan to replace it with Channel Archiver • Data conversion, no much performance difference • Only ADEL-based filter • ~4GB/day • SADscript-based viewer, one of the most-used applications in controls • With Data analysis capability, easy manipulations

  41. Scripting Language Scripting Languages • Heavy use because of rapid prototyping • Linac • (1992~) Tcl/Tk as Test tools on Unix • (1997~) Tcl/Tk as Main Operator Programming Tool • Mostly replaced Windows/VisualBasic-based environment • (Now) Mixture of Tcl/Tk, SADscript/Tk, Python/Tk • SADscript has most accelerator design capability • Covers most features like MATLAB, Mathematica, XAL, MAD • KEKB • (Nodal interpreter and Fortran covered everything at TRISTAN) • Python covers many areas which is not covered by medm • SADscript is used by operators and physicists everyday • Realization of novel ideas in hours • Only some ideas are effective, so rapid prototyping is important

  42. KEKB and Linac Operation SADScript • Accelerator Modeling Environment • MAD-like Environment was created during TRISTAN • Needs for Conditionals, Flow-controls, Data manipulations, Plot, GUI • Mathematica-like Language introduced as a front-end • Not Real Symbolic Manipulation (Thus fast) • Data Manipulations (Fit, FFT, …), List Processing (Mathematica-like) • EPICS CA (Synchronous and Asynchronous) CaRead/CaWrite[ ], CaMonitor[ ], etc. • Tk Widget • Canvas Draw and “Plot” • KBFrame on top of Tk • Greek Letters, Compound widgets, etc • Relational Database • Inter-Process Communication (Exec, Pipe, etc) System[ ], OpenRead/Write[ ], BidirectionalPipe[ ], etc. • Beam Operation with Full Accelerator Modeling Capability • Online and offline under the same environments • Also Used for non-Accelerator Applications (Archiver viewer, Alarm handler, etc.) • Comparable to XAL, MATLAB, but very different architecture

  43. KEKB and Linac Operation SADScript • Mathematica-like Language • Not Real Symbolic Manipulation (Fast) • EPICS CA (Synchronous and Asynchronous) CaRead/CaWrite[ ], CaMonitor[ ], etc. • (Oracle Database) • Tk Widget • Canvas Draw and Plot • KBFrame on top of Tk • Data Processing (Fit, FFT, …) • Inter-Process Communication (Exec, Pipe, etc) System[ ], OpenRead/Write[ ], BidirectionalPipe[ ], etc. • Greek Letter • Full Accelerator Modeling Capability • Also Used for non-Accelerator Applications

  44. KEKB and Linac Operation SADScript • Data manipulation/plot example FFS; w=KBMainFrame["w1",fm,Title->"t1"]; $DisplayFunction=CanvasDrawer; W1=Frame[fm]; c1=Canvas[w1,Width->600,Height->400, Side->"top"]; Canvas$Widget=c1; data = {{0,0}, {1,1}, {2,5}, {3,8}, {4,10}, {5,7}, {6,4}, {7,2}, {8,0}, {9,2}} fit = FitPlot[data,a Sin[x b + c] + d, x, {a,5},{b,1},{c,1},{d,5}, FrameLabel->{"X","Y"}]; phase = StringJoin["Phase : ", (c/.fit[[1]]) 180/Pi, " Deg."]; f1=KBFComponentFrame[w1,Add->{KBFText[Text->phase]}]; TkWait[]; Exit[];

  45. SADscript Virtual Accelerator in SADscript • A Example in KEKB • most Beam Optics Condition is maintained in the Optics Panel • Other Panels Manipulate Parameters Communicating with the Optics Panel (Oide, Koiso, Ohnishi et al) • ===> • Tune Measurement/Changer Optics Panels

  46. KEKB and Linac Operation KEKB Commissioning Groups • Formation of Commissioning Group (KCG) • Linac Commissioning (LCG) • 7 from Linac • ~10 from Ring • KEKB Ring Commissioning Group (KCG) • All LCG • ~20 from Ring • Several from Detector (BCG) • Commissioning softwarebase was formed during Linac Commissioning (1997~) Tcl/Tk, SAD/Tk , Python/Tk KEKB Commissioning Group Linac Commissioning Group KEKB Ring Linac

  47. KEKB and Linac Operation KEKB Alarm Panel • KEKB Alarm Main Panel covers Linac Alarms as well. ~10,000 Records are Monitored in One Panel. Detailed alarm information/history is available in a separate panel Linac Ring

  48. KEKB and Linac Operation Beam Optics Panels in SAD • Beam Optics Matching and Optimization Panels in SADscript • Some Parameters goesthru EPICS Gateways, others directly to Linac

  49. KEKB and Linac Operation KEKB Operation Panel Examples • Tune Measurement and Tune Changer

  50. KEKB and Linac Operation Virtual Accelerator in KEKB • Tune/Optics Server • Keep A Model of Real Accelerator • Can Change Tune, Chromaticity, etc, on Request by Other Panels • Act as a Virtual Accelerator
