  1. Chapter 10 – Integrating RFID Readers in Enterprise IT

  2. Table 10.1 Base Service Set (BSS)

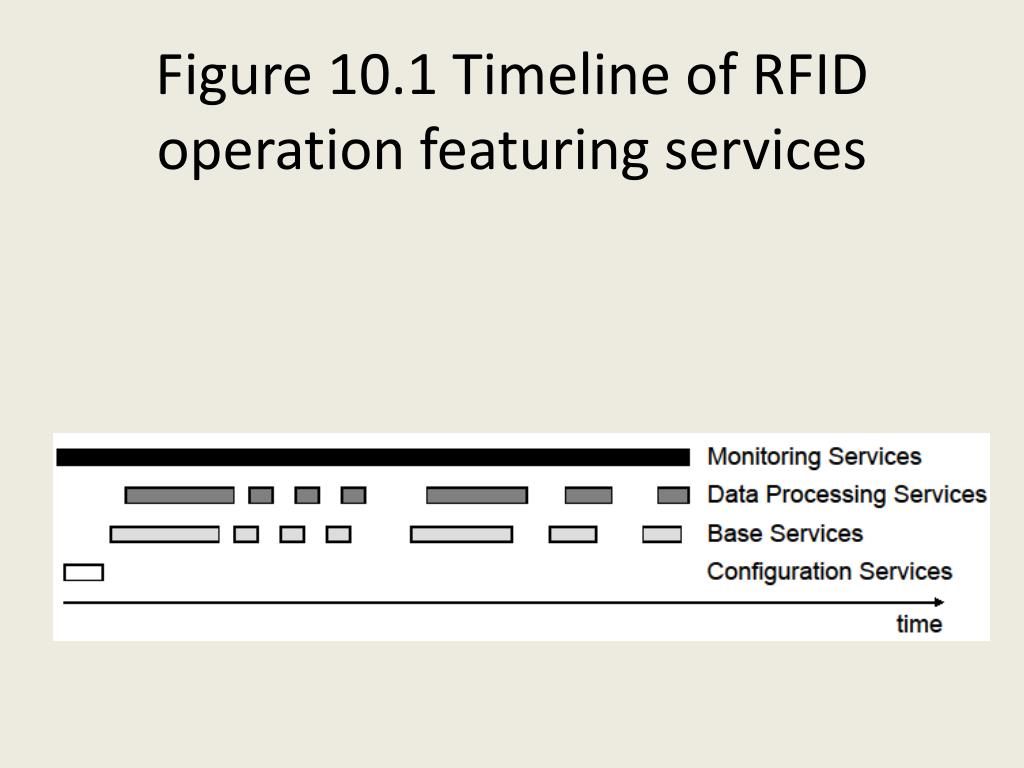

  3. Figure 10.1 Timeline of RFID operation featuring services

  4. Table 10.2 Configuration Service Set (CSS)

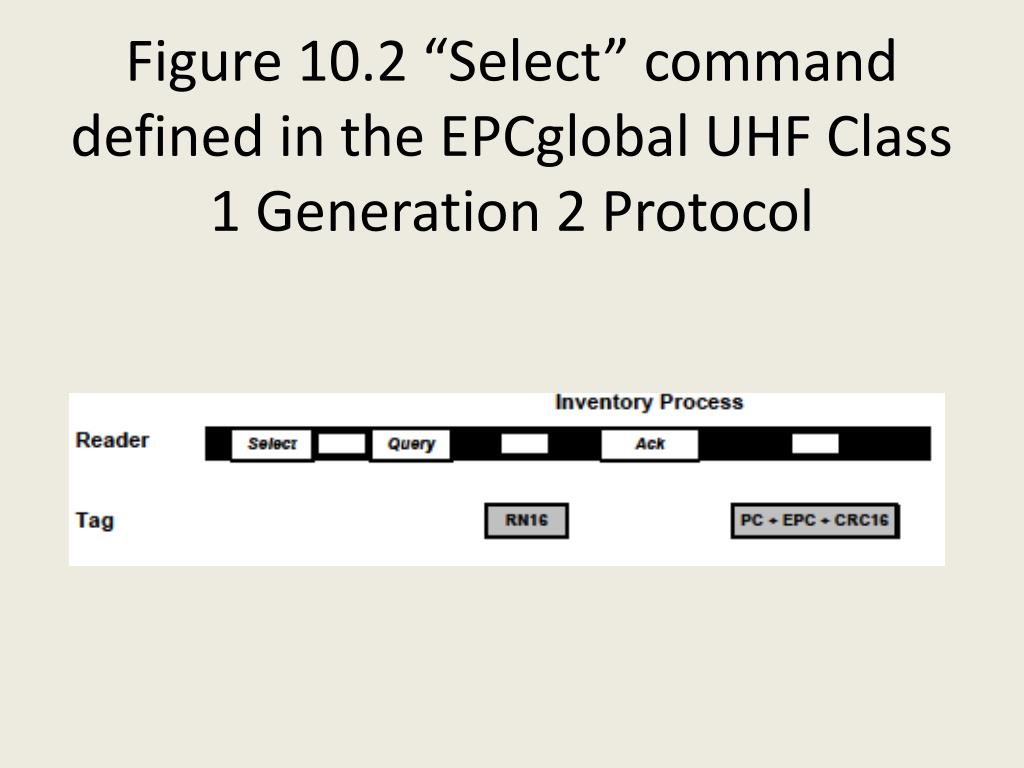

  5. Figure 10.2 “Select” command defined in the EPCglobal UHF Class 1 Generation 2 Protocol

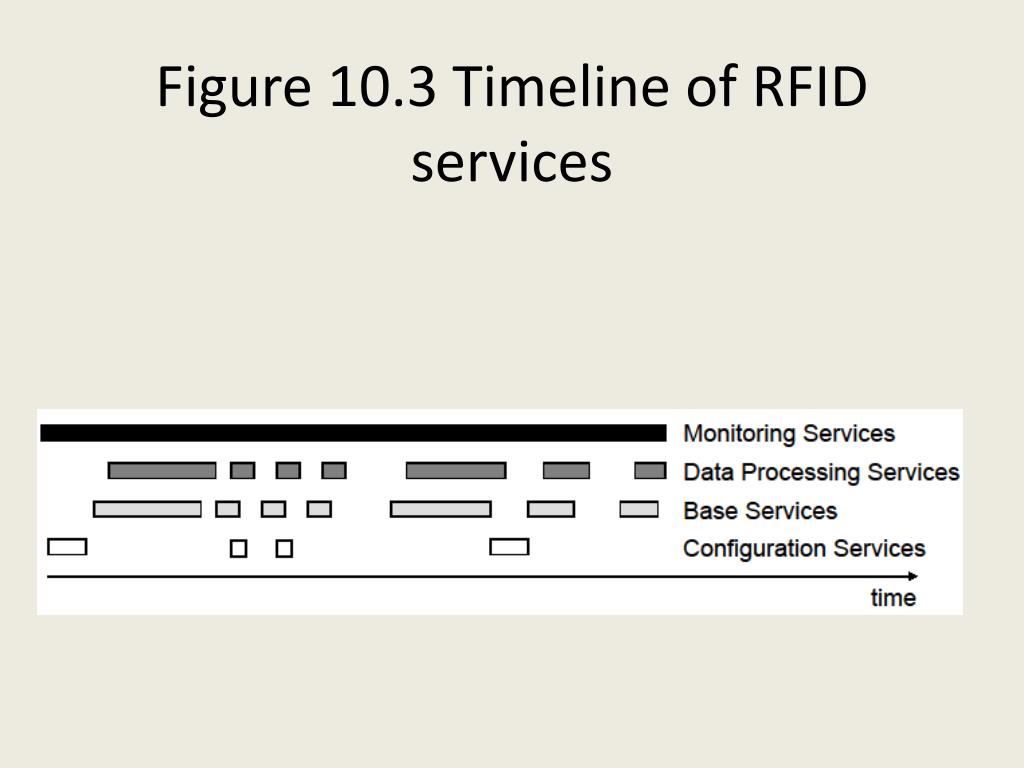

  6. Figure 10.3 Timeline of RFID services

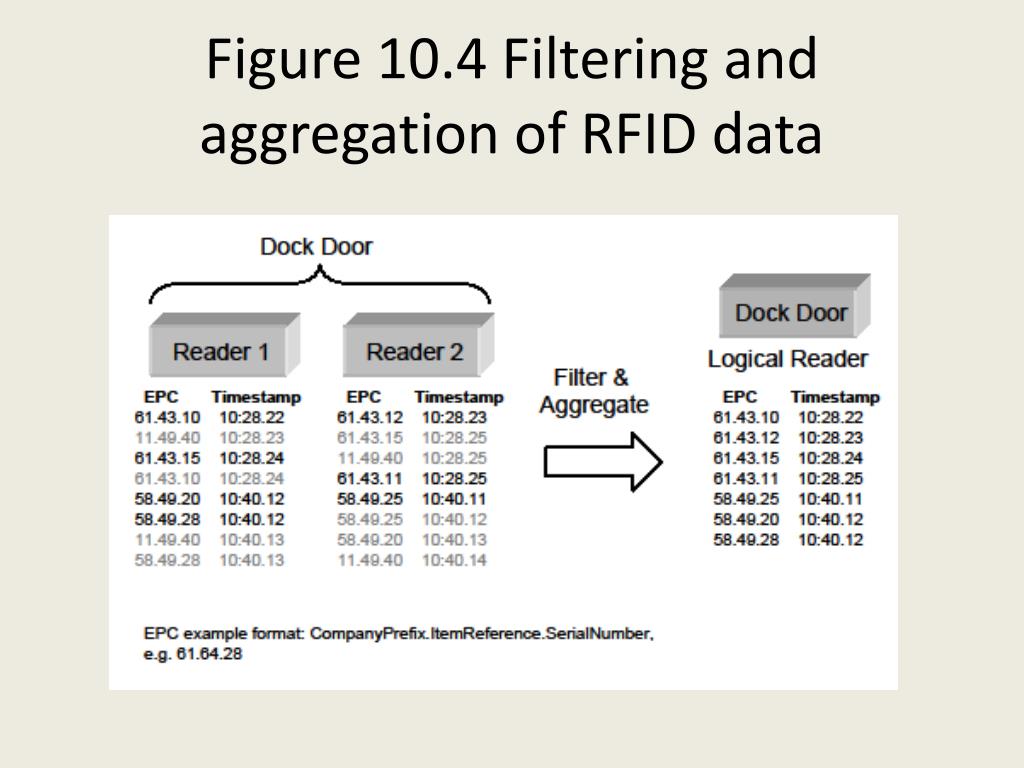

  7. Figure 10.4 Filtering and aggregation of RFID data

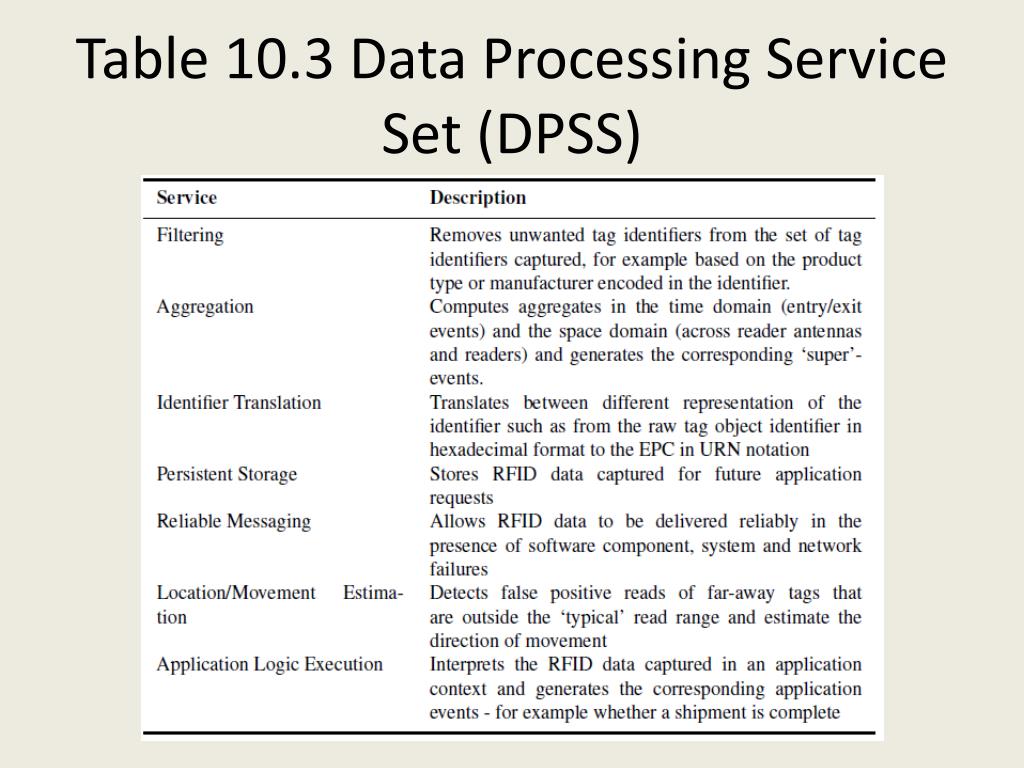

  8. Table 10.3 Data Processing Service Set (DPSS)

  9. Table 10.4 Monitoring Service Set (MSS)

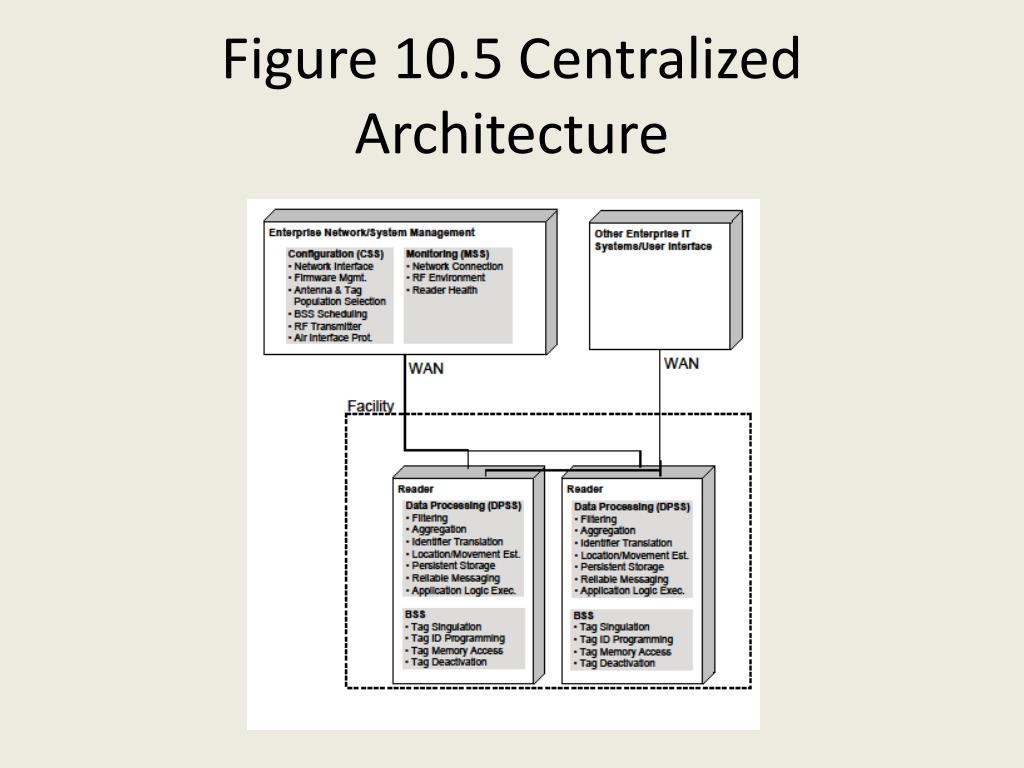

  10. Figure 10.5 Centralized Architecture

  11. Figure 10.6 Autonomous Architecture

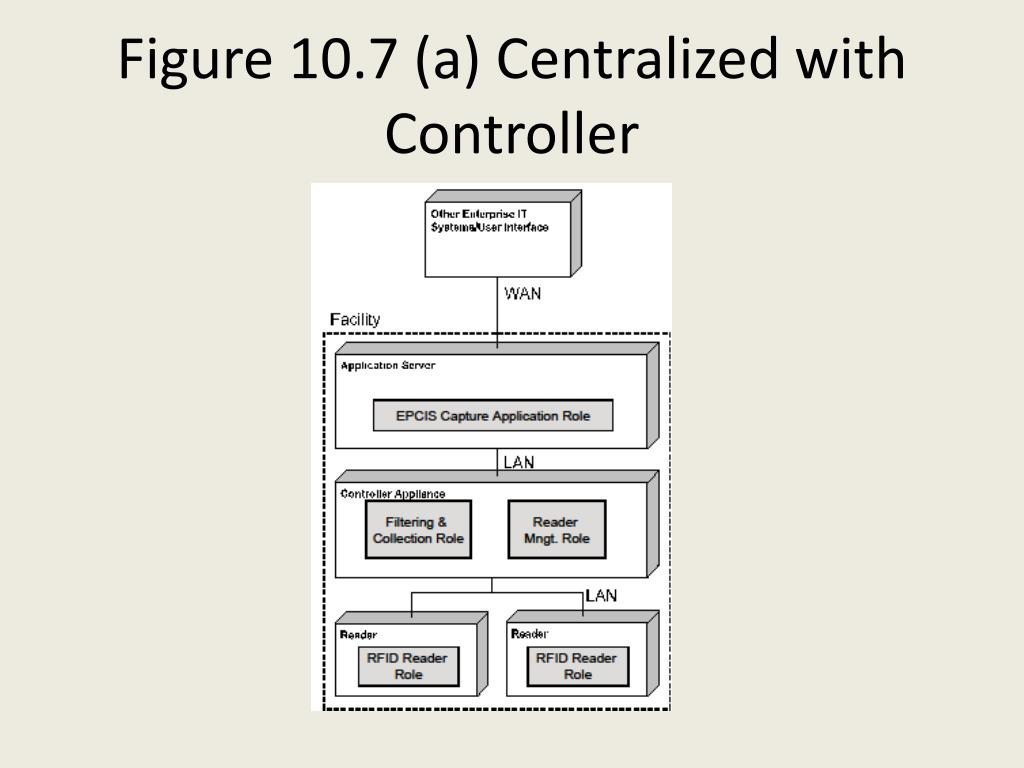

  12. Figure 10.7 (a) Centralized with Controller

  13. Figure 10.7 (b) Centralized without Controller

  14. Figure 10.7 (c) Autonomous

  15. Figure 10.8 High-level Overview

  16. Figure 10.9 LLRP (a) Single channel(b) Multiple reporting channels (a) (b)

  17. Figure 10.10 High-level reader protocols

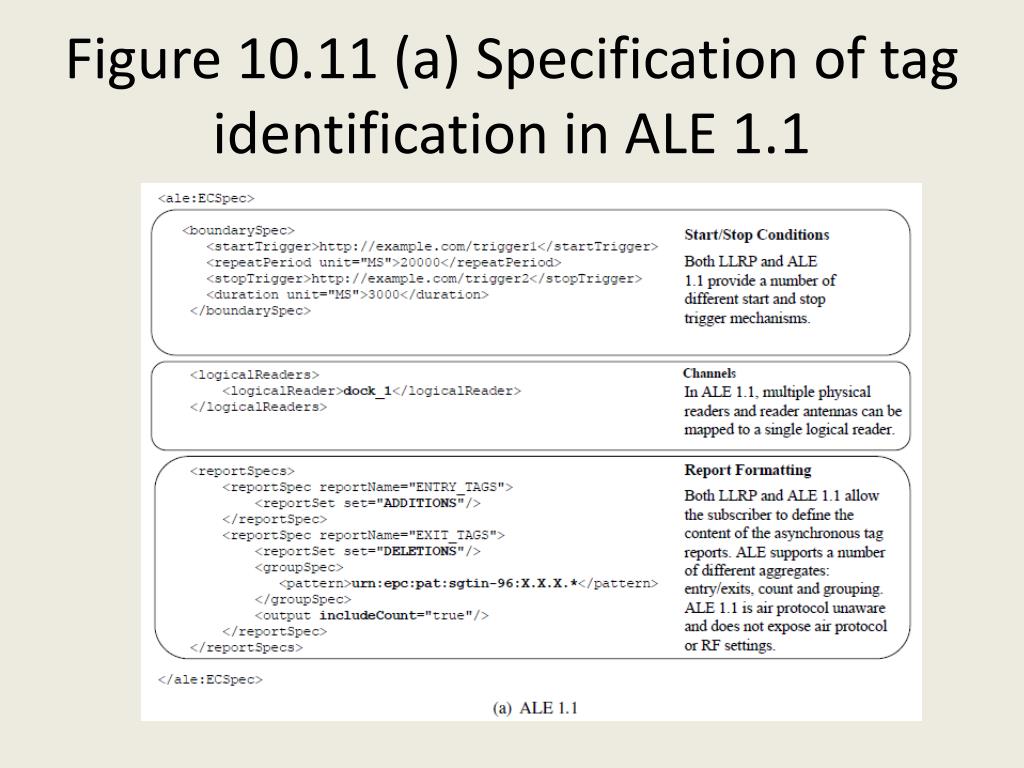

  18. Figure 10.11 (a) Specification of tag identification in ALE 1.1

  19. Figure 10.11 (b) Specification of tag identification in LLRP

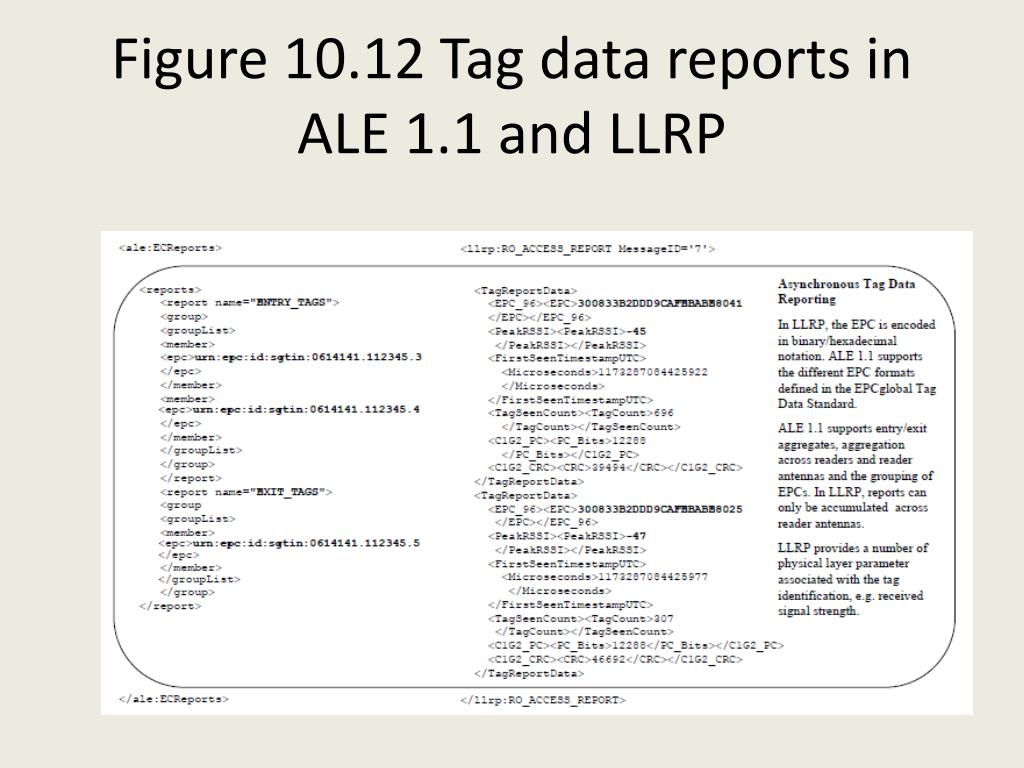

  20. Figure 10.12 Tag data reports in ALE 1.1 and LLRP

  21. Figure 10.13 Tag memory access (reading) in ALE 1.1 and LLRP

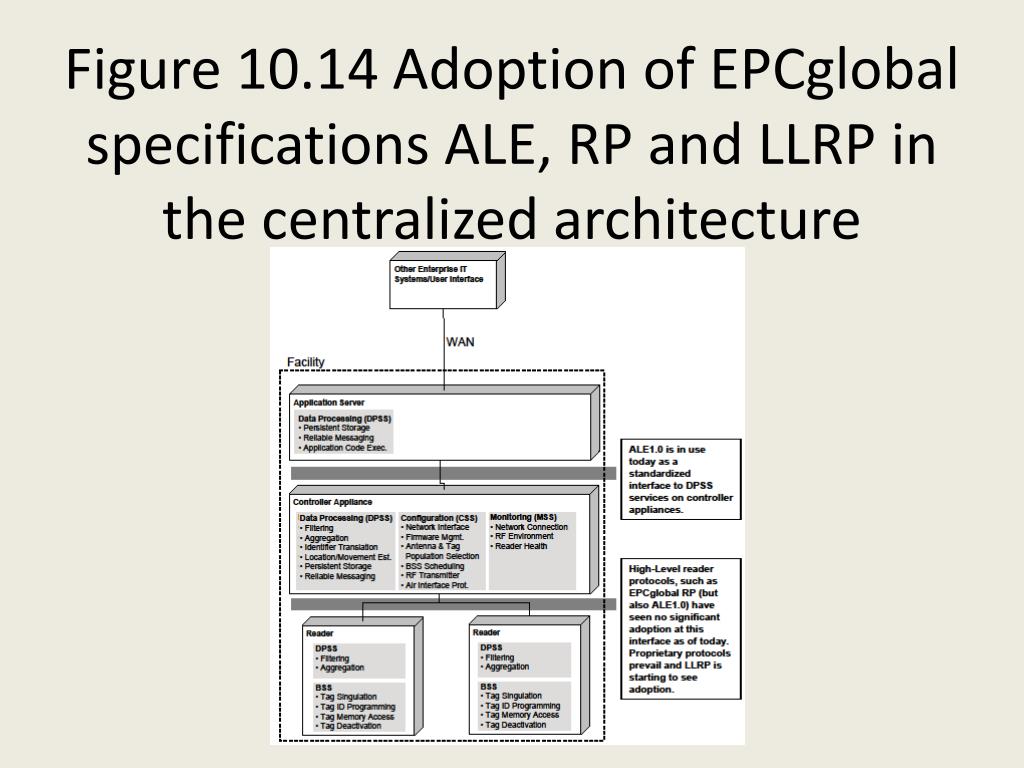

  22. Figure 10.14 Adoption of EPCglobal specifications ALE, RP and LLRP in the centralized architecture

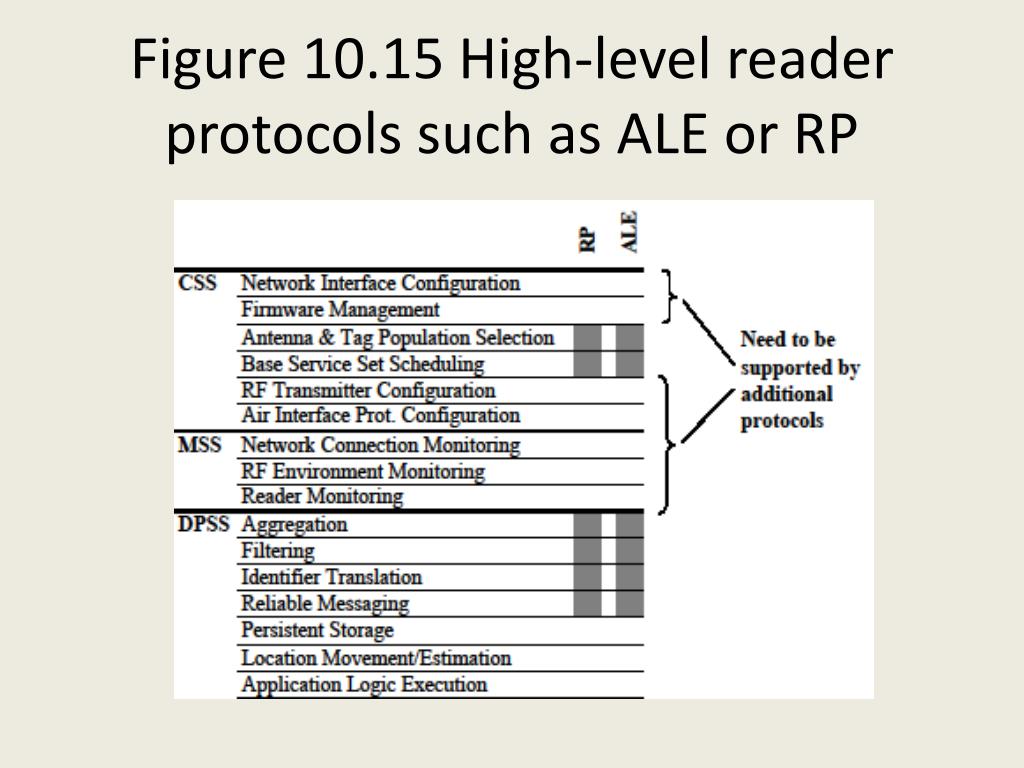

  23. Figure 10.15 High-level reader protocols such as ALE or RP

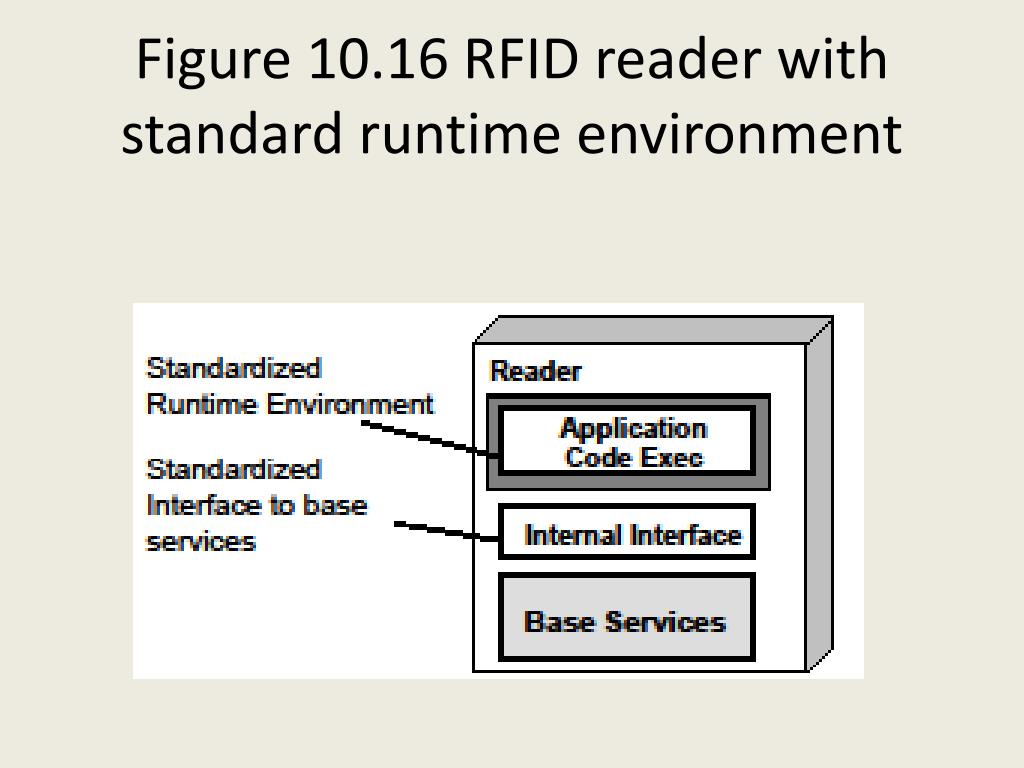

  24. Figure 10.16 RFID reader with standard runtime environment
