Chapter 11 Site-Specific Recombination & Transposition of DNA

Chapter 11 Site-Specific Recombination & Transposition of DNA. Two classes of genetic recombination. Conservative site-specific recombination (CSSR) Transpositional recombination. OUTLINE. Conservative Site-Specific Recombination Biological Roles of Site-Specific Recombination Transposition

Télécharger la présentation

Chapter 11 Site-Specific Recombination & Transposition of DNA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chapter 11Site-Specific Recombination & Transposition of DNA

  2. Two classes of genetic recombination • Conservative site-specific recombination (CSSR) • Transpositional recombination

  3. OUTLINE • Conservative Site-Specific Recombination • Biological Roles of Site-Specific Recombination • Transposition • Examples of Transposable Elements and Their Regulation • V(D)J Recombination

  4. Conservative Site-Specific Recombination(CSSR) CSSR is recombination between two defined sequence elements

  5. 1-1 CSSR occurs at specific DNA sequences in the target DNA CSSR can generate three different types of DNA rearrangements: 1.Insertion 2.Deletion 3.Inversion

  6. Structures involved in CSSR

  7. 1-2 Site-specific recombinases cleave and rejoin DNA using a covalent protein-DNA intermediate There’re two families of conservative site-specific recombinases: 1. Serine Recombinases 2. Tyrosine Recombinases

  8. 1-3 Serine recombinases introduce double-stranded breaks in DNA and then swap strands to promote recombination • First , the serine recombinases cleave all four strands • Second, DNA swap occurs • Finally, the serine recombinases are liberated and they seal the DNA strands

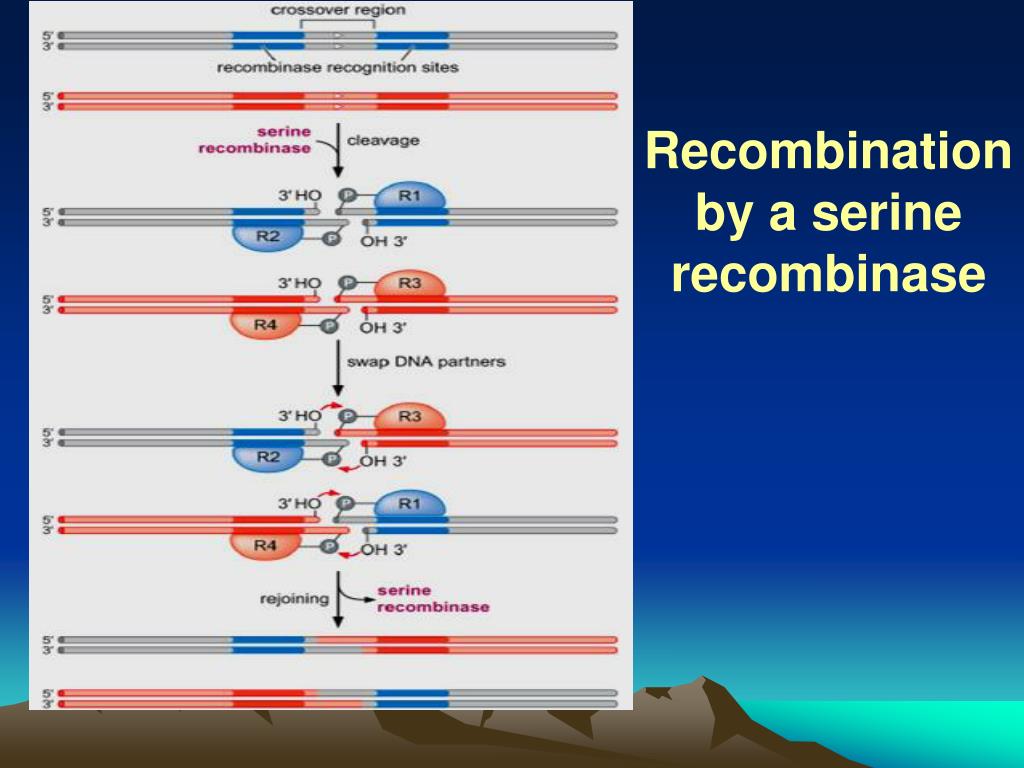

  9. Recombination by a serine recombinase

  10. 1-4 Tyrosine recombinases break and rejoin one pair of DNA strands at a time • In contrast to the serine recombinases ,the tyrosine recombinasescleave and rejoin two DNA strands first, and only then cleave and rejoin the other two strands.

  11. Recombination by a tyrosine recombinase

  12. 1-5 Structure of tyrosine recombinases bound to DNA reveal the mechanism of DNA exchange • Cre is an enzyme encoded by phage P1 , which functions to circularize the linear phage genome during infection • The recombination sites of Cre on the DNA are called lox sites. • Only Cre protein and the lox sites are needed for complete recombination

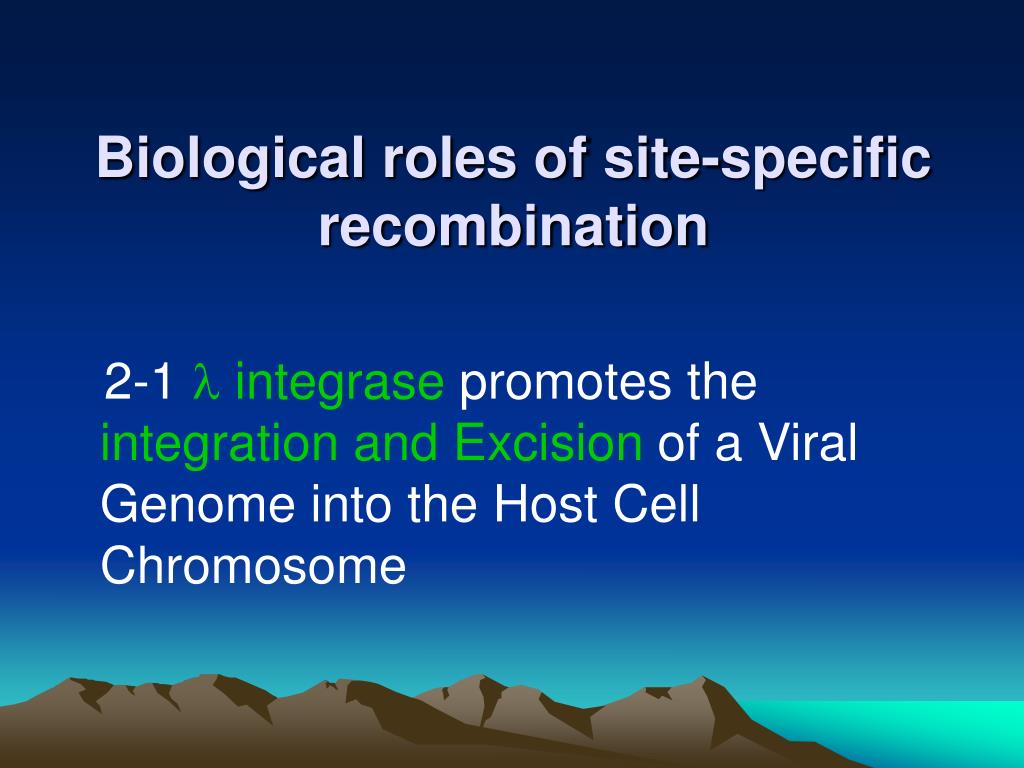

  13. Biological roles of site-specific recombination 2-1 l integrase promotes the integration and Excision of a Viral Genome into the Host Cell Chromosome

  14. Bacteriophage l infects a host bacterium and would establish a lysogen ,which requires the integration of phage DNA into host chromosome • To integrate, lInt catalyzes recombination between two specific sites—attachment (att) sites • attP site is on the phage DNA andattB site is on the bacterial genome • lInt is a tyrosine recombinase, and the mechanism of strand exchange follows the pathway described above for the Cre protein

  15. The highly asymmetric organization of the attPand attB sites is important to the regulation of l integration The following figure showing: recombination sites involved in l integration and excision showing the important sequence element

  16. 2-2 Phage l excision requires a new DNA-binding protein • Phage l excision requires an architectural protein called Xis, which is phage-encoded • Xis binds to the integrated attR sites to stimulate excision and to inhibit integration

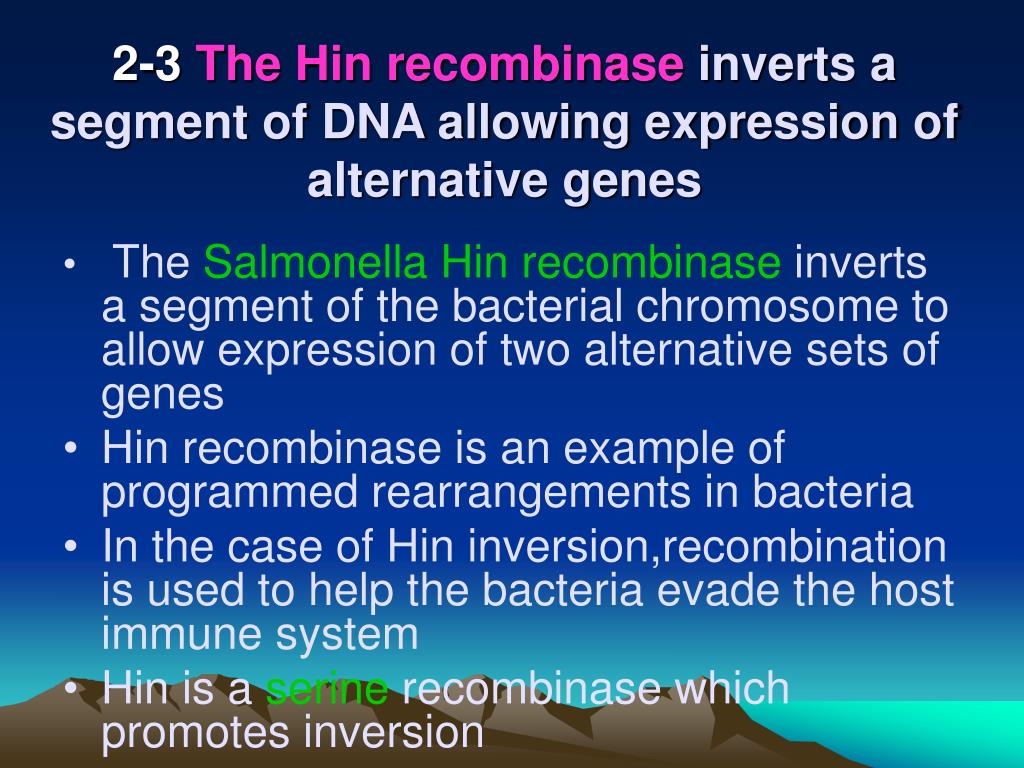

  17. 2-3The Hin recombinaseinverts a segment of DNA allowing expression of alternative genes • The Salmonella Hin recombinase inverts a segment of the bacterial chromosome to allow expression of two alternative sets of genes • Hin recombinase is an example of programmed rearrangements in bacteria • In the case of Hin inversion,recombination is used to help the bacteria evade the host immune system • Hin is a serine recombinase which promotes inversion

  18. 2-4 Hin recombination requires a DNA enhancer • Hin recombination requires a DNA enhancer in addition to the hix sites • Enhancer function requires the bacterial Fis protein • the enhancer-Fis complex activates the catalytic steps of recombination • Hin-catalyzed inversion is not highly regulated, rather, inversion occurs stochastically

  19. 2-5 Recombinaseconverts multimeric circular DNA molecules into monomers • circular DNA molecules sometimes form dimers and even higher multimeric forms during the process of homologous recombination • Site-specific recombinases (sometimes called resolvases) can resolve dimers and larger multimers into monomers

  20. Circular DNA molecules can form multimers

  21. Xer recombinase is a tyrosine • Xer catalyzes the monomerization of bacterial chromosomes and of many bacterial plasmids • Xer is a heterotetramer, containing two subunits of XerC and two subunits of XerD • XerC and XerD recognize different sequence • The directional regulation of Xer-mediated recombination is achieved through the interaction between the Xer recombinase and a cell diversion protein called FtsK

  22. Pathways for Xer-mediated recombination at dif

  23. 2-6 There are other mechanisms to direct recombination to specific segaments of DNA • The gene rearrangements responsible for assembly of gene segments encoding critical proteins for the vertebrate immune system—known as V(D)J recombination—also occurs at specific sites

  24. Transposition 3-1 Some genetic elements move to new chromosomal locations by transposition • Transposition is a specific form of genetic recombination that moves certain genetic elements from one DNA site to another • These mobile genetic elements are called transposable elements or transposons

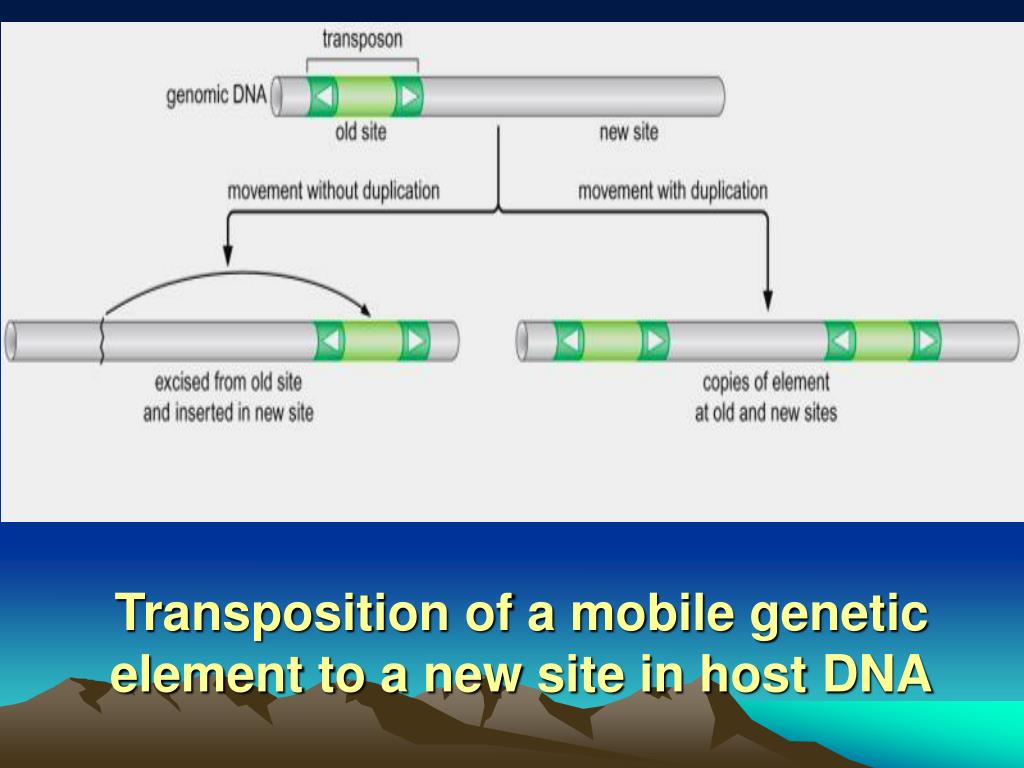

  25. Transposition of a mobile genetic element to a new site in host DNA

  26. The transposons can insert within genes or regulatory sequence of a gene, which results in the completely disruption of gene function • They can also insert within the regulatory sequences of a gene where their presence may lead to shanges in how that gene is expressed • Transposable elementsare present in the genomes of all life-forms. (1) transposon-related sequences can make up huge fractions of the genome of an organism. (2) the transposon content in different genomes is highly variable

  27. 3-2 There are three principle classes of transposable elements

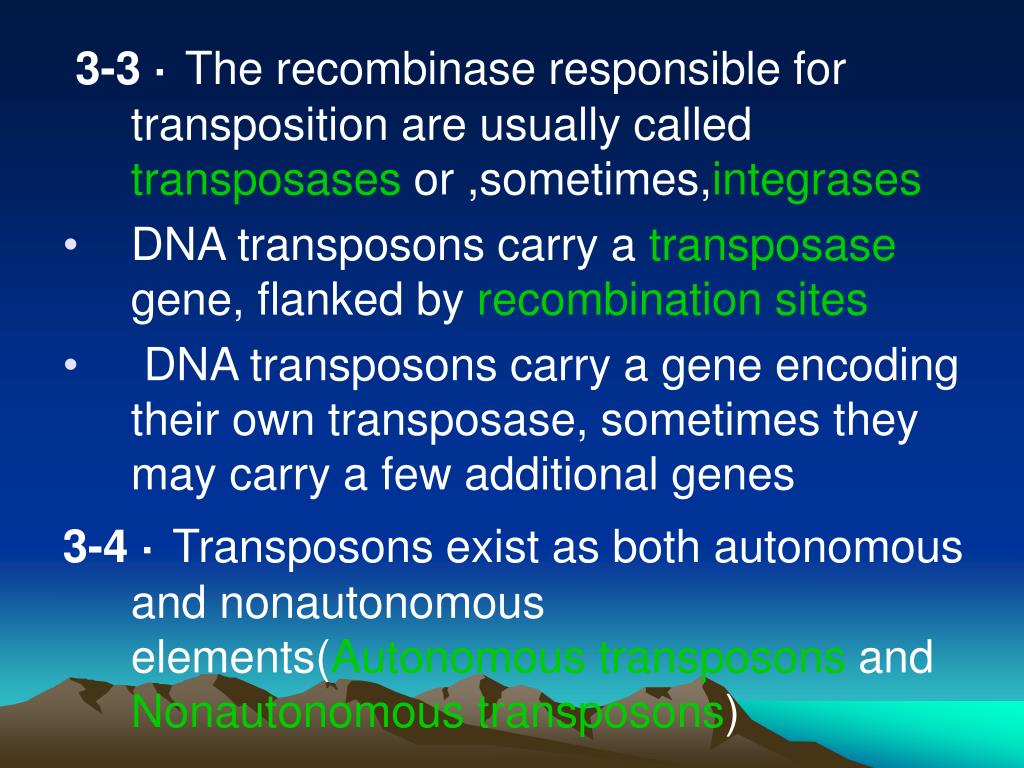

  28. 3-3 · The recombinase responsible for transposition are usually calledtransposasesor ,sometimes,integrases • DNA transposons carry atransposasegene, flanked by recombination sites • DNA transposons carry a gene encoding their own transposase, sometimes they may carry a few additional genes 3-4 · Transposons exist as both autonomous and nonautonomous elements(Autonomous transposons andNonautonomous transposons)

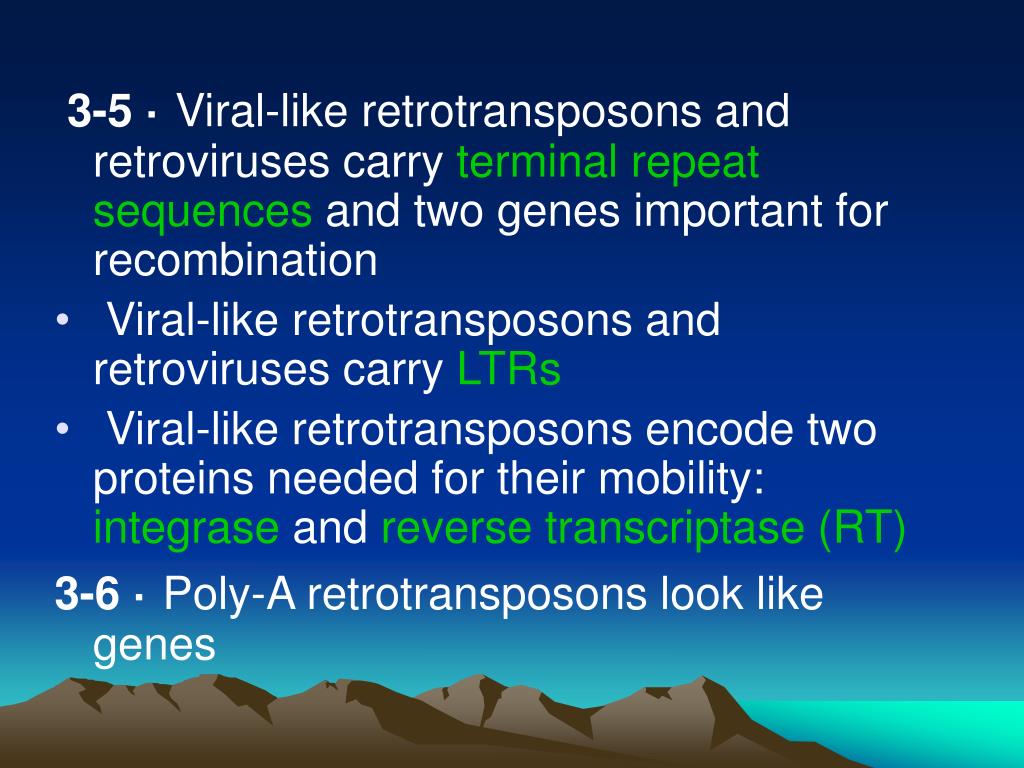

  29. 3-5·Viral-like retrotransposons and retroviruses carry terminal repeat sequences and two genes important for recombination • Viral-like retrotransposons and retroviruses carry LTRs • Viral-like retrotransposons encode two proteins needed for their mobility: integraseandreverse transcriptase (RT) 3-6·Poly-A retrotransposons look like genes

  30. 3-7 DNA transposition by a cut-and-paste mechanism • The movement of a DNA transposon by a non-replicative mechanism called cut-and-paste transposition 1.First , transposase binds to the terminal inverted repeats at the end of the transopon and brings the two ends of the transopon DNA together to generate a stable protein-DNA complex called the synaptic complex or transpososome

  31. 2.Next, the transopon DNA is excised from its original location in the genome 3.Then, the 3’-OH ends of the transopon DNA attack the DNA phosphodiester bonds at the site of the new insertion, this DNA segment is called the target DNA 4.At last, the transopon DNA is covalently joined to the DNA at the target site by DNA strand tranfer. This reaction introduced a nick into the target DNA

  32. The cut-and-paste mechanism of transposition

  33. The intermediate in cut-and-paste transposition is finished by gap repair 1.Two introduced nick are filled by a DNA repair polymerase(encoded by the host cell) and a DNA ligase 2.Filling in the gap gives rise to the target site duplications that flank transposons

  34. There are multiple mechanisms for cleaving the nontransferred strand during DNA transposition 1.An enzyme other than tranposase can be used to cleave the nontransfered strand 2.The ranposase itself cleave the nontransfered strand by using an unusual DNA transesterification mechanism 3.DNA cleavage via a transesterification reaction can also occur between two ends of the transposon

  35. 3-8 DNA transposition by a replicative mechanism • First, the transposase protein is assembled on the two ends of the transposon DNA to generate a transpososome • Then, DNA is cleaved at the ends of the transposon DNA

  36. Then, the 3’OH ends of the trsnsposon DNA are joined to the target sites by the DNA strand transfer reaction, which generate a doubly branched DNA molecule • At last, The two DNA branches within this intermediate have the structure of a replication fork, and the DNA synthesis is proceeded • This replication reaction generates two copies of the transposon DNA

  37. 3-9 Viral-like retrotransposons and retroviruses move using an RNA intermediate • Recombination for retroelements involves an RNA intermediate • A cycle of transposition starts with transcription of the retrotransposon (or retroviral) DNA sequence into RNA by cellular RNA polymerase. Transcription initiates at a promoter sequence within one of the LTRs. • The RNA is then reverse transcribed to generate the cDNA

  38. 3. The cDNA is recognized by Integrase and recombinate with a new target DNA site 4. Integrase assembles on the ends of this cDNA and cleaves a few nucleotides off the 3’ ends of each strand 5. Integrase catalyzes the insertion of cleaved 3’ ends into a DNA target site in the host cell genome using the DNA strand transfer reaction. 6. Gap repair reaction generates target-site duplications.

  39. Mechanism of retroviral integration and transposition of viral-like retrotransposons

  40. 3-10 DNA transposases and retroviral integrases are members of a protein superfamily • Many different tranposases and integrases carry a catalytic domain that has a common three-dimensional shape • This domain contains two D and a E • The tranposase/integrase proteins use this same site to catalyze both the DNA cleavage and the DNA strand transfer • Tranposases and integrases are only active when assembled into a synaptic complex, also called a transpososome, on DNA

  41. 3-10 Poly-A Retrotransposition move by a “reverse splicing” mechanism • The Poly-A Retrotransposons use an RNA intermediate but use a mechanism different than that used by the viral-like elements. This mechanism is called target site primed reverse transcription 1. First, the DNA of an integrated element is transcripted by a cellular RNA polymerase 2. Then, newly synthesized RNA is exported to cytoplasm to produce ORF1 and ORF2 proteins

  42. 3. The protein-RNA complex then reenters the nuclease and associates with the cellular DNA 4.The endonuclease initiates the intergration reaction by introducing a nick in the chromosomal DNA 5. The 3’OH DNA end generated by the nicking action then serves as the primer for reverse transcription of the element RNA

  43. Transposition of a poly-A retrotransposon by target site-primed reverse transcription

  44. Examples of transposable enements and their regulation • Two types of regulation appear as recurring themes: • Trnasposons control the number of their copies present in a given cell • Trnasposons control target site choice

  45. 4-1 IS4-family transposons are compact elements with multiple mechanisms for copy number control • Tn10 transposes via the cut-and paste mechanism, using the DNA hairpin strategy to cleave the nontransfered strands • Tn10 limits its copy number in any given cell by strategies that restrict its transposition frequency. One mechanism is the use of an antisense RNA to control the expression of the transposase gene • By this mechanism, cells that carry more copes of Tn10 will transcribe more of the antisense RNA, which in turn will limit expression of the transposase gene. The transposition frequencywill,therefore, be very low in such a strain

  46. Antisense regulation of Tn10 expression

  47. 4-2 Transposition is coupled to cellular DNA replication • Bacteria methylate their DNA at GATC sites and GATC sites are hemimethylated for a few minutes • It is during the brief period—when the Tn10 DNA is hemimethylated—that transposition is more likely to occur • Both RNA polymerase and transposase bind more tightly to the hemimethylated sequences than to their fully methylated versions. As a result, when the DNA is hemimethylated, the transposase gene is most efficiently expressed, and the transposaseprotein binds most efficiently to the DNA
