  1. OP Tools - Applications (1) • 2 new timing users, new dynamic destination • Power converters – settings (for base optics): • Parameters, optics, beam process in LSA • Cycles in LSA • Power converter critical settings FEI → into FEI application • Logging • Stephane, Delphine, Jorg, Georges-Henry • Interlocks like between CNGS/TI 8 • Update of West Extraction BIS monitoring application • Logging • Jorg, Georges-Henry (check with Bruno) • BLMs • Update of TL BLM application • Critical settings of BLMs • Logging • Fabio, Verena

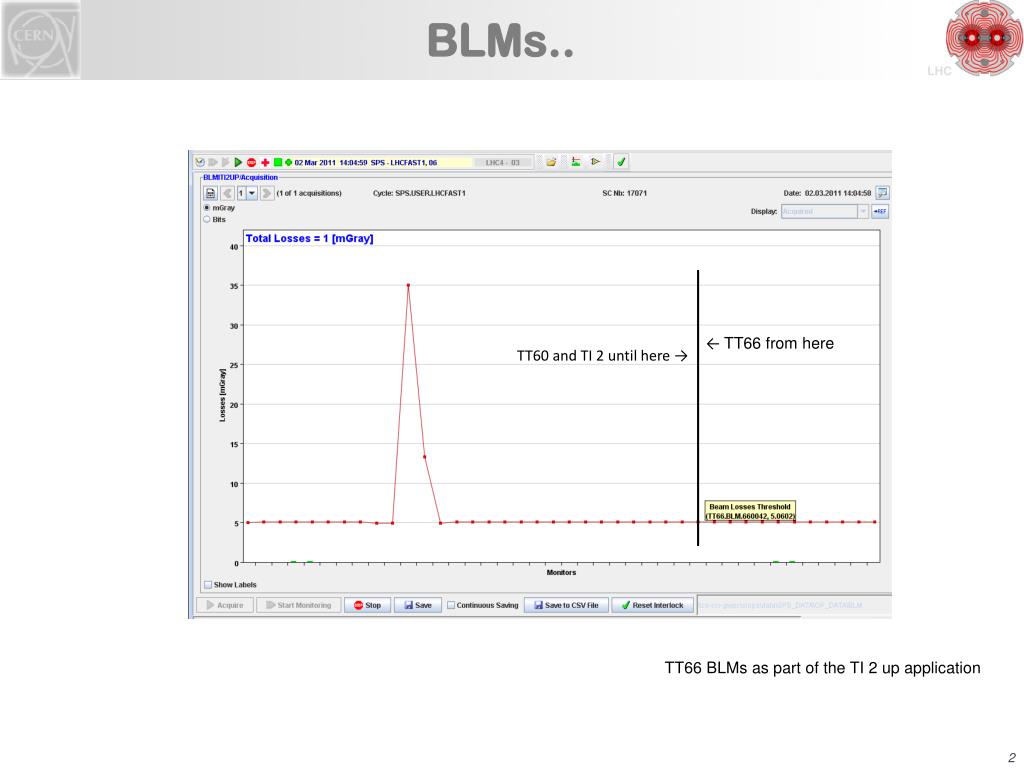

  2. BLMs.. ← TT66 from here TT60 and TI 2 until here → TT66 BLMs as part of the TI 2 up application

  3. OP Tools - Applications (2) • BPMs • YASP...done • Logging...done • Jorg, Georges-Henry • BCTs • BCT application update...done • Special fixed display/application: count number of shots (needs to be resetable), intensity per shot, integrated intensity • Logging...done • Markus, Georges-Henry • Automatic emittance measurement in the SPS • Investigate continuous acquisition of wirescanner and writing result to SDDS • Guy • Alarms • Ventilation and temperature of dump • ? • BTVs • BTV application, Logging • Screen matching (for different optics, work with files) • Fabio, Georges-Henry

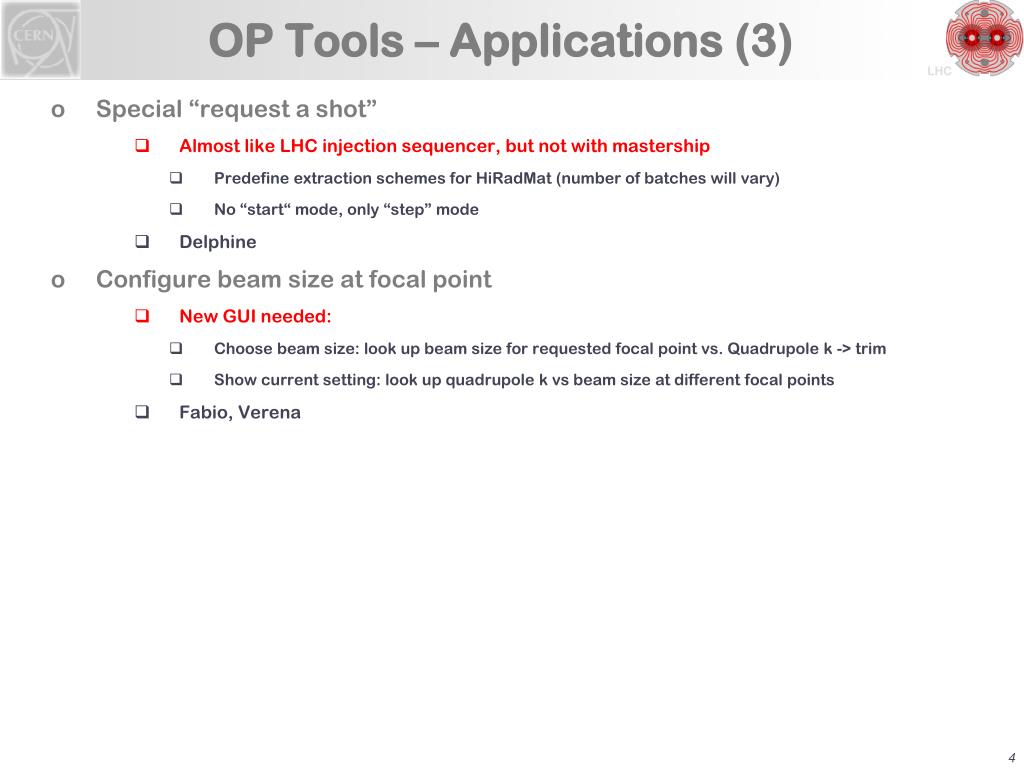

  4. OP Tools – Applications (3) • Special “request a shot” • Almost like LHC injection sequencer, but not with mastership • Predefine extraction schemes for HiRadMat (number of batches will vary) • No “start“ mode, only “step” mode • Delphine • Configure beam size at focal point • New GUI needed: • Choose beam size: look up beam size for requested focal point vs. Quadrupole k -> trim • Show current setting: look up quadrupole k vs beam size at different focal points • Fabio, Verena

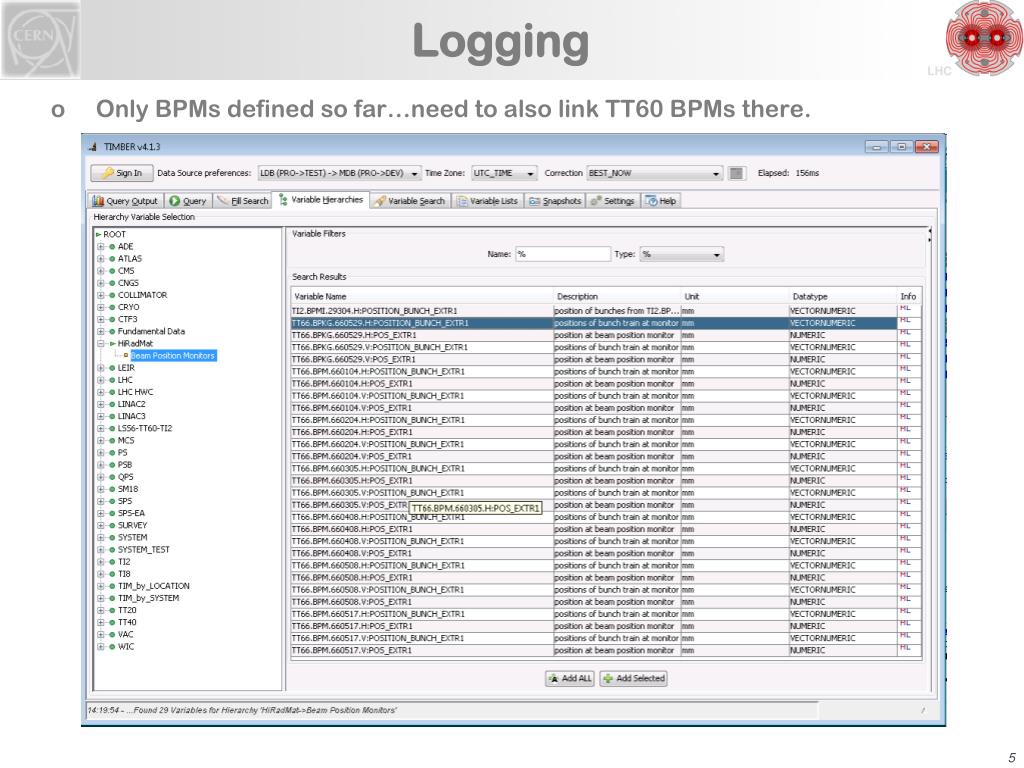

  5. Logging Only BPMs defined so far…need to also link TT60 BPMs there.
