Presentation Transcript

  1. Using Parameterized URL’s to Extend Cognos Capabilities Stephanie Jesperson Denver Water Department

  2. Why Use Parameterized URL’s? • Leverage your organization’s current investment in Cognos. • Minimize purchase and licensing costs • Develop & deliver single versions of the truth • Hiring additional developers for Source Apps may not be needed • Enhance the user experience. Provide a single point of entry to either a specific report, its output or a focused list of applicable reports.

  3. Source Application - eWOR

  4. Embedded URL: • http://UATCOG02/cognos8/cgi-bin/cognos.cgi?b_action=xts.run&m=portal/launch.xts&ui.tool=CognosViewer&ui.action=run&ui.object=/content/package[@name='eVoucher Data']/report[@name='eWOR - Work Order Request Snapshot']&ui.action=run&p_WONum=W98107&p_Pid=1234&run.prompt=false

  5. Components of the URL: • Base URL: • http://UATCOG02/cognos8/cgi-bin/cognos.cgi?b_action=xts.run&m=portal/launch.xts • Name of the Cognos Tool to be Opened: • &ui.tool=CognosViewer&ui.action=run& • Search path to the Object (See Report Properties): • ui.object=/content/package[@name='eVoucher Data']/report[@name='eWOR - Work Order Request Snapshot'] • Action to take with this Object: • &ui.action=run • Define Parameters and Prompt Answers: • &p_WONum=W98107&p_Pid=1234 • Define if the Prompt Page Should Appear: • &run.prompt=false

  6. Additional Parameters • Launch Report in a New Window • launch.openJSStudioInFrame • Remove any combination of Cognos Default Headers, Menus and Toolbars • &ui=h1h2h3h4 • Define what page should be displayed when the user closes the report or if the back button is used. • ui.backURL=http://<server-name>/cognos8/

  7. Removing Headers & Toolbars Original URL URL Includes H1,H2, H3 & H4 parameters

  8. Resources • IBM Support Links: • Tech Doc: http://download.boulder.ibm.com/ibmdl/pub/software/dw/dm/cognos/reporting/scripting_techniques/using_urls_in_cognos_8.pdf • Multimedia Video: http://www-01.ibm.com/support/docview.wss?uid=swg21341180

  9. Linking to an External Application Standard Drill Through URL

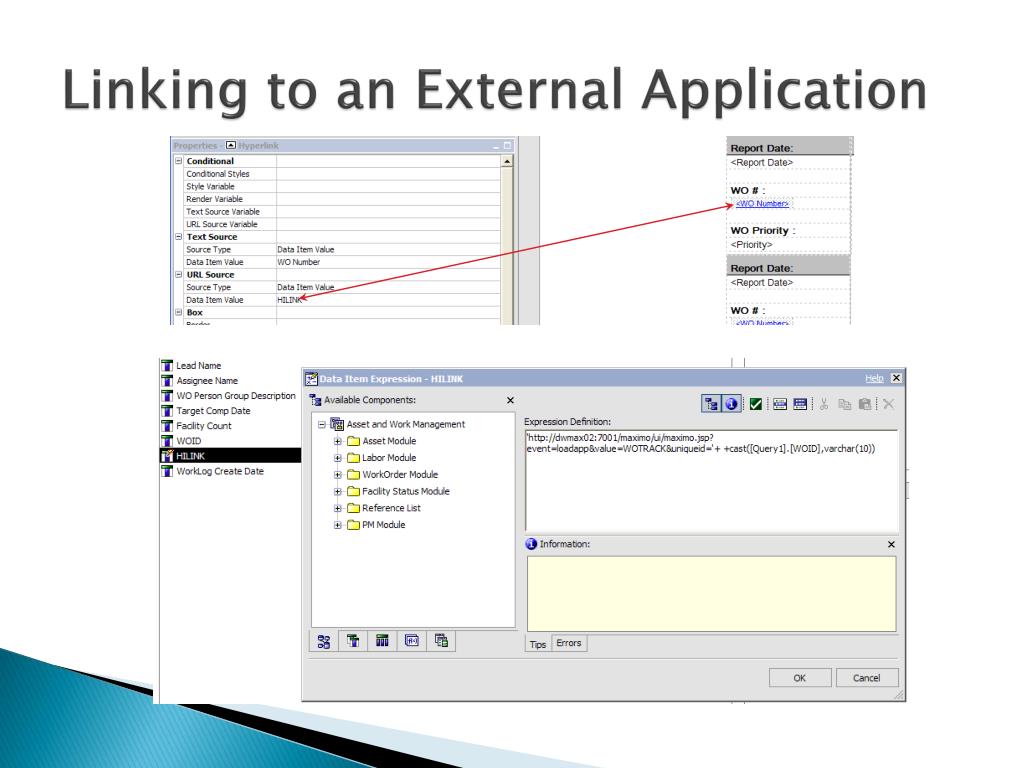

  10. Linking to an External Application
