  1. C.R. ENEA-Portici. 11/12/2007 Tools and Utilities for parallel and serial codes in ENEA-GRID environment CRESCO Project: Salvatore Raia SubProject I.2

  2. OUTLINE: • GRID, cluster and parallel Computing (Intro) • ENEA-GRID. Architecture and functionality • My Activity for CRESCO project and results on ENEA-GRID • Conclusion and objectives C.R. ENEA-Portici. 11/12/2007

  3. Collection of resources (HW, SW) connected via public or private network - Each CPU runs a separated istance of operating system -Administration: local What is a cluster ? Supercomputer= computer with many processors connected via high-speed computer bus and that share the memory (SMP) . It runs one Operating system cluster 1 supercomputer C.R. ENEA-Portici. 11/12/2007

  4. cluster 1 cluster 2 cluster 3 cluster N GRID 1 Collection of interconnected clusters geographically distributed - administration: sometimes clusters belong to different department or company How to get a Grid ? GRID = nodes made of clusters and each node may have Shared or Distributed memory architectures (Hybrid ) that share processes . ENEA-GRID has the same structure With 6 clusters: Bologna, Casaccia, Frascati, Portici, Trisaia, Brindisi C.R. ENEA-Portici. 11/12/2007

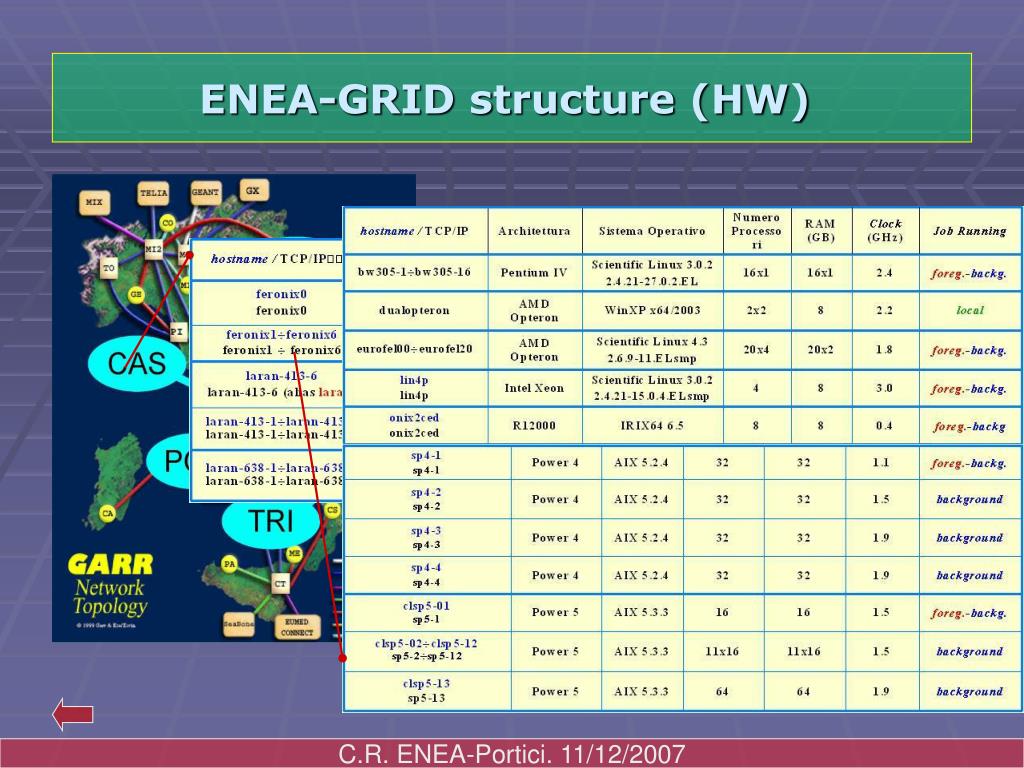

  5. ENEA-GRID structure (HW) C.R. ENEA-Portici. 11/12/2007

  6. Pro: Shared resources Low costs (clock ?) Open systems Scalability Con: Several platforms Load balancing User Access Frequency scaling (domain ?) Power consumption P=C×V×V×F How is it managed on ENEA-GRID ? GRID features C.R. ENEA-Portici. 11/12/2007

  7. ENEA-GRID structure (SW) Resources management ICA client File System Operating Systems C.R. ENEA-Portici. 11/12/2007

  8. Switch host Run Appl. Jobs status User Interface USER ACCESS • ICA client • ssh o telnet • web C.R. ENEA-Portici. 11/12/2007

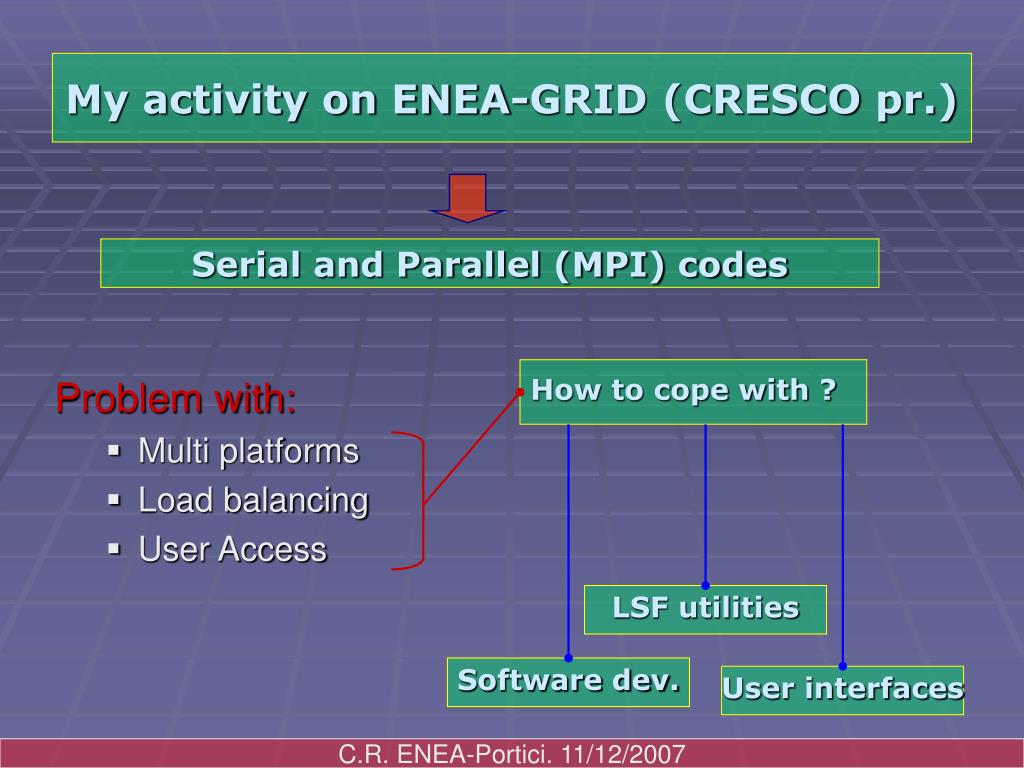

  9. Problem with: Multi platforms Load balancing User Access How to cope with ? LSF utilities Software dev. User interfaces My activity on ENEA-GRID (CRESCO pr.) Serial and Parallel (MPI) codes C.R. ENEA-Portici. 11/12/2007

  10. Serial codes Compilers GNU PGI IBM Parallel codes (MPI) MPI Implementations MPICH LAM-MPI POE Problems with execution too Tools for Serial and Parallel (MPI) codes Multi Platform …So we need a lots of binaries for each platform. Launcher: after compiling our source code in each platform, we have “binary1”…”binaryN” for host1,…hostN. It is a shell script (placed on AFS) that selects the righteous “binary” for the selected host …tools C.R. ENEA-Portici. 11/12/2007

  11. Some MPI problems C.R. ENEA-Portici. 11/12/2007

  12. Results: tools serial and parallel (MPI) codes • SERIAL • Program for Fortran 77/90,C and C++ serial compiling (look Java Interface) • Launcher for “NS2” application (use external libraries) • PARALLEL (MPI) • Launcher for running a test program (check command) • Launcher for HPL test on AIX and Linux user1 installation user2 installation C.R. ENEA-Portici. 11/12/2007

  13. Serial codes Resources definition “NS2” application Serial LSF utilities Job array (Multicase) “lsgrun” Parallel codes (MPI) Parallel LSF utilities “mpijob” (MPICH) “poejob” (POE) No correlation Correlation Analizing LSF utilities Serial and Parallel codes LSF Resources C.R. ENEA-Portici. 11/12/2007

  14. Serial codes Parallel codes (MPI) Results: Integration with other application (My)Java Interface C.R. ENEA-Portici. 11/12/2007

  15. Conclusion and objectives • Launcher + LSF utilities + User interface allow to create a omogeneous environment • Objectives: • Optimization of programs to launch serial and parallel codes, including checking resources to run the application (e.g. library, other programs, etc) • Exploitation of LSF utilities in order to make easy running MPI programs (mpijob, poejob, etc) and load balancing • Improve error handling for user interfaces … … C.R. ENEA-Portici. 11/12/2007

  16. Andrew File System C.R. ENEA-Portici. 11/12/2007

  17. LSF-Load Sharing Facilities C.R. ENEA-Portici. 11/12/2007
