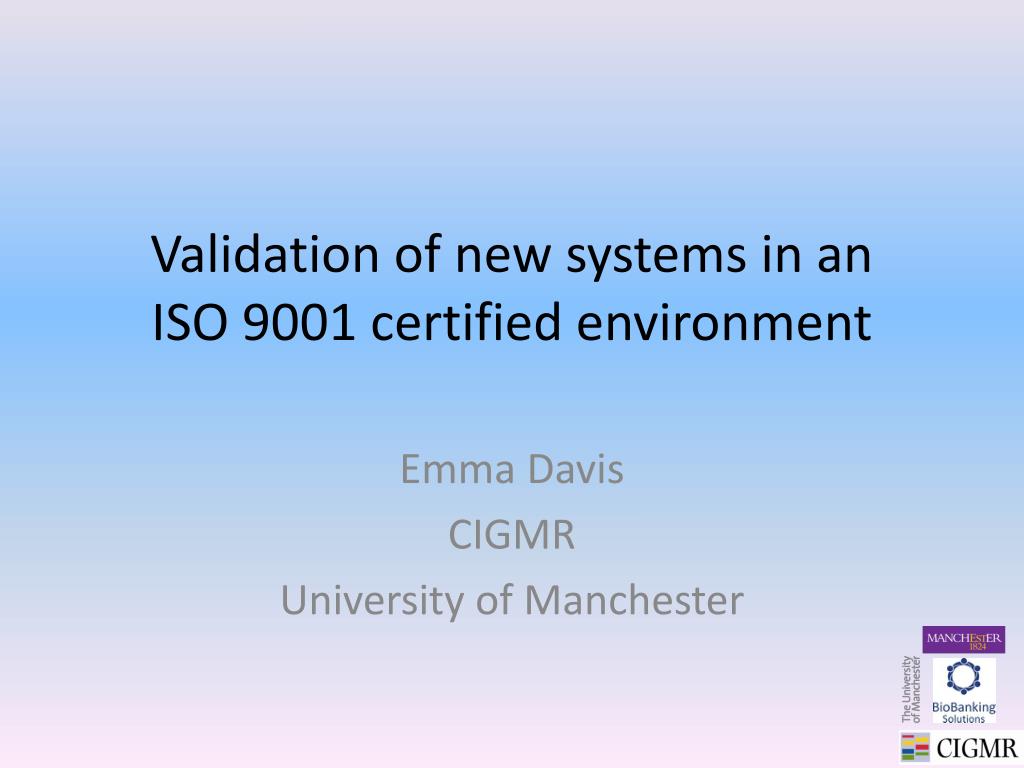

  1. Validation of new systems in an ISO 9001 certified environment Emma Davis CIGMR University of Manchester

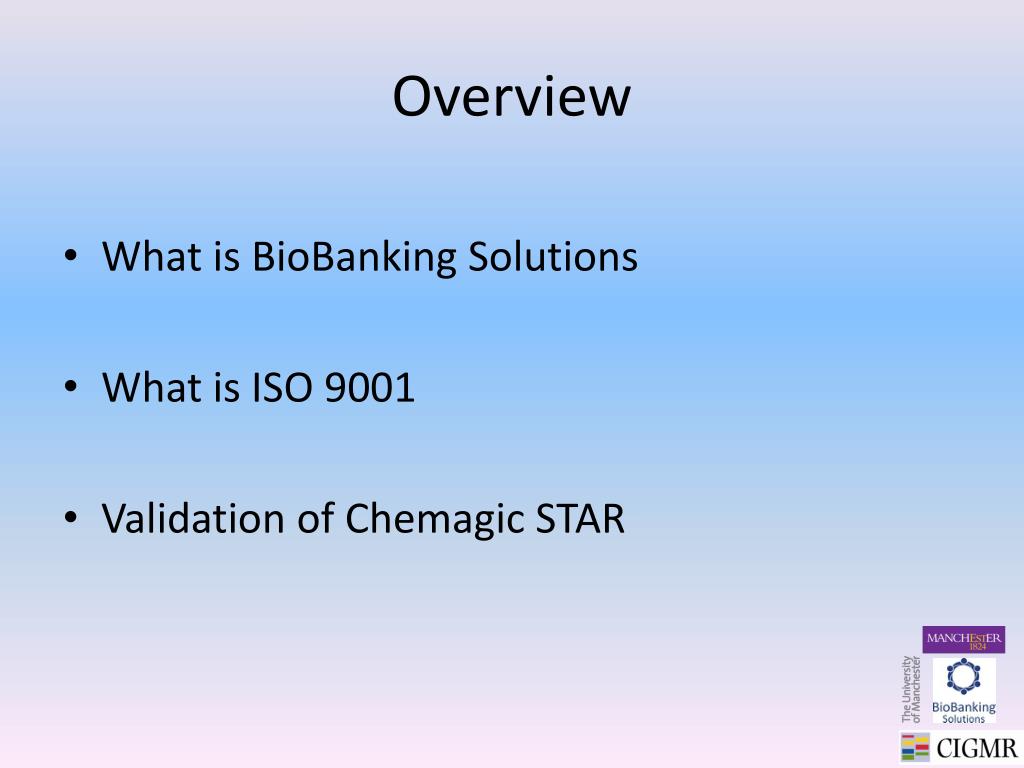

  2. Overview • What is BioBanking Solutions • What is ISO 9001 • Validation of Chemagic STAR

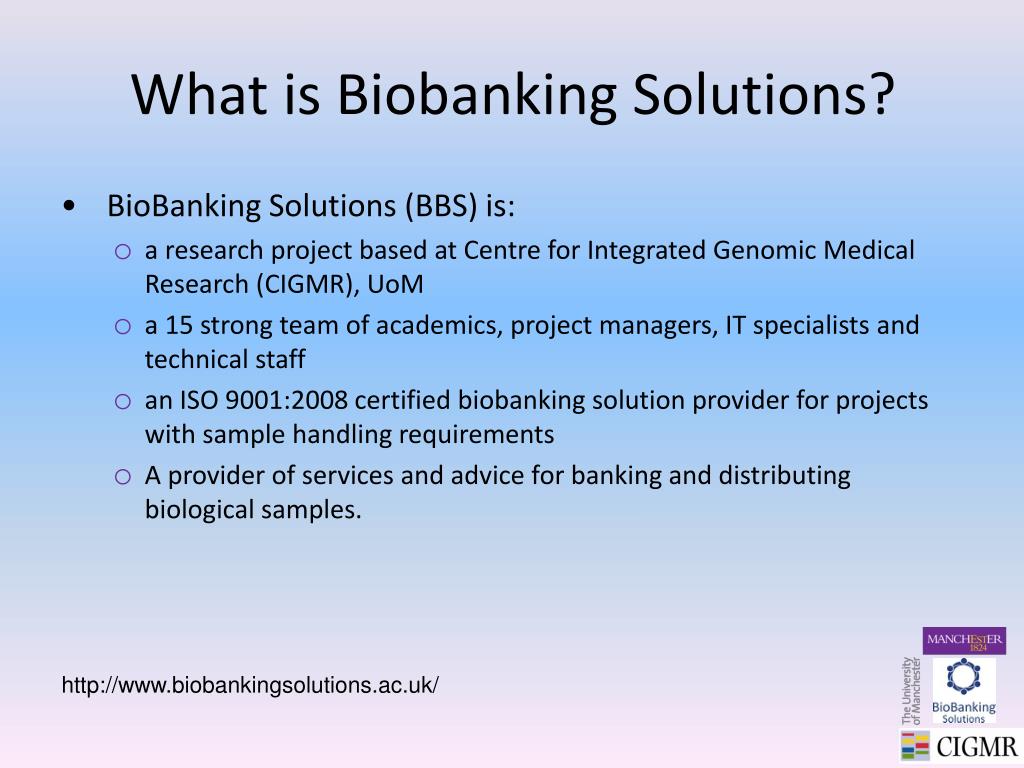

  3. What is Biobanking Solutions? • BioBanking Solutions (BBS) is: • a research project based at Centre for Integrated Genomic Medical Research (CIGMR), UoM • a 15 strong team of academics, project managers, IT specialists and technical staff • an ISO 9001:2008 certified biobanking solution provider for projects with sample handling requirements • A provider of services and advice for banking and distributing biological samples. http://www.biobankingsolutions.ac.uk/

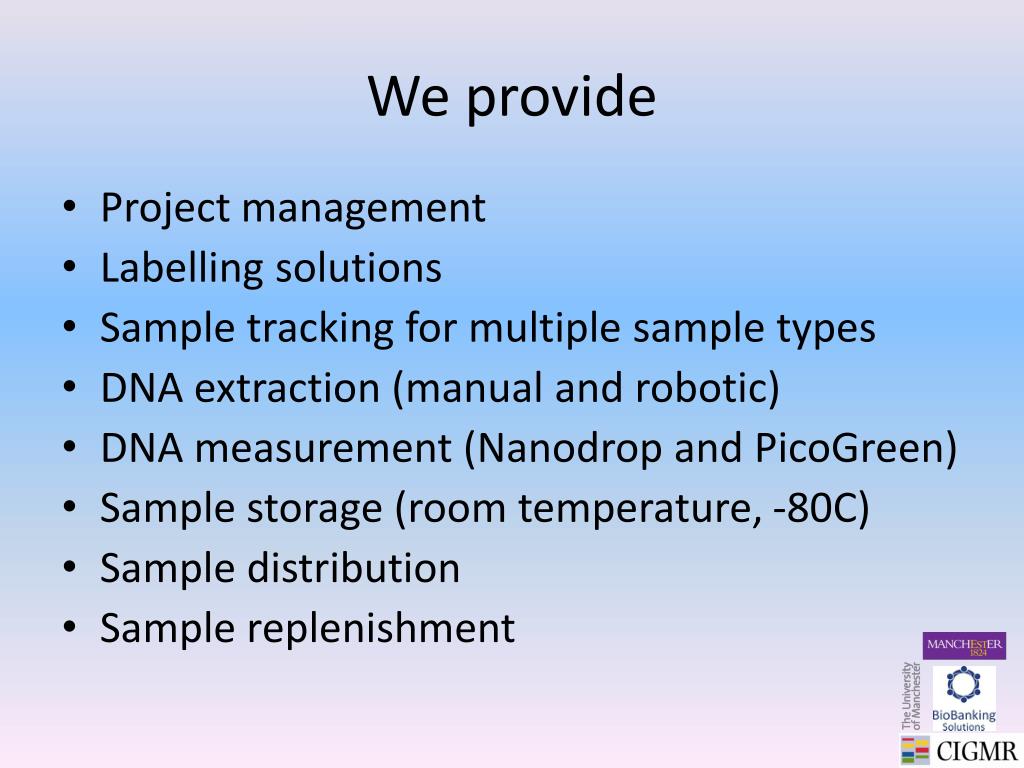

  4. We provide • Project management • Labelling solutions • Sample tracking for multiple sample types • DNA extraction (manual and robotic) • DNA measurement (Nanodrop and PicoGreen) • Sample storage (room temperature, -80C) • Sample distribution • Sample replenishment

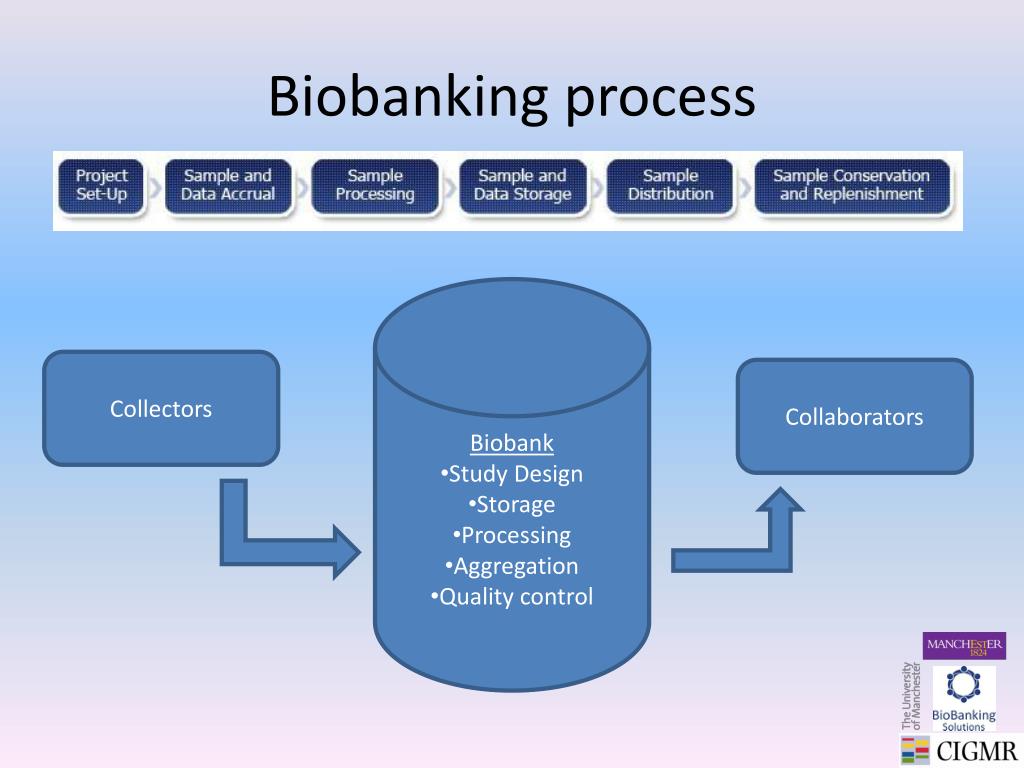

  5. Biobanking process • Biobank • Study Design • Storage • Processing • Aggregation • Quality control Collectors Collaborators

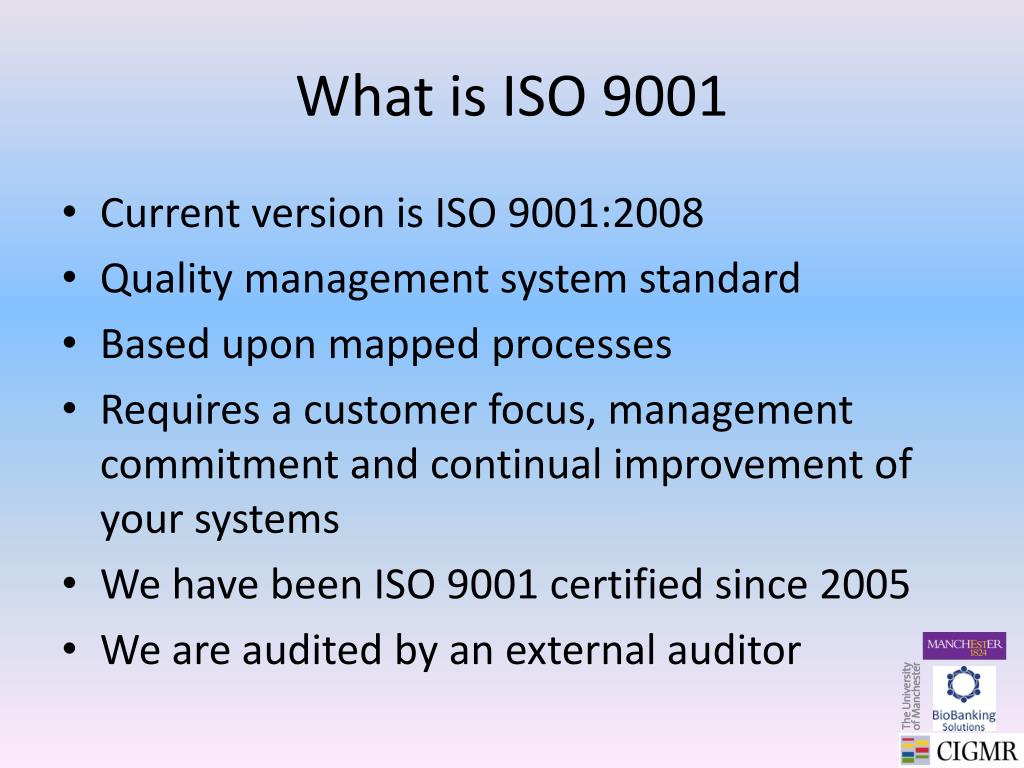

  6. What is ISO 9001 • Current version is ISO 9001:2008 • Quality management system standard • Based upon mapped processes • Requires a customer focus, management commitment and continual improvement of your systems • We have been ISO 9001 certified since 2005 • We are audited by an external auditor

  7. Mapped process • In order to ensure that all of our services are run in a controlled and standardised way we have: • Mapped core and support processes • Validated core machinery • Trained to SOPs • Developed a Quality Management System (QMS) which is certified to ISO 9001:2008

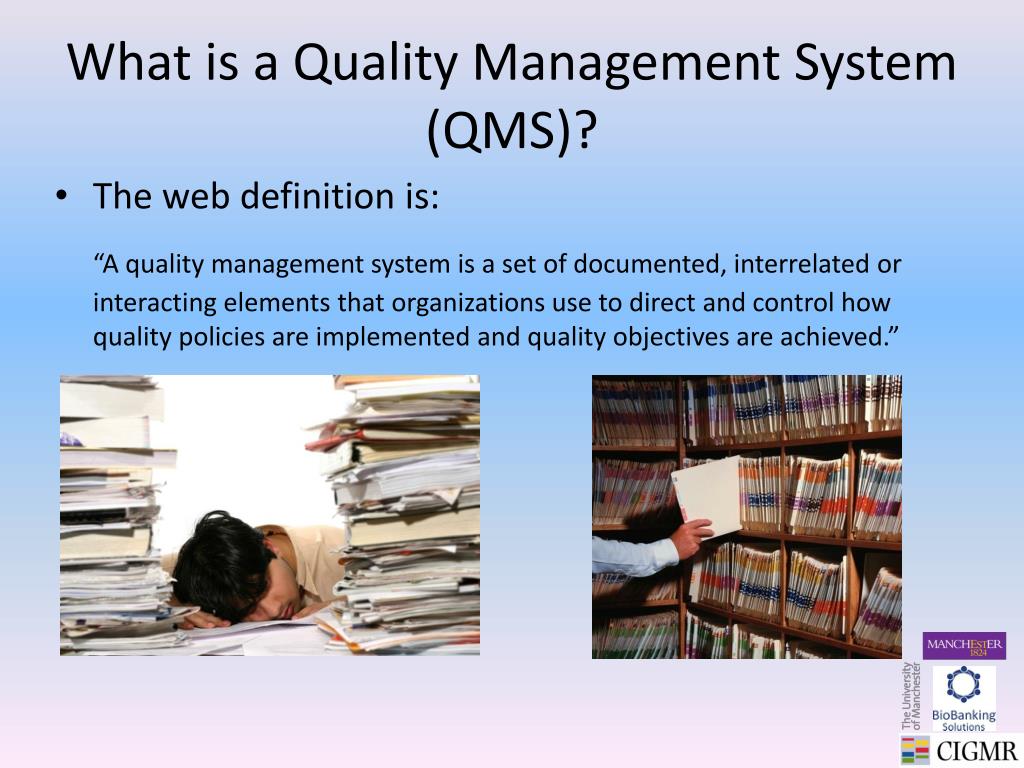

  8. What is a Quality Management System (QMS)? • The web definition is: “A quality management system is a set of documented, interrelated or interacting elements that organizations use to direct and control how quality policies are implemented and quality objectives are achieved.”

  9. What does this mean? • Meeting the quality expectations of upstream and downstream users through monitoring of your procedures and continual improvement. OR • Doing all aspects of your work in the best way you can.

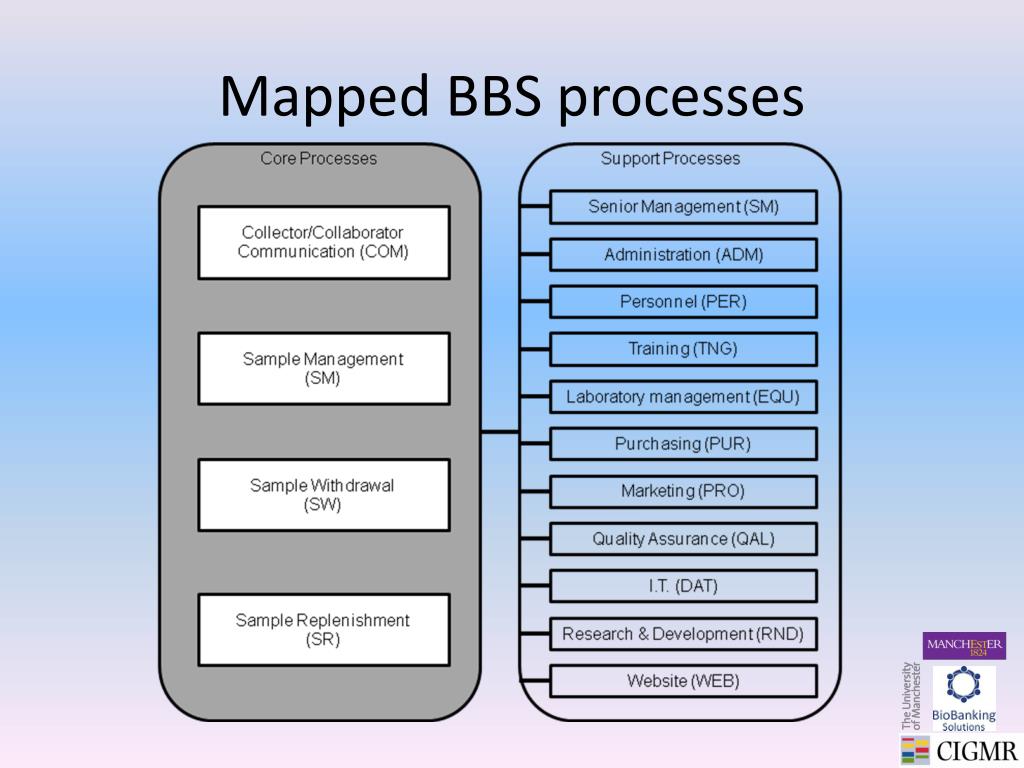

  10. Mapped BBS processes

  11. Example of a mapped process • Our processes detail basic steps • Supported by detailed flowcharts and SOPs • Controlled and reviewed by senior staff

  12. Introducing a new system into the Biobank • We implement a 2 stage approach when introducing a new system or procedure into the biobank: • Method development • Validation • These of both fall under the R&D process

  13. Method development in the R&D process • This section is performed by a senior member of laboratory staff : • Scoping the system • Initial tests of the system • Changes are made to the system to fulfil requirements • Drafting SOP • Develop validation test plan • Hand-over to validation staff

  14. Method Validation • Validation is a procedure that is used to check that a product, service or system meets requirements and fulfils its intended purpose. • Validation is required when working to ISO 9001 and is important when you are providing a service. (section 7.3 – design and development)

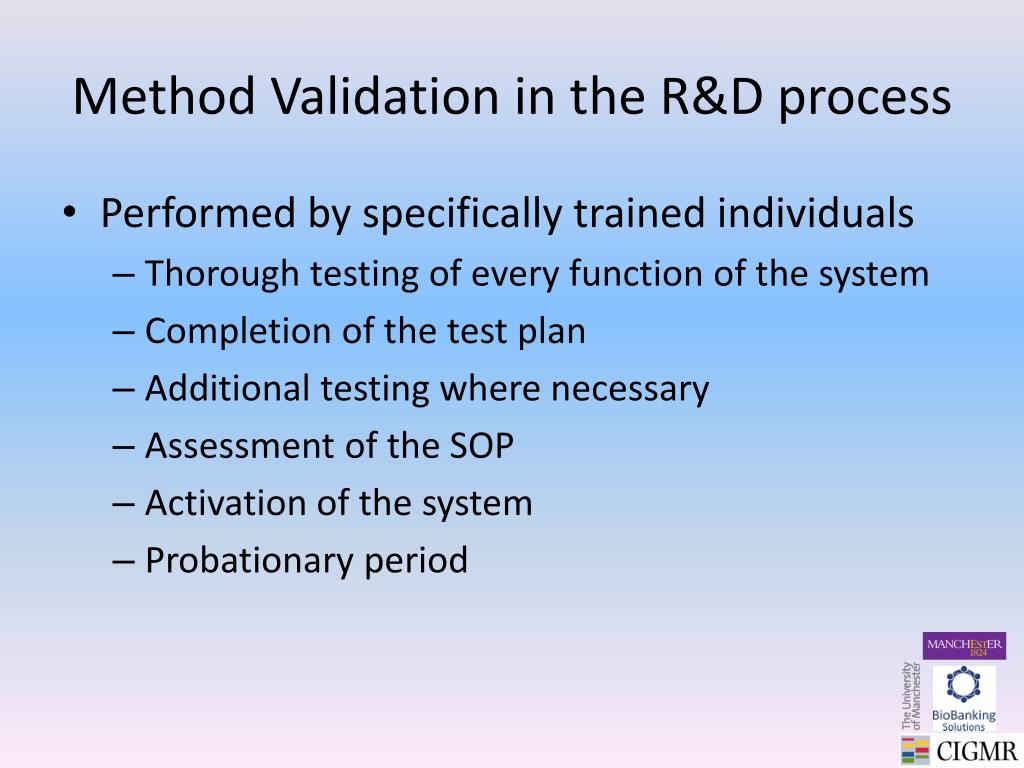

  15. Method Validation in the R&D process • Performed by specifically trained individuals • Thorough testing of every function of the system • Completion of the test plan • Additional testing where necessary • Assessment of the SOP • Activation of the system • Probationary period

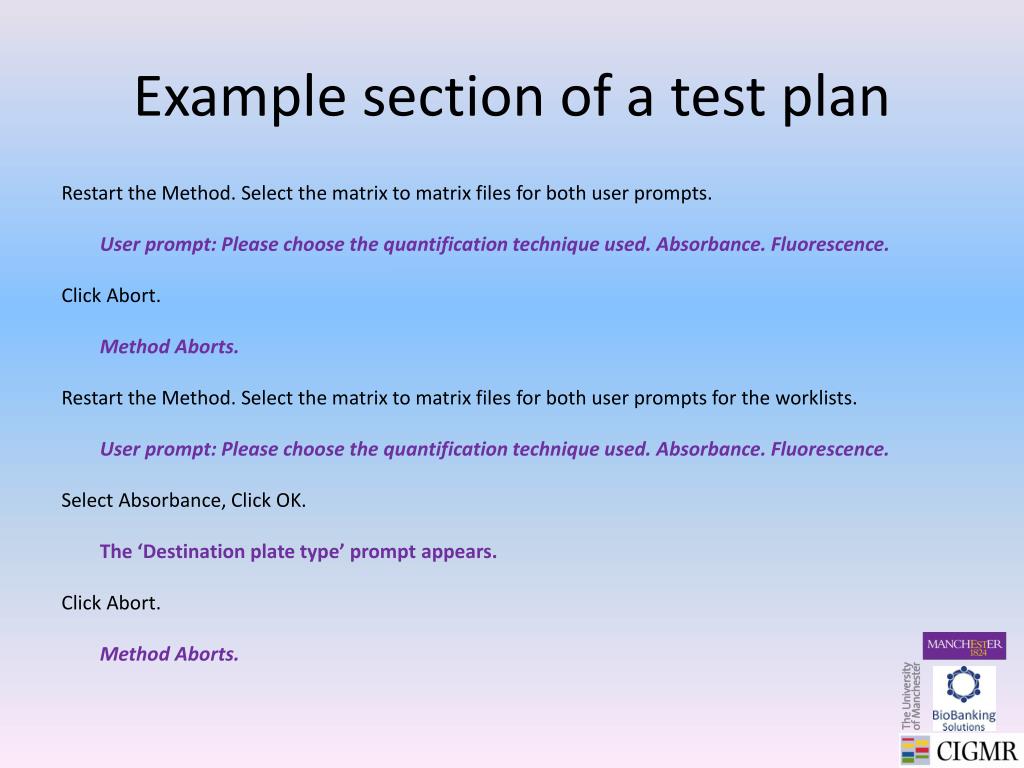

  16. Example section of a test plan Restart the Method. Select the matrix to matrix files for both user prompts. User prompt: Please choose the quantification technique used. Absorbance. Fluorescence. Click Abort. Method Aborts. Restart the Method. Select the matrix to matrix files for both user prompts for the worklists. User prompt: Please choose the quantification technique used. Absorbance. Fluorescence. Select Absorbance, Click OK. The ‘Destination plate type’ prompt appears. Click Abort. Method Aborts.

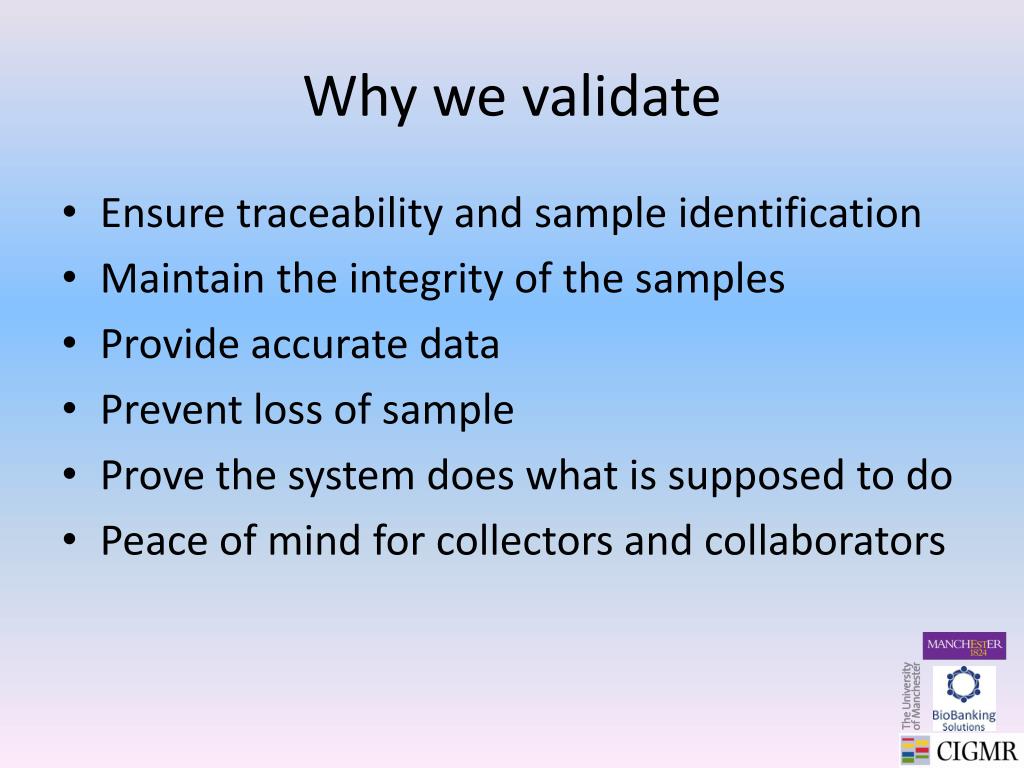

  17. Why we validate • Ensure traceability and sample identification • Maintain the integrity of the samples • Provide accurate data • Prevent loss of sample • Prove the system does what is supposed to do • Peace of mind for collectors and collaborators

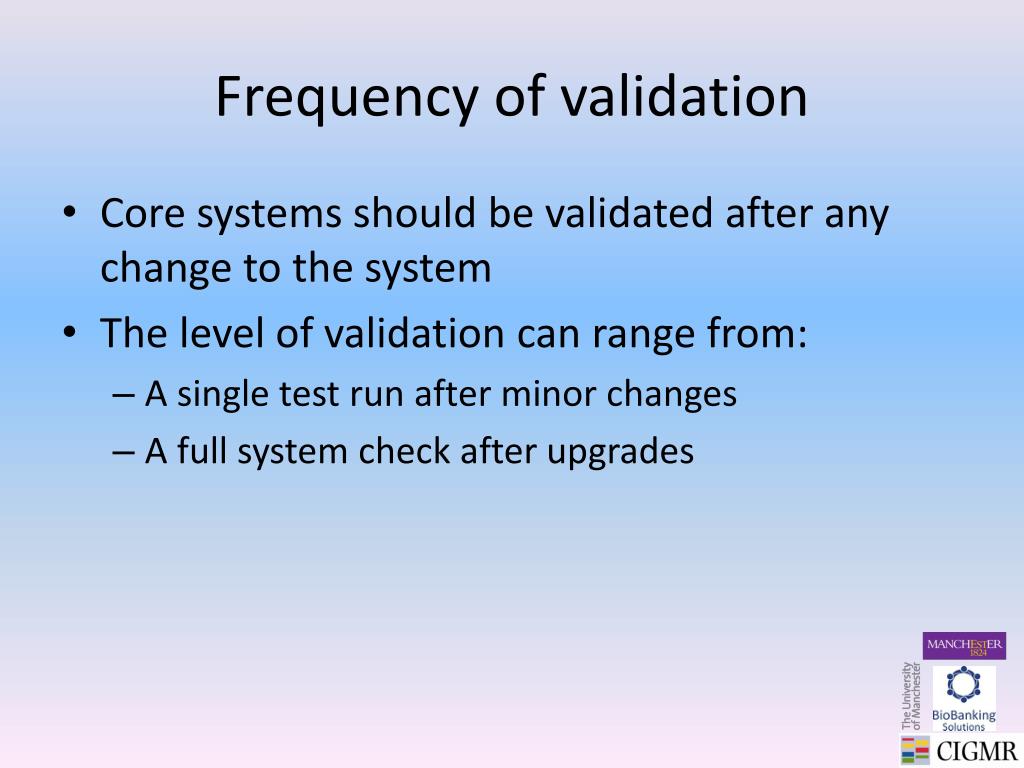

  18. Frequency of validation • Core systems should be validated after any change to the system • The level of validation can range from: • A single test run after minor changes • A full system check after upgrades

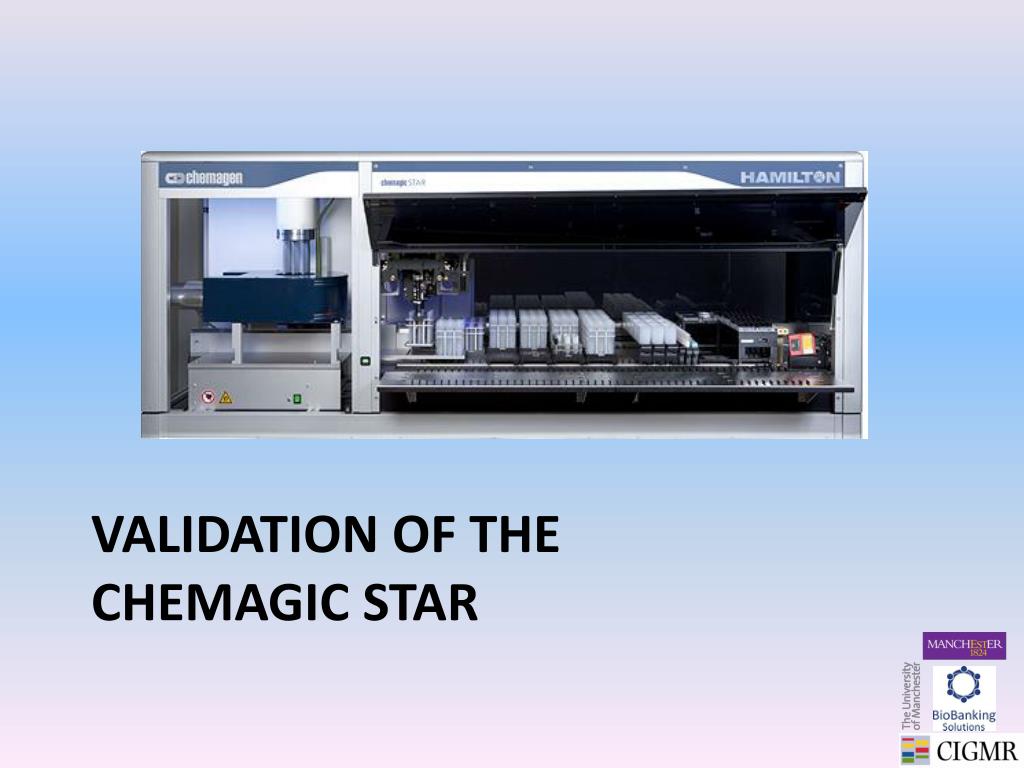

  19. Validation of the Chemagic STAR

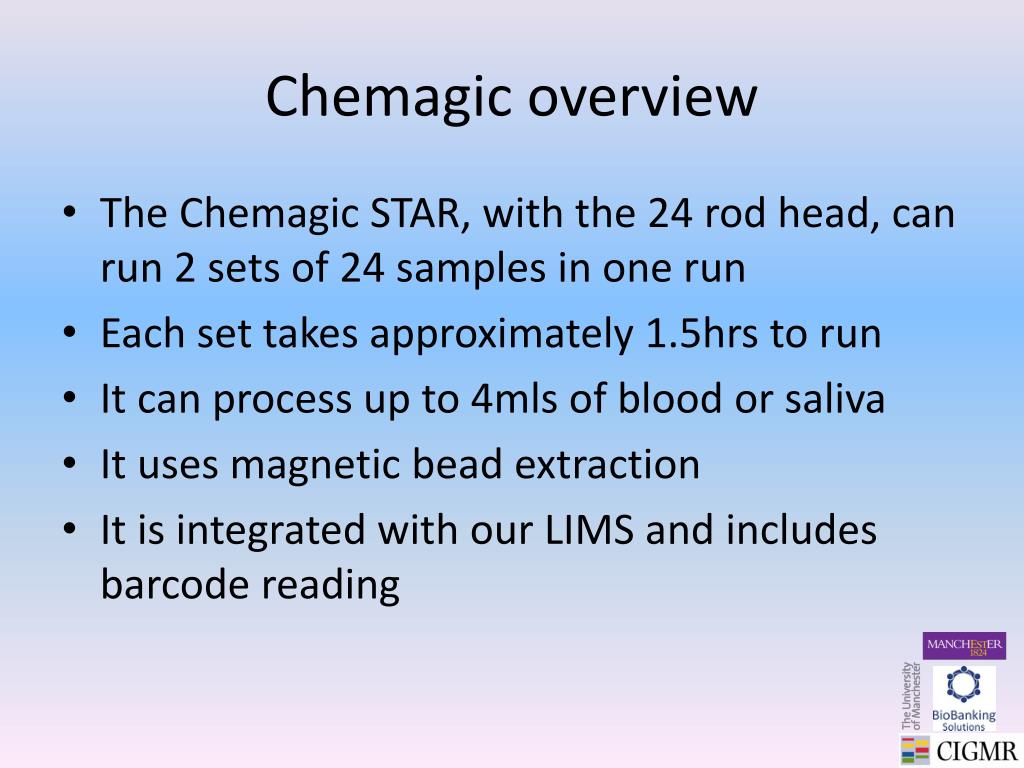

  20. Chemagic overview • The Chemagic STAR, with the 24 rod head, can run 2 sets of 24 samples in one run • Each set takes approximately 1.5hrs to run • It can process up to 4mls of blood or saliva • It uses magnetic bead extraction • It is integrated with our LIMS and includes barcode reading

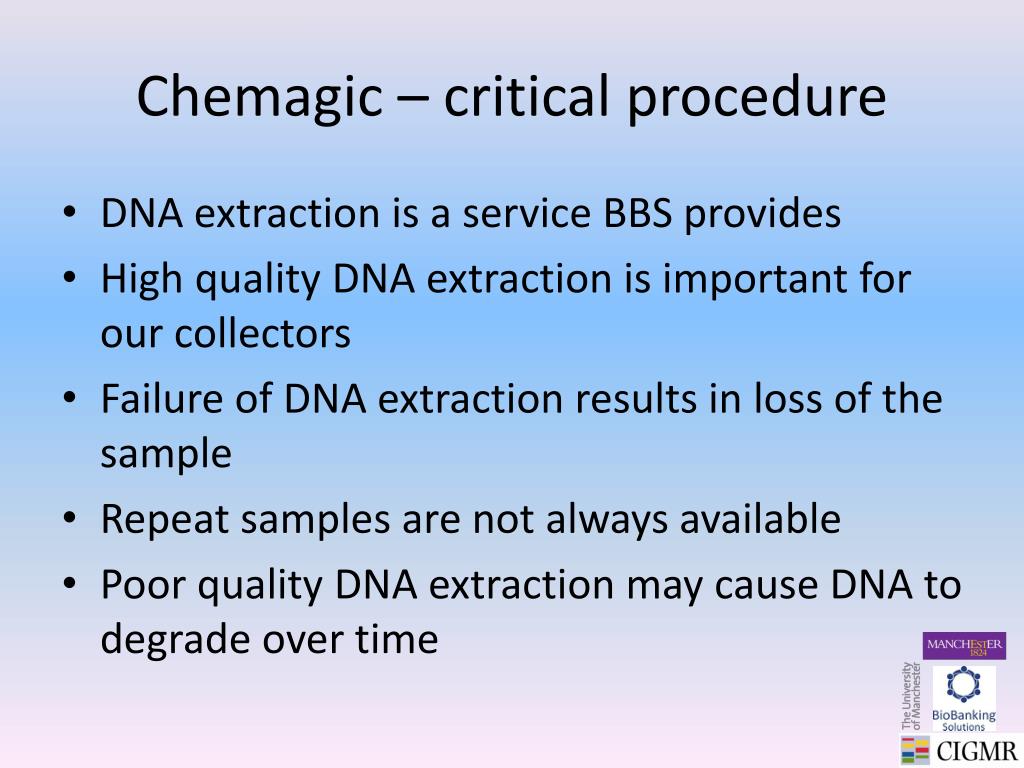

  21. Chemagic – critical procedure • DNA extraction is a service BBS provides • High quality DNA extraction is important for our collectors • Failure of DNA extraction results in loss of the sample • Repeat samples are not always available • Poor quality DNA extraction may cause DNA to degrade over time

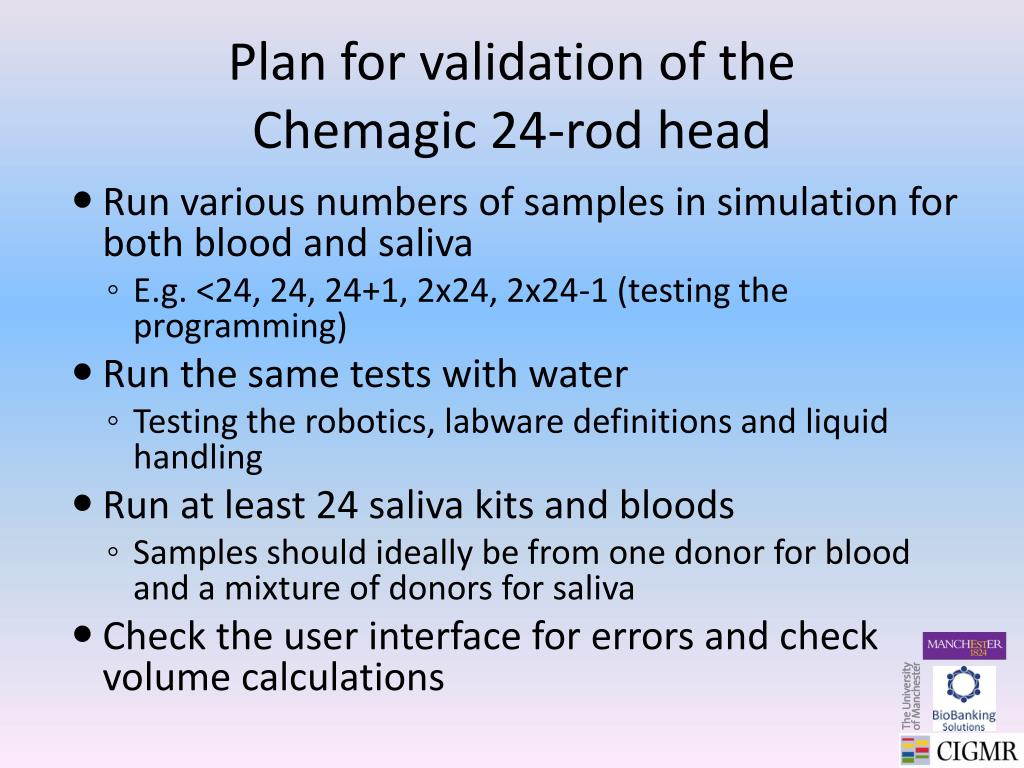

  22. Plan for validation of the Chemagic 24-rod head • Run various numbers of samples in simulation for both blood and saliva • E.g. <24, 24, 24+1, 2x24, 2x24-1 (testing the programming) • Run the same tests with water • Testing the robotics, labware definitions and liquid handling • Run at least 24 saliva kits and bloods • Samples should ideally be from one donor for blood and a mixture of donors for saliva • Check the user interface for errors and check volume calculations

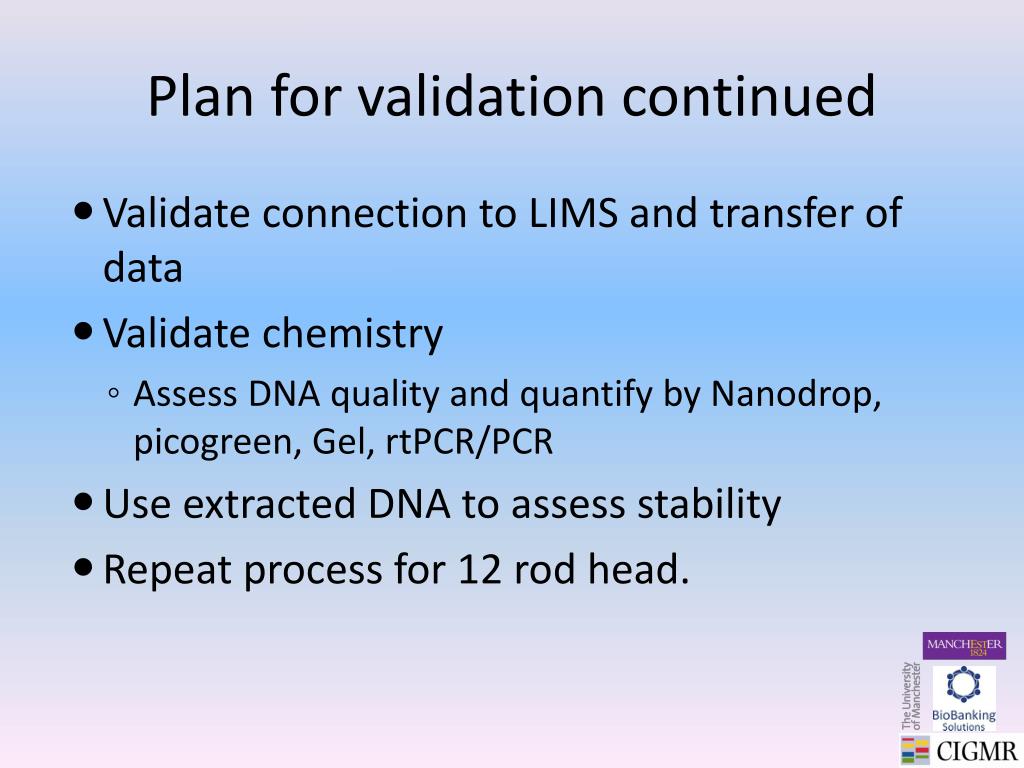

  23. Plan for validation continued • Validate connection to LIMS and transfer of data • Validate chemistry • Assess DNA quality and quantify by Nanodrop, picogreen, Gel, rtPCR/PCR • Use extracted DNA to assess stability • Repeat process for 12 rod head.

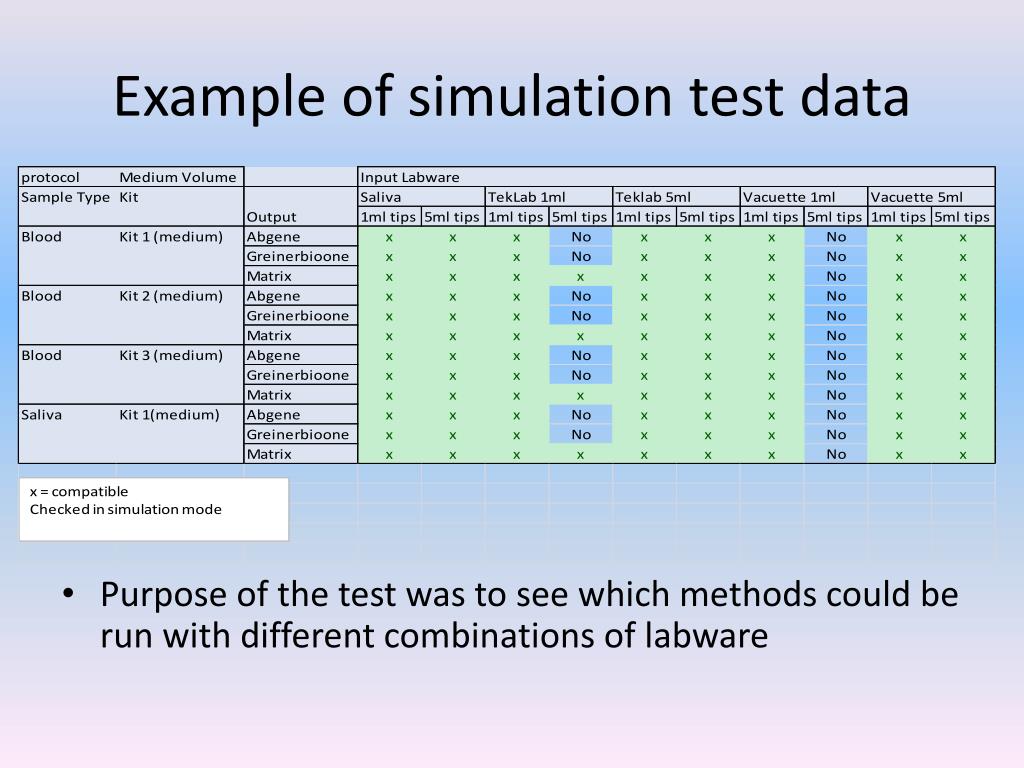

  24. Example of simulation test data • Purpose of the test was to see which methods could be run with different combinations of labware

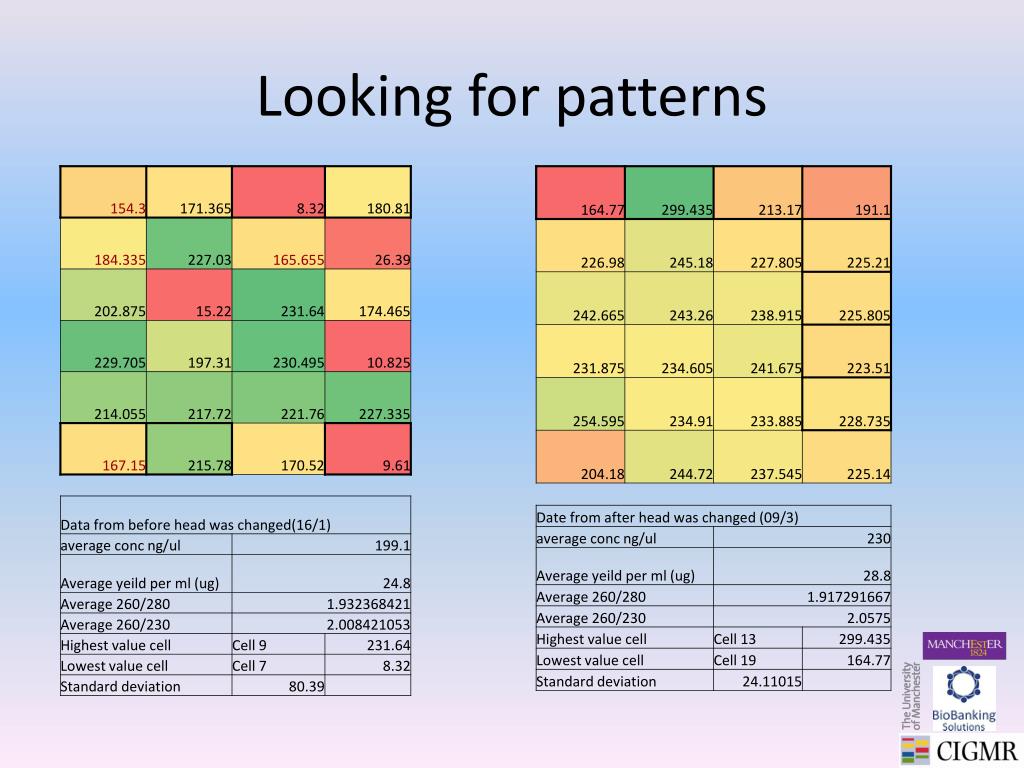

  25. Looking for patterns

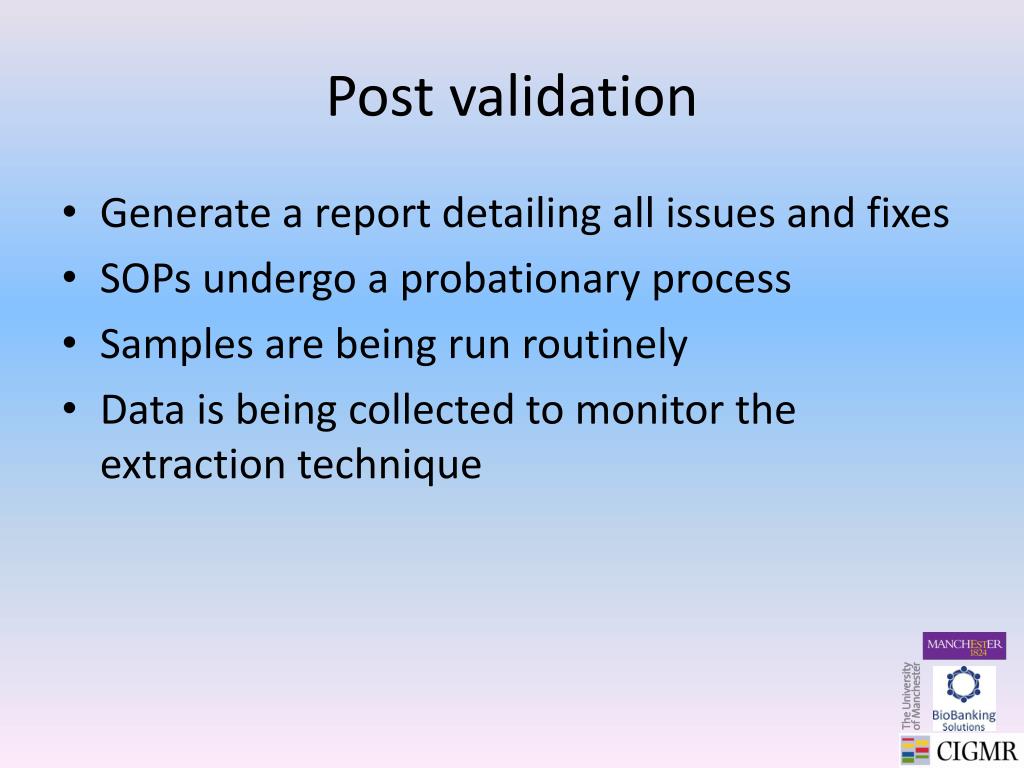

  26. Post validation • Generate a report detailing all issues and fixes • SOPs undergo a probationary process • Samples are being run routinely • Data is being collected to monitor the extraction technique

  27. Thanks • Bill Ollier • Martin Yuille • Kate Dixon • Andrew Platt • Debbie Payne • Biobanking team • All CIGMR Staff • Collectors & Collaborators • Hamilton and Chemagen Support
