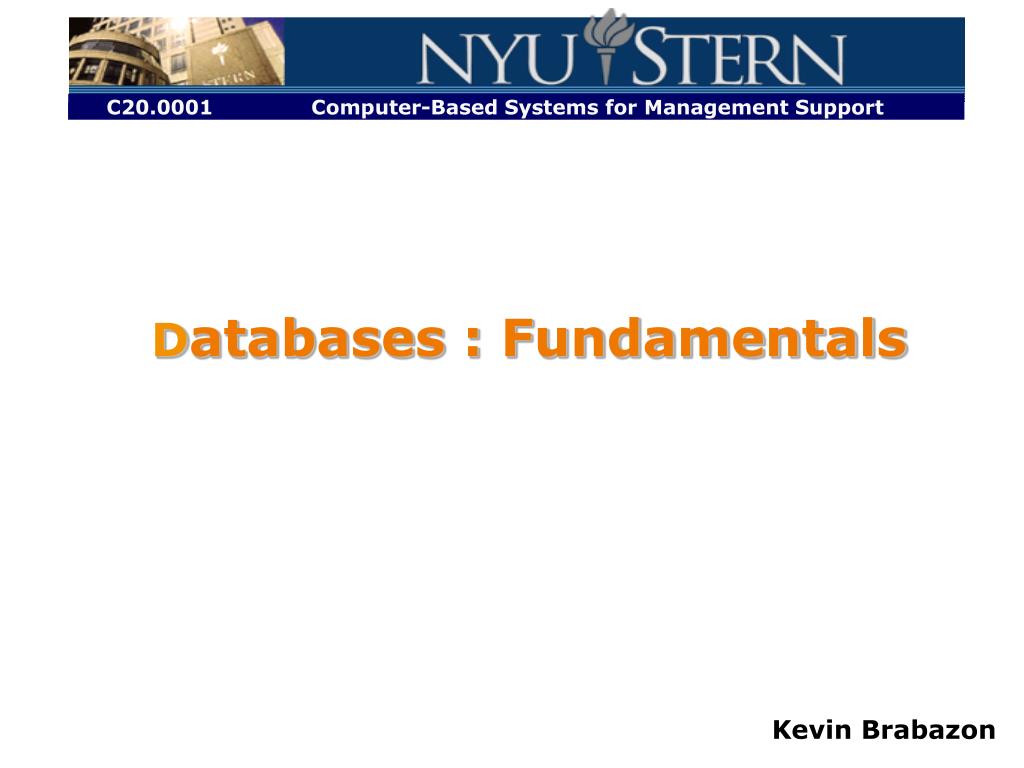

  1. C20.0001 Computer-Based Systems for Management Support Databases : Fundamentals Kevin Brabazon

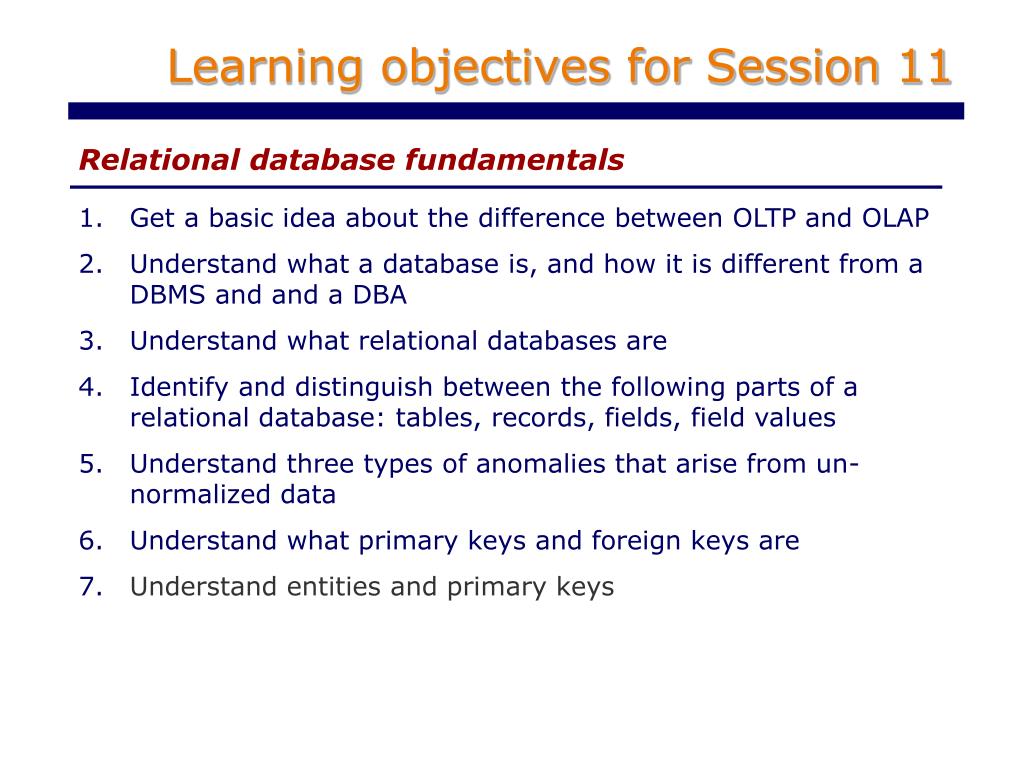

  2. Learning objectives for Session 11 Relational database fundamentals • Get a basic idea about the difference between OLTP and OLAP • Understand what a database is, and how it is different from a DBMS and and a DBA • Understand what relational databases are • Identify and distinguish between the following parts of a relational database: tables, records, fields, field values • Understand three types of anomalies that arise from un-normalized data • Understand what primary keys and foreign keys are • Understand entities and primary keys

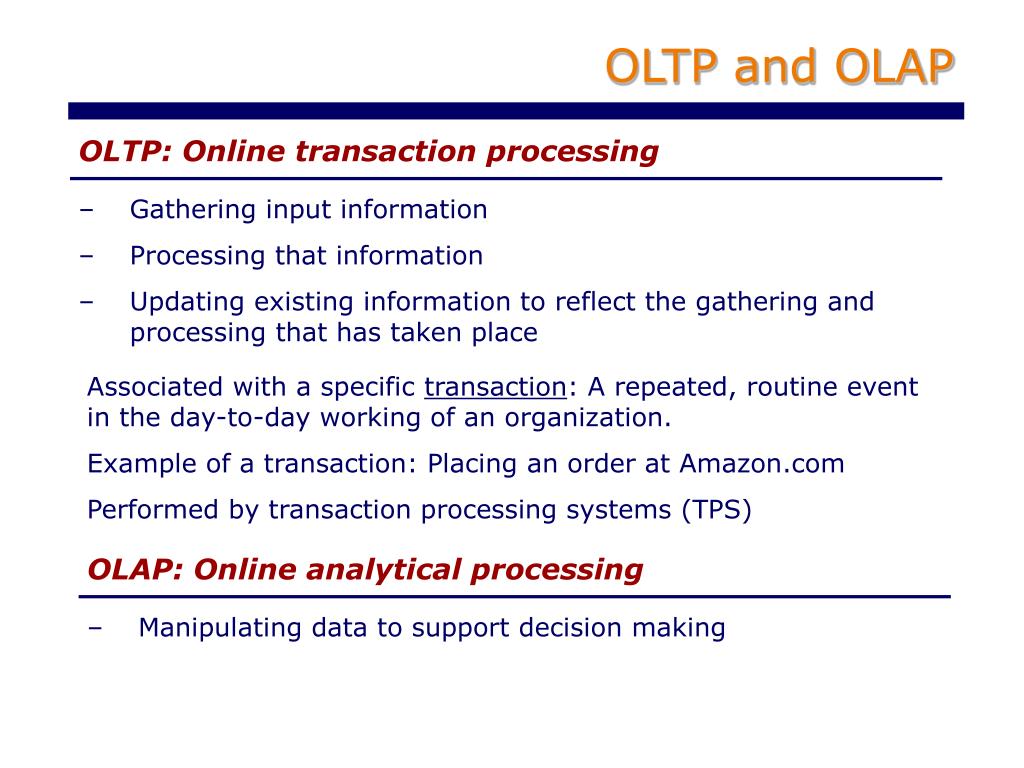

  3. OLTP and OLAP OLTP: Online transaction processing OLAP: Online analytical processing • Gathering input information • Processing that information • Updating existing information to reflect the gathering and processing that has taken place • Manipulating data to support decision making Associated with a specific transaction: A repeated, routine event in the day-to-day working of an organization. Example of a transaction: Placing an order at Amazon.com Performed by transaction processing systems (TPS)

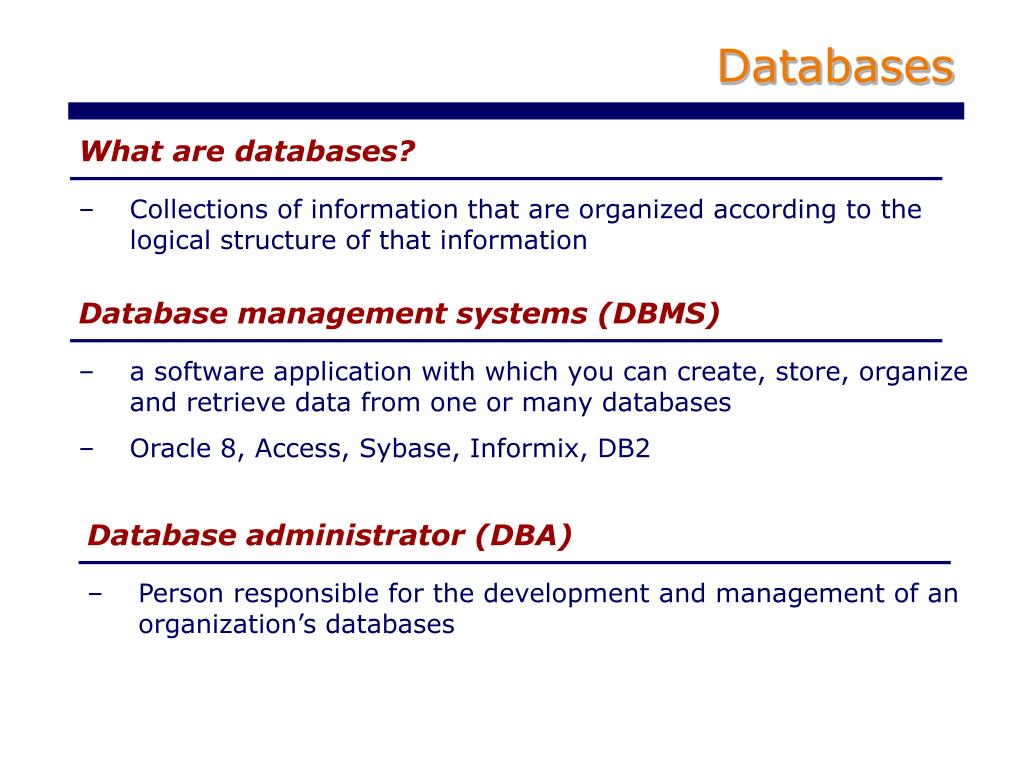

  4. Databases What are databases? Database management systems (DBMS) Database administrator (DBA) • Collections of information that are organized according to the logical structure of that information • a software application with which you can create, store, organize and retrieve data from one or many databases • Oracle 8, Access, Sybase, Informix, DB2 • Person responsible for the development and management of an organization’s databases

  5. Relational Databases Relational databases • Databases that use a series of logically related two-dimensional tables to store their information • Tables are comprised of fields/records, which in turn contain field values Field Table Record Field value Student Last Name SS# DOB Major Smith 100201122 06/11/84 IS Kim 200202222 1/1/85 FIN Davis 300201232 12/31/81 MKT Pat 999132212 3/3/88 ACC

  6. Relational Databases Relational Database Tables Records Fields Field values Bytes, bits Field Student Table Last Name SS# DOB Major Smith 100201122 06/11/84 IS Kim 200202222 1/1/85 FIN Davis 300201232 12/31/81 MKT Pat 999132212 3/3/88 ACC Record Field value

  7. Why do we need relational databases? Problems arise when data is stored in one big file

  8. Anomalies in un-normalized data Insertion anomalies Deletion anomalies Update anomalies • Inability to insert a piece of information about an object that can exist independently of another object without having to insert a piece of information about the other object • The loss of a piece of information about one object when a piece of information about a different object is deleted • A need to change the same piece of information about an object multiple times • Example: Adding a new customer/book before it is ordered • Example: Deleting an order => deleting a customer/book • Example: Changing Bill Gates’ address

  9. What’s wrong with this Data?

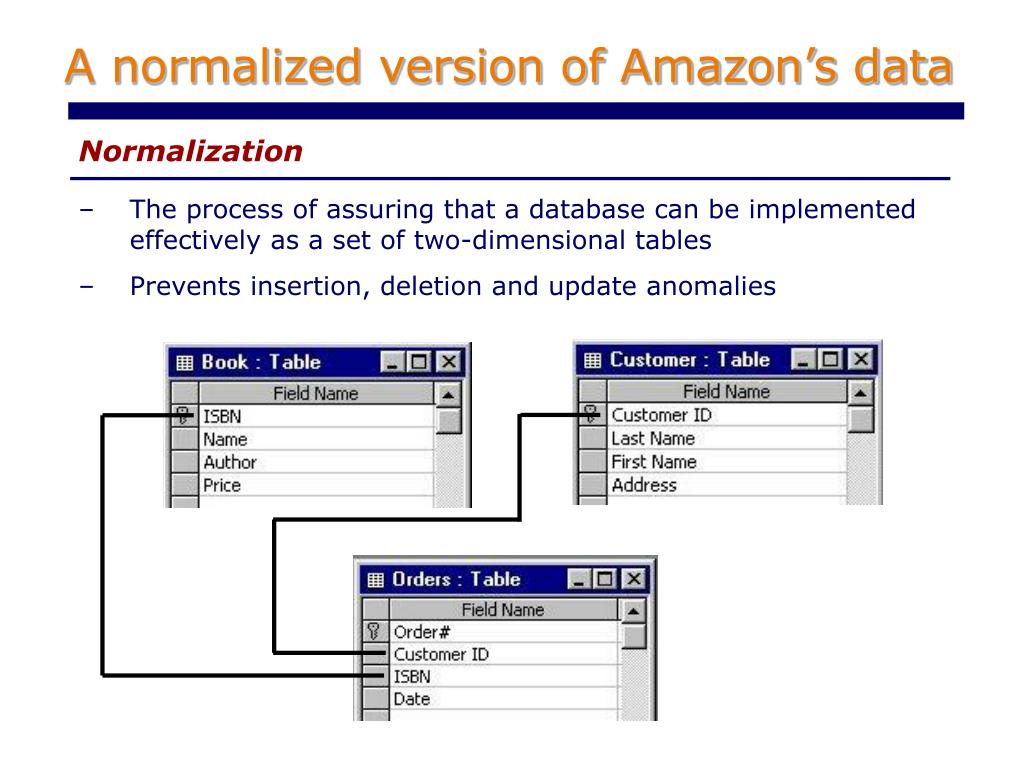

  10. A normalized version of Amazon’s data Normalization • The process of assuring that a database can be implemented effectively as a set of two-dimensional tables • Prevents insertion, deletion and update anomalies

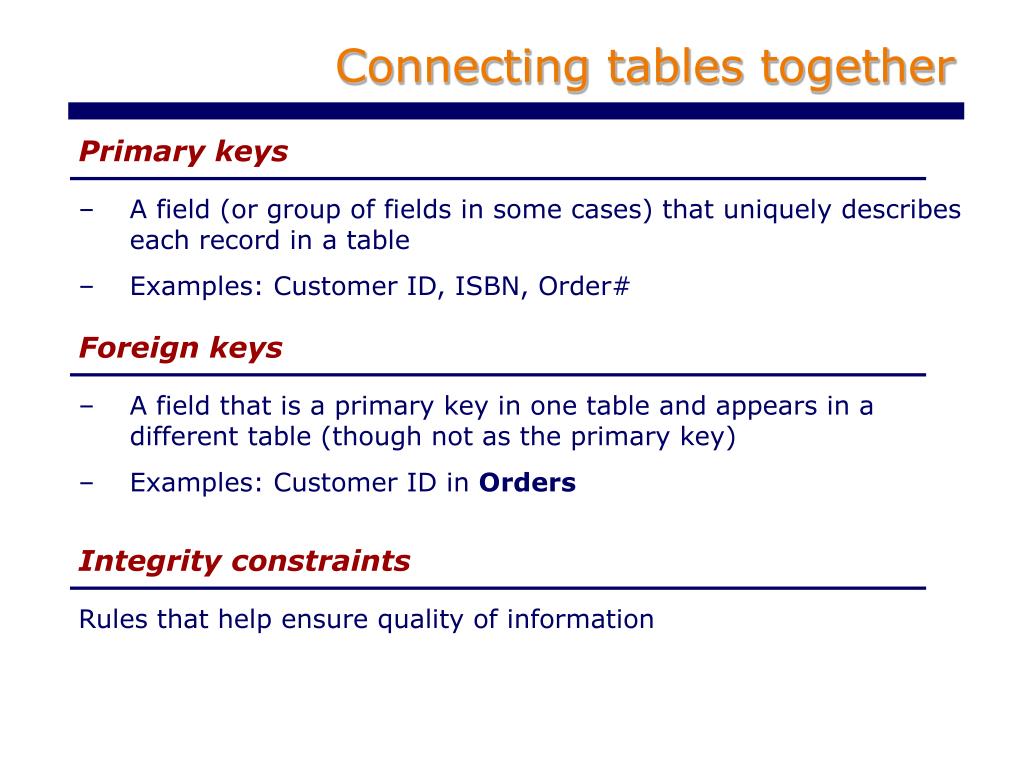

  11. Connecting tables together Primary keys Foreign keys Integrity constraints • A field (or group of fields in some cases) that uniquely describes each record in a table • Examples: Customer ID, ISBN, Order# • A field that is a primary key in one table and appears in a different table (though not as the primary key) • Examples: Customer ID in Orders Rules that help ensure quality of information

  12. Defining Entity Classes and Primary Keys • Entity class - a concept - typically people, places, or things - about which you wish to store information and that you can identify with a unique key (called the primary key). • Primary key - a field (or group of fields in some cases) that uniquely describes each record. • Instance - an occurrence of an entity class that can be uniquely described.

  13. Defining Entity Classes and Primary Keys • What are the entity classes and primary keys for the report below?
