  1. Friction

  2. Friction • Friction is a force that opposes the motion, or tendency of motion, of an object. • Friction is primarily caused by the chemical bonding of molecules at the surfaces of objects in contact (intermolecular forces which are electrical in nature)

  3. 2 Types of “dry” Friction • Static friction • exists between the surfaces of non-moving objects • Opposes applied forces that would otherwise cause motion • Maximum static friction refers to the most force that can be applied before the object starts to move • Kinetic friction • Exists between the surfaces of objects when there is relative motion between the objects

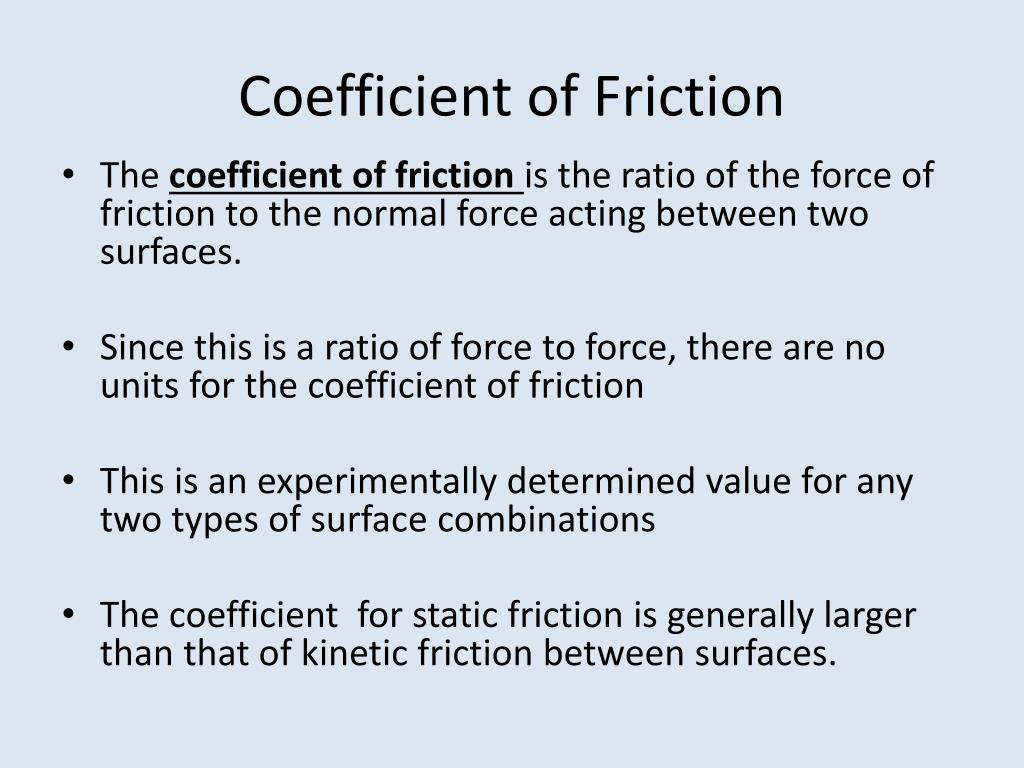

  4. Coefficient of Friction • The coefficient of friction is the ratio of the force of friction to the normal force acting between two surfaces. • Since this is a ratio of force to force, there are no units for the coefficient of friction • This is an experimentally determined value for any two types of surface combinations • The coefficient for static friction is generally larger than that of kinetic friction between surfaces.

  5. Coefficient of Static Friction Fs – Static friction force Fn = Normal force

  6. Coefficient of Kinetic Friction Fk – Kinetic friction force Fn – Normal force

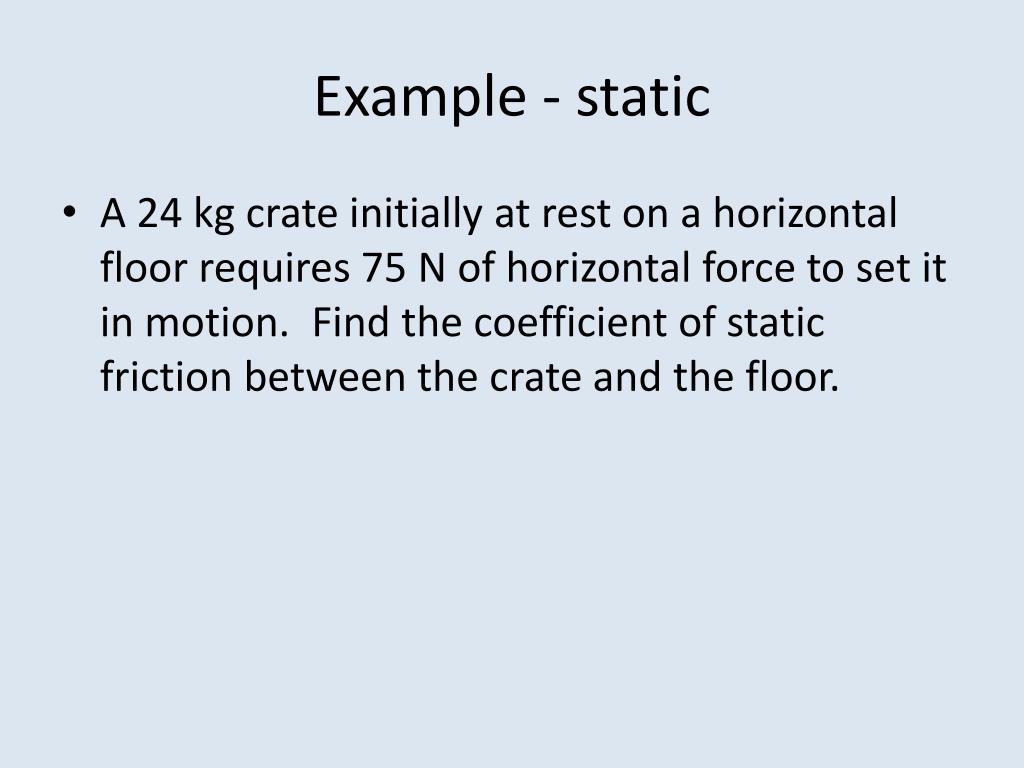

  7. Example - static • A 24 kg crate initially at rest on a horizontal floor requires 75 N of horizontal force to set it in motion. Find the coefficient of static friction between the crate and the floor.

  8. Example – kinetic, constant speed • The coefficient of friction between a 12 kg wooden crate and the floor is 0.32. How much force is needed to push this crate across the floor at a constant speed?

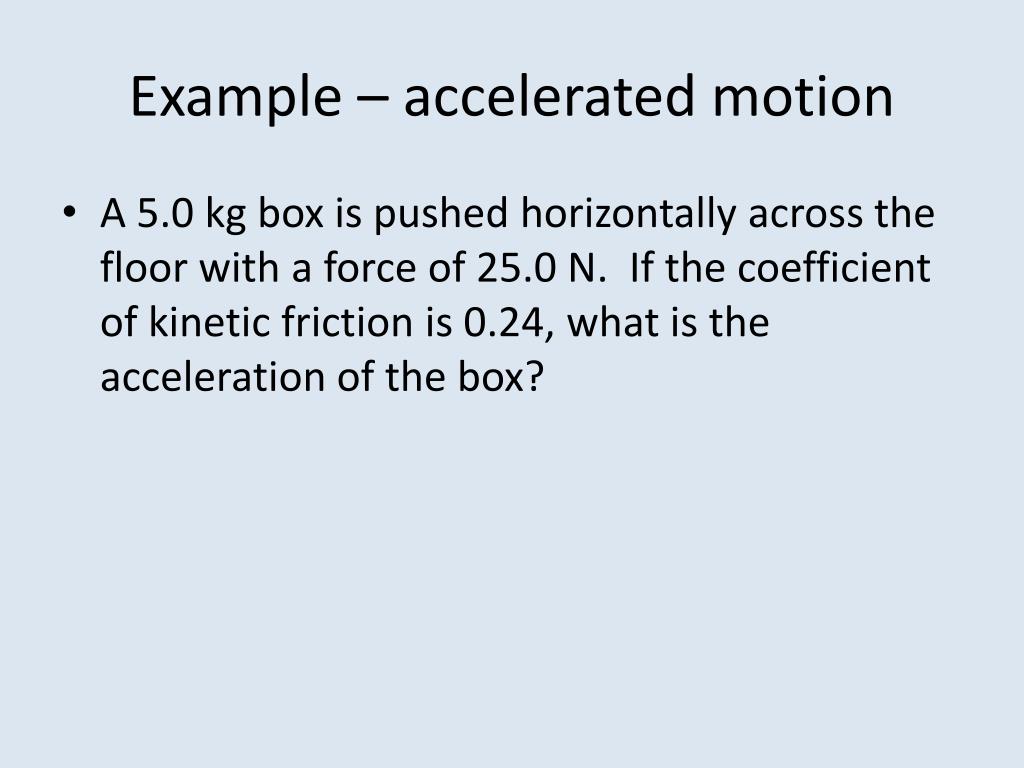

  9. Example – accelerated motion • A 5.0 kg box is pushed horizontally across the floor with a force of 25.0 N. If the coefficient of kinetic friction is 0.24, what is the acceleration of the box?

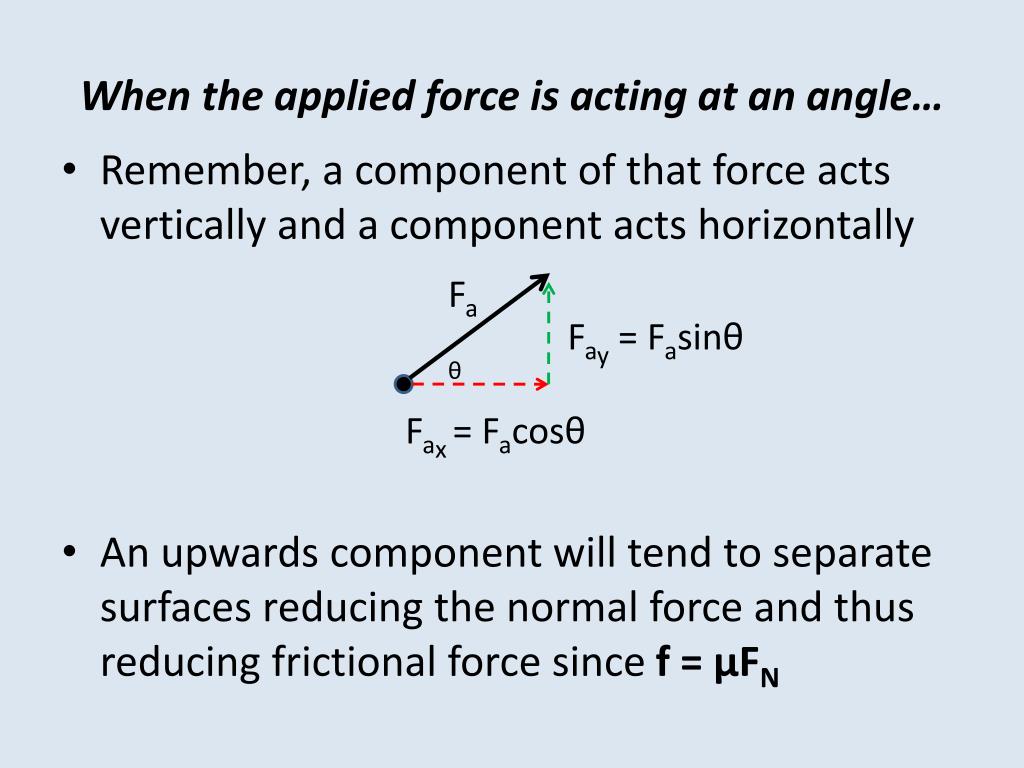

  10. When the applied force is acting at an angle… • Remember, a component of that force acts vertically and a component acts horizontally • An upwards component will tend to separate surfaces reducing the normal force and thus reducing frictional force since f = μFN Fa Fay = Fasinθ θ Fax = Facosθ

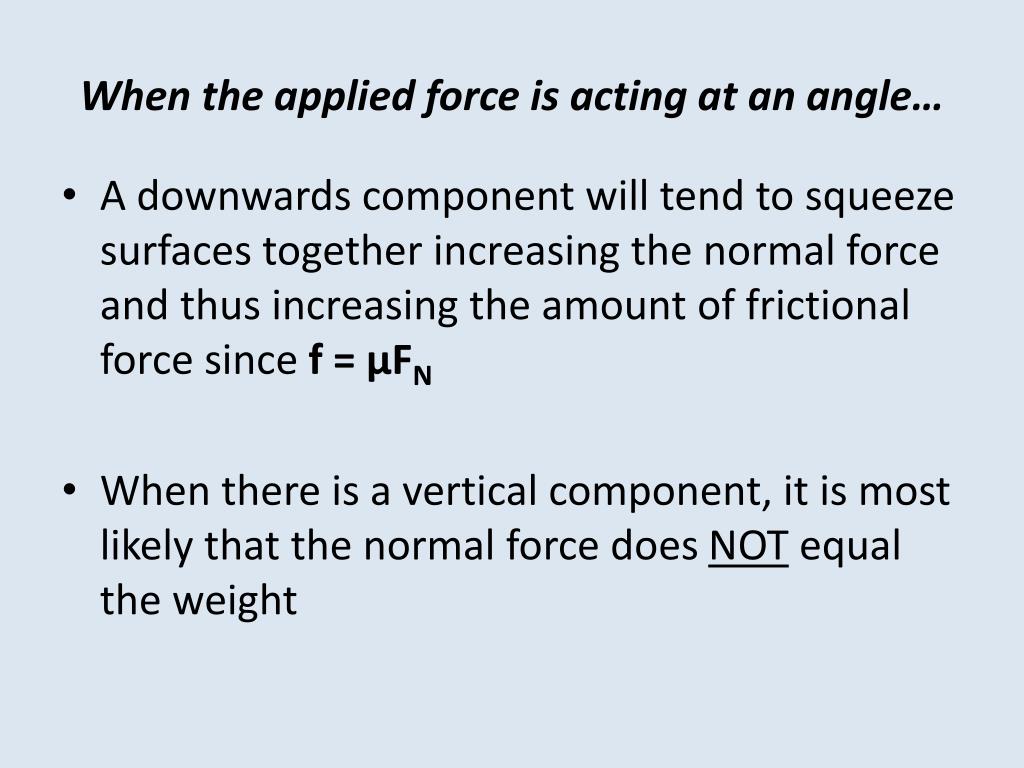

  11. When the applied force is acting at an angle… • A downwards component will tend to squeeze surfaces together increasing the normal force and thus increasing the amount of frictional force since f = μFN • When there is a vertical component, it is most likely that the normal force does NOT equal the weight

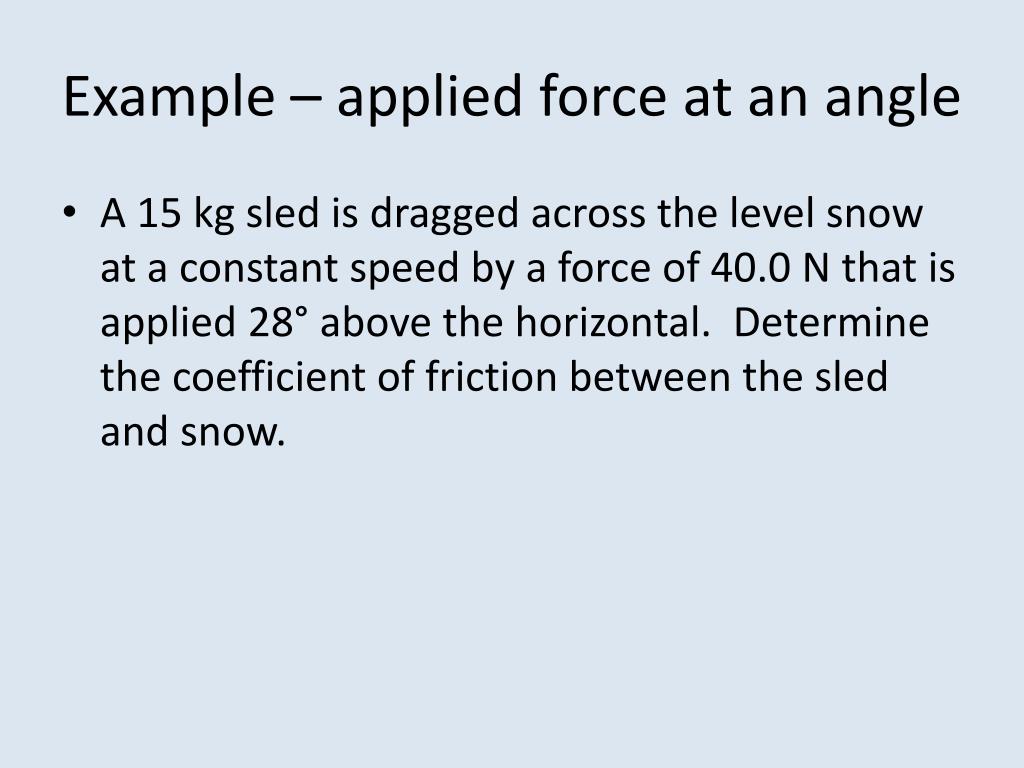

  12. Example – applied force at an angle • A 15 kg sled is dragged across the level snow at a constant speed by a force of 40.0 N that is applied 28° above the horizontal. Determine the coefficient of friction between the sled and snow.
