  1. Eucard WP 10.8 (Orsay, 5 May, 2011) IN2P3 Les deux infinis W. Kaabi, Y. Peinaud, A. Thiebault, E. Herry, A. Variola. M. Lacroix, F. Letellier-Cohen, B. Mercier and C. Prevost Eucard WP10.8

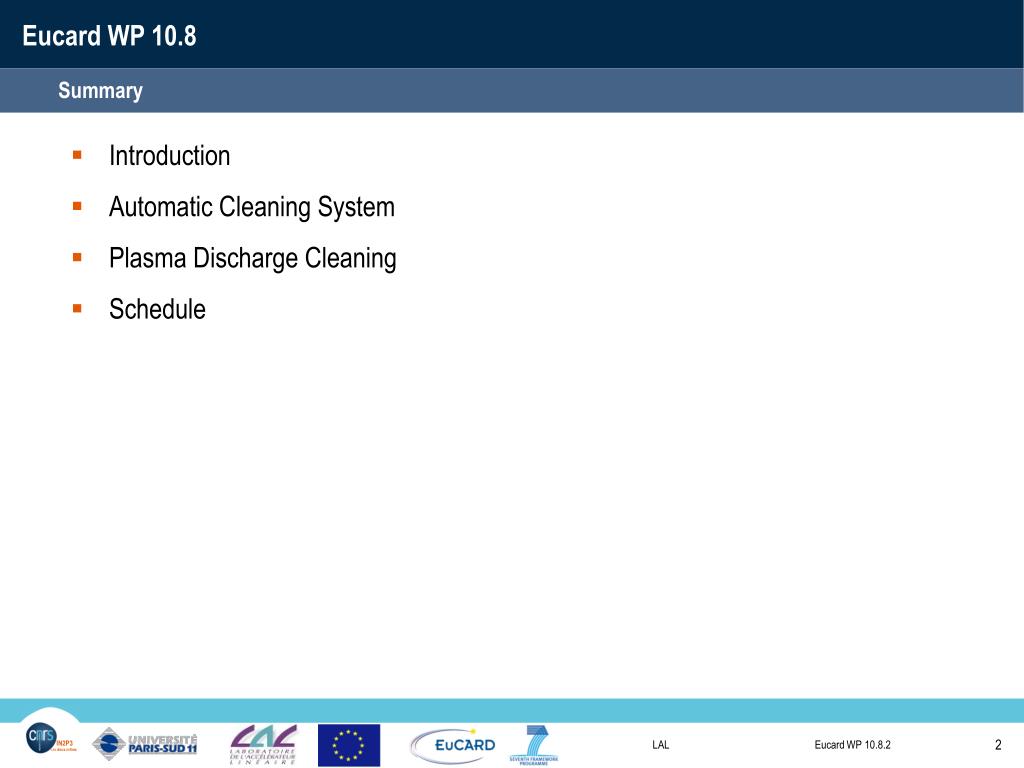

  2. Eucard WP 10.8 Summary • Introduction • Automatic Cleaning System • Plasma Discharge Cleaning • Schedule

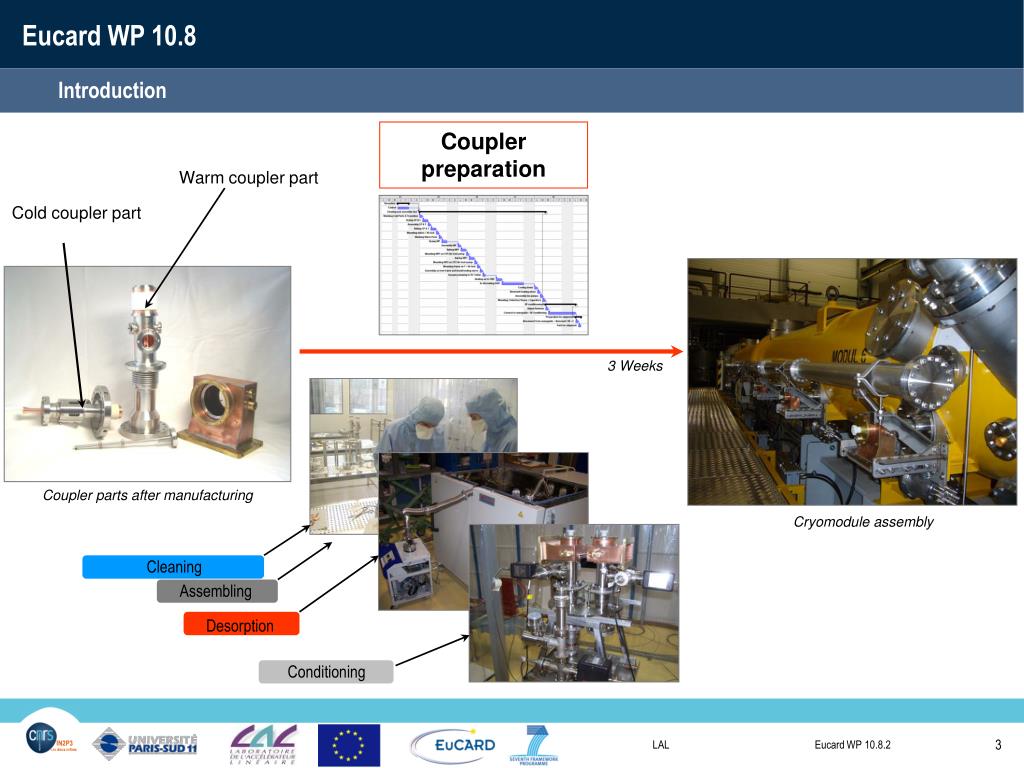

  3. Eucard WP 10.8 Introduction Coupler preparation Warm coupler part Cold coupler part 3 Weeks Coupler parts after manufacturing Cryomodule assembly Cleaning Assembling Desorption Conditioning

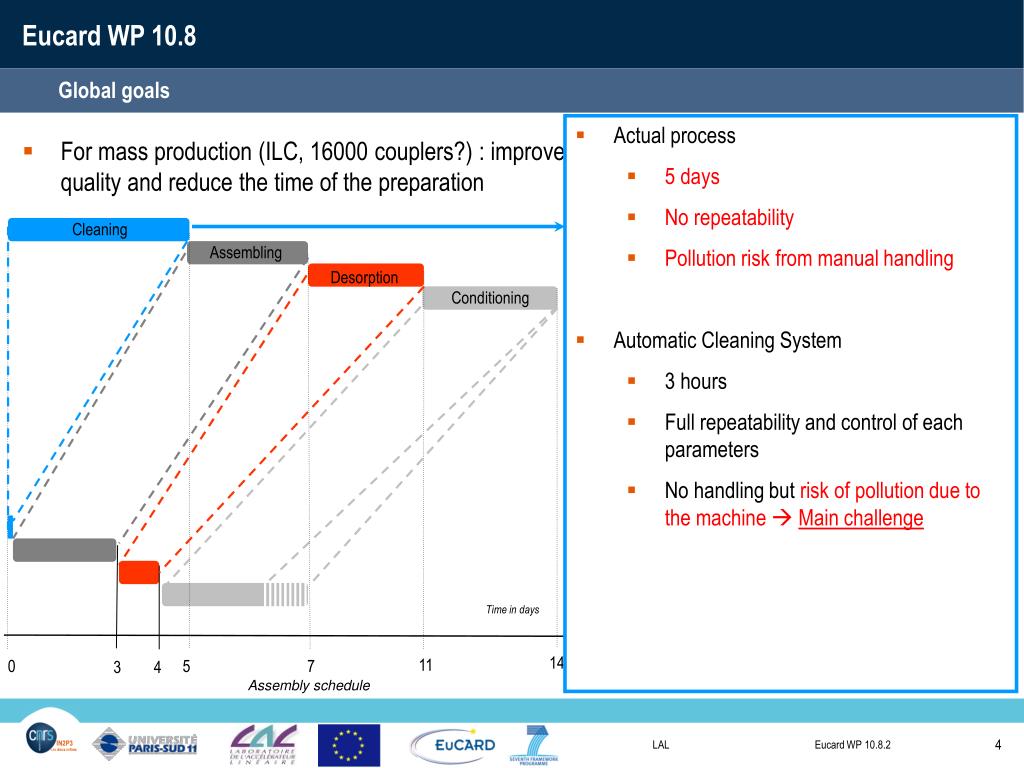

  4. Eucard WP 10.8 Global goals • Actual process • 5 days • No repeatability • Pollution risk from manual handling • Automatic Cleaning System • 3 hours • Full repeatability and control of each parameters • No handling but risk of pollution due to the machine  Main challenge • For mass production (ILC, 16000 couplers?) : improve quality and reduce the time of the preparation Cleaning Assembling Desorption Conditioning Time in days 14 11 0 5 7 3 4 Assembly schedule

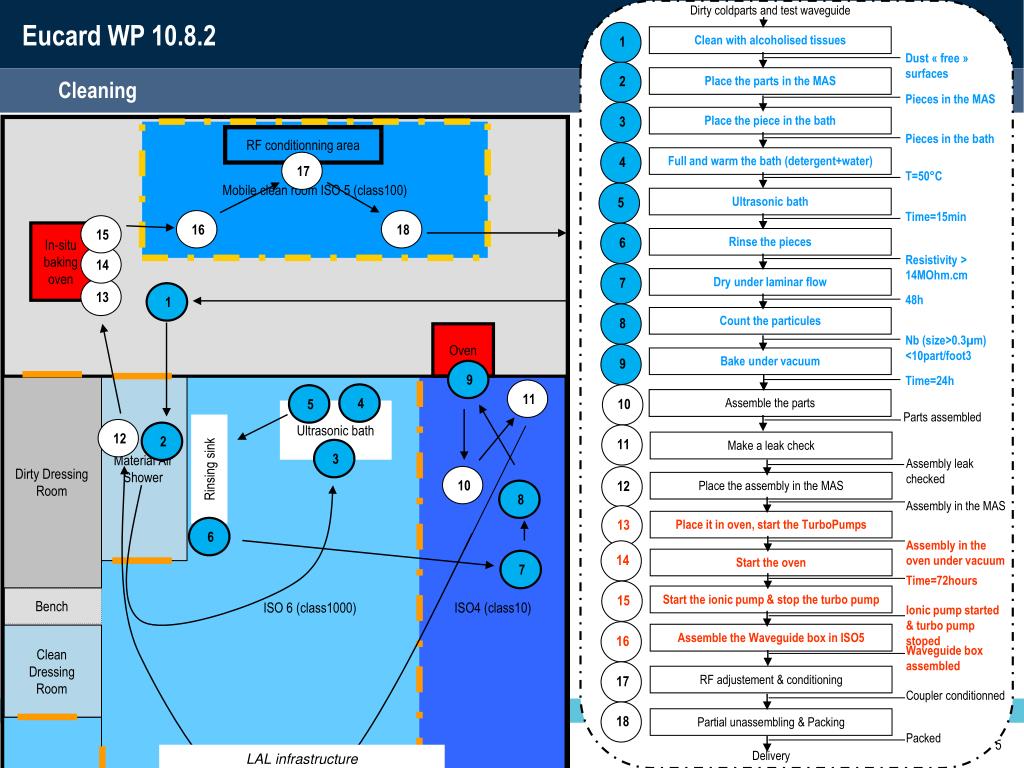

  5. Dirty coldparts and test waveguide Eucard WP 10.8.2 10 16 15 14 13 13 17 16 15 18 14 12 18 17 Clean with alcoholised tissues 1 Dust « free » surfaces 2 Place the parts in the MAS Cleaning Pieces in the MAS Place the piece in the bath 3 Mobile clean room ISO 5 (class100) Pieces in the bath RF conditionning area Full and warm the bath (detergent+water) 4 T=50°C Ultrasonic bath 5 Time=15min In-situ baking oven Rinse the pieces 6 Resistivity > 14MOhm.cm Dry under laminar flow 7 48h 1 Count the particules 8 Oven Nb (size>0.3µm) <10part/foot3 Bake under vacuum 9 9 Time=24h Dirty Dressing Room Material Air Shower ISO 6 (class1000) ISO4 (class10) 11 Assemble the parts 4 10 5 Ultrasonic bath Parts assembled 2 11 Make a leak check 3 Assembly leak checked Rinsing sink 12 Place the assembly in the MAS 8 Assembly in the MAS Place it in oven, start the TurboPumps 6 Assembly in the oven under vacuum Start the oven 7 Time=72hours Start the ionic pump & stop the turbo pump Bench Ionic pump started & turbo pump stoped Assemble the Waveguide box in ISO5 Clean Dressing Room Waveguide box assembled RF adjustement & conditioning Coupler conditionned Partial unassembling & Packing Air Shower Packed Delivery LAL infrastructure

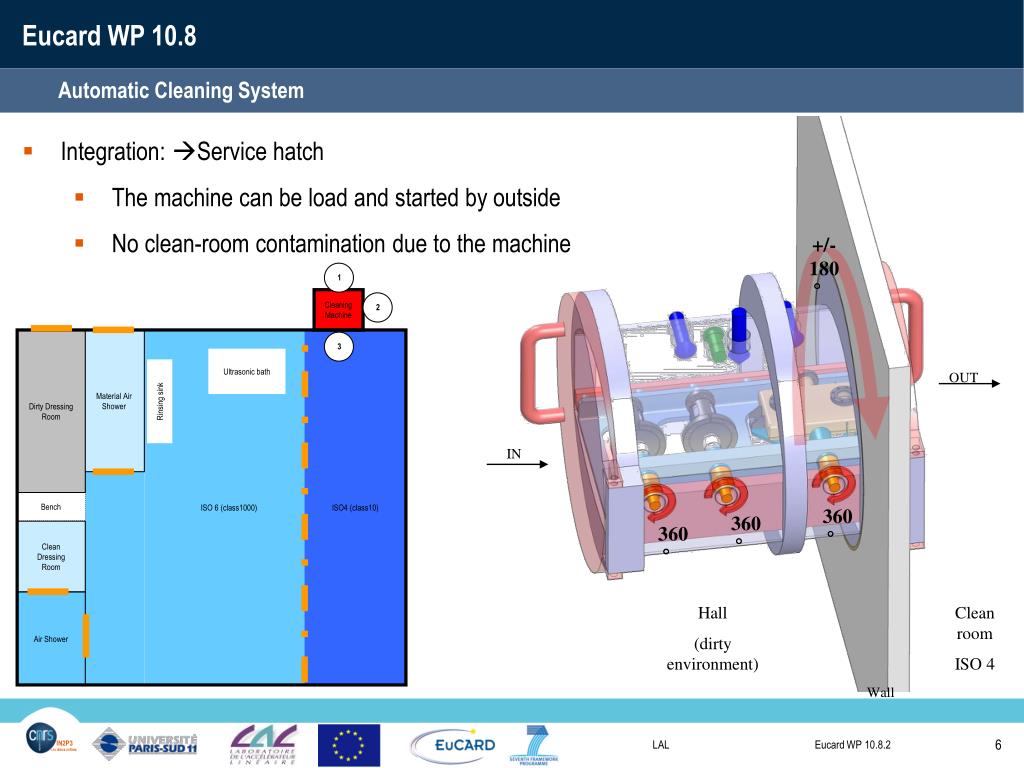

  6. Eucard WP 10.8 3 1 2 Cleaning Machine Dirty Dressing Room Material Air Shower ISO 6 (class1000) ISO4 (class10) Ultrasonic bath Rinsing sink Bench Clean Dressing Room Air Shower +/- 180 ° OUT IN 360 ° 360 ° 360 ° Hall (dirty environment) Clean room ISO 4 Wall Automatic Cleaning System • Integration: Service hatch • The machine can be load and started by outside • No clean-room contamination due to the machine

  7. Eucard WP 10.8 Automatic Cleaning System • Logical Synoptic of the full cleaning cycle • Ultrasonic washing • Rinsing • Resistivity measurement • Air drying Bellow Cold parts Ceramic Test waveguide

  8. Eucard WP 10.8 +/- 180 ° OUT IN 360 ° 360 ° 360 ° Hall (dirty environment) Clean room ISO 4 Wall Automatic Cleaning System • Motion: • A first rotation around the axle of the device • A second rotation around the axle of each pieces: • Dust free & UltraPure water resistant • Special materials • Stainless steel • PVDF • Titanium • No friction • Ball bearings • Magnetic coupling

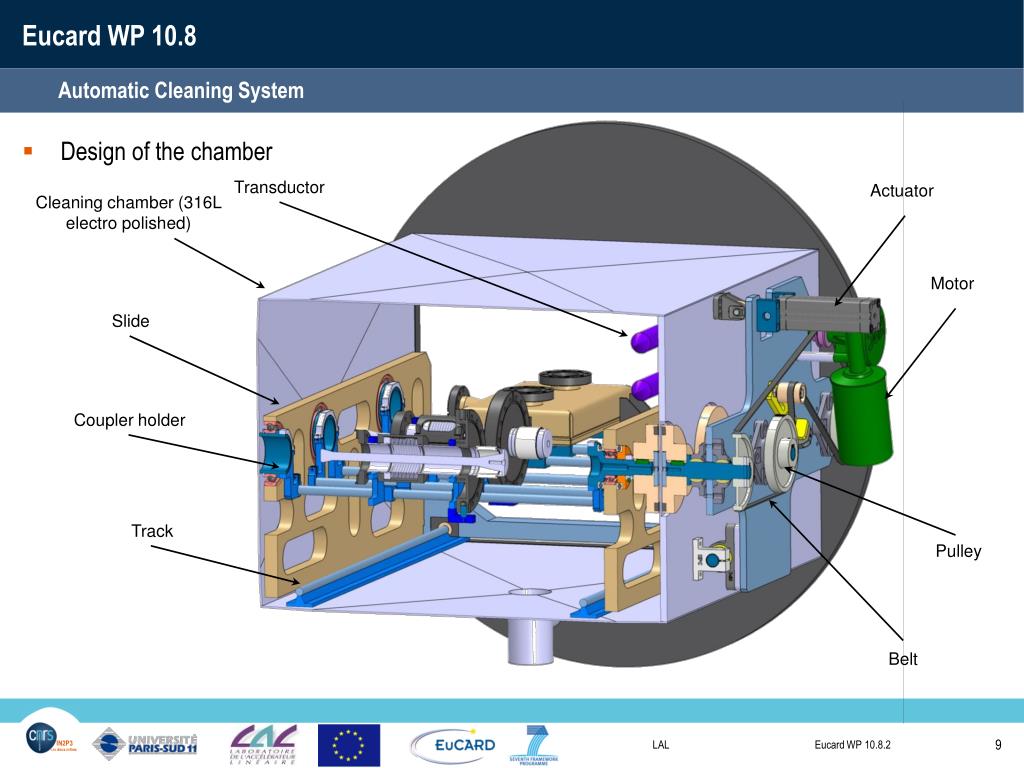

  9. Eucard WP 10.8 Automatic Cleaning System • Design of the chamber Transductor Actuator Cleaning chamber (316L electro polished) Motor Slide Coupler holder Track Pulley Belt

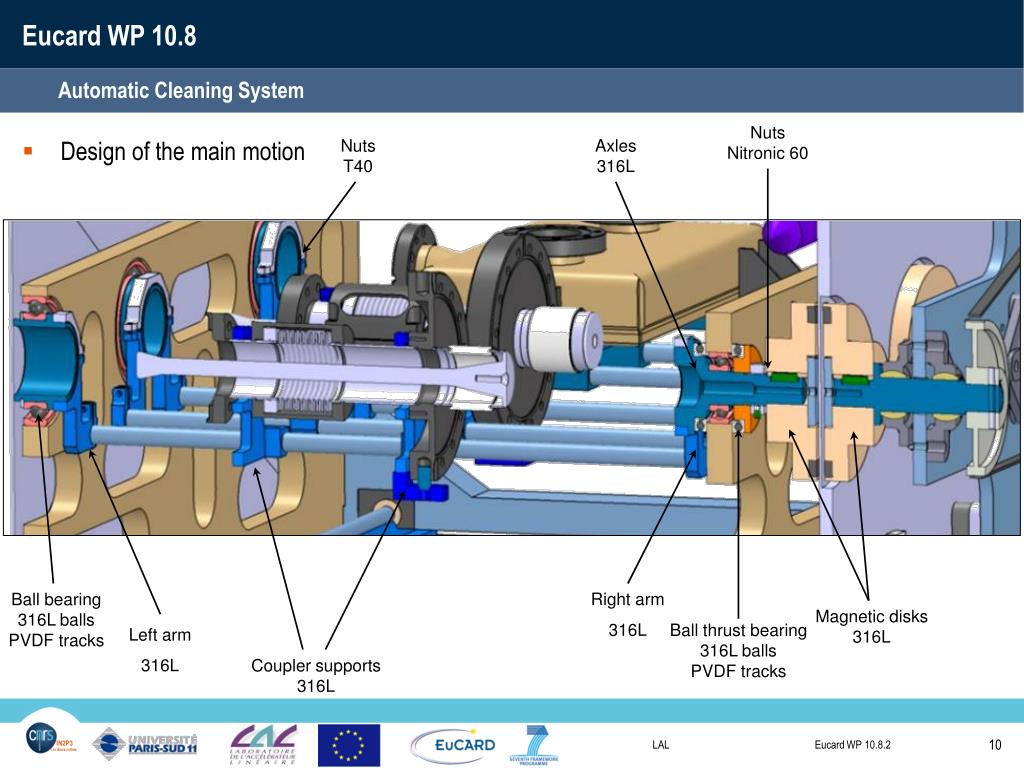

  10. Eucard WP 10.8 Automatic Cleaning System NutsNitronic 60 • Design of the main motion NutsT40 Axles316L Right arm 316L Ball bearing316L ballsPVDF tracks Magnetic disks316L Ball thrust bearing316L ballsPVDF tracks Left arm 316L Coupler supports316L

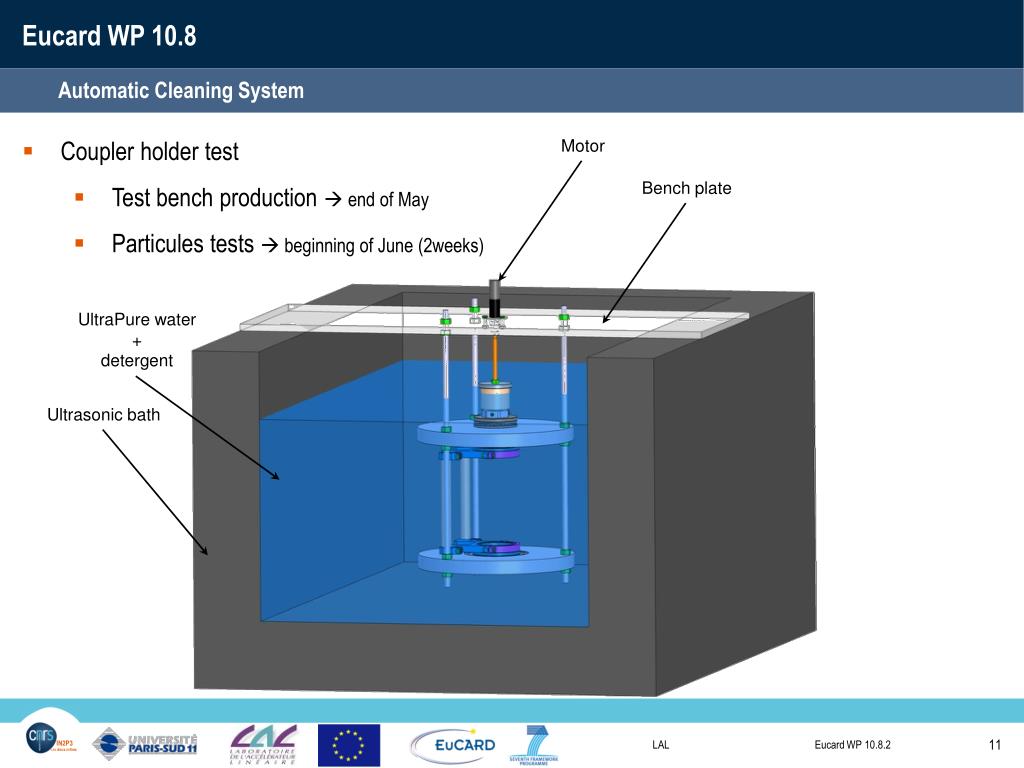

  11. Eucard WP 10.8 Automatic Cleaning System • Coupler holder test • Test bench production  end of May • Particules tests  beginning of June (2weeks) Motor Bench plate UltraPure water+detergent Ultrasonic bath

  12. Thank you
