Mechanism Design without Money

Mechanism Design without Money. Lecture 3. A game. X. 20. n. You need to get from A to B Travelling on AX or YB takes 20 minutes Travelling on AY or XB takes n minutes, where there are n travellers XY takes no time. A. B. 0. n. 20. Y. Choose 1 for AXB Choose 2 for AXYB

akira
Télécharger la présentation

Mechanism Design without Money

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Mechanism Design without Money Lecture 3

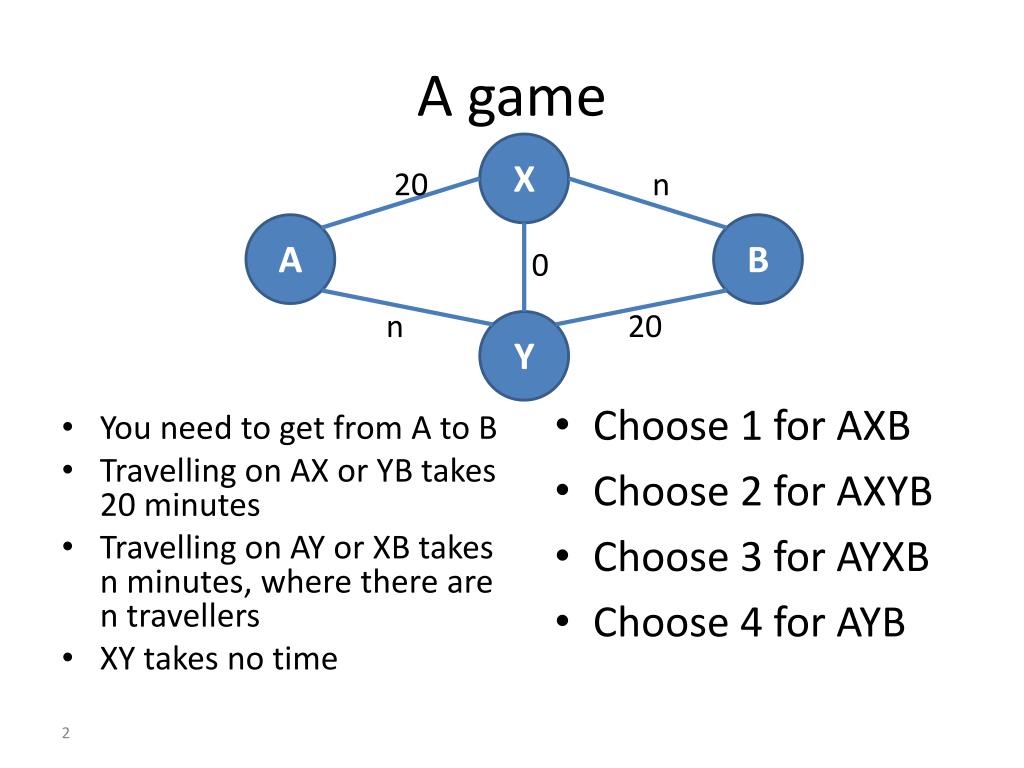

  2. A game X 20 n • You need to get from A to B • Travelling on AX or YB takes 20 minutes • Travelling on AY or XB takes n minutes, where there are n travellers • XY takes no time A B 0 n 20 Y • Choose 1 for AXB • Choose 2 for AXYB • Choose 3 for AYXB • Choose 4 for AYB

  3. A simpler game X 20 n • You need to get from A to B • Travelling on AX or YB takes 20 minutes • Travelling on AY or XB takes n minutes, where there are n travellers A B n 20 Y • Choose 5 for AXB • Choose 6 for AYB

  4. Price of Anarchy • A Nash equilirium may be bad for everyone • E.g. prisoner’s dilemma, arms race, Studying for tests • How bad is it? • Consider a game G. The social welfare of a profile of strategies s is defined asWelfare (s) = iUi(s) • Let O be the profile with maximal social welfare • Let N be the Nash equilibrium profile with minimal social welfare (worst Nash solution) • The Price of Anarchy of G is defined to beWelfare(O) / Welfare(N)

  5. When is this notion meaningful? • In the first game, PoA = 3. In the second, 100 • But it’s really the same game… • PoA makes sense only when there is a real bound, based on the structure of the game

  6. Routing games • The problem has three ingredients: • A graph G • Demand: Source s, target t, amount required (usually 1 unit), set of permissable paths • Each edge has a cost function: a monotone continuous function from traffic to the real numbers • Every player controls an epsilon of the flow • Flow value on path \ edge may be not integer

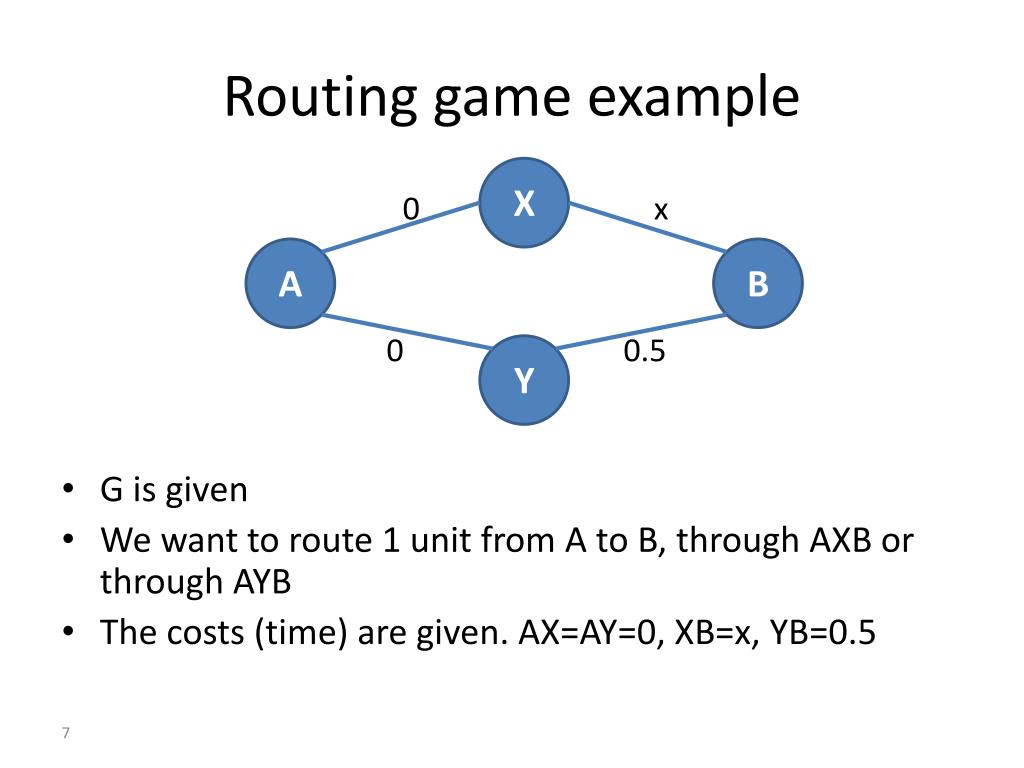

  7. Routing game example X • G is given • We want to route 1 unit from A to B, through AXB or through AYB • The costs (time) are given. AX=AY=0, XB=x, YB=0.5 0 x A B 0 0.5 Y

  8. How much do we need to pay • Suppose we have a flow on the graph • Each edge now has a cost – the cost function evaluated on the flow ce(fe) • Each path has a cost cp:the sum of costs of all edges in the paths • You pay for each path its cost cp, times the amount of flow it passes xp

  9. Two ways to compute social welfare • Theorem: The cost of a flow is equal to the sum over all edges in the graph, the flow through that edge, times the cost of the edge Proof: =

  10. Nash flow • Theorem – in a Nash flow, for every demand j, all non empty paths from sto t have the same cost • Proof: Suppose not. Then P1 costs less than P2. Now take a player who controls  flow and now uses P2. He is better off at P1. • Note: we use the fact that P2 is non empty • We use the fact that the player contains only an  of the flow, and the cost is continuous.

  11. Back to the game we played… X 20 n • Time to count the votes… A B 0 n 20 Y • Choose 1 for AXB • Choose 2 for AXYB • Choose 3 for AYXB • Choose 4 for AYB

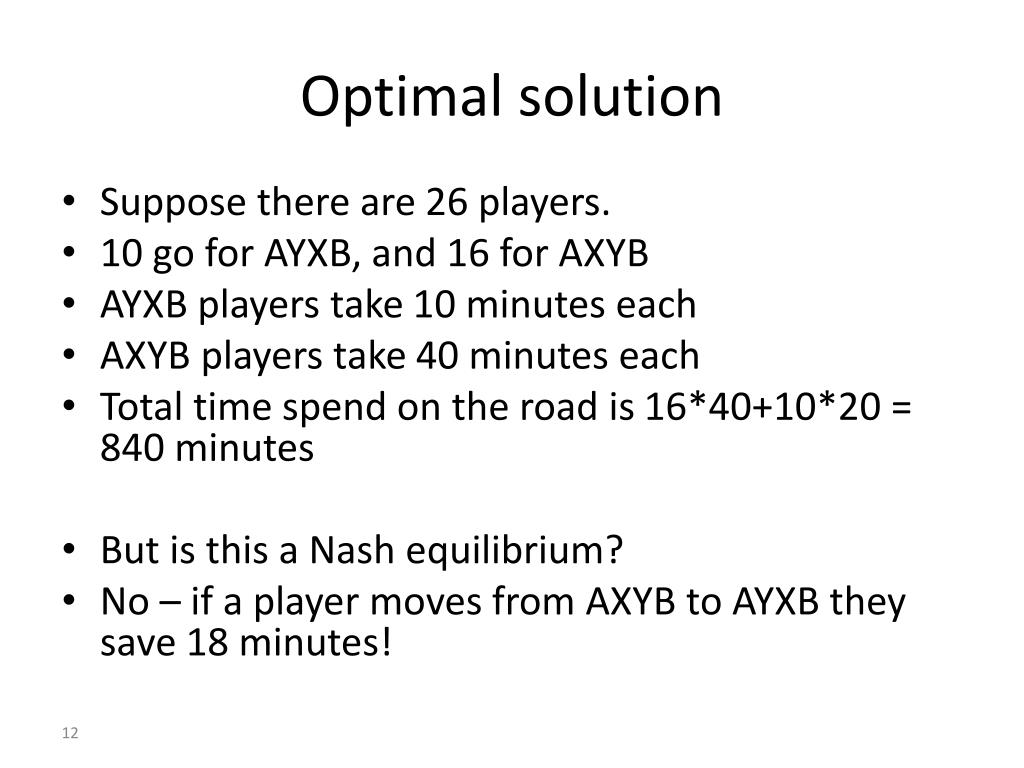

  12. Optimal solution • Suppose there are 26 players. • 10 go for AYXB, and 16 for AXYB • AYXB players take 10 minutes each • AXYB players take 40 minutes each • Total time spend on the road is 16*40+10*20 = 840 minutes • But is this a Nash equilibrium? • No – if a player moves from AXYB to AYXB they save 18 minutes!

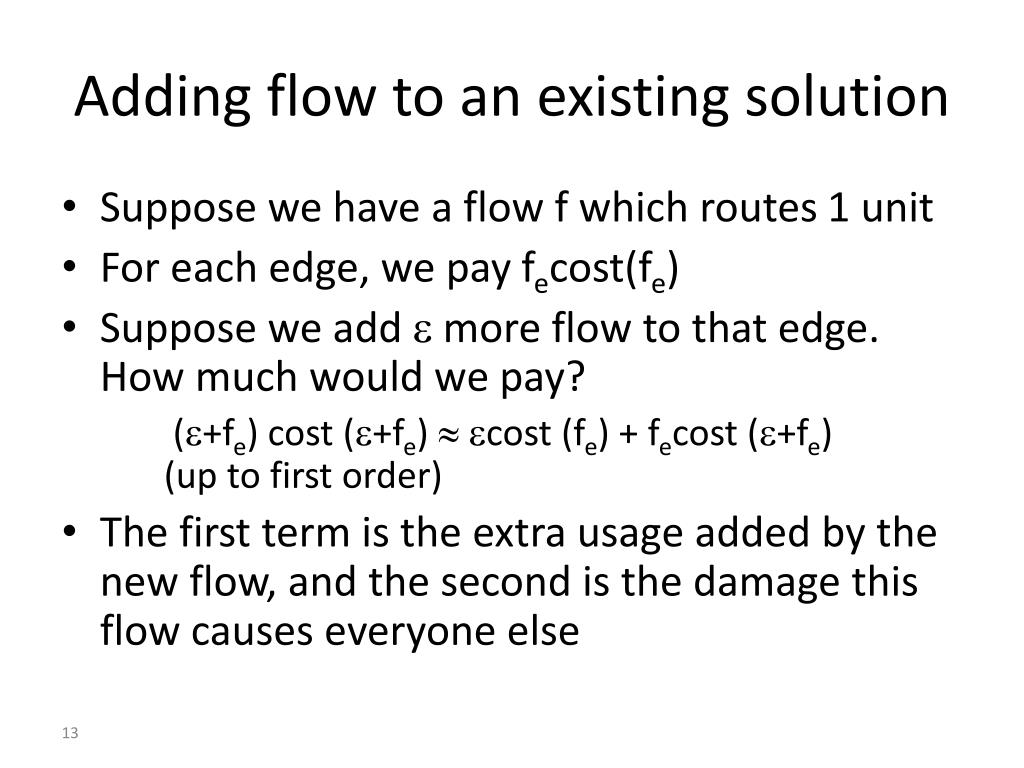

  13. Adding flow to an existing solution • Suppose we have a flow f which routes 1 unit • For each edge, we pay fecost(fe) • Suppose we add  more flow to that edge. How much would we pay? (+fe) cost (+fe)  cost (fe) + fecost(+fe) (up to first order) • The first term is the extra usage added by the new flow, and the second is the damage this flow causes everyone else

  14. Marginal payment • For edge e we payfecost(fe). Adding  gives (+fe) cost (+fe)  cost (fe) + fecost(+fe) • The marginal payment of e is the derivative(fecost(fe) )’ = cost(fe) + fecost’(fe) • Marginal paymentof a path is the sum of marginal paymentof its edges

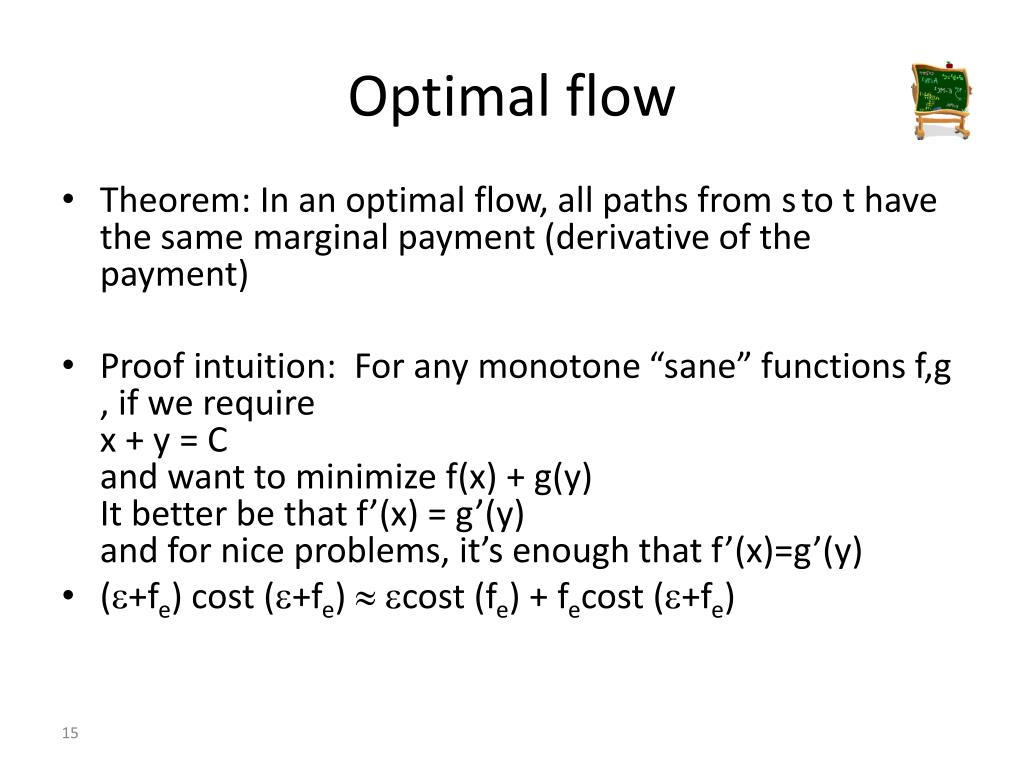

  15. Optimal flow • Theorem: In an optimal flow, all paths from sto t have the same marginal payment (derivative of the payment) • Proof intuition: For any monotone “sane” functions f,g , if we requirex + y = Cand want to minimize f(x) + g(y)It better be that f’(x) = g’(y)and for nice problems, it’s enough that f’(x)=g’(y) • (+fe) cost (+fe)  cost (fe) + fecost (+fe)

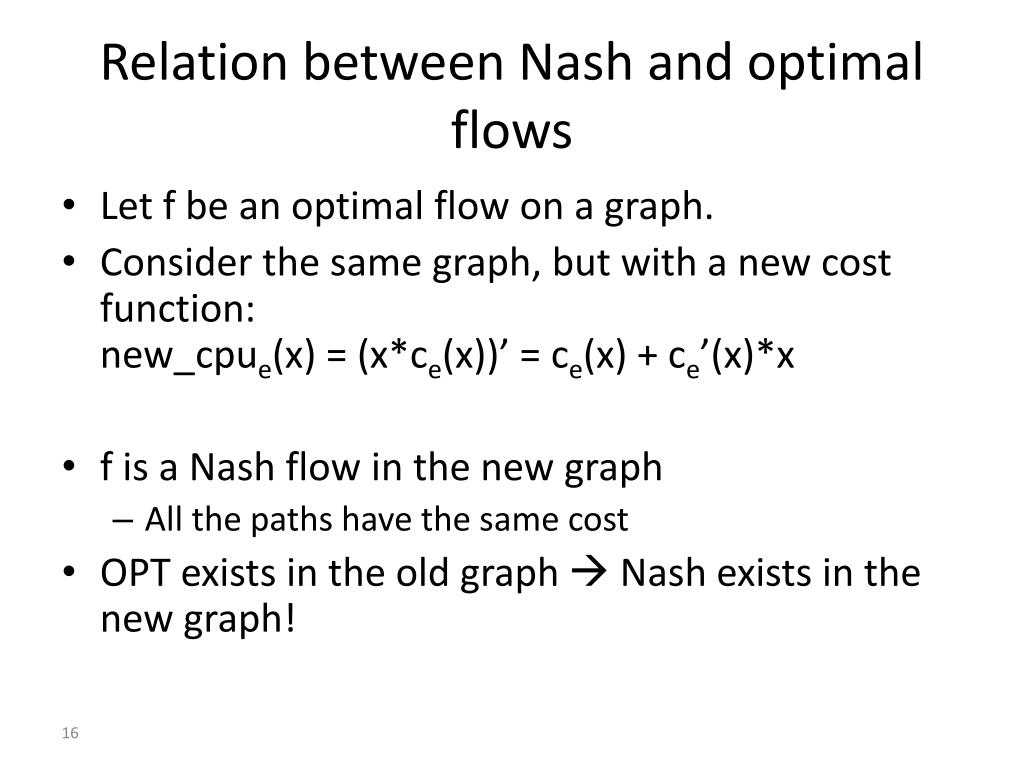

  16. Relation between Nash and optimal flows • Let f be an optimal flow on a graph. • Consider the same graph, but with a new cost function:new_cpue(x) = (x*ce(x))’ = ce(x) + ce’(x)*x • f is a Nash flow in the new graph • All the paths have the same cost • OPT exists in the old graph  Nash exists in the new graph!

  17. This is not exactly what we wanted… • We wanted to proof that the original game has a pure Nash • We proved that the “derivative game” has a pure Nash… • Solution: define what is called a “potential function” (denoted by  or C) of the edge e as dy

  18. Existence of Nash solution • Theorem: Let (G,s,t,P) be a routing game with cost per unit function cefor each edge e. It has a Nash Flow • Proof: Consider the routing game (G,s,t,P) with cost function e. It has an optimal solution f. This flow is a Nash flow for the original game.

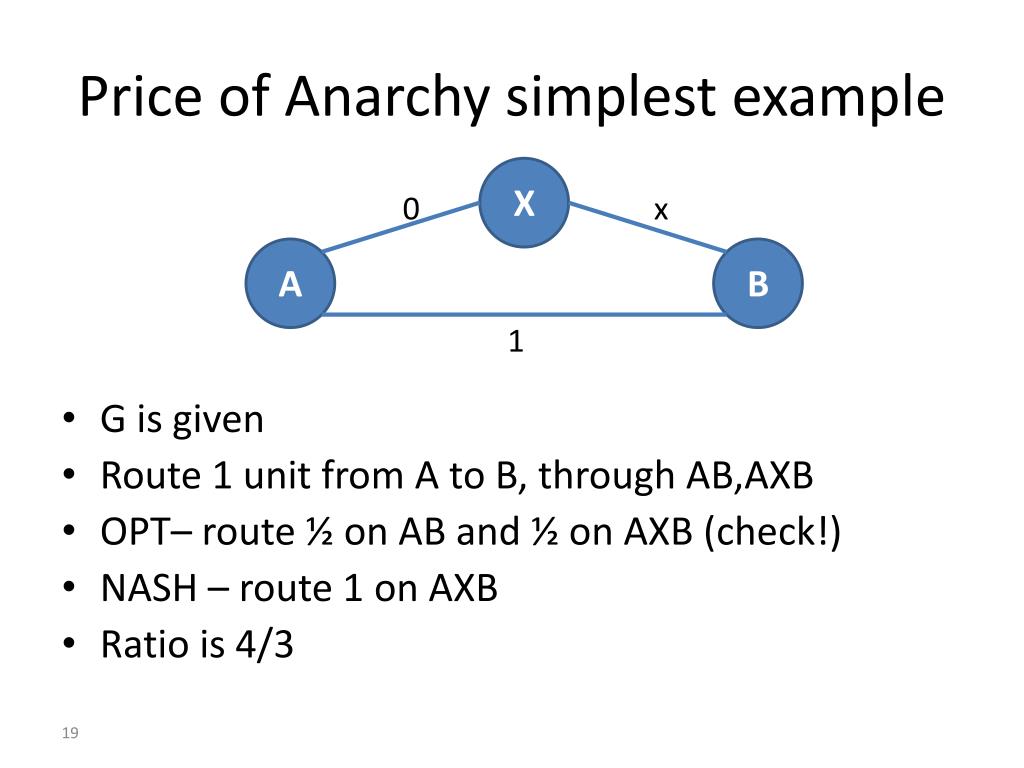

  19. Price of Anarchy simplest example X • G is given • Route 1 unit from A to B, through AB,AXB • OPT– route ½ on AB and ½ on AXB (check!) • NASH – route 1 on AXB • Ratio is 4/3 0 x A B 1

  20. Price of Anarchy: general functions X c(x) • G is given • Route r units from A to B, through AB,AXB • OPT – minimize yC (y) + (r – y)C (r) • Nash – route r on AXB • Ratio is 0 A B c(r)

  21. Can things be worse? • No! • For a set of cpu functions C, define • Theorem: For any routing game G, if the cost per unit functions come from C, the Price of Anarchy is at most a(C)

  22. Another property of Nash flows • Theorem: Let f be a Nash flow. For any other flow f* which routes the same amount, we have • Note: The cost per unit of every edge is constant, and we just want to route the flow.

  23. Proof • Define Note that • Therefore, we need to prove that H(f*,f) ≥ H(f,f) • This follows by using that if a path has any flow in it in a Nash flow, its cost is minimal =

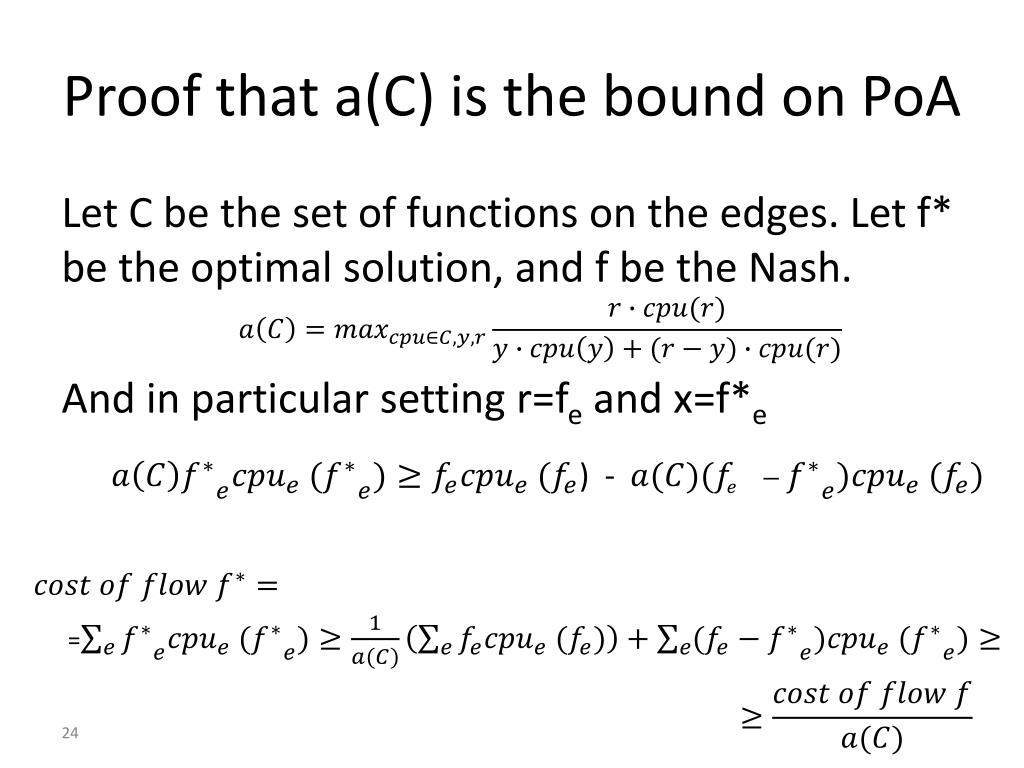

  24. Proof that a(C) is the bound on PoA Let C be the set of functions on the edges. Let f* be the optimal solution, and f be the Nash. And in particular setting r=feand x=f*e ) - =

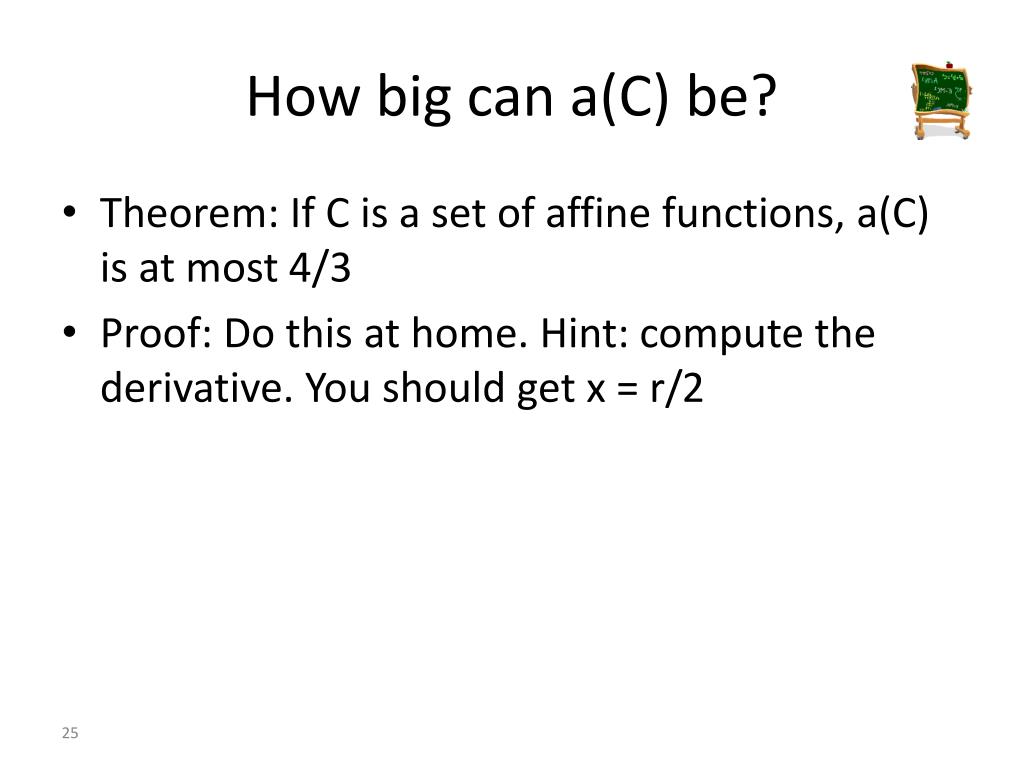

  25. How big can a(C) be? • Theorem: If C is a set of affine functions, a(C) is at most 4/3 • Proof: Do this at home. Hint: compute the derivative. You should get x = r/2

  26. Questions? • Feedback • Office hours

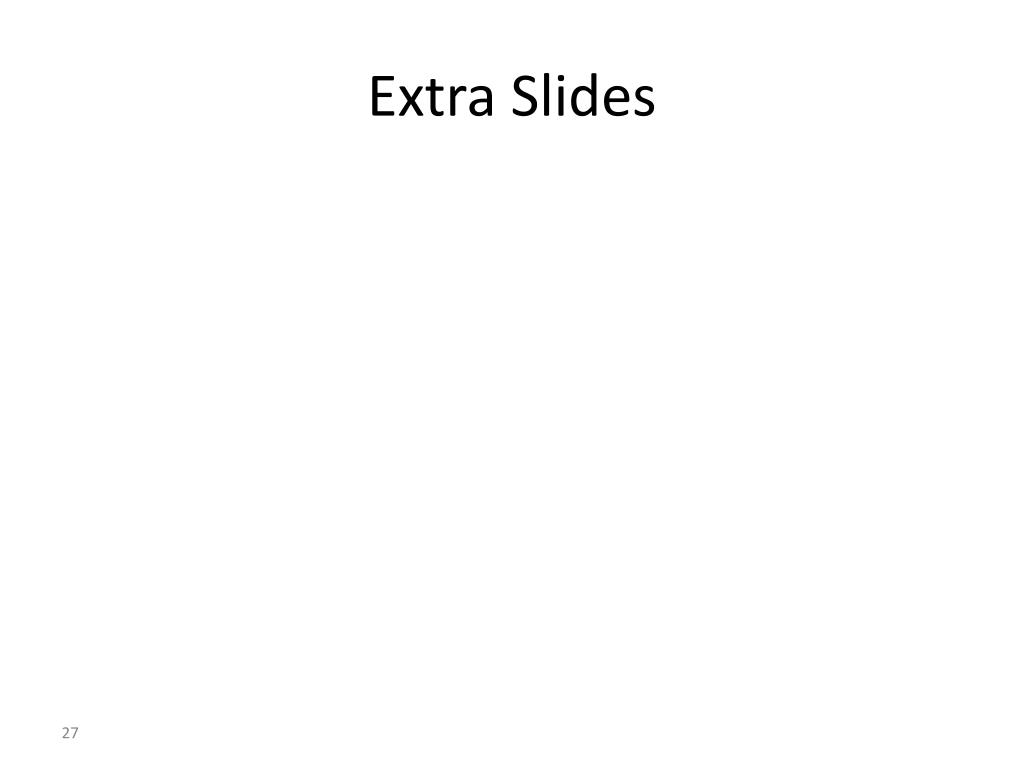

  27. Extra Slides

  28. Chicken

  29. Road example • 50 people want to get from A to B • There are two roads, each one has two segments. One takes an hour, and the other one takes the number of people on it 1 hour N minutes A B 1 hour N minutes

  30. Nash in road example • In the Nash equilibrium, 25 people would take each route, for a travel time of 85 minutes 1 hour N minutes A B 1 hour N minutes

  31. Braess’ paradox • Now suppose someone adds an extra road which takes no time at all. Travel time goes to 100 minutes 1 hour N minutes A B Free 1 hour N minutes
