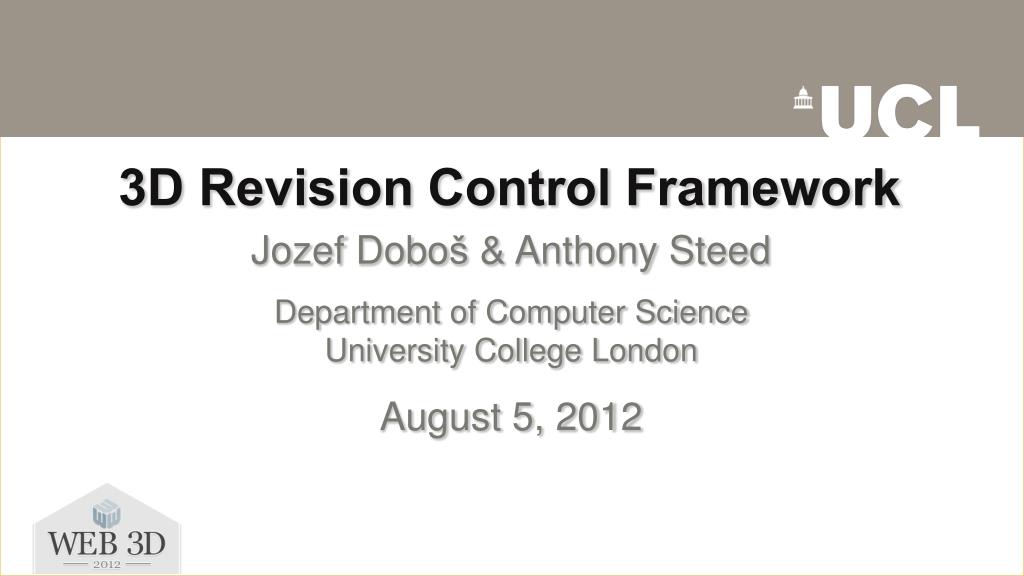

  1. 3D Revision Control Framework JozefDoboš & Anthony Steed Department of Computer ScienceUniversity College London August 5, 2012

  2. Introduction • 3D models grow in complexity • Artists and engineers collaborate asynchronously • File systems poseserious drawbacks

  3. Contributions • How to maintain distributed open repository for revising 3D models • How scene graph of 3D assets can be stored in NoSQL DB (MongoDB) • How to extend the DB to store revision history • Tier 1: A stand-alone GUI with conflict detection and resolution • Tier 2: A secondary read-only GUI via WebGL and Java

  4. Previous Work Asset management and version control • High-end CAD modeling packages: • Bentley Assetvise • DassaultCatia • Software engineering: • SVN, Git, Perforce... • 3ds Max, Blender... + filesystems • Locking

  5. Previous Work Edit logging • Nonlinear Revision Control for Images [Chen et al. 2011] • MeshFlow: Interactive Visualization of Mesh Construction Sequences [Denning et al. 2011] • VisTrails Provenance Explorer for Maya Network distribution • XML3D – Interactive 3D Graphics for the Web [Sons et al. 2010] • A scalable architecture for the HTML5/X3D integration model X3DOM [Behr et al. 2010] • SceneJS

  6. Aim • Support non-linear concurrent modeling • Become agnostic to any specific modeling software • Make one DB store the scene and its revision history • Hence separate modeling from its long-term storage

  7. Framework Overview

  8. Framework Overview • 3rd party modeling software saves 3D scene locally

  9. Framework Overview • Tier 1 GUI imports/exports various 3D file formats • Visualizes revisions and differences • Saves scene components in remote 3D repository

  10. Framework Overview • Domain specific database • Tracks revision history on individual scene nodes • Supports sub-scene retrieval

  11. Framework Overview • Tier 2 GUI (subset of Tier 1 functionality) • Inspects repository, retrieves and visualizes revisions • Does not modify the models nor their history

  12. Framework Features • Support for wide range of assets • Delta changes stored alongside non-linear history • Easy access control and sub-object retrieval • Interactive 3D diff tool • Web interface for repository inspection

  13. 3D Repository (DB) Scene Graph (SG) • Directed Acyclic Graph • SG Node: scene component (binary blob) • Metadata = (ID, R#) • Used by: • [Zeleznik et al. 2000] • [Berthelot et al. 2011] Revision History (RH) • Directed Acyclic Graph • RH Node: revision • Used by: • Git, SVN, Mercurial, ... • [Chen et al. 2011]

  14. Revision History Branch Trunk Rev 0 Rev 8

  15. Revision Management Revision Retrieval • Return all the newest SG nodes for a given revision number Revision Commit • Delta changes as new revisions • Potential conflicts → need conflict resolution Node deletion • Store NULL in the next revision • Recursively check children

  16. 3D Diff and Merge

  17. 3D Diff and Merge • Find corresponding nodes in A, B based on ID • Binary compare for differences

  18. 3D Diff and Merge • Identical nodes → no modification

  19. 3D Diff and Merge • Discrepancies in nodes → conflict • Select A or B or export into 3rd party editor

  20. 3D Diff and Merge • Given AncestorABmore states can be detected

  21. 3D Diff and Merge • Identical nodes → no modification (as before)

  22. 3D Diff and Merge • Some conflicts can now be automatically resolved

  23. Prototype Implementation MongoDB • NoSQL (schemaless) • Geospatial indexing • Data as Binary JSON (BSON) – little-endian serialized C types • UUID as node identifiers • Two collections (one for each DAG – SG and RH)

  24. DAG as Flat Collection •  is a parent-child relationship • V is a logical disjunction

  25. Tier 1 - 3D Revision Control Viewer • Written in C++ and Qt • Open Asset Import Library (Assimp) to handle models • Converts unified scene graph into collection of BSON • Handles all version control logic • Performs visual 3D diff • Exports to common file formats

  26. Tier 1 - 3D Revision Control Viewer

  27. 3D Diff Tool

  28. Tier 2 - 3D Web Client • Driven by JavaScript • MongoDB Java driver loads BSON from DB • WebGL renderer displays in web browsers

  29. Tier 2 - 3D Web Client

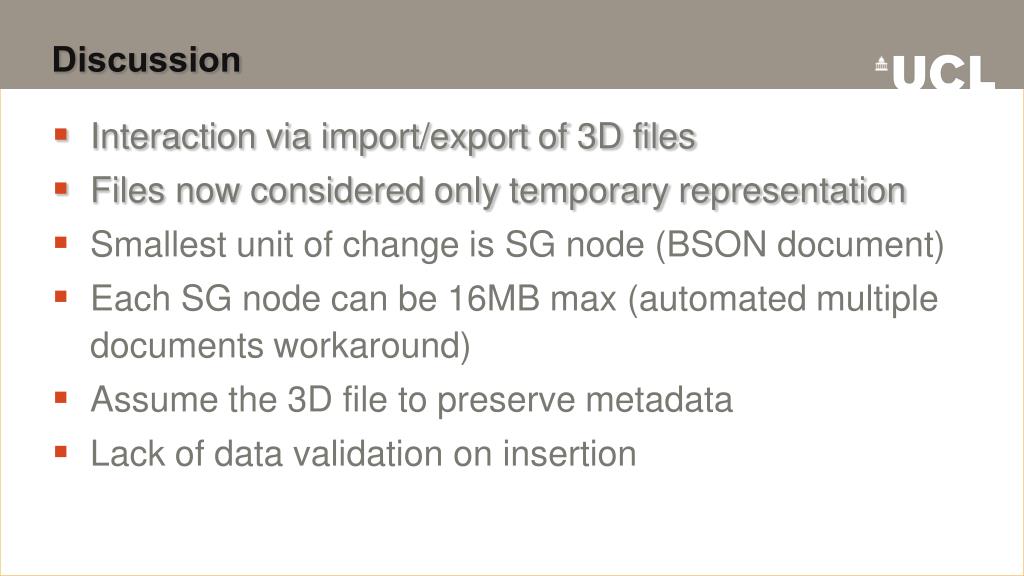

  30. Discussion • Interaction via import/export of 3D files • Files now considered only temporary representation • Smallest unit of change is SG node (BSON document) • Each SG node can be 16MB max (automated multiple documents workaround) • Assume the 3D file to preserve metadata • Lack of data validation on insertion

  31. Future Work • Android and Java Webstart Tier 2 viewers • Store other types of data • Locking and hybrid locks with geometric constrains • Search via spatial queries • Integrate into existing industrial pipelines • Open crowd-sourcing of 3D models

  32. Future Work • Possible direct connection from editing software • Hides the revision control layer from the user

  33. Conclusions • Novel approach to storage and revision control of 3D assets • Represented hierarchical scene graphs in DB • Preserved associated revision history • Successfully decoupled modeling from long term storage

  34. Sponsors Arup Foresight • http://driversofchange.com UK Engineering and Physical Sciences Research Council • http://www.epsrc.ac.uk UCL Engineering Doctorate Centre in Virtual Environments, Imaging & Visualisation • http://engdveiv.cs.ucl.ac.uk

  35. http://3DRepo.org

  36. Talk Invitation 3D Diff: An Interactive Approach to Mesh Differencing and Conflict Resolution • Session: Model Stories • Date: Tuesday, 7 August • Time: 2:00PM – 3:30PM • Location: Room 406AB http://3drepo.org

  37. Google Chrome

  38. Materials

  39. King’s Cross
