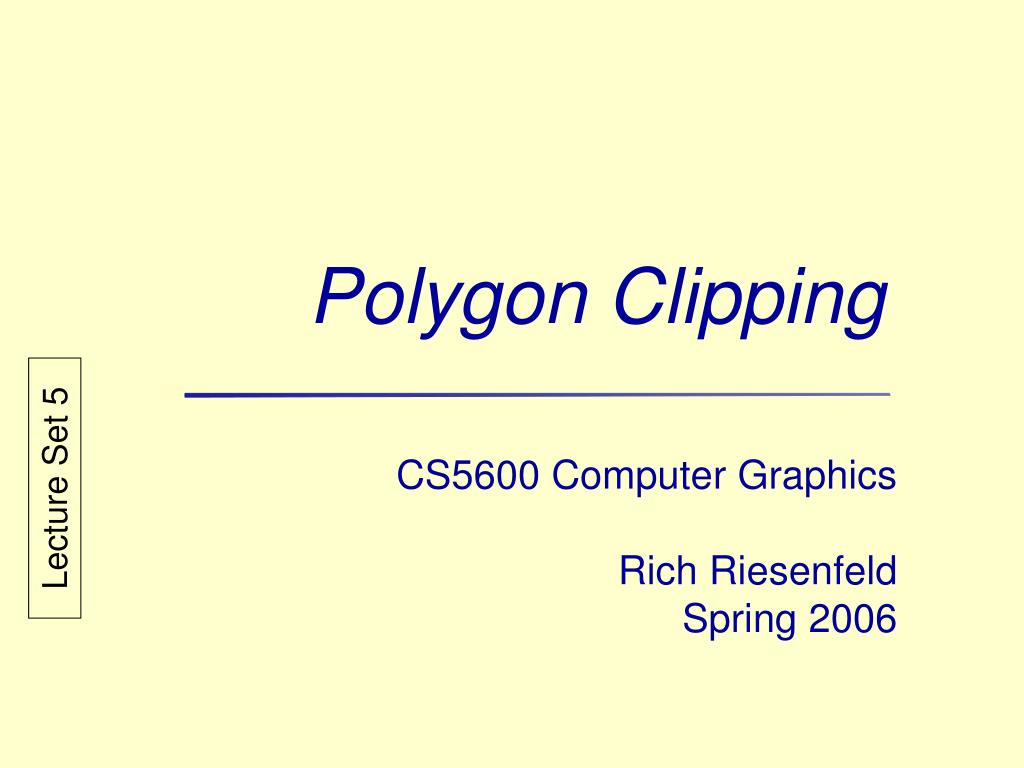

Polygon Clipping. CS5600 Computer Graphics Rich Riesenfeld Spring 2006. Lecture Set 5. Ex: Simple Convex. Ex: Multiple Components. Nonconvex with Many Edges. Polygons : Before Clipping. Top Clip Boundary. Polygons: Clip on Top. Right Clip Boundary. Polygons: Clip on Right.

Télécharger la présentation
## Polygon Clipping

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

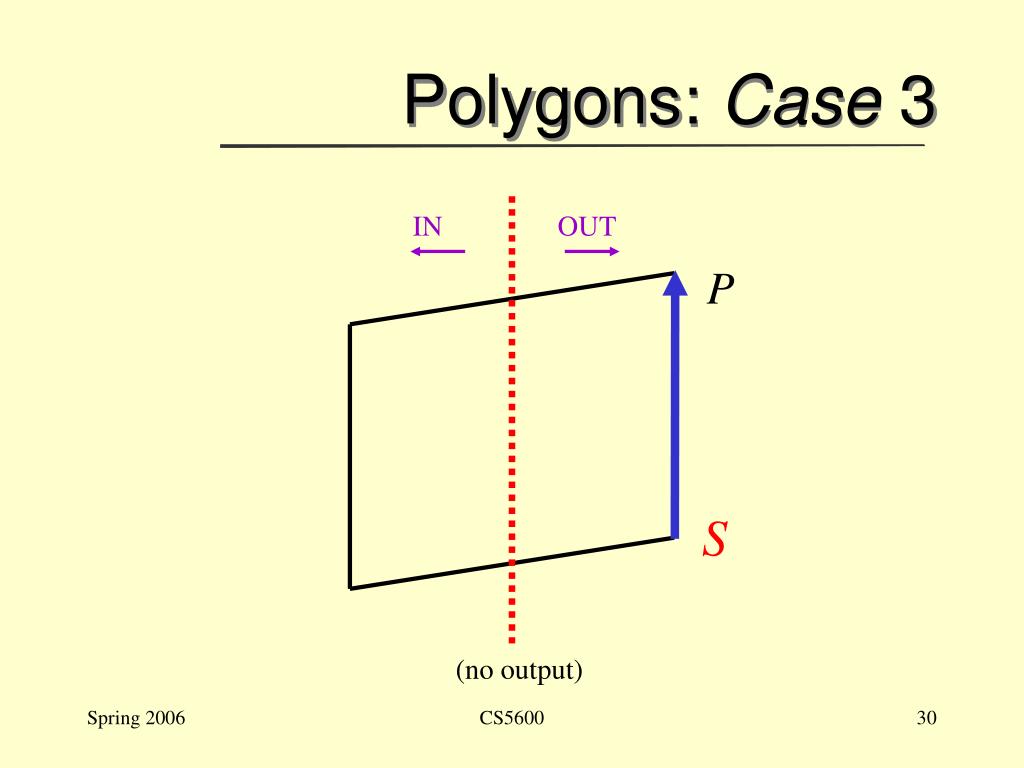

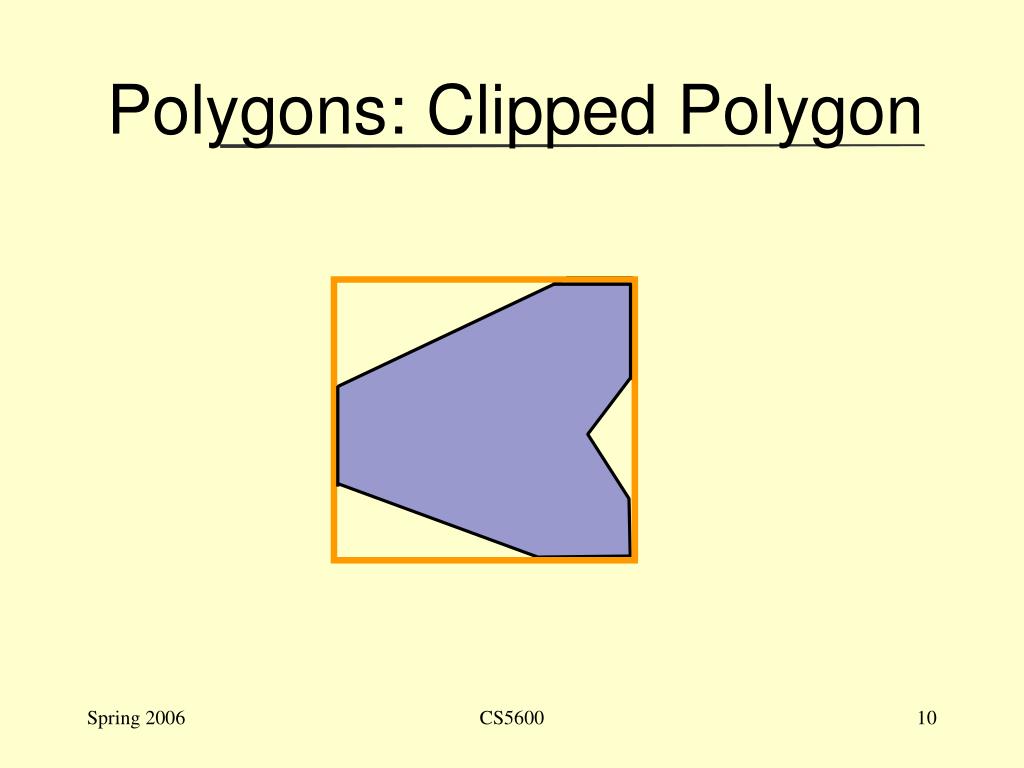

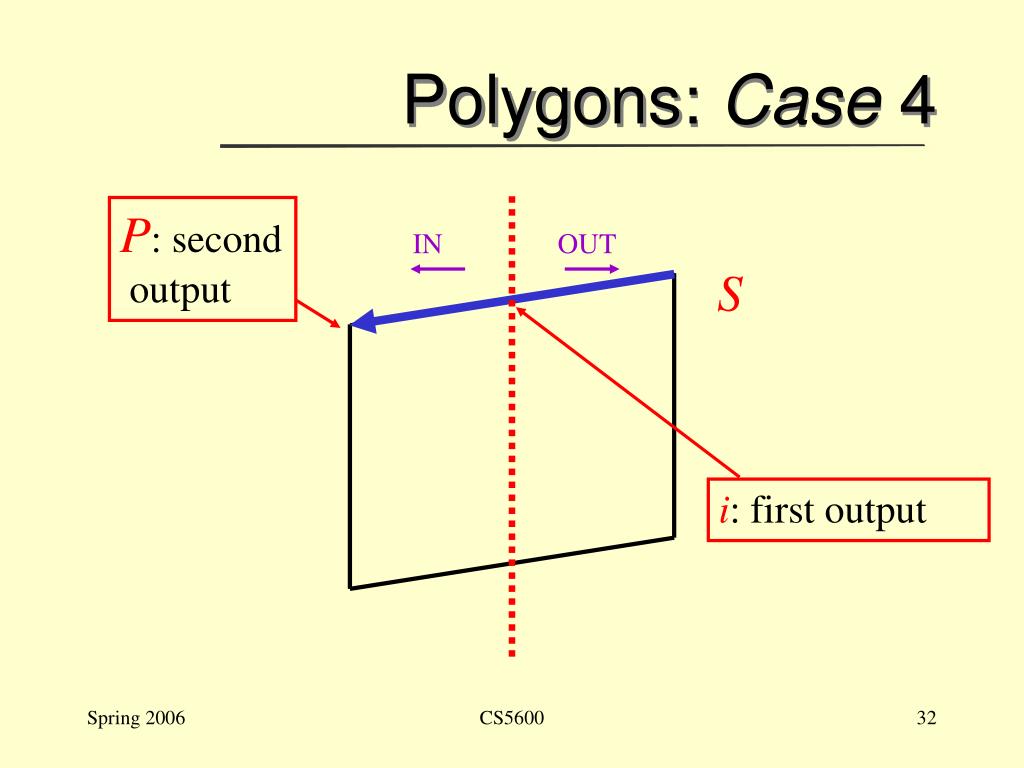

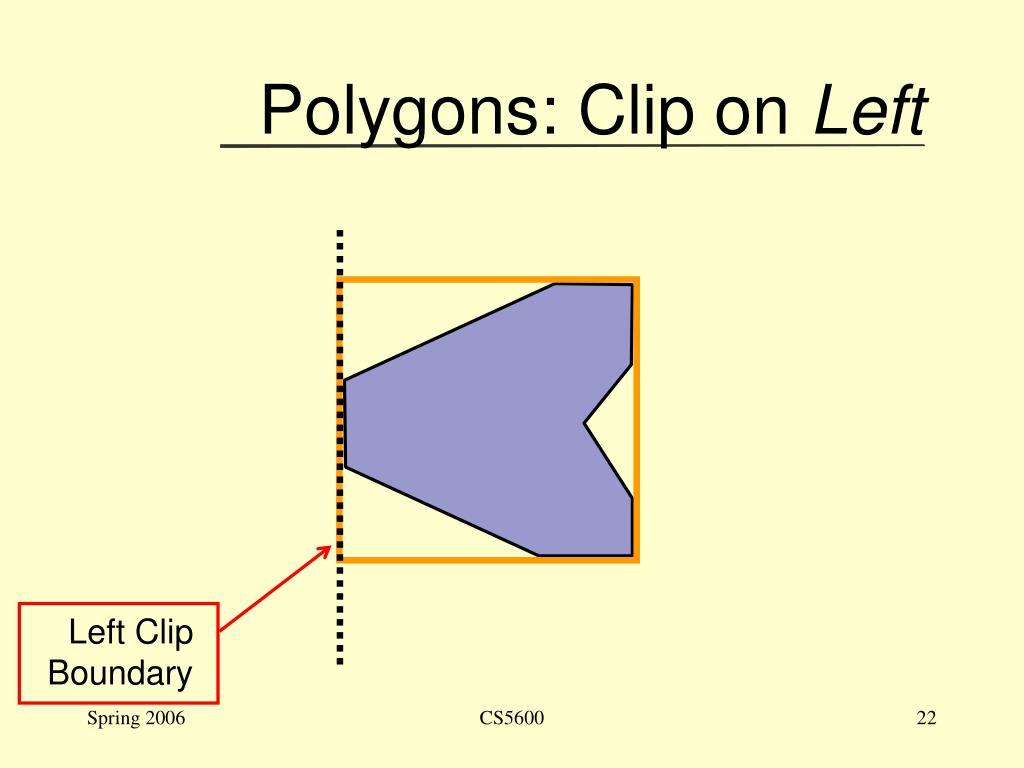

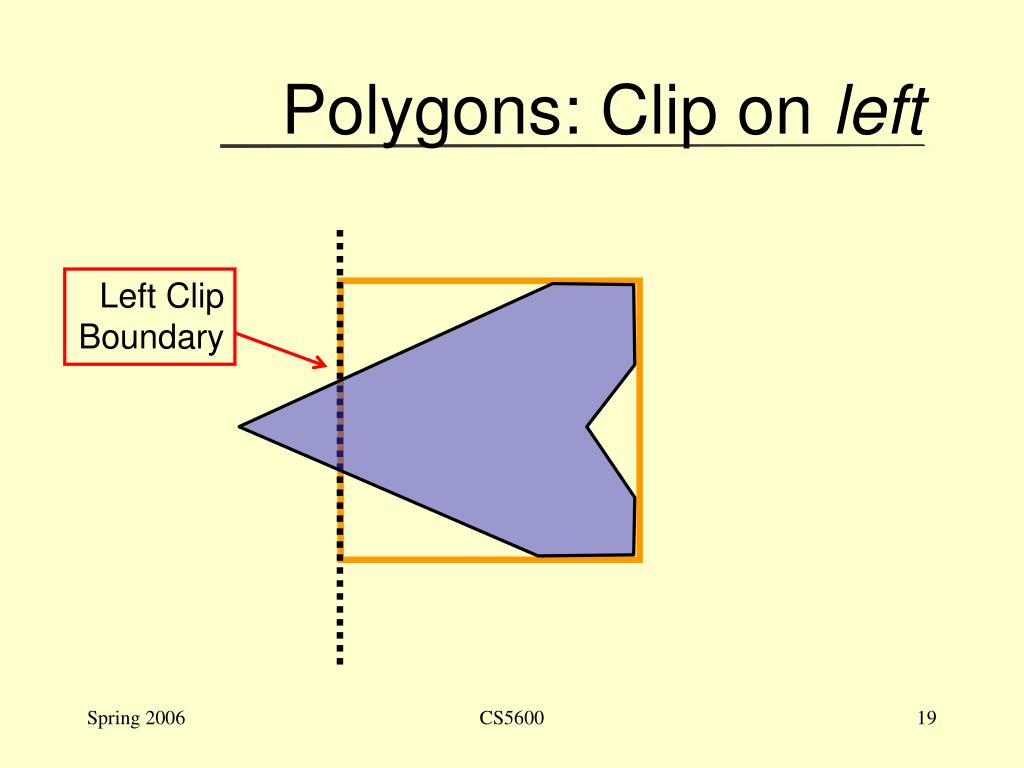

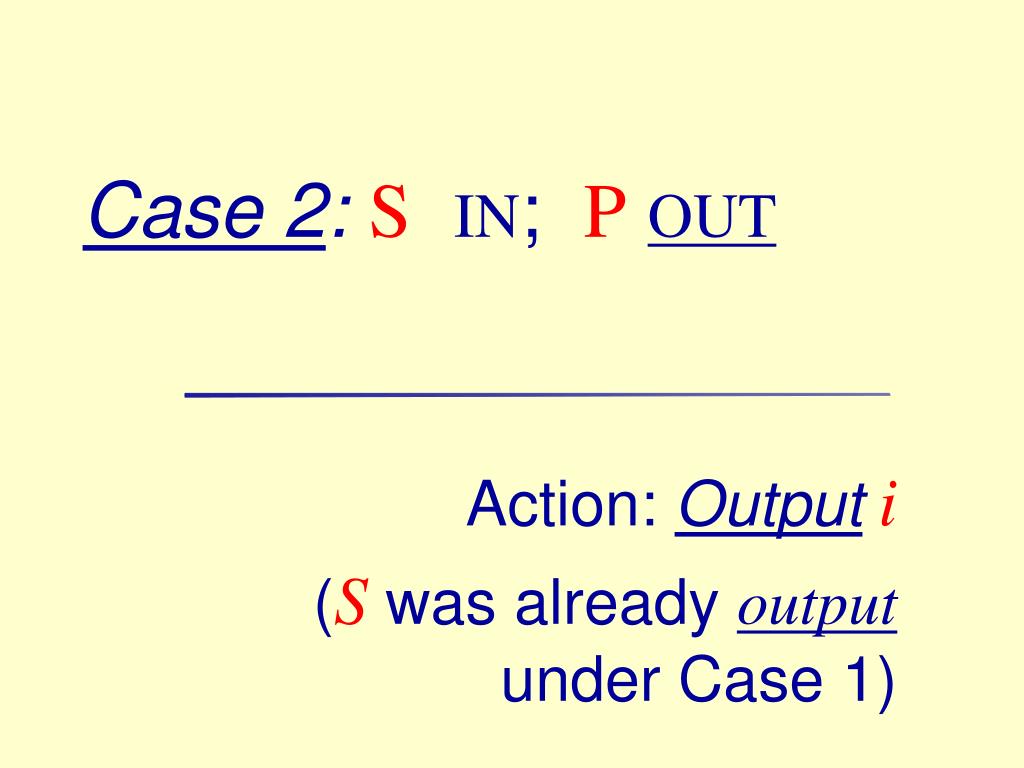

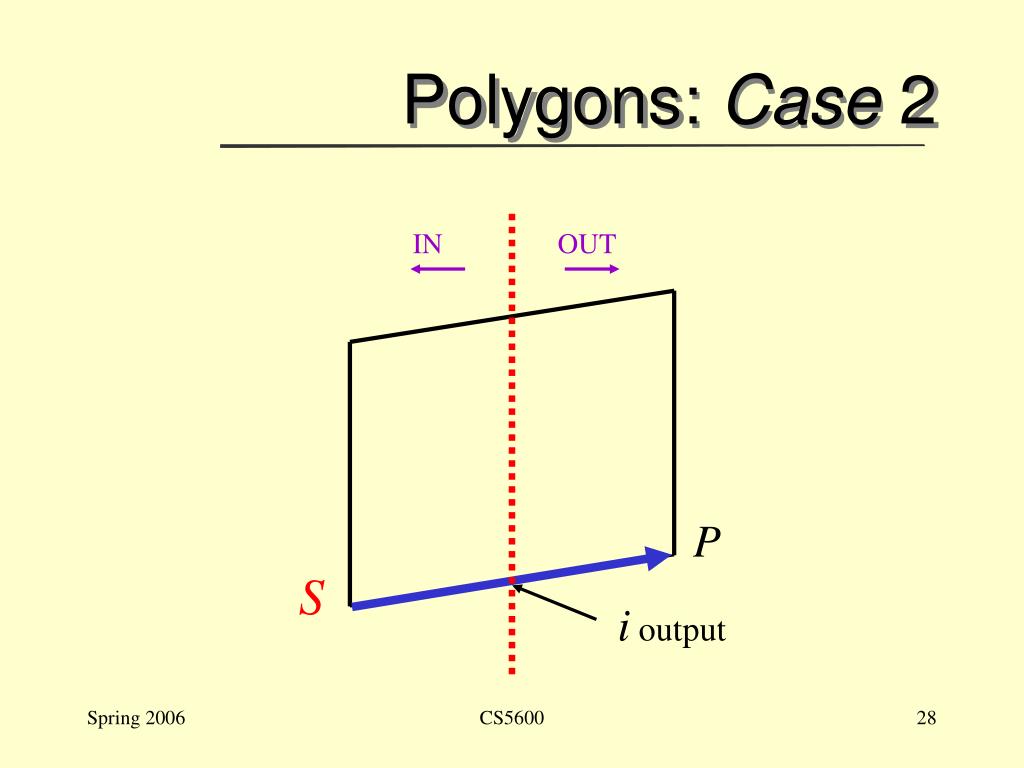

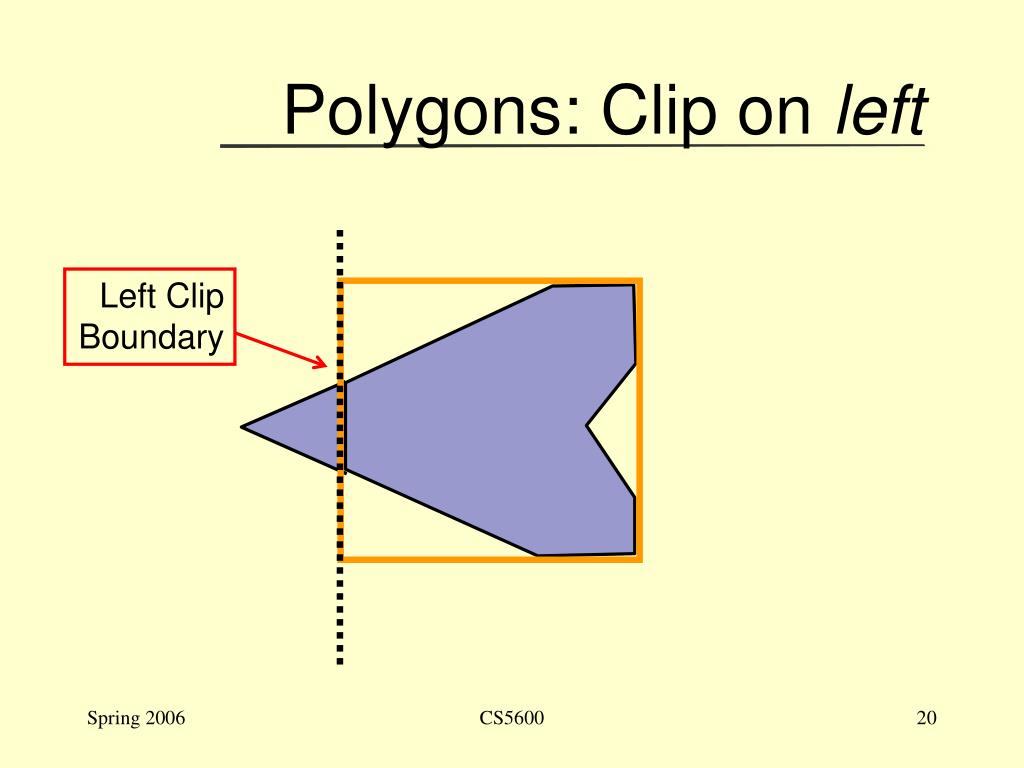

**Polygon Clipping**CS5600 Computer Graphics Rich Riesenfeld Spring 2006 Lecture Set 5**Ex: Simple Convex**CS5600**Ex: Multiple Components**CS5600**Nonconvex with Many Edges**CS5600**Polygons : Before Clipping**CS5600**Top Clip**Boundary Polygons: Clip on Top CS5600**Right Clip**Boundary Polygons: Clip on Right CS5600**Bottom Clip**Boundary Polygons: Clip on Bottom CS5600**LeftClip**Boundary Polygons: Clip on Left CS5600**Polygons: Clipped Polygon**CS5600**Begin Animated Recap**CS5600**Polygons: Before Clipping**CS5600**Top Clip**Boundary Polygons: Clip on Top CS5600**Top Clip**Boundary Polygons: Clip on Top CS5600**Right Clip**Boundary Polygons: Clip on Right CS5600**Right Clip**Boundary Polygons: Clip on Right CS5600**Bottom Clip**Boundary Polygons: Clip on Bottom CS5600**Bottom Clip**Boundary Polygons: Clip on Bottom CS5600**LeftClip**Boundary Polygons: Clip on left CS5600**LeftClip**Boundary Polygons: Clip on left CS5600**Polygons: Fully Clipped**CS5600**Polygons: Clip on Left**Left Clip Boundary CS5600**Polygons: Clipped Polygon**CS5600**End Animated Recap**CS5600**Polygons: Case 1**IN OUT S Polygon being clipped Clip boundary P: output CS5600**Case 1: S&Pboth IN**Action: OutputP**Polygons: Case 2**IN OUT P S i output CS5600**Case 2: SIN; POUT**Action: Outputi (Swas already output under Case 1)**Polygons: Case 3**IN OUT P S (no output) CS5600**Case 3: S&Pboth OUT**Action: None**Polygons: Case 4**P: second output IN OUT S i: first output CS5600**Case 4: SOUT; PIN**Action: Outputi and P**Action:OutputP**Case 1:S&Pboth IN Case 2: SIN; POUT Action:Outputi (Salready output under Case 1) Case 4:SOUT;PIN Case 3: S & P both OUT Action:OutputiandP Action:None**Hodgeman-Sutherland**CS5600**Hodgeman-Sutherland**CS5600**Hodgeman-Sutherland: Top**CS5600**Hodgeman-Sutherland: Top**CS5600**Hodgeman-Sutherland: Bottom**CS5600**Hodgeman-Sutherland: Bottom**CS5600**Hodgeman-Sutherland: Bottom**CS5600**Hodgeman-Sutherland: Right**CS5600**Hodgeman-Sutherland: Right**This case is trivial: donothing CS5600**Hodgeman-Sutherland: Left**CS5600**Hodgeman-Sutherland: Left**CS5600**Hodgeman-Sutherland: Left**CS5600**Hodgeman-Sutherland: Done**CS5600**Begin Animated Recap**CS5600**Top**Done
