  1. New Particlesin the Strange Charm System. Brian Meadows University of Cincinnati Brian Meadows, U. Cincinnati.

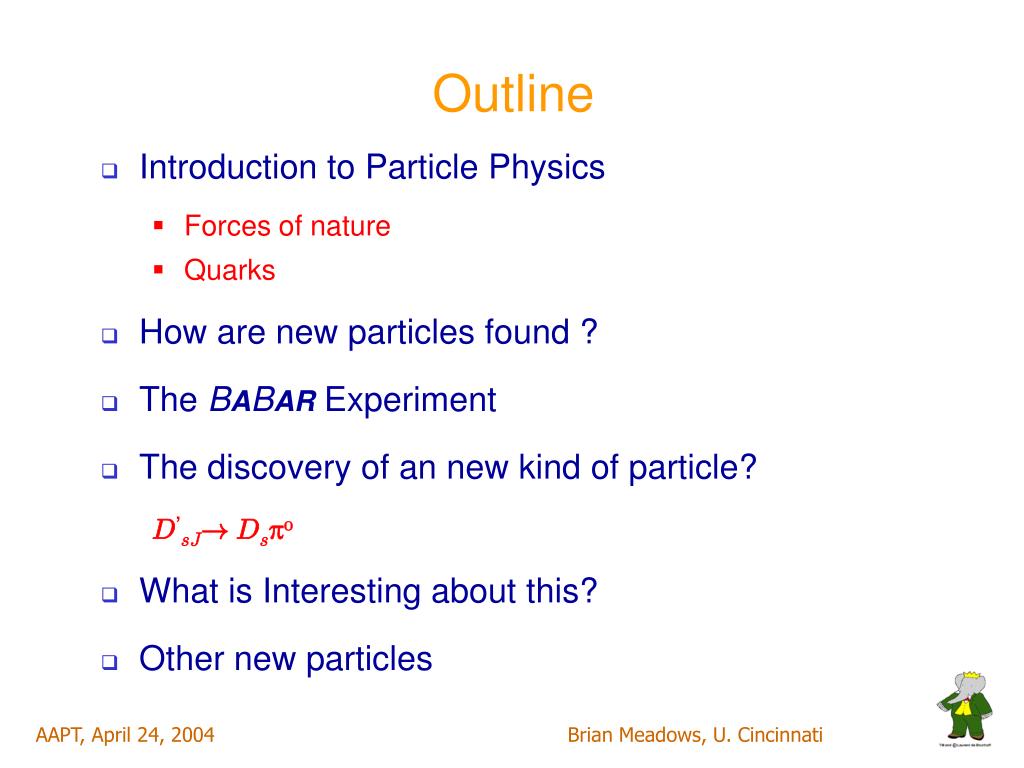

  2. Outline • Introduction to Particle Physics • Forces of nature • Quarks • How are new particles found ? • The BABAR Experiment • The discovery of an new kind of particle? D’sJ ! Ds0 • What is Interesting about this? • Other new particles Brian Meadows, U. Cincinnati

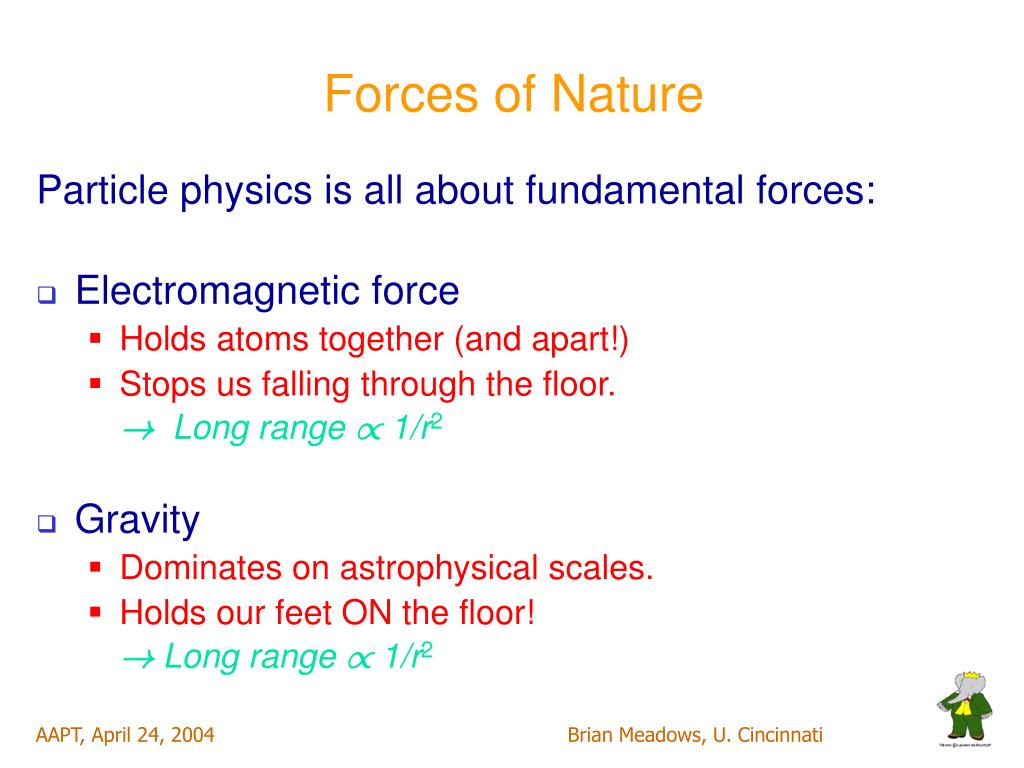

  3. Forces of Nature Particle physics is all about fundamental forces: • Electromagnetic force • Holds atoms together (and apart!) • Stops us falling through the floor. ! Long range / 1/r2 • Gravity • Dominates on astrophysical scales. • Holds our feet ON the floor! ! Long range / 1/r2 Brian Meadows, U. Cincinnati

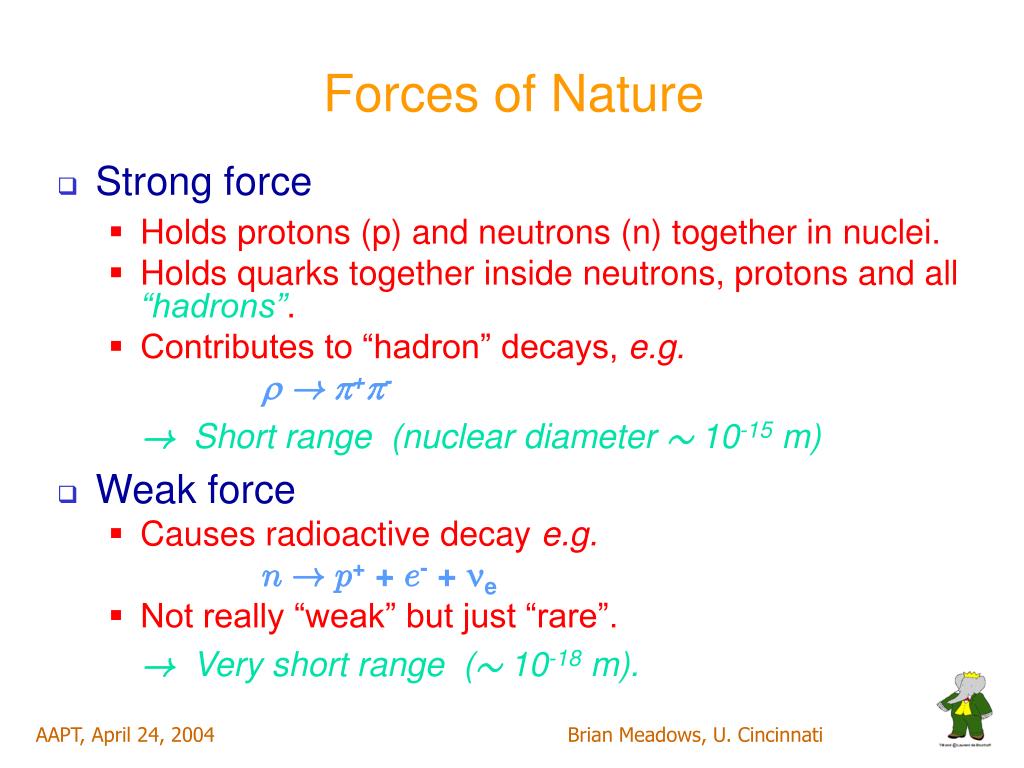

  4. Forces of Nature • Strong force • Holds protons (p) and neutrons (n) together in nuclei. • Holds quarks together inside neutrons, protons and all “hadrons”. • Contributes to “hadron” decays, e.g. r!p+p- ! Short range (nuclear diameter » 10-15 m) • Weak force • Causes radioactive decay e.g. n!p+ + e- + ne • Not really “weak” but just “rare”. ! Very short range (» 10-18 m). Brian Meadows, U. Cincinnati

  5. The Force Scales • Particles that leave “tracks” either • are stable OR • decay by weak interaction Brian Meadows, U. Cincinnati

  6. Quarks and Flavors • Just 6 quarks are building blocks for all strongly interacting particles (hadrons) • They come in two charges u c t - charge +2/3 e d s b - charge -1/3 e • Each has a unique “flavor”: “Isospin” : u (I = ½ ,I3 = + ½ ); d (I = ½ ,I3 = + ½ ) “Strangeness” : s (S = -1) “Charm” : c (C = +1) “Beauty” : b (B = +1) “Top” : t (T = +1) • “Baryon number” (B#) of each is 1/3. • Antiquarks have opposite charges, flavors and B#. Brian Meadows, U. Cincinnati

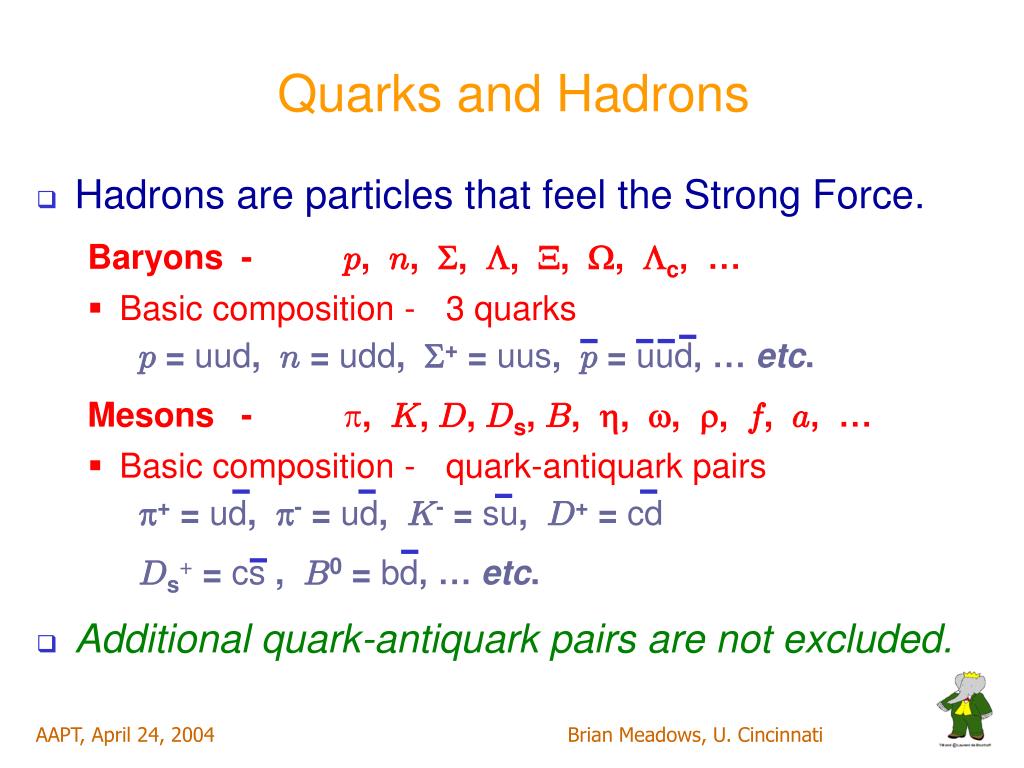

  7. Quarks and Hadrons • Hadrons are particles that feel the Strong Force. Baryons -p, n, , , , , c, … • Basic composition - 3 quarks p = uud, n = udd, + = uus, p = uud, … etc. Mesons -, K, D, Ds, B, , , , f, a, … • Basic composition - quark-antiquark pairs + = ud, - = ud, K- = su, D+ = cd Ds+ = cs , B0 = bd, … etc. • Additional quark-antiquark pairs are not excluded. Brian Meadows, U. Cincinnati

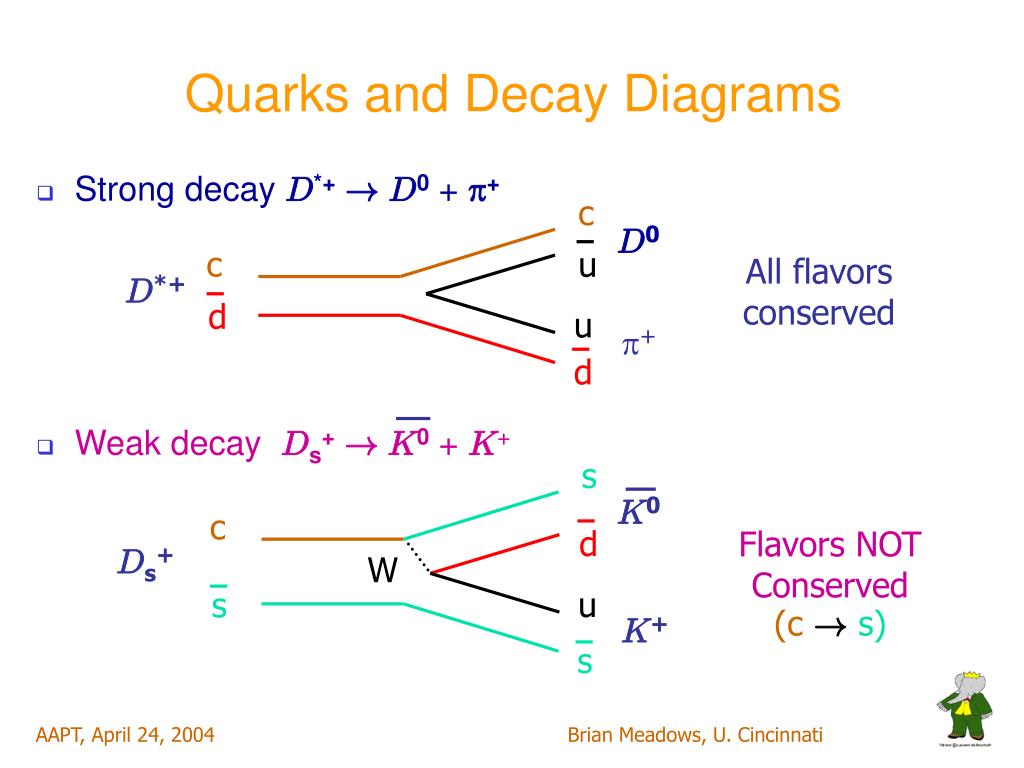

  8. d d d Quarks and Decay Diagrams • Strong decay D*+!D0 + + • Weak decay Ds+!K0 + K+ c D0 c u All flavors conserved D*+ u + s K0 c Flavors NOT Conserved (c!s) Ds+ W u s K+ s Brian Meadows, U. Cincinnati

  9. How to Find a New Particle • IFa) It is stable OR b) It decays by weak interaction: can observe it directly as a track in a set of detectors. • Its mass is the “effective mass M” of the decay products. For example Ds+!K-+K+++ of the indicated decay products. (Note – units are such that c=1!) Brian Meadows, U. Cincinnati

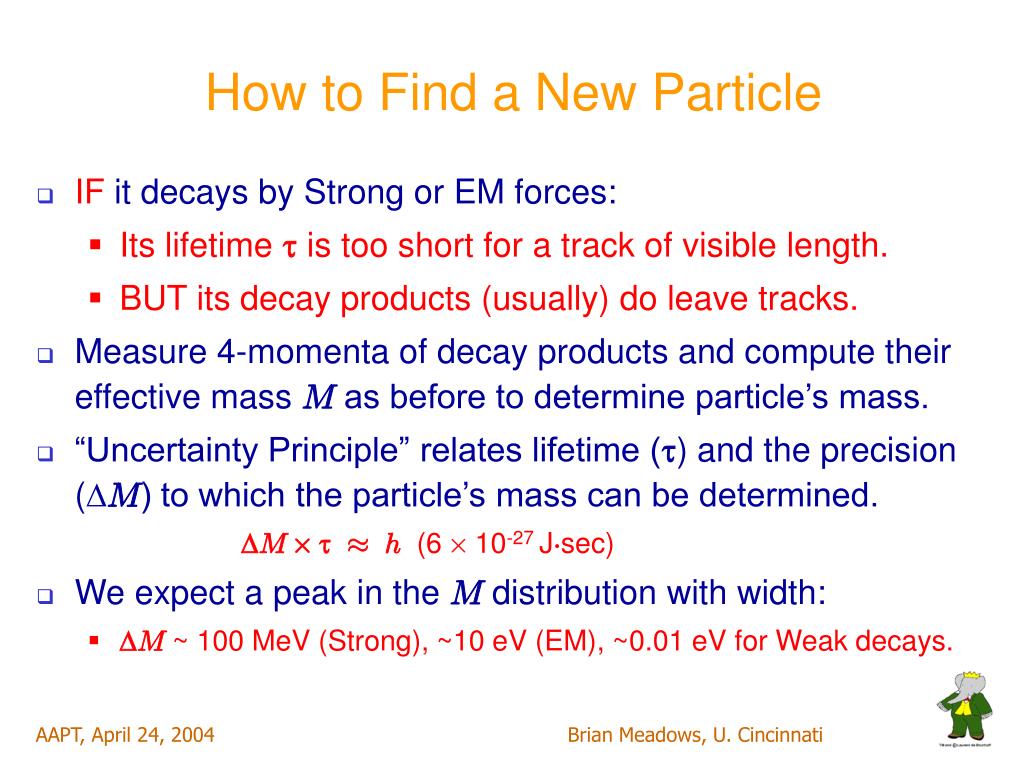

  10. How to Find a New Particle • IF it decays by Strong or EM forces: • Its lifetime  is too short for a track of visible length. • BUT its decay products (usually) do leave tracks. • Measure 4-momenta of decay products and compute their effective mass M as before to determine particle’s mass. • “Uncertainty Principle” relates lifetime () and the precision (M) to which the particle’s mass can be determined. M£¼h (6 £ 10-27 J¢sec) • We expect a peak in the M distribution with width: • M ~ 100 MeV (Strong), ~10 eV (EM), ~0.01 eV for Weak decays. Brian Meadows, U. Cincinnati

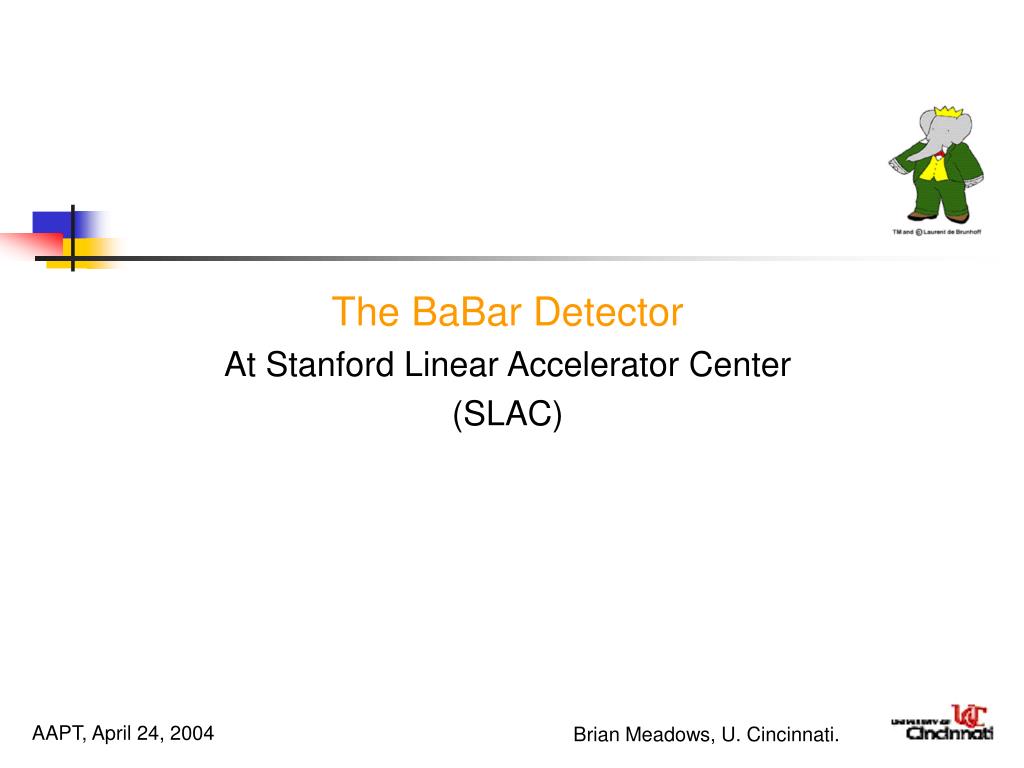

  11. The BaBar Detector At Stanford Linear Accelerator Center (SLAC) Brian Meadows, U. Cincinnati.

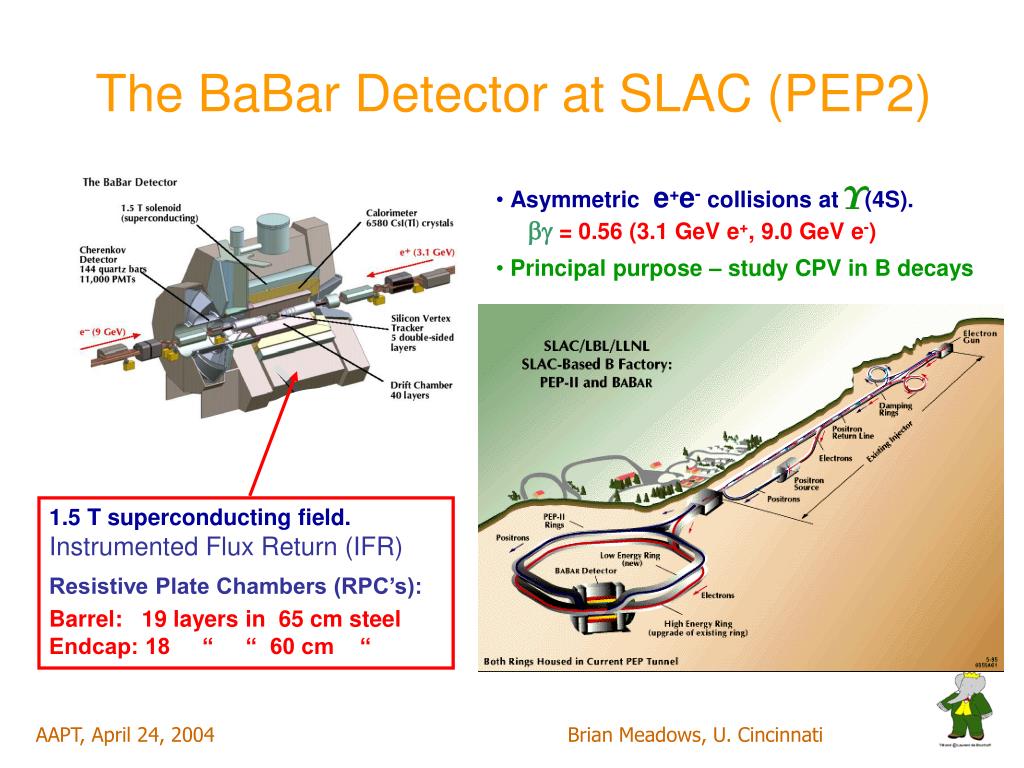

  12. The BaBar Detector at SLAC (PEP2) • Asymmetric e+e- collisions at (4S). •  = 0.56 (3.1 GeV e+, 9.0 GeV e-) • Principal purpose – study CPV in B decays 1.5 T superconducting field. Instrumented Flux Return (IFR) Resistive Plate Chambers (RPC’s): Barrel: 19 layers in 65 cm steel Endcap: 18 “ “ 60 cm “ Brian Meadows, U. Cincinnati

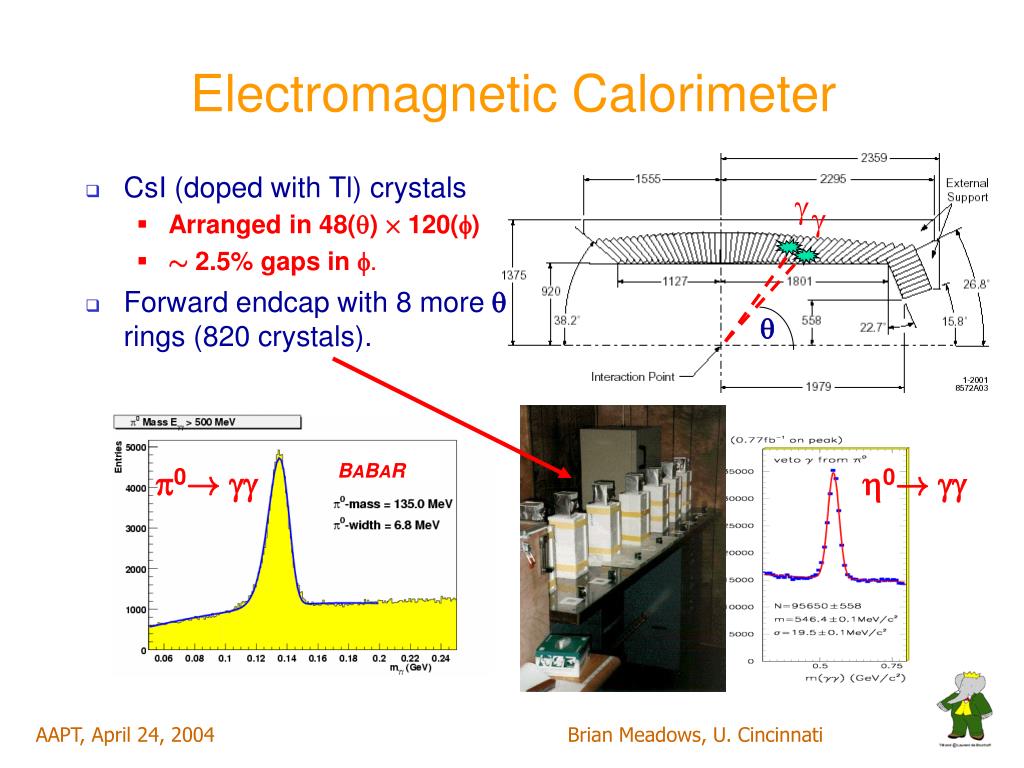

  13. Electromagnetic Calorimeter • CsI (doped with Tl) crystals • Arranged in 48()£120() • » 2.5% gaps in . • Forward endcap with 8 more  rings (820 crystals). g g  BABAR  0!gg 0!gg Brian Meadows, U. Cincinnati

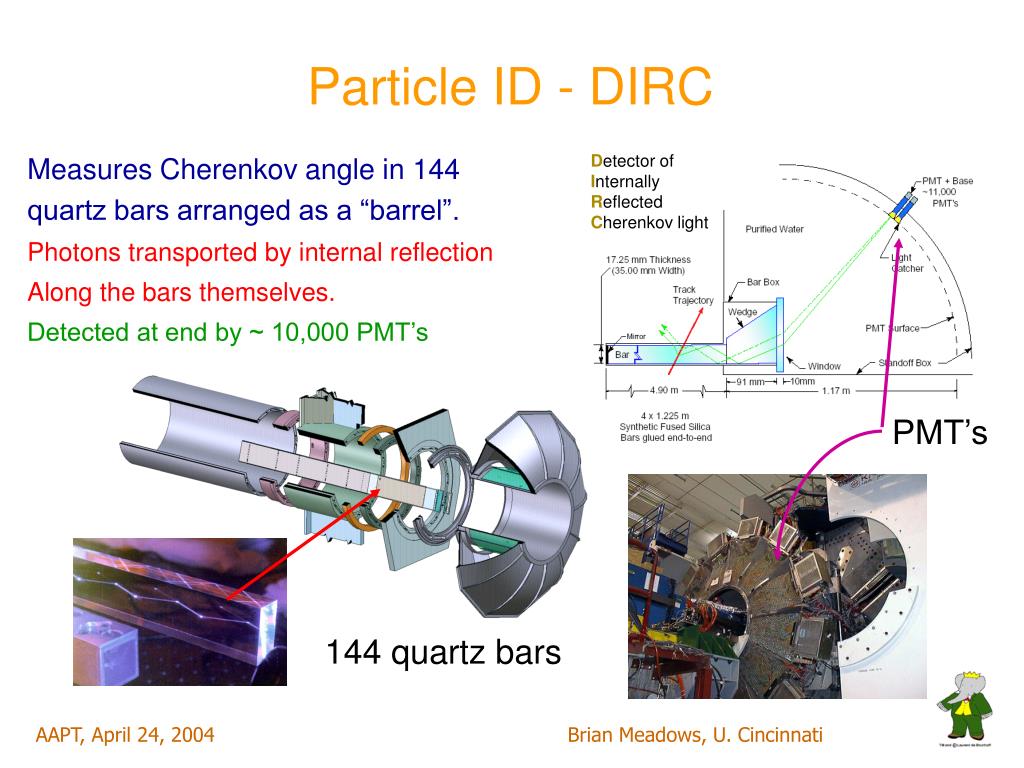

  14. 144 quartz bars Particle ID - DIRC • Measures Cherenkov angle in 144 quartz bars arranged as a “barrel”. • Photons transported by internal reflection • Along the bars themselves. • Detected at end by ~ 10,000 PMT’s Detector of Internally Reflected Cherenkov light PMT’s Brian Meadows, U. Cincinnati

  15. Particle ID - DIRC It Works Beautifully! 10 8 6 4 2 0 BABAR K/ separation () Provides excellent K/ separation over the whole kinematic range • 2.5 3 3.5 4 • Momentum (GeV/c) Brian Meadows, U. Cincinnati

  16. Drift Chamber 40 layer small cell design 7104 cells He-Isobutane for low multiple scattering dE/dx Resolution »7.5% Mean position Resolution 125 m Brian Meadows, U. Cincinnati

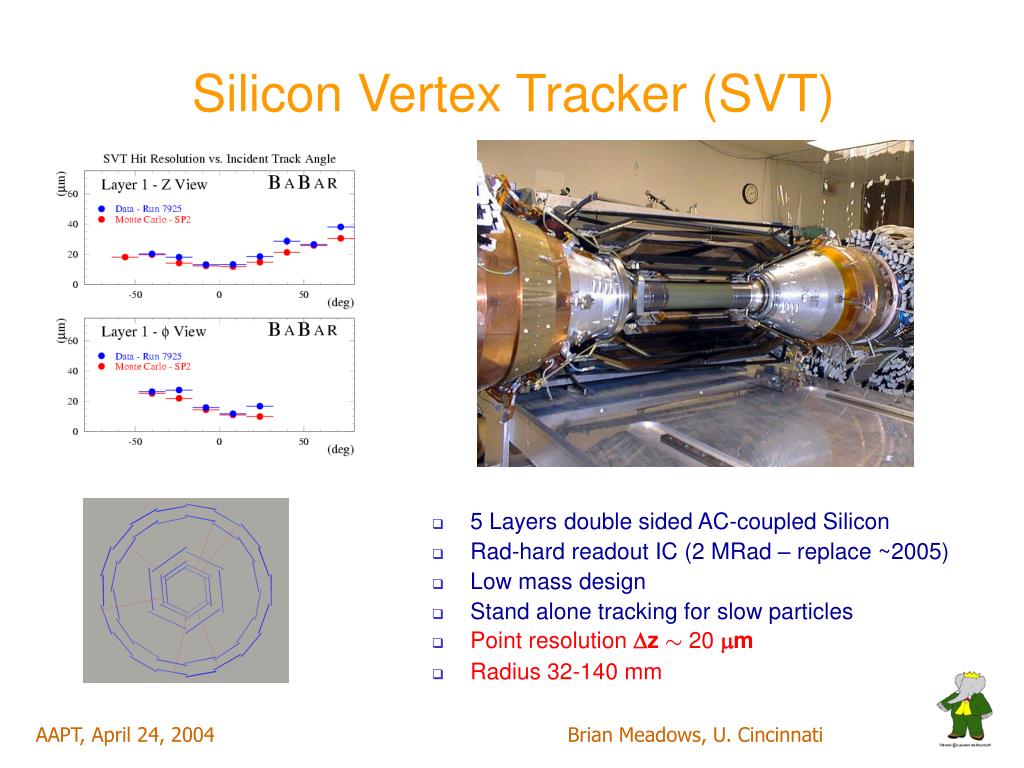

  17. Silicon Vertex Tracker (SVT) • 5 Layers double sided AC-coupled Silicon • Rad-hard readout IC (2 MRad – replace ~2005) • Low mass design • Stand alone tracking for slow particles • Point resolution z» 20 m • Radius 32-140 mm Brian Meadows, U. Cincinnati

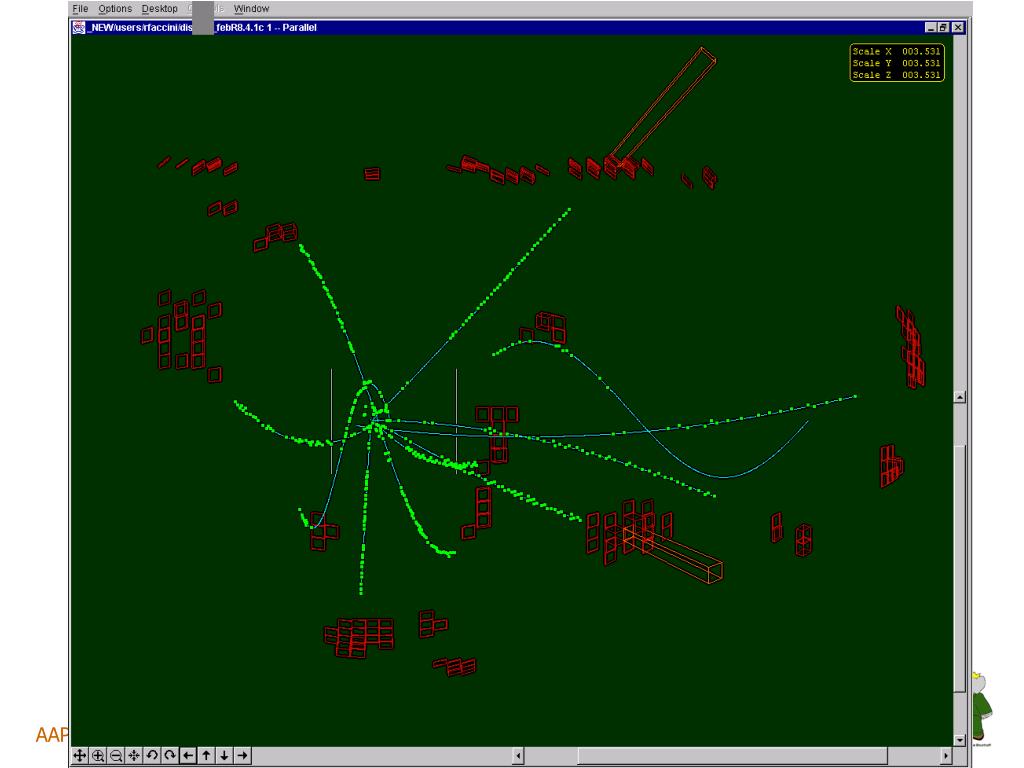

  18. “A Typical Event”  clusters Brian Meadows, U. Cincinnati

  19. Brian Meadows, U. Cincinnati

  20. Brian Meadows, U. Cincinnati

  21. Surprising Discovery of New Particle Brian Meadows, U. Cincinnati.

  22. Data Selection • We looked for decays of well known particles: Ds! K-K++ and: 0! • The Ds decays are weak • So it leaves a track. • The 0 decays are EM • So there is no track. • 0’s could come from either end of the Ds track. Brian Meadows, U. Cincinnati

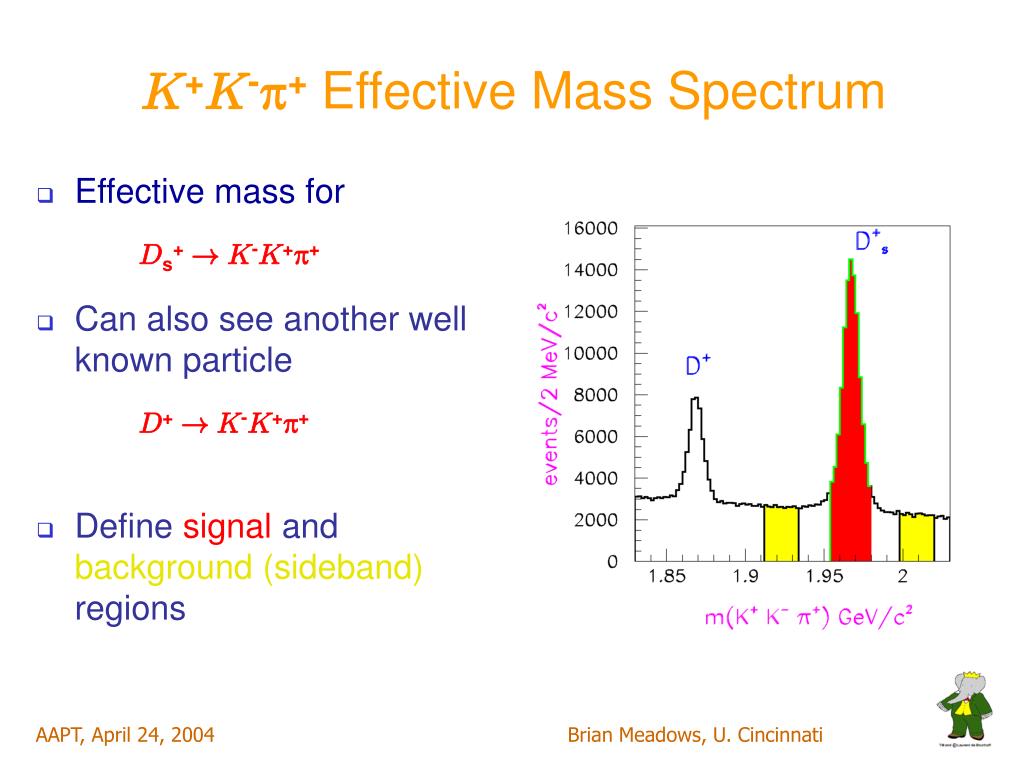

  23. K+K-+ Effective Mass Spectrum • Effective mass for Ds+!K-K++ • Can also see another well known particle D+!K-K++ • Define signal and background(sideband) regions Brian Meadows, U. Cincinnati

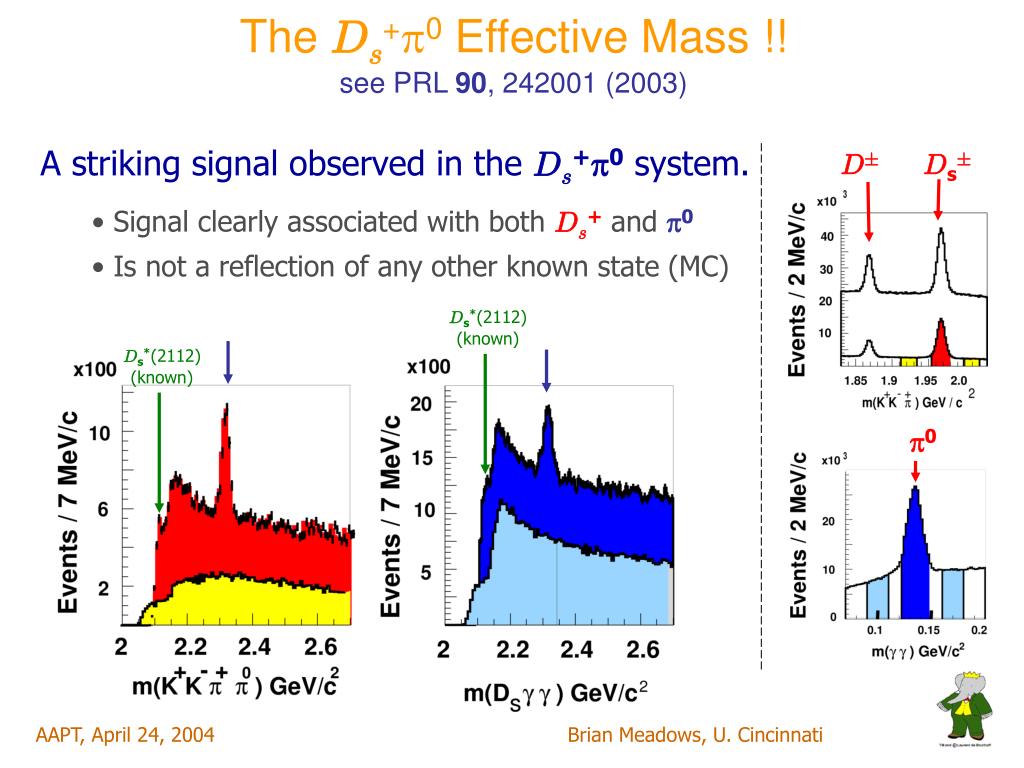

  24. The Ds+0 Effective Mass !!see PRL 90, 242001 (2003) • A striking signal observed in the Ds+0 system. • Signal clearly associated with both Ds+ and 0 • Is not a reflection of any other known state (MC) D § Ds§ Ds*(2112) (known) Ds*(2112) (known) 0 Brian Meadows, U. Cincinnati

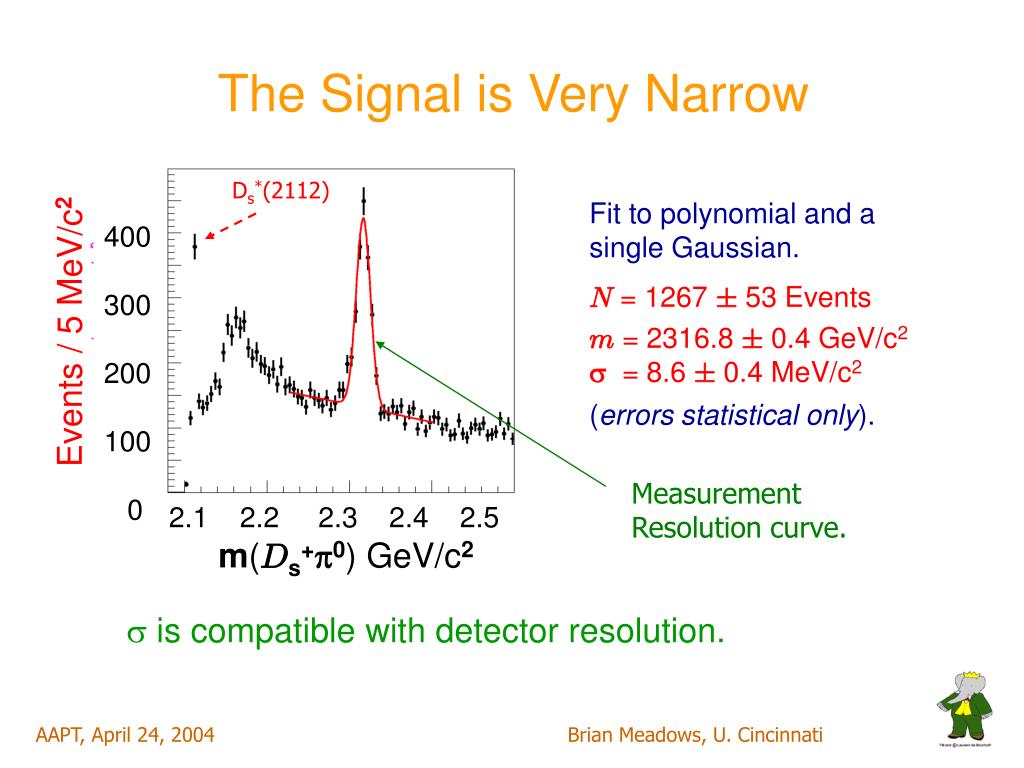

  25. 400 300 200 100 0 Events / 5 MeV/c2 2.1 2.2 2.3 2.4 2.5 m(Ds+0) GeV/c2 The Signal is Very Narrow Ds*(2112) Fit to polynomial and a single Gaussian. N = 1267 § 53 Events m = 2316.8 § 0.4 GeV/c2 = 8.6 § 0.4 MeV/c2 (errors statistical only). Measurement Resolution curve.  is compatible with detector resolution. Brian Meadows, U. Cincinnati

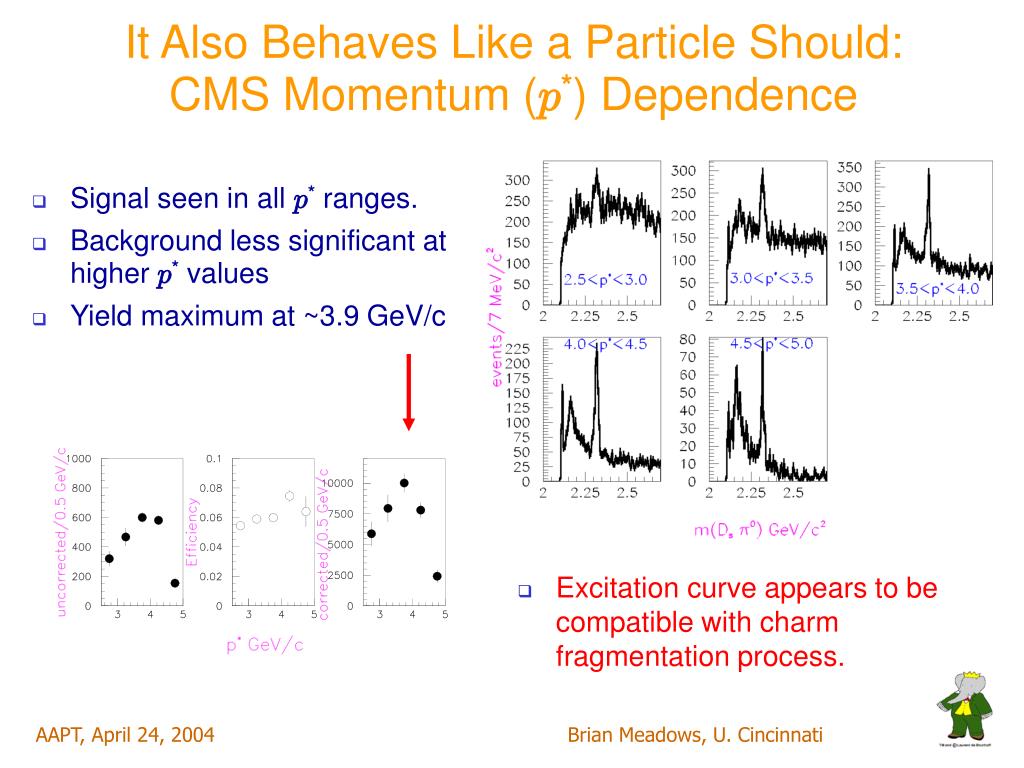

  26. It Also Behaves Like a Particle Should:CMS Momentum (p*) Dependence • Signal seen in all p* ranges. • Background less significant at higher p* values • Yield maximum at ~3.9 GeV/c • Excitation curve appears to be compatible with charm fragmentation process. Brian Meadows, U. Cincinnati

  27. 250 200 150 100 50 0  200 150 100 50 0 K* Events / 5 MeV/c2 2.1 2.3 2.5 2.1 2.3 2.5 m(Ds+0)GeV/c2 Multiple Ds+ Modes • Separate Ds+!K-K++ into + and K¤0K+ subsamples: • Ds*+(2112) and signal at 2.317 GeV/c2 present in both channels with roughly equal strength. p* > 3.5 GeV/c Brian Meadows, U. Cincinnati

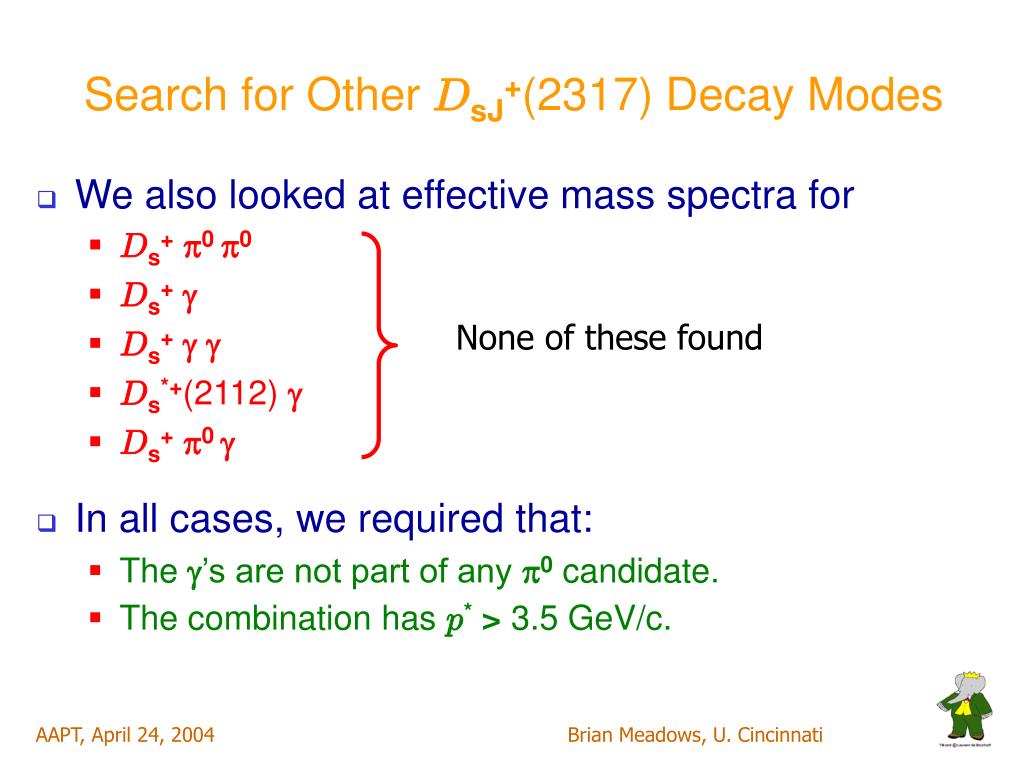

  28. Search for Other DsJ+(2317) Decay Modes • We also looked at effective mass spectra for • Ds+0 0 • Ds+ • Ds+  • Ds*+(2112) • Ds+0  • In all cases, we required that: • The ’s are not part of any 0 candidate. • The combination has p* > 3.5 GeV/c. None of these found Brian Meadows, U. Cincinnati

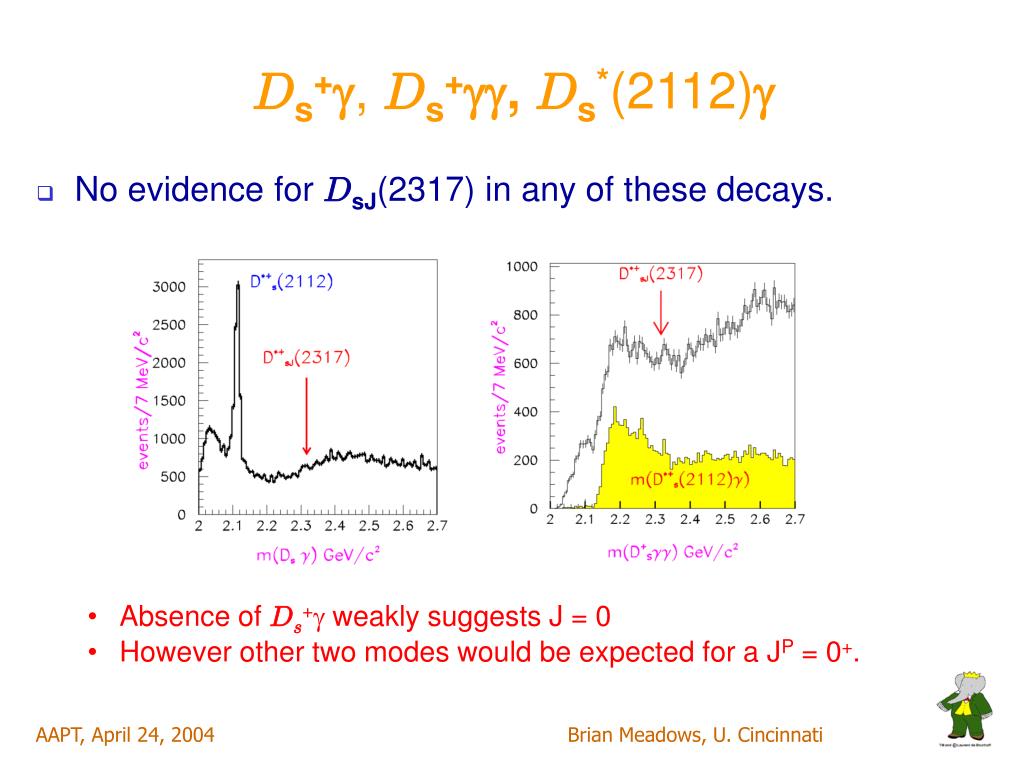

  29. Ds+, Ds+, Ds*(2112) • No evidence for DsJ(2317) in any of these decays. • Absence of Ds+ weakly suggests J = 0 • However other two modes would be expected for a JP = 0+. Brian Meadows, U. Cincinnati

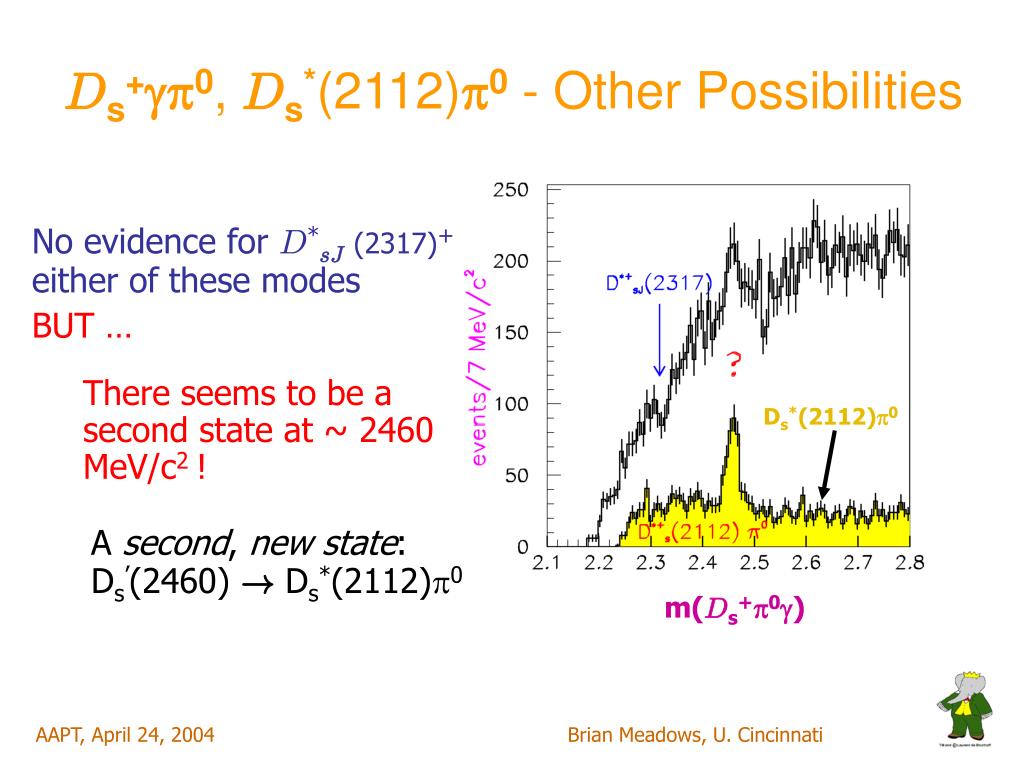

  30. Ds+0, Ds*(2112)0- Other Possibilities • No evidence for D*sJ(2317)+ either of these modes • BUT … • There seems to be a second state at ~ 2460 MeV/c2 ! Events / 7 MeV/c2 Ds*(2112)0 A second, newstate: Ds’(2460) ! Ds*(2112)p0 m(Ds+0) Brian Meadows, U. Cincinnati

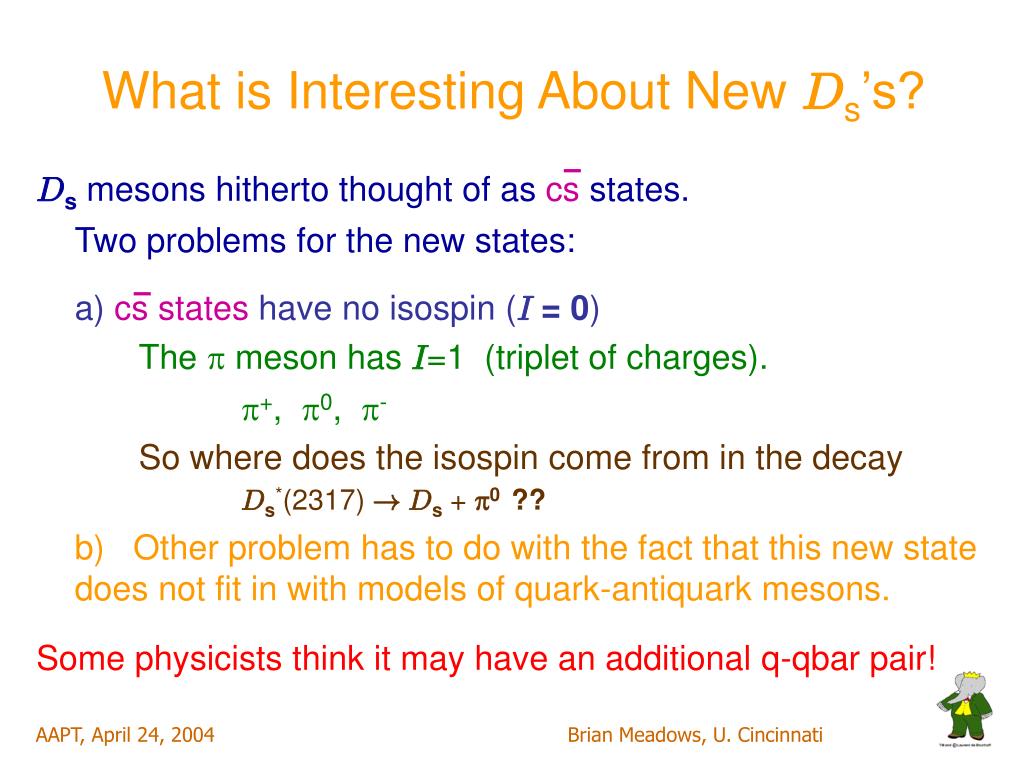

  31. What is Interesting About New Ds’s? Ds mesons hitherto thought of as cs states. Two problems for the new states: a) cs states have no isospin (I = 0) The p meson has I=1 (triplet of charges). p+, p0, p- So where does the isospin come from in the decay Ds*(2317) !Ds + p0?? b) Other problem has to do with the fact that this new state does not fit in with models of quark-antiquark mesons. Some physicists think it may have an additional q-qbar pair! Brian Meadows, U. Cincinnati

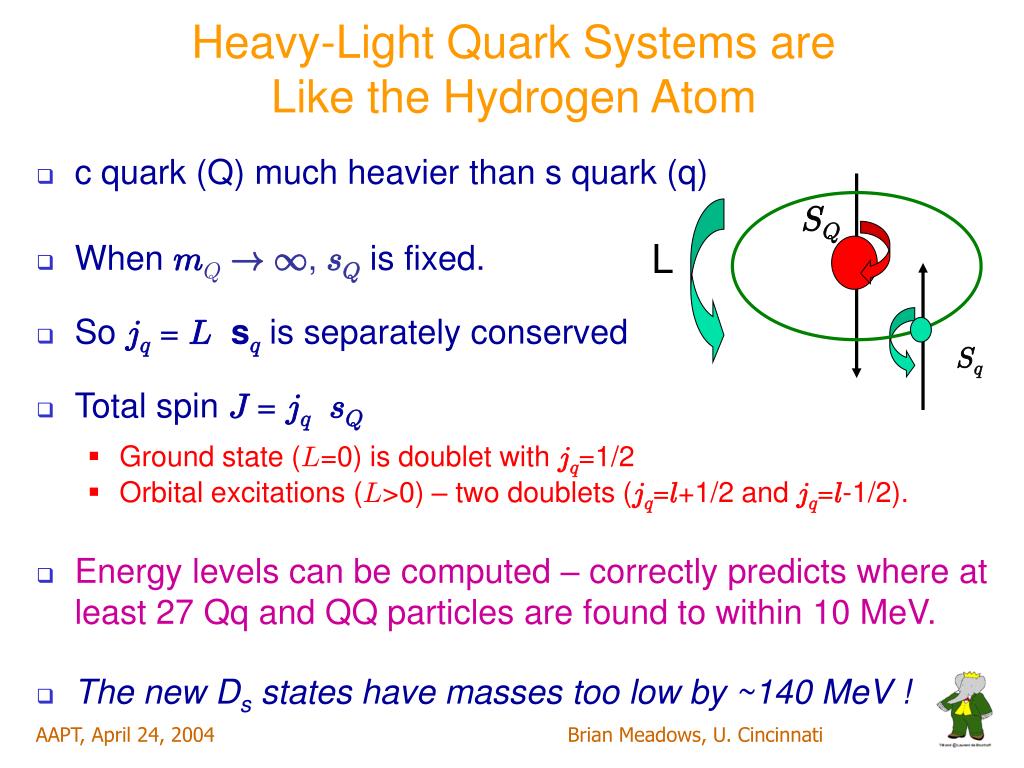

  32. SQ L Sq Heavy-Light Quark Systems areLike the Hydrogen Atom • c quark (Q) much heavier than s quark (q) • When mQ ! 1, sQ is fixed. • So jq = L­sq is separately conserved • Total spin J = jq­sQ • Ground state (L=0) is doublet with jq=1/2 • Orbital excitations (L>0) – two doublets (jq=l+1/2 and jq=l-1/2). • Energy levels can be computed – correctly predicts where at least 27 Qq and QQ particles are found to within 10 MeV. • The new Ds states have masses too low by ~140 MeV ! Brian Meadows, U. Cincinnati

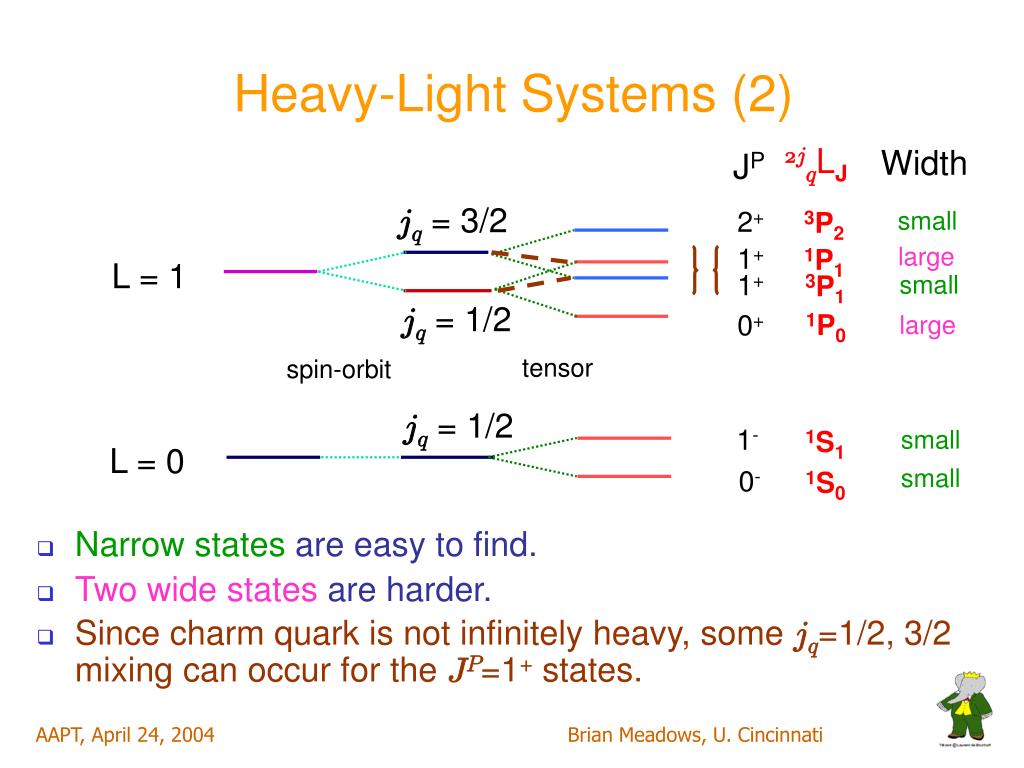

  33. Heavy-Light Systems (2) 2jqLJ Width JP • Narrow statesare easy to find. • Two wide states are harder. • Since charm quark is not infinitely heavy, some jq=1/2, 3/2 mixing can occur for the JP=1+ states. jq = 3/2 2+ small 3P2 large 1+ 1P1 L = 1 1+ 3P1 small jq = 1/2 1P0 0+ large tensor spin-orbit jq = 1/2 1- small 1S1 L = 0 small 0- 1S0 Brian Meadows, U. Cincinnati

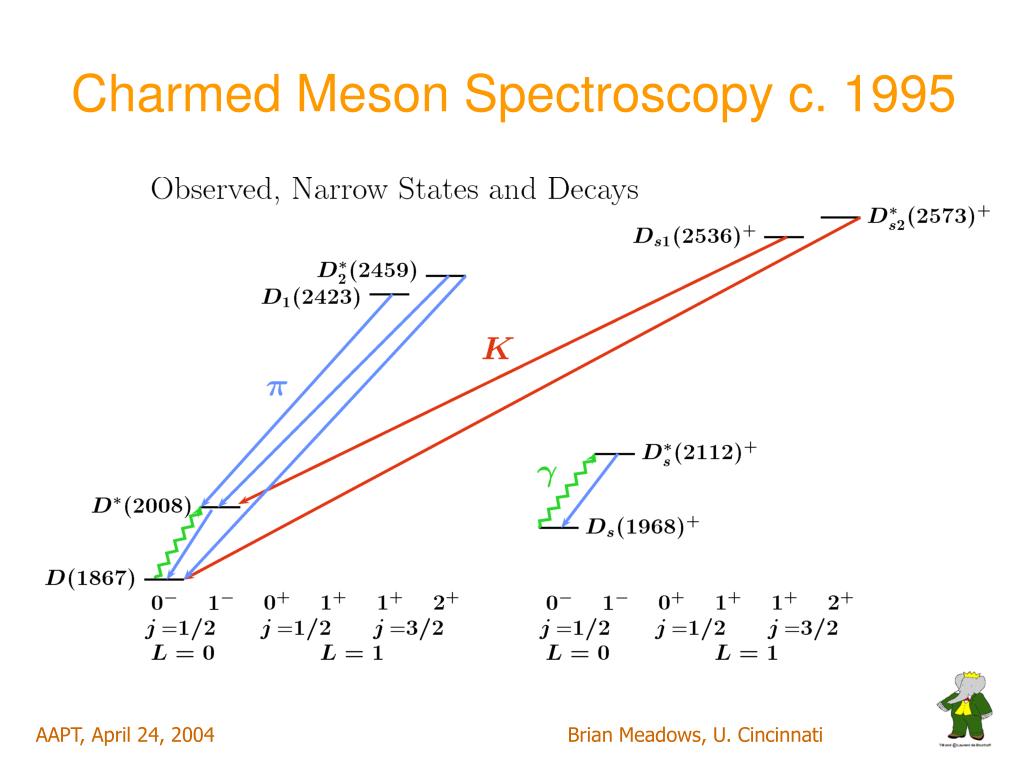

  34. Charmed Meson Spectroscopy c. 1995 Brian Meadows, U. Cincinnati

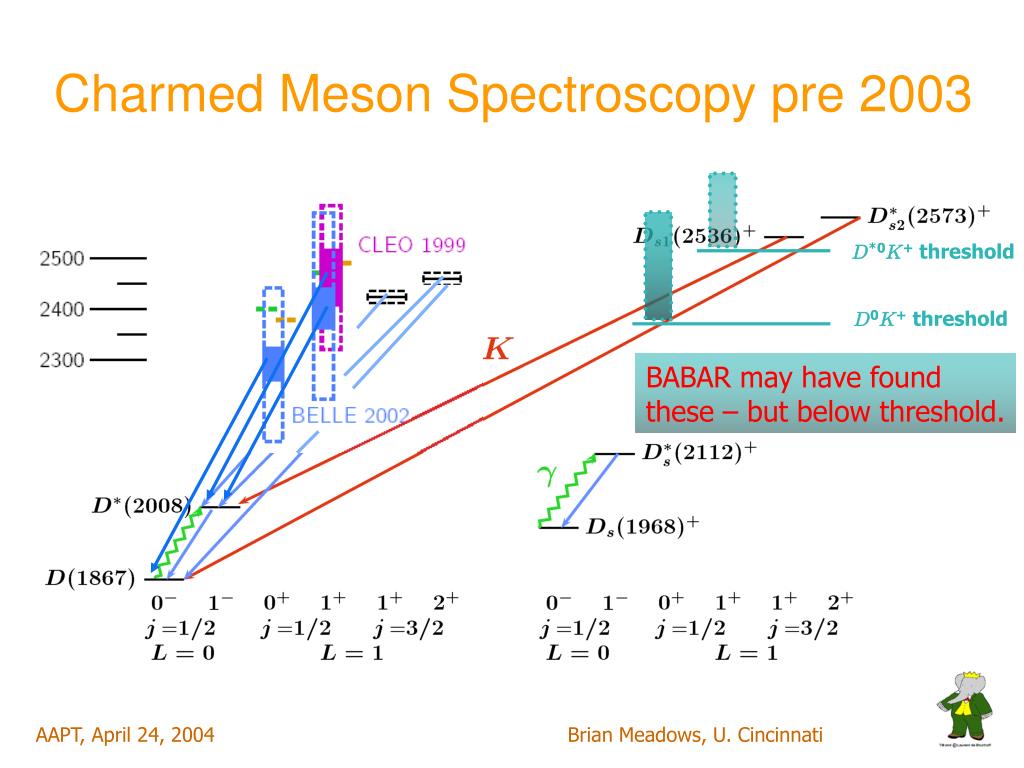

  35. Charmed Meson Spectroscopy pre 2003 D*0K+threshold D0K+threshold BABAR may have found these – but below threshold. Brian Meadows, U. Cincinnati

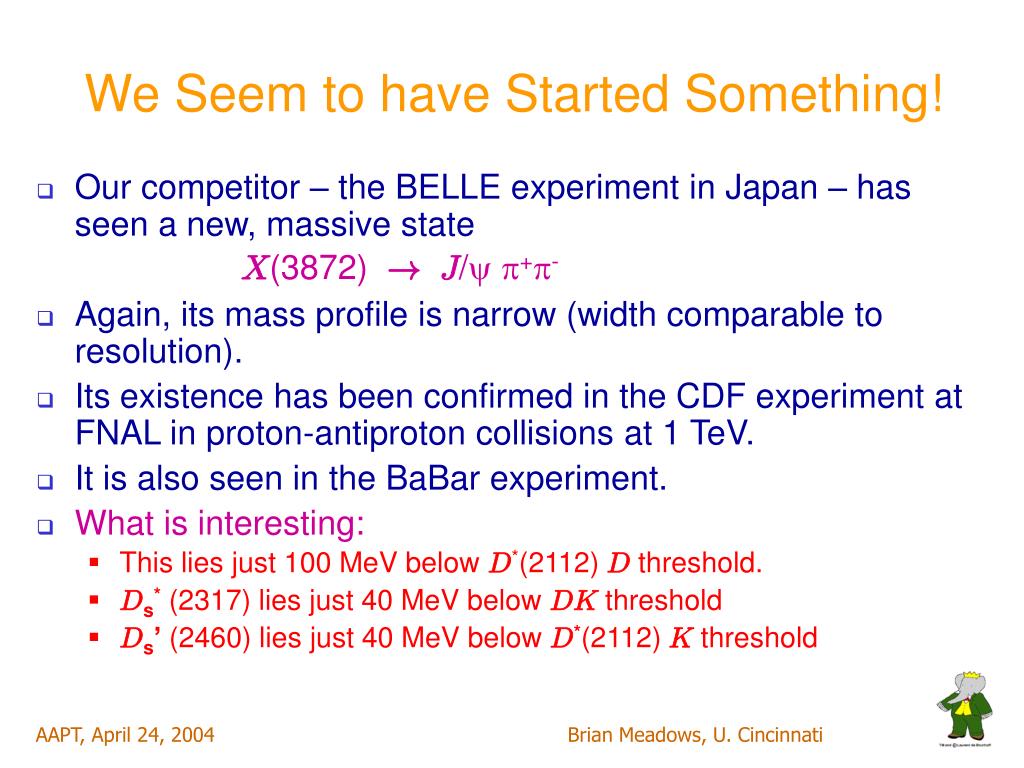

  36. We Seem to have Started Something! • Our competitor – the BELLE experiment in Japan – has seen a new, massive state X(3872) !J/+- • Again, its mass profile is narrow (width comparable to resolution). • Its existence has been confirmed in the CDF experiment at FNAL in proton-antiproton collisions at 1 TeV. • It is also seen in the BaBar experiment. • What is interesting: • This lies just 100 MeV below D*(2112) D threshold. • Ds* (2317) lies just 40 MeV below DK threshold • Ds’ (2460) lies just 40 MeV below D*(2112) K threshold Brian Meadows, U. Cincinnati

  37. Yet Another New Narrow State! BELLE’s “X” CDF Confirms “X” BELLE : m = 3872.0 § 0.6 § 0.5 MeV/c2 CDF : m = 3871.4 § 0.7 (stat.) MeV/c2  compatible with resolution. Brian Meadows, U. Cincinnati

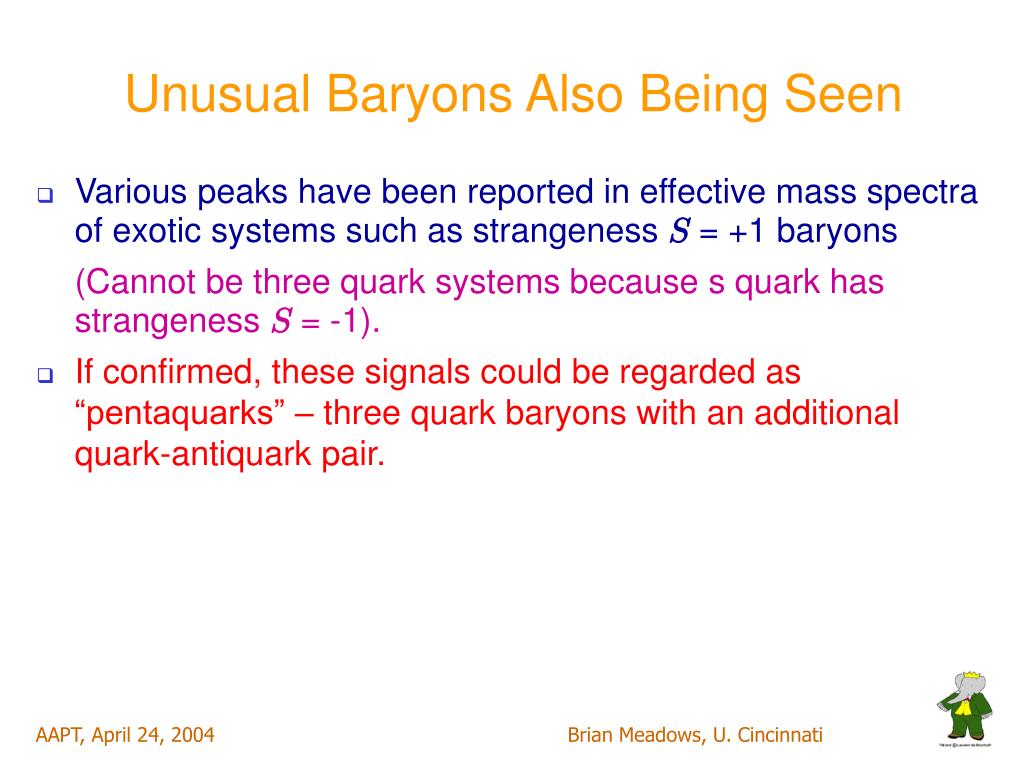

  38. Unusual Baryons Also Being Seen • Various peaks have been reported in effective mass spectra of exotic systems such as strangeness S = +1 baryons (Cannot be three quark systems because s quark has strangeness S = -1). • If confirmed, these signals could be regarded as “pentaquarks” – three quark baryons with an additional quark-antiquark pair. Brian Meadows, U. Cincinnati

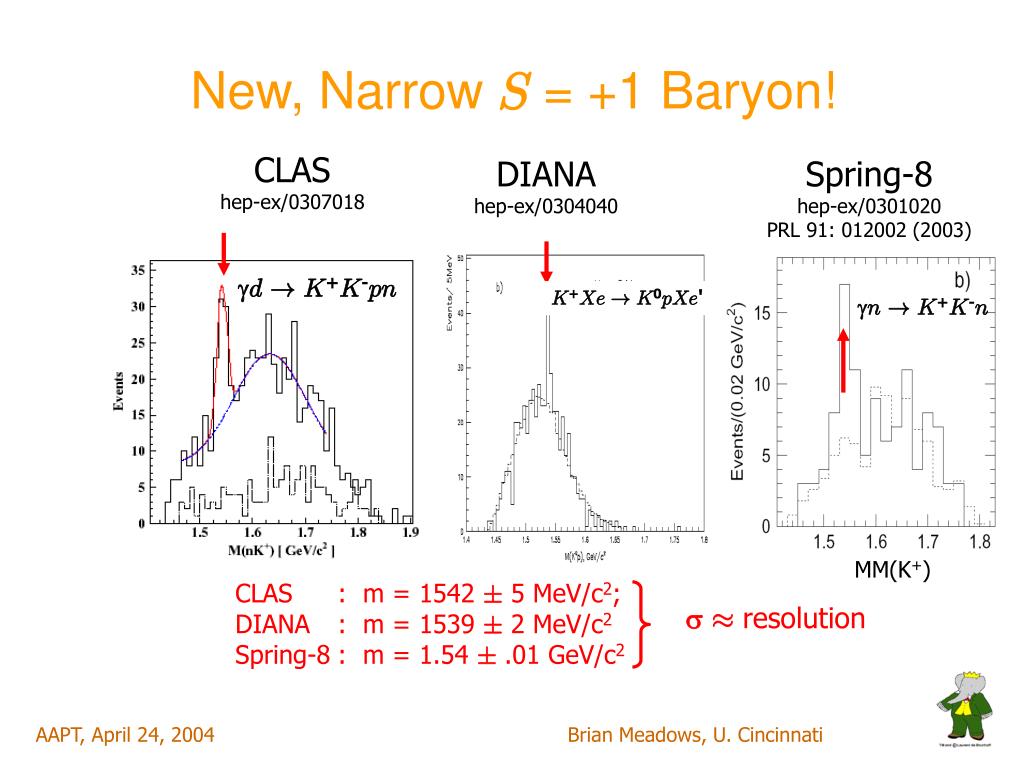

  39. New, Narrow S = +1 Baryon! CLAS hep-ex/0307018 DIANA hep-ex/0304040 Spring-8 hep-ex/0301020 PRL 91: 012002 (2003) d!K+K-pn K+Xe!K0pXe'  n!K+K-n MM(K+) CLAS : m = 1542 § 5 MeV/c2; DIANA : m = 1539 § 2 MeV/c2 Spring-8 : m = 1.54 § .01 GeV/c2 ¼ resolution Brian Meadows, U. Cincinnati

  40. Conclusions • New, narrow (ie width consistent with mass resolution) states are being found after the discovery by BaBar of DsJ*(2317) !Ds + p0 • The D_s states have masses inconsistent with spectroscopic models. • There is conjecture that mesons (and baryons) with additional quark-antiquark pairs may finally be seen. Brian Meadows, U. Cincinnati

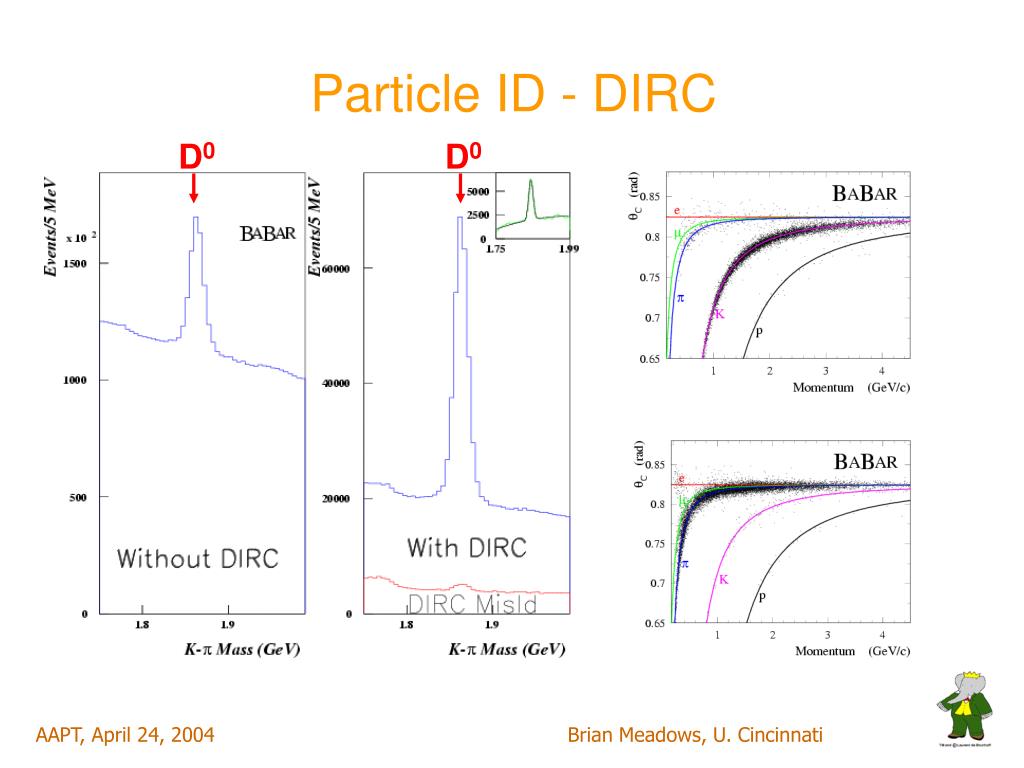

  41. Particle ID - DIRC D0 D0 Brian Meadows, U. Cincinnati

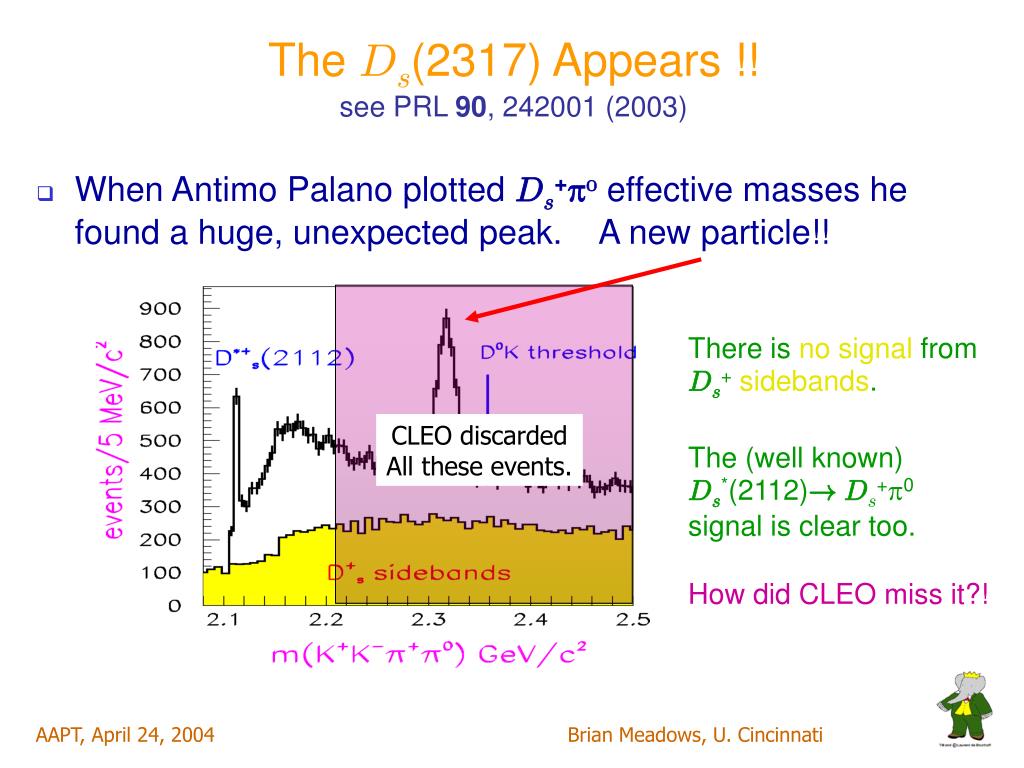

  42. The Ds(2317) Appears !!see PRL 90, 242001 (2003) • When Antimo Palano plotted Ds+0 effective masses he found a huge, unexpected peak. A new particle!! There is no signal from Ds+sidebands. The (well known) Ds*(2112)!Ds+0 signal is clear too. How did CLEO miss it?! CLEO discarded All these events. Brian Meadows, U. Cincinnati
