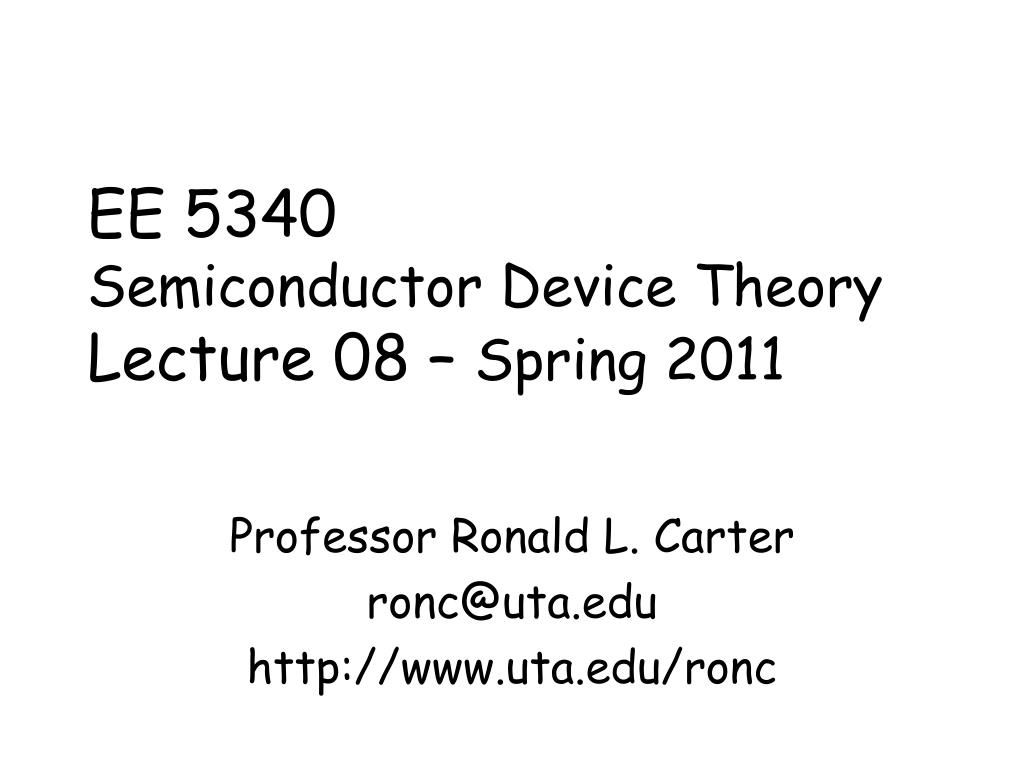

  1. EE 5340Semiconductor Device TheoryLecture 08 – Spring 2011 Professor Ronald L. Carter ronc@uta.edu http://www.uta.edu/ronc

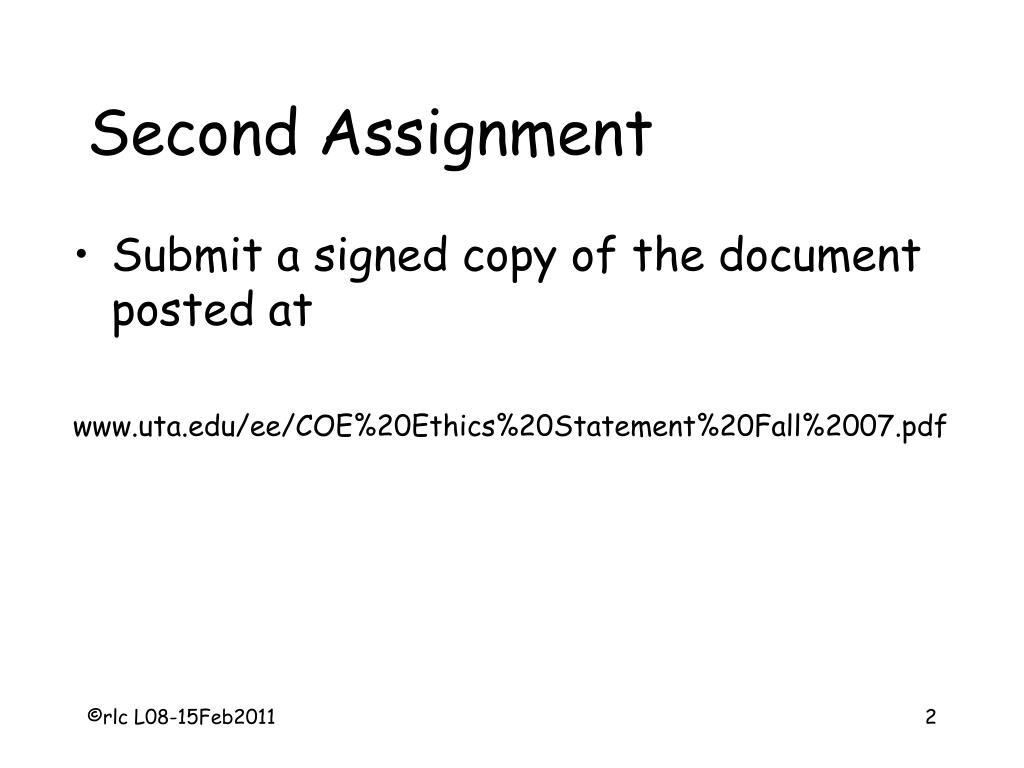

  2. Second Assignment • Submit a signed copy of the document posted at www.uta.edu/ee/COE%20Ethics%20Statement%20Fall%2007.pdf

  3. Test 1 – Tuesday 22Feb11 • 11 AM Room 129 ERB • Covering Lectures 1 through 9 • Open book - 1 legal text or ref., only. • You may write notes in your book. • Calculator allowed • A cover sheet will be included with full instructions. For examples see http://www.uta.edu/ronc/5340/tests/.

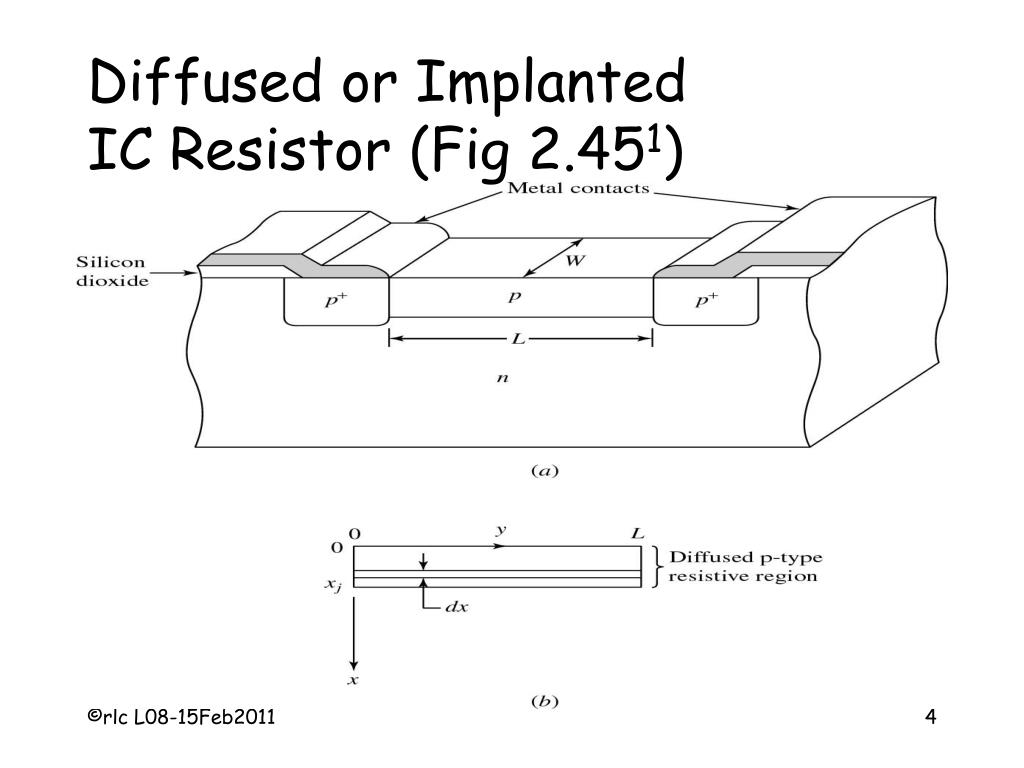

  4. Diffused or ImplantedIC Resistor (Fig 2.451)

  5. An IC Resistor with L = 8W(M&K)1

  6. Typical IC dopingprofile (M&K Fig. 2.441)

  7. Mobilities**

  8. IC Resistor Conductance

  9. An IC Resistor with Ns = 8, R = 8Rs (M&K)1

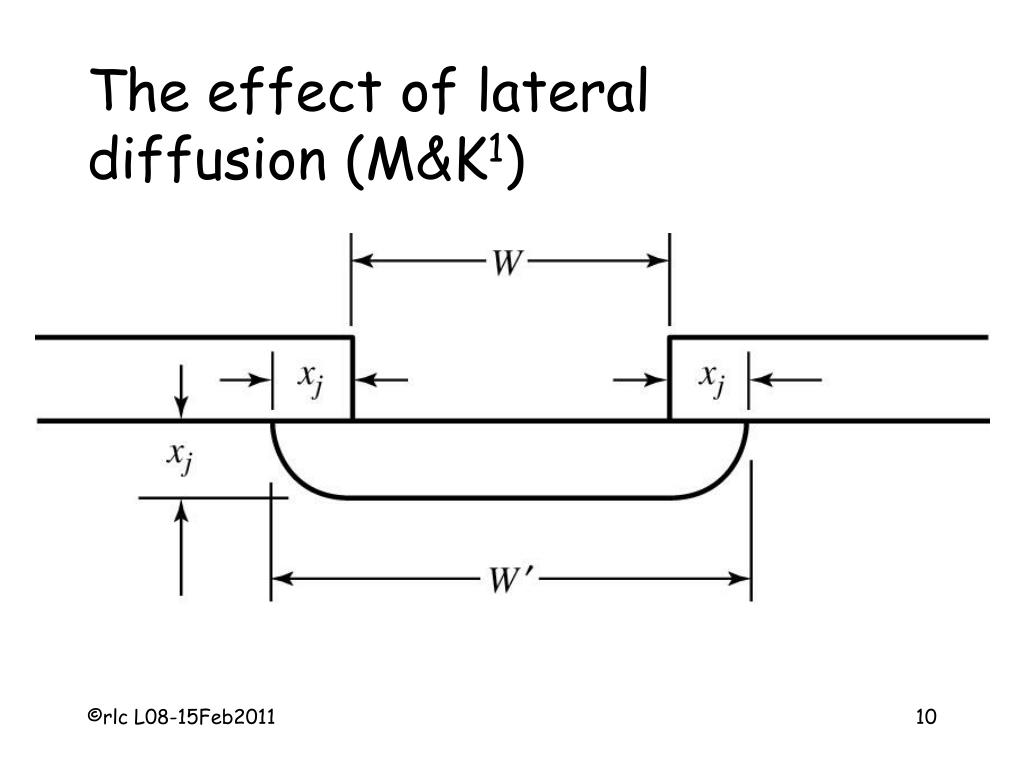

  10. The effect of lateral diffusion (M&K1)

  11. A serpentine patternIC Resistor (M&K1) R = NSRS + 0.65NCRS note: RC = 0.65RS

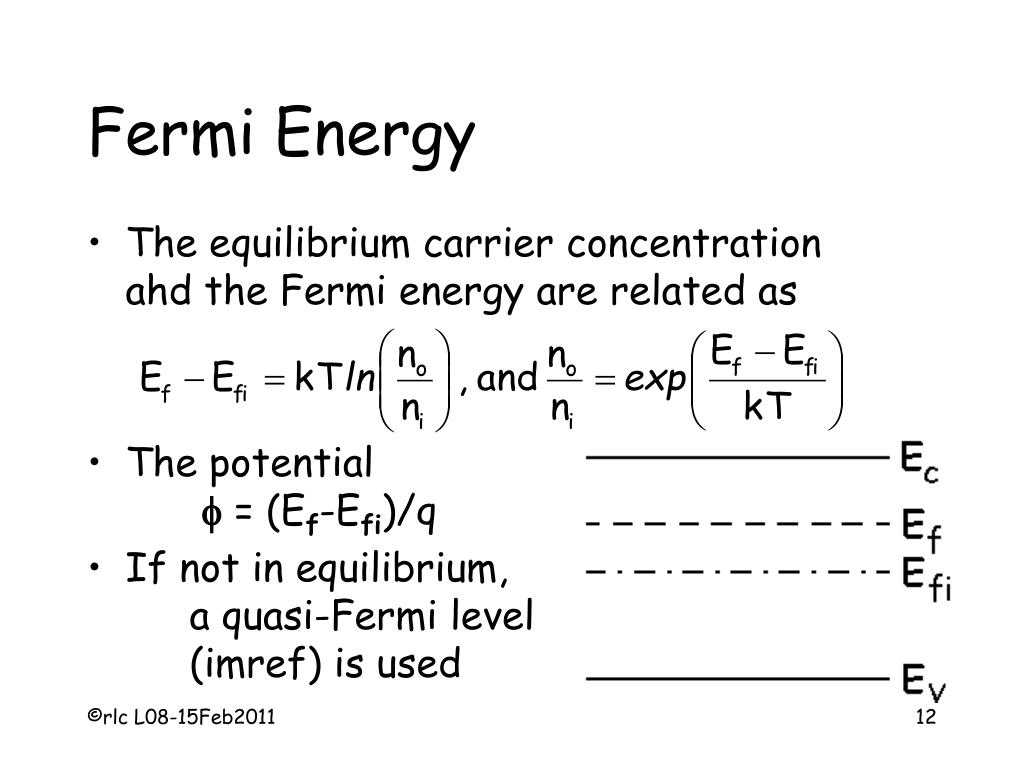

  12. The equilibrium carrier concentration ahd the Fermi energy are related as The potential f = (Ef-Efi)/q If not in equilibrium, a quasi-Fermi level (imref) is used Fermi Energy

  13. Electron quasi-Fermi Energy (n = no + n)

  14. Hole quasi-Fermi Energy (p = po + p)

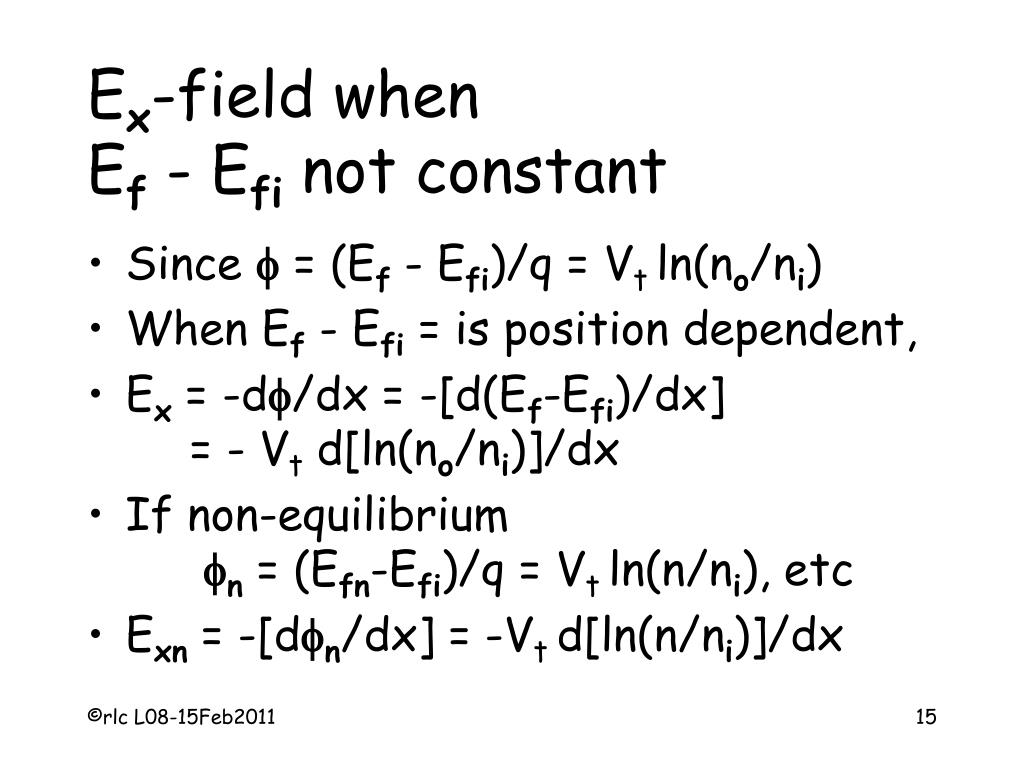

  15. Ex-field when Ef - Efi not constant • Since f = (Ef - Efi)/q = Vt ln(no/ni) • When Ef - Efi = is position dependent, • Ex = -df/dx = -[d(Ef-Efi)/dx] = - Vt d[ln(no/ni)]/dx • If non-equilibrium fn = (Efn-Efi)/q = Vt ln(n/ni), etc • Exn = -[dfn/dx] = -Vt d[ln(n/ni)]/dx

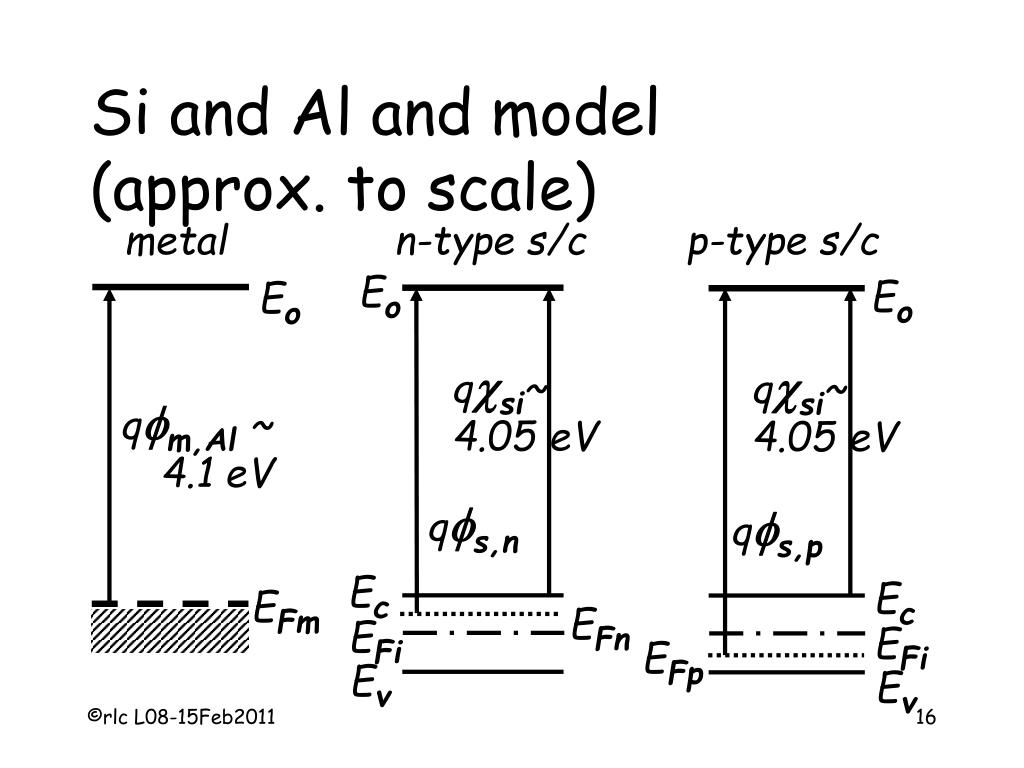

  16. Si and Al and model (approx. to scale) metal n-type s/c p-type s/c Eo Eo Eo qcsi~ 4.05eV qcsi~ 4.05eV qfm,Al ~ 4.1 eV qfs,n qfs,p Ec Ec EFm EFn EFi EFi EFp Ev Ev

  17. Eo Making contact be-tween metal & s/c • Equate the EF in the metal and s/c materials far from the junction • Eo(the free level), must be continuous across the jctn. N.B.: qc = 4.05 eV (Si), and qf = qc + Ec - EF qc(electron affinity) qf (work function) Ec EF EFi qfF Ev

  18. Equilibrium Boundary Conditions w/ contact • No discontinuity in the free level, Eo at the metal/semiconductor interface. • EF,metal = EF,semiconductor to bring the electron populations in the metal and semiconductor to thermal equilibrium. • Eo - EC = qcsemiconductor in all of the s/c. • Eo - EF,metal = qfmetal throughout metal.

  19. No disc in Eo Ex=0 in metal ==> Eoflat fBn=fm- cs= elecmtl to s/c barr fi=fBn-fn= fm-fs elect s/c to mtlbarr Ideal metal to n-typebarrier diode (fm>fs,Va=0) metal n-type s/c Eo qcs qfm qfi qfs,n qfBn Ec EFm EFn EFi Depl reg Ev qf’n

  20. Metal to n-typenon-rect cont (fm<fs) n-type s/c No disc in Eo Ex=0 in metal ==> Eo flat fB,n=fm - cs = elec mtl to s/c barr fi= fBn-fn< 0 Accumulation region metal Eo qcs qfm qfs,n qfi qfB,n Ec EFm EFn EFi Ev qfn Acc reg

  21. Ideal metal to p-typebarrier diode (fm<fs) p-type s/c metal No disc in Eo Ex=0 in metal ==> Eoflat fBn= fm- cs= elecmtl to s/c barr. fBp= fm- (cs+ Eg)= hole m to s barr. fi= fm-fs,p= hole s/c to mtlbarr. Eo qfs,p qcs qfm qfi qfBn Ec EFi EFm EFp qfBp Ev qfi qfp<0 Depl reg

  22. Metal to p-typenon-rect cont (fm>fs) metal n-type s/c No disc in Eo Ex=0 in metal ==> Eo flat fB,n = fm - cs= elecmtl to s/c barr fBp= fm- (cs+ Eg) = hole m to s fi= fm-fs,n= s/c to mtlbarr. Eo qcs qfm q(fi) qfs,n qfBn Ec EFm EFi EfP qfp Ev qfBp qfi Accum reg

  23. Metal/semiconductorsystem types n-type semiconductor • Schottky diode - blocking for fm > fs • contact - conducting for fm < fs p-type semiconductor • contact - conducting for fm > fs • Schottky diode - blocking for fm < fs

  24. References 1 and M&KDevice Electronics for Integrated Circuits, 2 ed., by Muller and Kamins, Wiley, New York, 1986. See Semiconductor Device Fundamentals, by Pierret, Addison-Wesley, 1996, for another treatment of the m model. 2Physics of Semiconductor Devices, by S. M. Sze, Wiley, New York, 1981. 3 and **Semiconductor Physics & Devices, 2nd ed., by Neamen, Irwin, Chicago, 1997. Fundamentals of Semiconductor Theory and Device Physics, by Shyh Wang, Prentice Hall, 1989.
