  1. Deploying Global Server Load Balancing Using Persistent Methods Sam Cohoon May 21, 2013

  2. Global Server Load Balancing

  3. Global Server Load Balancing

  4. Global Server Load Balancing

  5. What is GSLB?

  6. DNS The Citrix NetScaler implementation of Global Server Load Balancing GSLB is Domain Name System (DNS) based.

  7. DNS

  8. GSLB Typical Setup

  9. Global Server Load Balancing Components

  10. Components

  11. How it works - Summary DNS and MEP Components: GSLB domain, GSLB site, GSLB vserver, GSLB service

  12. Global Server Load Balancing Configuration

  13. GSLB Configuration Where do I start?

  14. GSLB Wizard

  15. GSLB DNS DOMAIN

  16. GSLB Methods

  17. GSLB Methods

  18. GSLB Methods

  19. GSLB Sites

  20. GSLB Sites

  21. GSLB Sites

  22. GSLB Service

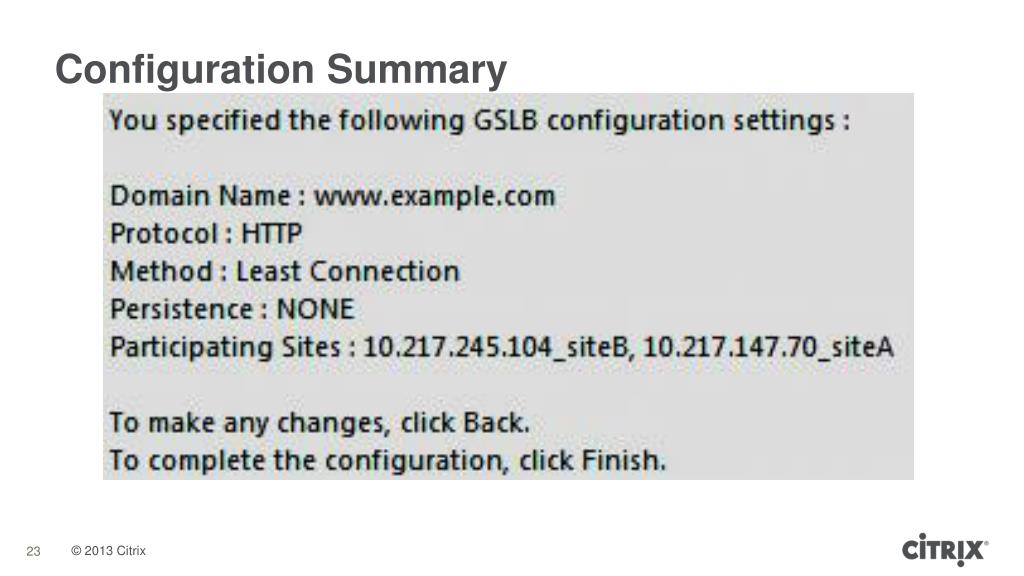

  23. Configuration Summary

  24. Configuring Authoritative DNS - ADNS

  25. GSLB Visualizer

  26. Synchronizing Configuration Each Netscaler needs one Local GSLB site and all the other Remote sites. All sites need the same configuration. There is a GSLB configuration synchronization option.

  27. Customizing your GSLB Configuration

  28. GSLB Load Balancing methods The NetScaler GSLB methods: Round Trip Time (RTT) Static Proximity

  29. Local DNS IP (LDNS) IP address that is being tested against is not an actual client IP address it is the nameserver that is resolving the IP address on behalf of the client. We refer to this as the “LDNS” IP address for the client’s local DNS IP address.

  30. GSLB Static Proximity IP-address based static proximity database is a UNIX-based ASCII file.

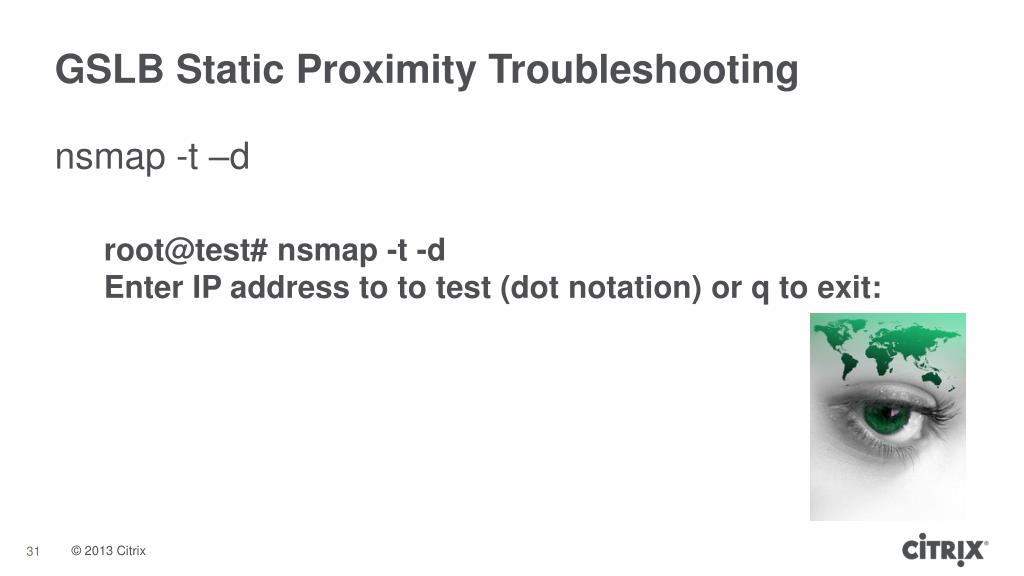

  31. GSLB Static Proximity Troubleshooting nsmap -t –d root@test# nsmap -t -d Enter IP address to to test (dot notation) or q to exit:

  32. GSLB Static Proximity Troubleshooting > show locationparameter Static Proximity ---------------- Database mode: Not applicable Flushing: Idle; Loading: Idle Context: geographic Qualifier 1 label: Continent Qualifier 2 label: Country Qualifier 3 label: Region Qualifier 4 label: City Qualifier 5 label: ISP Qualifier 6 label: Organization Location file (format: Not applicable): Not loaded Lines: 0 Warnings: 0 Errors: 0 Current static entries: 0 Current custom entries: 0 Done

  33. GSLB Dynamic RTT Dynamic RTT : measure from each “site” NetScaler to the remote LDNS Three Monitors: Ping of IP address (LDNS-PING) DNS TCP probe DNS UDP query

  34. Global Server Load Balancing Persistence

  35. Persistence Based on Source IP The GSLB virtual server is responsible for DNS-based site persistence, and it controls the site persistence Persistence Table All sites must use the same set of persistence identifiers on the GSLB virtual servers.

  36. GSLB Persistence – Source IP Troubleshooting

  37. GSLB Persistence – Source IP Troubleshooting

  38. Global Server Load Balancing HTTP Cookie Persistence

  39. Persistence Based on HTTP Cookies HTTP-request level Connection proxy HTTP redirect.

  40. HTTP Connection Proxy If the client gets sent to the wrong site: The other site creates a connection to the GSLB site that inserted the site cookie, and proxies the client request

  41. HTTP Connection Proxy

  42. HTTP Redirect Persistence Redirect persistence can be used only: For HTTP or HTTPS protocols. If the domain name in the request is a GSLB Domain When a backup VIP or a GSLB local service is DOWN

  43. GSLB Persistence – HTTPRedirect

  44. GSLB Persistence – HTTP Redirect

  45. Global Server Load Balancing Troubleshooting

  46. GSLB Troubleshooting > sh gslb site 1) 10.217.245.104_siteB (10.217.245.104) Site Type: LOCAL Metric exchange: ENABLED Public IP: 10.217.245.104 Network metric exchange: ENABLED Persistence session exchange: ENABLED Trigger Monitors: ALWAYS 2) 10.217.147.70_siteA (10.217.147.70) Site Type: REMOTE Metric exchange: ENABLED Site Metric MEP Status: DOWN Public IP: 10.217.147.70 Network metric exchange: ENABLED Persistence session exchange: ENABLED Trigger Monitors: ALWAYS

  47. GSLB Troubleshooting > sh gslb vserver 1) www.example.com_gslbvs_b - HTTP State: UP DNS Record Type: A Last state change was at Thu Apr 11 22:17:28 2013 Time since last state change: 11 days, 23:01:56.670 Configured Method: LEASTCONNECTION Current Method: Round Robin Reason: Bound service's state changed to UP BackupMethod: ROUNDROBIN No. of Bound Services : 2 (Total) 1 (Active) Persistence: SOURCEIP Persistence Mask: 255.255.255.255 Persistence v6MaskLength: 128 Persistence Timeout: 2 min Persistence ID: 2 Disable Primary Vserver on Down: DISABLED Site Persistence: ConnectionProxy

  48. GSLB Troubleshooting > sh gslb service 1) 10.217.245.107_80_gslbsvc (10.217.245.107: 80)- HTTP Server: 10.217.245.107 State: UP Effective State: UP Max Conn: 0 Max Bandwidth: 0 kbits PublicIP: 10.217.245.107 PublicPort: 80 Type: LOCAL Site Name: 10.217.245.104_siteB Site Prefix: SiteB Site Persistence: ConnectionProxy Threshold: BELOW Monitor Threshold : 0 2) 10.217.147.71_80_gslbsvc (10.217.147.71: 80)- HTTP Server: 10.217.147.71 State: DOWN Effective State: DOWN Max Conn: 0 Max Bandwidth: 0 kbits PublicIP: 10.217.147.71 PublicPort: 80 Type: REMOTE Site Name: 10.217.147.70_siteA Site Prefix: SiteA Client IP: DISABLED Down state flush: DISABLED Site Persistence: ConnectionProxy Threshold: BELOW Monitor Threshold : 0

  49. GSLB Troubleshooting root@ns# nsconmsg -K newnslog -d stats | grep gslb root@ns# nsconmsg -g glsb -d current -s disptime=1

  50. Resources http://support.citrix.com/proddocs/topic/netscaler-traffic-management-10-map/netscaler-gslb-gen-wrapper-10-con.html http://support.citrix.com/article/CTX122619 http://support.citrix.com/article/CTX123976
