SUSE Linux Enterprise Server Administration (Course 3037)

1. SUSE Linux Enterprise Server Administration (Course 3037) Chapter 1 Introduction to Managing the SUSE Linux Enterprise Server

2. Objectives • Describe SLES 9 • Access and Use YaST • Monitor Your SLES 9 System SUSE Linux Enterprise Server Administration (Course 3037)

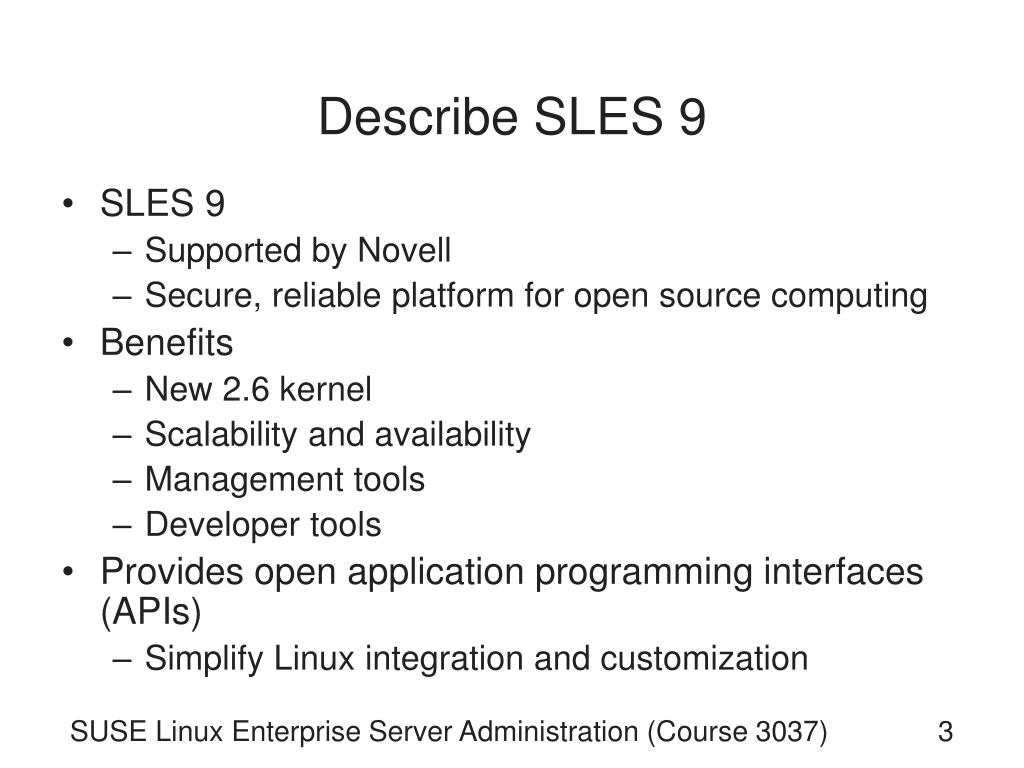

3. Describe SLES 9 • SLES 9 • Supported by Novell • Secure, reliable platform for open source computing • Benefits • New 2.6 kernel • Scalability and availability • Management tools • Developer tools • Provides open application programming interfaces (APIs) • Simplify Linux integration and customization SUSE Linux Enterprise Server Administration (Course 3037)

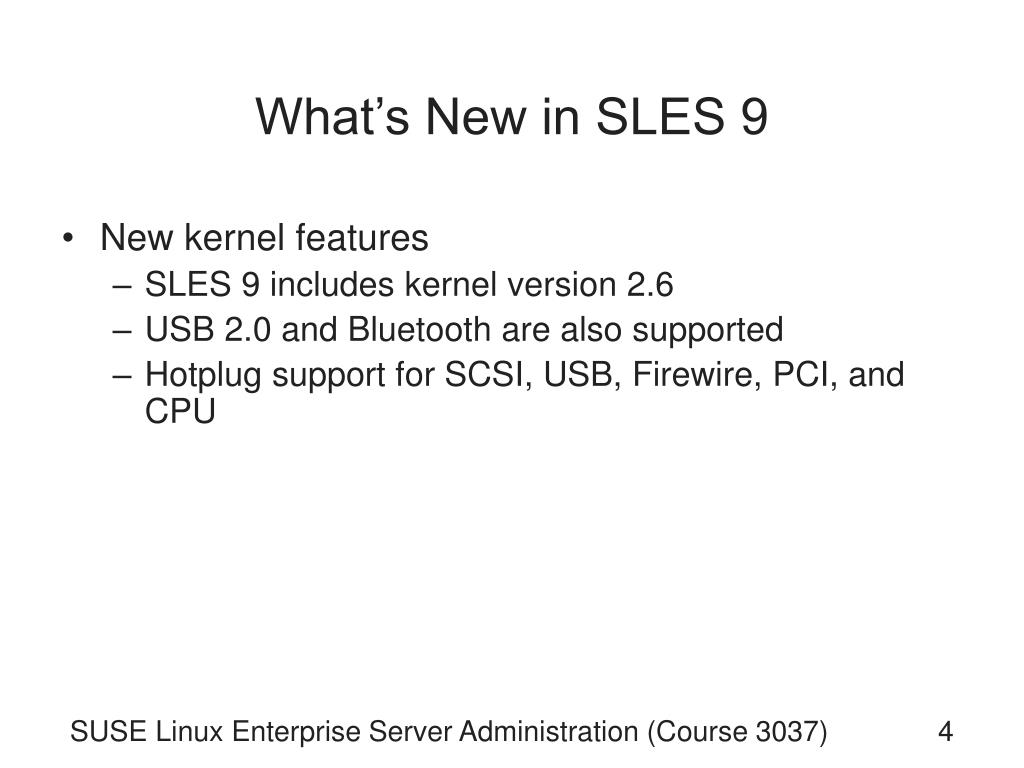

4. What’s New in SLES 9 • New kernel features • SLES 9 includes kernel version 2.6 • USB 2.0 and Bluetooth are also supported • Hotplug support for SCSI, USB, Firewire, PCI, and CPU SUSE Linux Enterprise Server Administration (Course 3037)

5. What’s New in SLES 9 (continued) SUSE Linux Enterprise Server Administration (Course 3037)

6. What’s New in SLES 9 (continued) SUSE Linux Enterprise Server Administration (Course 3037)

7. What’s New in SLES 9 (continued) SUSE Linux Enterprise Server Administration (Course 3037)

8. What’s New in SLES 9 (continued) • New scalability and available features • SLES 9 delivers rapid scalability and high availability • New systems management tools • SLES 9 simplifies system administration SUSE Linux Enterprise Server Administration (Course 3037)

9. What’s New in SLES 9 (continued) SUSE Linux Enterprise Server Administration (Course 3037)

10. What’s New in SLES 9 (continued) SUSE Linux Enterprise Server Administration (Course 3037)

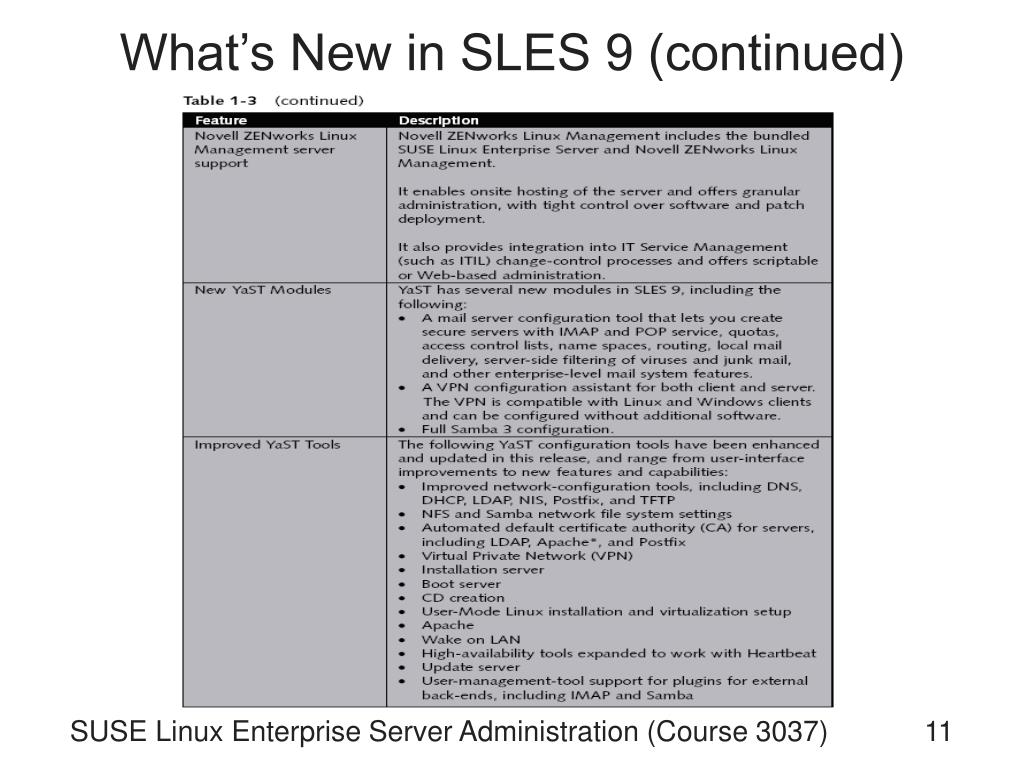

11. What’s New in SLES 9 (continued) SUSE Linux Enterprise Server Administration (Course 3037)

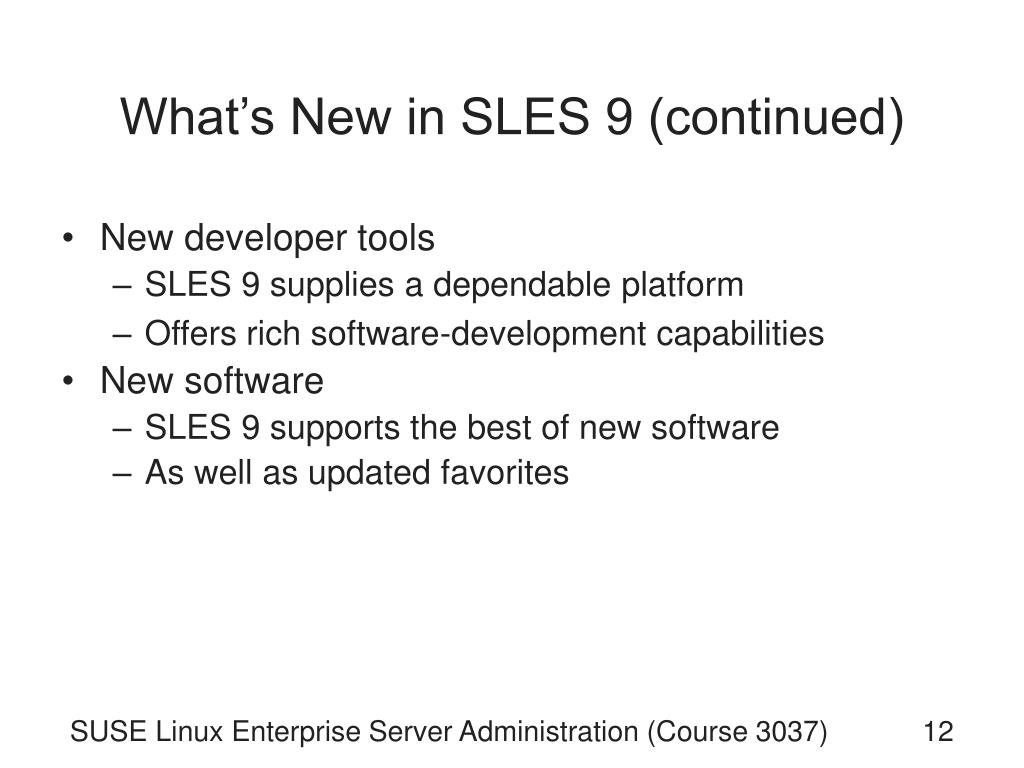

12. What’s New in SLES 9 (continued) • New developer tools • SLES 9 supplies a dependable platform • Offers rich software-development capabilities • New software • SLES 9 supports the best of new software • As well as updated favorites SUSE Linux Enterprise Server Administration (Course 3037)

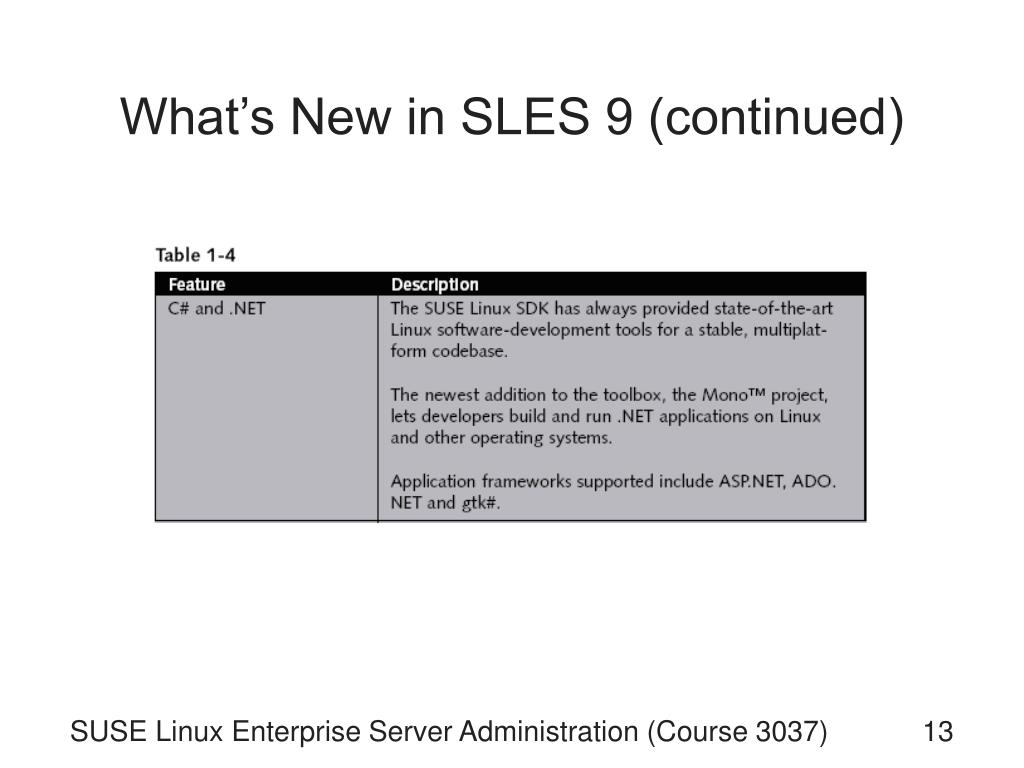

13. What’s New in SLES 9 (continued) SUSE Linux Enterprise Server Administration (Course 3037)

14. What’s New in SLES 9 (continued) SUSE Linux Enterprise Server Administration (Course 3037)

15. Hardware Support and System Requirements • Supported Processor Platforms • See Table 1-6 • Supported Hardware Extensions • See Table 1-7 • SLES 9 Hardware Requirements • See Table 1-8 SUSE Linux Enterprise Server Administration (Course 3037)

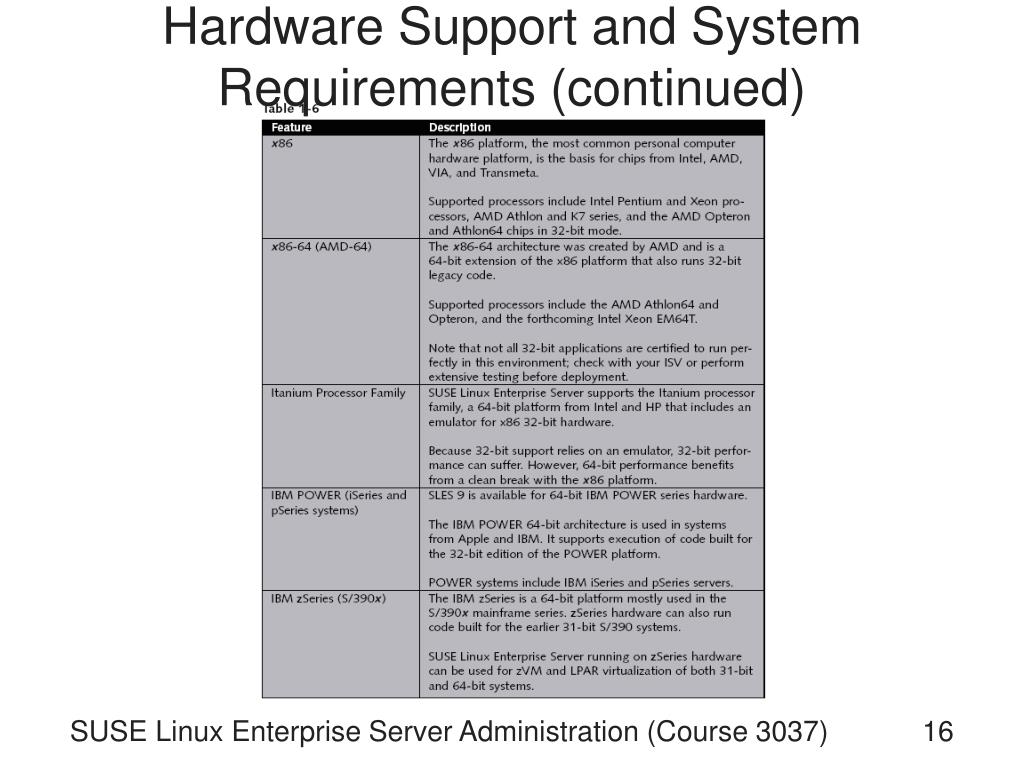

16. Hardware Support and System Requirements (continued) SUSE Linux Enterprise Server Administration (Course 3037)

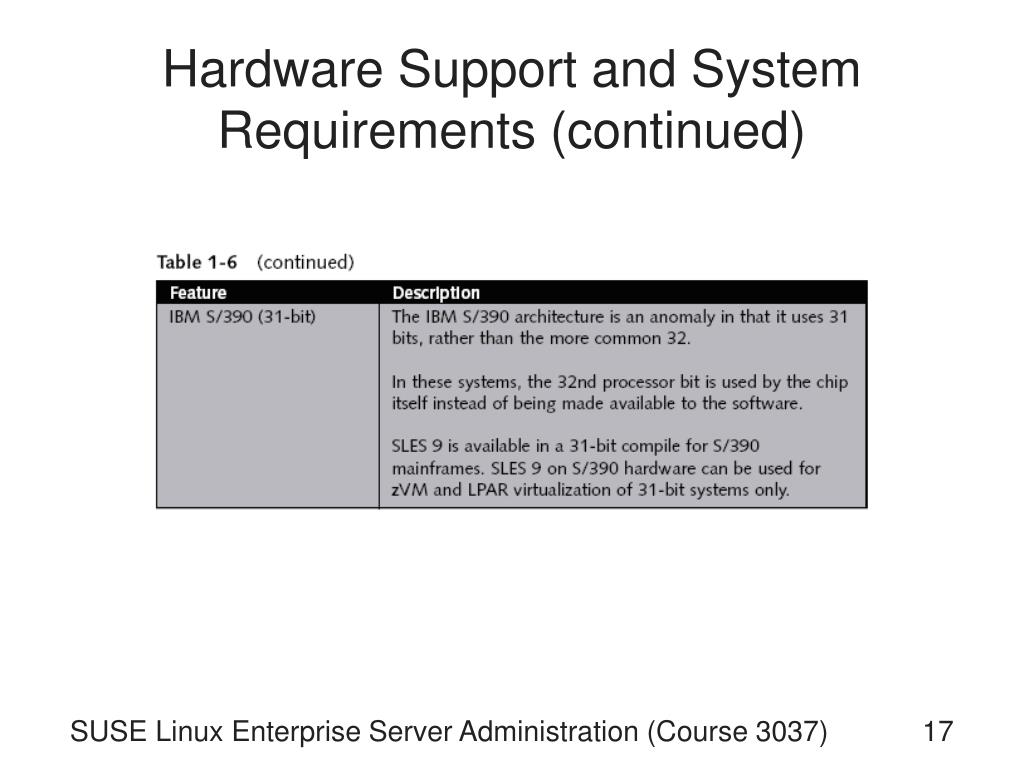

17. Hardware Support and System Requirements (continued) SUSE Linux Enterprise Server Administration (Course 3037)

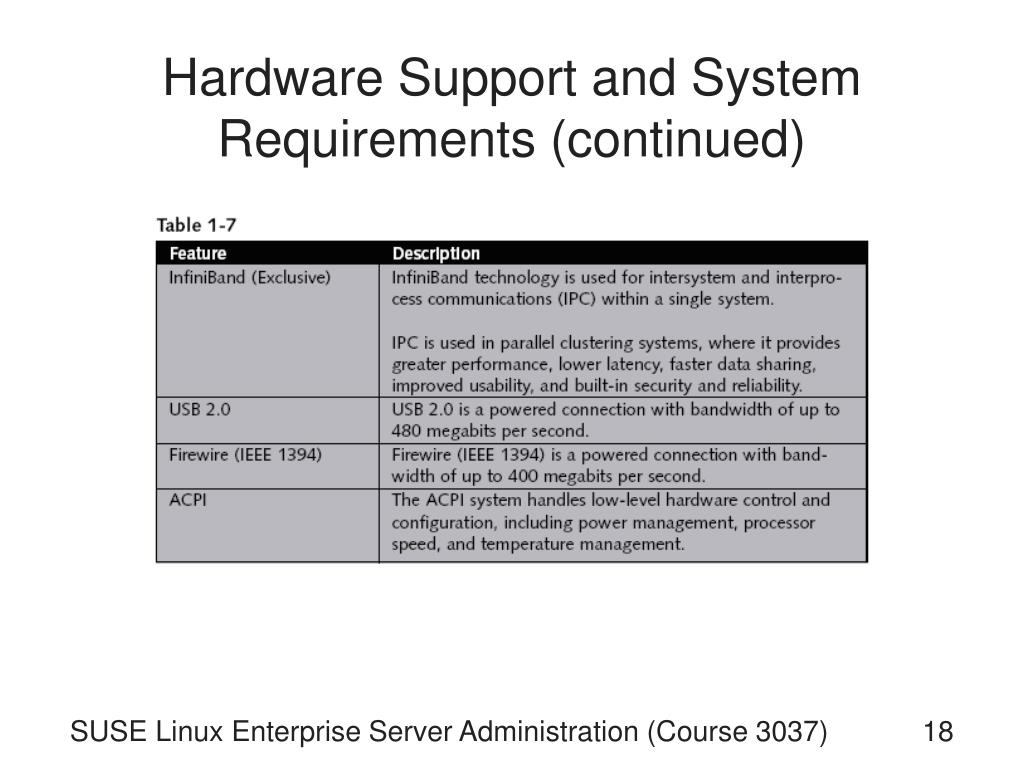

18. Hardware Support and System Requirements (continued) SUSE Linux Enterprise Server Administration (Course 3037)

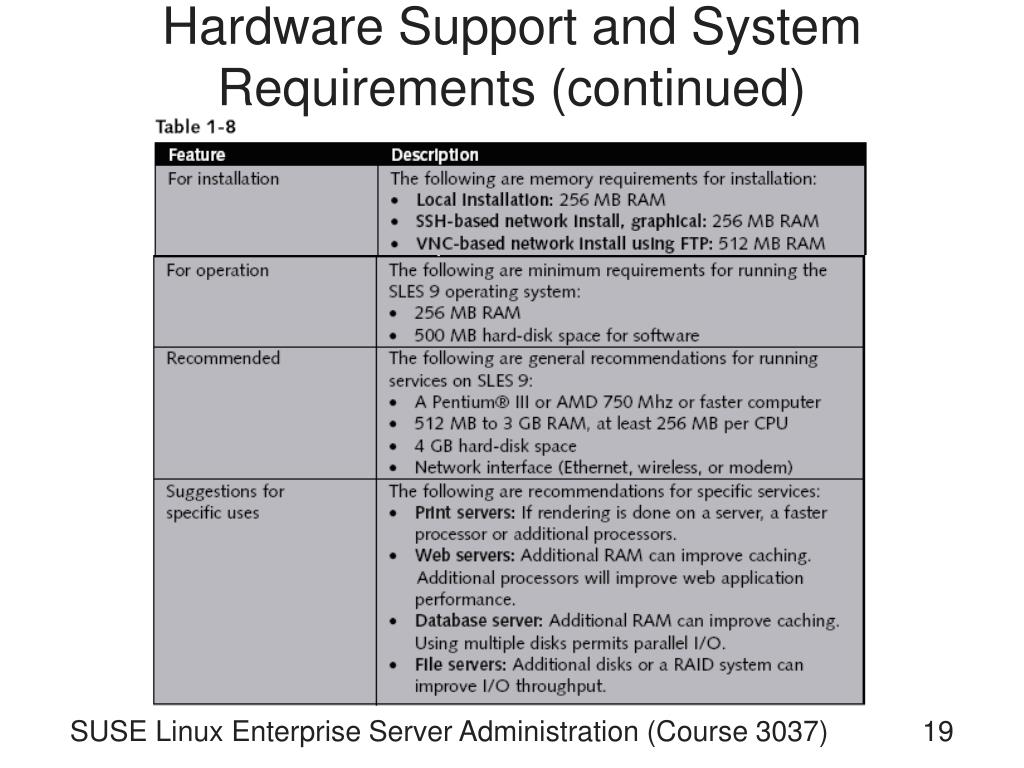

19. Hardware Support and System Requirements (continued) SUSE Linux Enterprise Server Administration (Course 3037)

20. Service and Support • Support programs • Premium Service • SUSE Linux Server Support • Novell Linux Small Business Support • Remote and Managed Services • Novell Technical Subscriptions • Online support options • Bug fixes and security patches • Provided for five years • To customers with a valid maintenance contract or registration code for updates SUSE Linux Enterprise Server Administration (Course 3037)

21. Service and Support (continued) • Maintenance contract • Certification of OS by other software vendors • Done only for the SUSE Linux Enterprise Server • Maintenance and certifications • Require considerable know-how and manpower • Service is not provided for free • Assures an up-to-date product • Throughout its product life cycle SUSE Linux Enterprise Server Administration (Course 3037)

22. Linux Standards and SLES 9 • Linux Standard Base (LSB) • Currently valid LSB specification is version 1.3.x • Covers only the x86 architecture • Specification defines • Package format • System initialization • File System Hierarchy Standard (FHS) • SLES is compliant with FHS (package fhs) • FHS defines that /usr/ can be mounted as read-only SUSE Linux Enterprise Server Administration (Course 3037)

23. Linux Standards and SLES 9 (continued) • TeX Directory Structure (TDS) • TeX • Comprehensive typesetting system • Can be expanded with macro packages • Like LaTeX • teTeX • Compilation of current TeX software • Compliant with TDS and FHS SUSE Linux Enterprise Server Administration (Course 3037)

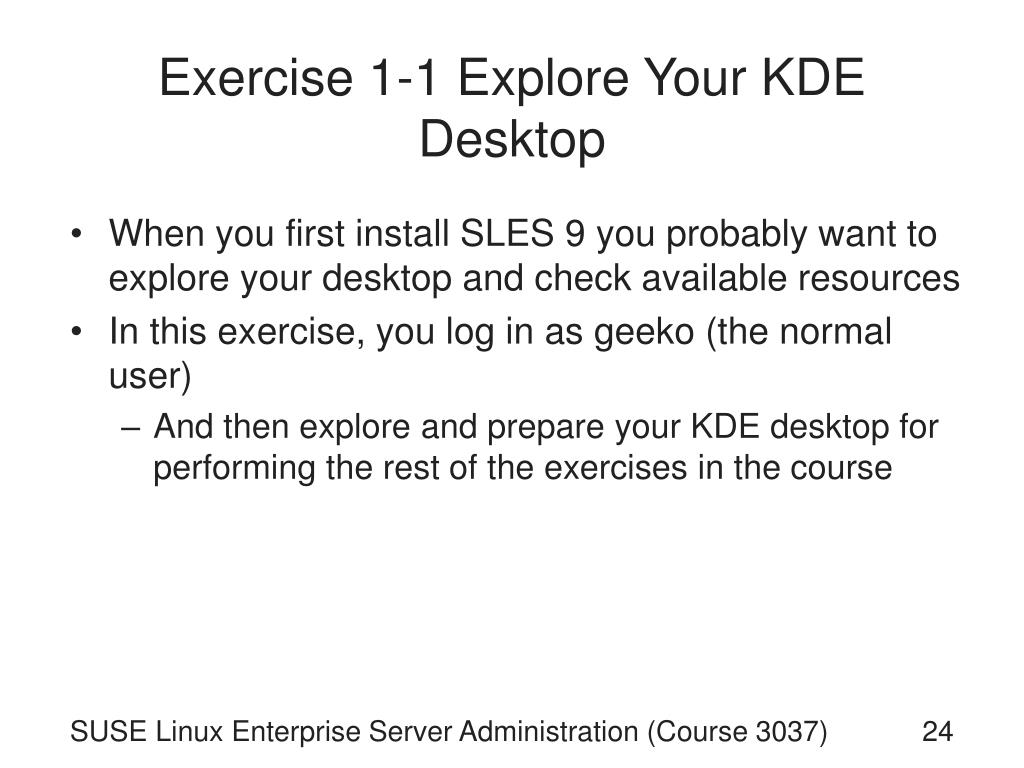

24. Exercise 1-1 Explore Your KDE Desktop • When you first install SLES 9 you probably want to explore your desktop and check available resources • In this exercise, you log in as geeko (the normal user) • And then explore and prepare your KDE desktop for performing the rest of the exercises in the course SUSE Linux Enterprise Server Administration (Course 3037)

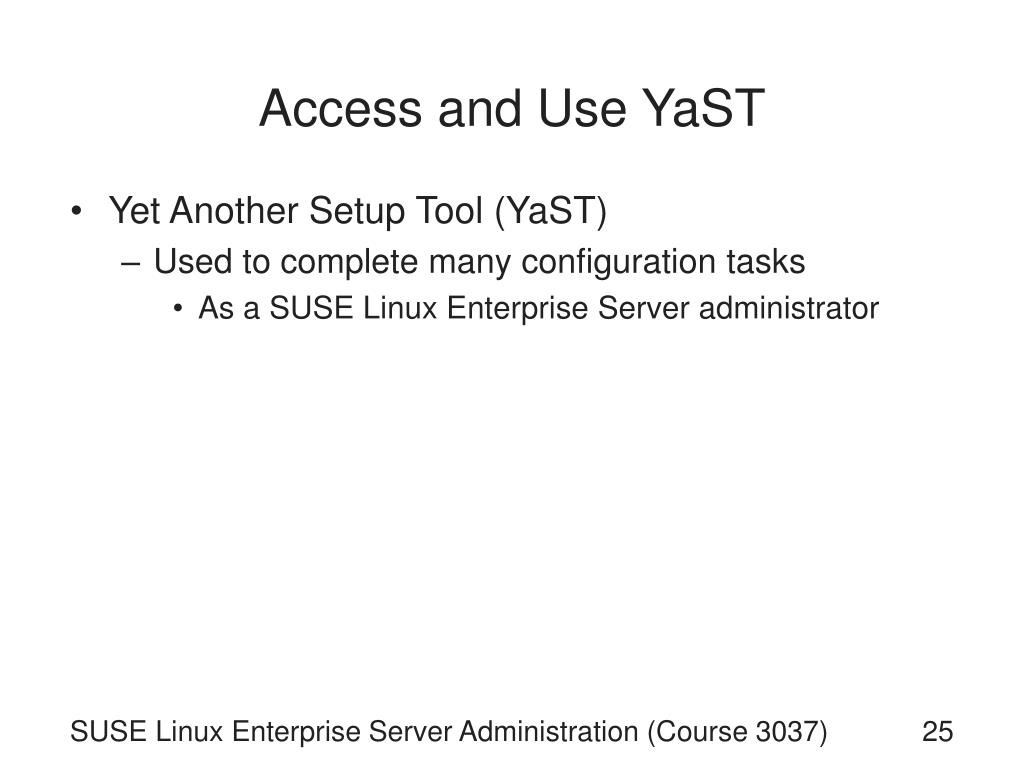

25. Access and Use YaST • Yet Another Setup Tool (YaST) • Used to complete many configuration tasks • As a SUSE Linux Enterprise Server administrator SUSE Linux Enterprise Server Administration (Course 3037)

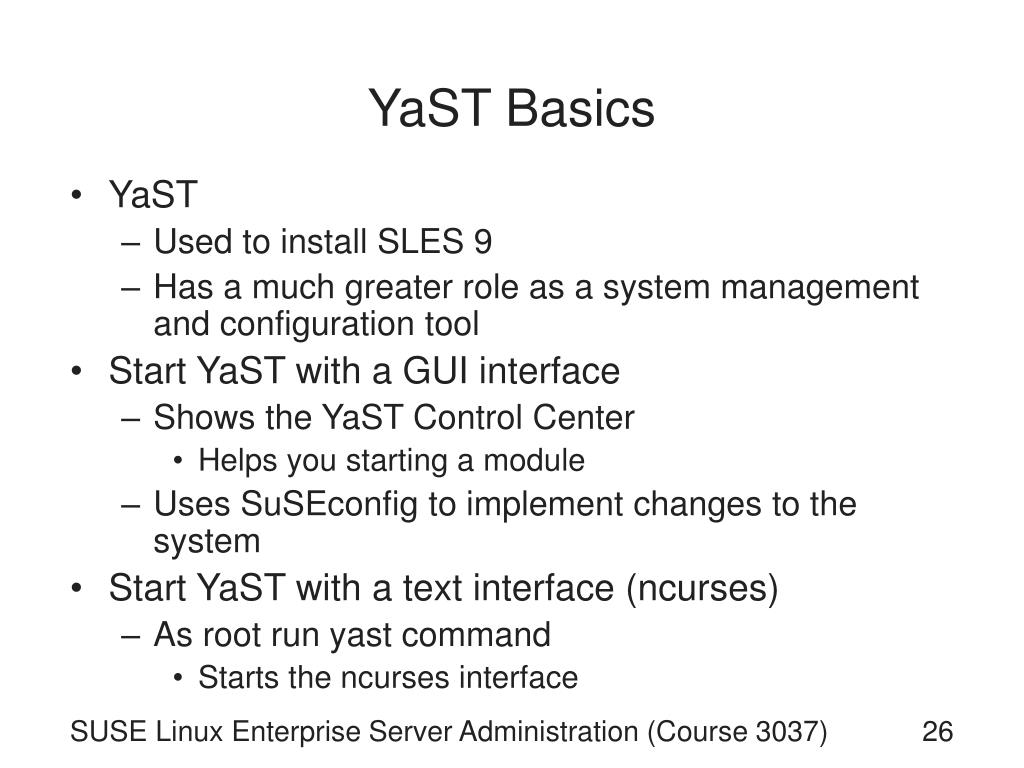

26. YaST Basics • YaST • Used to install SLES 9 • Has a much greater role as a system management and configuration tool • Start YaST with a GUI interface • Shows the YaST Control Center • Helps you starting a module • Uses SuSEconfig to implement changes to the system • Start YaST with a text interface (ncurses) • As root run yast command • Starts the ncurses interface SUSE Linux Enterprise Server Administration (Course 3037)

27. YaST Basics (continued) SUSE Linux Enterprise Server Administration (Course 3037)

28. YaST Basics (continued) SUSE Linux Enterprise Server Administration (Course 3037)

29. The Role of SuSEconfig • Consider YaST as front end to various other programs • Sometimes YaST writes changes to final configuration files • Sometimes it writes changes to files in /etc/sysconfig • SuSEconfig • Tool used in SUSE Linux Enterprise Server to configure the system • According to variables in files in /etc/sysconfig/ • Run SuSEconfig after manually editing files in /etc/sysconfig/ SUSE Linux Enterprise Server Administration (Course 3037)

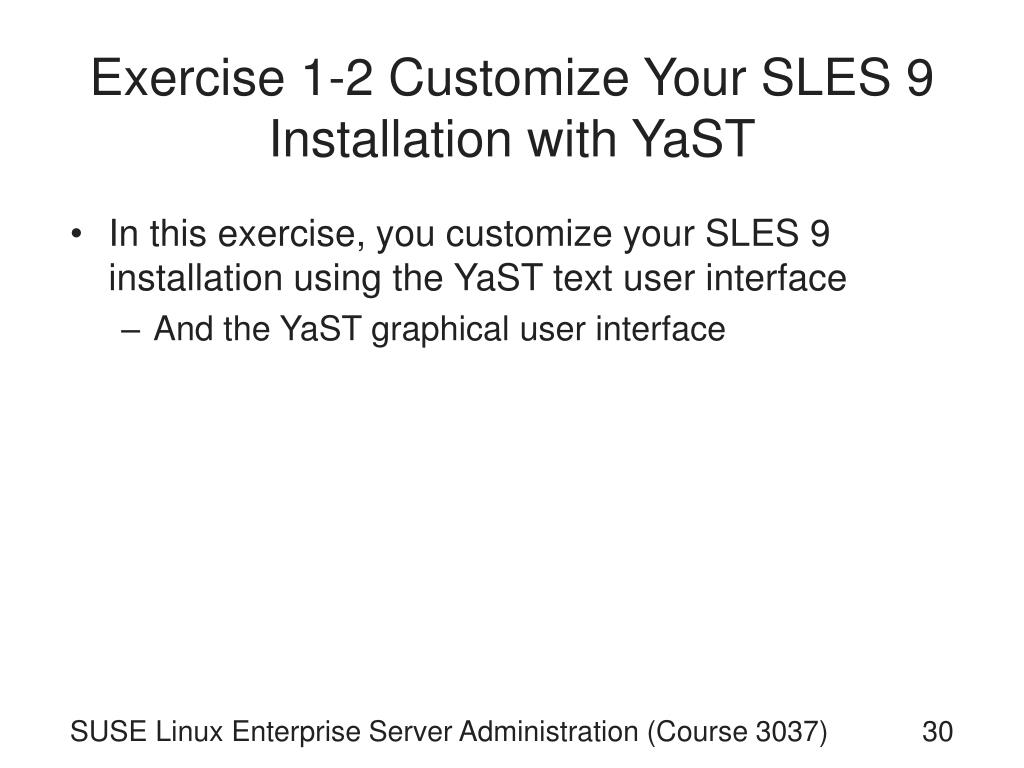

30. Exercise 1-2 Customize Your SLES 9 Installation with YaST • In this exercise, you customize your SLES 9 installation using the YaST text user interface • And the YaST graphical user interface SUSE Linux Enterprise Server Administration (Course 3037)

31. Monitor Your SLES 9 System • After installation, you probably have questions similar to the following: • Did the system boot normally? • What is the kernel version? • What services are running? • What is the load on the system? SUSE Linux Enterprise Server Administration (Course 3037)

32. Boot Log Information (/var/log/boot.msg) • SLES 9 booting messages are kept in a buffer • And saved to /var/log/boot.msg • View this log by entering dmesg | less • You can scroll up and down • Shows messages generated during initialization of the hardware • By the kernel or kernel modules • You can also use YaST to view this log file SUSE Linux Enterprise Server Administration (Course 3037)

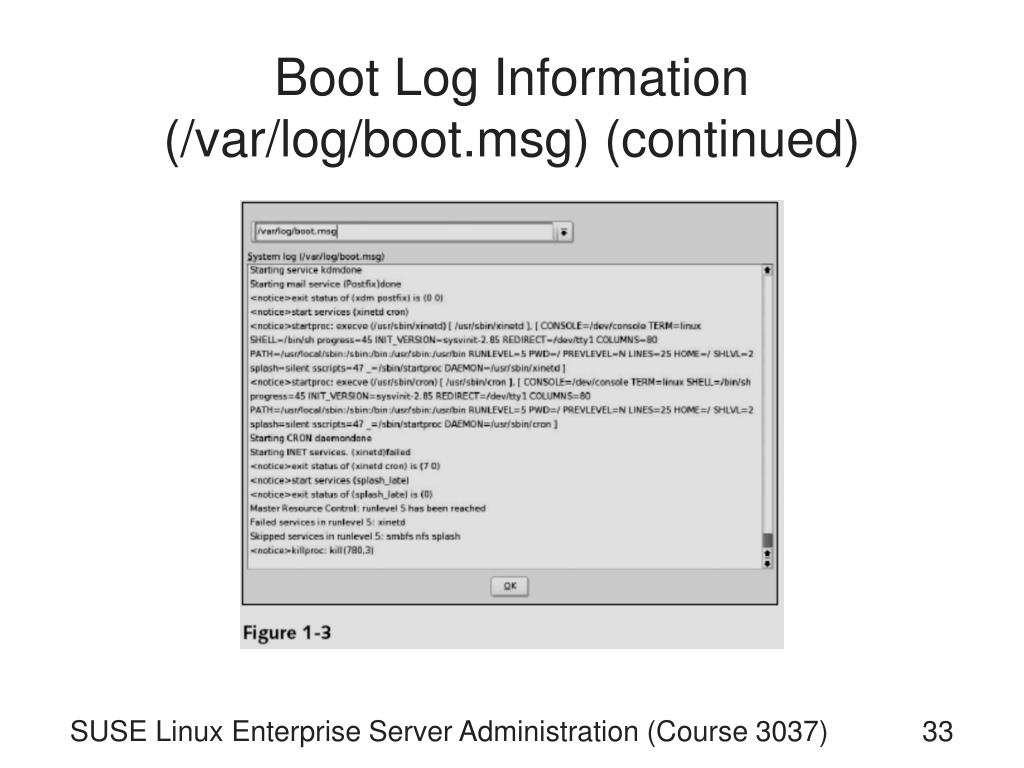

33. Boot Log Information (/var/log/boot.msg) (continued) SUSE Linux Enterprise Server Administration (Course 3037)

34. Hardware Information (/proc/) • Directory /proc/ • Lets you view hardware information stored in kernel memory space • Common filenames used to generate information • /proc/devices • /proc/cpuinfo • /proc/ioports • /proc/interrupts • /proc/dma • /proc/scsi/scsi • /proc/bus/usb/devices • /proc/bus/usb/drivers SUSE Linux Enterprise Server Administration (Course 3037)

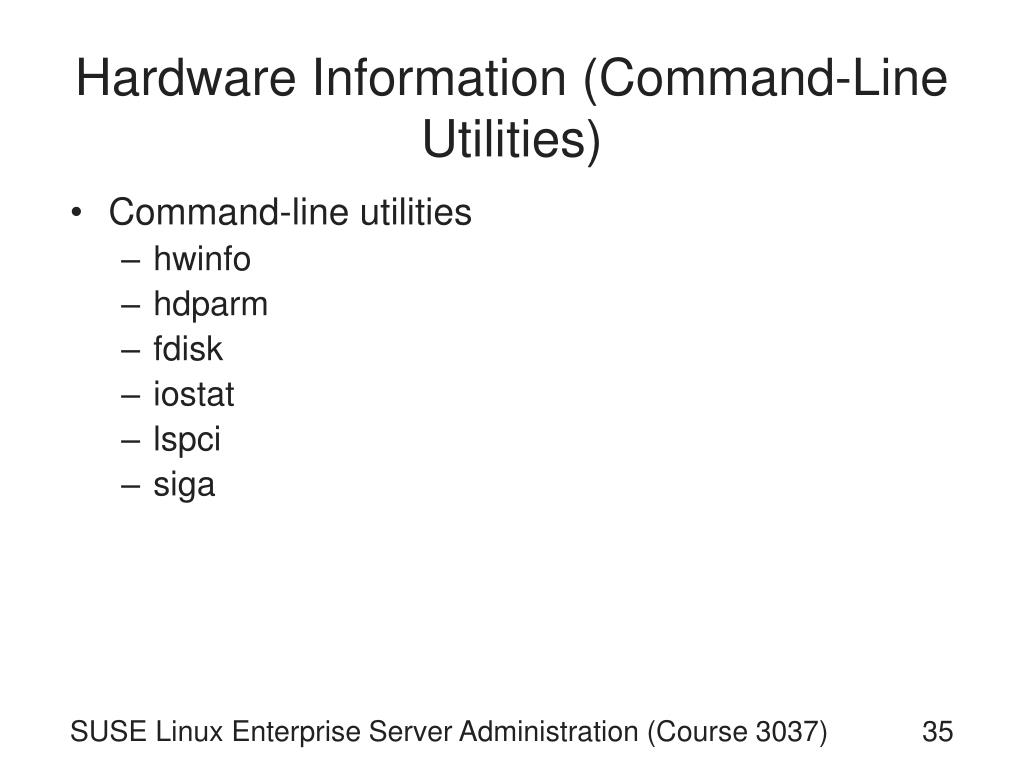

35. Hardware Information (Command-Line Utilities) • Command-line utilities • hwinfo • hdparm • fdisk • iostat • lspci • siga SUSE Linux Enterprise Server Administration (Course 3037)

36. System and Process Information (Command-Line Utilities) • top • Gives you a summary of various system statistics • In the top part of the screen • Screen is updated every 2 seconds • uptime • Displays specific statistics information without starting a utility • ps • Displays processes running on the system • Sorted by process ID SUSE Linux Enterprise Server Administration (Course 3037)

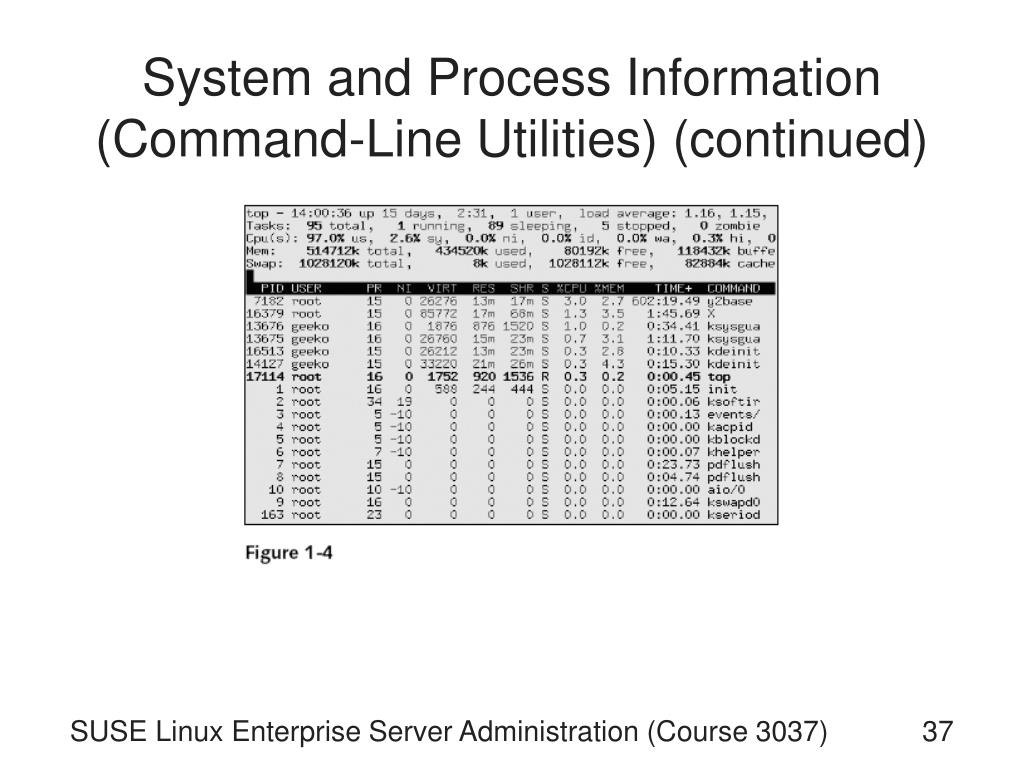

37. System and Process Information (Command-Line Utilities) (continued) SUSE Linux Enterprise Server Administration (Course 3037)

38. System and Process Information (Command-Line Utilities) (continued) • netstat • Used to find out • Which network ports are offering services • What connections are established • uname • Used to find out current kernel version SUSE Linux Enterprise Server Administration (Course 3037)

39. System and Process Information (Command-Line Utilities) (continued) SUSE Linux Enterprise Server Administration (Course 3037)

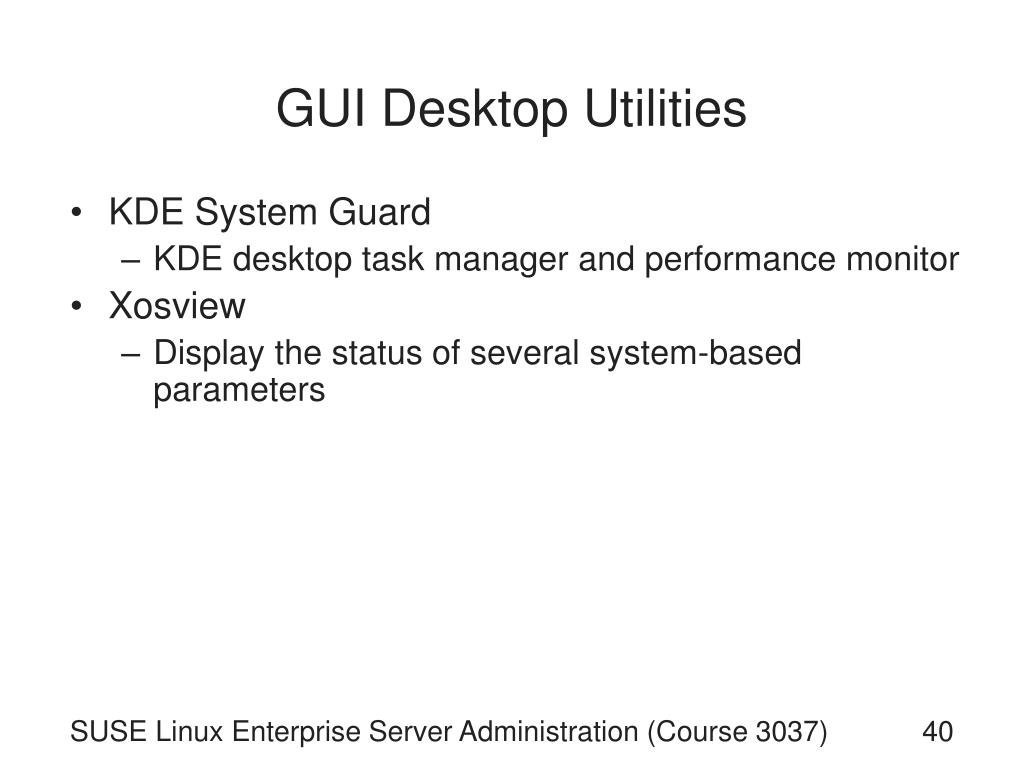

40. GUI Desktop Utilities • KDE System Guard • KDE desktop task manager and performance monitor • Xosview • Display the status of several system-based parameters SUSE Linux Enterprise Server Administration (Course 3037)

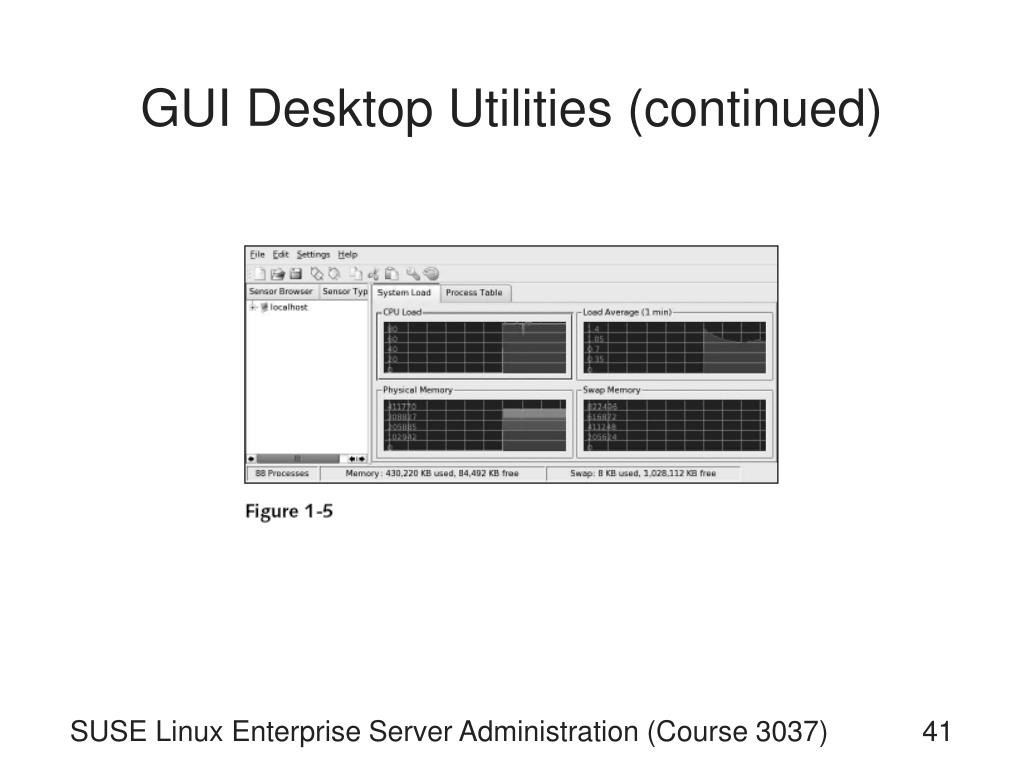

41. GUI Desktop Utilities (continued) SUSE Linux Enterprise Server Administration (Course 3037)

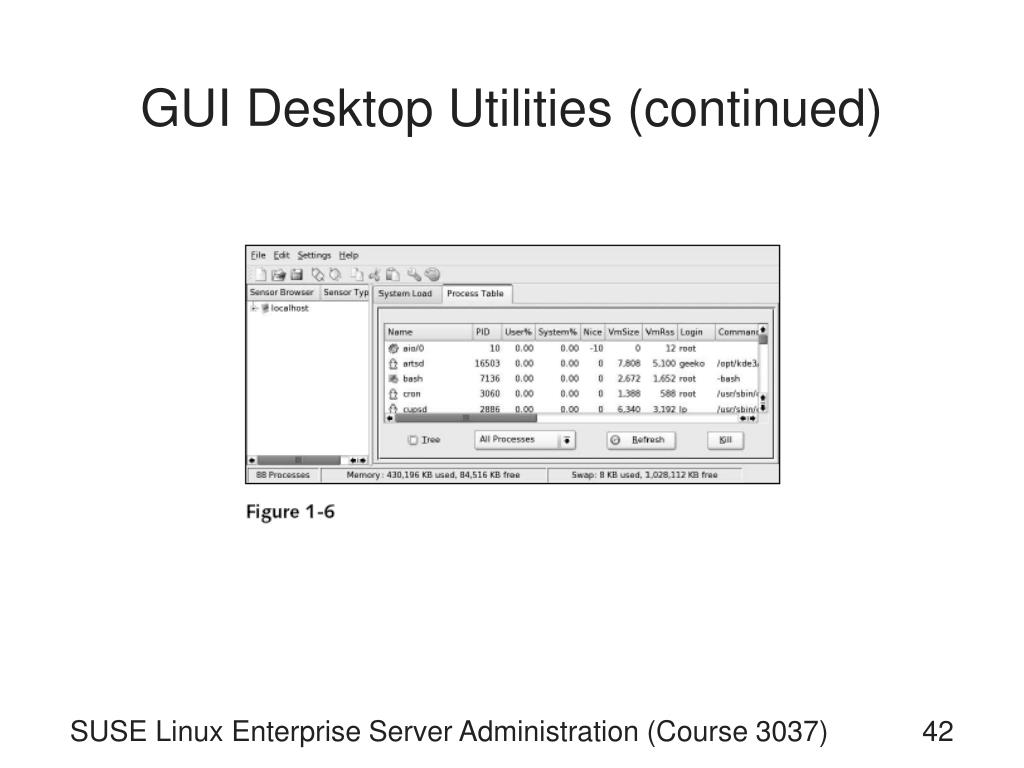

42. GUI Desktop Utilities (continued) SUSE Linux Enterprise Server Administration (Course 3037)

43. GUI Desktop Utilities (continued) SUSE Linux Enterprise Server Administration (Course 3037)

44. GUI Desktop Utilities (continued) • SuSEPlugger • Displays details about specific hardware • Launches appropriate YaST module for configuring the hardware SUSE Linux Enterprise Server Administration (Course 3037)

45. GUI Desktop Utilities (continued) SUSE Linux Enterprise Server Administration (Course 3037)

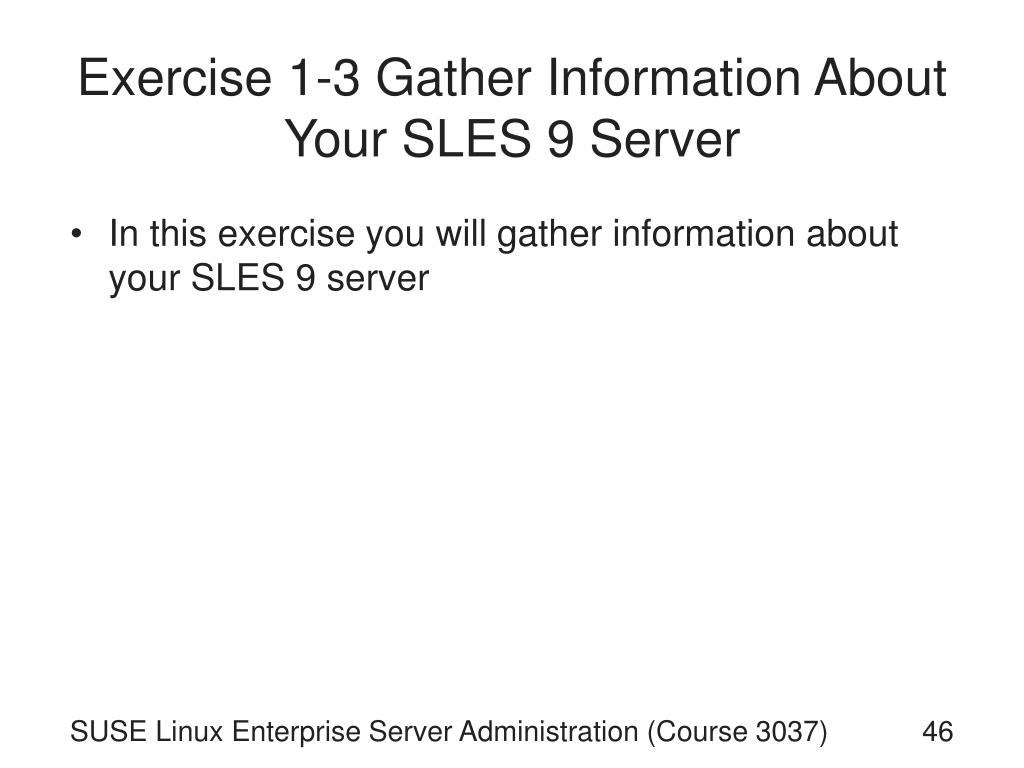

46. Exercise 1-3 Gather Information About Your SLES 9 Server • In this exercise you will gather information about your SLES 9 server SUSE Linux Enterprise Server Administration (Course 3037)

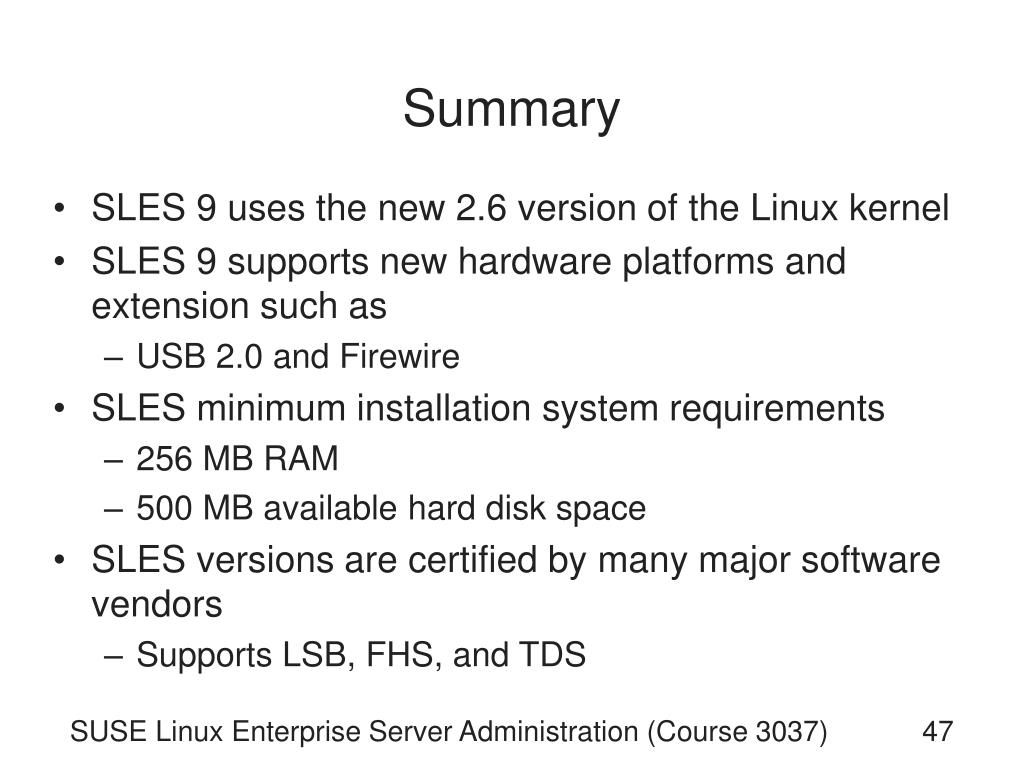

47. Summary • SLES 9 uses the new 2.6 version of the Linux kernel • SLES 9 supports new hardware platforms and extension such as • USB 2.0 and Firewire • SLES minimum installation system requirements • 256 MB RAM • 500 MB available hard disk space • SLES versions are certified by many major software vendors • Supports LSB, FHS, and TDS SUSE Linux Enterprise Server Administration (Course 3037)

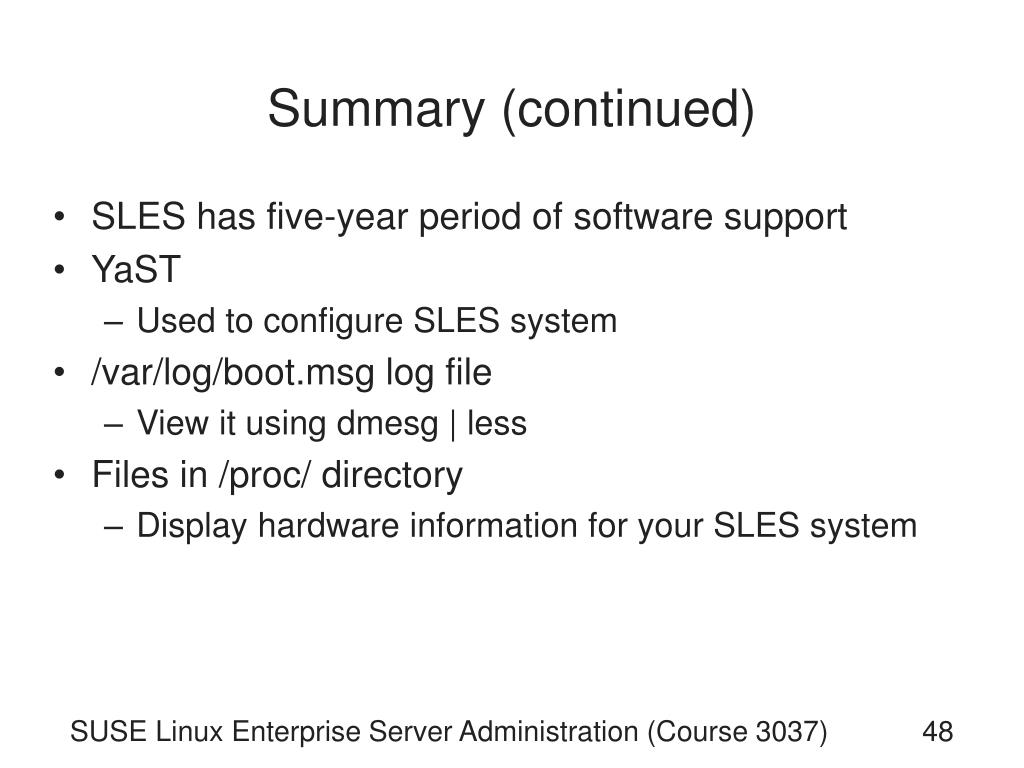

48. Summary (continued) • SLES has five-year period of software support • YaST • Used to configure SLES system • /var/log/boot.msg log file • View it using dmesg | less • Files in /proc/ directory • Display hardware information for your SLES system SUSE Linux Enterprise Server Administration (Course 3037)

49. Summary (continued) • Commands to display process-related information • top • uptime • ps • netstat • uname SUSE Linux Enterprise Server Administration (Course 3037)
