  1. KMIP v.Next PGP Support Michael Allen Sr. Technical Director, Symantec KMIP v.Next PGP Support

  2. Agenda Trust Establishment 1 Current KMIP Situation Proposed Enhancements 2 2 KMIP v.Next PGP Support

  3. Trust Establishment - Email KMIP v.Next PGP Support

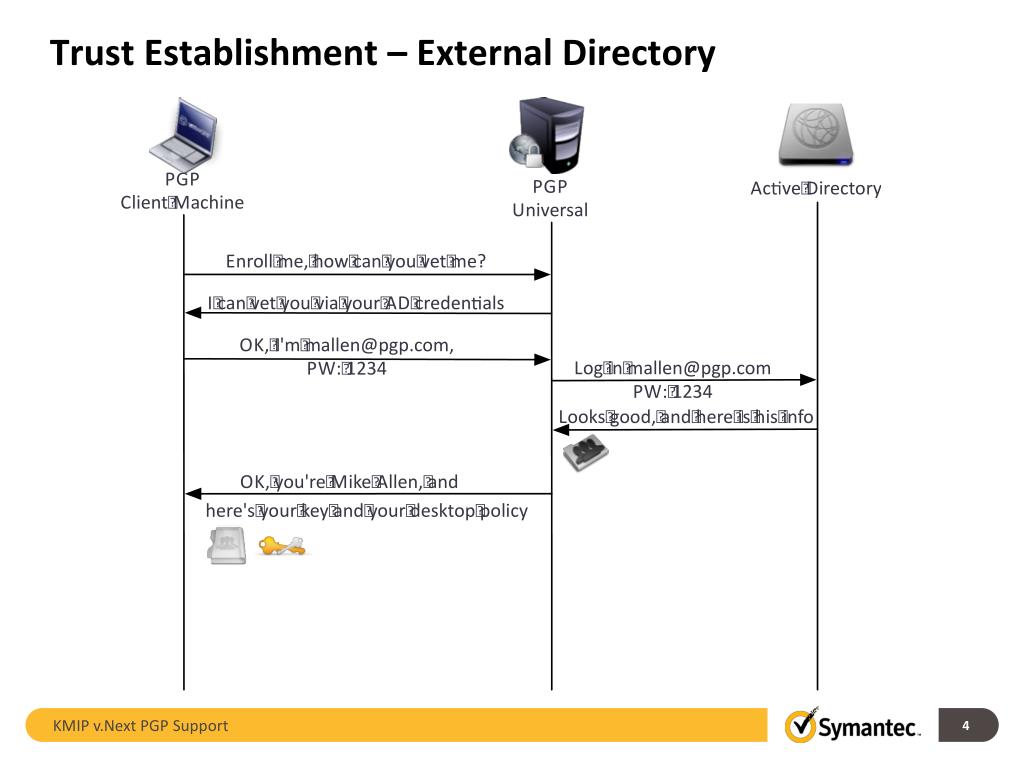

  4. Trust Establishment – External Directory KMIP v.Next PGP Support

  5. Where Are We Now KMIP v.Next PGP Support

  6. Note About Notation KMIP v.Next PGP Support

  7. How Do We Fit This Into That? KMIP v.Next PGP Support

  8. What’s Missing from KMIP? Multiple User IDs Top Key / Sub Key Structures 2 1 • Each PGP key have multiple user IDs (usually email addresses, can be images as well) • Searches for other PGP keys usually use these user IDs • KMIP has certificate identifier but doesn’t have the right bits in that attribute • User IDs can be signed just as keys can be signed • A PGP key consists of a unifying key and multiple purpose-specific sub keys • Keys are tied together via signatures between each other • KMIP doesn’t have a link notion between sets of public / private key pairs Arbitrary Signature Sets 3 Additional Decryption Key 4 • Anyone’s PGP key can sign another key • These signatures may play a role in arbitrary trust calculations • PGP-specific feature where the key ID of another PGP key rides along with one’s own PGP key • Anything encrypted with one’s PGP key also gets encrypted to the ADK • Searches for ADK occur via its key ID KMIP v.Next PGP Support

  9. PGP Certificate Type Re-Examined KMIP v.Next PGP Support

  10. Top Key and Sub Key Link Objects KMIP v.Next PGP Support

  11. Top Key and Sub Key Link Objects KMIP v.Next PGP Support

  12. New Link Types Table 9.1.3.2.20: Link Type Enumeration KMIP v.Next PGP Support

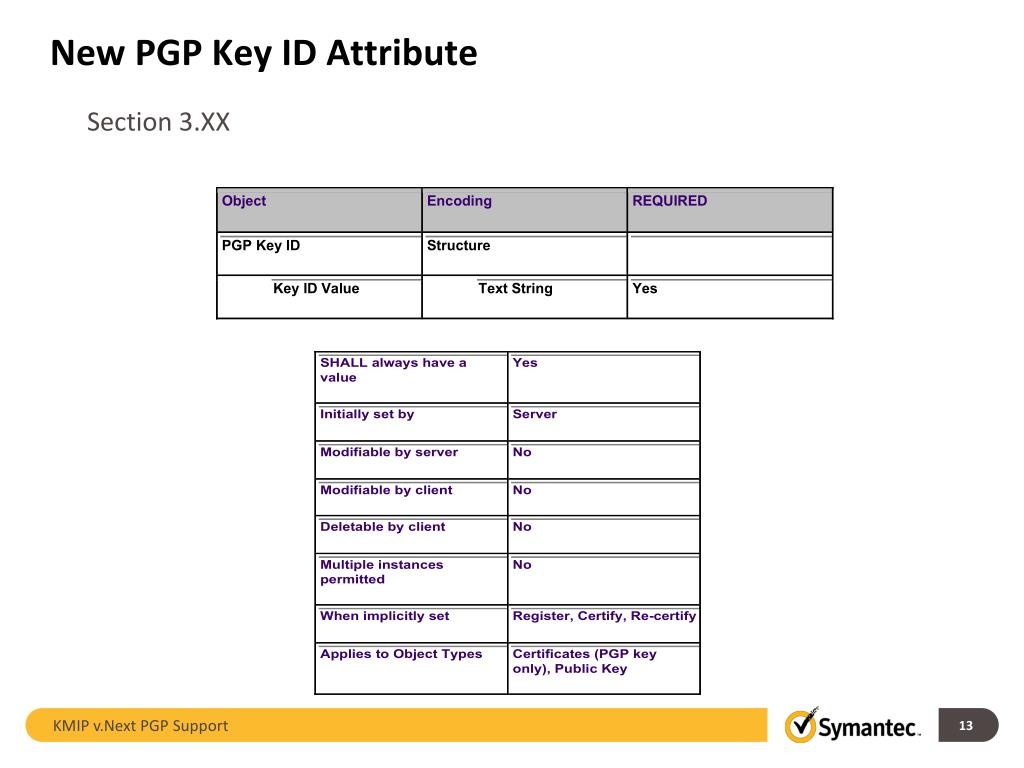

  13. New PGP Key ID Attribute Section 3.XX KMIP v.Next PGP Support

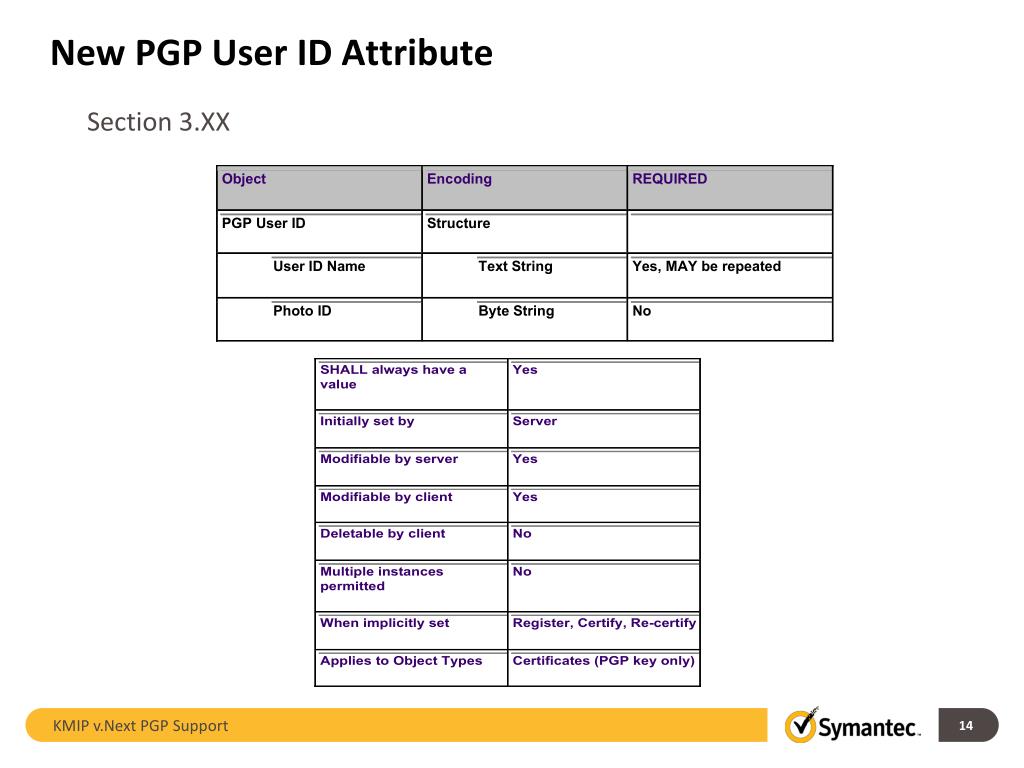

  14. New PGP User ID Attribute Section 3.XX KMIP v.Next PGP Support

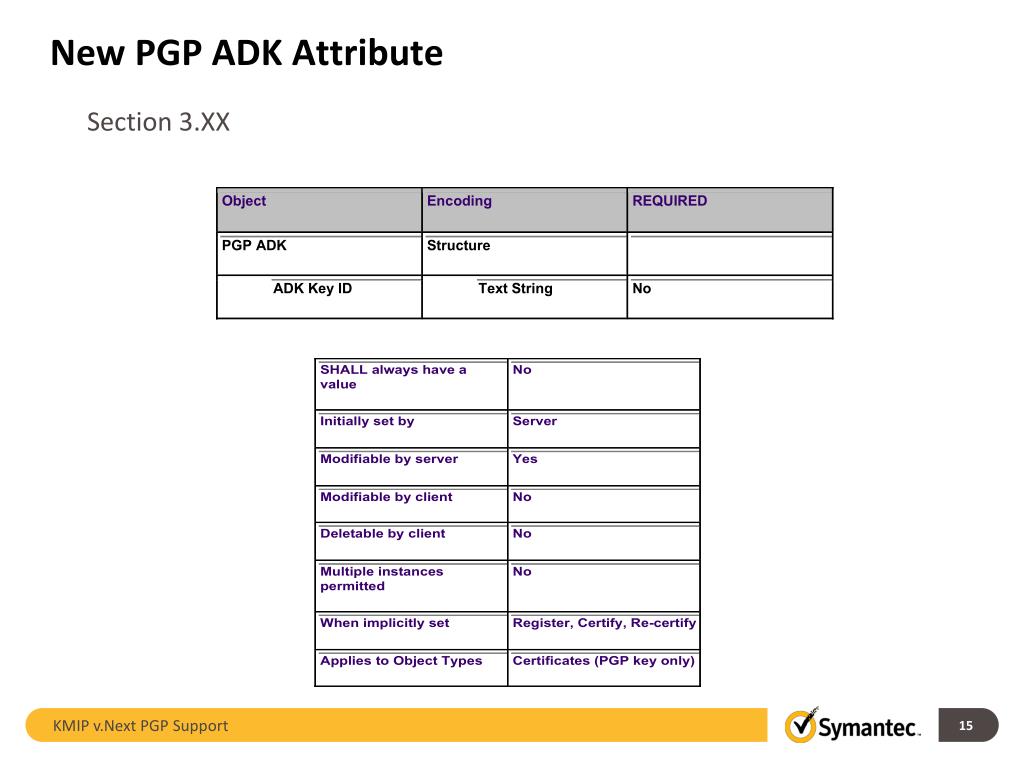

  15. New PGP ADK Attribute Section 3.XX KMIP v.Next PGP Support

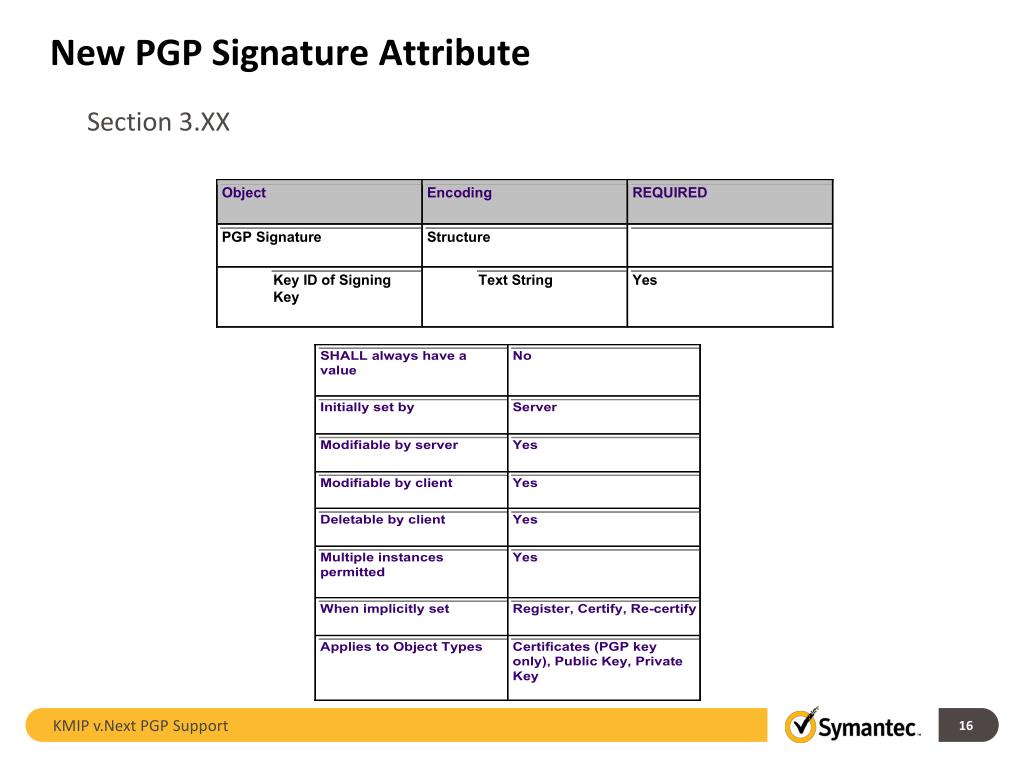

  16. New PGP Signature Attribute Section 3.XX KMIP v.Next PGP Support

  17. Michael Allen mike_allen@symantec.com 650-527-0716
