Laboratory experiences in a mechanical and aerospace engineering department

Laboratory experiences in a mechanical and aerospace engineering department Edward White - ebw@aeromail.tamu.edu Aerospace Engineering, Texas A&M University Until recently - Mechanical and Aerospace Eng., Case Western Reserve University

What to do (and what canbe done) in undergraduatelab courses Edward White - ebw@aeromail.tamu.edu Aerospace Engineering, Texas A&M University Until recently - Mechanical and Aerospace Eng., Case Western Reserve University

Undergraduate lab instruction should produce competent producers and consumers of experimental results.

We who hire new grads need them to to start work or grad. school ready to make meaningful contributions.

How should we structure laboratory instruction to achieve this?Maximum exposure?Stressing fundamentals?Something in between?(What about demos for other courses?)There’s limited time, credit hours and attention. We can’t do it all.

The right balance prepares students to make meaningful contributions in the widest range of applications and roles over the span of their careers

To achieve this, we shouldstress thoughtful application ofkey principles, not maximum exposure to state-of-the-art instruments or rapid-fire labs

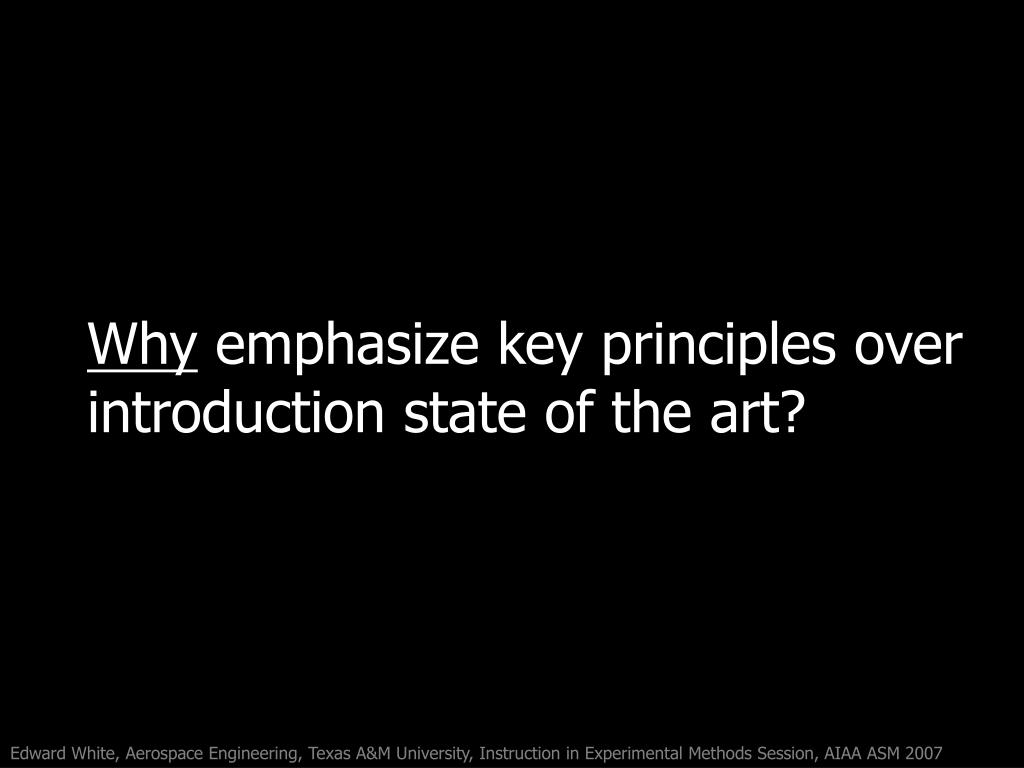

Why emphasize key principles over introduction state of the art?

Key principles have enduring value; the state of the art is ever changing.So, use limited time and resources where they’ll have the best and broadest long-term impact.

Students’ capability to absorb and competently apply new concepts is limited. Capture Efficiency  Delivery Rate -(1+)

There’s limited time in lectures, lab sessionsStudents have limited time(typically enrolled in 4-5 other courses)I have limited time.

There’s limited time in lectures, lab sessionsStudents have limited time(typically enrolled in 4-5 other courses)I have limited time

The state of the art is expensive!

Why emphasize key principles over introduction state of the art?

Mastery of key principles is what’s required for creativity, design and technical leadership

What are the key principles?

(1) Every measurement is uncertain and the uncertainty must be understood and quantified

There’s subtlety and difficulty in making even simple measurements

There’s not a “right” answer on which to fall back (although one should have a pretty good guess before starting)

There’s almost always a variety of means of making a measurement

Instruments and techniques must be calibrated against known, reliable standards

(2) Instruments and techniques consist of “knowable” components that can be understood, critiqued, and improved upon by undergraduates.There should be no black boxes.

Instruments consist of multiple simpler components

Computers do repetitive things quickly.They don’t do things correctly (necessarily) they do things quickly.

(3) There’s nothing useful about knowing something if you can communicate it in a clear and convincing way

Ultimately, mastery of these key principles of experimental work comes through practice and application.What do we actually do?

Perform a few “simple” labs that teach the key principles by requiring clear thinking about a tractable problems

Along the way we teach about data analysis and simple instrumentation as well as demonstrate physical principles to enhance other courses

OftenSolid Strain Basic UncertaintyMech. Gages Prop. Of Errors Computerized DAQHeat TC’s Linear RegressionTrans.Fluid Hot Fourier AnalysisMech. Wires

Example LabMeasure the pressure in an unopened pop can.

What’s the result? Mayhem ensues. Functional groups’ p’s Range from 15 to 100 psi. All groups have different p’s for the axial and circumferential gages. Some groups have a gage break, need to improvise. All have definite opinions about whether this is a good way to measure pressure! Most groups are able to make interesting conclusions about what went right and what went wrong.

This is a simple experiment:Simply put some gages on a can and open it.But, it’s actually a rich, complex (but tractable) problem that uncovers a huge range of real experimental issues.

This is the sort of foundation from which we should build.Don’t underestimate the rigor that’s needed even for simple thingsUnderstand and dissect the processUnderstand uncertainty

Use this and a few other practice examples of similar scope, then move on to the more complex, more modern work.

Laboratory experiences in a mechanical and aerospace engineering department
