  1. AoA: Functions to Forms Team UGS

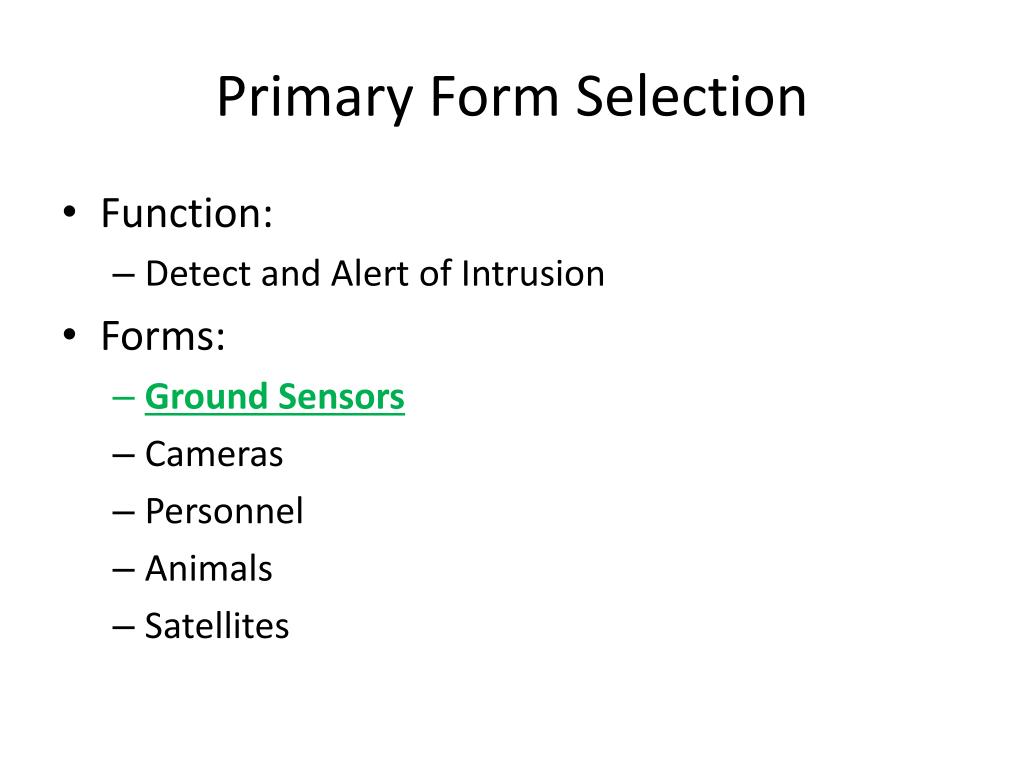

  2. Primary Form Selection • Function: • Detect and Alert of Intrusion • Forms: • Ground Sensors • Cameras • Personnel • Animals • Satellites

  3. Primary Form Selection Function: Detect and Alert of Intrusion NOTE: It is of the sponsor and stakeholders interest to research Ground Sensors over other potential solutions for intrusion detection and notification.

  4. Sensor Form Selection • Function • Detect Personnel with ground sensors • Forms • Passive Infrared Sensor (Thermal) • Radar Sensor (RF) • Acoustic Sensor • Seismic Sensor • Trip Wire Sensor • Magnetic Sensor

  5. Sensor Form Selection Function: Detect Personnel with ground sensors

  6. Sensor Form Selection • Function • Detect Vehicles with ground sensors • Forms • Passive Infrared Sensor (Thermal) • Radar Sensor (RF) • Acoustic Sensor • Seismic Sensor • Trip Wire Sensor • Magnetic Sensor

  7. Sensor Form Selection Function: Detect vehicle with ground sensors

  8. Alert Comms Form Selection • Function • Alert Users of Intrusion with ground sensors • Forms • Hardwired Comms • Satellite RF Comms • Cellular RF Comms • 900Mhz RF Comms • Wi-fi RF Comms • Laser Comms

  9. Alert Comms Form Selection Function: Alert users of intrusion with ground sensors

  10. Power Form Selection • Function • Provide autonomous power to ground sensor • Forms • Batteries • Solar • Wind • Hardwired AC • Based on the requirement of having the sensor be self powered and maintain an operational life beyond 60 days, the only viable form is battery power coupled with a replenishing solar cell. Other forms do not meet the interests of the stakeholders with today's available technology.

  11. UGS Selection • Based on the top level functions and requirements, the forms selected are: • Ground Sensor (Detect Intrusion) • PIR, Vibration, Acoustic, Magnetic Sensors (Detect personnel and vehicles) • Wi-Fi comms (Alert of Intrusion) • Once the top level forms were selected then additional form to function mapping was completed. • The final step will be to map specific forms to each function and do another AoA based on specific requirements.

  12. Hardware Mapping The following charts are the initial form mapping to the functions of the system These basic form placeholders will then be determined in the hardware design phases. For example – Processor System – Mote CPU would be the Mica2Dot Mote by Crossbow Technologies. Process System Process System Mote CPU Mote CPU Mica2Dot Mote Form Specified Form/Hardware Solution

  13. Sensor Component Hardware Mapping MINUS SENSOR COMPONENT Processor System Sensor System Wi-Fi Communications System Power System Location System Mote CPU Seismic Function Receive System Battery System Receive Function Vibration Sensor RF Antenna Rechag. Battery Pack GPS Receiver RF Rx Radio GPS Antenna Acoustic Function Storage Function Transmit System Regenerative Power System Microphone Sensor Flash Memory RF Antenna Solar Panel Array Memory Chipset RF Tx Radio Magnetic Function Power Mngmt System Magnetic Sensor Charging Circuit Regulator Circuit Thermal Function PIR Sensor

  14. Relay Component Hardware Mapping MINUS RELAY COMPONENT Process System Communications System Power System Mote CPU Receive System Battery System RF Antenna Rechag. Battery Pack RF Comms Board Transmit System Regenerative Power System RF Antenna Solar Panel Array RF Comms Board Power Mngmt System Charging Circuit Processor Chipset Regulator Circuit

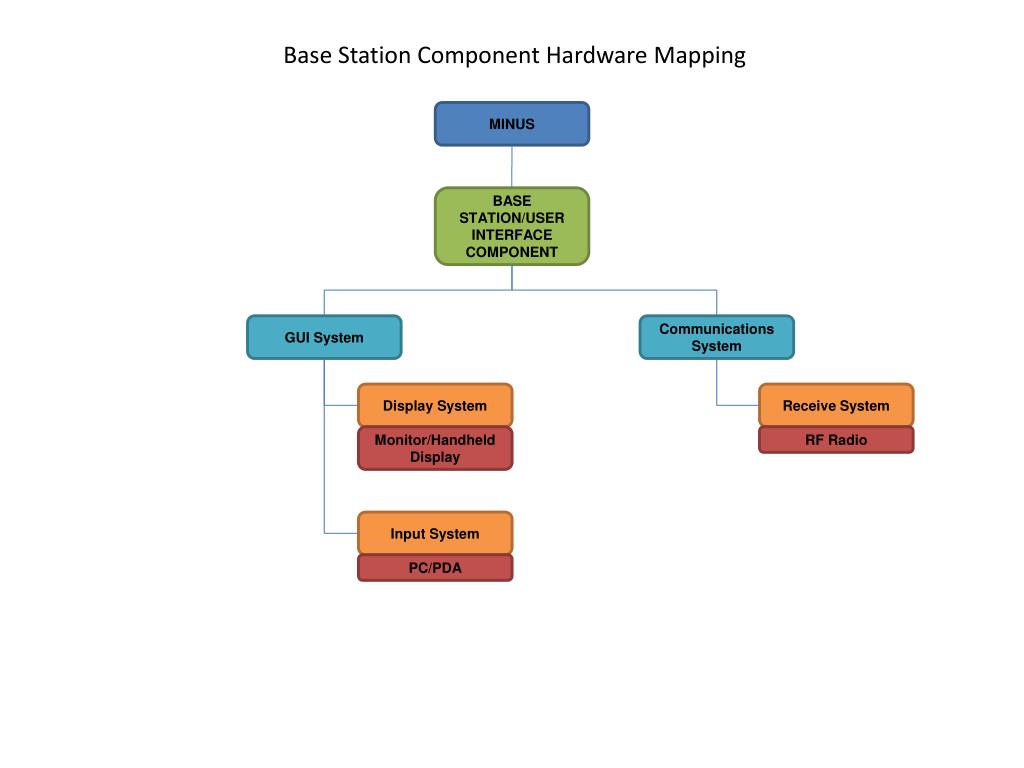

  15. Base Station Component Hardware Mapping MINUS BASE STATION/USER INTERFACE COMPONENT GUI System Communications System Display System Receive System Monitor/Handheld Display RF Radio Input System PC/PDA
