Comprehensive 3NF Relational Database Schema Normalization Tool

This tool assists users in normalizing relational database schemas to Third Normal Form (3NF) by handling functional dependencies. Users can execute three main functionalities: Get 3NF, Find Closure, and Membership Test. To use the tool, enter functional dependencies and click the appropriate buttons to generate a normalized schema, check attribute closures, or determine schema membership. The methodology is based on Bernstein's algorithm, with improvements for generating lossless schemas and ensuring all keys are found.

alec
Télécharger la présentation

Comprehensive 3NF Relational Database Schema Normalization Tool

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Relational Database Schema normalizer P03 A0078012N Gong Jianlin A0078102N Wu Xianqun

  2. Functionality • Get 3NF • Find Closure • Membership Test • Find Keys

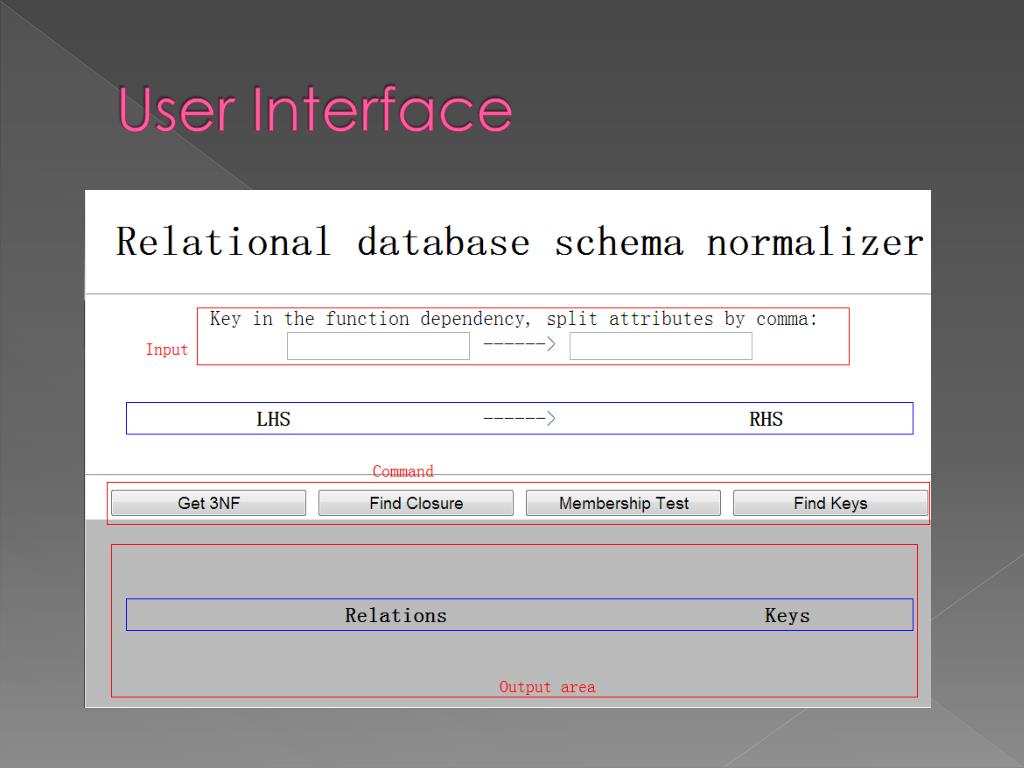

  3. User Interface

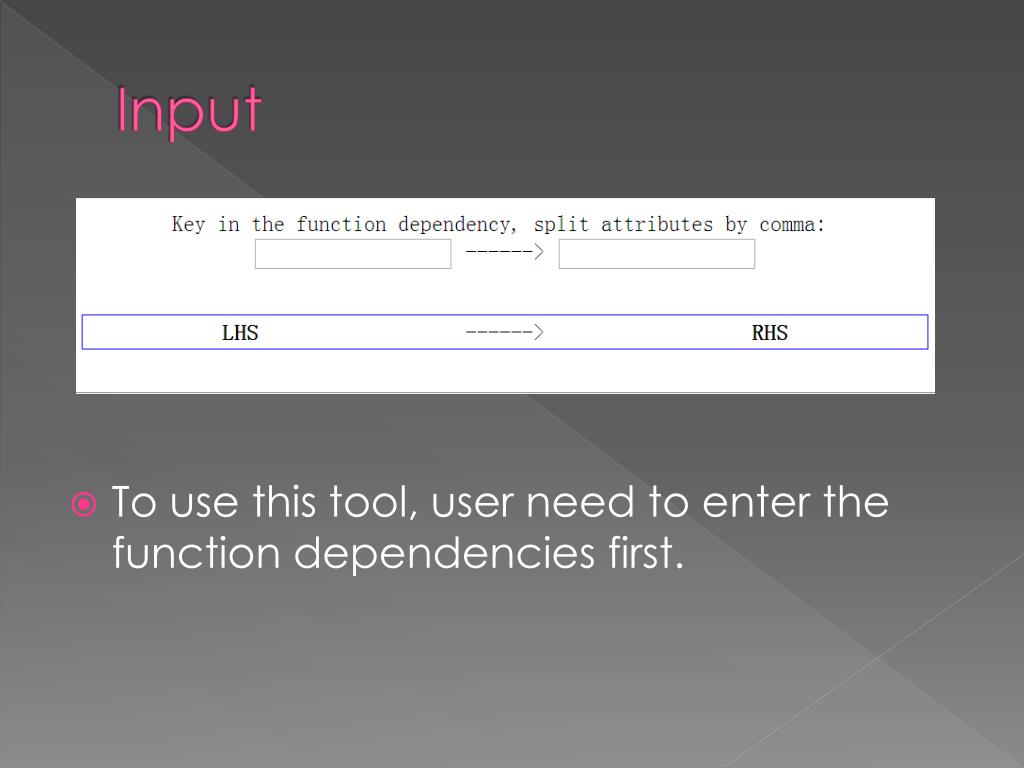

  4. Input • To use this tool, user need to enter the function dependencies first.

  5. Get 3NF • After entering the function dependencies, click button ‘Get 3NF’ then a schema in 3NF with all the keys will be generated in the output area

  6. Find Closure • Click button ‘Find Closure’

  7. Membership Test • Click button ‘Membership Test’

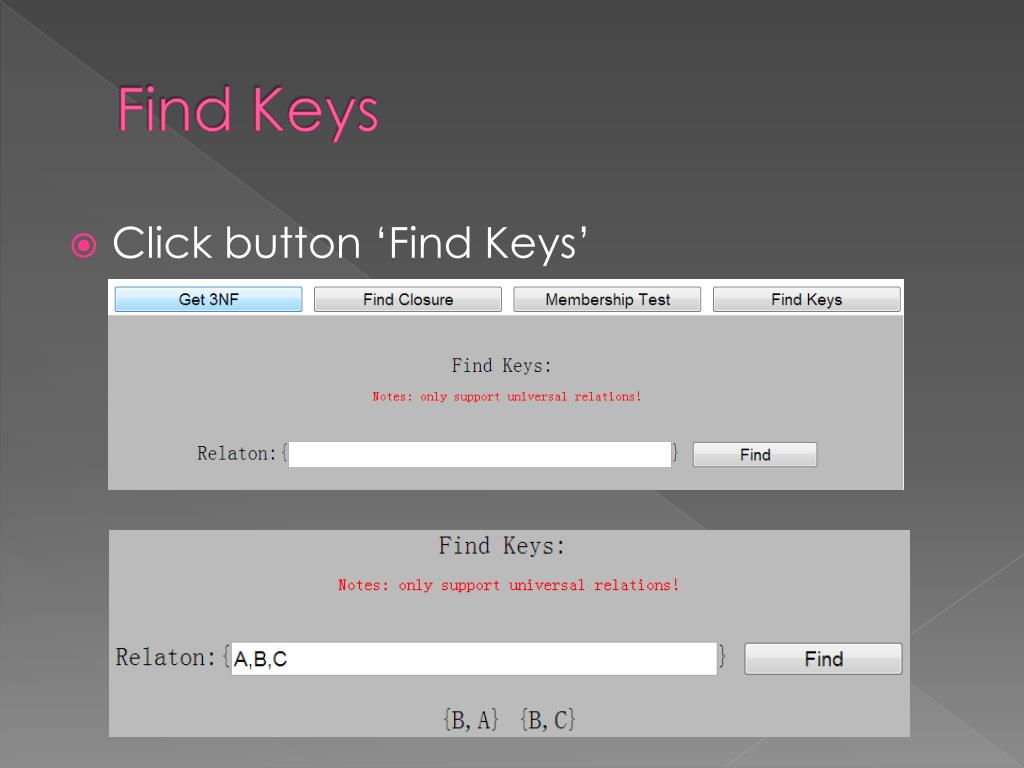

  8. Find Keys • Click button ‘Find Keys’

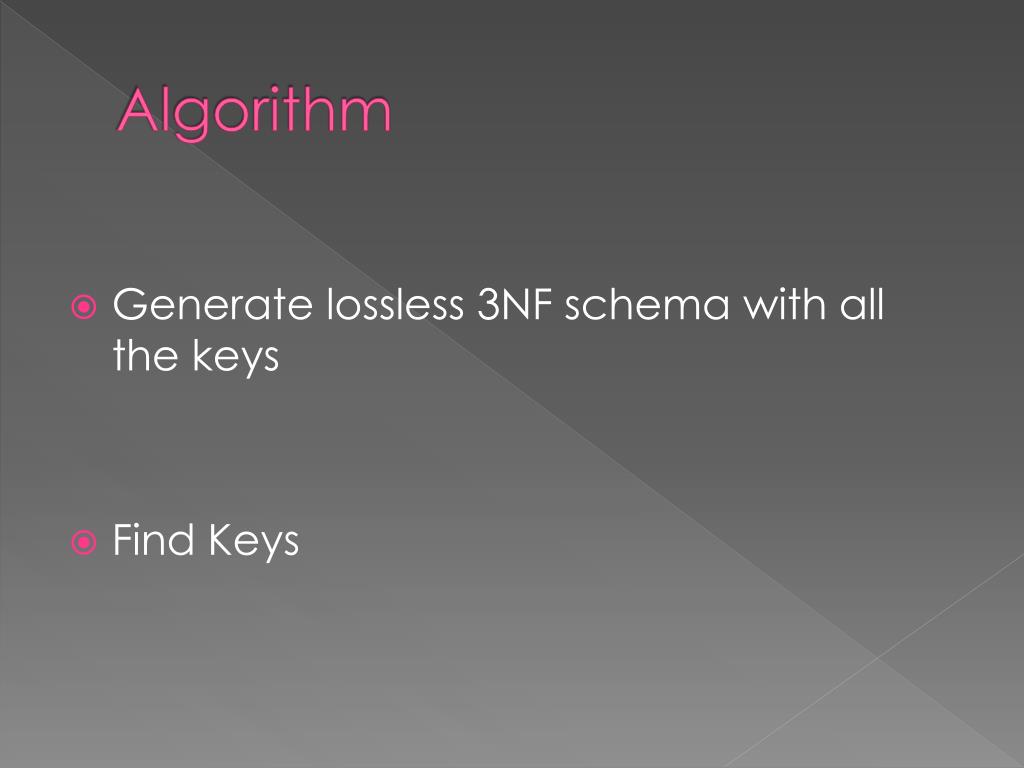

  9. Algorithm • Generate lossless 3NF schema with all the keys • Find Keys

  10. 3NF • Algorithm is based on Bernstein Algorithm • Shortcoming: • Does not guarantee Losslessness. • Does not find all the keys.

  11. Lossless • When applying Bernstein Algorithm, attributes may be eliminated. • Solution: After each step which is possible to loss an attribute, the normalizer will check if the attributes eliminated is still in the schema. If not,create a relation for this attribute.

  12. Lossless

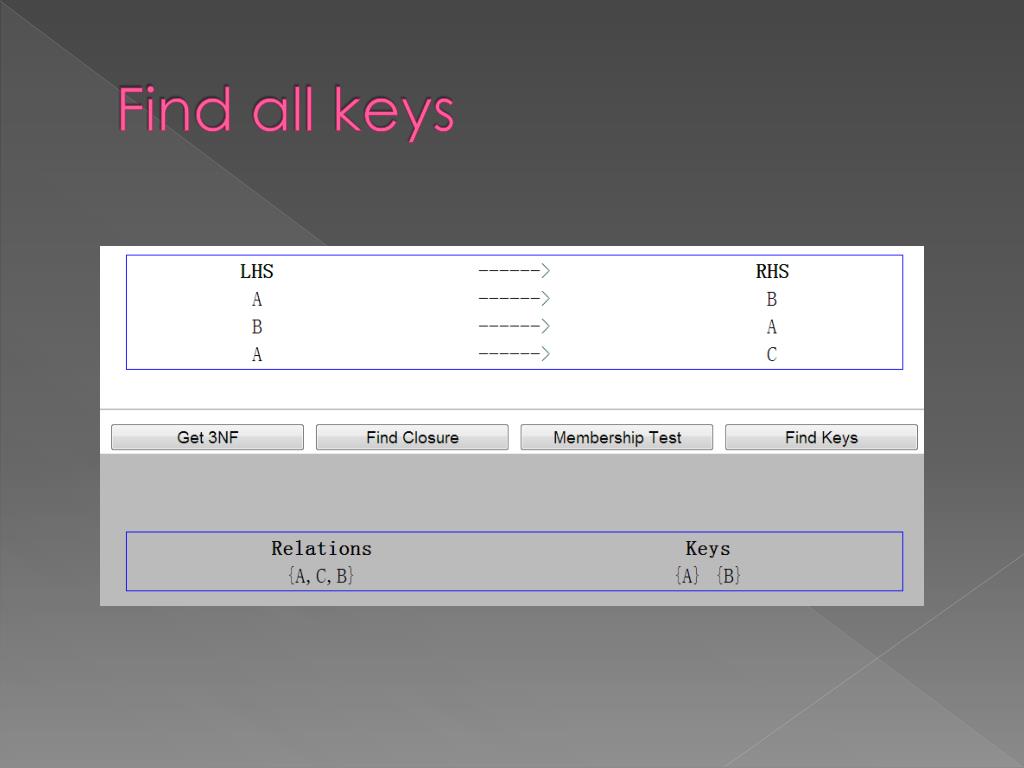

  13. Find all keys • Bernstein Algorithm only give one explicit key. • Solution: After applying Bernstein Algorithm, the normalizer will use the functionality Find Keys to get all the keys of the normalized schema.

  14. Find all keys

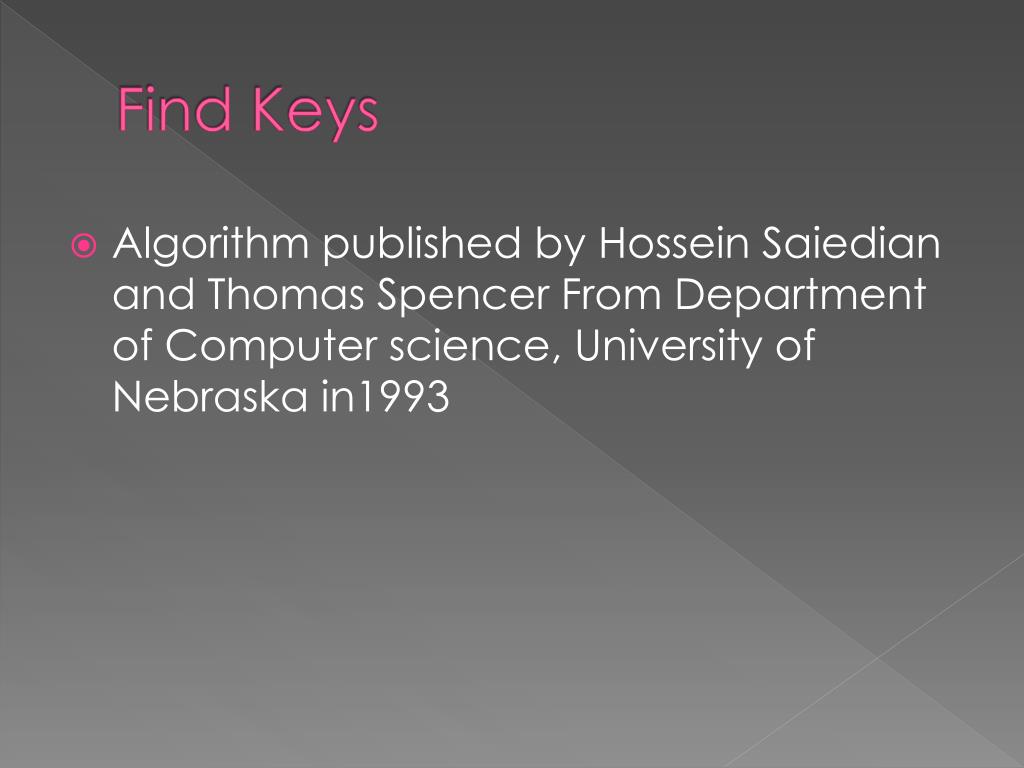

  15. Find Keys • Algorithm published by HosseinSaiedian and Thomas Spencer From Department of Computer science, University of Nebraska in1993

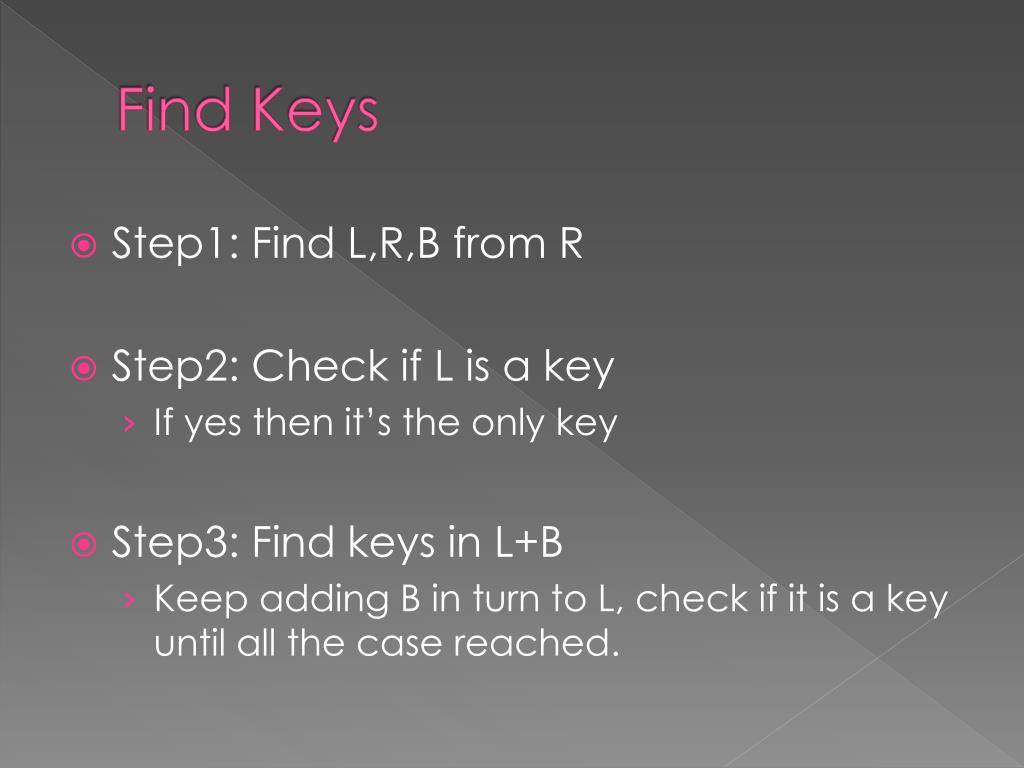

  16. Find Keys • Step1: Find L,R,B from R • Step2: Check if L is a key • If yes then it’s the only key • Step3: Find keys in L+B • Keep adding B in turn to L, check if it is a key until all the case reached.

  17. Q&A
