  1. Bravo 3 – Debugging Debian Enrique Naudon JD Nir NadimTaha William Wysocki

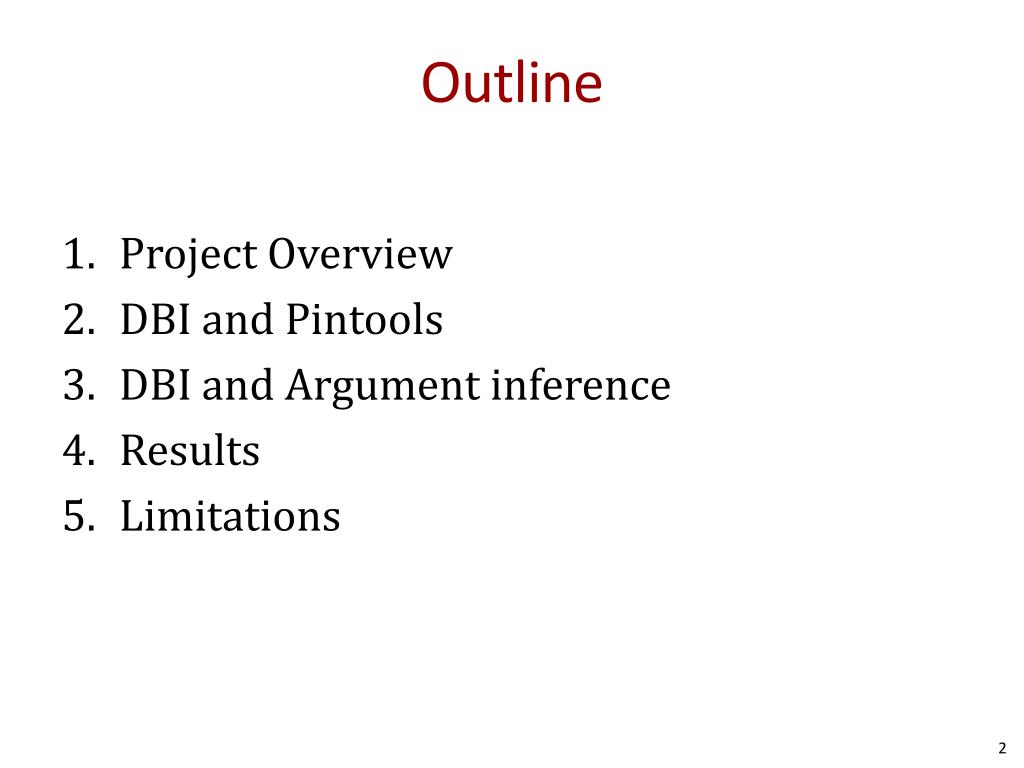

  2. Outline • Project Overview • DBI and Pintools • DBI and Argument inference • Results • Limitations

  3. Epoch 2 • Argument Inference • Cannot handle long-running/GUI applications • Fuzzing • Naïve • Mutation only • Post Processing • Logs stored locally • Manual uniquification/verification • 106 unique bugs from ~3000 crashes

  4. Epoch 3 • Argument Inference • Support for long-running applications • Code coverage with DBI • Fuzzing • Directed fuzzing with DBI • Post Processing • Centralized logging • Completely automated • ~300 unique bugs from ~7000 crashes

  5. DBI and Pintools

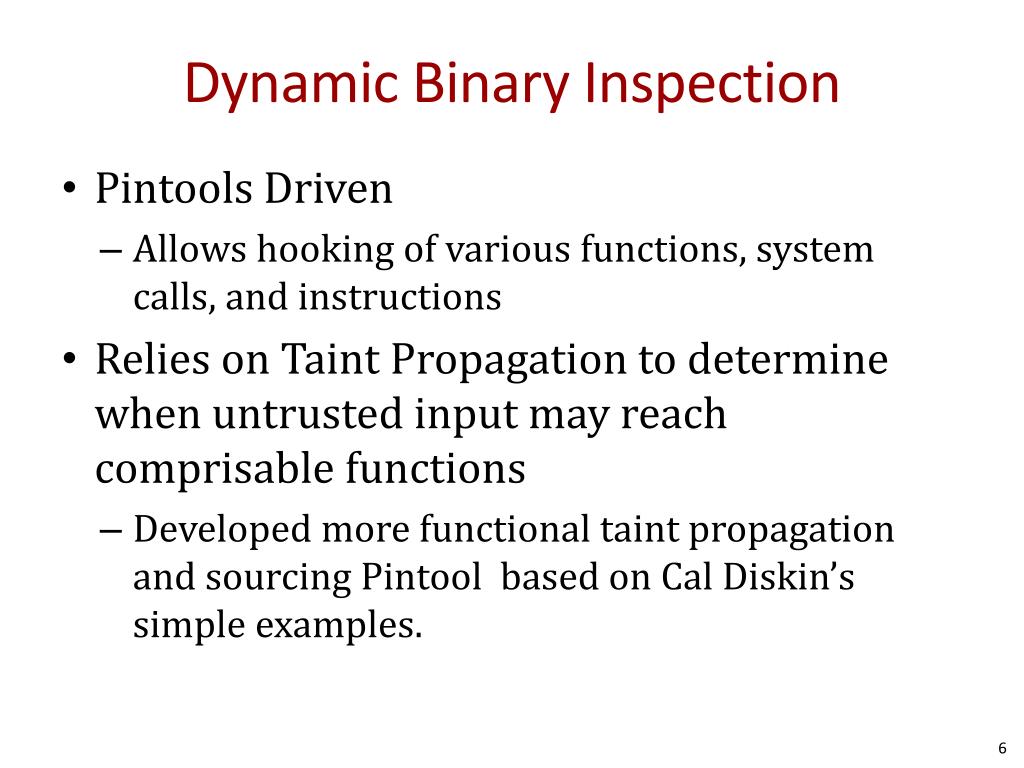

  6. Dynamic Binary Inspection • Pintools Driven • Allows hooking of various functions, system calls, and instructions • Relies on Taint Propagation to determine when untrusted input may reach comprisable functions • Developed more functional taint propagation and sourcing Pintool based on Cal Diskin’s simple examples.

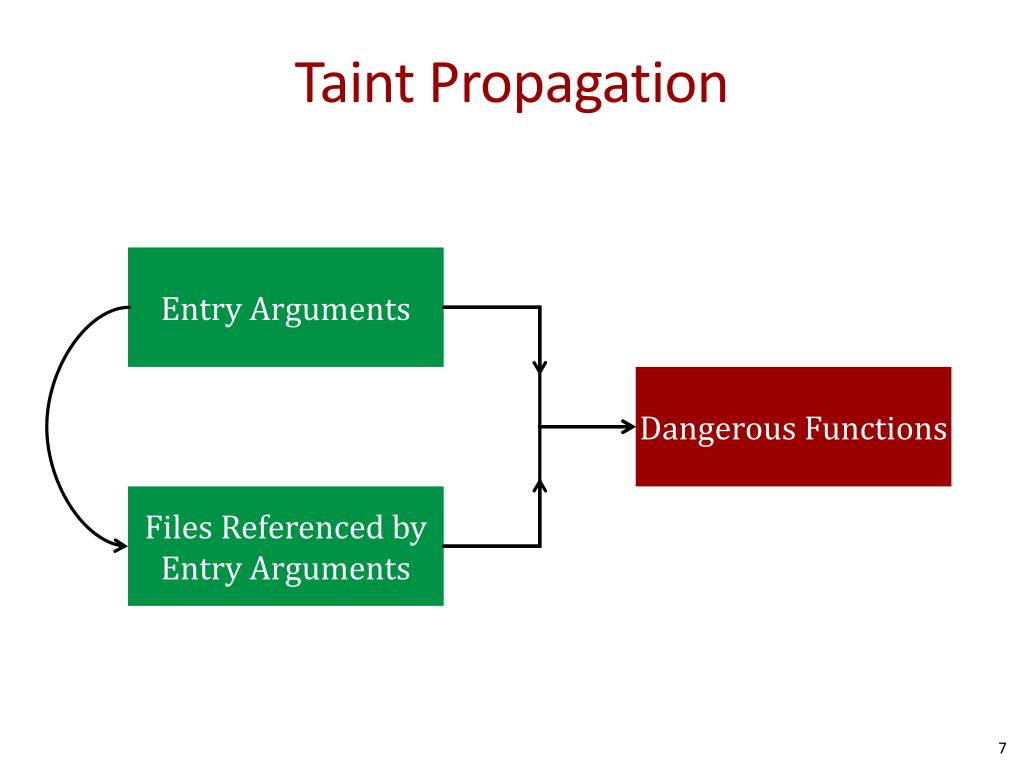

  7. Taint Propagation Entry Arguments Dangerous Functions Files Referenced by Entry Arguments

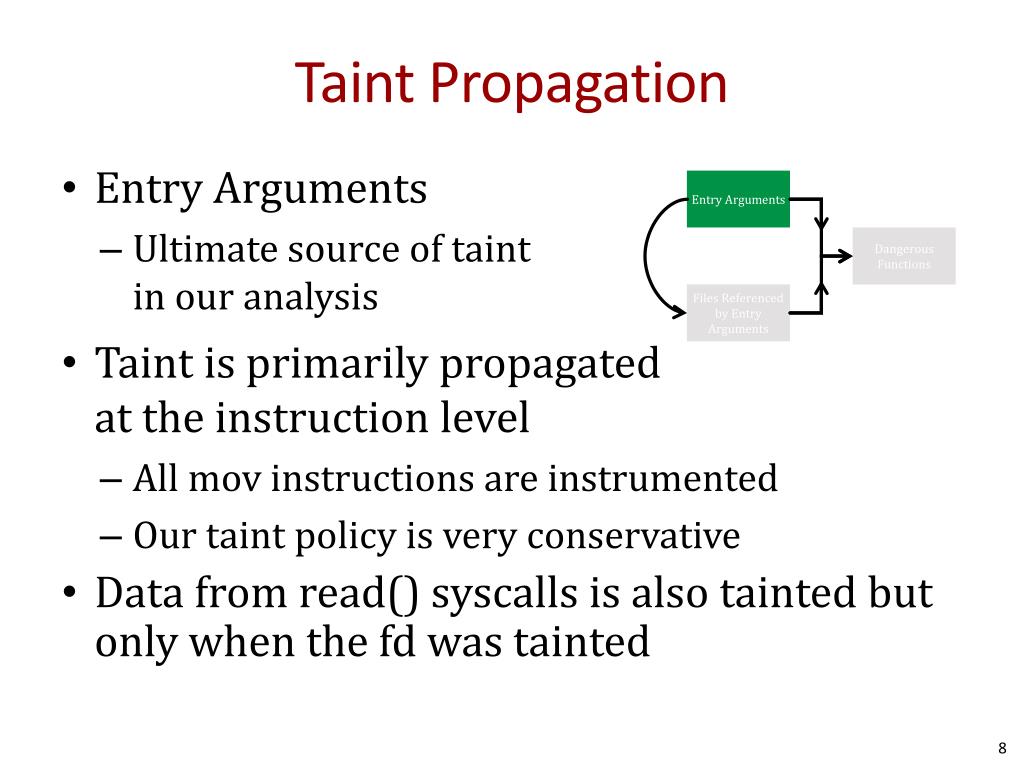

  8. Taint Propagation • Entry Arguments • Ultimate source of taintin our analysis Entry Arguments Dangerous Functions • Taint is primarily propagatedat the instruction level • All mov instructions are instrumented • Our taint policy is very conservative Files Referenced by Entry Arguments • Data from read() syscalls is also tainted but only when the fd was tainted

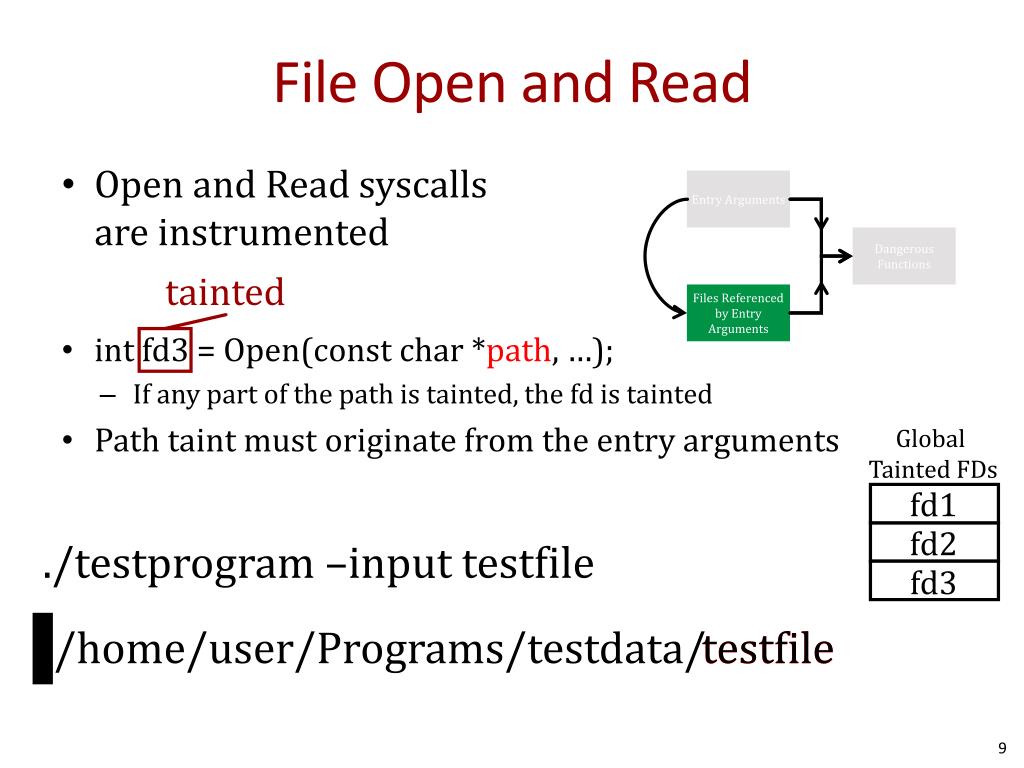

  9. File Open and Read • Open and Read syscallsare instrumented • int fd3 = Open(const char *path, …); • If any part of the path is tainted, the fd is tainted • Path taint must originate from the entry arguments Entry Arguments tainted Dangerous Functions Global Tainted FDs Files Referenced by Entry Arguments fd1 fd2 ./testprogram –input testfile fd3 testfile /home/user/Programs/testdata/ testfile

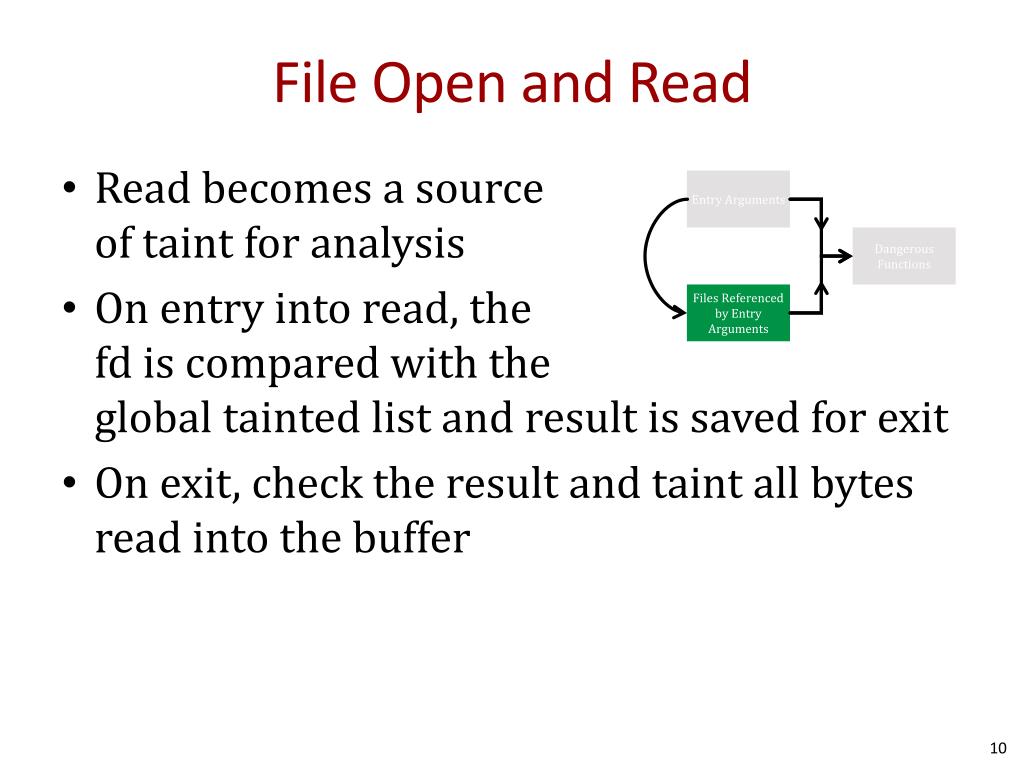

  10. File Open and Read • Read becomes a sourceof taint for analysis • On entry into read, thefd is compared with theglobal tainted list and result is saved for exit • On exit, check the result and taint all bytes read into the buffer Entry Arguments Dangerous Functions Files Referenced by Entry Arguments

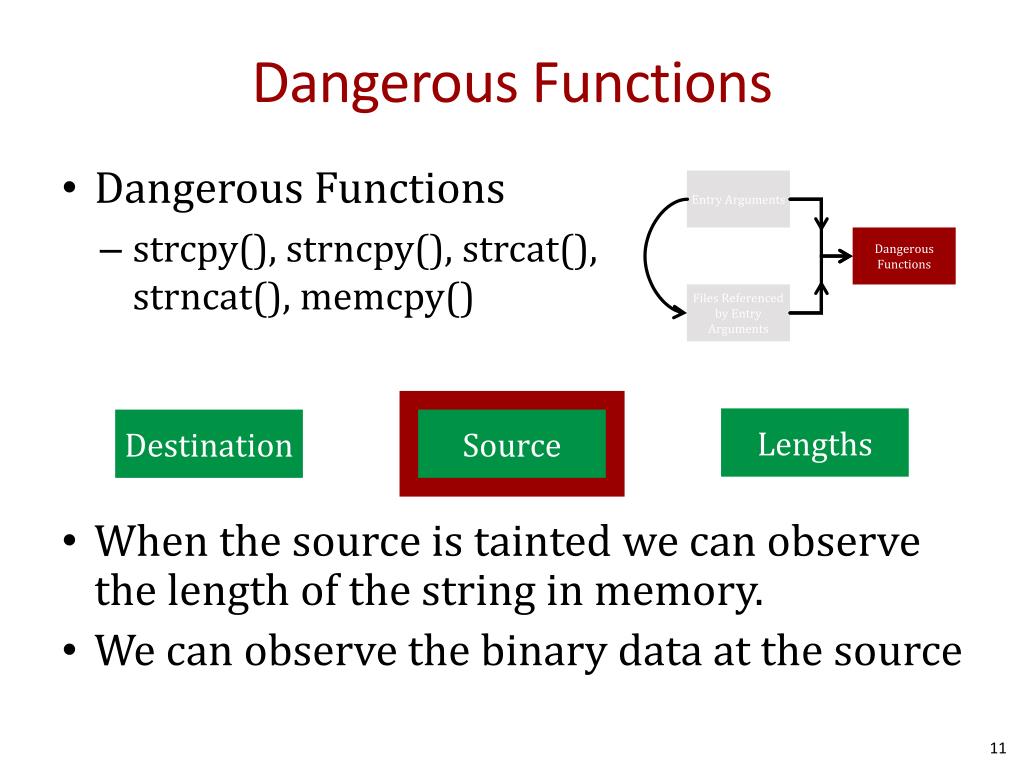

  11. Dangerous Functions • Dangerous Functions • strcpy(), strncpy(), strcat(),strncat(), memcpy() Entry Arguments Dangerous Functions Lengths Destination Source Files Referenced by Entry Arguments • When the source is tainted we can observe the length of the string in memory. • We can observe the binary data at the source

  12. Dangerous Functions Indicates a tainted strcpy()source at memory location0xbffb6319 Binary value at tainted memory location. Indicates a tainted strcpy()source at memory location0xbffb6319

  13. Directed Fuzzing • thimble.py • Utilizes the heavy lifting performed by the Pintool and evaluates input sources • Input to the tool is specified as either a string or a file • Find the binary value in the input source • If there are multiple instances find one with a matching string length if it exists • Increase the length of thestring re-run the Pintooland observe new results

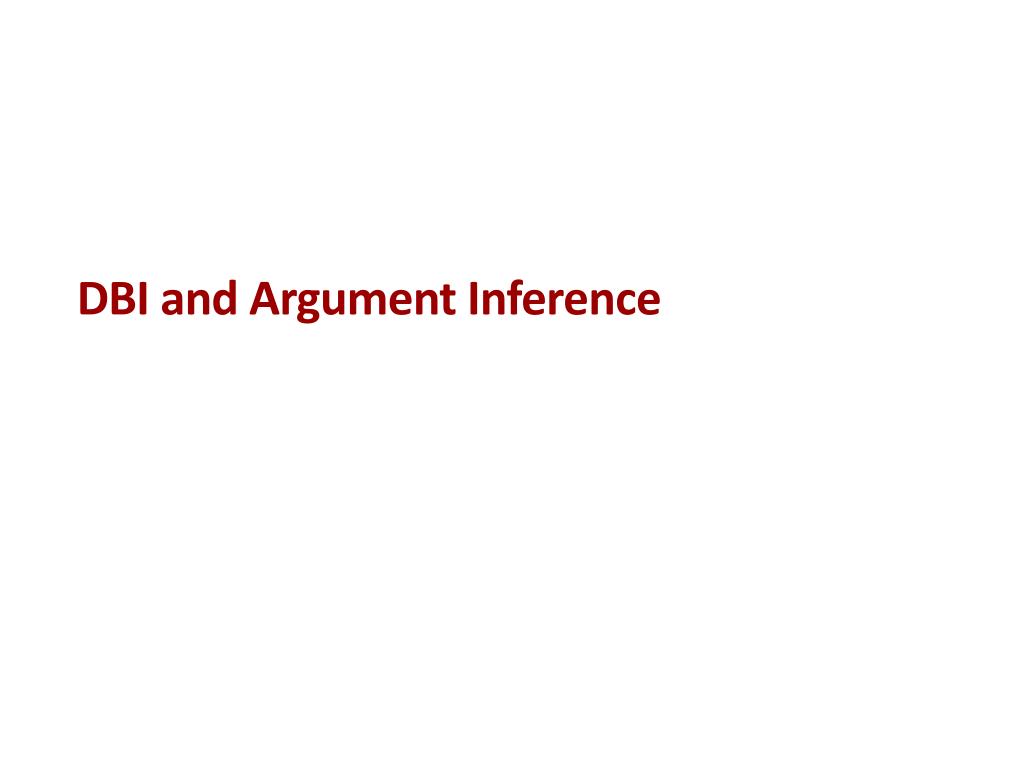

  14. DBI and Argument Inference

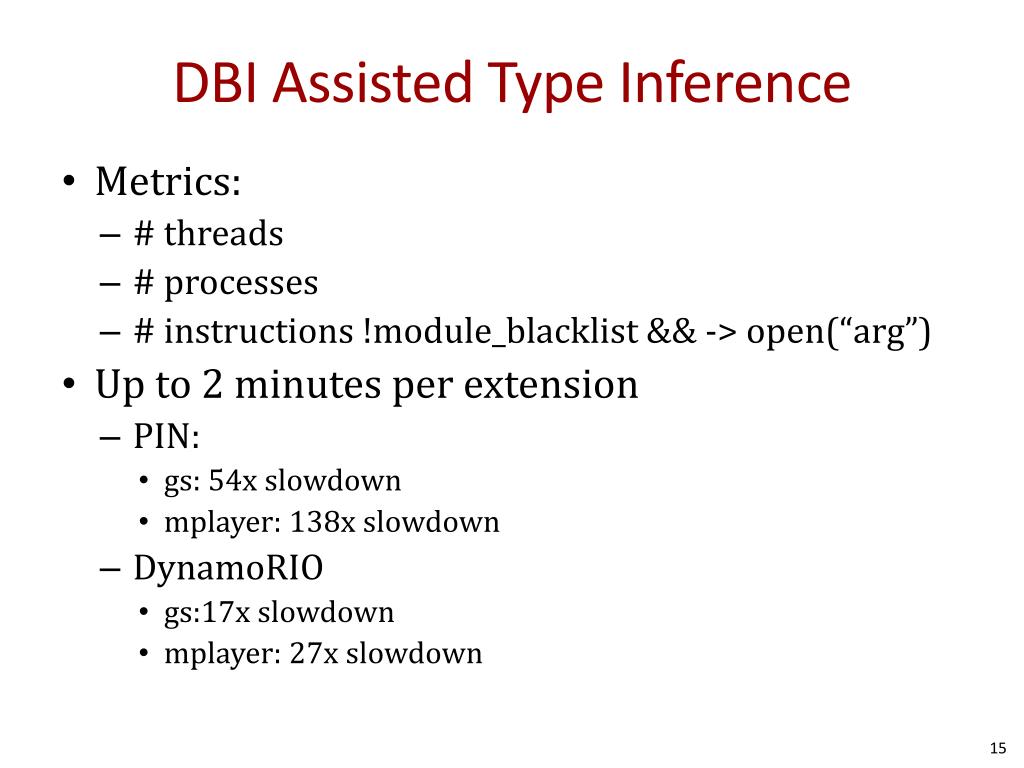

  15. DBI Assisted Type Inference • Metrics: • # threads • # processes • # instructions !module_blacklist && -> open(“arg”) • Up to 2 minutes per extension • PIN: • gs: 54x slowdown • mplayer: 138x slowdown • DynamoRIO • gs:17x slowdown • mplayer: 27x slowdown

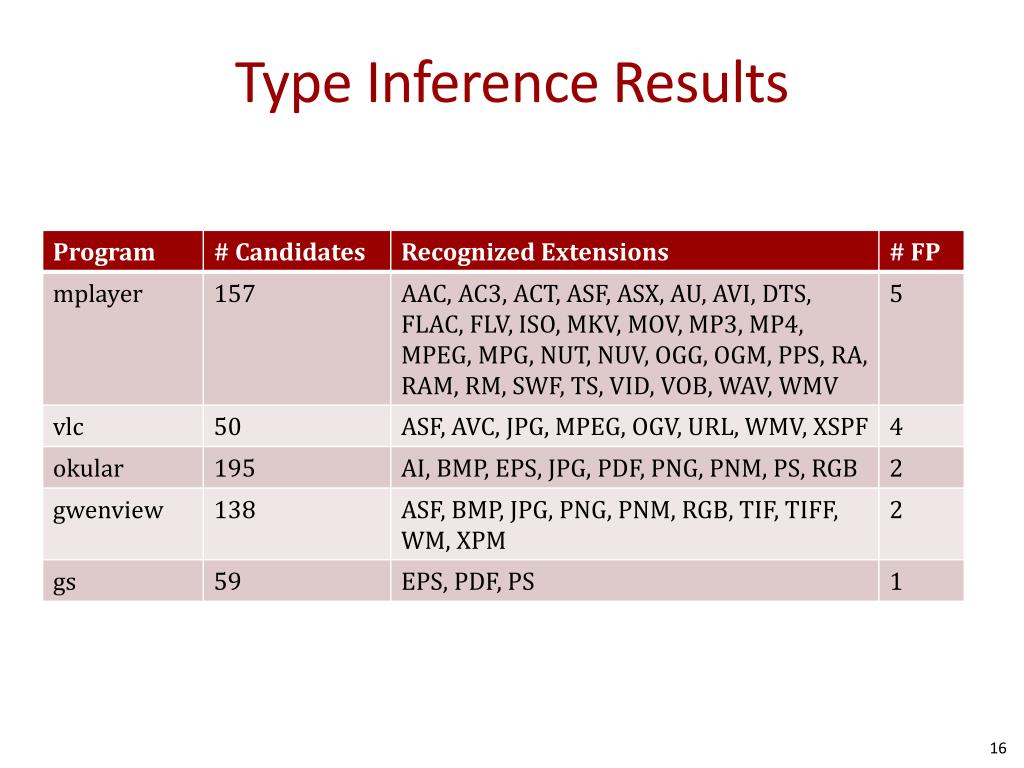

  16. Type Inference Results

  17. Demo

  18. Results

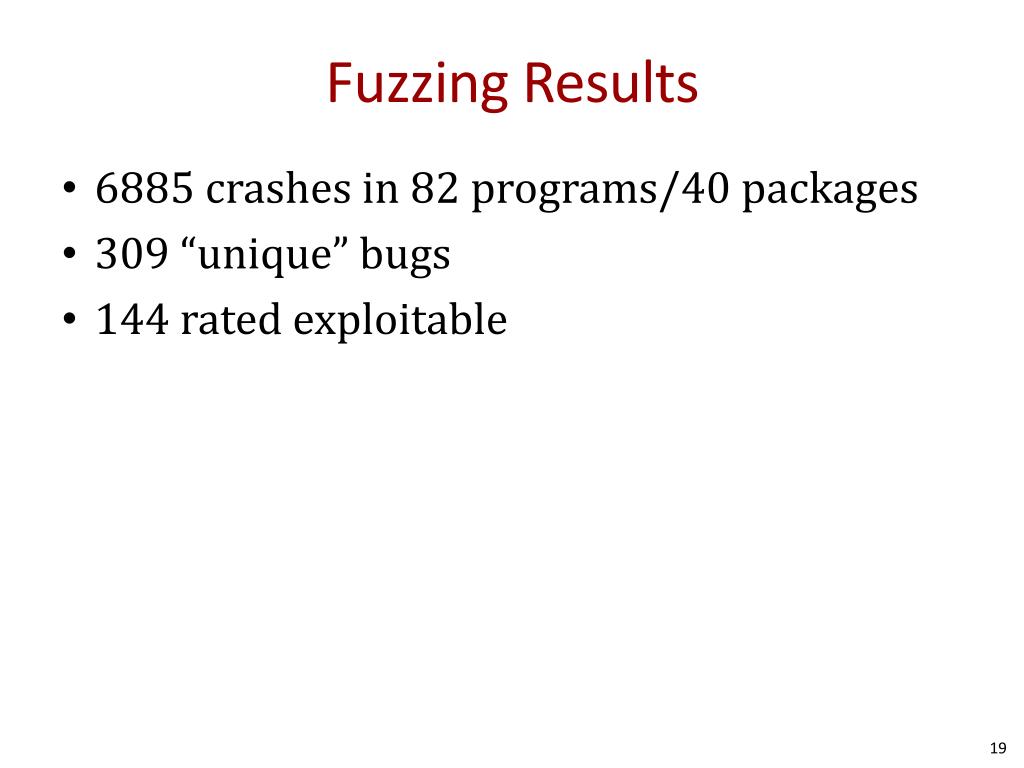

  19. Fuzzing Results • 6885 crashes in 82 programs/40 packages • 309 “unique” bugs • 144 rated exploitable

  20. Fuzzing Results • Major hash unification • Only bugs generated post filetype inference • Fuzzed for 60 seconds per binary • Crashes in certain applications (e.g. mplayer) weren’t processed due to limitations of the analysis script

  21. Database

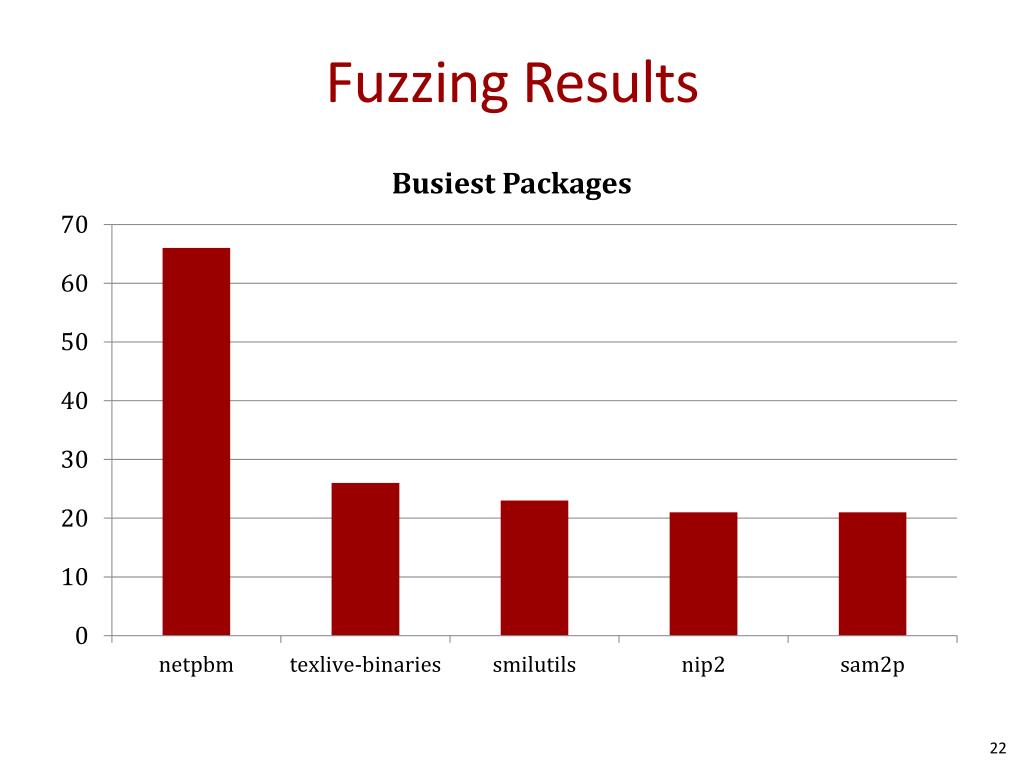

  22. Fuzzing Results

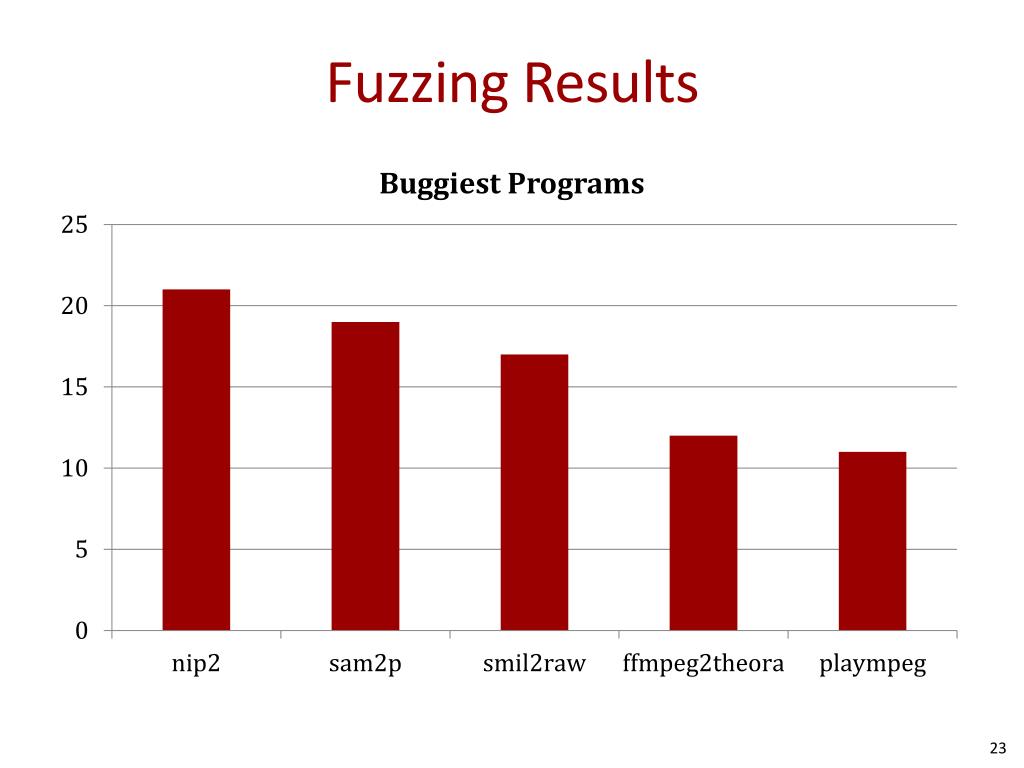

  23. Fuzzing Results

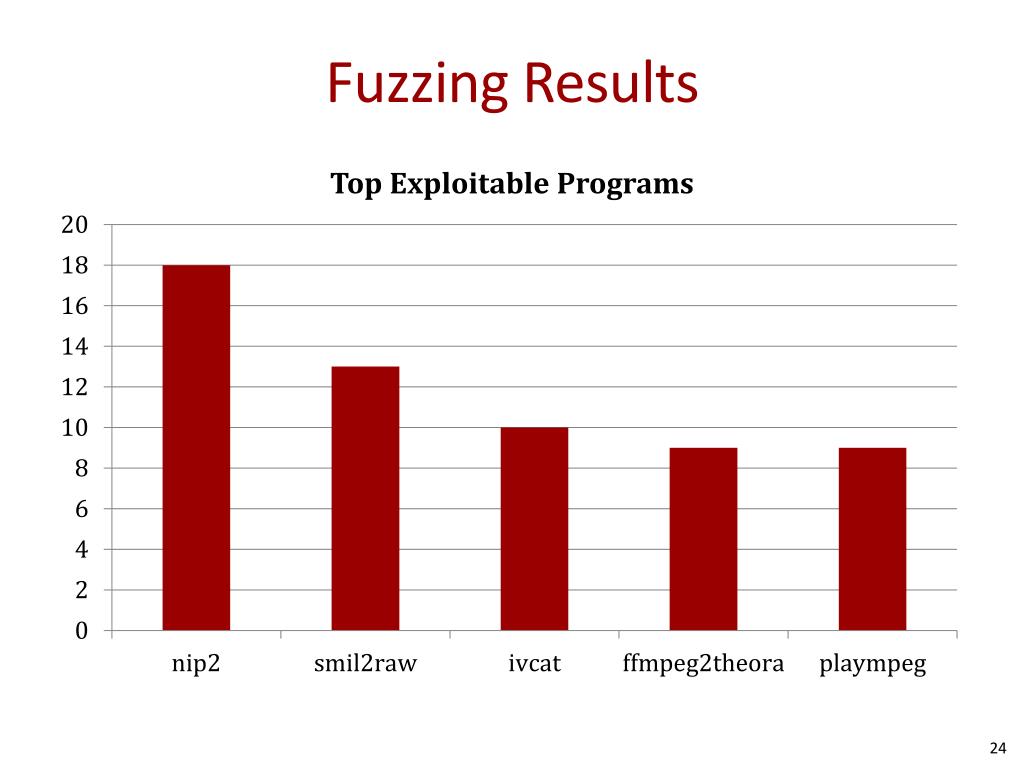

  24. Fuzzing Results

  25. Limitations/Future Work • Argument Inference • Structured arguments (IPs, regexes) • Cannot represent relationships • Explore other metrics for type inference • /usr/share/mime/magic + *.desktop • Verification misses crashes • Signal handlers • PinTool • Slow • Can crash some applications • DynamoRIO • Performance Counters + strace(fork/clone)

  26. Questions?

  27. END
