  1. Databases and Data Representation CS360 Windows Programming

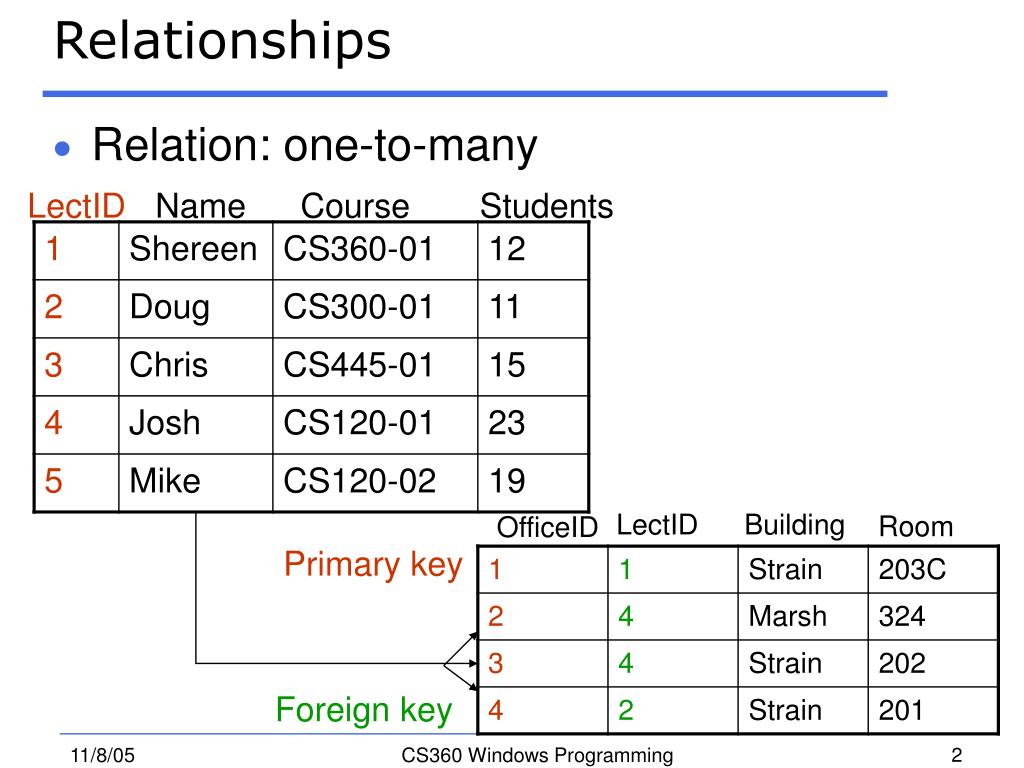

  2. Relationships • Relation: one-to-many LectID Name Course Students LectID Building Room OfficeID Primary key Foreign key CS360 Windows Programming

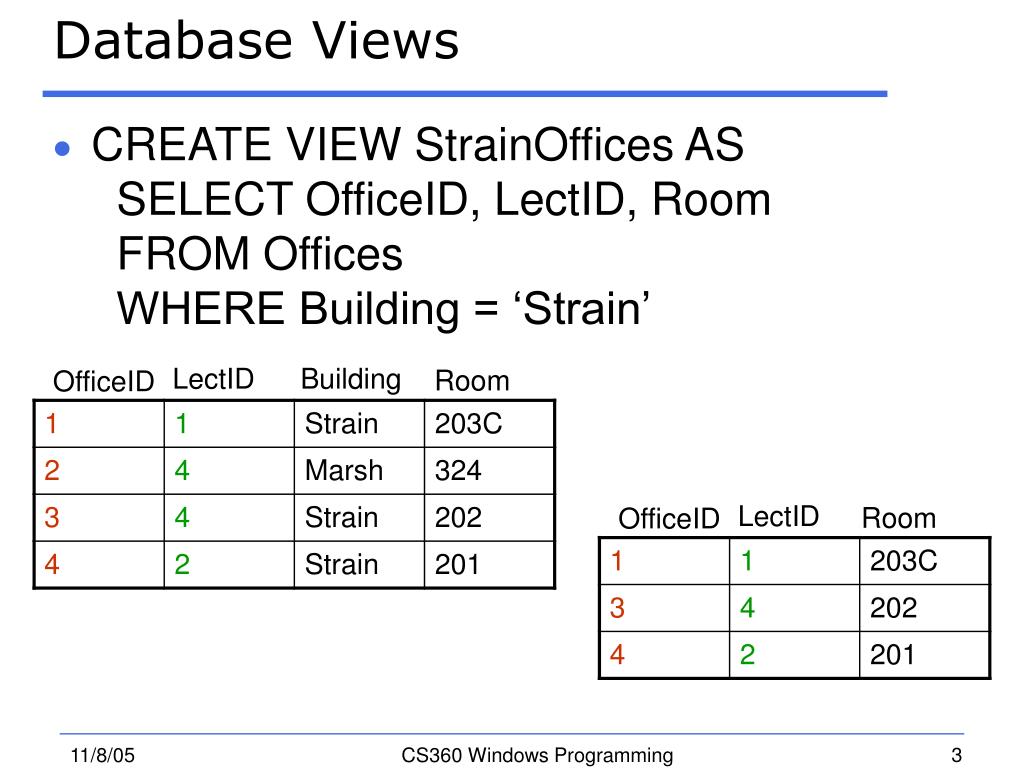

  3. Database Views • CREATE VIEW StrainOffices AS SELECT OfficeID, LectID, Room FROM Offices WHERE Building = ‘Strain’ LectID Building Room OfficeID LectID Room OfficeID CS360 Windows Programming

  4. Database Views • Views do not store data – they are “virtual” tables • If we query a view, tuples are obtained from the base table so that the query can be answered • SELECT OfficeID, RoomFROM StrainOfficesWHERE LectID = 1 LectID Room OfficeID Room OfficeID CS360 Windows Programming

  5. Database Views • We can rename the columns in the view if we want • CREATE VIEW StrainOffices(OId, Lid, RoomNum) AS SELECT OfficeID, LectID, Room FROM Offices WHERE Building = ‘Strain’ LId RoomNum OId CS360 Windows Programming

  6. Database Joins LectID Name Course Students LectID Building Room OfficeID Primary key Foreign key CS360 Windows Programming

  7. Joins • SELECT * FROM Lectures INNER JOIN Offices ON Lecturers.LectID = Offices.LectID ORDER BY Offices.LectID CS360 Windows Programming

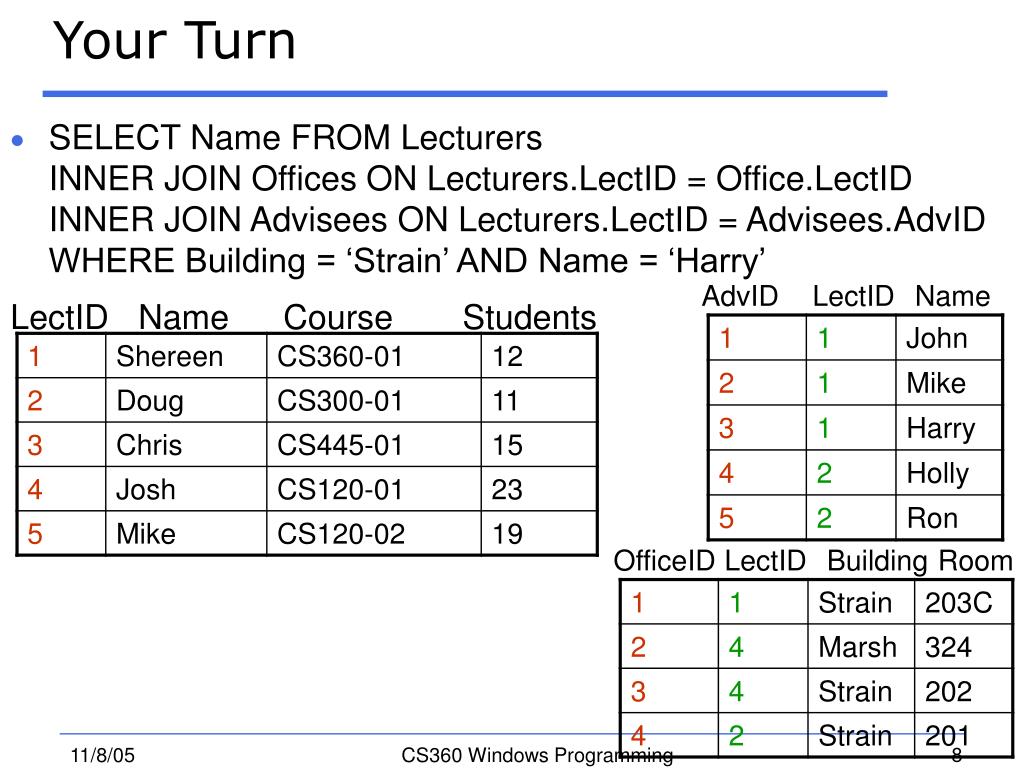

  8. Your Turn • SELECT Name FROM Lecturers INNER JOIN Offices ON Lecturers.LectID = Office.LectIDINNER JOIN Advisees ON Lecturers.LectID = Advisees.AdvIDWHERE Building = ‘Strain’ AND Name = ‘Harry’ AdvID LectID Name LectID Name Course Students OfficeID LectID Building Room CS360 Windows Programming

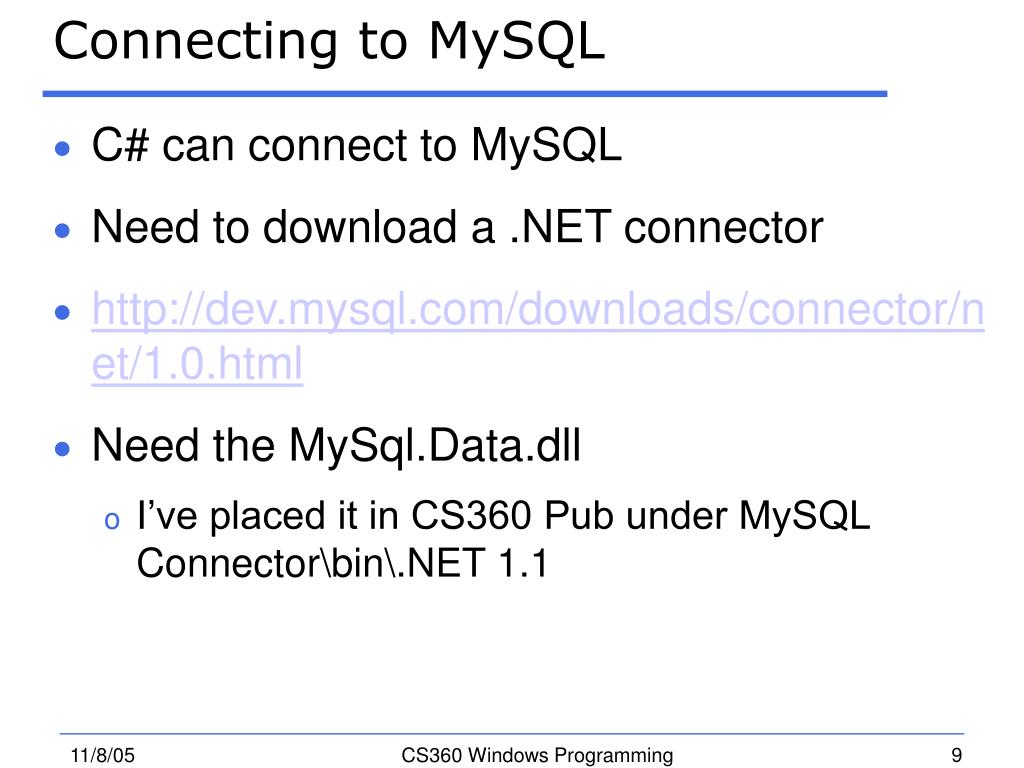

  9. Connecting to MySQL • C# can connect to MySQL • Need to download a .NET connector • http://dev.mysql.com/downloads/connector/net/1.0.html • Need the MySql.Data.dll • I’ve placed it in CS360 Pub under MySQL Connector\bin\.NET 1.1 CS360 Windows Programming

  10. Connecting to MySQL CS360 Windows Programming

  11. Connecting to MySQL using MySql.Data.MySqlClient; string connStr = "server=cs445.cs.pacificu.edu; user id=shereen; password=abc123; database=shereen;"; MySqlConnection conn = null; MySqlDataAdapter da = null; MySqlDataReader reader = null; MySqlCommand cmd = null; CS360 Windows Programming

  12. Connecting to MySQL try { conn = new MySqlConnection(connStr); conn.Open(); cmd = new MySqlCommand("SELECT * FROM pet", conn); reader = cmd.ExecuteReader(); lb2.Text = ""; while (reader.Read()) { lb2.Text = lb2.Text + reader.GetString(0) + "\n"; } } CS360 Windows Programming

  13. Connecting to MySQL catch (MySqlException ex) { lb2.Text = "Exception accessing MySQL server: " + ex.Message; } catch (Exception ex) { lb2.Text = "Exception accessing database list: " + ex.Message; } finally { if (reader != null) reader.Close(); if (conn != null) conn.Close(); } CS360 Windows Programming

  14. CS360 Windows Programming
