  1. A Global and Local Function Fitting of a Temperature Profile Project One Results Presented February 28, 2006 By Jeremy Halland

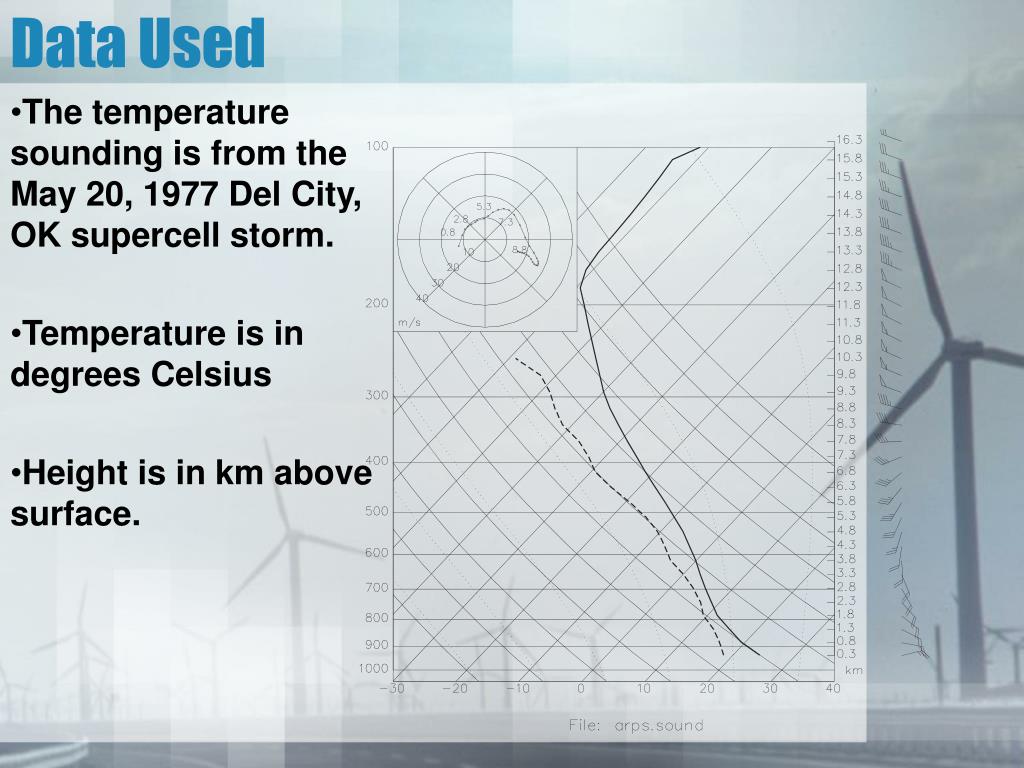

  2. Data Used • The temperature sounding is from the May 20, 1977 Del City, OK supercell storm. • Temperature is in degrees Celsius • Height is in km above surface.

  3. Data Used Observation Data OBS# Height(m) Temp(°C) Sigma 1 0 29.85 0.2 2 250 26.8957 0.2 3 750 21.0731 0.2 4 1250 16.3157 0.2 5 1750 11.6322 0.2 6 2250 7.937 0.2 7 2750 4.278 0.2 8 3250 0.8313 0.2 9 3750 -2.4999 0.2 10 4250 -6.0588 0.2 11 4750 -9.5816 0.2 12 5250 -13.4753 0.2 13 5750 -17.3171 0.2 14 6250 -21.2641 0.2 15 6750 -25.0775 0.2 16 7250 -28.8378 0.2 17 7750 -32.5455 0.2 18 8250 -36.129 0.2 19 8750 -39.664 0.2 20 9250 -42.8031 0.2 21 9750 -45.5671 0.2 22 10250 -48.3105 0.2 23 10750 -51.0332 0.2 24 11250 -53.7349 0.2 25 11750 -56.3523 0.2 26 12250 -59.0744 0.2 27 12750 -60.1952 0.2 28 13250 -60.1631 0.2 29 13750 -59.6291 0.2 30 14250 -59.1961 0.2 31 14750 -58.8602 0.2 32 15250 -58.618 0.2 33 15750 -58.4658 0.2 34 16250 -58.4004 0.3 35 16750 -58.4183 0.3 Observation Data Used Height(m) Temp(°C) Sigma 250 26.8957 0.2 1250 16.3157 0.2 2250 7.937 0.2 3250 0.8313 0.2 4250 -6.0588 0.2 5750 -17.3171 0.2 7250 -28.8378 0.2 9250 -42.8031 0.2 11750 -56.3523 0.2 14750 -58.862 0.2

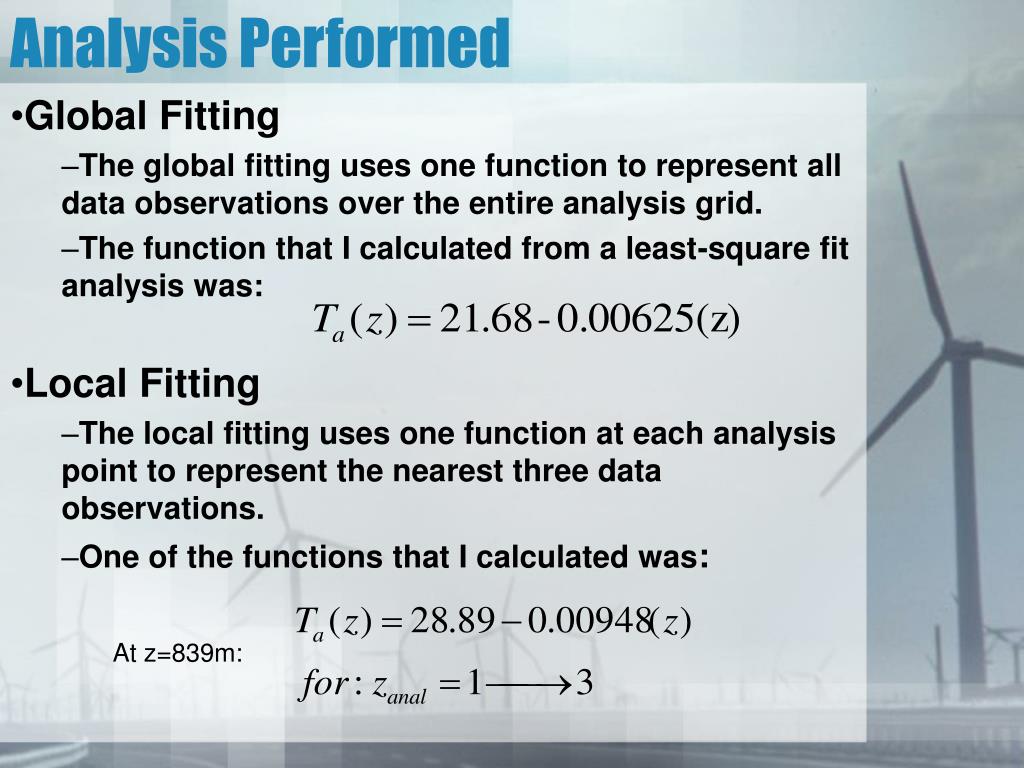

  4. Analysis Performed • Global Fitting • The global fitting uses one function to represent all data observations over the entire analysis grid. • The function that I calculated from a least-square fit analysis was: • Local Fitting • The local fitting uses one function at each analysis point to represent the nearest three data observations. • One of the functions that I calculated was: At z=839m:

  5. Analysis Performed

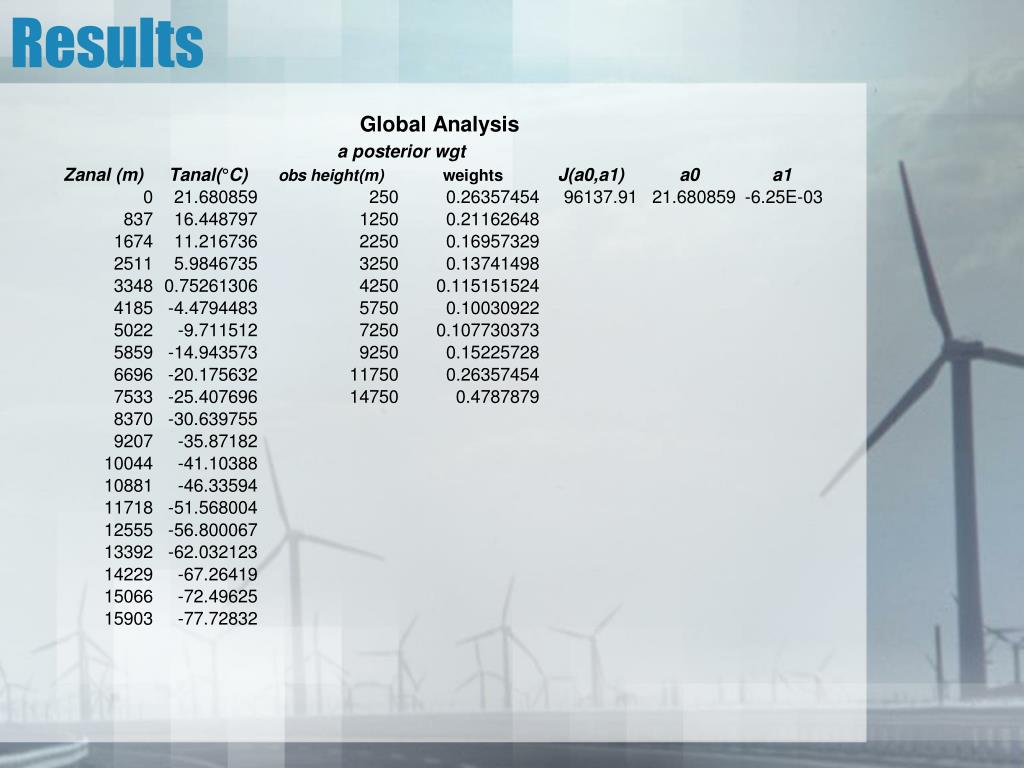

  6. Results

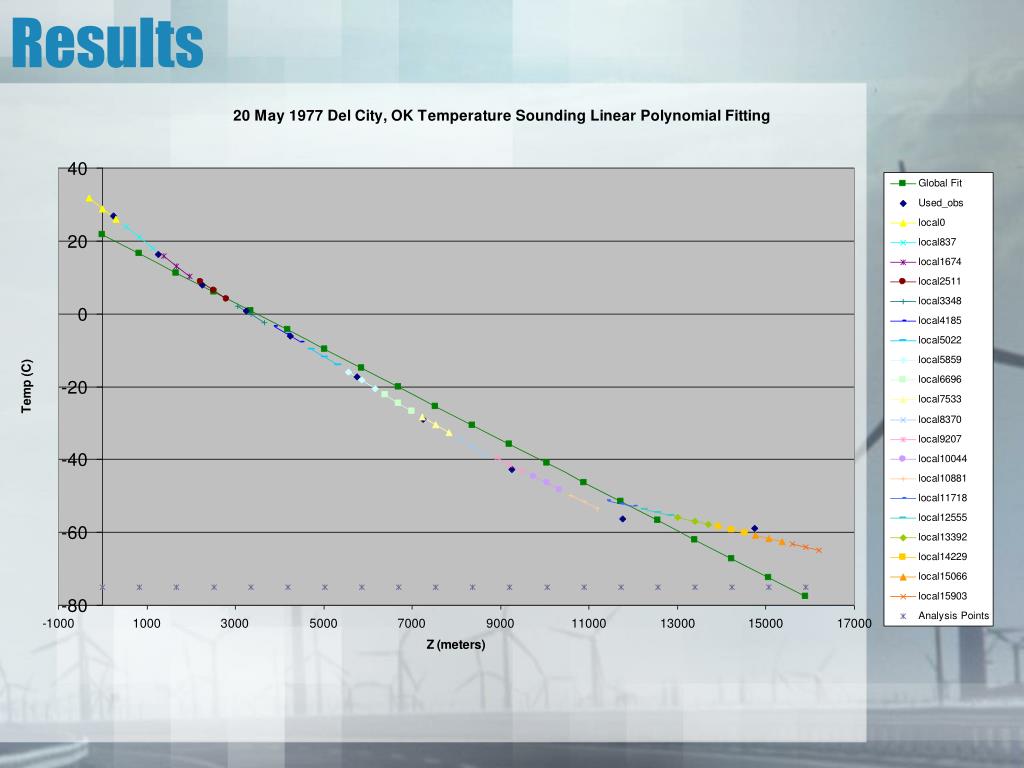

  7. Results

  8. Results

  9. Conclusions • The local fitting did a better job at representing the non-linear change of temperature with height than the global fitting. • This can be seen mathematically from the cost-function values that were calculated for each function of both methods used.
