  1. FPGA Technology Mapping Dr. Philip Brisk Department of Computer Science and Engineering University of California, Riverside CS 223

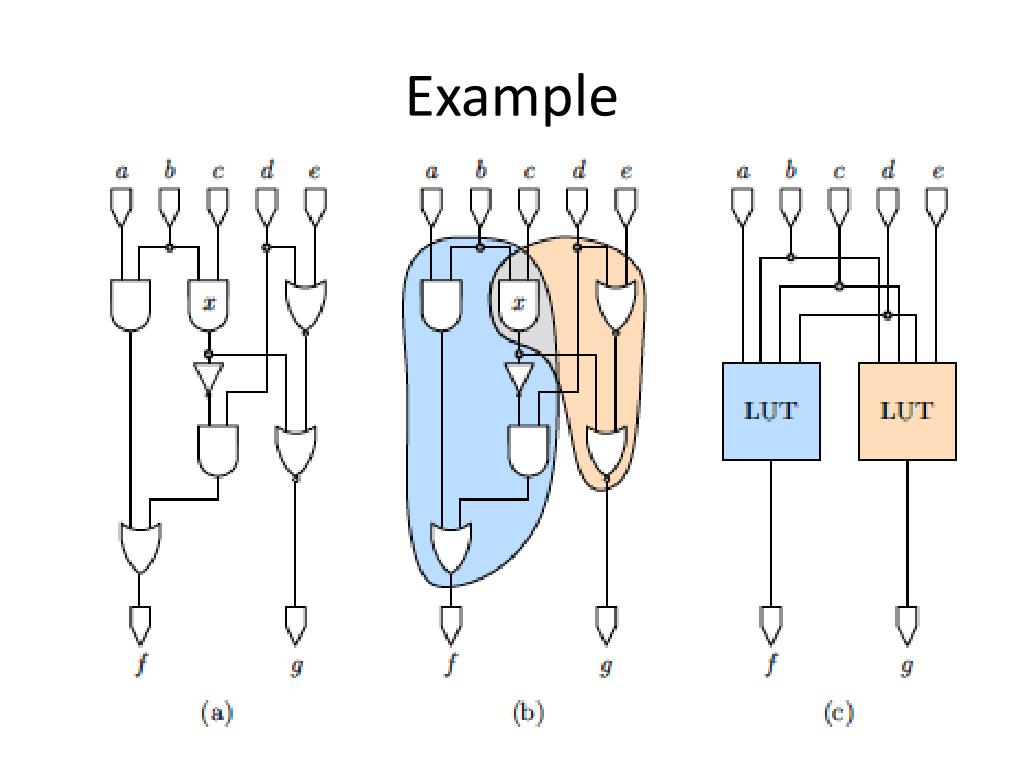

  2. Example

  3. Theoretical Results • Minimize Number of Logic Stages • Polynomial-time • Minimize Total Number of LUTs (Area) • NP-Complete • Minimize Power Consumption • NP-Complete

  4. DAG Representation • Since LUTs are reconfigurable, we don’t need to worry about the logic function of each gate during mapping

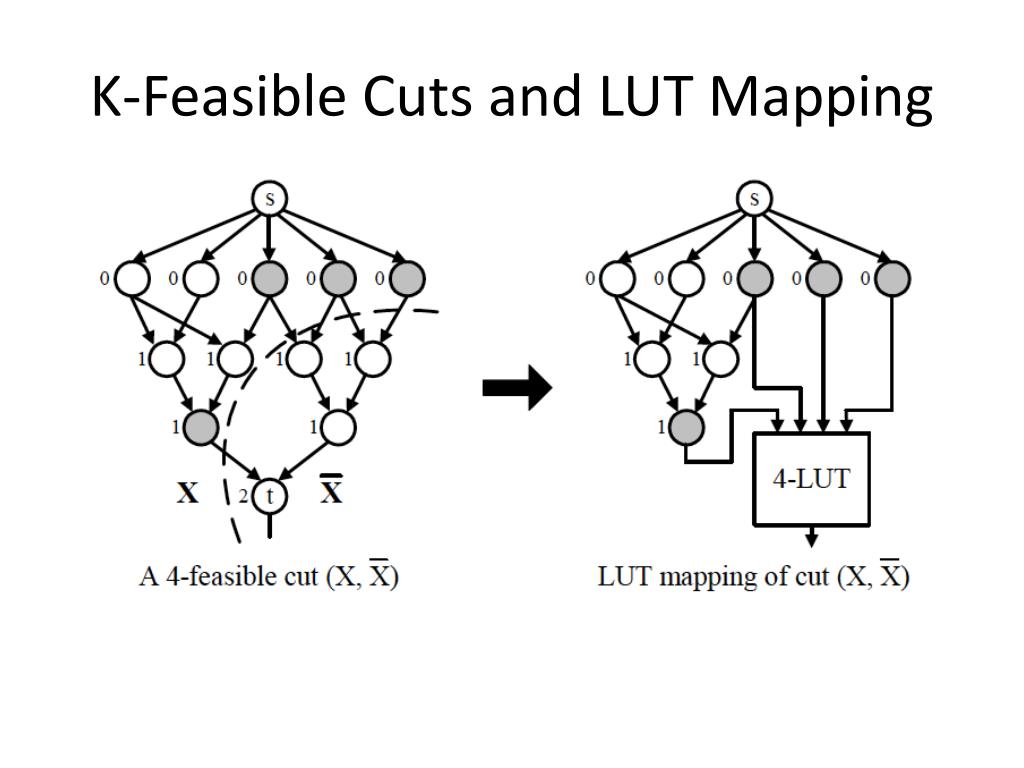

  5. K-Feasible Cuts and LUT Mapping

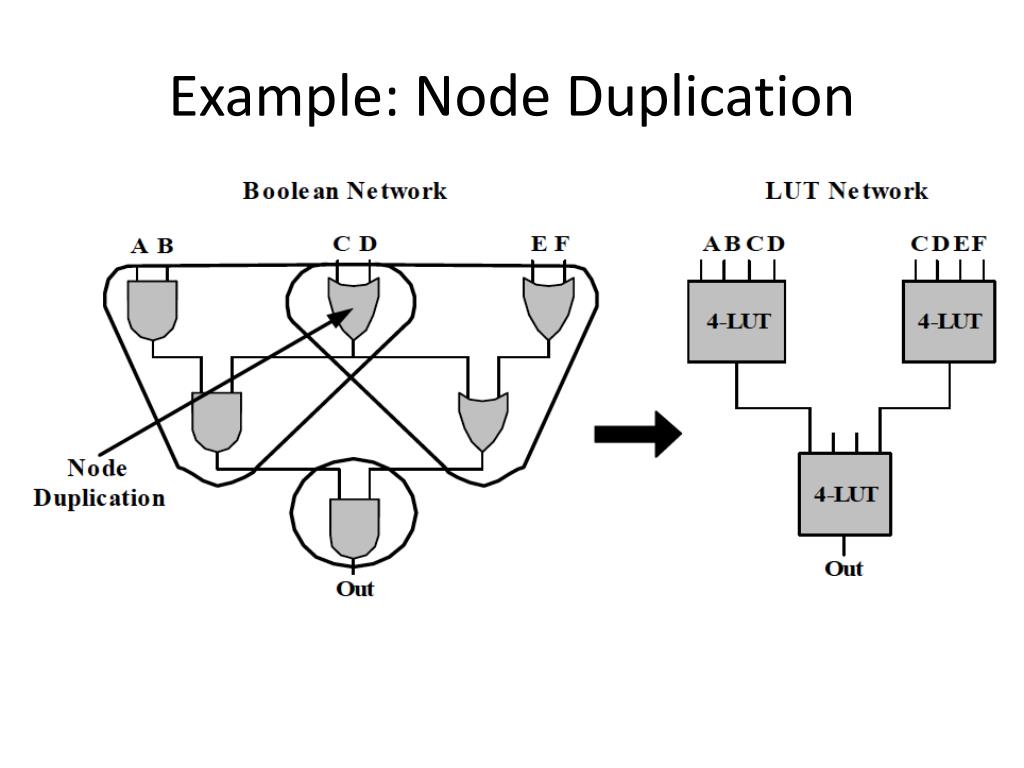

  6. Example: Node Duplication

  7. FlowMap: An Optimal Technology Mapping Algorithm for Delay Optimization in Lookup-Table Based FPGA Designs Jason Cong and Yuzheng Ding IEEE Trans. CAD 13(1): 1-12, Jan. 1994

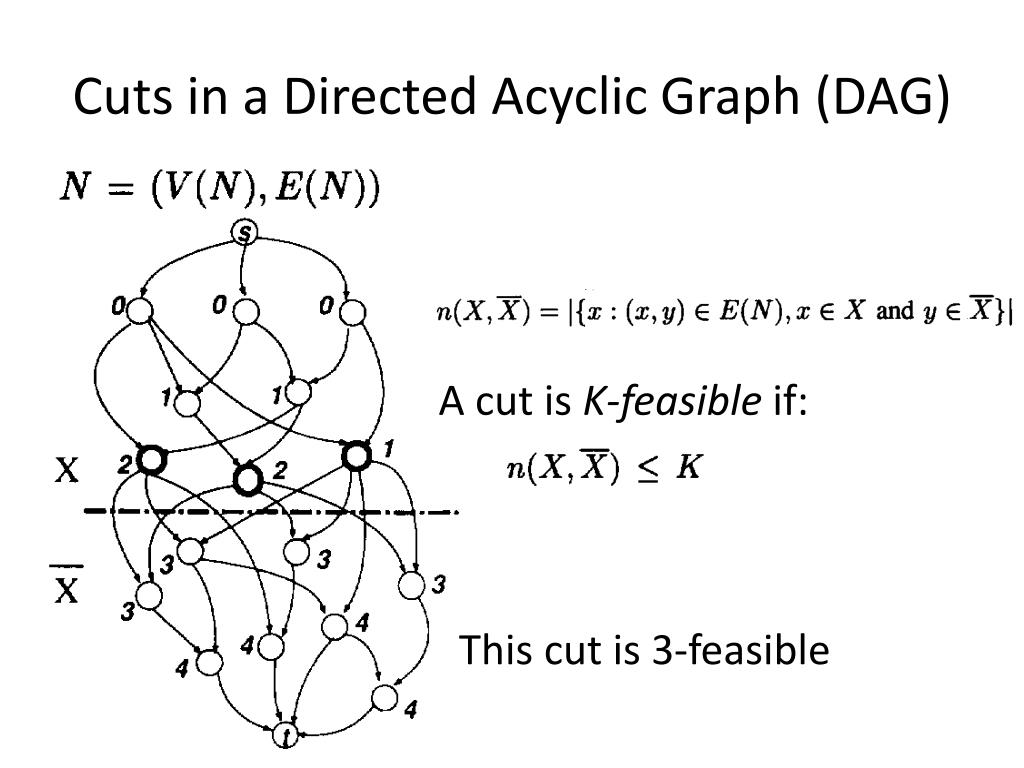

  8. Cuts in a Directed Acyclic Graph (DAG) A cut is K-feasibleif: This cut is 3-feasible

  9. Edge Cut Size • Each edge has non-negative capacity • The edge cut size is the sum of the capacities of the forward edges that cross the cut • All edge capacities are assumed to be 1

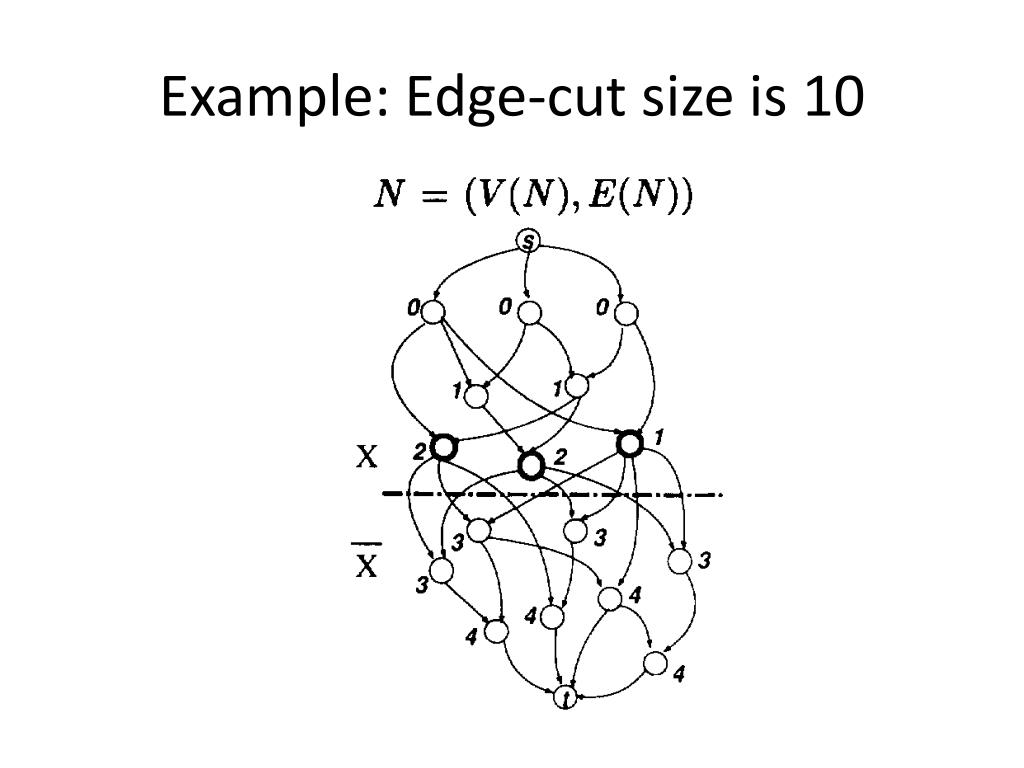

  10. Example: Edge-cut size is 10

  11. Volume and Height • The volume of a cut is the number of vertices in X: • Given an assignment of labels to vertices, the height of a cut is the largest label in X

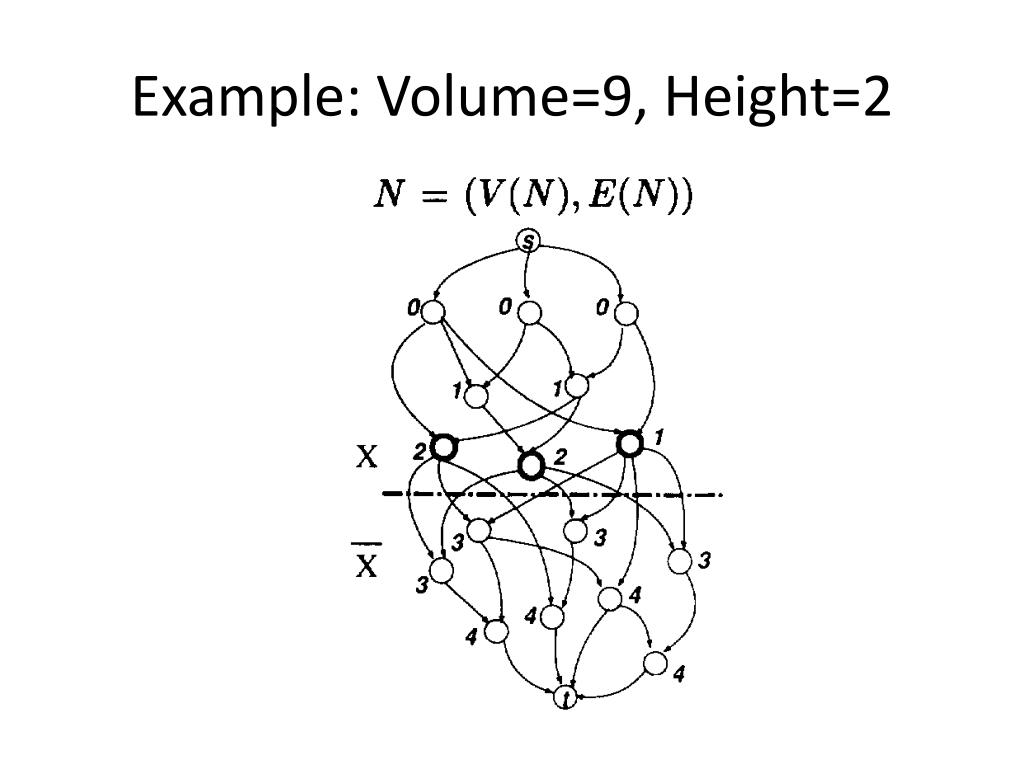

  12. Example: Volume=9, Height=2

  13. FlowMap Algorithm (Overview) • Labeling Phase • Computes a label for each node reflecting the level of the K-LUT that implements that node in a depth-optimal mapping solution • Mapping Phase • Generates the K-LUT mapping solution based on node labels computed in the first phase

  14. Subnetwork of a Node • For node t, let Nt denote the subnetwork consisting of every vertex s, such that there is a path from s to t

  15. Conversion to a Network Nt • For node t, let Nt denote the subnetwork consisting of every vertex s, such that there is a path from s to t • We can ignore the logic function of each gate

  16. Intuition • Let LUT(t) represent a K-LUT that produces an output at node t • Define a K-feasible cut where • denotes the set of nodes in LUT(t) • denotes the remaining nodes in • K-feasibility is ensured since LUT(t) has < K inputs • If u has the maximum label in , then in the optimal mapping,

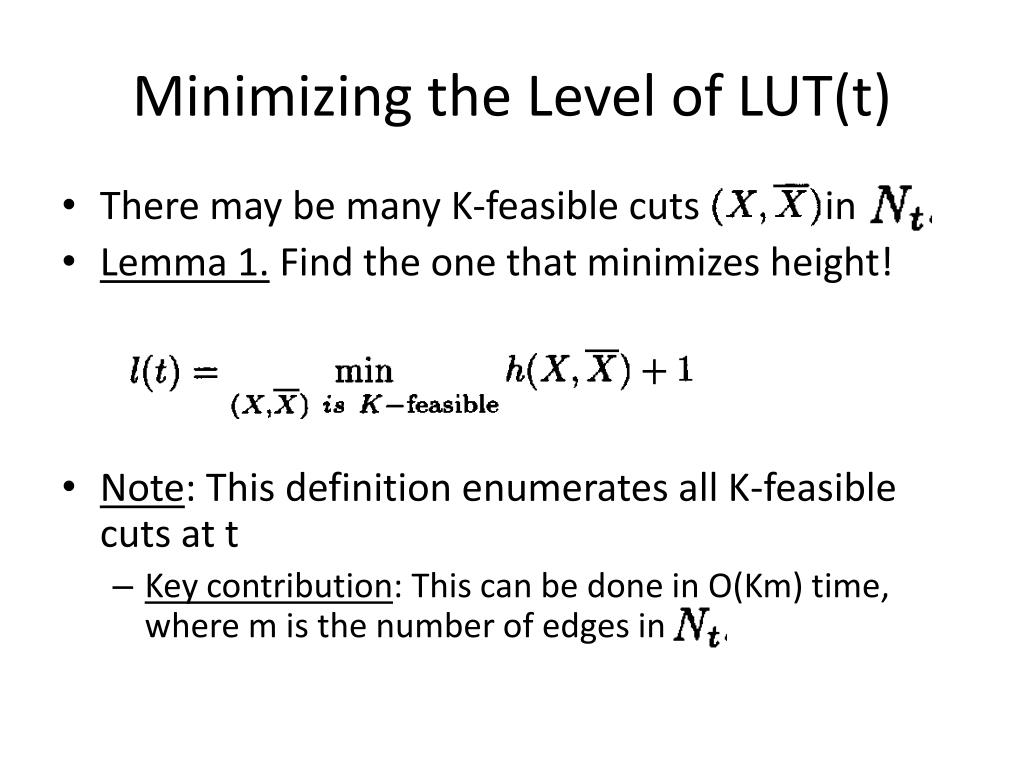

  17. Minimizing the Level of LUT(t) • There may be many K-feasible cuts in • Lemma 1. Find the one that minimizes height! • Note: This definition enumerates all K-feasible cuts at t • Key contribution: This can be done in O(Km) time, where m is the number of edges in

  18. Example • You get the existence of the 3-feasible cut in part (c) for free. • Figuring out how to compute it is the hard part!

  19. Lemma 2 • Proof Strategy 1. Prove 2. Prove Consult the paper for details

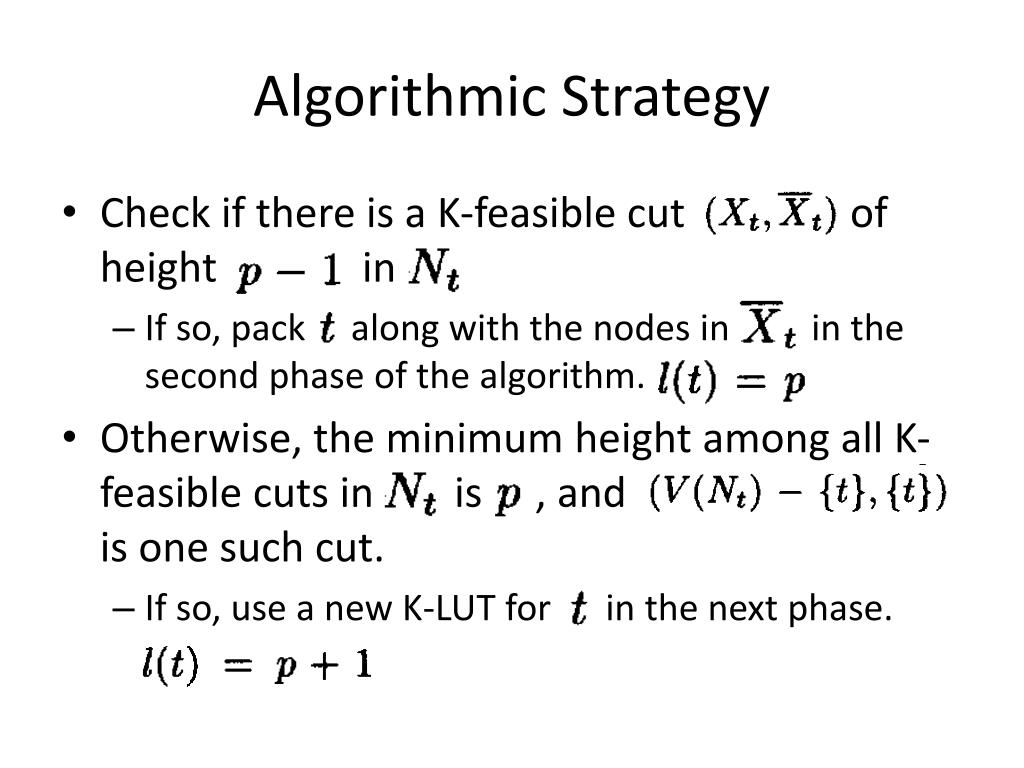

  20. Algorithmic Strategy • Check if there is a K-feasible cut of height in • If so, pack along with the nodes in in the second phase of the algorithm. • Otherwise, the minimum height among all K-feasible cuts in is is ,, and is one such cut. • If so, use a new K-LUT for in the next phase.

  21. How to efficiently test if has a K-feasible cut of height p – 1? • Let p be the maximum label among all nodes of input(t) • Equivalently, p is the maximum label of all nodes that belong to • Collapse all nodes in with label > p along with t into a single sink t’; call the new network

  22. More Theory • Construct another network from • Details to follow… • has a cut whose edge cut-size is no more than K if the max. flow in is at most K

  23. Example … …

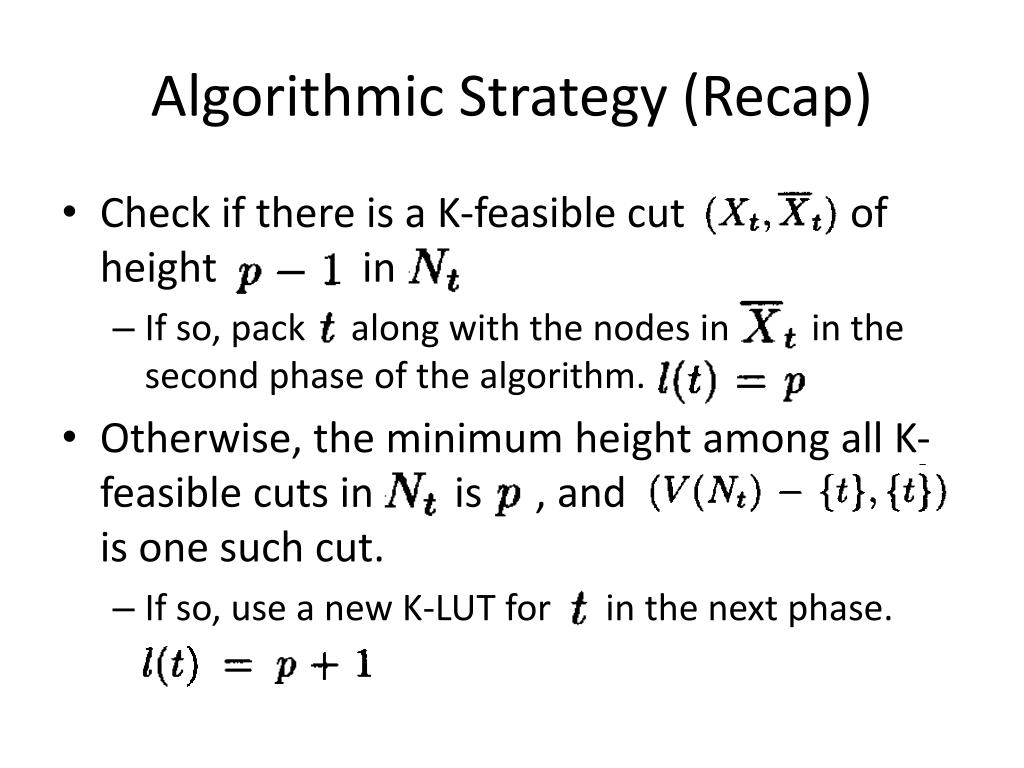

  24. Algorithmic Strategy (Recap) • Check if there is a K-feasible cut of height in • If so, pack along with the nodes in in the second phase of the algorithm. • Otherwise, the minimum height among all K-feasible cuts in is is ,, and is one such cut. • If so, use a new K-LUT for in the next phase.

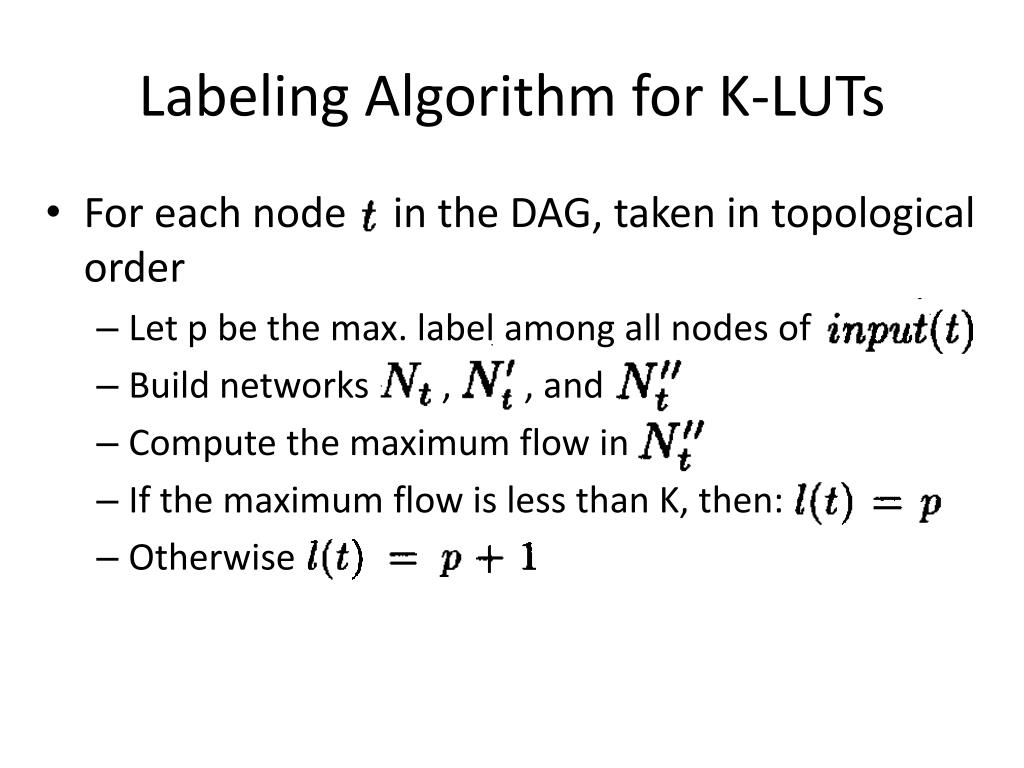

  25. Labeling Algorithm for K-LUTs • For each node t in the DAG, taken in topological order • Let p be the max. label among all nodes of • Build networks , , and • Compute the maximum flow in • If the maximum flow is less than K, then: • Otherwise

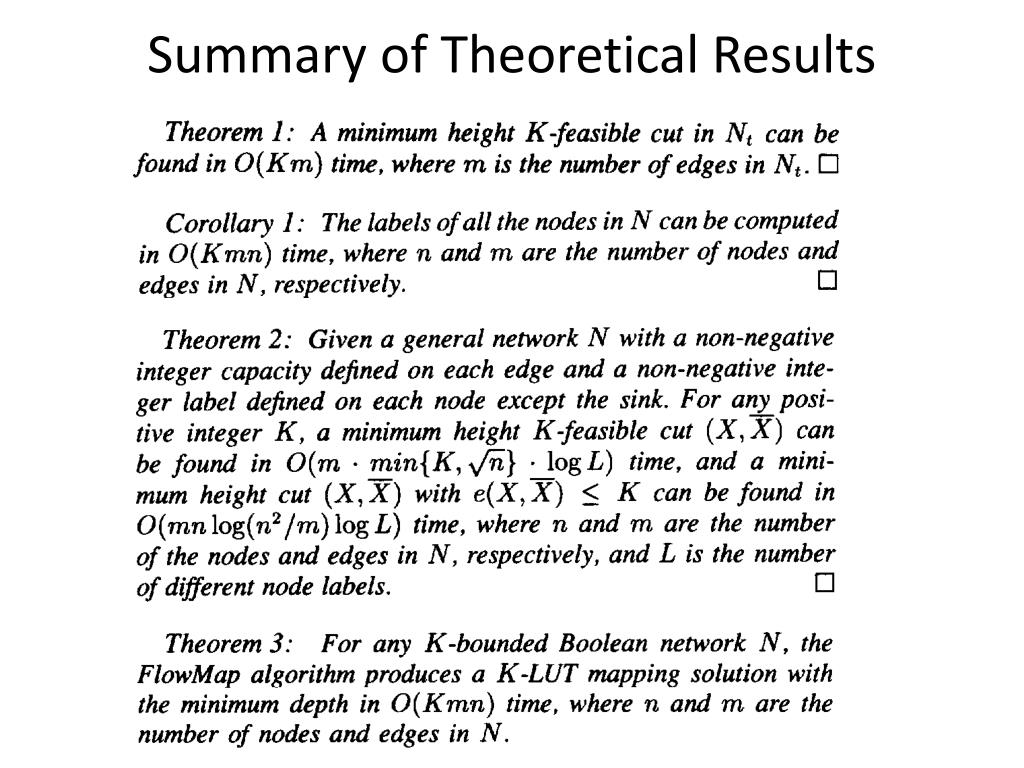

  26. Summary of Theoretical Results

  27. FlowMap Algorithm

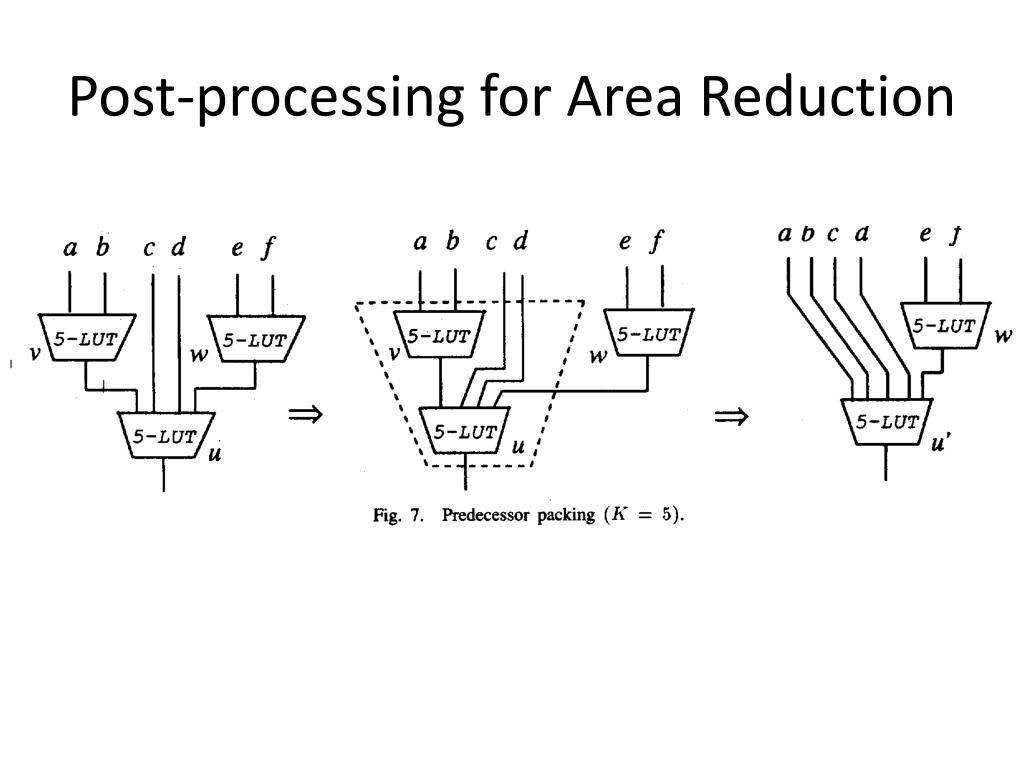

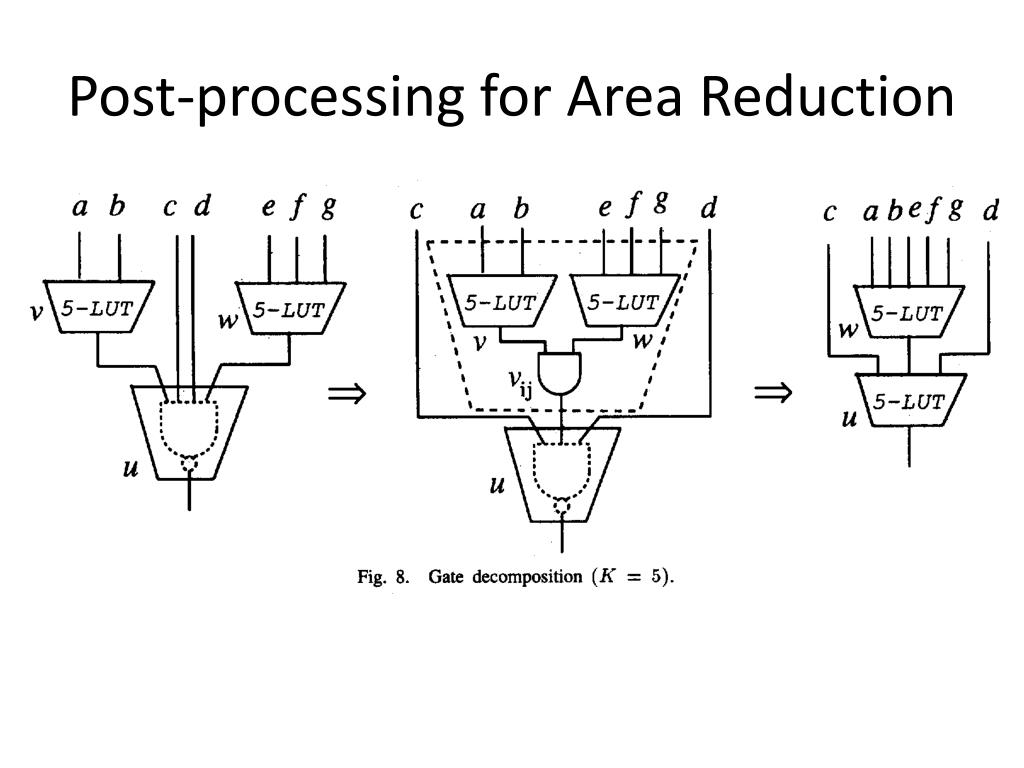

  28. Post-processing for Area Reduction

  29. Post-processing for Area Reduction

  30. Post-processing for Area Reduction

  31. WireMap: FPGA Technology Mapping for Improved Routability and Enhanced LUT Merging S. Jang, B. Chan, K. Chung, and A. Mishchenko ACM TRETS 2(2): article #14, June, 2009

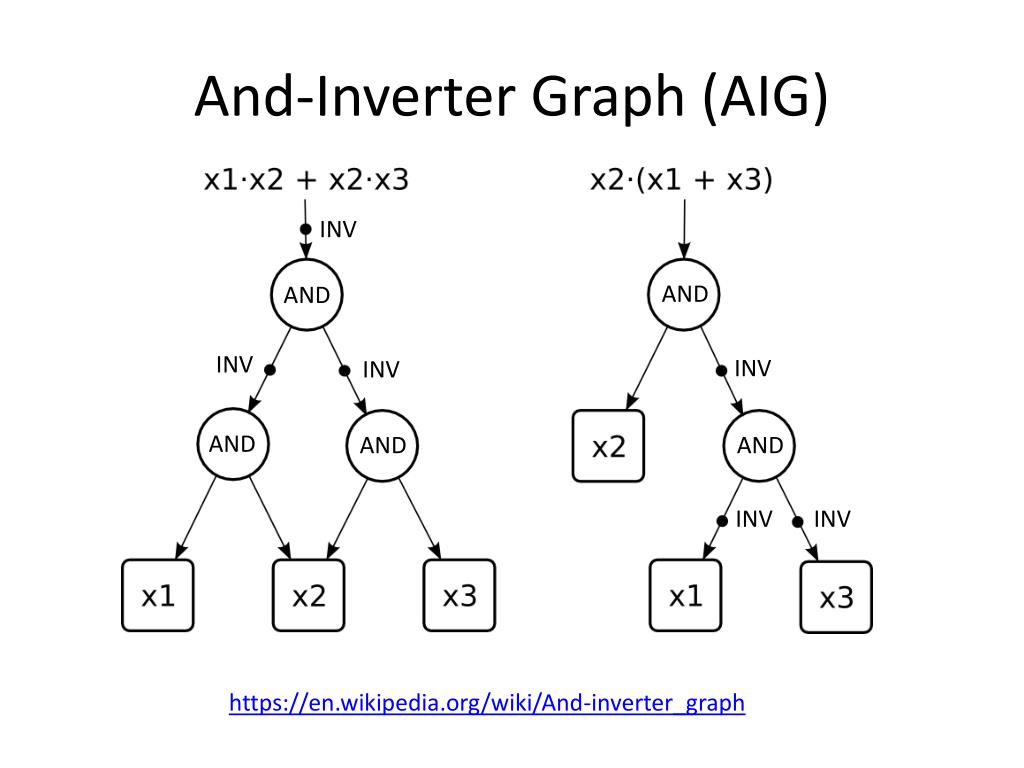

  32. And-Inverter Graph (AIG) INV AND AND INV INV INV AND AND AND INV INV https://en.wikipedia.org/wiki/And-inverter_graph

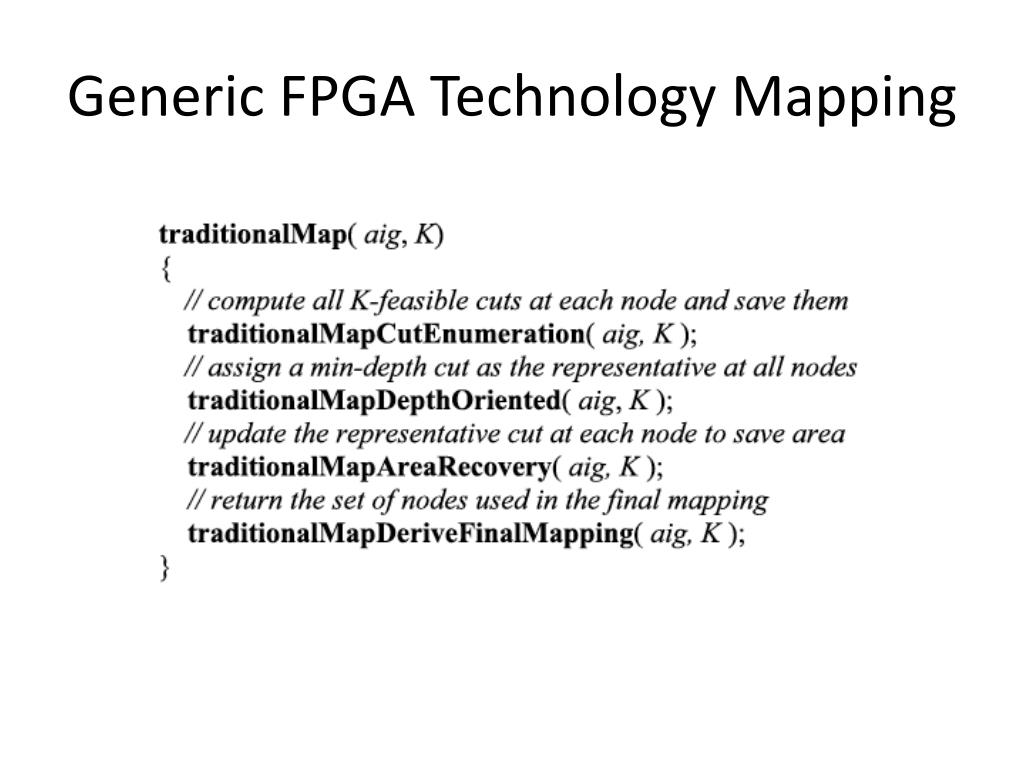

  33. Generic FPGA Technology Mapping

  34. Cut Enumeration • The set of K-feasible cuts for an AND node n with predecessor nodes n1 and n2 • Let A and B be two sets of cuts

  35. Cut Enumeration • Process vertices in topological order to ensure that cut sets for n1 and n2 are known before computing the cut set for n • The CUT set of an AND node is computed by merging the CUT sets of its predecessors and adding the trivial cut (containing just n) while keeping only the K-feasible cuts • Remove dominated cuts • Each AIG node is a 2-input AND

  36. Depth-Oriented Mapping • Keep the node at each level that minimizes depth (e.g., FlowMap)

  37. Area Recovery • Depth minimization may cause area duplication • Multiple cuts cover an AIG node • Increases LUT count • // Area Flow • Global View • Selects cuts with more shared logic • // Exact Local Area • Local View • Minimizes area exactly at each node

  38. Area Flow • Estimates sharing between cuts without the need to (re-)traverse them n Area(n) is the area cost of the LUT that maps node n Leafi is the ith leaf of the cut at n NumFanout(n) is 1 if n is not used in the current mapping for area flow computation Leaf

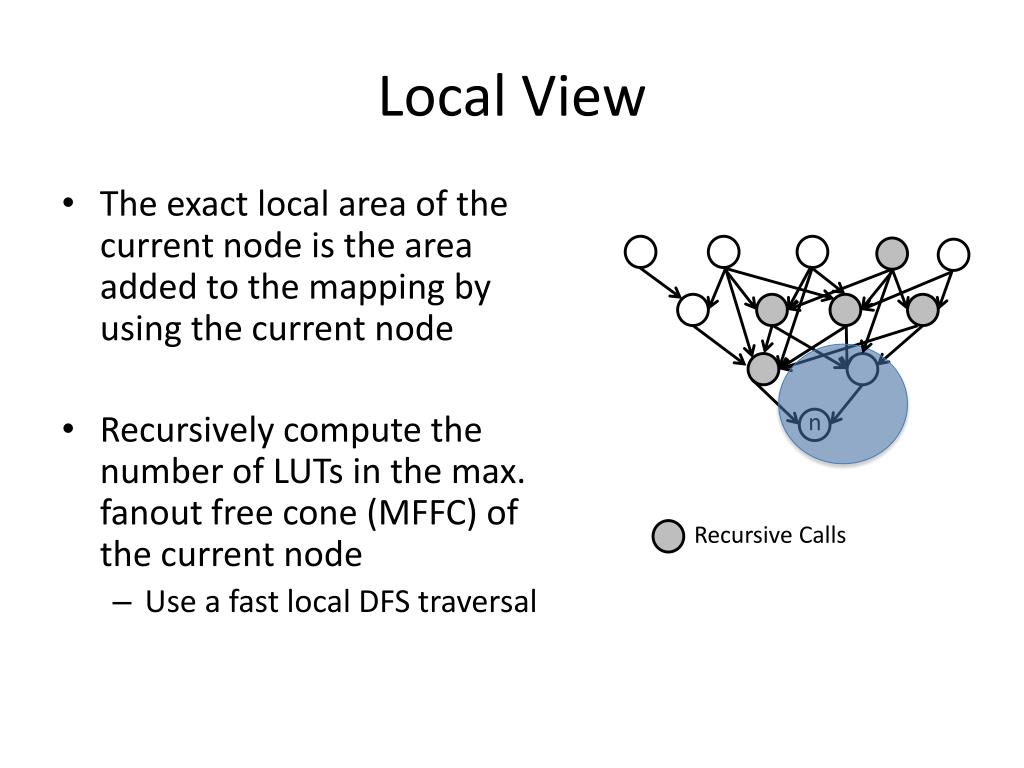

  39. Local View • The exact local area of the current node is the area added to the mapping by using the current node • Recursively compute the number of LUTs in the max. fanout free cone (MFFC) of the current node • Use a fast local DFS traversal n Recursive Calls

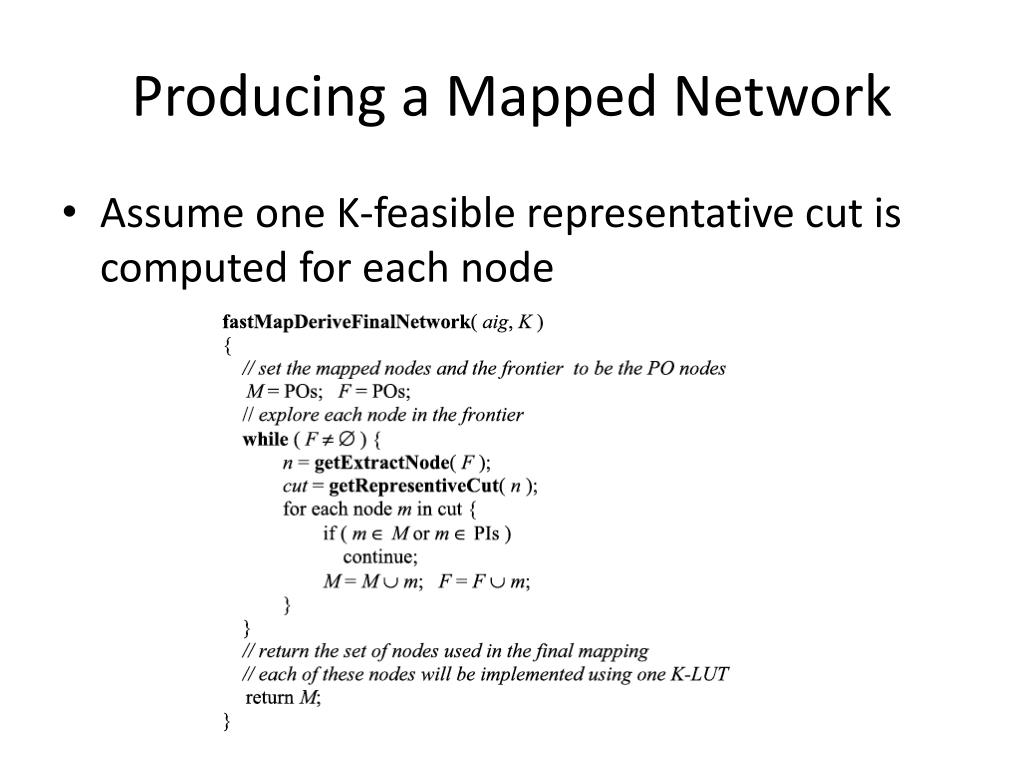

  40. Producing a Mapped Network • Assume one K-feasible representative cut is computed for each node

  41. WireMap • Objective • Reduce the number of LUT-to-LUT connections in addition to area reduction • Rationale • Fewer nets will help the placer to generate a solution with reduced wirelength

  42. Global View Heuristic • Area Flow (from previous slide) Area(n) is the area cost of the LUT that maps node n • Edge Flow (new idea) Edge(n) is the number of fanin edges to the LUT that maps node n

  43. Global Edge/Area Recovery Alg. Find all cuts with min. area Use edge flow as tiebreaker n Leaf No recursion; use the saved edgeflow computed at each predecessor node

  44. Local View • The exact local area (edge count) of the current node is the area (edge count) added to the mapping by using the current node • Recursively compute the number (edge count) of LUTs in the max. fanout free cone (MFFC) of the current node • Use a fast local DFS traversal n Recursive Calls

  45. Local View Algorithm Pointer manipulation in function calls (not shown) • Edge count of a cut depends if the cut is representative of the node in the mapping • If so, reference the node and the leaves of its representative cut Find all cuts that minimize the exact area; use the exact edge count as a tiebreaker

  46. WireMap Algorithm Xilinx Virtex-5 Dual Output LUT
