  1. CSS3 Mark Branom, Continuing Studies

  2. Brief history… 1997-2001 • Content: HTML 4.01 • Presentation: CSS1

  3. Brief history… 2001-2006 • Content: XHTML 1 • Presentation: CSS2

  4. Brief history… 2007-present • Content: HTML5 • Presentation: CSS3

  5. Vendor Prefixes • Some CSS rules won’t work without the vendor prefix. • Mozilla Browsers (Firefox) -moz • Webkit Browsers (Safari, Chrome) -webkit • Opera -o • Internet Explorer -ms <!--[if IE]> <![endif]--> • Not all CSS rules work with all browsers: • http://www.caniuse.com/ • http://www.css3.info/selectors-test/ • http://quirksmode.org/css/contents.html

  6. So, what’s the big deal about CSS3? See the examples online…http://www.stanford.edu/group/csp/cs22/css3

  7. element1~element2Selects an element that is a general next sibling of another element [attribute^=value] Represents an element with the attribute whose value begins with the prefix value. [attribute$=value] Represents an element with the attribute whose value ends with the prefix value. [attribute*=value] Represents an element with the attribute whose value contains the prefix value. New selectors!

  8. :first-of-type :last-of-type :only-of-type Select elements that are first, last, or only child of its type of its parent :first-child :only-child :last-child Selects an element that is the first, only, or last child of its parent. New pseudo elements/classes!

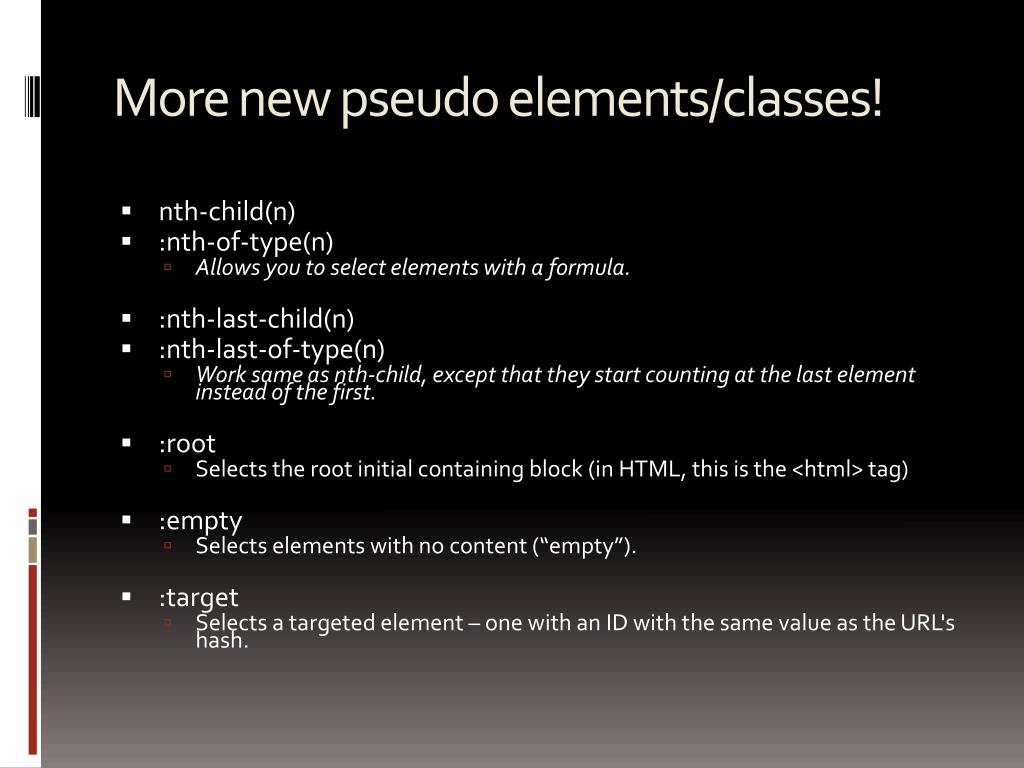

  9. More new pseudo elements/classes! • nth-child(n) • :nth-of-type(n) • Allows you to select elements with a formula. • :nth-last-child(n) • :nth-last-of-type(n) • Work same as nth-child, except that they start counting at the last element instead of the first. • :root • Selects the root initial containing block (in HTML, this is the <html> tag) • :empty • Selects elements with no content (“empty”). • :target • Selects a targeted element – one with an ID with the same value as the URL's hash.

  10. Still more new pseudo elements/classes! • :enabled • :disabled • :checked • Allows a designer to apply style to enabled, disabled, or checked form field elements. • :not(selector) • Negates a selector. • ::selection • Defines style for text that a user selects.

  11. New properties! (and some new property groups!) • Animation • Background • Border and outline • Box • Color • Content Paged Media • Dimension • Flexible Box • Font • Generated content • Grid • Hyperlink • Linebox • List • Margin • Marquee • Multi-column • Padding • Paged Media • Positioning • Print • Ruby • Speech • Table • Text • 2D/3D Transform • Transition • User-interface CSS Property Groups:

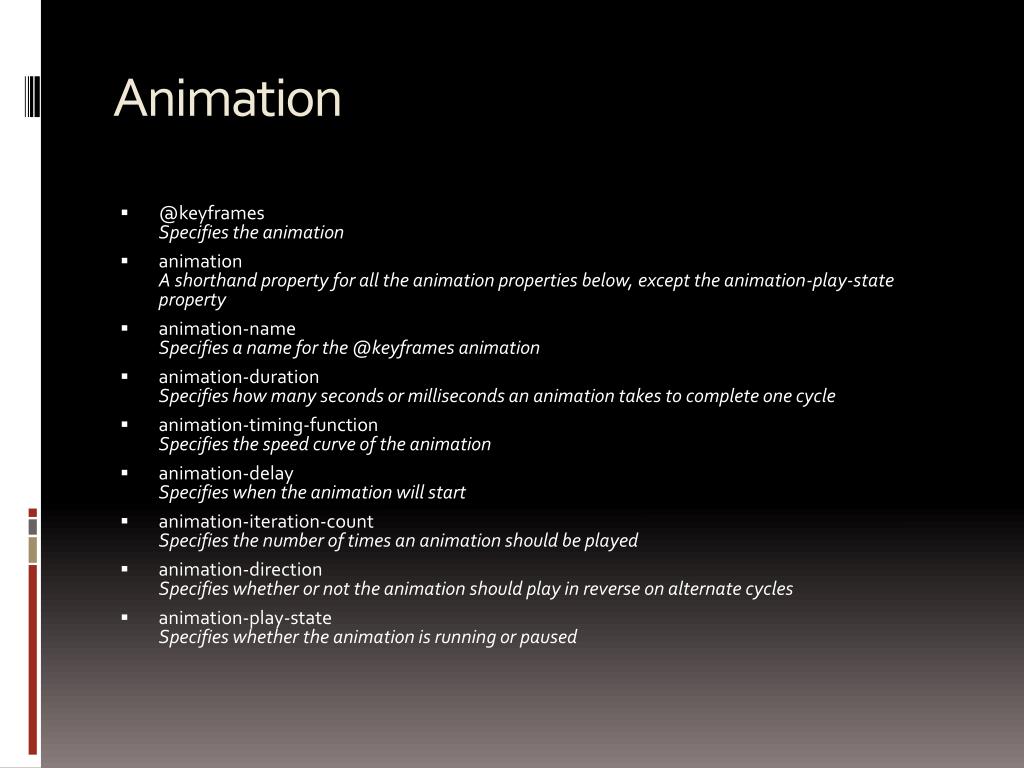

  12. Animation • @keyframesSpecifies the animation • animation A shorthand property for all the animation properties below, except the animation-play-state property • animation-nameSpecifies a name for the @keyframes animation • animation-duration Specifies how many seconds or milliseconds an animation takes to complete one cycle • animation-timing-functionSpecifies the speed curve of the animation • animation-delay Specifies when the animation will start • animation-iteration-count Specifies the number of times an animation should be played • animation-directionSpecifies whether or not the animation should play in reverse on alternate cycles • animation-play-stateSpecifies whether the animation is running or paused

  13. Transition • transition A shorthand property for setting the four transition properties • transition-property Specifies the name of the CSS property the transition effect is for • transition-duration Specifies how many seconds or milliseconds a transition effect takes to complete • transition-timing-function Specifies the speed curve of the transition effect • transition-delay Specifies when the transition effect will start

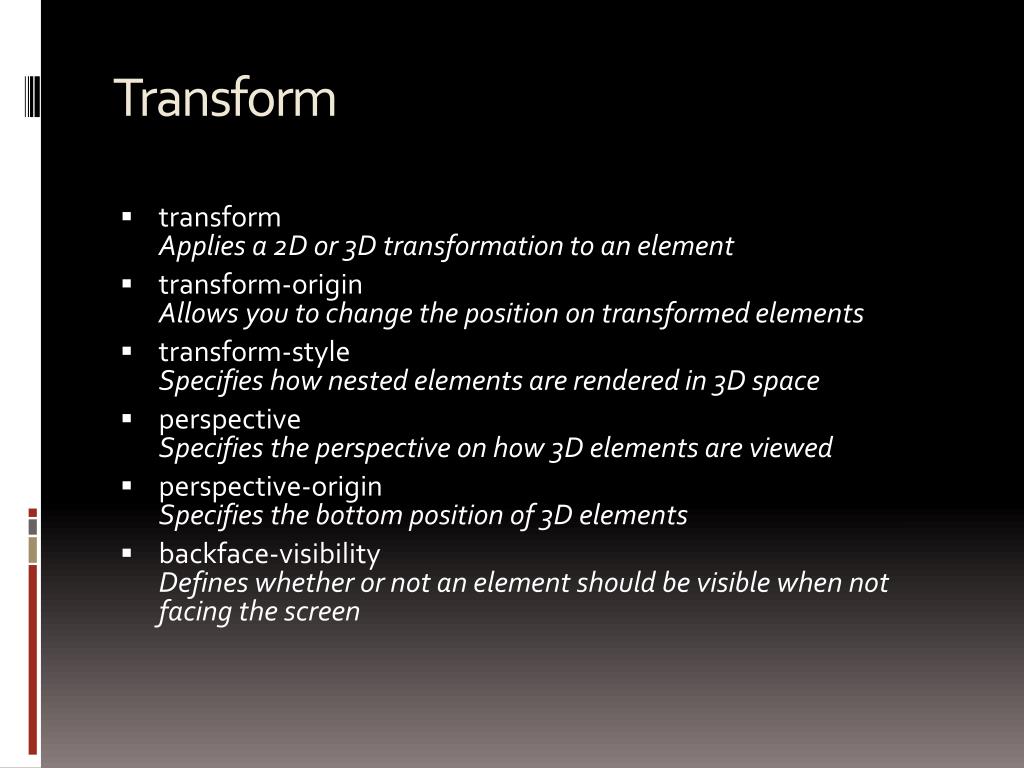

  14. Transform • transform Applies a 2D or 3D transformation to an element • transform-origin Allows you to change the position on transformed elements • transform-style Specifies how nested elements are rendered in 3D space • perspective Specifies the perspective on how 3D elements are viewed • perspective-origin Specifies the bottom position of 3D elements • backface-visibility Defines whether or not an element should be visible when not facing the screen

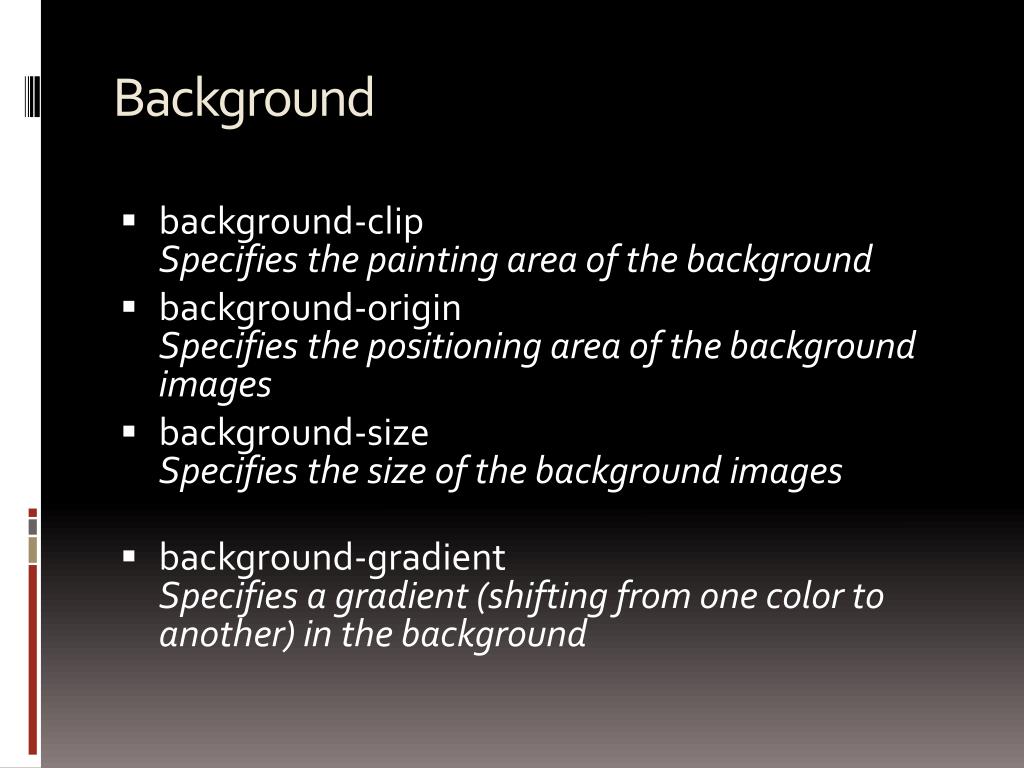

  15. Background • background-clip Specifies the painting area of the background • background-origin Specifies the positioning area of the background images • background-sizeSpecifies the size of the background images • background-gradientSpecifies a gradient (shifting from one color to another) in the background

  16. Border • border-bottom-left-radius Defines the shape of the border of the bottom-left corner • border-bottom-right-radius Defines the shape of the border of the bottom-right corner • border-image A shorthand property for setting all the border-image-* properties • border-image-outset Specifies the amount by which the border image area extends beyond the border box • border-image-repeat Specifies whether the image-border should be repeated, rounded or stretched • border-image-slice Specifies the inward offsets of the image-border • border-image-source Specifies an image to be used as a border • border-image-width Specifies the widths of the image-border • border-radius A shorthand property for setting all the four border-*-radius properties • border-top-left-radius Defines the shape of the border of the top-left corner • border-top-right-radius Defines the shape of the border of the top-right corner

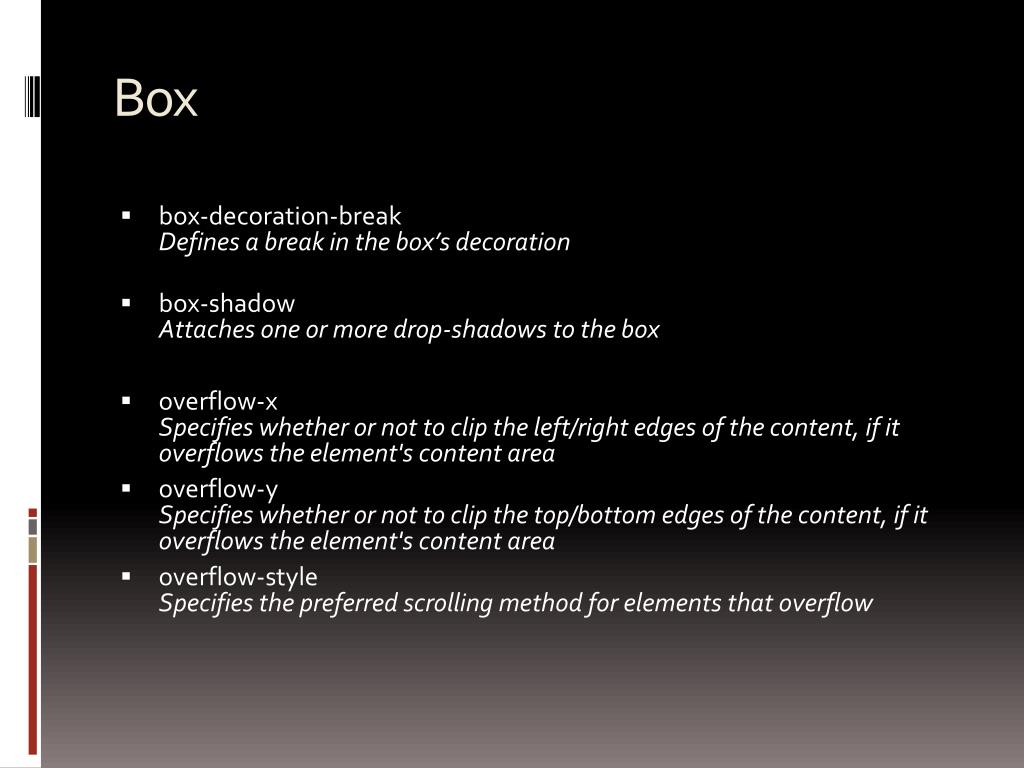

  17. Box • box-decoration-break Defines a break in the box’s decoration • box-shadow Attaches one or more drop-shadows to the box • overflow-x Specifies whether or not to clip the left/right edges of the content, if it overflows the element's content area • overflow-y Specifies whether or not to clip the top/bottom edges of the content, if it overflows the element's content area • overflow-style Specifies the preferred scrolling method for elements that overflow

  18. Flexible Box • Specification is still under development…Stay Tuned!!! • Example:http://www.html5rocks.com/en/tutorials/flexbox/quick/

  19. Color • RGBA(Red,Green,Blue,Alpha opacity)rgba(100%,0%,0%,0.8) produces 80% red. • HSLA (Hue, Saturation, Lightness, Alpha opacity)hsla(0,100%, 50%,1.0) produces 100% red. • opacity Sets the opacity level for an element from 0 to 1.0

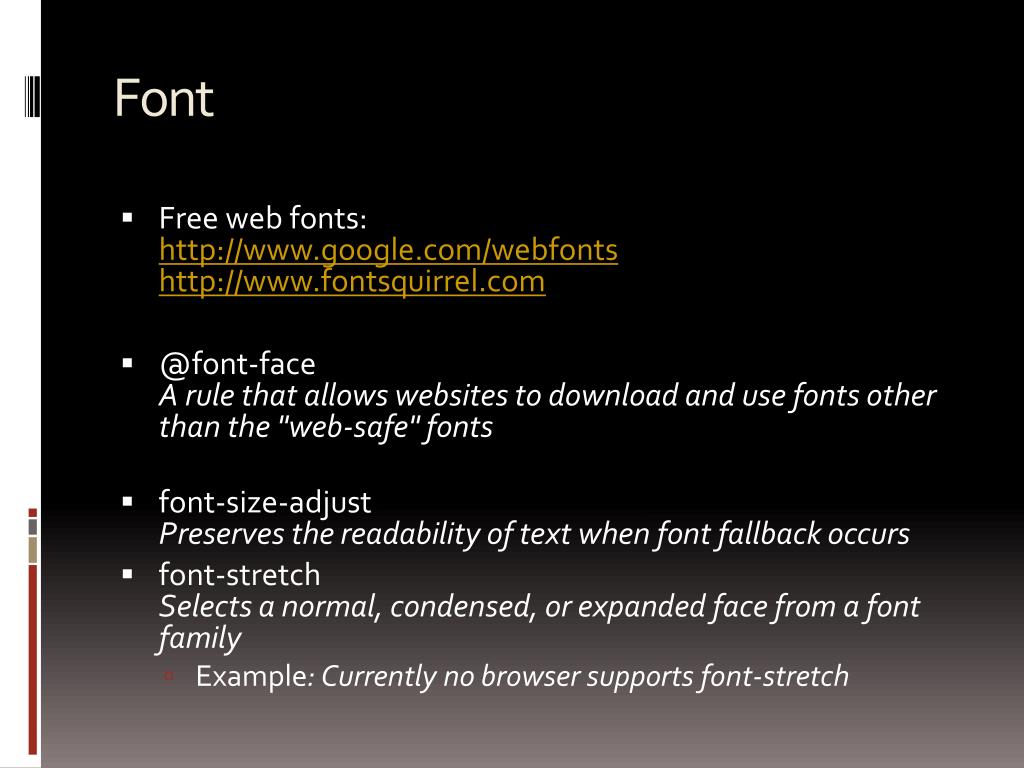

  20. Font • Free web fonts:http://www.google.com/webfontshttp://www.fontsquirrel.com • @font-face A rule that allows websites to download and use fonts other than the "web-safe" fonts • font-size-adjust Preserves the readability of text when font fallback occurs • font-stretch Selects a normal, condensed, or expanded face from a font family • Example: Currently no browser supports font-stretch

  21. Text • hanging-punctuation Specifies whether a punctuation character may be placed outside the line box • Example: Currently no browser supports hanging-punctuation • punctuation-trim Specifies whether a punctuation character should be trimmed • Example: Currently no browser supports punctuation-trim • text-outline Specifies a text outline • Example: Currently no browser supports text-outline • text-wrap Specifies line breaking rules for text • Example: Currently no browser supports text-wrap • text-align-last Describes how the last line of a block or a line right before a forced line break is aligned when text-align is "justify"

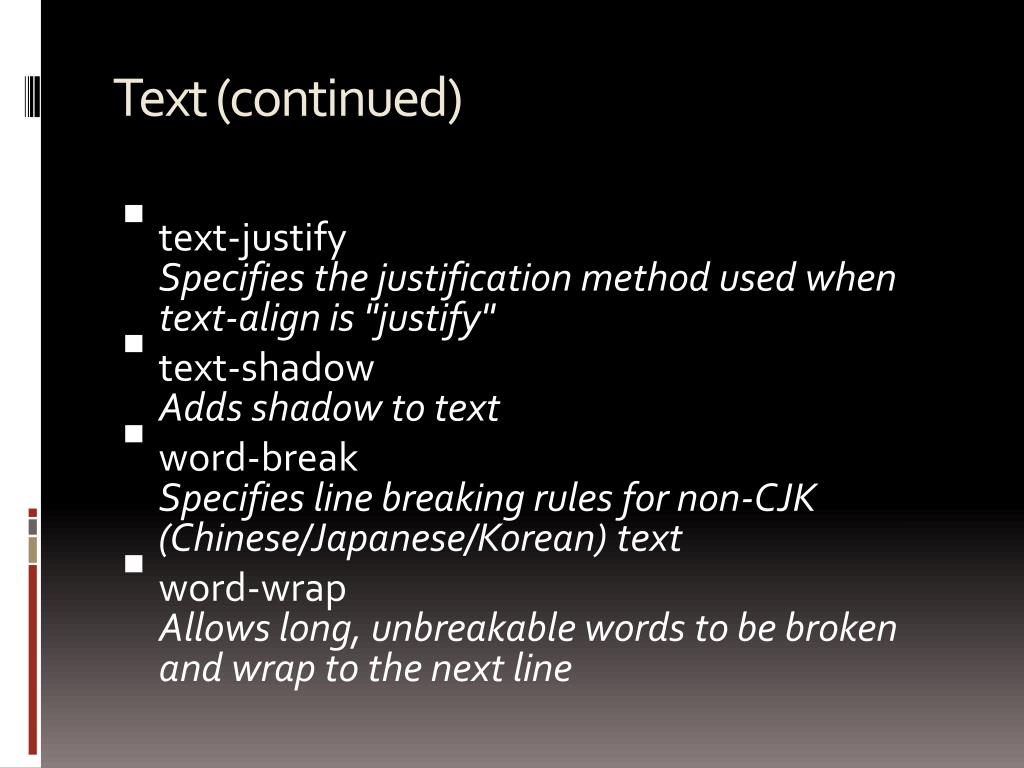

  22. Text (continued) • text-justify Specifies the justification method used when text-align is "justify" • text-shadow Adds shadow to text • word-break Specifies line breaking rules for non-CJK (Chinese/Japanese/Korean) text • word-wrap Allows long, unbreakable words to be broken and wrap to the next line

  23. Grid • grid-columns Specifies the width of each column in a grid • grid-rowsSpecifies the height of each column in a grid

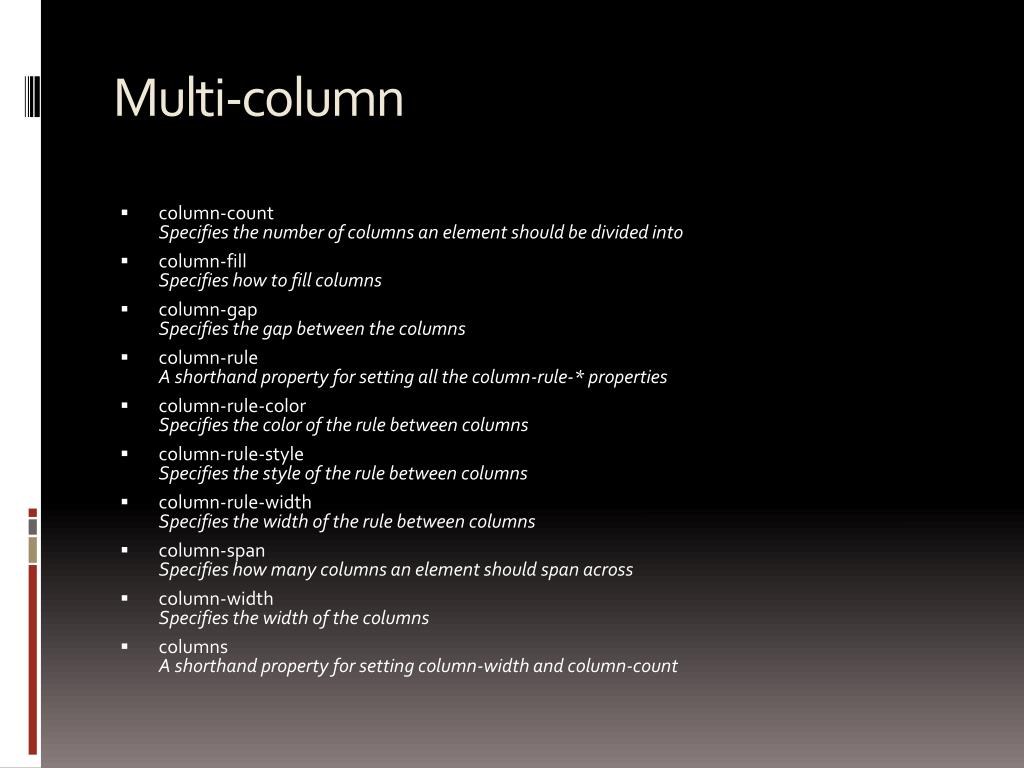

  24. Multi-column • column-count Specifies the number of columns an element should be divided into • column-fill Specifies how to fill columns • column-gap Specifies the gap between the columns • column-rule A shorthand property for setting all the column-rule-* properties • column-rule-color Specifies the color of the rule between columns • column-rule-style Specifies the style of the rule between columns • column-rule-width Specifies the width of the rule between columns • column-span Specifies how many columns an element should span across • column-width Specifies the width of the columns • columns A shorthand property for setting column-width and column-count

  25. Marquee • marquee-direction Sets the direction of the moving content • marquee-play-count Sets how many times the content move • marquee-speedSets how fast the content scrolls • marquee-style Sets the style of the moving content

  26. Ruby • ruby-align Controls the text alignment of the ruby text and ruby base contents relative to each other • ruby-overhang Determines whether, and on which side, ruby text is allowed to partially overhang any adjacent text in addition to its own base, when the ruby text is wider than the ruby base • ruby-positionControls the position of the ruby text with respect to its base • ruby-spanControls the spanning behavior of annotation elements

  27. User-Interface • appearance Makes any element appear like a form element (e.g., paragraphs can look like buttons). • box-sizing Forces an element fit inside an area. • outline-offset Offsets an outline, and draws it beyond the border edge • resize Specifies whether or not an element is resizable by the user

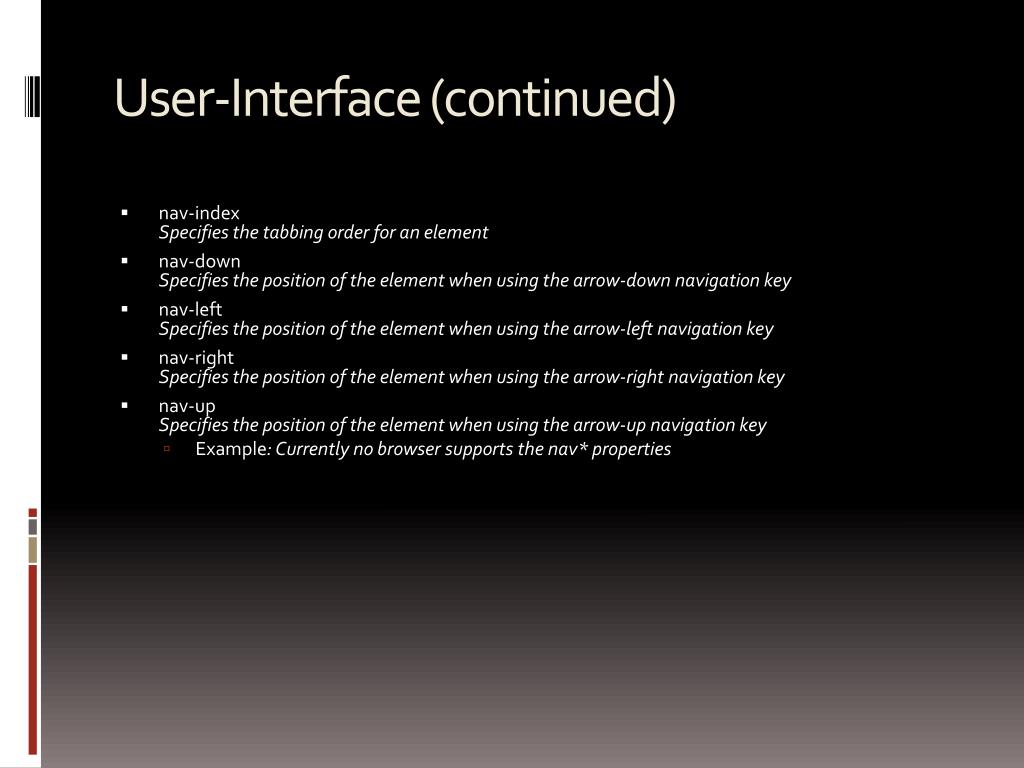

  28. User-Interface (continued) • nav-index Specifies the tabbing order for an element • nav-down Specifies the position of the element when using the arrow-down navigation key • nav-left Specifies the position of the element when using the arrow-left navigation key • nav-right Specifies the position of the element when using the arrow-right navigation key • nav-up Specifies the position of the element when using the arrow-up navigation key • Example: Currently no browser supports the nav* properties

  29. Content for Paged Media (print) • bookmark-label Specifies the label of the bookmark • bookmark-level Specifies the level of the bookmark • bookmark-target Specifies the target of the bookmark link • float-offset Pushes floated elements in the opposite direction of the where they have been floated with float • image-resolution Specifies the resolution of an image • marks Adds crop and/or cross marks to the document • string-set Named strings are created with the ‘string-set’ property which copies a string of text into the named string. Only text is copied; not style, structure, or replaced content

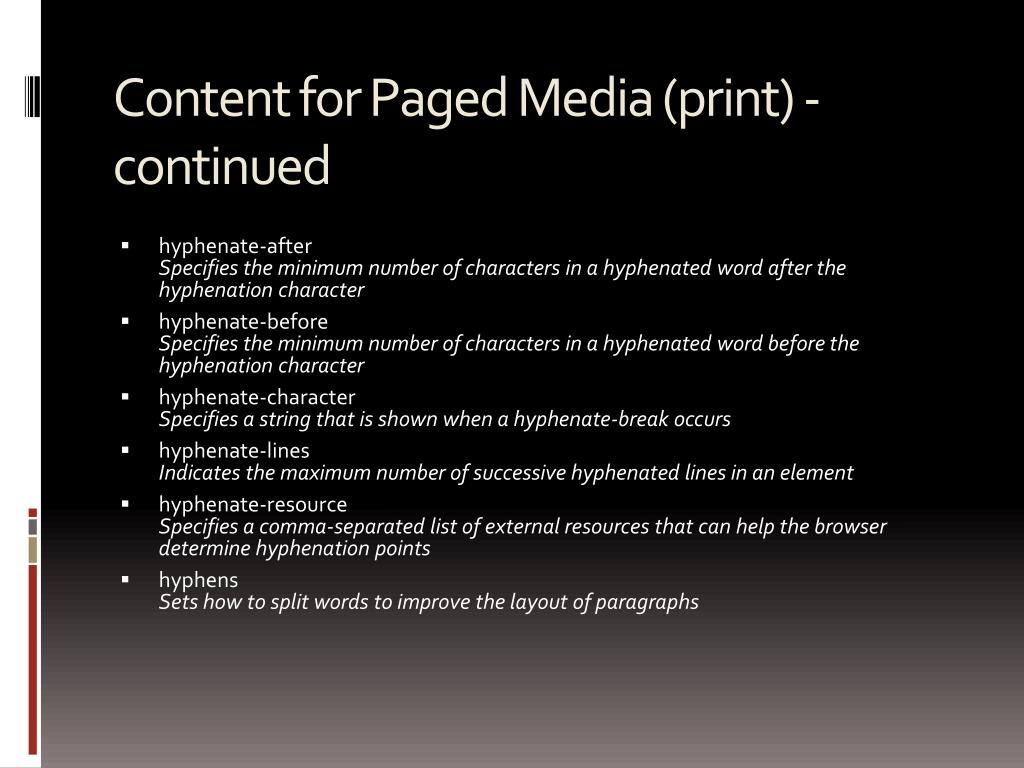

  30. Content for Paged Media (print) - continued hyphenate-after Specifies the minimum number of characters in a hyphenated word after the hyphenation character hyphenate-before Specifies the minimum number of characters in a hyphenated word before the hyphenation character hyphenate-character Specifies a string that is shown when a hyphenate-break occurs hyphenate-lines Indicates the maximum number of successive hyphenated lines in an element hyphenate-resource Specifies a comma-separated list of external resources that can help the browser determine hyphenation points hyphens Sets how to split words to improve the layout of paragraphs

  31. More Paged Media Properties • object-fit Gives a hint for how to scale a replaced element if neither its width nor its height property is auto • object-position Determines the alignment of the object inside the box • image-orientation Specifies a rotation in the right or clockwise direction that a user agent applies to an image • size Specifies the size and orientation of the containing box for page content

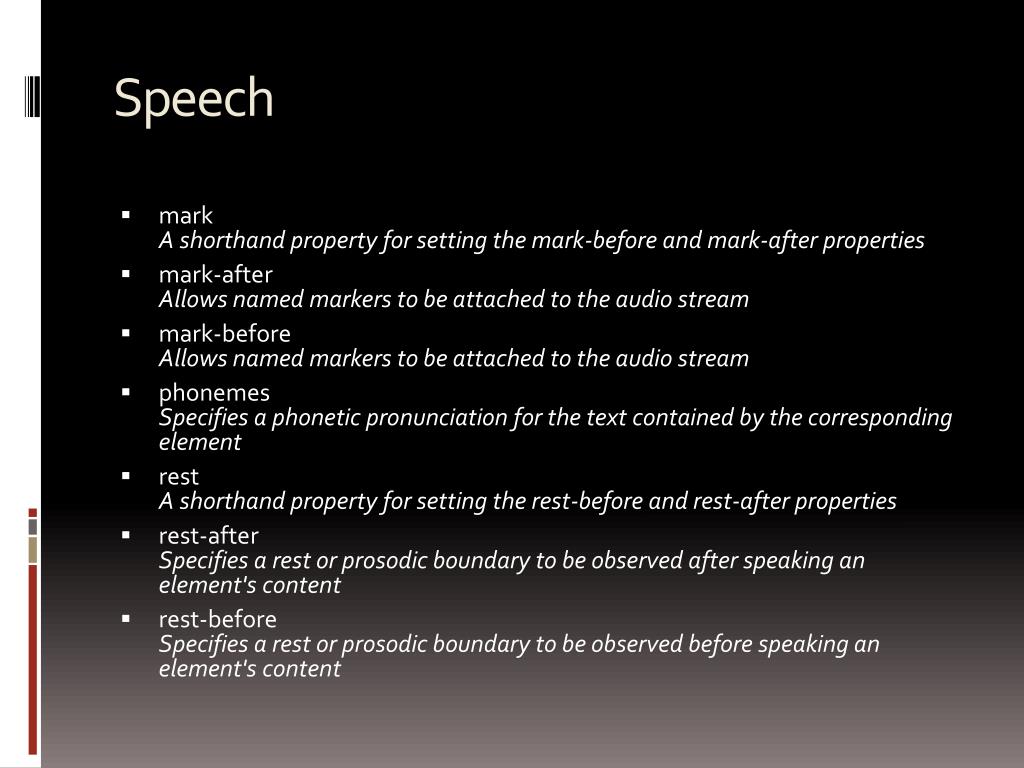

  32. Speech • mark A shorthand property for setting the mark-before and mark-after properties • mark-after Allows named markers to be attached to the audio stream • mark-before Allows named markers to be attached to the audio stream • phonemes Specifies a phonetic pronunciation for the text contained by the corresponding element • rest A shorthand property for setting the rest-before and rest-after properties • rest-after Specifies a rest or prosodic boundary to be observed after speaking an element's content • rest-before Specifies a rest or prosodic boundary to be observed before speaking an element's content

  33. Speech (continued) voice-balance Specifies the balance between left and right channels voice-duration Specifies how long it should take to render the selected element's content voice-pitch Specifies the average pitch (a frequency) of the speaking voice voice-pitch-range Specifies variation in average pitch voice-rate Controls the speaking rate voice-stress Indicates the strength of emphasis to be applied voice-volume Refers to the amplitude of the waveform output by the speech synthesizes

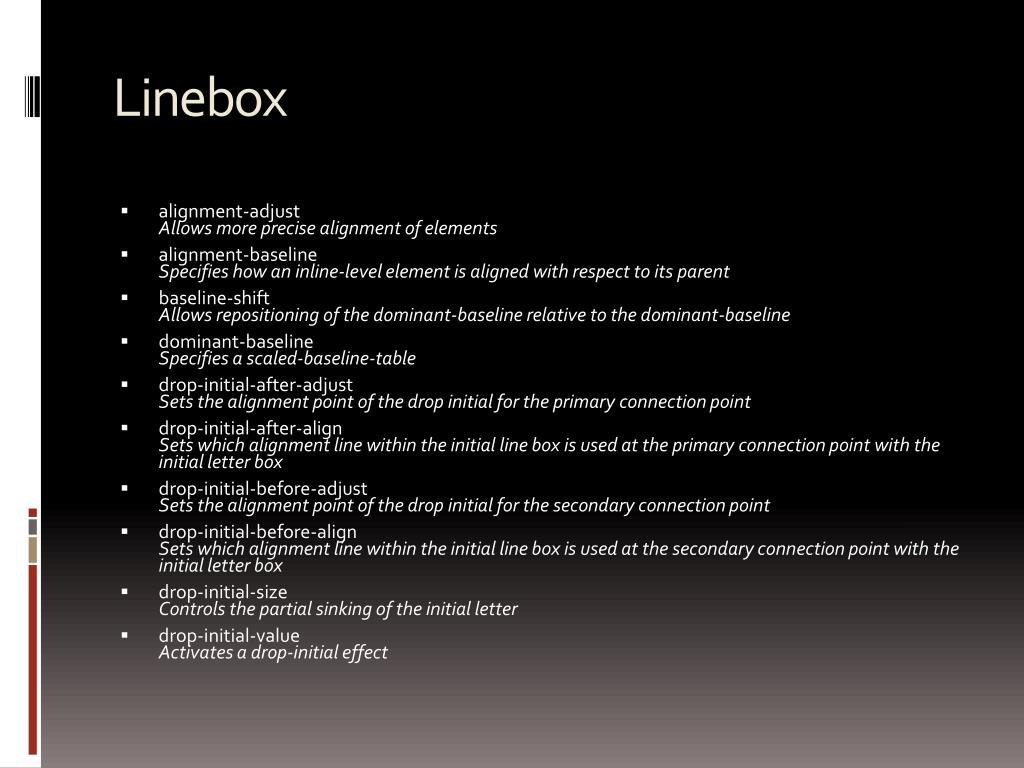

  34. Linebox • alignment-adjust Allows more precise alignment of elements • alignment-baseline Specifies how an inline-level element is aligned with respect to its parent • baseline-shift Allows repositioning of the dominant-baseline relative to the dominant-baseline • dominant-baseline Specifies a scaled-baseline-table • drop-initial-after-adjust Sets the alignment point of the drop initial for the primary connection point • drop-initial-after-align Sets which alignment line within the initial line box is used at the primary connection point with the initial letter box • drop-initial-before-adjust Sets the alignment point of the drop initial for the secondary connection point • drop-initial-before-align Sets which alignment line within the initial line box is used at the secondary connection point with the initial letter box • drop-initial-size Controls the partial sinking of the initial letter • drop-initial-value Activates a drop-initial effect

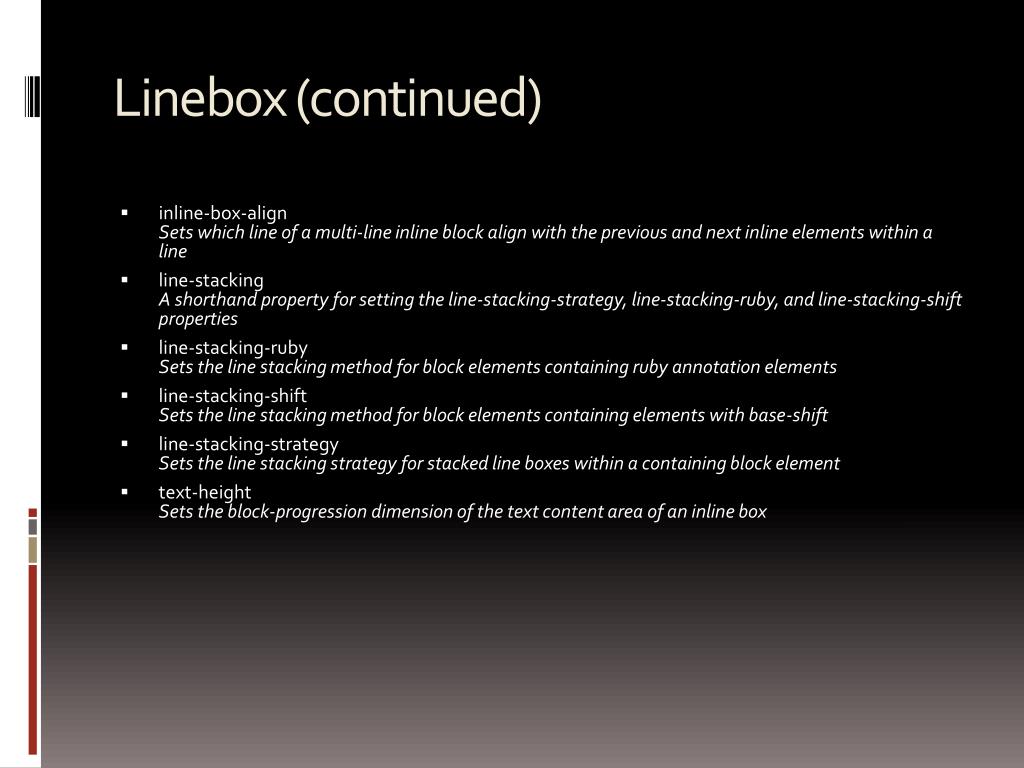

  35. Linebox (continued) inline-box-align Sets which line of a multi-line inline block align with the previous and next inline elements within a line line-stacking A shorthand property for setting the line-stacking-strategy, line-stacking-ruby, and line-stacking-shift properties line-stacking-ruby Sets the line stacking method for block elements containing ruby annotation elements line-stacking-shift Sets the line stacking method for block elements containing elements with base-shift line-stacking-strategy Sets the line stacking strategy for stacked line boxes within a containing block element text-heightSets the block-progression dimension of the text content area of an inline box

  36. Hyperlink • target A shorthand property for setting the target-name, target-new, and target-position properties • target-name Specifies where to open links (target destination) • target-new Specifies whether new destination links should open in a new window or in a new tab of an existing window • target-position Specifies where new destination links should be placed

  37. Some CSS3 Resources… • http://www.stanford.edu/group/ttsclasses/css/ • http://border-radius.com/ • http://caniuse.com/ • http://css-tricks.com/ • http://css3.bradshawenterprises.com • http://css3.info/ • http://cssplay.co.uk/menu/css3-marquee.html • http://davidwalsh.name/dw-content/webkit-styles.php • http://dev.w3.org/csswg/ • http://fontsquirrel.com/ • http://google.com/webfonts • http://hex2rgba.devoth.com/ • http://hslpicker.com/ • http://html5rocks.com/ • http://leemunroe.com • http://meyerweb.com/eric/css/ • http://msdn.microsoft.com/ • http://quackit.com/css • http://quirksmode.org/css/contents.html • http://standardista.com • http://standardista.com/sxsw • http://storiesinflight.com/html5/ruby.html • http://stubbornella.org/content/category/general/geek/css/ • http://thinkvitamin.com/design/stay-on-target/ • http://uselesscode.org/blog/82/pure-css3-tab-widget • http://virtuelvis.com/gallery/css3/target/interface.html • http://w3.org/ • http://w3schools.com • http://westciv.com/tools/3Dtransforms • http://xanthir.com/blog • http://xanthir.com/blog/b4580 • http://selectivizr.com
