Surface and Area of Pyramids and Cones. 6-9. Warm Up. Problem of the Day. Lesson Presentation. Course 3. Surface and Area of Pyramids and Cones. 6-9. Course 3. Warm Up 1. A rectangular prism is 0.6 m by 0.4 m by 1.0 m. What is the surface area?

aliya
Télécharger la présentation

6-9

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

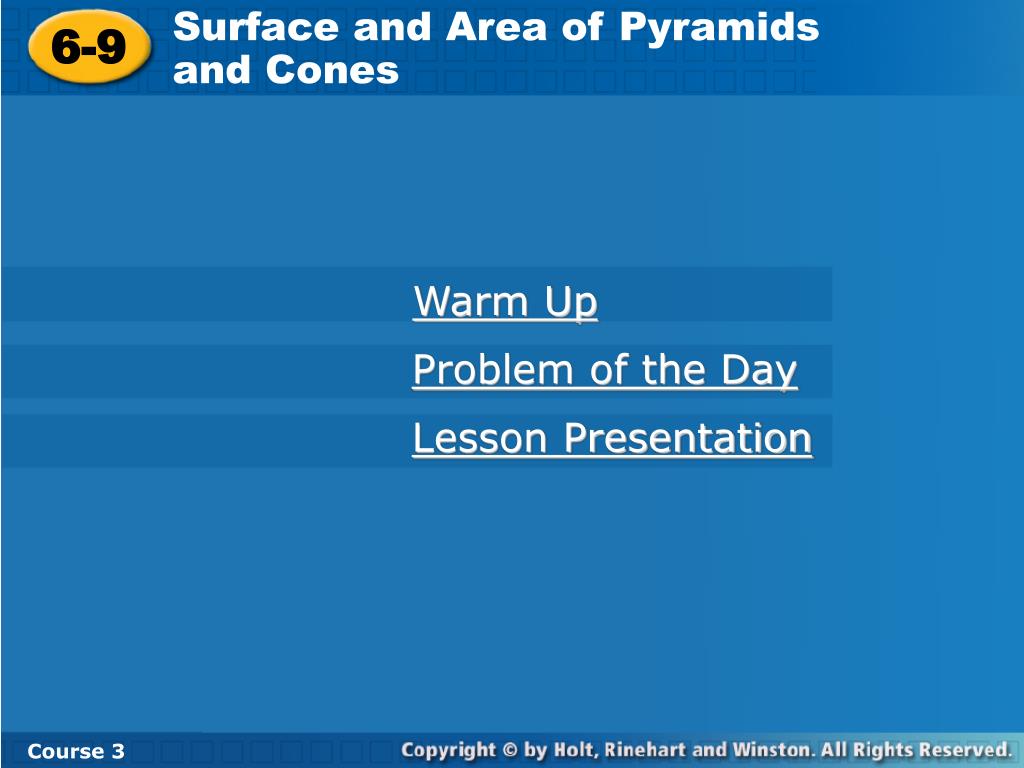

  1. Surface and Area of Pyramids and Cones 6-9 Warm Up Problem of the Day Lesson Presentation Course 3

  2. Surface and Area of Pyramids and Cones 6-9 Course 3 Warm Up 1. A rectangular prism is 0.6 m by 0.4 m by 1.0 m. What is the surface area? 2. A cylindrical can has a diameter of 14 cm and a height of 20 cm. What is the surface area to the nearest tenth? Use 3.14 for . 2.48 m2 1186.9 cm2

  3. Surface and Area of Pyramids and Cones 6-9 Course 3 Problem of the Day Sandy is building a model of a pyramid with a hexagonal base. If she uses a toothpick for each edge, how many toothpicks will she need? 12

  4. Surface and Area of Pyramids and Cones 6-9 Course 3 Learn to find the surface area of pyramids and cones.

  5. Surface and Area of Pyramids and Cones 6-9 Course 3 Insert Lesson Title Here Vocabulary slant height regular pyramid right cone

  6. Surface and Area of Pyramids and Cones 6-9 Course 3 Regular Pyramid The slant height of a pyramid or cone is measured along its lateral surface. Right cone The base of a regular pyramid is a regular polygon, and the lateral faces are all congruent. In a right cone, a line perpendicular to the base through the tip of the cone passes through the center of the base.

  7. Surface and Area of Pyramids and Cones 6-9 Course 3

  8. Surface and Area of Pyramids and Cones 6-9 1 2 = (2.4 • 2.4) + (9.6)(3) Course 3 Additional Example 1: Finding Surface Area Find the surface area of each figure 1 2 A. S = B + Pl = 20.16 ft2 B. S = pr2 + prl = p(32) + p(3)(6) = 27p 84.8 cm2

  9. Surface and Area of Pyramids and Cones 6-9 1 2 = (3 • 3) + (12)(5) Course 3 Try This: Example 1 Find the surface area of each figure. 1 2 5 m A. S = B + Pl = 39 m2 3 m 3 m B. S = pr2 + prl 18 ft = p(72) + p(7)(18) 7 ft = 175p 549.5 ft2

  10. Surface and Area of Pyramids and Cones 6-9 Course 3 Additional Example 2: Exploring the Effects of Changing Dimensions A cone has diameter 8 in. and slant height 3 in. Explain whether tripling the slant height would have the same effect on the surface area as tripling the radius. They would not have the same effect. Tripling the radius would increase the surface area more than tripling the slant height.

  11. Surface and Area of Pyramids and Cones 6-9 Course 3 Try This: Example 2 A cone has diameter 9 in. and a slant height 2 in. Explain whether tripling the slant height would have the same effect on the surface area as tripling the radius. S = pr2 + pr(3l) S = pr2 + prl S = p(3r)2 + p(3r)l = p(4.5)2 + p(4.5)(2) = p(4.5)2 + p(4.5)(6) = p(13.5)2 + p(13.5)(2) = 29.25p in2 91.8 in2 = 47.25p in2 148.4 in2 = 209.25p in2 657.0 in2 They would not have the same effect. Tripling the radius would increase the surface area more than tripling the height.

  12. Surface and Area of Pyramids and Cones 6-9 Course 3 Additional Example 3: Application The upper portion of an hourglass is approximately an inverted cone with the given dimensions. What is the lateral surface area of the upper portion of the hourglass? a2 + b2 = l2 Pythagorean Theorem 102 + 262 = l2 l 27.9 Lateral surface area L = prl =p(10)(27.9)876.1 mm2

  13. Surface and Area of Pyramids and Cones 6-9 Course 3 Try This: Example 3 A road construction cone is almost a full cone. With the given dimensions, what is the lateral surface area of the cone? a2 + b2 = l2 Pythagorean Theorem 12 in. 42 + 122 = l2 4 in. l 12.65 Lateral surface area L = prl =p(4)(12.65)158.9 in2

  14. Surface and Area of Pyramids and Cones 6-9 Course 3 Insert Lesson Title Here Lesson Quiz: Part 1 Find the surface area of each figure to the nearest tenth. Use 3.14 for p. 1. the triangular pyramid 2. the cone 6.2 m2 175.8 in2

  15. Surface and Area of Pyramids and Cones 6-9 Course 3 Insert Lesson Title Here Lesson Quiz: Part 2 3. Tell whether doubling the dimensions of a cone will double the surface area. It will more than double the surface area because you square the radius to find the area of the base.
