  1. CMIS 470Structured Systems Design Review of Oracle Designer Process, Exam 2 review Week 15

  2. Wrapping Up • RR – The End • Tonight: • Turn in end product tonight • Peer evaluations • At Final Exam period next week: • Project Completion Report due • Reminiscing… • Review of Oracle Designer process • What to expect for exam

  3. Quotes from fellow survivors of the RR project • “I’ve learned that project managers do use tools like Project 2000… and they have to create those pesky weekly status reports” • “We wish we would have slowed down a bit and enjoyed each others’ company over dinner or drinks at least once during the project”

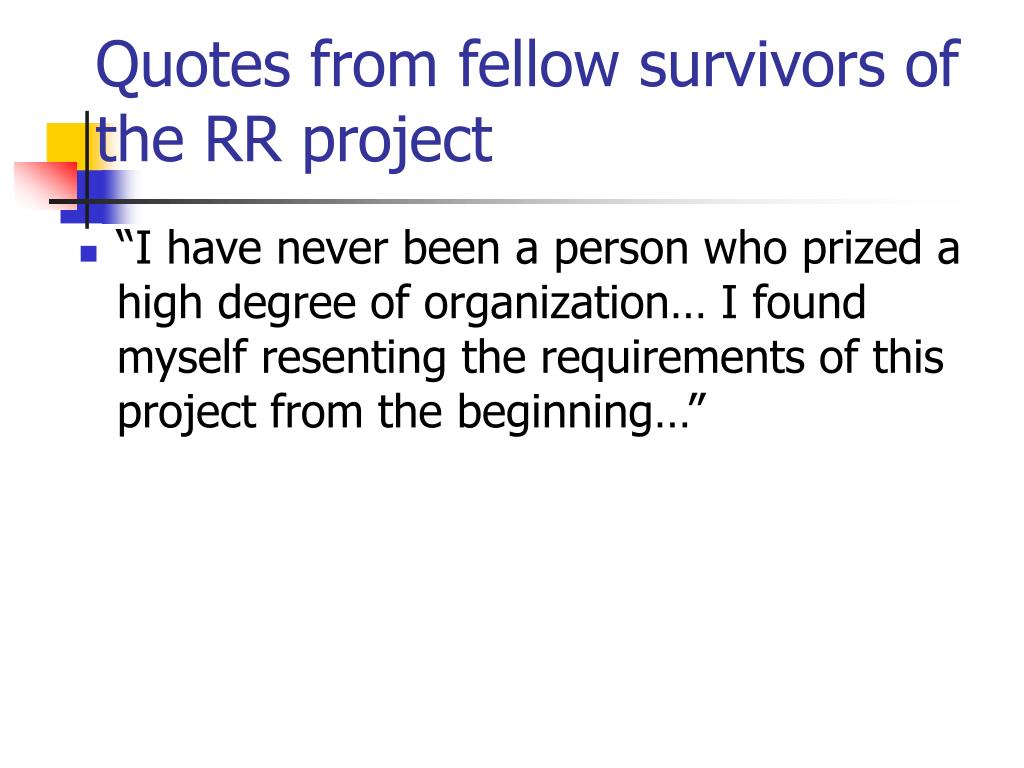

  4. Quotes from fellow survivors of the RR project • “I have never been a person who prized a high degree of organization… I found myself resenting the requirements of this project from the beginning…”

  5. Quotes from fellow survivors of the RR project “… However, I found that extensive planning really can pay off… I learned that a group project does not have to be mayhem… All deadlines were met, our deliverables were excellent, and no one had to lose sleep over the project.”

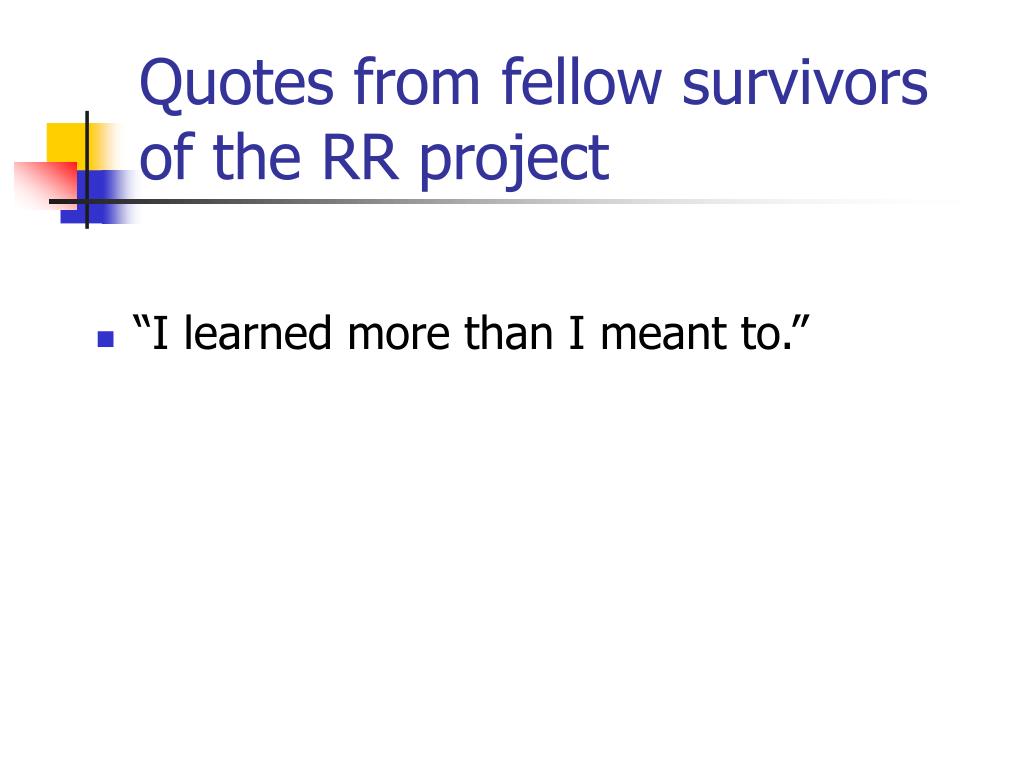

  6. Quotes from fellow survivors of the RR project • “I learned more than I meant to.”

  7. Oracle Designer • ANALYSIS • Process Models • ERD • FHD • DESIGN • Design Editor • Transformers • Database • Application • Generators • Database • Table API • Forms • Reports

  8. Oracle Designer Oracle Designer end result: • Actual application database • Working prototypes of screens and reports • Analysis and design documentation • ERDs, process models, etc.

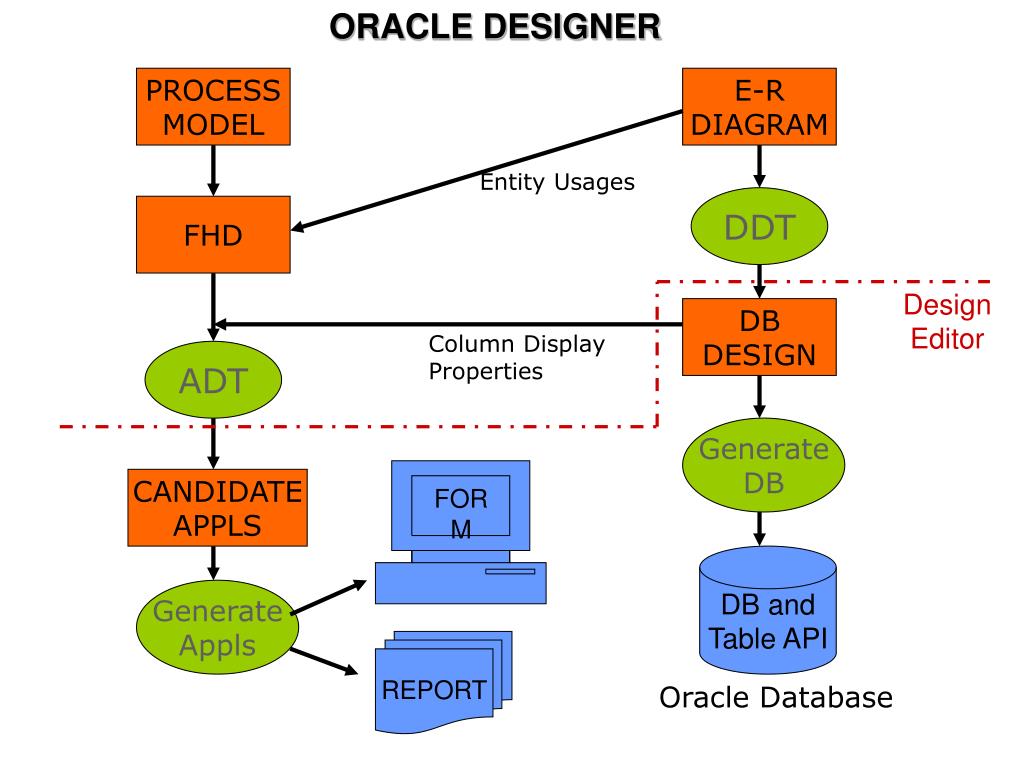

  9. ORACLE DESIGNER PROCESS MODEL E-R DIAGRAM Entity Usages DDT FHD Design Editor DB DESIGN Column Display Properties ADT Generate DB FORM CANDIDATE APPLS DB and Table API Generate Appls REPORT Oracle Database

  10. The Last Exam • NOT comprehensive • Ch 13 • Oracle Designer stuff • Similar format to first exam • Bring a pencil (I’ll provide scansheets)

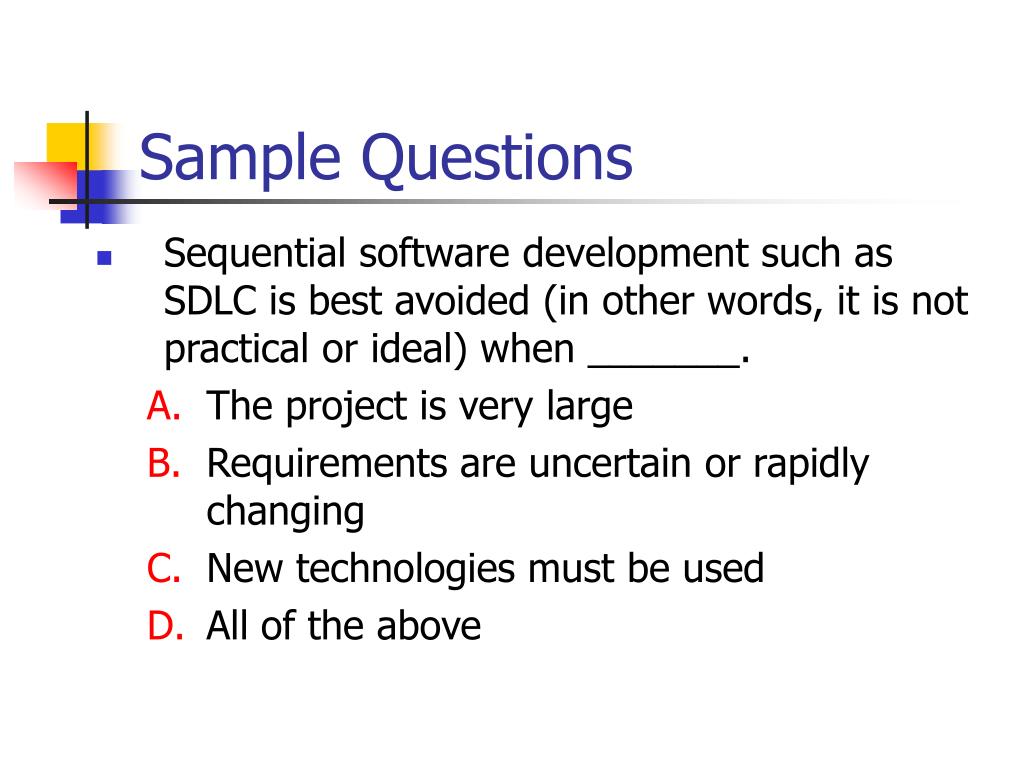

  11. Sample Questions • Sequential software development such as SDLC is best avoided (in other words, it is not practical or ideal) when _______. • The project is very large • Requirements are uncertain or rapidly changing • New technologies must be used • All of the above

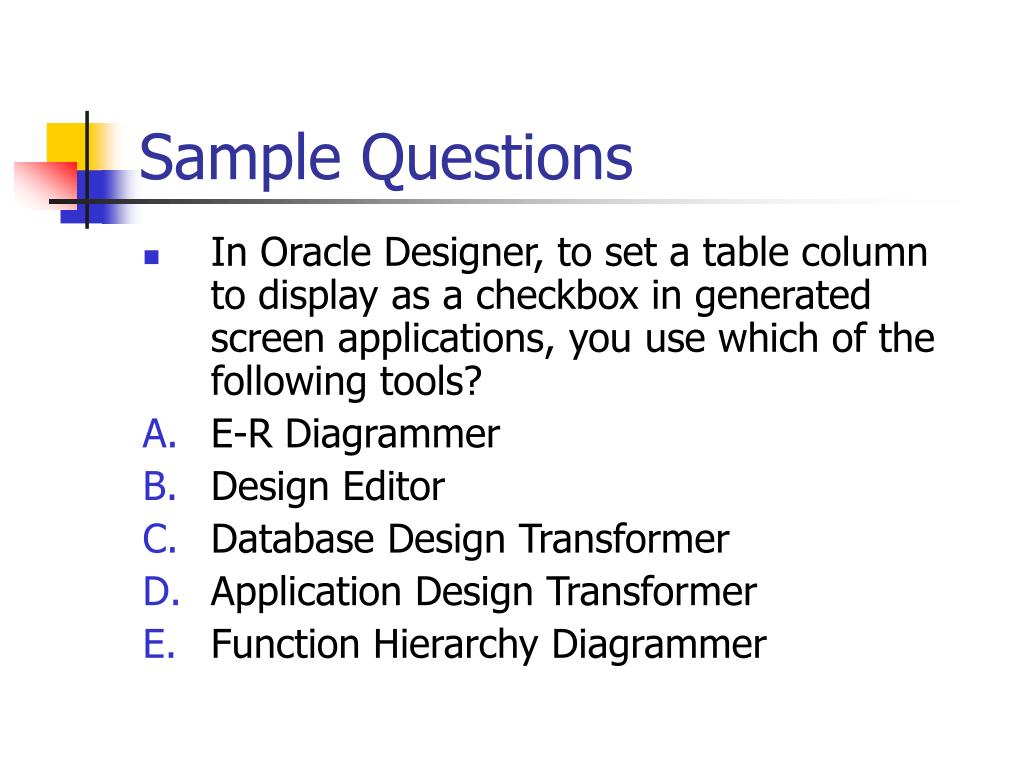

  12. Sample Questions • In Oracle Designer, to set a table column to display as a checkbox in generated screen applications, you use which of the following tools? • E-R Diagrammer • Design Editor • Database Design Transformer • Application Design Transformer • Function Hierarchy Diagrammer

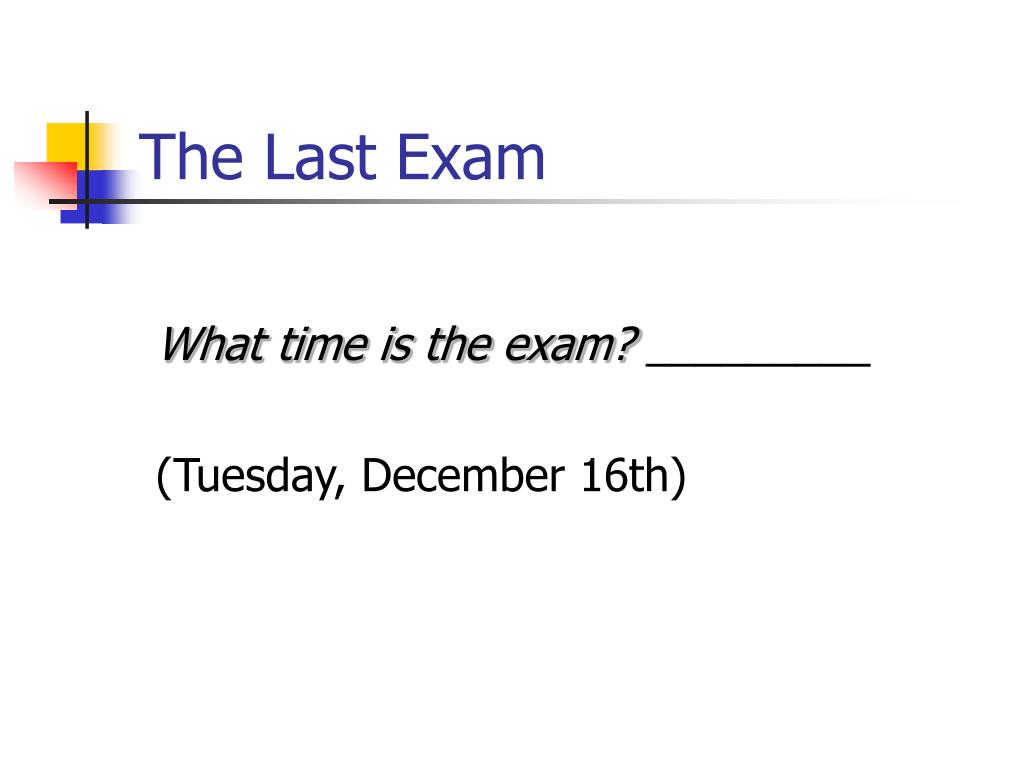

  13. The Last Exam What time is the exam? _________ (Tuesday, December 16th)

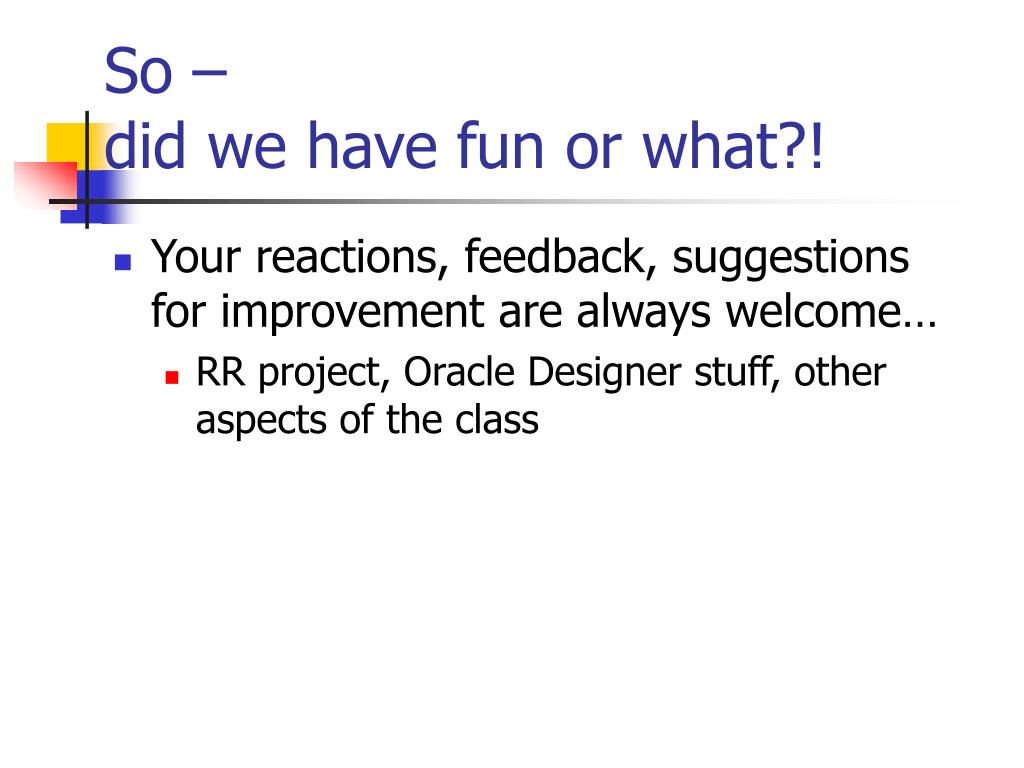

  14. So – did we have fun or what?! • Your reactions, feedback, suggestions for improvement are always welcome… • RR project, Oracle Designer stuff, other aspects of the class
