  1. Joint Mathematics Meetings AMS Special Session Conjectures on Cops and Robbers Anthony Bonato Ryerson University Cops and Robbers

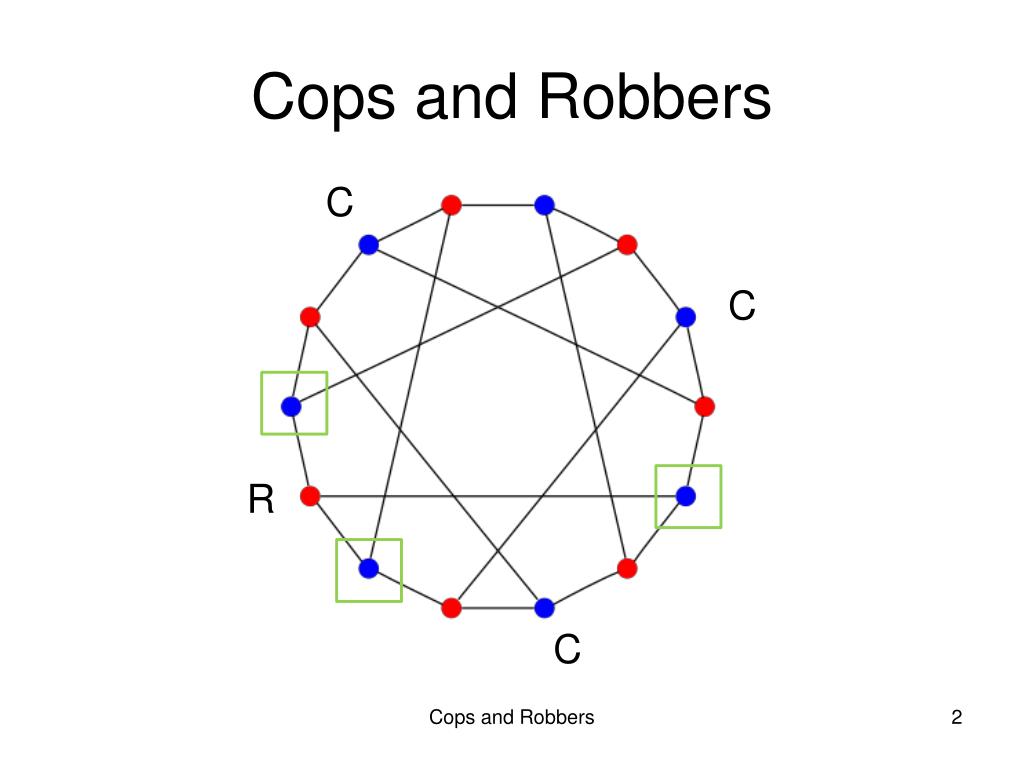

  2. Cops and Robbers C C R C Cops and Robbers

  3. Cops and Robbers C C R C Cops and Robbers

  4. Cops and Robbers C R C C cop number c(G) ≤ 3 Cops and Robbers

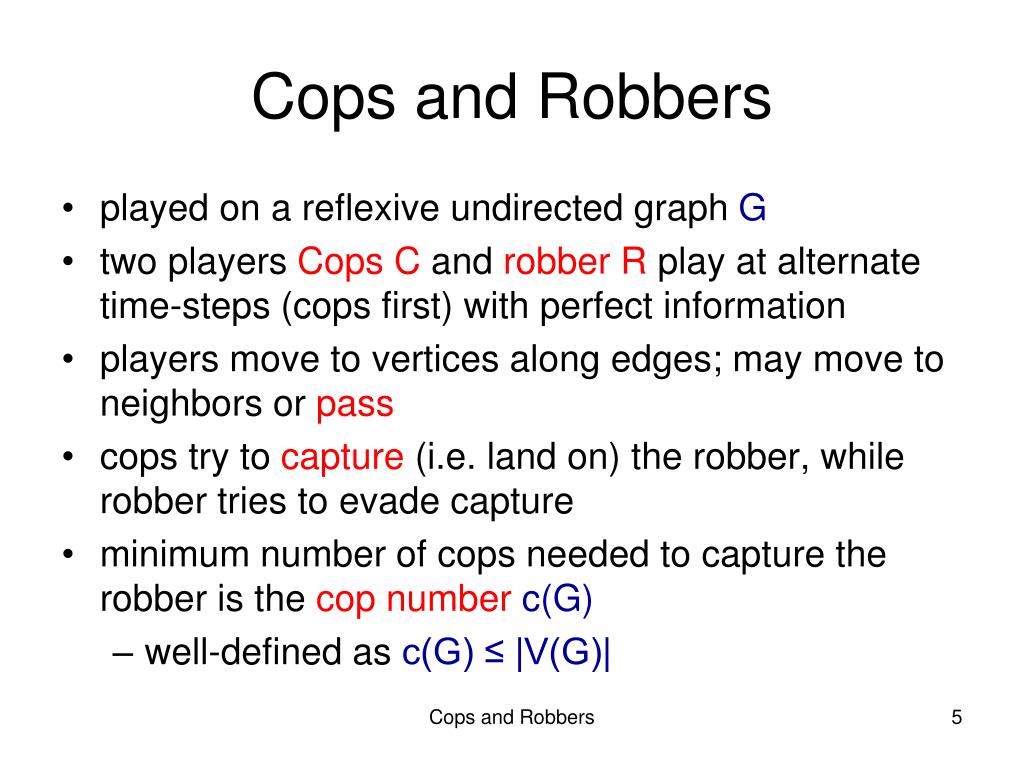

  5. Cops and Robbers • played on a reflexive undirected graph G • two players Cops C and robber R play at alternate time-steps (cops first) with perfect information • players move to vertices along edges; may move to neighbors or pass • cops try to capture (i.e. land on) the robber, while robber tries to evade capture • minimum number of cops needed to capture the robber is the cop number c(G) • well-defined as c(G) ≤ |V(G)| Cops and Robbers

  6. Conjectures • conjectures and problems on Cops and Robbers coming from 5 different directions, touch on various aspects of graph theory: • structural, algorithmic, probabilistic, topological… Cops and Robbers

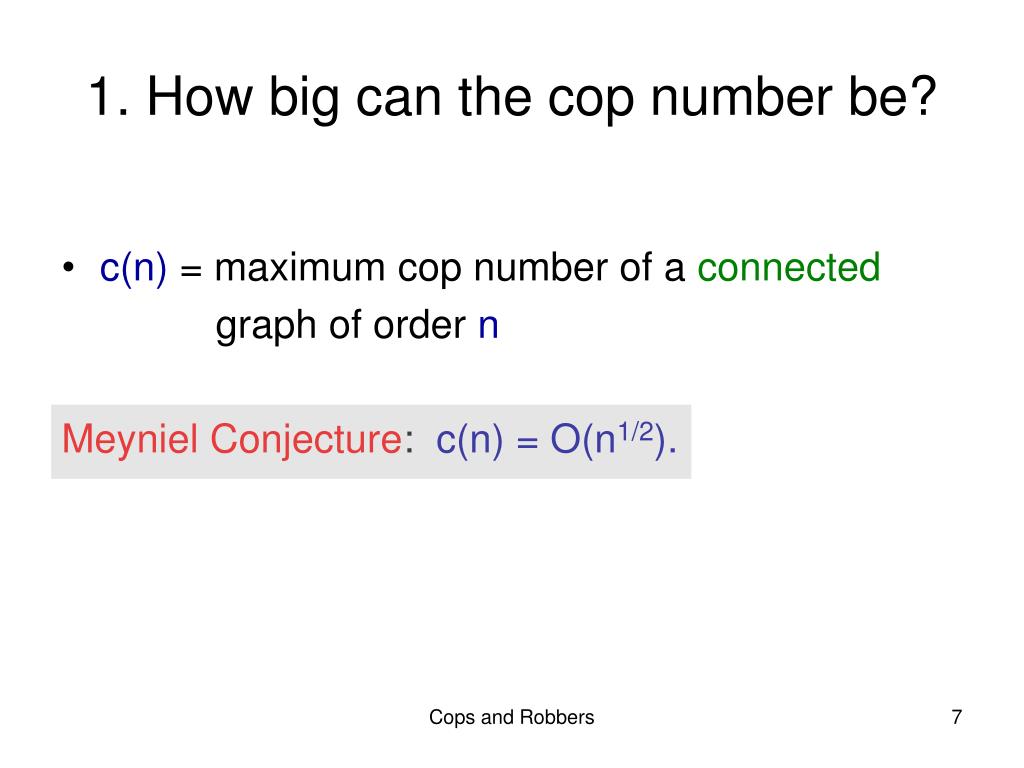

  7. 1. How big can the cop number be? • c(n) = maximum cop number of a connected graph of order n Meyniel Conjecture: c(n) = O(n1/2). Cops and Robbers

  8. Cops and Robbers

  9. Henri Meyniel, courtesy Geňa Hahn Cops and Robbers

  10. State-of-the-art • (Lu, Peng, 13) proved that • independently proved by (Frieze, Krivelevich, Loh, 11) and (Scott, Sudakov,11) • (Bollobás, Kun, Leader,13): if p = p(n) ≥ 2.1log n/ n, then c(G(n,p)) ≤ 160000n1/2log n • (Prałat,Wormald,14+): proved Meyniel’s conjecture for all p = p(n) Cops and Robbers

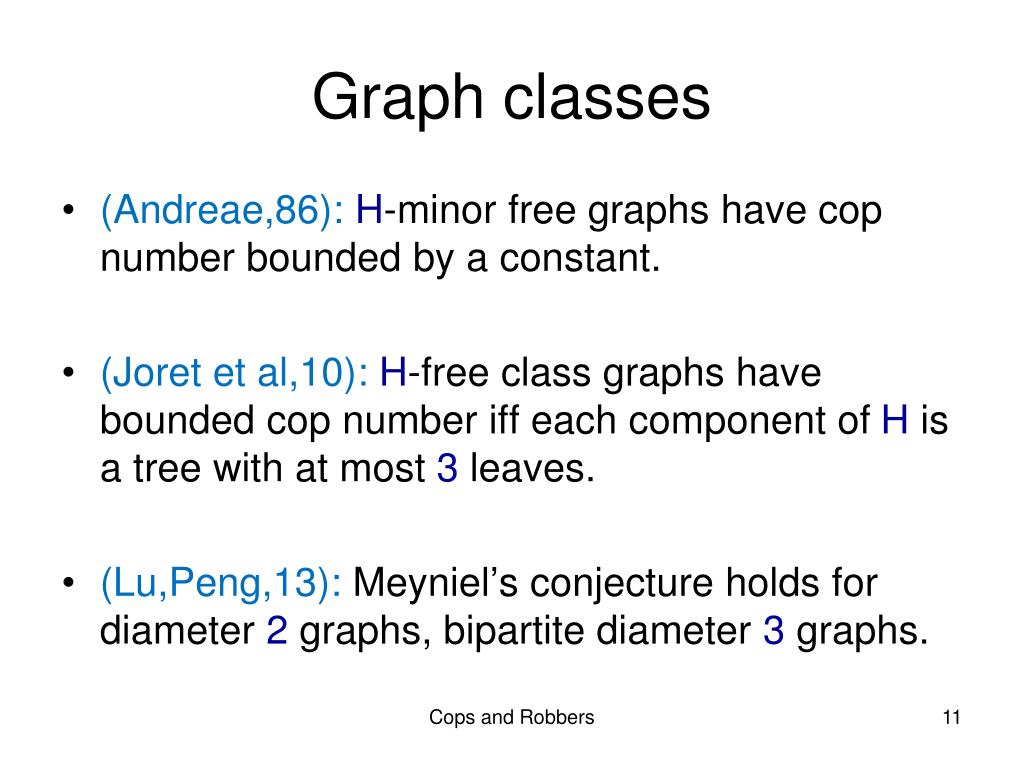

  11. Graph classes • (Andreae,86): H-minor free graphs have cop number bounded by a constant. • (Joret et al,10): H-free class graphs have bounded cop number iff each component of H is a tree with at most 3 leaves. • (Lu,Peng,13): Meyniel’s conjecture holds for diameter 2 graphs, bipartite diameter 3 graphs. Cops and Robbers

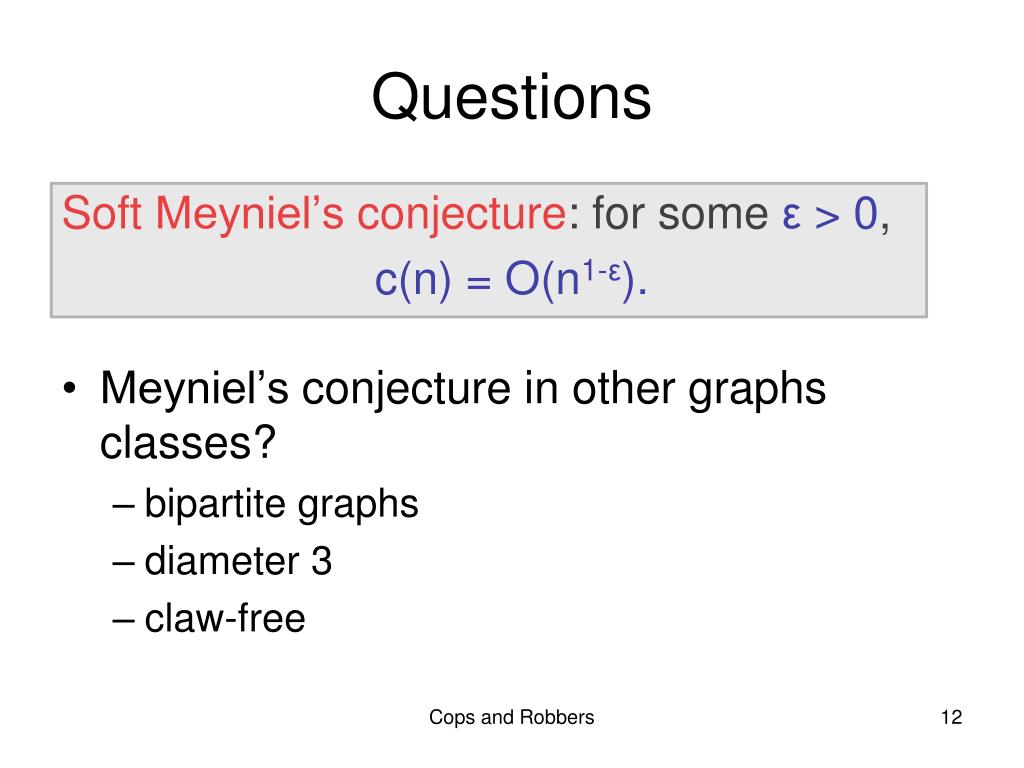

  12. Questions Soft Meyniel’s conjecture: for some ε > 0, c(n) = O(n1-ε). • Meyniel’s conjecture in other graphs classes? • bipartite graphs • diameter 3 • claw-free Cops and Robbers

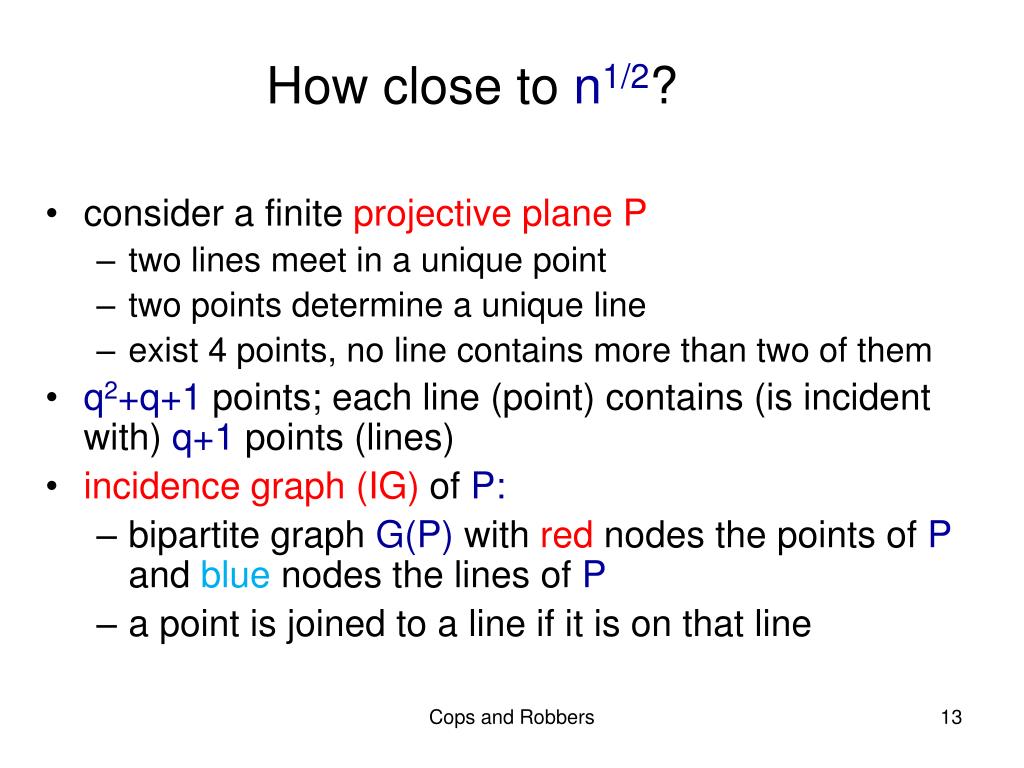

  13. How close to n1/2? • consider a finite projective plane P • two lines meet in a unique point • two points determine a unique line • exist 4 points, no line contains more than two of them • q2+q+1 points; each line (point) contains (is incident with) q+1 points (lines) • incidence graph (IG) of P: • bipartite graph G(P) with red nodes the points of P and blue nodes the lines of P • a point is joined to a line if it is on that line Cops and Robbers

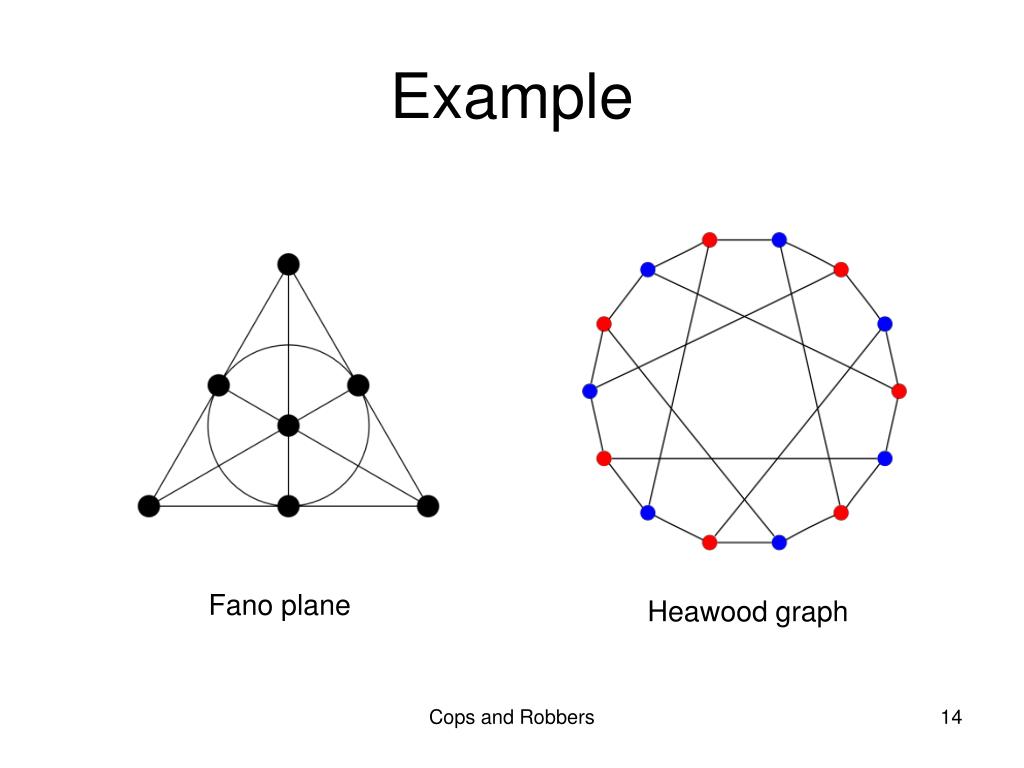

  14. Example Fano plane Heawood graph Cops and Robbers

  15. Meyniel extremal families • a family of connected graphs (Gn: n ≥ 1) is Meyniel extremal if there is a constant d > 0, such that for all n ≥ 1, c(Gn) ≥ dn1/2 • IG of projective planes: girth 6, (q+1)-regular, so have cop number ≥ q+1 • order 2(q2+q+1) • Meyniel extremal (must fill in non-prime orders) • all other examples of Meyniel extremal families come from combinatorial designs (B,Burgess,2013) Cops and Robbers

  16. Minimum orders • Mk = minimum order of a k-cop-win graph • M1 = 1, M2 = 4 • M3 = 10 (Baird, B,12) • see also (Beveridge et al, 14+) • M4 = ? Cops and Robbers

  17. Conjectures on mk, Mk Conjecture: Mk monotone increasing. • mk = minimum order of a connected G such that c(G) ≥ k • (Baird, B, 12) mk= Ω(k2) is equivalent to Meyniel’s conjecture. Conjecture:mk= Mk for all k ≥ 4. Cops and Robbers

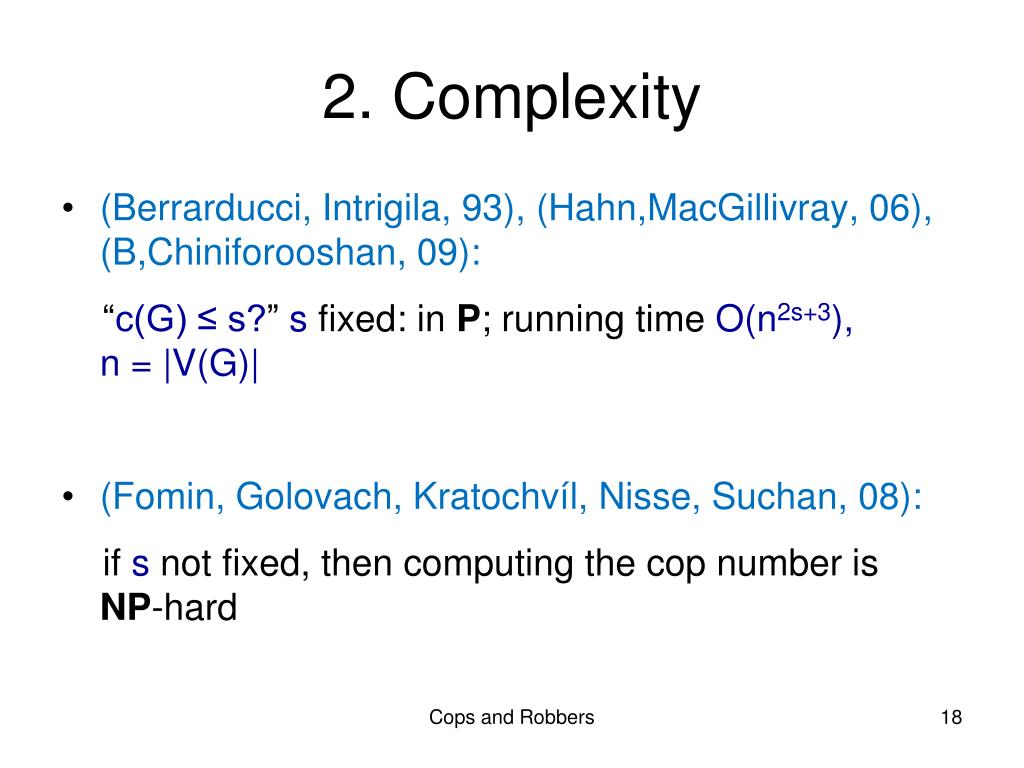

  18. 2. Complexity • (Berrarducci, Intrigila, 93), (Hahn,MacGillivray, 06), (B,Chiniforooshan, 09): “c(G) ≤ s?” sfixed: in P; running time O(n2s+3), n = |V(G)| • (Fomin, Golovach, Kratochvíl, Nisse, Suchan, 08): if s not fixed, then computing the cop number is NP-hard Cops and Robbers

  19. Questions Goldstein, Reingold Conjecture: if s is not fixed, then computing the cop number is EXPTIME-complete. • same complexity as say, generalized chess • settled by (Kinnersley,14+) Conjecture: if s is not fixed, then computing the cop number is not in NP. Cops and Robbers

  20. 3. Genus • (Aigner, Fromme, 84) planar graphs (genus 0) have cop number ≤ 3. • (Clarke, 02) outerplanar graphs have cop number ≤ 2. Cops and Robbers

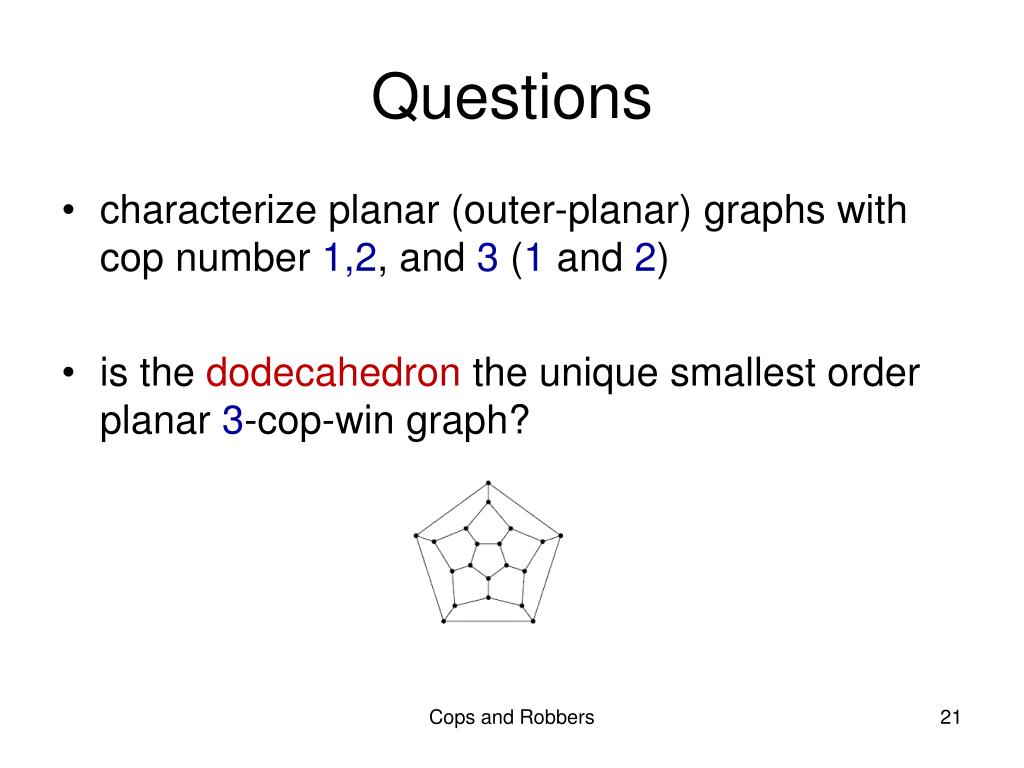

  21. Questions • characterize planar (outer-planar) graphs with cop number 1,2, and 3 (1 and 2) • is the dodecahedron the unique smallest order planar 3-cop-win graph? Cops and Robbers

  22. Higher genus Schroeder’s Conjecture: If G has genus k, then c(G) ≤ k +3. • true for k = 0 • (Schroeder, 01): true for k = 1 (toroidal graphs) • (Quilliot,85): c(G) ≤ 2k +3. • (Schroeder,01): c(G) ≤ floor(3k/2) +3. Cops and Robbers

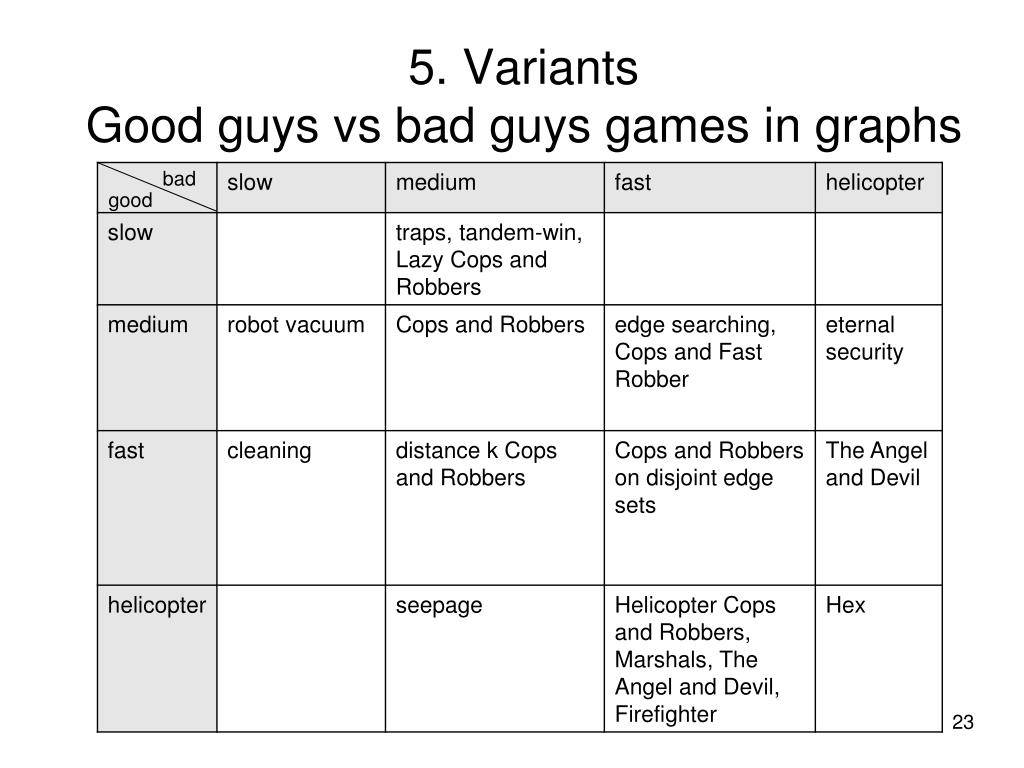

  23. 5. VariantsGood guys vs bad guys games in graphs bad good

  24. Distance k Cops and Robber (B,Chiniforooshan,09) • cops can “shoot” robber at some specified distance k • play as in classical game, but capture includes case when robber is distance k from the cops • k = 0 is the classical game C k = 1 R Cops and Robbers

  25. Distance k cop number: ck(G) • ck(G)= minimum number of cops needed to capture robber at distance at most k • G connected implies ck(G)≤ diam(G) – 1 • for all k ≥ 1, ck(G)≤ ck-1(G) Cops and Robbers

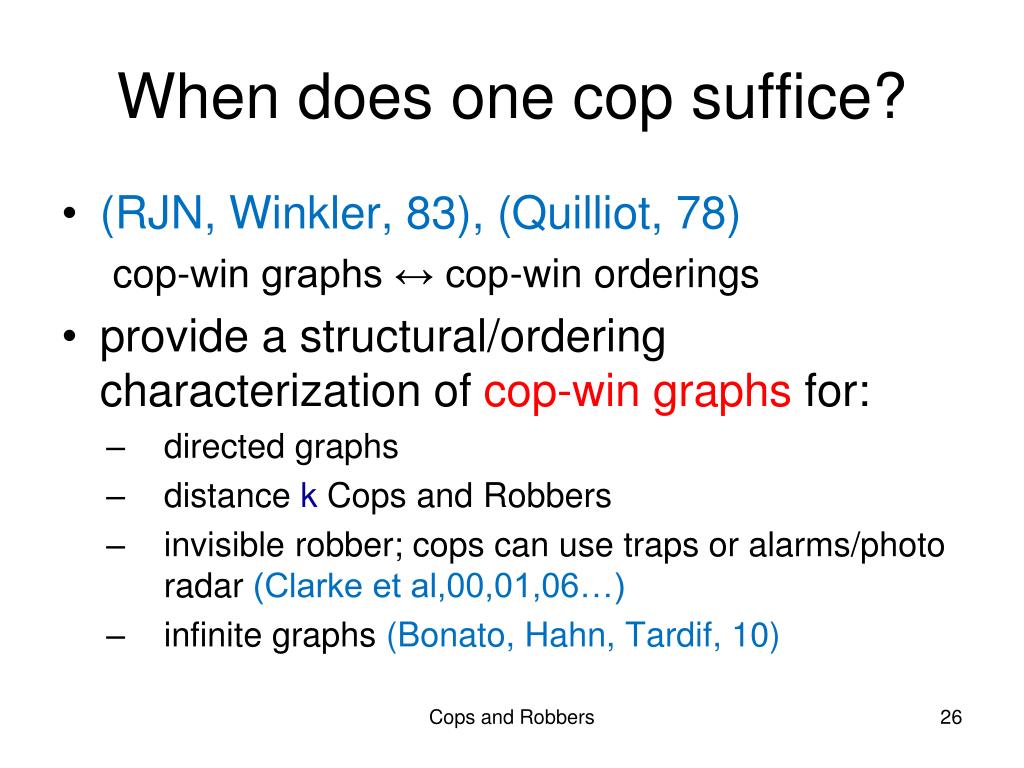

  26. When does one cop suffice? • (RJN, Winkler, 83), (Quilliot, 78) cop-win graphs ↔ cop-win orderings • provide a structural/ordering characterization of cop-win graphs for: • directed graphs • distance k Cops and Robbers • invisible robber; cops can use traps or alarms/photo radar (Clarke et al,00,01,06…) • infinite graphs (Bonato, Hahn, Tardif, 10) Cops and Robbers

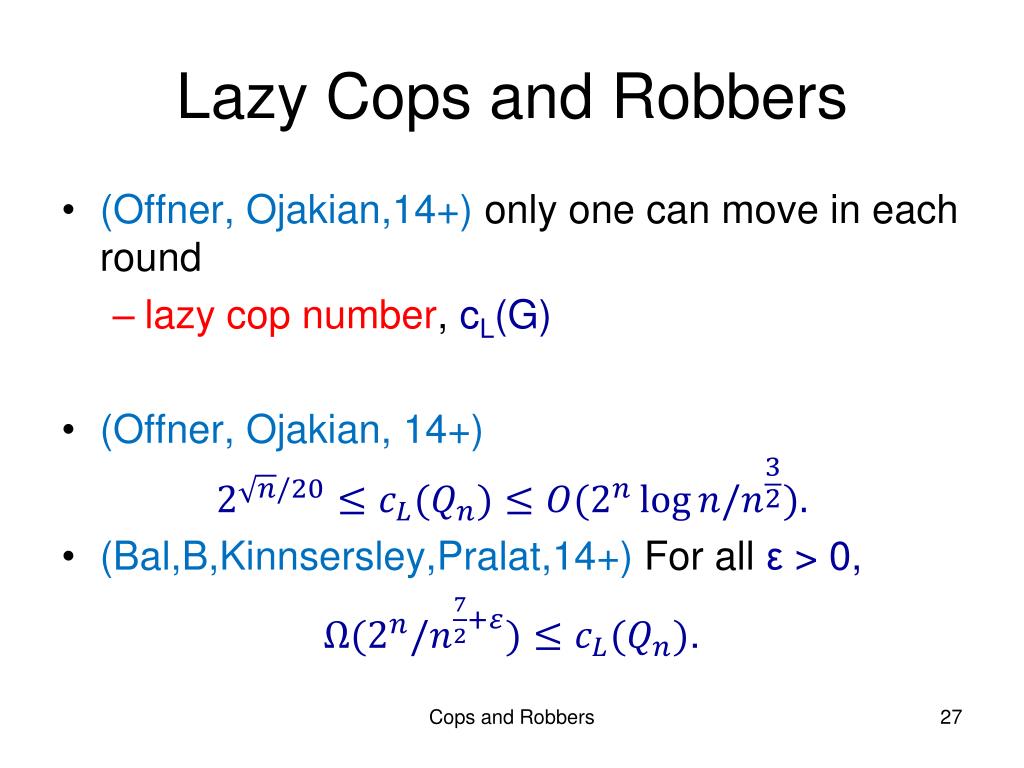

  27. Lazy Cops and Robbers • (Offner, Ojakian,14+) only one can move in each round • lazy cop number, cL(G) • (Offner, Ojakian, 14+) • (Bal,B,Kinnsersley,Pralat,14+) For all ε > 0, . Cops and Robbers

  28. Questions on lazy cops • Question: Find the asymptotic order of . • (Bal,B,Kinnsersley,Pralat,14+)If G has genus g, then cL(G) = • proved by using the Gilbert, Hutchinson,Tarjan separator theorem • Question: Is cL(G) bounded for planar graphs? Cops and Robbers

  29. Firefighting Cops and Robbers

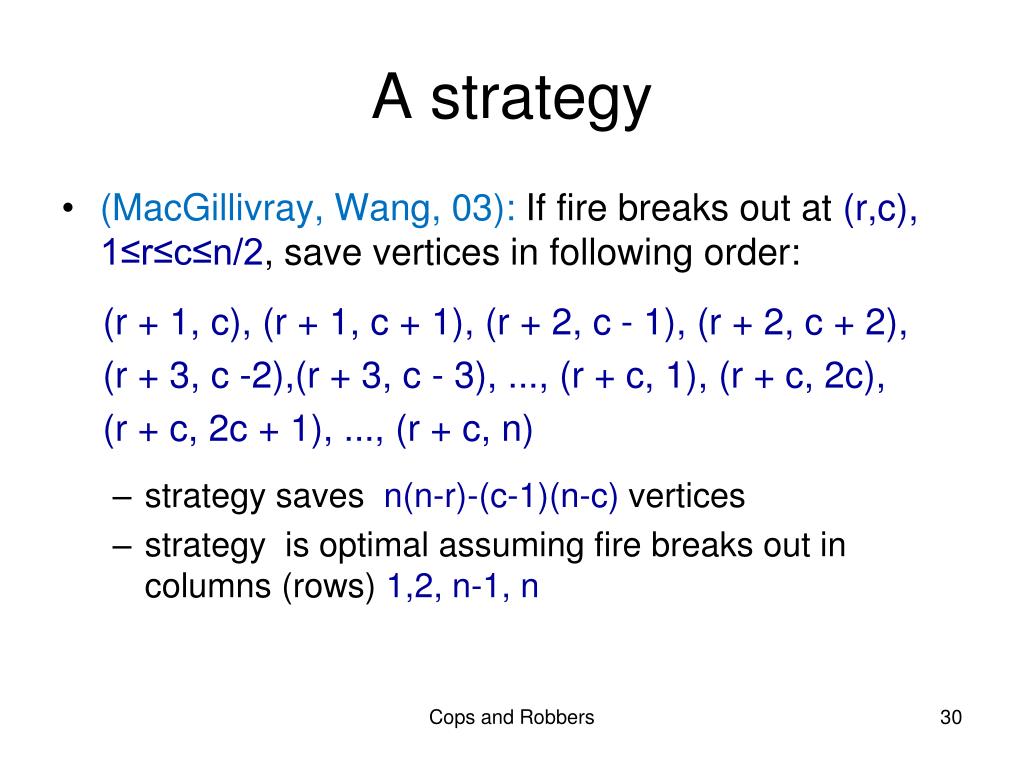

  30. A strategy • (MacGillivray, Wang, 03): If fire breaks out at (r,c), 1≤r≤c≤n/2, save vertices in following order: (r + 1, c), (r + 1, c + 1), (r + 2, c - 1), (r + 2, c + 2), (r + 3, c -2),(r + 3, c - 3), ..., (r + c, 1), (r + c, 2c), (r + c, 2c + 1), ..., (r + c, n) • strategy saves n(n-r)-(c-1)(n-c) vertices • strategy is optimal assuming fire breaks out in columns (rows) 1,2, n-1, n Cops and Robbers

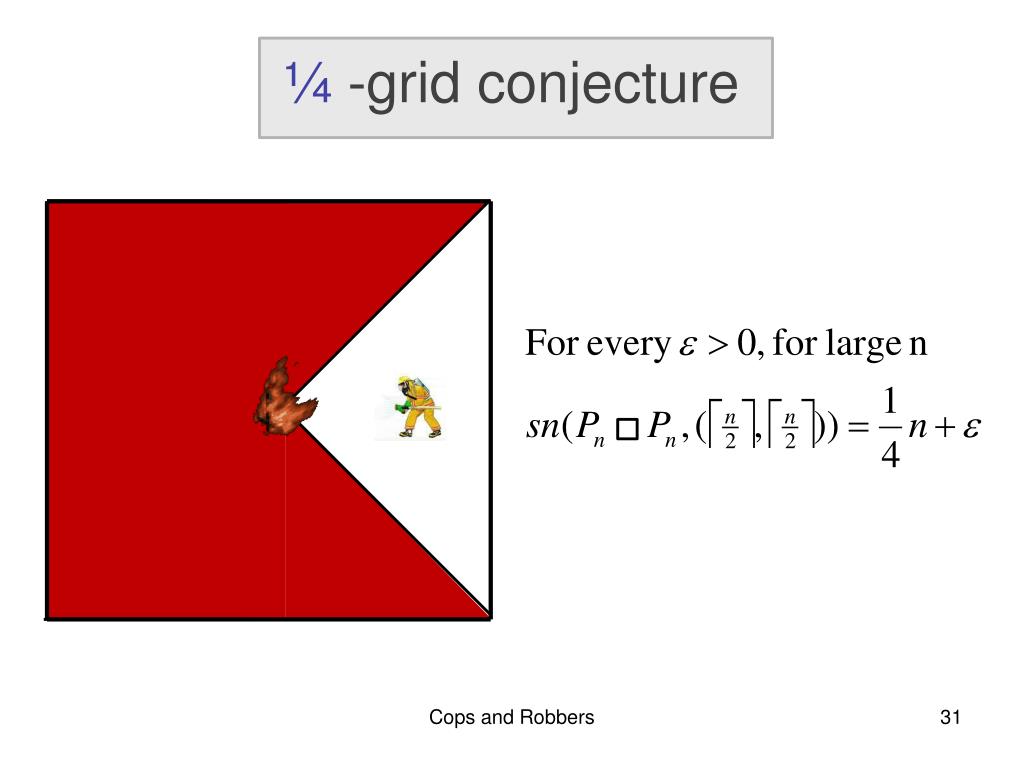

  31. ¼-grid conjecture Cops and Robbers

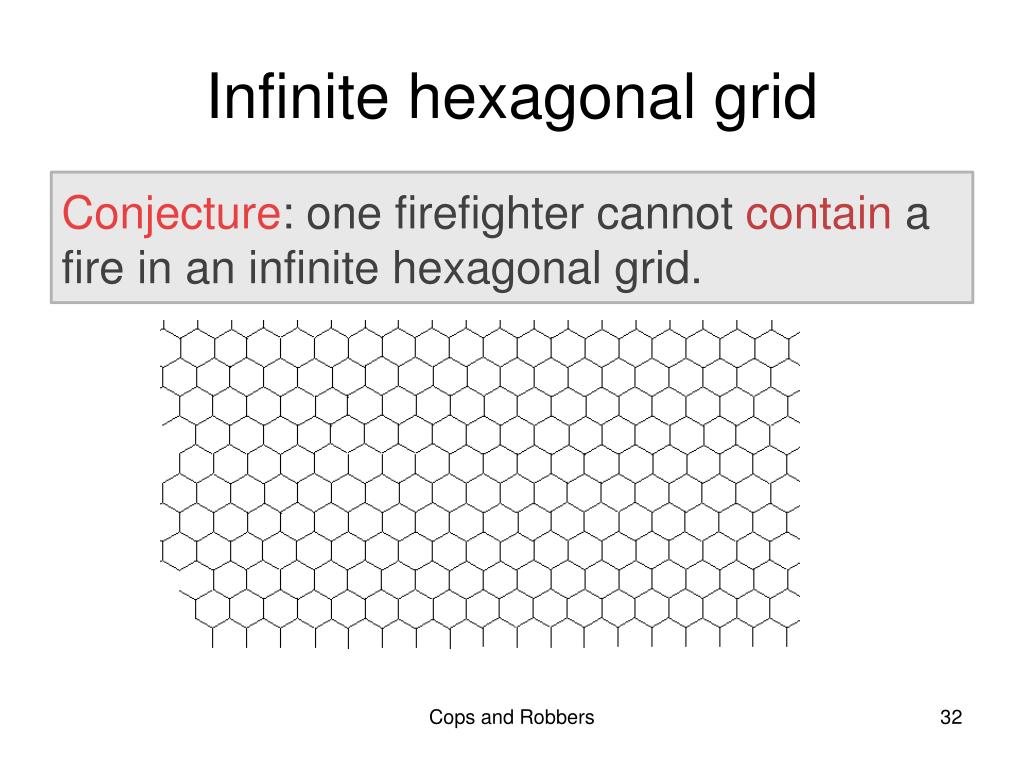

  32. Infinite hexagonal grid Conjecture: one firefighter cannot contain a fire in an infinite hexagonal grid. Cops and Robbers

  33. Cops and Robbers

  34. . A. Bonato, R.J. Nowakowski, Sketchy Tweets: Ten Minute Conjectures in Graph Theory, The Mathematical Intelligencer34 (2012) 8-15.
