  1. Migration steps towards future end to end transport networks Juan Fernández-Palacios (jpfpg@tid.es) PHOTONIC NETWORKS (TELEFONICA I+D)

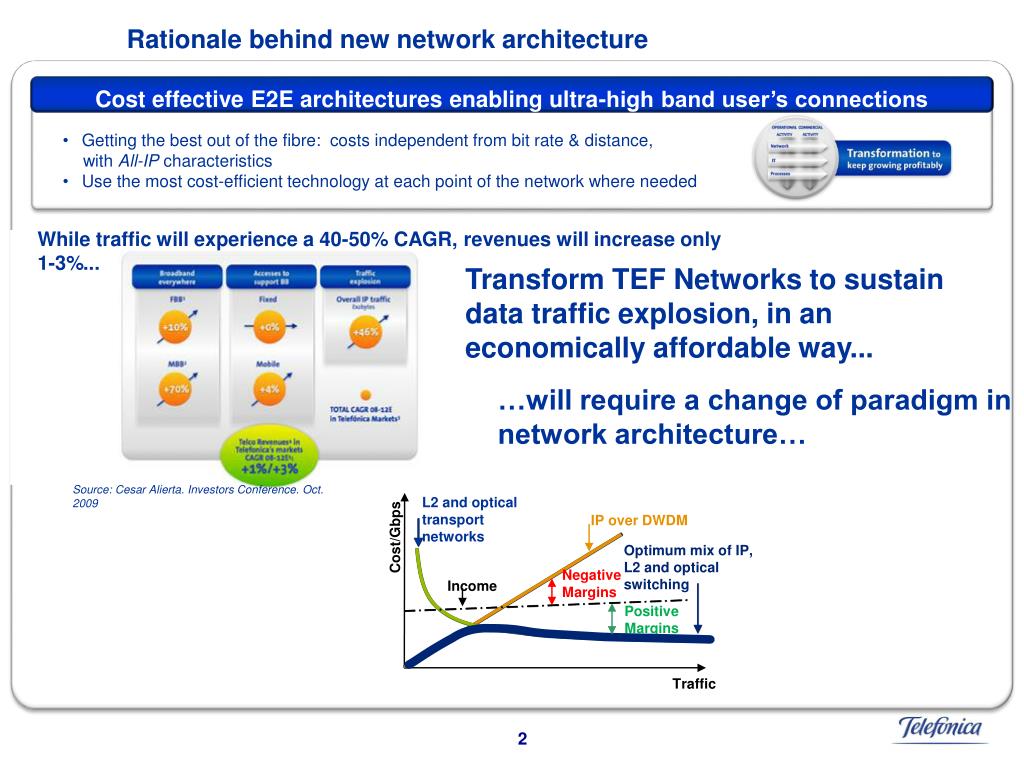

  2. Rationale behind new network architecture Transform TEF Networks to sustain data traffic explosion, in an economically affordable way... …will require a change of paradigm in network architecture… While traffic will experience a 40-50% CAGR, revenues will increase only 1-3%... L2 and optical transport networks IP over DWDM Cost/Gbps Optimum mix of IP, L2 and optical switching Negative Margins Income Positive Margins Source: Cesar Alierta. Investors Conference. Oct. 2009 Traffic 2 Cost effective E2E architectures enabling ultra-high band user’s connections • Getting the best out of the fibre: costs independent from bit rate & distance, • with All-IP characteristics • Use the most cost-efficient technology at each point of the network where needed

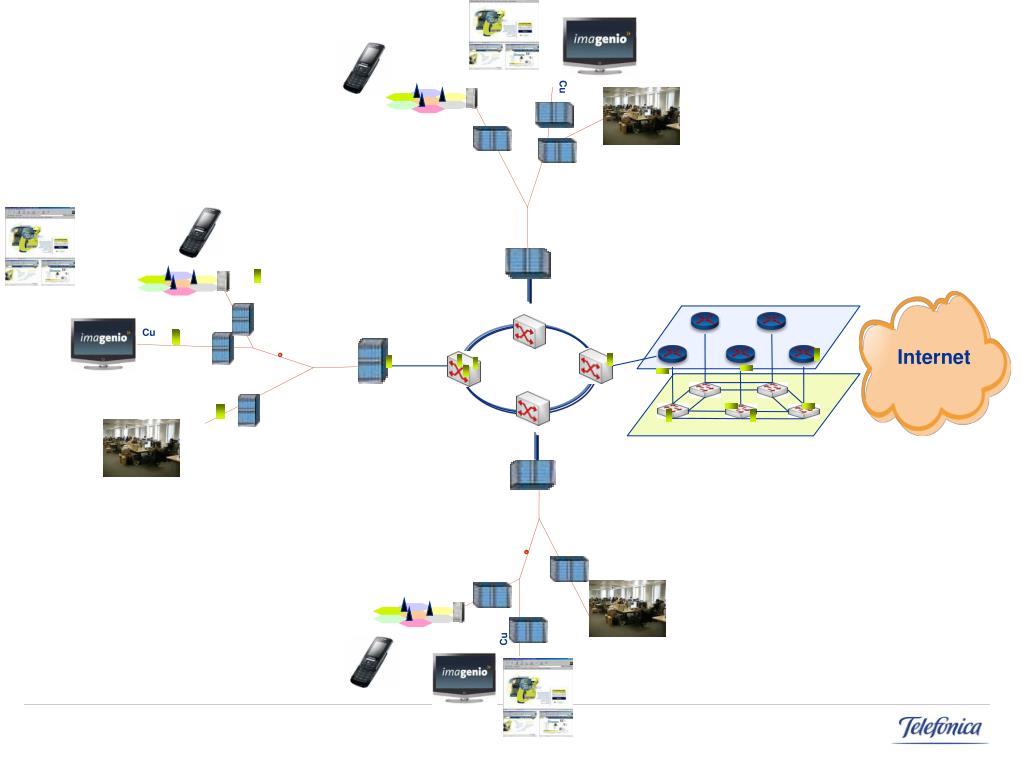

  3. Cu Cu Internet Cu

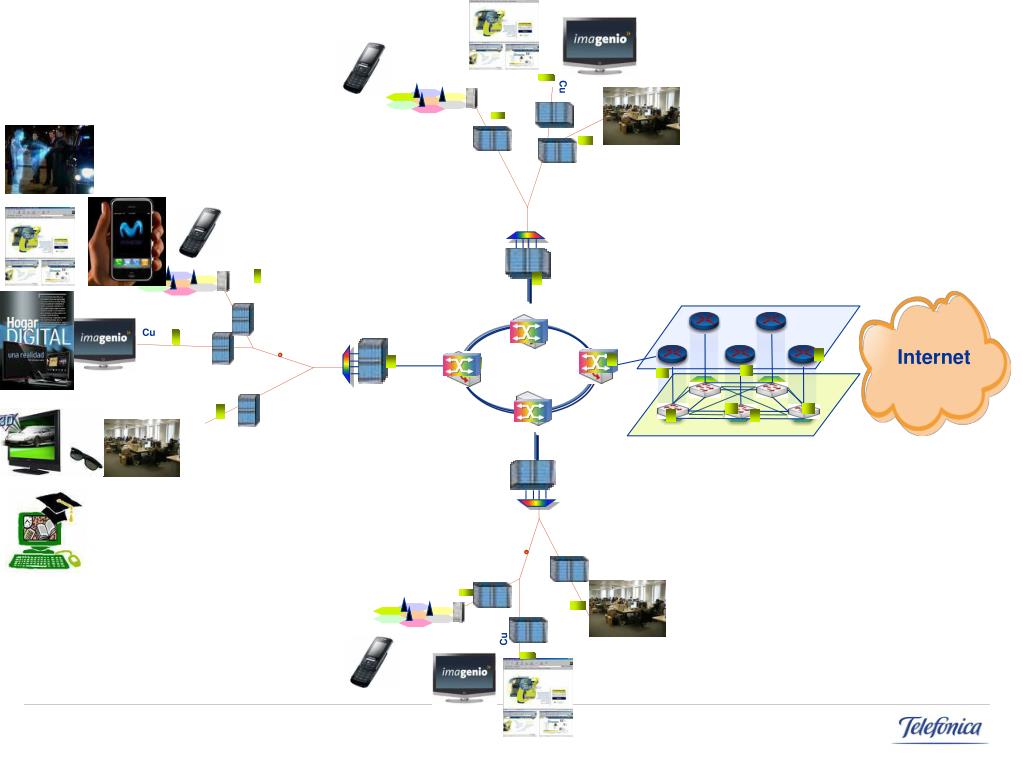

  4. Cu Cu Internet Cu

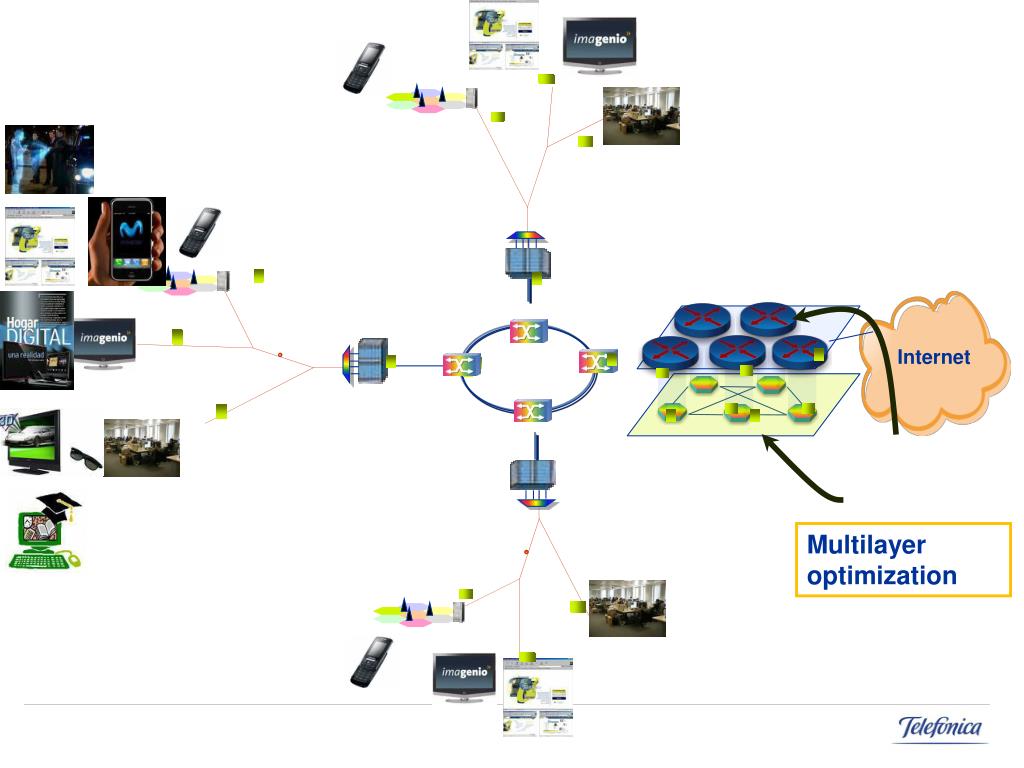

  5. Internet Multilayer optimization

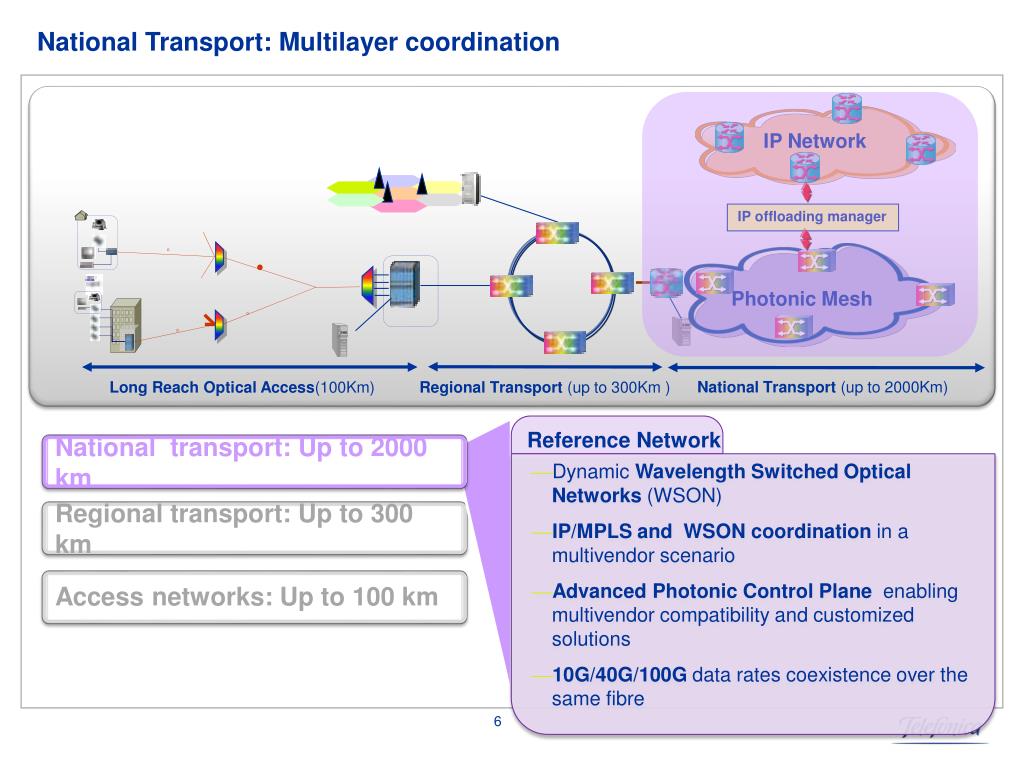

  6. IP Network IP offloading manager Photonic Mesh Access networks: Up to 100 km National Transport: Multilayer coordination Regional transport: Up to 300 km National transport: Up to 2000 km National Transport (up to 2000Km) Long Reach Optical Access(100Km) Regional Transport (up to 300Km ) Reference Network • Dynamic Wavelength Switched Optical Networks (WSON) • IP/MPLS and WSON coordination in a multivendor scenario • Advanced Photonic Control Plane enabling multivendor compatibility and customized solutions • 10G/40G/100G data rates coexistence over the same fibre 6

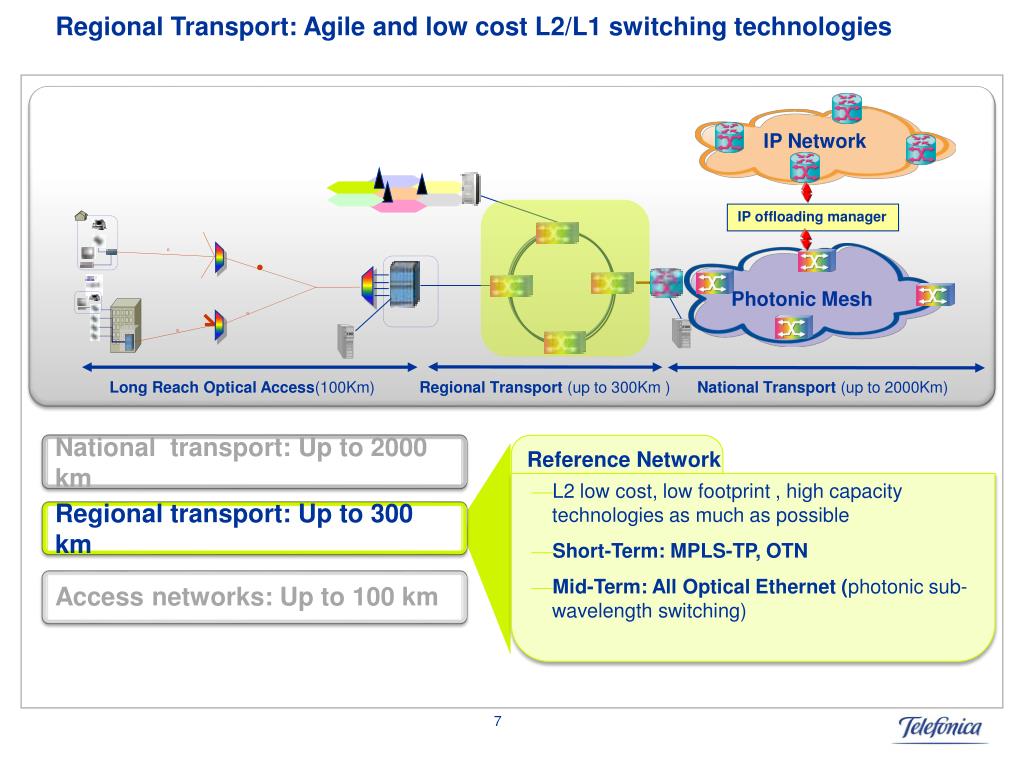

  7. IP Network IP offloading manager Photonic Mesh Access networks: Up to 100 km Regional Transport: Agile and low cost L2/L1 switching technologies Regional transport: Up to 300 km National transport: Up to 2000 km Long Reach Optical Access(100Km) Regional Transport (up to 300Km ) National Transport (up to 2000Km) Reference Network • L2 low cost, low footprint , high capacity technologies as much as possible • Short-Term: MPLS-TP, OTN • Mid-Term: All Optical Ethernet (photonic sub-wavelength switching) 7

  8. IP Network IP offloading manager Photonic Mesh Access networks: Up to 100 km Access Network: Long Reach Optical Access Regional transport: Up to 300 km National transport: Up to 2000 km Long Reach Optical Access(100Km) Regional Transport (up to 300Km ) National Transport (up to 2000Km) Reference Network • Ultra high capacity access network • Long reach • Increased splitting ratio • Multi-access passive convergence: 8

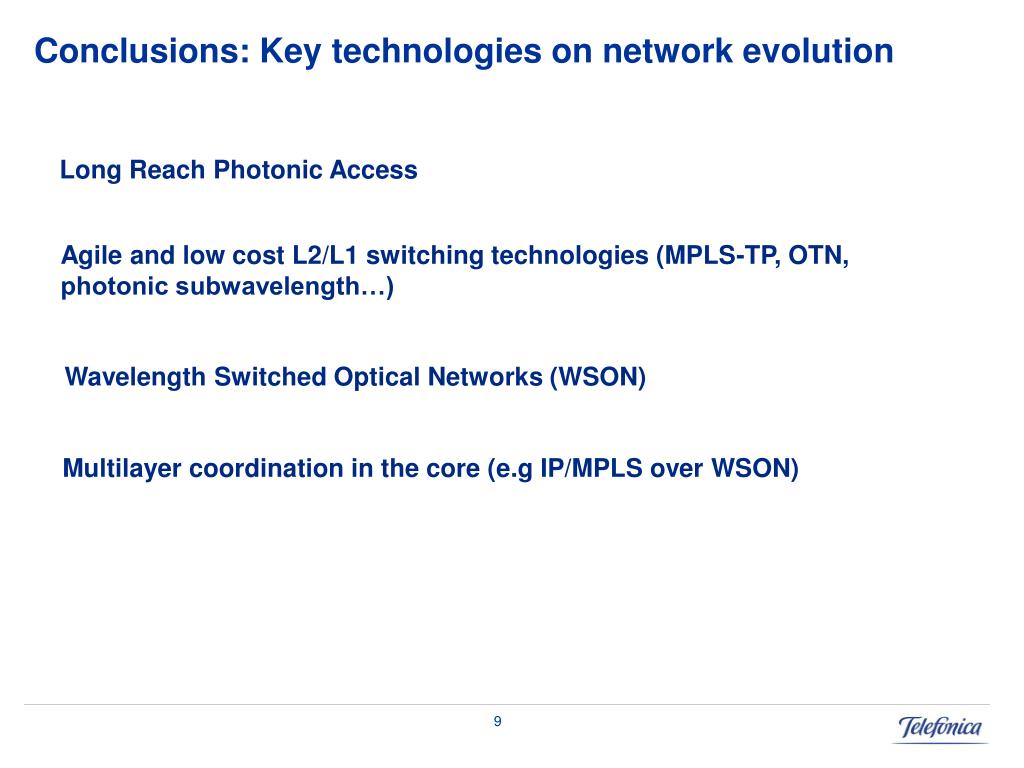

  9. Conclusions: Key technologiesonnetworkevolution Long Reach Photonic Access Agile and low cost L2/L1 switching technologies (MPLS-TP, OTN, photonic subwavelength…) Wavelength Switched Optical Networks (WSON) Multilayer coordination in the core (e.g IP/MPLS over WSON)

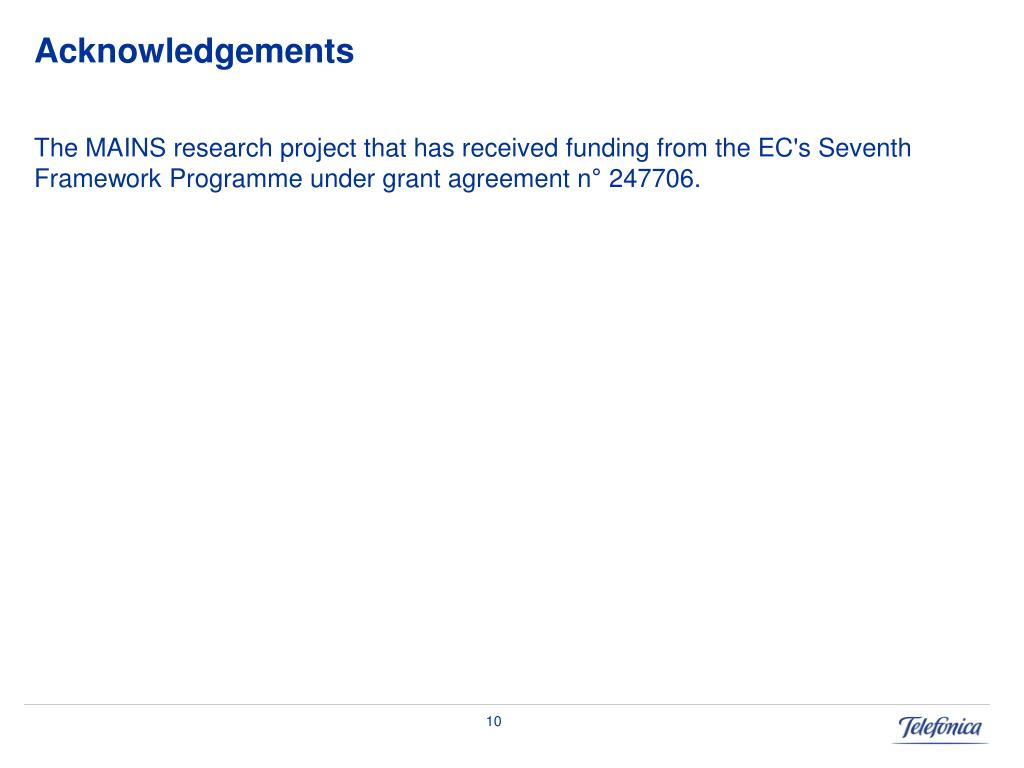

  10. Acknowledgements The MAINS research project that has received funding from the EC's Seventh Framework Programmeunder grant agreement n° 247706.
