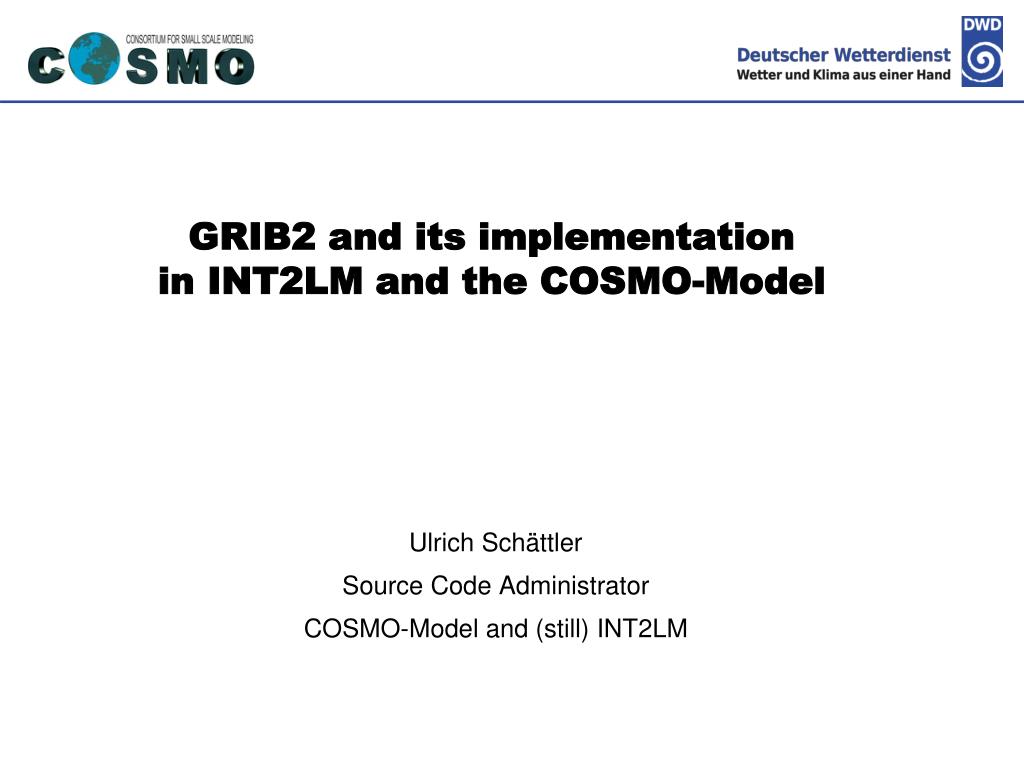

  1. GRIB2 and its implementationin INT2LM and the COSMO-Model Ulrich Schättler Source Code Administrator COSMO-Model and (still) INT2LM

  2. Contents Structure of GRIB2 Usage of grib_api Local Use Areas New: General Vertical Coordinate WG 6 Meeting / Sibiu

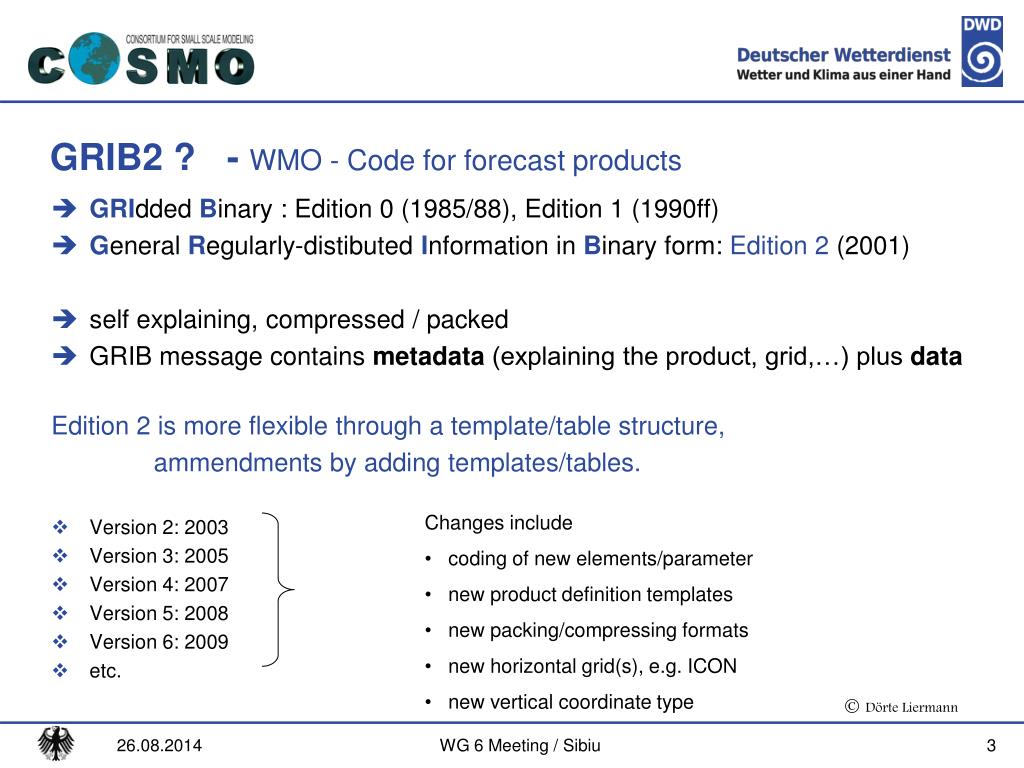

  3. GRIB2 ? - WMO - Code for forecast products Changes include • coding of new elements/parameter • new product definition templates • new packing/compressing formats • new horizontal grid(s), e.g. ICON • new vertical coordinate type  Dörte Liermann • GRIdded Binary : Edition 0 (1985/88), Edition 1 (1990ff) • General Regularly-distibuted Information in Binary form: Edition 2 (2001) • self explaining, compressed / packed • GRIB message contains metadata (explaining the product, grid,…) plus data Edition 2 is more flexible through a template/table structure, ammendments by adding templates/tables. • Version 2: 2003 • Version 3: 2005 • Version 4: 2007 • Version 5: 2008 • Version 6: 2009 • etc. WG 6 Meeting / Sibiu

  4. Comparing GRIB1 – GRIB2 GRIB 1 vs. 2: Different Structure GRIB 1 SECTION 0 Indicator (GRIB) SECTION 1 Product definition SECTION 2 Grid Description SECTION 3 Bitmap SECTION 4 Binary Data SECTION 5 End (7777) GRIB 2 SECTION 0 Indicator(GRIB,…) SECTION 1 Identification SECTION 2 Local Use SECTION 3 Grid Definition SECTION 4 Product Definition SECTION 5 Data Representation SECTION 6 Bitmap SECTION 7 Binary Data SECTION 8 End (7777) • In GRIB 2 several variables are defined with more precision (e.g. angles are in micro-degrees, more vertical coordinates possible) • see: www.cosmo-model.org/content/model/documentation/grib/grib2keys.htm • In GRIB 2 the description of the data (parameter, time, statistics,…) is more complex and is template/table based  Dörte Liermann WG 6 Meeting / Sibiu

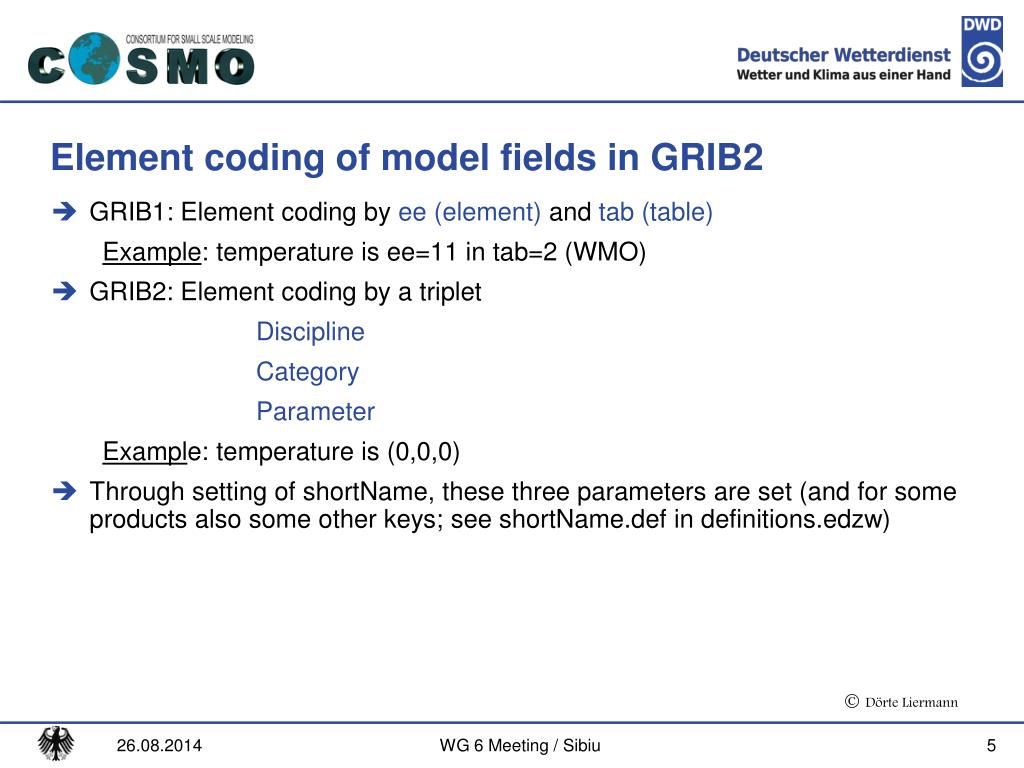

  5. Element coding of model fields in GRIB2  Dörte Liermann • GRIB1: Element coding by ee (element) and tab (table) Example: temperature is ee=11 in tab=2 (WMO) • GRIB2: Element coding by a triplet Discipline Category Parameter Example: temperature is (0,0,0) • Through setting of shortName, these three parameters are set (and for some products also some other keys; see shortName.def in definitions.edzw) WG 6 Meeting / Sibiu

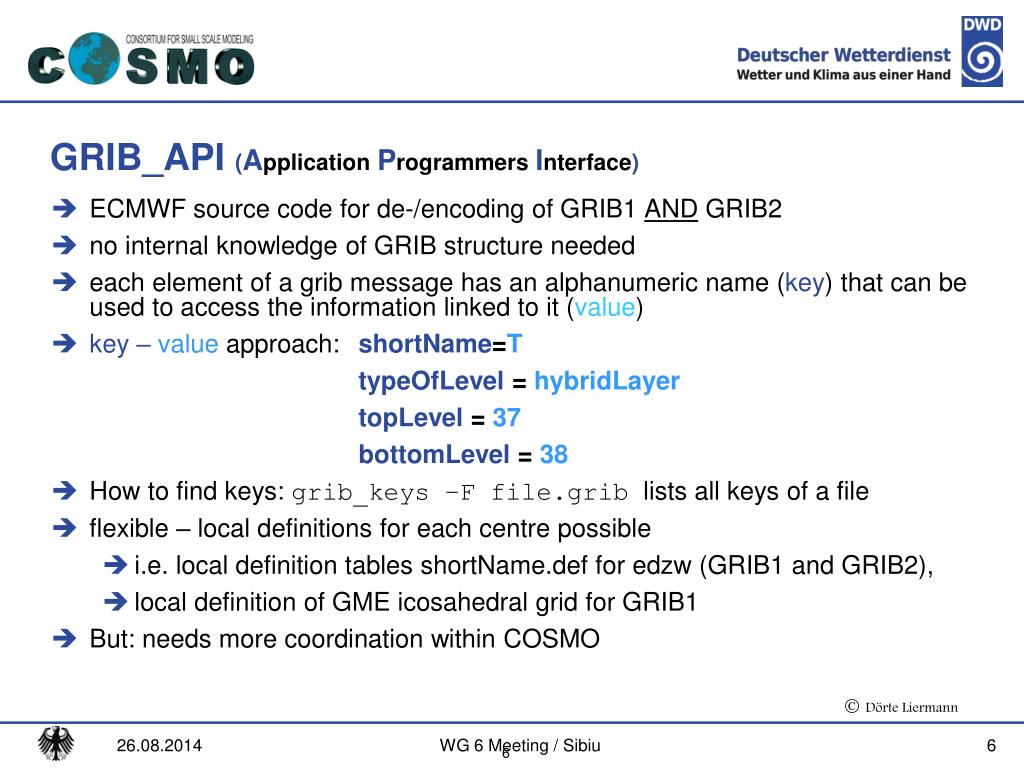

  6. GRIB_API (ApplicationProgrammersInterface)  Dörte Liermann • ECMWF sourcecodefor de-/encodingof GRIB1 AND GRIB2 • nointernalknowledgeof GRIB structureneeded • eachelementof a gribmessagehas an alphanumericname (key) thatcanbeusedtoaccesstheinformationlinkedtoit (value) • key – valueapproach: shortName=T typeOfLevel = hybridLayer topLevel = 37 bottomLevel = 38 • Howto find keys: grib_keys –F file.griblists all keysof a file • flexible – localdefinitionsforeachcentrepossible • i.e. localdefinitiontables shortName.def foredzw (GRIB1 and GRIB2), • localdefinitionof GME icosahedralgridfor GRIB1 • But: needsmorecoordinationwithin COSMO WG 6 Meeting / Sibiu 6

  7. Product Identifying Keys • significanceOfReferenceTime (GRIB2-WMO Tab. 1.2) • productionStatusOfProcessedData (GRIB2-WMO Tab. 1.3) • typeOfProcessedData (GRIB2-WMO Tab. 1.4) • generatingProcessIdentifier (local definition in GRIB1/2) • backgroundGeneratingProcessIdentifier (local definition in GRIB2) • typeOfGeneratingProcess (GRIB2-WMO Tab. 4.3) • localDefinitionNumber (local section = 254, 253, 252; 250 for COSMO) • localNumberOfExperiment (GRIB2) • localInformationNumber (GRIB2) / localElementNumber (GRIB1) • localDecodeDate:s WG 6 Meeting / Sibiu

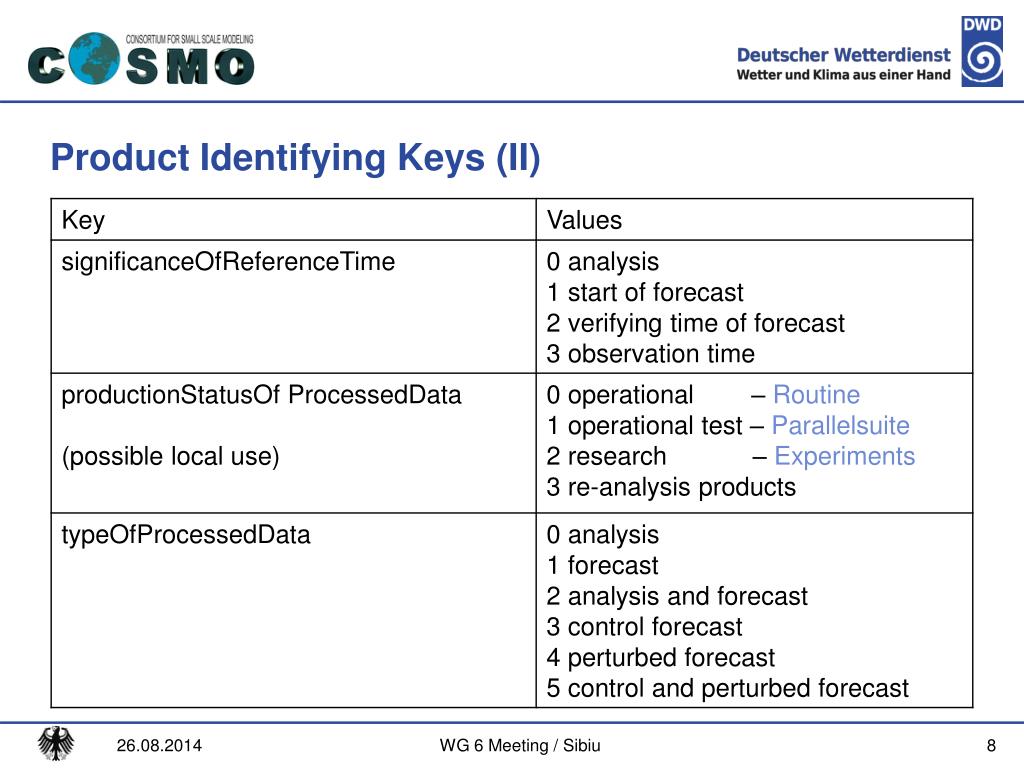

  8. Product Identifying Keys (II) WG 6 Meeting / Sibiu

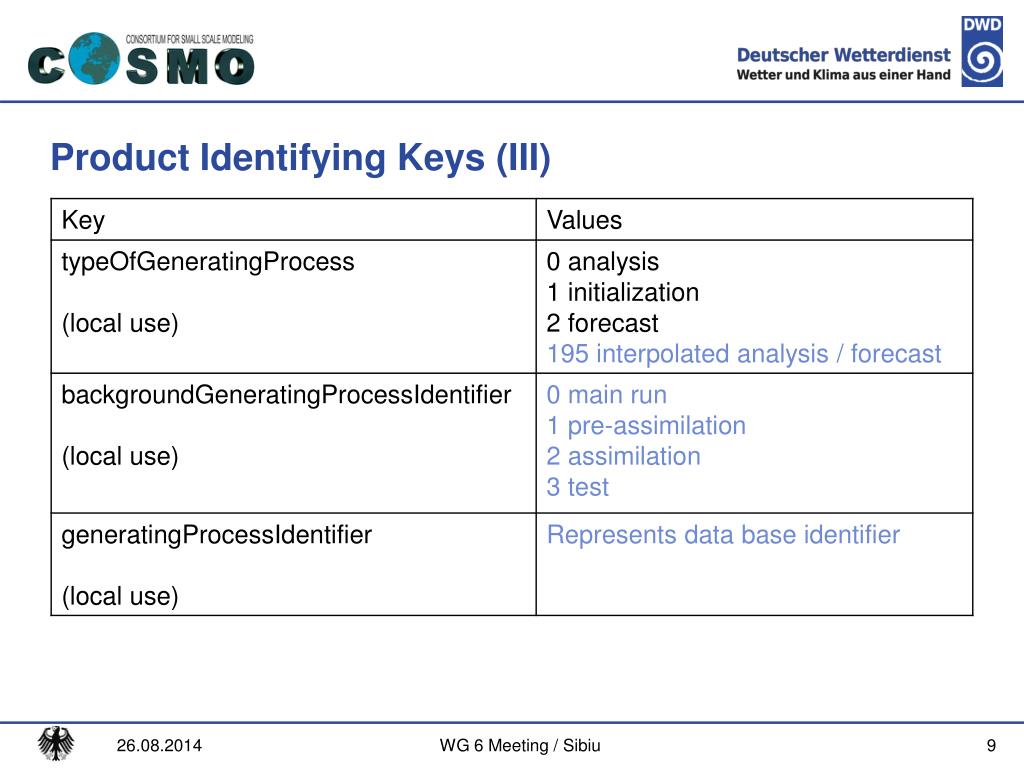

  9. Product Identifying Keys (III) WG 6 Meeting / Sibiu

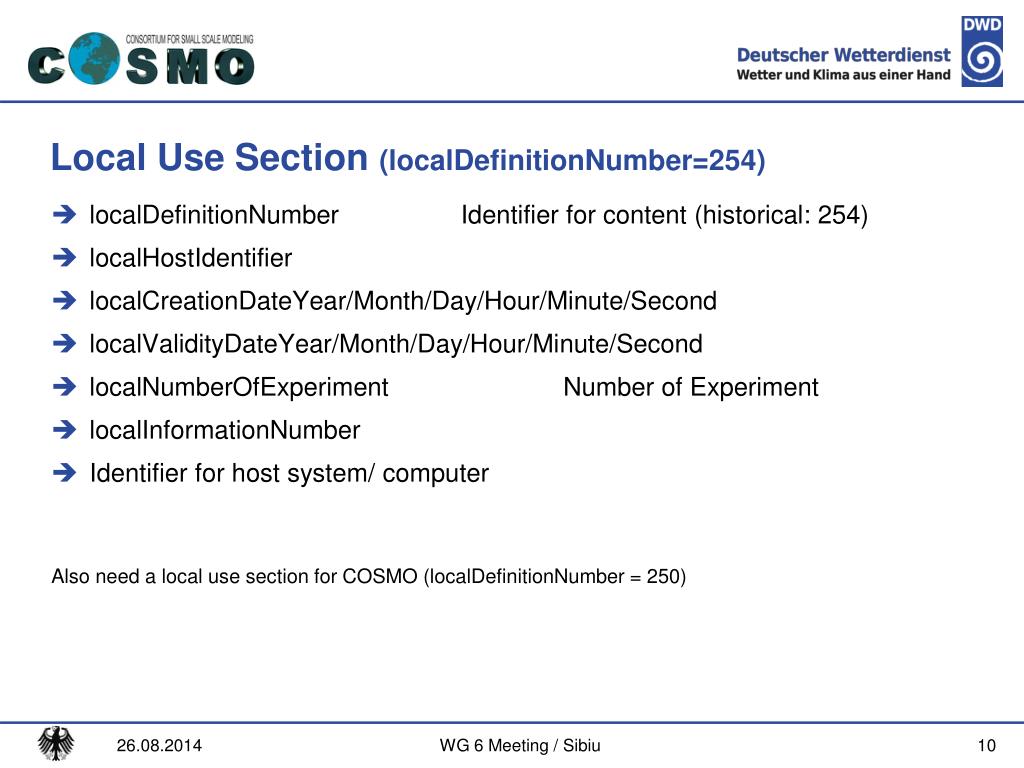

  10. Local Use Section (localDefinitionNumber=254) localDefinitionNumber Identifier forcontent (historical: 254) localHostIdentifier localCreationDateYear/Month/Day/Hour/Minute/Second localValidityDateYear/Month/Day/Hour/Minute/Second localNumberOfExperimentNumberof Experiment localInformationNumber Identifier forhostsystem/ computer Also need a localusesectionfor COSMO (localDefinitionNumber = 250) WG 6 Meeting / Sibiu

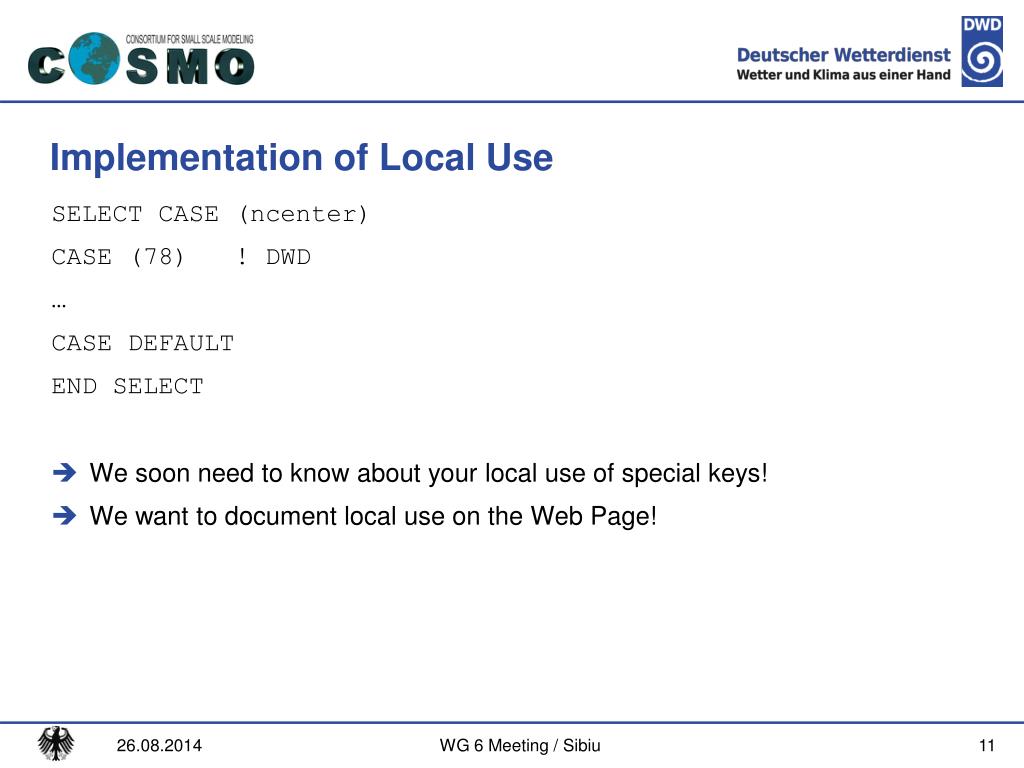

  11. Implementation of Local Use SELECT CASE (ncenter) CASE (78) ! DWD … CASE DEFAULT END SELECT Wesoonneedtoknowaboutyourlocaluseofspecialkeys! Wewanttodocumentlocaluse on the Web Page! WG 6 Meeting / Sibiu

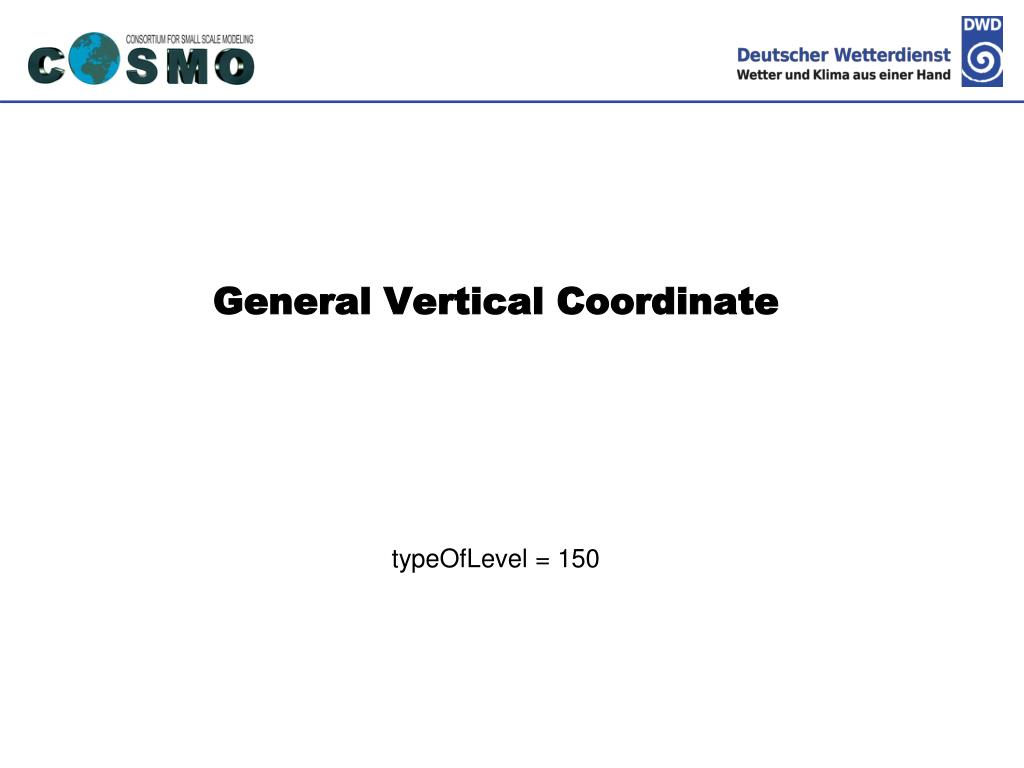

  12. General Vertical Coordinate typeOfLevel = 150

  13. Why a new vertical coordinate? • As a non-hydrostaticmodel, COSMO needs a specialverticalgrid: fixed in spaceand time • Also post-processingprogramshavetobeawareofthisgrid (orthe HHL) • But thealgorithmtocomputeit, israthercomplex (not just ak + bk* ps) • Therefore a proposition was madeto WMO, tointroduce a newtypeOfLevel=150 • ToprocessatmosphericdatausingthattypeOfLevel, another 3D fieldisnecessary: the HHL fields • If a producthastypeOfLevel=150, thenthereare 6 additional metadata in theProduct Definition Section, whichreplacetheverticalcoordinateparameters • numberOfVGridUsedtoidentify a specialverticalcoordinate • nlevnumberoflevelsofthe HHL file • uuidOfVGrid: unique universal identifier toensurecorrectidentificationof HHL WG 6 Meeting / Sibiu

  14. Current Situation • INT2LM andthe COSMO-Model bothcomputethe HHL fieldsandthereferenceatmosphere p0. • The necessaryverticalcoordinateparameters (for HHL) andthereferenceatmosphereparametersaregivento • INT2LM byNamelist variables • COSMO-Model by GRIB1 metadata: but thisalways was a non-standard GRIB usage! • The newgeneralizedverticalcoordinatedoes not knowmetadataforverticalcoordinateparametersandforthereferenceatmosphere. Howtocompute HHL and p0whenusing GRIB2? Orwhatcanwe do? WG 6 Meeting / Sibiu

  15. What can be done? • HHL can be transferred from INT2LM to COSMO or within the assimilation cycle from COSMO to COSMO by an extra file. • Do we then still need to transfer the vertical coordinate parameters vcoordk and vcflat? • YES! For computations in the nudging and some diagnostices (meanvalues, convective indices). Try to discuss this with the code experts. • Can we also transfer p0? Or the full pressure? • For full pressure the problem is the GRIB packing. But we could use more bits for the packing (pressure deviation is a more homogeneous field with less precision loss in the packing) • Other question: Has anybody ever changed the Namelist variables in INT2LM (p0sl, t0sl, dt0lp, delta_t, h_scal) to compute another p0? WG 6 Meeting / Sibiu

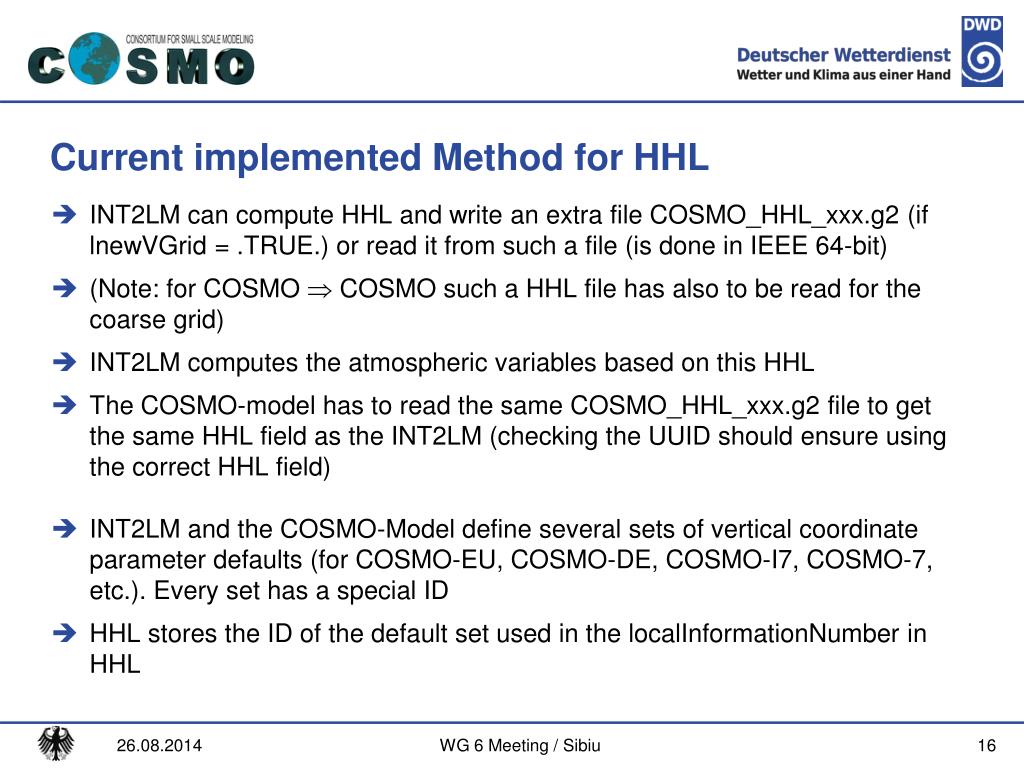

  16. Current implemented Method for HHL INT2LM can compute HHL and write an extra file COSMO_HHL_xxx.g2 (if lnewVGrid = .TRUE.) or read it from such a file (is done in IEEE 64-bit) (Note: for COSMO  COSMO such a HHL file has also to be read for the coarse grid) INT2LM computes the atmospheric variables based on this HHL The COSMO-model has to read the same COSMO_HHL_xxx.g2 file to get the same HHL field as the INT2LM (checking the UUID should ensure using the correct HHL field) INT2LM and the COSMO-Model define several sets of vertical coordinate parameter defaults (for COSMO-EU, COSMO-DE, COSMO-I7, COSMO-7, etc.). Every set has a special ID HHL stores the ID of the default set used in the localInformationNumber in HHL WG 6 Meeting / Sibiu

  17. Current implemented Method for p0 INT2LM and the COSMO-Model both compute p0 (as before). To get the correct reference atmosphere parameters, both programs store several sets of default parameters. Every set has a special ID pp stores the ID of the used set in the local information number INT2LM and the COSMO-Model now use the new module vgrid_refatm_defaults.f90 WG 6 Meeting / Sibiu

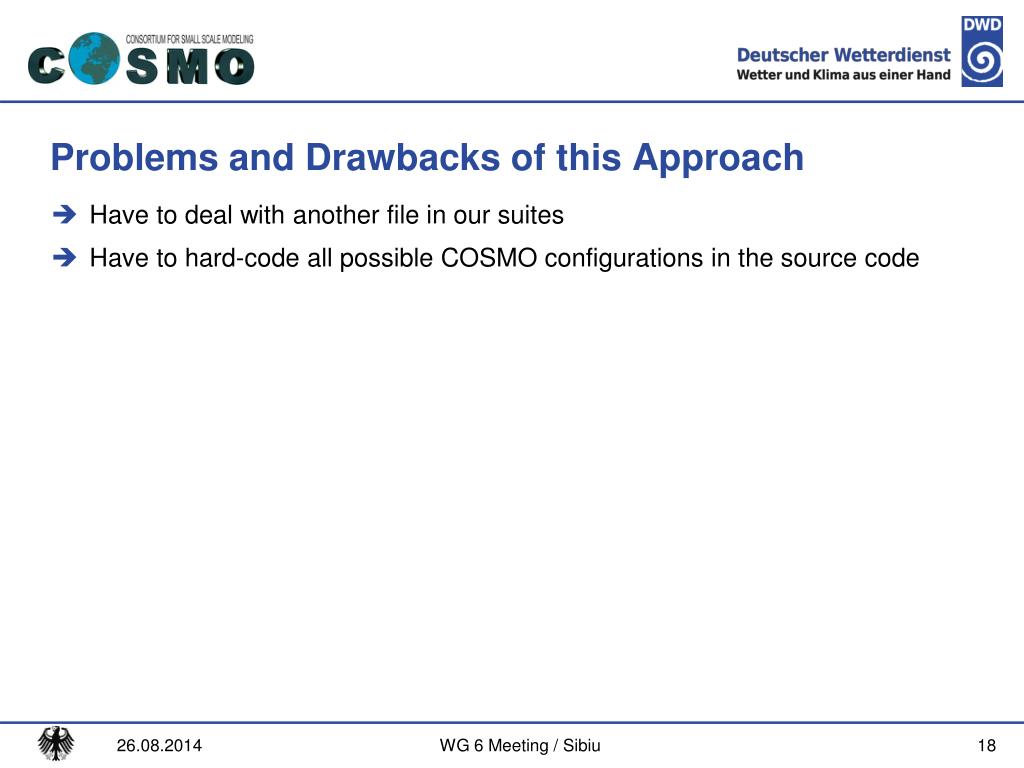

  18. Problems and Drawbacks of this Approach Have to deal with another file in our suites Have to hard-code all possible COSMO configurations in the source code WG 6 Meeting / Sibiu

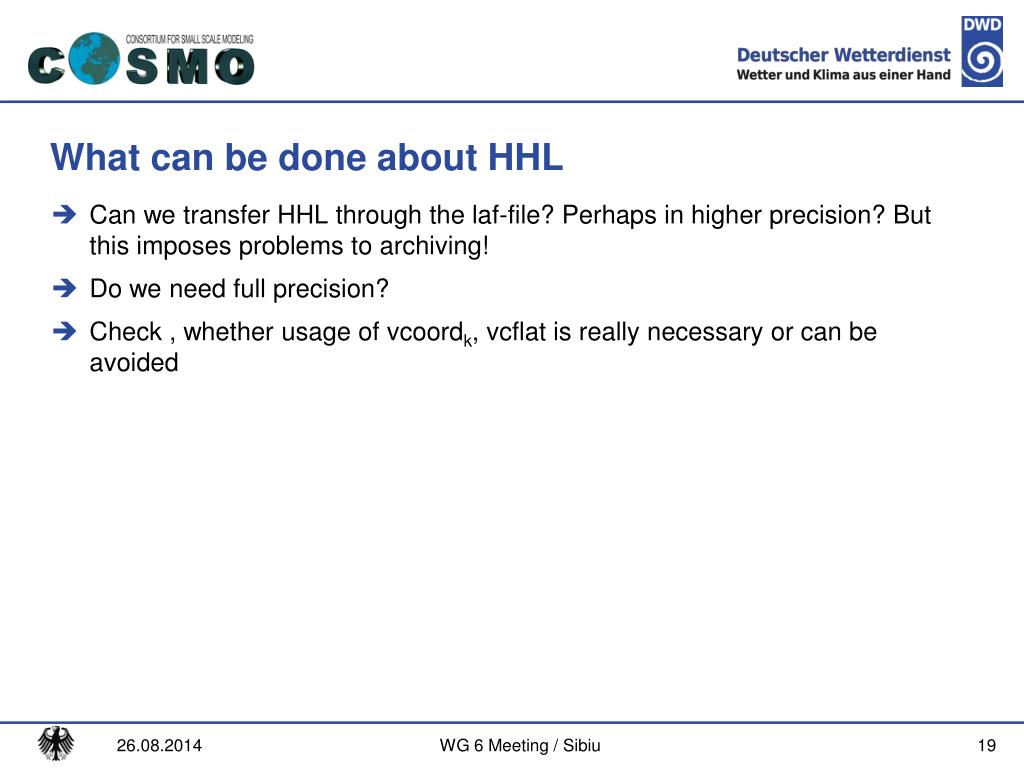

  19. What can be done about HHL Can we transfer HHL through the laf-file? Perhaps in higher precision? But this imposes problems to archiving! Do we need full precision? Check , whether usage of vcoordk, vcflat is really necessary or can be avoided WG 6 Meeting / Sibiu

  20. What can be done about p0 Can we transfer full pressure (or p0) through the laf-file? Perhaps in higher precision? Again this imposes problems to archiving! Which precision is really needed? Check , whether usage of reference atmosphere parameters can be „fixed“ WG 6 Meeting / Sibiu

  21. Migration to GRIB2: Timetable • The plans already pronounced by DWD have been revised last week • A prerequisite for GRIB2 at DWD is the stable operation of the new database software SKY (old software is not able to process GRIB2 meta data). And this is not the case at the moment. • New date for operational use of SKY („only the SKY is the limit“): November • If this date can be kept, then we could switch to GRIB2 in January 2014. If not, GRIB2 will not come before May / June 2014. Because in February / March we are migrating to the new CRAY computer system. • Message for COSMO and other partners: • Be prepared to read GME data in GRIB2 with INT2LM WG 6 Meeting / Sibiu

  22. Thank you very much for your attention WG 6 Meeting / Sibiu 10.09.2012 COSMO General Meeting 2012 22
