  1. Click to Begin

  2. Home Automation is the process of taking something that normally has to be switched or monitored manually and automating that process via software, timed events or even remote control. Throughout this presentation, please use the controls at the bottom of the screen. Where available, you may see a button to take you to the previous page, a to advance you to the next page, and there is also a button to bring you to the main screen. <BACK NEXT> HOME NEXT> <BACK HOME

  3. There are 3 main technologies used in Home Automation. Let’s quickly learn about some of the advantages and disadvantages of each! Exit Choose one to learn more!

  4. X10 is one of the oldest X10 technologies and dates back to the 60’s! X10 operates off of your homes existing power lines so there is no additional wiring needed. It is a very simply technology and is a great introduction into the world of Home Automation! NEXT> <BACK HOME

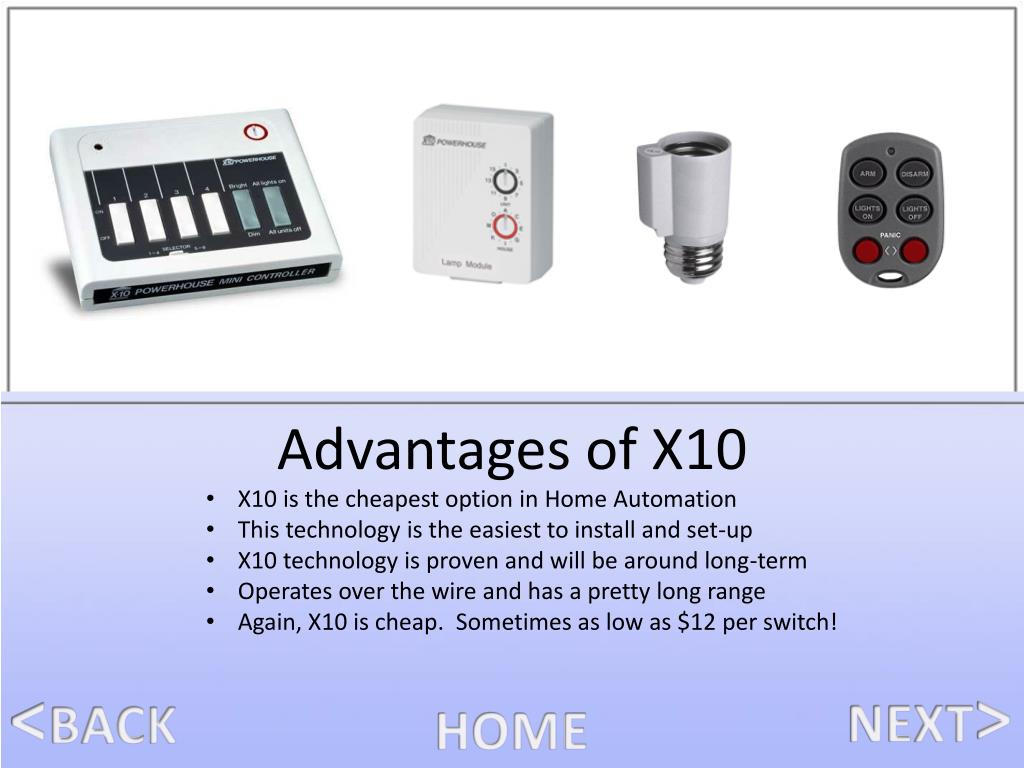

  5. Advantages of X10 • X10 is the cheapest option in Home Automation • This technology is the easiest to install and set-up • X10 technology is proven and will be around long-term • Operates over the wire and has a pretty long range • Again, X10 is cheap. Sometimes as low as $12 per switch! NEXT> <BACK HOME

  6. Disadvantages of X10 • X10 is limited in its functionality. While other systems can perform more functions and do more, x10 is real basic. • X10 does not integrate well with other systems and is very proprietary. • The manufacturers tech support is not very knowledgeable of the product should issues arise. NEXT> <BACK HOME

  7. More Information for X10 For more information regarding X10 products, you can visit http://www.X10.com <BACK HOME

  8. Zigbee is a one of the newest technologies and actually operates off of your wireless home network. All of the different components talk and communicate wirelessly over the network and are in constant communication. NEXT> <BACK HOME

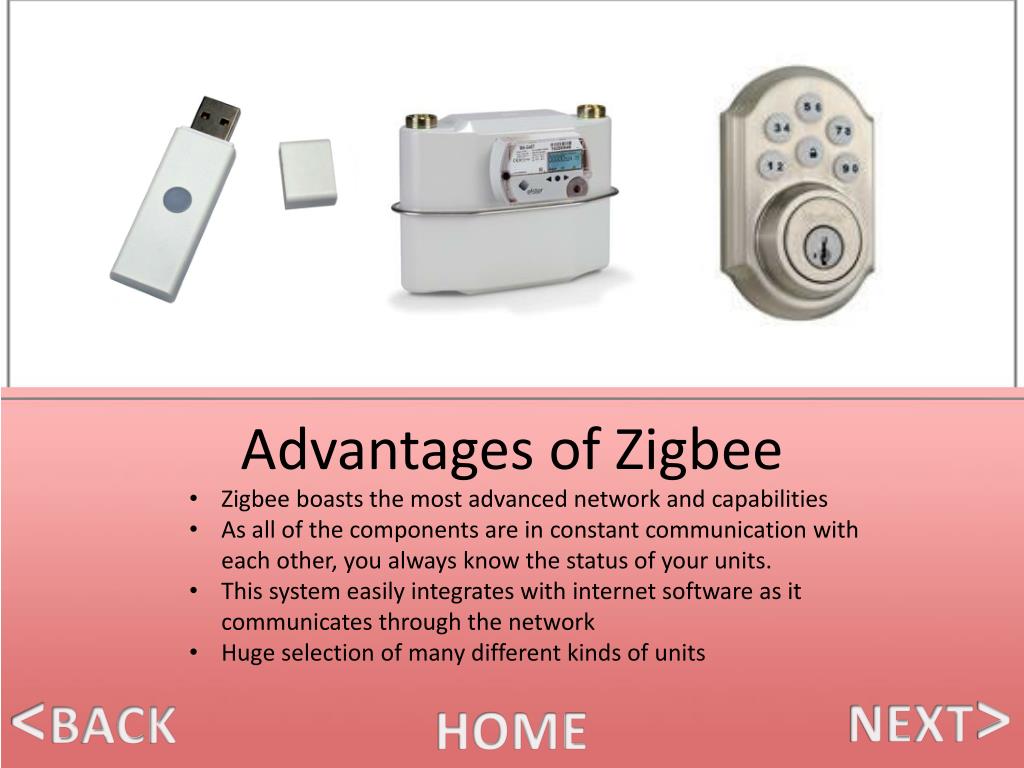

  9. Advantages of Zigbee • Zigbee boasts the most advanced network and capabilities • As all of the components are in constant communication with each other, you always know the status of your units. • This system easily integrates with internet software as it communicates through the network • Huge selection of many different kinds of units NEXT> <BACK HOME

  10. Disadvantages of Zigbee • Zigbee units are expensive, sometimes up to $80 per switch • Heavy reliance on the wireless router means issues should the wi-fi in your home have troubles • Newer technology that is still growing, has yet to prove itself in the consumer market • Has a limited range (as far as the wireless router can connect) NEXT> <BACK HOME

  11. More Information for ZigBee For more information regarding ZigBee products, you can visit http://www.zigbee.org/Home.aspx <BACK HOME

  12. Z-Wave is one of the current most popular methods of Home Automation. This technology is a protocol (like ZigBee) and is licensed to many different manufacturers. As result, there are many different products on the market. It operates via RF (radio frequency) and speaks wirelessly with other Z-Wave units on its network. NEXT> <BACK HOME

  13. Advantages of Z-Wave • Z-Wave is a very robust system but easy to integrate • This technology does not rely on wires or a network, instead, it has its own network of communication (RF) • Due to the nature of how the units both send and pass along signals, this technology can cover large areas • Huge selection of many different kinds of units NEXT> <BACK HOME

  14. Disadvantages of Z-Wave • The more modules the better the network (as each unit repeats the signal) otherwise, there is a max range of 100 ft • Expensive units. Generally costs about $60-$80 a unit • Other wireless RF signals can interfere and cause interruptions in the Z-Wave network NEXT> <BACK HOME

  15. More Information for Z-Wave For more information regarding Z-Wave products, you can visit http://www.z-wave.com <BACK HOME
