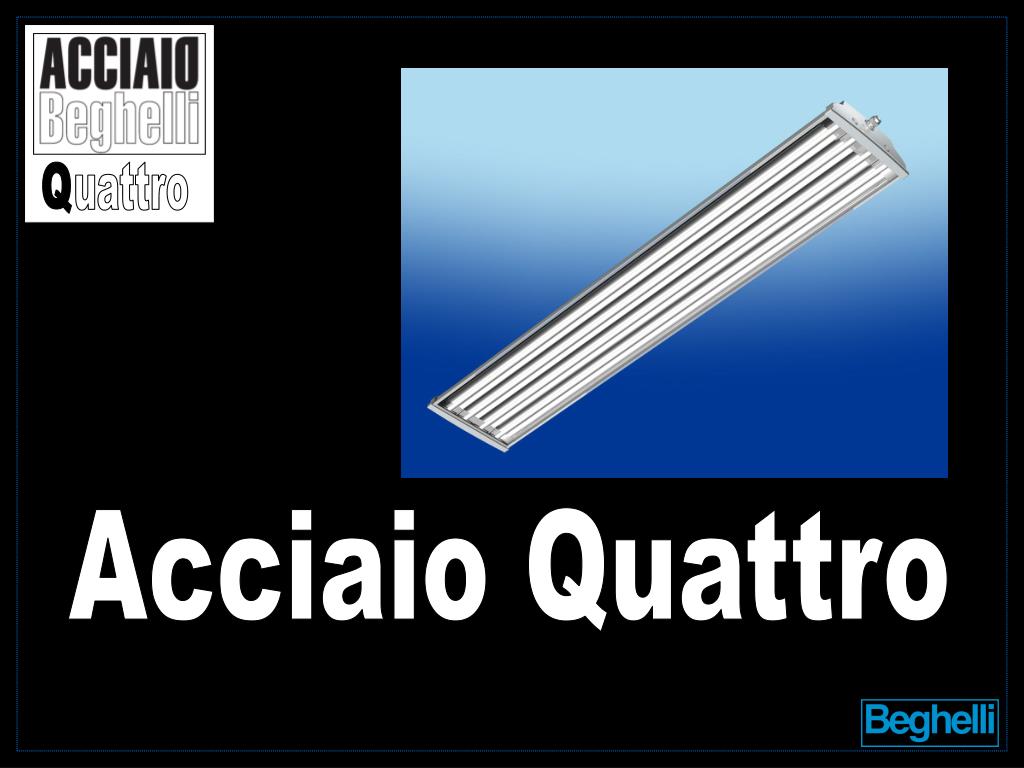

  1. Q uattro Acciaio Quattro

  2. Q uattro 3W 3 years of warranty!!!!

  3. Acciaio Quattro T5 Acciaio Quattro T8

  4. Acciaio Quattro T5 • 4x49W • concentrating • 4x80W • concentrating • Acciaio Quattro T8 • 4x36W • 4x58W

  5. Acciaio 4 - Range T5 Tubes included .... !!!

  6. Removable heads for quick access to lamps and electrical parts

  7. Installation clip

  8. Dimension T8 Dimension T5 H B L

  9. Performance comparison 2x58W vs 4x58W Warehouse 40x20m Installation height 6m Em = 200 lx

  10. Performance comparison 2x58W vs 4x58W Warehouse 40x20m Installation height 6m 36 pieces ACCIAIO T8 2x58W Em = 220 lx Emin/Em=0,56

  11. Performance comparison 2x58W vs 4x58W Warehouse 40x20m Installation height 6m 18 pieces ACCIAIO T8 4x58W Em = 222 lx Emin/Em=0,55

  12. Performance comparison 2x58W vs 4x58W Warehouse 40x20m Installation height 8m 18 pieces ACCIAIO T8 4x58W Em = 200 lx Emin/Em=0,55

  13. Performance Comparison 2x ... vs 4x ... • At same installation height - same performance • but half of installed fixtures !! • Very good uniformity even at 4m • Good to be used to height of • 8-10-12m • with excellent performances.

  14. Performance comparison 4x58W vs 250W MH Warehouse 40x20m Installation height 6m Em = 200 lx

  15. Performance comparison 4x58W vs 250W MH Warehouse 40x20m Installation height 6m 18 pieces ACCIAIO T8 4x58W Em = 222 lx Emin/Em=0,55 18 pieces 250W MH Em = 230 lx Emin/Em=0,53

  16. Energy comparison

  17. Performance comparison 4x80W conc vs 400W MH Warehouse 40x20m Installation height 6m 18 Fixtures

  18. Performance comparison 4x80W conc vs 400W MH Warehouse 40x20m Installation height 6m 18 pieces ACCIAIO T5 4x80W Em = 358 lx Emin/Em=0,52 18 pieces 400W MH Em = 382 lx Emin/Em=0,55

  19. Energy comparison

  20. Performance comparison 4x58W T8 4x49W T5 conc 4x80W T5 conc 250W MH 400W MH

  21. Q uattro Acciaio Quattro

  22. Q uattro Acciaio 4 PL 55W

  23. Q uattro 3W 3 years of warranty!!!!

  24. Acciaio 4 PL - Range PL 55W lamps included

  25. Installation and dimension 615 630

  26. Performance Comparison 4x55W PL vs BS240 Warehouse 40x20m Installation height 6m Em = 300 lx

  27. Performance Comparison 4x55W PL vs BS240 Warehouse 40x20m Installation height 6m 24 pieces ACCIAIO PL 4x55W Em = 322 lx Emin/Em=0,58 24 pieces BS 240 4x55W Em = 312 lx Emin/Em=0,56

  28. Performance Comparison 4x55W PL vs BS240 Warehouse 40x20m Installation height 6m 24 pezzi ACCIAIO PL 4x55W Em = 322 lx Emin/Em=0,58 24 pezzi BS 240 4x55W conc. Em = 320 lx Emin/Em=0,53

  29. Q uattro Acciaio 4 PL 55W

  30. F- light Acciaio F-light

  31. F- light 3W 3 years of warranty !!!!

  32. Acciaio F-Light - Range F- PL lamps included ... !!!

  33. Adjustable bracket

  34. Ground installation

  35. Acciaio F-Light Dimensions B H L

  36. adjustable sensibility, by pass option Twilight switch included

  37. Performance comparison F-Light vs floodlight

  38. Installation on top of a door h=5m

  39. Installation on top of a door h=5m

  40. Installation on top of a door - rendering

  41. Facade lighting - ground installation h=10m

  42. Facade lighting - ground installation h=10m

  43. Facade lighting - ground installation rendering

  44. Performance comparison 2x36W PL 2x55W PL 70W IM 150W IM

  45. Performance Comparison Fluorescent vs Discharge • Twilight switch • Electronic ballast • Energy saving • Even light beam • High Ra • Instant switch on • No delay for micro black outs re-start

  46. Energy comparison

  47. Energy comparison

  48. F- light Acciaio F-light
