  1. Relational Algebra Murali Mani

  2. What is Relational Algebra? • Defines operations (data retrieval) for relational model • SQL’s DML (Data Manipulation Language) has data retrieval facilities, which are equivalent to that of relational algebra. • SQL and relational algebra are not for complex operations; they support efficient, easy access of large data sets. Murali Mani

  3. Basics • Relational Algebra is defined on bags, rather than relations (sets). • Bag or multiset allows duplicate values; but order is not significant. • We can write an expression using relational algebra operators with parentheses • Need closure – an operator on bag returns a bag. • Relational algebra includes set operators, and other operators specific to relational model. Murali Mani

  4. Set Operators • Union, Intersection, Difference, cross product • Union, Intersection and Difference are defined only for union compatible relations. • Two relations are union compatible if they have the same set of attributes and the types (domains) of the attributes are the same. • Eg of two relations that are not union compatible: • Student (sNumber, sName) • Course (cNumber, cName) Murali Mani

  5. Union:  • Consider two bags R1 and R2 that are union-compatible. Suppose a tuple t appears in R1m times, and in R2n times. Then in the union, t appears m + n times. R1  R2 R1 R2 Murali Mani

  6. Intersection: ∩ • Consider two bags R1 and R2 that are union-compatible. Suppose a tuple t appears in R1m times, and in R2n times. Then in the intersection, t appears min (m, n) times. R1 R2 R1 ∩R2 Murali Mani

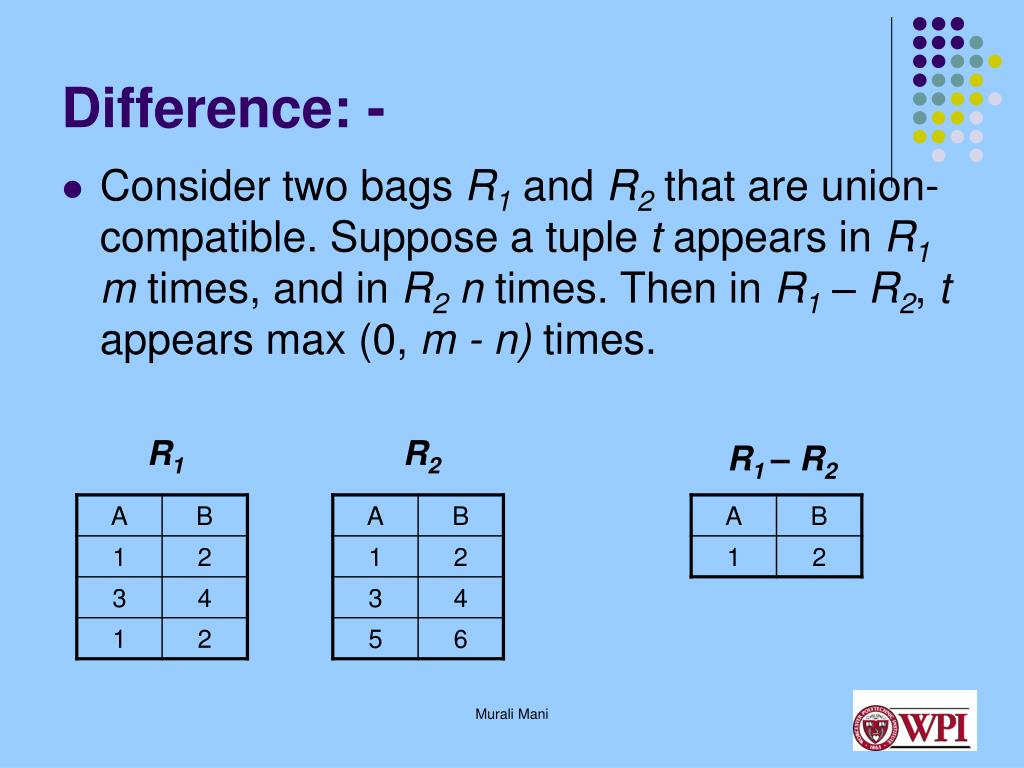

  7. Difference: - • Consider two bags R1 and R2 that are union-compatible. Suppose a tuple t appears in R1m times, and in R2n times. Then in R1 – R2, t appears max (0, m - n) times. R1 R2 R1 – R2 Murali Mani

  8. Bag semantics vs Set semantics • Union is idempotent for sets: (R1  R2)  R2 = R1  R2 • Union is not idempotent for bags. • Intersection is idempotent for sets and bags. • Difference is idempotent for sets, but not for bags. • For sets and bags, R1R2 = R1 – (R1 – R2). Murali Mani

  9. Cross Product (Cartesian Product): X • Consider two bags R1 and R2. Suppose a tuple t1 appears in R1m times, and a tuple t2 appears in R2n times. Then in R1 X R2, t1t2 appears mn times. R1 XR2 R1 R2 Murali Mani

  10. Basic Relational Operations • Select, Project, Join • Select: denoted σC (R): selects the subset of tuples of R that satisfies selection condition C. C can be any boolean expression, its clauses can be combined with AND, OR, NOT. σ(C ≥ 6) (R) R Murali Mani

  11. Select • Select is commutative: σC2 (σC1 (R)) = σC1 (σC2 (R)) • Select is idempotent: σC (σC (R)) = σC (R) • We can combine multiple select conditions into one condition. σC1 (σC2 (… σCn (R)…)) = σC1 AND C2 AND … Cn (R) Murali Mani

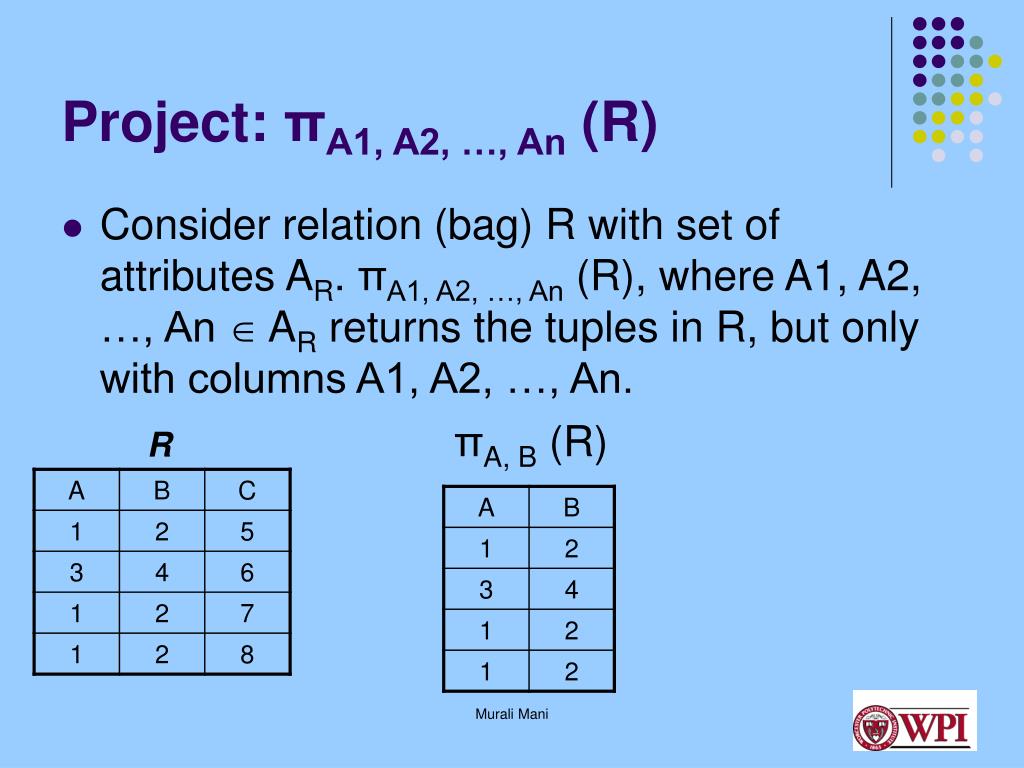

  12. Project: πA1, A2, …, An (R) • Consider relation (bag) R with set of attributes AR. πA1, A2, …, An (R), where A1, A2, …, An  AR returns the tuples in R, but only with columns A1, A2, …, An. πA, B (R) R Murali Mani

  13. Project: Bag Semantics vs Set Semantics • For bags, the cardinality of R = cardinality of πA1, A2, …, An (R). • For sets, cardinality of R ≥ cardinality of πA1,A2, …, An (R). • For sets and bags • project is not commutative • project is idempotent Murali Mani

  14. Natural Join: R ⋈ S • Consider relations (bags) R with attributes AR, and S with attributes AS. Let A = AR∩ AS. R ⋈ S can be defined as πAR – A, A, AS - A (σR.A1 = S.A1 AND R.A2 =S.A2 AND … R.An=S.An (R X S)) where A = {A1, A2, …, An} The above expression says: select those tuples in R X S that agree in values for each of the A attributes, and project the resulting tuples such that we have only one value for each A attribute. Murali Mani

  15. Natural Join example R1 R2 R1 ⋈R2 Murali Mani

  16. Theta Join: R ⋈C S • Theta Join is similar to cartesian product, except that we can specify any condition C. It is defined as R ⋈C S = (σC (R X S)) R1 ⋈ R1.B<R2.BR2 R1 R2 Murali Mani

  17. Outer Join: R ⋈o S • Similar to natural join, however, if there is a tuple in R, that has no “matching” tuple in S, or a tuple in S that has no matching tuple in R, then that tuple also appears, with null values for attributes in S (or R). R1 ⋈o R2 R1 R2 Murali Mani

  18. Left Outer Join: R ⋈oLS • Similar to natural join, however, if there is a tuple in R, that has no “matching” tuple in S, then that tuple also appears, with null values for attributes in S (note: a tuple in S that has no matching tuple in R does not appear). R1 ⋈oLR2 R1 R2 Murali Mani

  19. Right Outer Join: R ⋈oRS • Similar to natural join, however, if there is a tuple in S, that has no “matching” tuple in R, then that tuple also appears, with null values for attributes in R (note: a tuple in R that has no matching tuple in S does not appear). R1 ⋈oRR2 R1 R2 Murali Mani

  20. Renaming: ρS(A1, A2, …, An) (R) • Rename relation R to S, attributes of R are renamed to A1, A2, …, An • ρS (R) renames relation R to S, keeping the attributes same. ρS(X, C, D) (R2) ρS (R2) R2 S S Murali Mani

  21. Example: Introducing new relations Find the semijoin of 2 relations R, S. Semijoin denoted R ⋉ S is defined as the tuples in R, such that for a tuple t1 in R, if there exists a tuple t2 in S, and t1 and t2 agree in all attributes common to R and S, then t1 appears in the result. R1 = R ⋈ S R2 = πAR (R1) R ⋉ S = R2 ⋂ R Murali Mani

  22. Duplicate Elimination:  (R) • Convert a bag to a set.  (R) R Murali Mani

  23. Extended Projection: πL (R) • Here L can be • An attribute (just like simple projection) • An expression x → y, where x and y are names of attributes, this renames attribute x to y. • An expression E → z, where E is any expression involving attributes, constants, and arithmetic and string operators. This has an attribute called z whose values are given by E. πB→A, C+D→X, C, D (R) R Murali Mani

  24. Aggregation operators • MIN, MAX, COUNT, SUM, AVG • AGGB(R) considers only non-null values of R. SUMB (R) COUNTB (R) MINB (R) R AVGB (R) COUNT* (R) MAXB (R) Murali Mani

  25. Aggregation Operators • MIN, MAX, SUM, AVG must be on any 1 attribute. COUNT can be on any 1 attribute or COUNT* (R) • An aggregation operator returns a bag, not a single value ! But SQL allows treatment as a single value. σB=MAXB (R) (R) Murali Mani

  26. Grouping Operator: GL, AL (R) • GL, AL (R) groups all attributes in GL, and performs the aggregation specified in AL. starName, MIN (year)→year, COUNT(title) →num (StarsIn) StarsIn Murali Mani

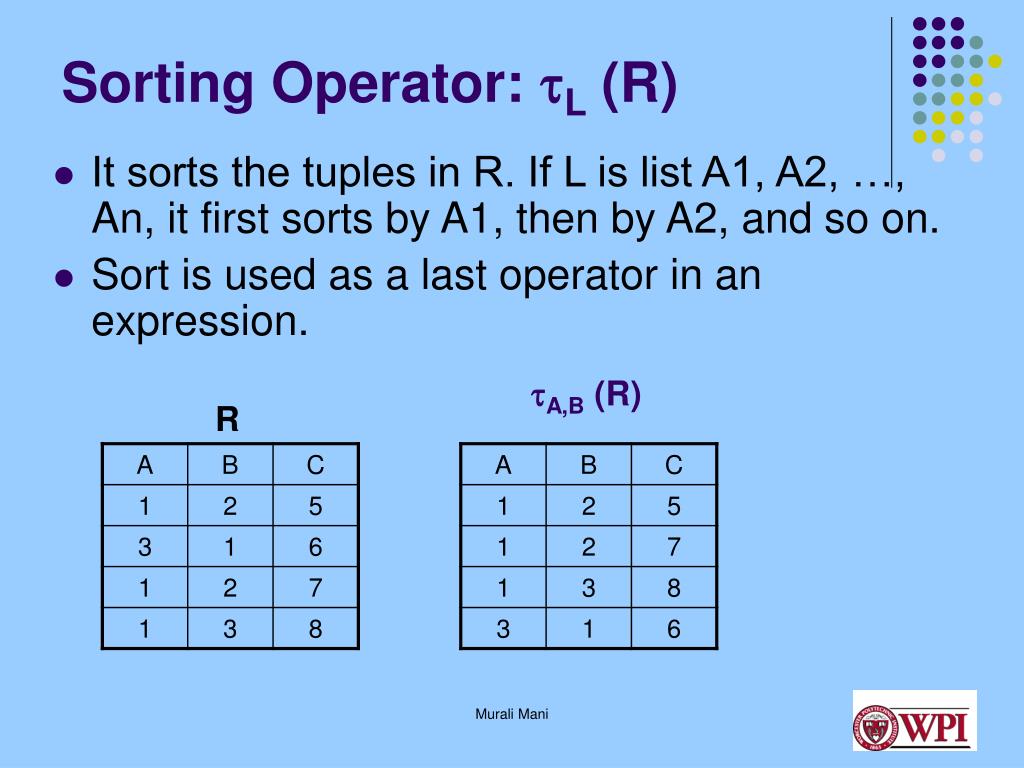

  27. Sorting Operator: L (R) • It sorts the tuples in R. If L is list A1, A2, …, An, it first sorts by A1, then by A2, and so on. • Sort is used as a last operator in an expression. A,B (R) R Murali Mani

  28. Relational Algebra Operators • Set Operators: Union, Intersection, Difference, Cartesian Product • Select, Project • Join: Natural Join, Theta Join, (Left/Right) Outer Join • Renaming, Duplicate Elimination • Aggregation: MIN, MAX, COUNT, SUM, AVG • Grouping, Sorting Murali Mani
