  1. Krishna Sattiraju CS 792 .NET XML Cryptography

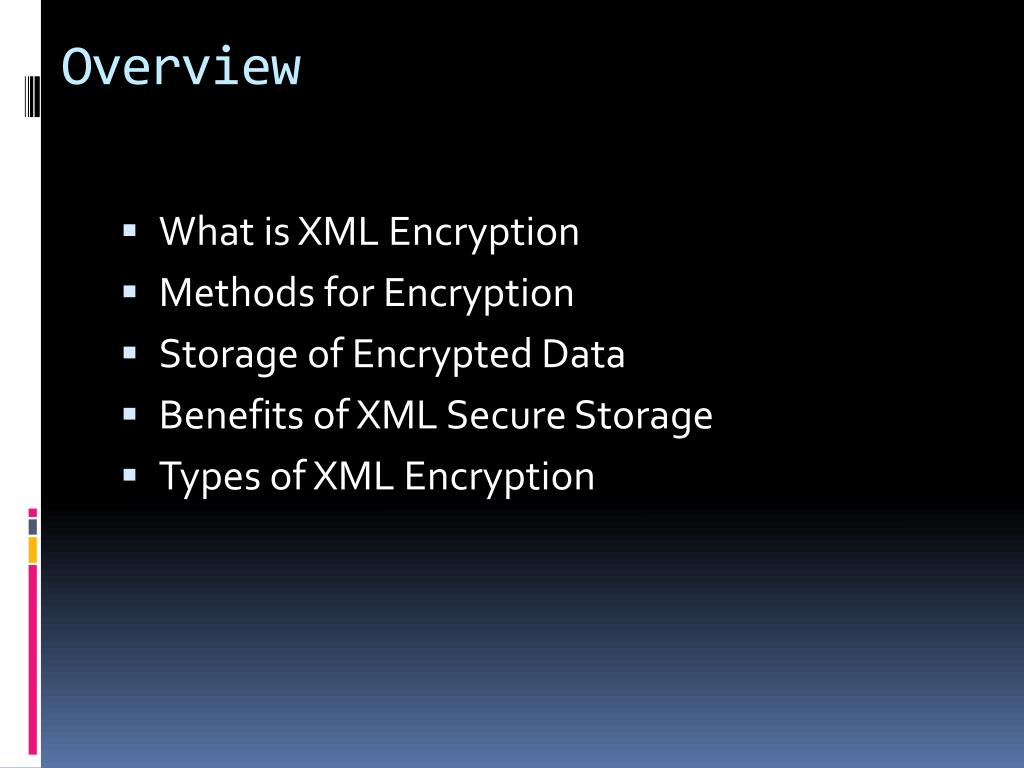

  2. Overview • What is XML Encryption • Methods for Encryption • Storage of Encrypted Data • Benefits of XML Secure Storage • Types of XML Encryption

  3. XML Encryption • Specification that defines how to encrypt data • Used to encrypt data, keying information and algorithms

  4. Methods for encryption • Using Symmetric Encryption • Combination of Symmetric and Asymmetric Encryption • X.509 Certificates

  5. Storage of Encrypted Data • Whole element is replaced with an element named <EncryptedData> • Only the data in the element is replaced and its name remains readable in the document

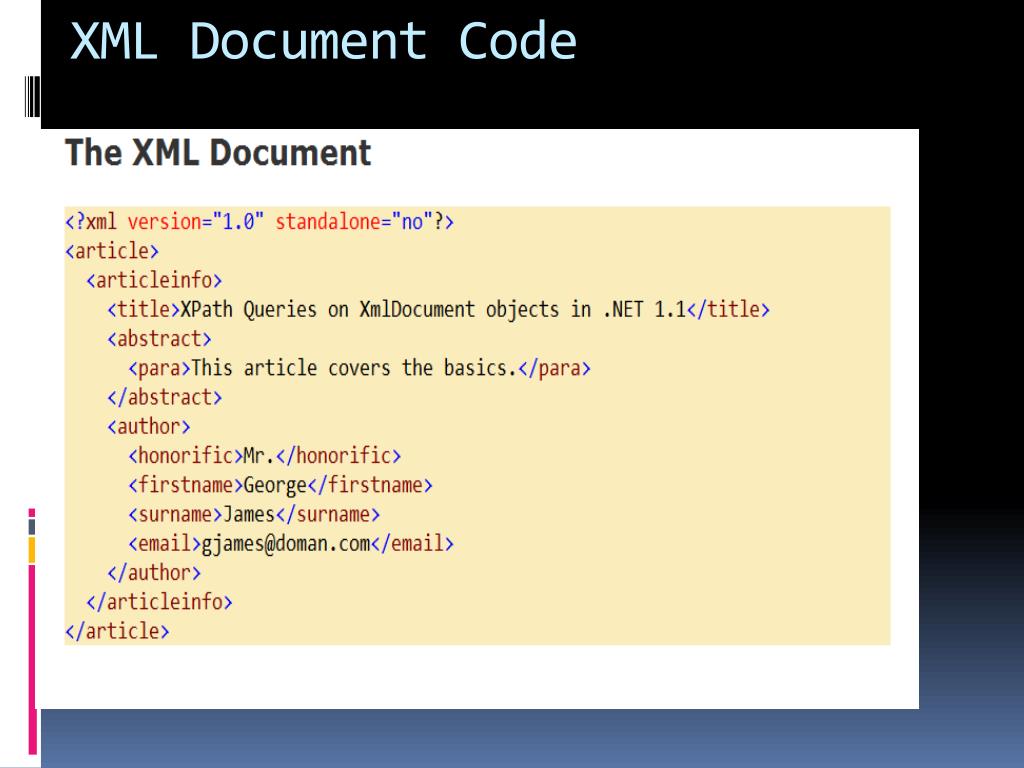

  6. XML Document Code

  7. Encrypted Code

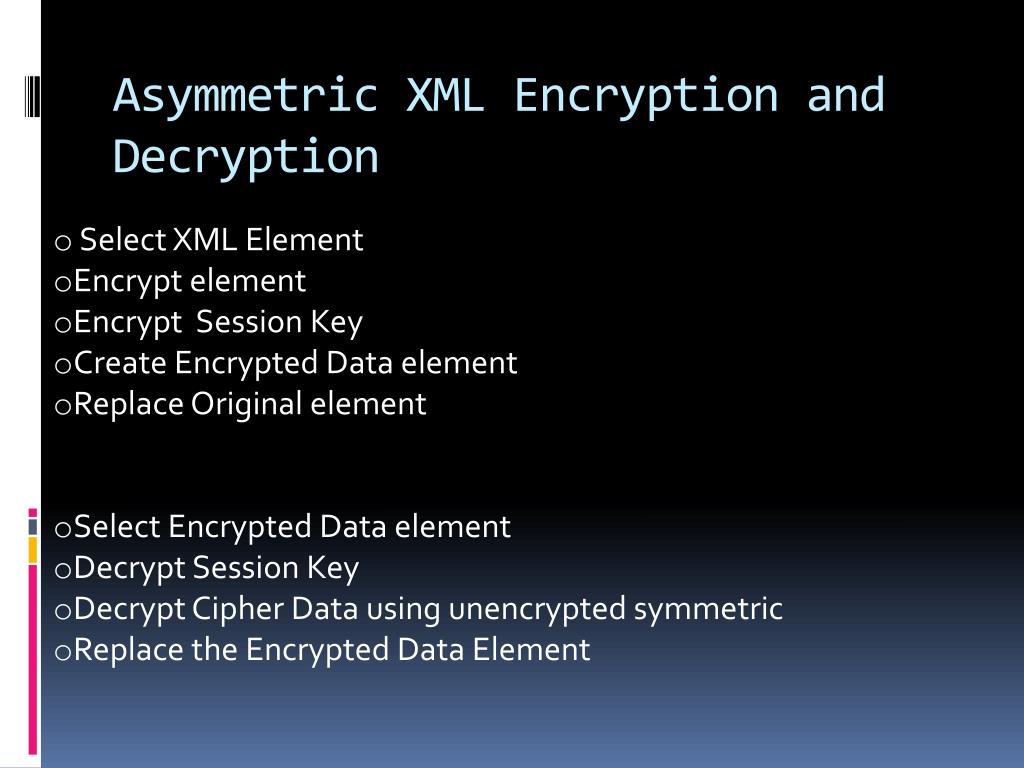

  8. Asymmetric XML Encryption and Decryption • Select XML Element • Encrypt element • Encrypt Session Key • Create Encrypted Data element • Replace Original element • Select Encrypted Data element • Decrypt Session Key • Decrypt Cipher Data using unencrypted symmetric • Replace the Encrypted Data Element

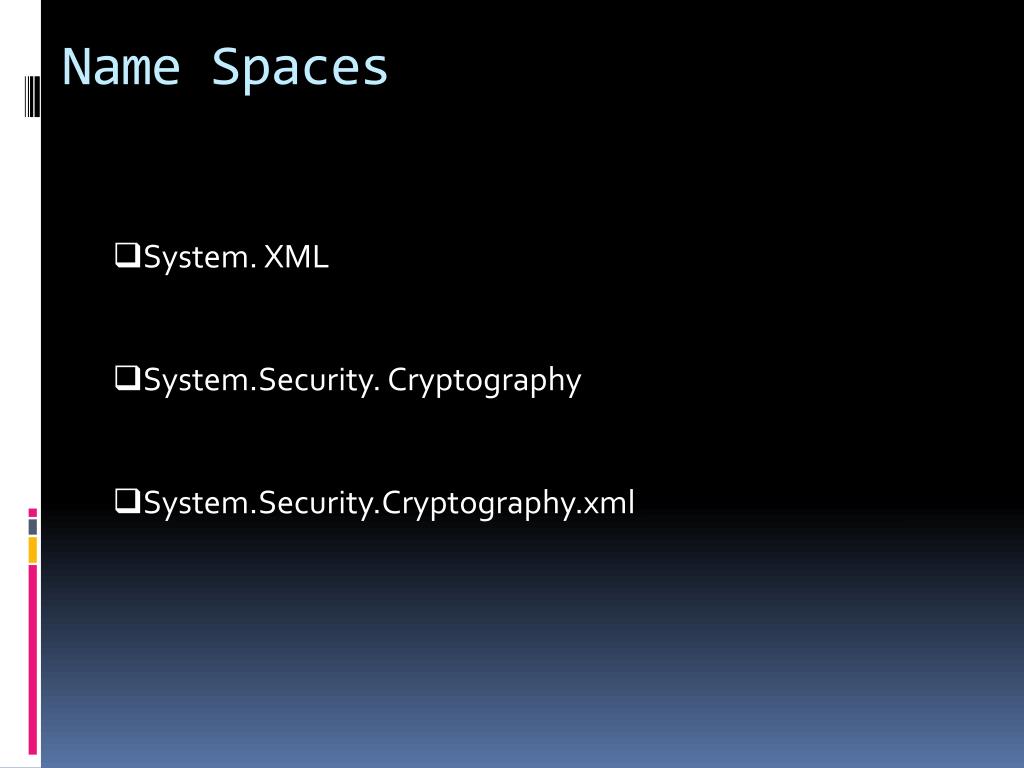

  9. Name Spaces • System. XML • System.Security. Cryptography • System.Security.Cryptography.xml

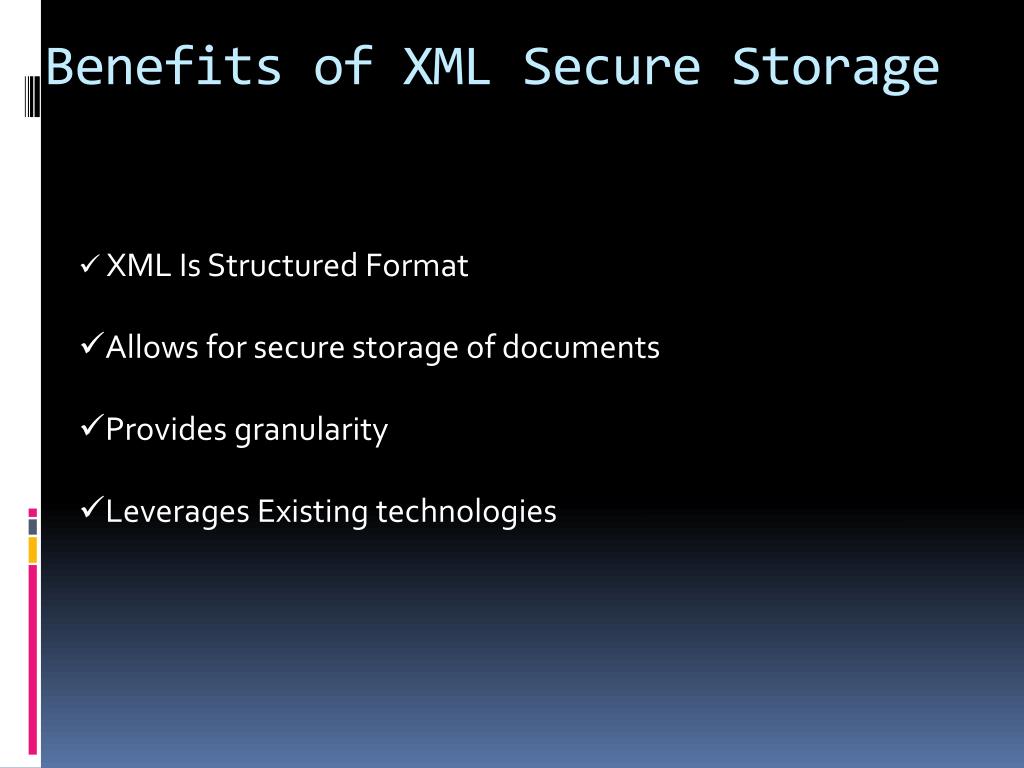

  10. Benefits of XML Secure Storage • XML Is Structured Format • Allows for secure storage of documents • Provides granularity • Leverages Existing technologies

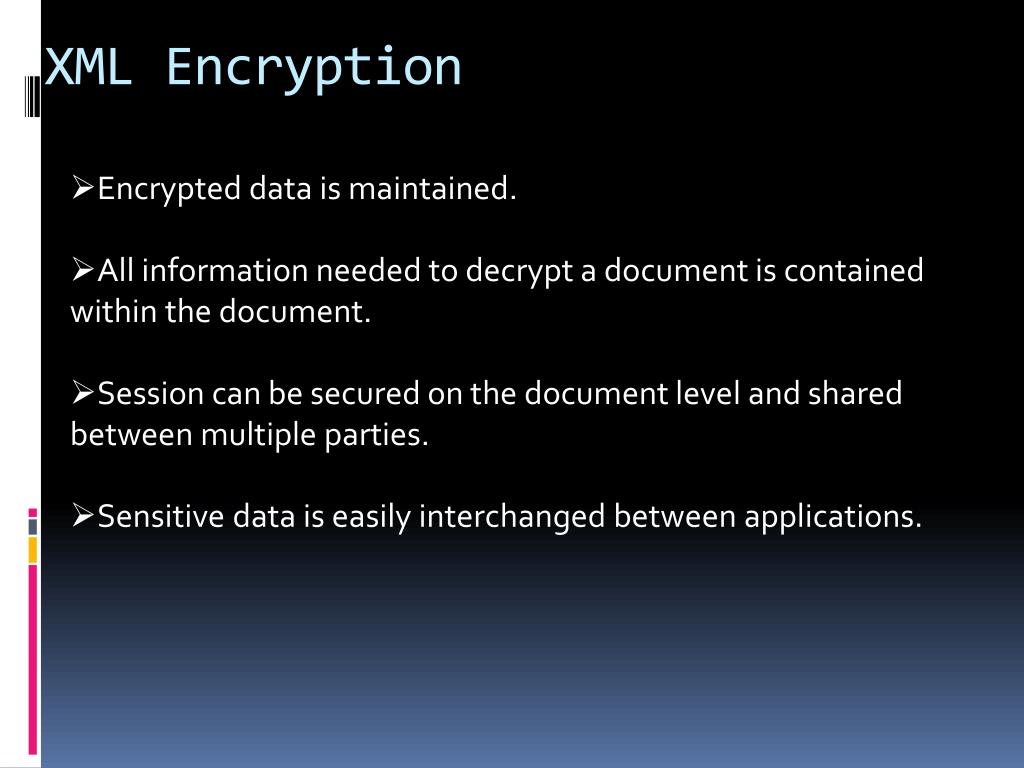

  11. XML Encryption • Encrypted data is maintained. • All information needed to decrypt a document is contained within the document. • Session can be secured on the document level and shared between multiple parties. • Sensitive data is easily interchanged between applications.

  12. XML Encryption of Element <?xml version='1.0'?> <PaymentInfo xmlns='http://example.org/paymentv2'> <Name>John Smith </Name> <EncryptedData Type='http://www.w3.org/2001/04/xmlenc#Element' xmlns='http://www.w3.org/2001/04/xmlenc#'> <CipherData> <CipherValue>A23B45C56 </CipherValue> </CipherData> </EncryptedData> </PaymentInfo>

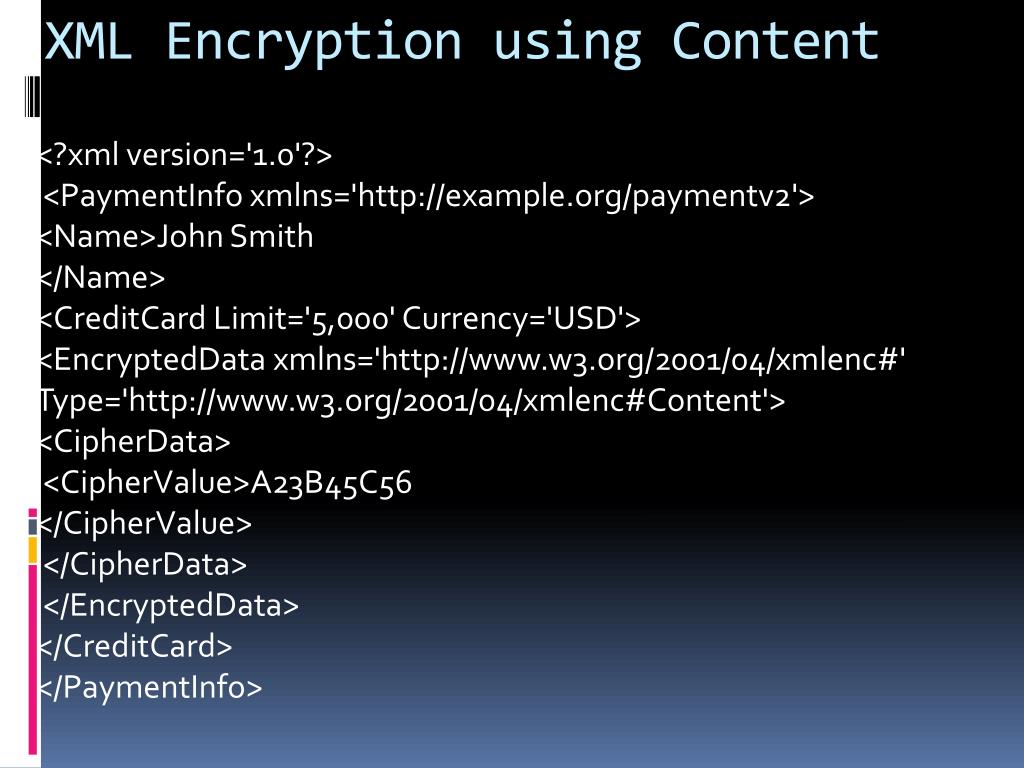

  13. XML Encryption using Content <?xml version='1.0'?> <PaymentInfo xmlns='http://example.org/paymentv2'> <Name>John Smith </Name> <CreditCard Limit='5,000' Currency='USD'> <EncryptedData xmlns='http://www.w3.org/2001/04/xmlenc#' Type='http://www.w3.org/2001/04/xmlenc#Content'> <CipherData> <CipherValue>A23B45C56 </CipherValue> </CipherData> </EncryptedData> </CreditCard> </PaymentInfo>

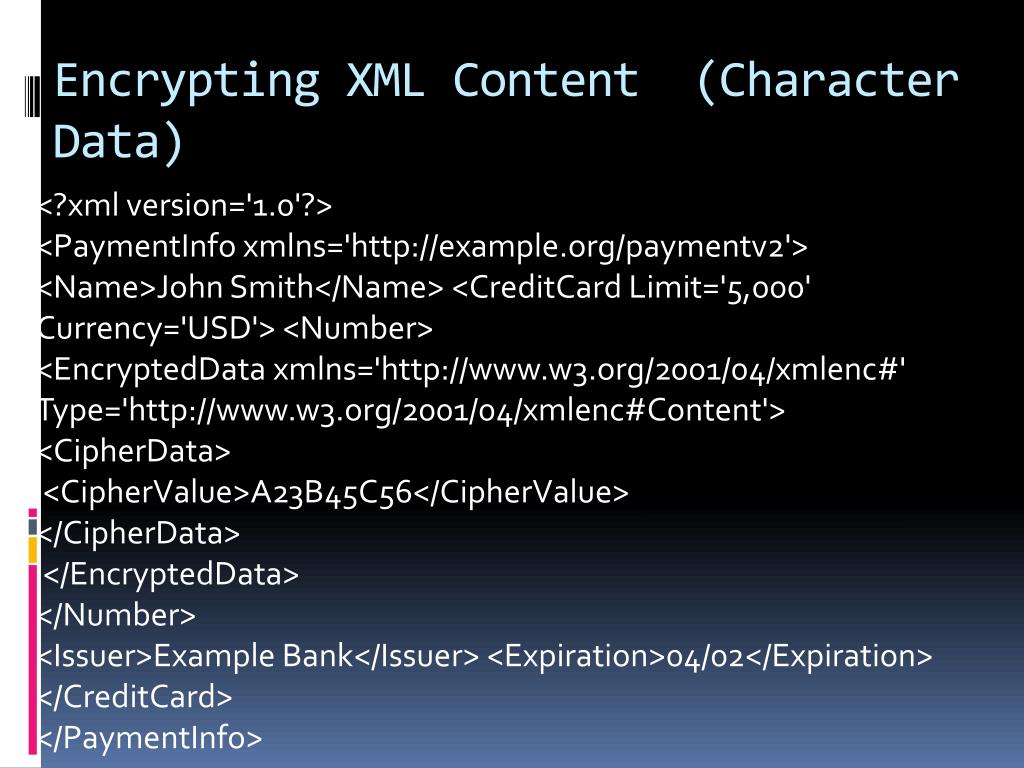

  14. Encrypting XML Content (Character Data) <?xml version='1.0'?> <PaymentInfo xmlns='http://example.org/paymentv2'> <Name>John Smith</Name> <CreditCard Limit='5,000' Currency='USD'> <Number> <EncryptedData xmlns='http://www.w3.org/2001/04/xmlenc#' Type='http://www.w3.org/2001/04/xmlenc#Content'> <CipherData> <CipherValue>A23B45C56</CipherValue> </CipherData> </EncryptedData> </Number> <Issuer>Example Bank</Issuer> <Expiration>04/02</Expiration> </CreditCard> </PaymentInfo>

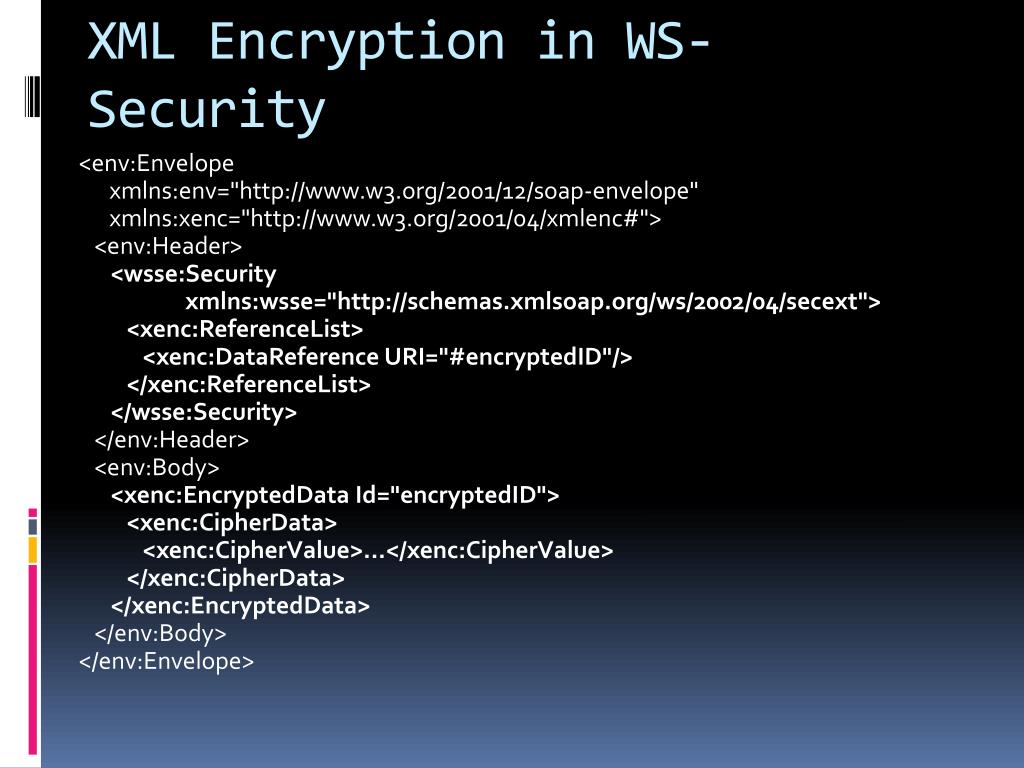

  15. XML Encryption in WS-Security <env:Envelope xmlns:env="http://www.w3.org/2001/12/soap-envelope" xmlns:xenc="http://www.w3.org/2001/04/xmlenc#"> <env:Header> <wsse:Security xmlns:wsse="http://schemas.xmlsoap.org/ws/2002/04/secext"> <xenc:ReferenceList> <xenc:DataReference URI="#encryptedID"/> </xenc:ReferenceList> </wsse:Security> </env:Header> <env:Body> <xenc:EncryptedData Id="encryptedID"> <xenc:CipherData> <xenc:CipherValue>...</xenc:CipherValue> </xenc:CipherData> </xenc:EncryptedData> </env:Body> </env:Envelope>

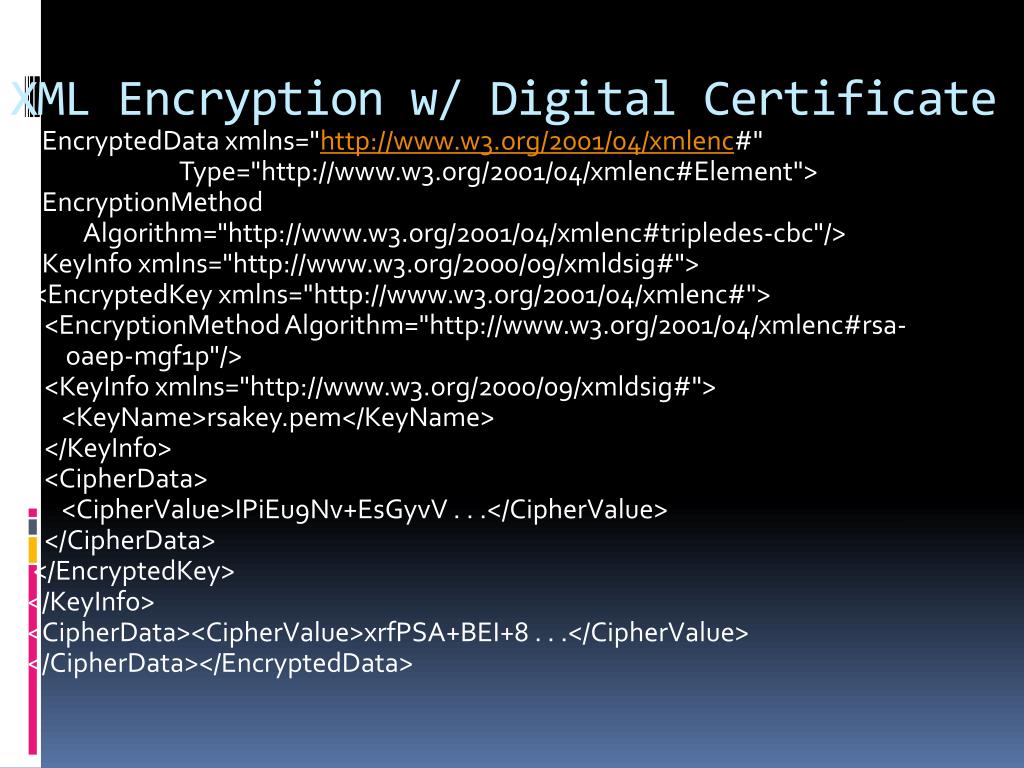

  16. XML Encryption w/ Digital Certificate <EncryptedData xmlns="http://www.w3.org/2001/04/xmlenc#" Type="http://www.w3.org/2001/04/xmlenc#Element"> <EncryptionMethod Algorithm="http://www.w3.org/2001/04/xmlenc#tripledes-cbc"/> <KeyInfo xmlns="http://www.w3.org/2000/09/xmldsig#"> <EncryptedKey xmlns="http://www.w3.org/2001/04/xmlenc#"> <EncryptionMethod Algorithm="http://www.w3.org/2001/04/xmlenc#rsa-oaep-mgf1p"/> <KeyInfo xmlns="http://www.w3.org/2000/09/xmldsig#"> <KeyName>rsakey.pem</KeyName> </KeyInfo> <CipherData> <CipherValue>IPiEu9Nv+EsGyvV . . .</CipherValue> </CipherData> </EncryptedKey> </KeyInfo> <CipherData><CipherValue>xrfPSA+BEI+8 . . .</CipherValue> </CipherData></EncryptedData>

  17. XML Signing AND XML Encryption • Order of Cryptographic operations matters • Signing and Encrypting • Encrypting and Signing • Change of the order while Decrypting - Danger

  18. References • XML Encryption by By: Derek Smyth : http://dotnetslackers.com/articles/xml/XMLEncryption.aspx • XML Encryption Syntax and Processing By Takeshi Imamura , Blair Dillaway, Ed Simon • http://www.ibm.com/developerworks/xml/library/x-encrypt2/ • http://www.devx.com/dotnet/Article/21564

  19. Thank You!!!
