  1. Two-dimensional packet classification algorithm using a quad-tree Author:Hyesook Lim,Min Young Kang and Changhoo Yim Publisher:Computer Communications, 2007 Presenter: Chun-Yi Li Date: 2008/12/10

  2. Outline Related Works Trie-based algorithms Algorithms based on heuristics Geometric algorithms Area-based quad-tree (AQT) Space decomposition Crossing filter Priority-based quad-tree (PQT) Building procedure Search procedure Update procedure Performance 2

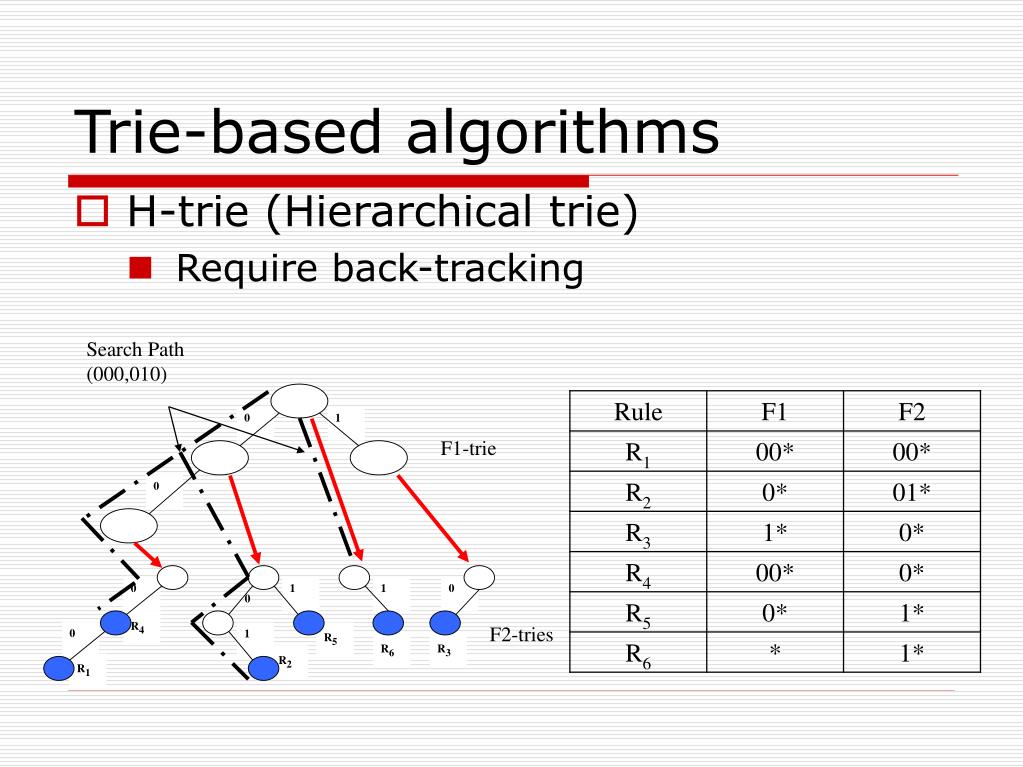

  3. Search Path (000,010) 0 1 F1-trie 0 0 1 1 0 0 R4 0 1 R5 R6 R3 R2 R1 Trie-based algorithms • H-trie (Hierarchical trie) • Require back-tracking F2-tries

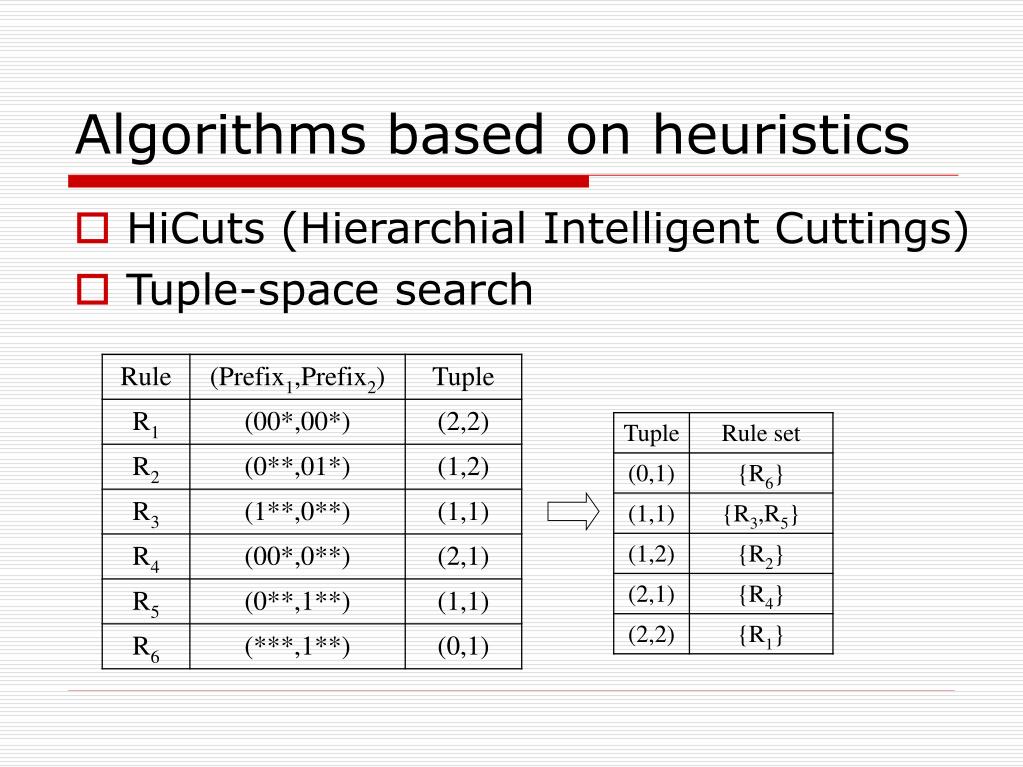

  4. Algorithms based on heuristics • HiCuts (Hierarchial Intelligent Cuttings) • Tuple-space search

  5. Geometric algorithms Rule Table • Cross-production algorithm Cross-product Table

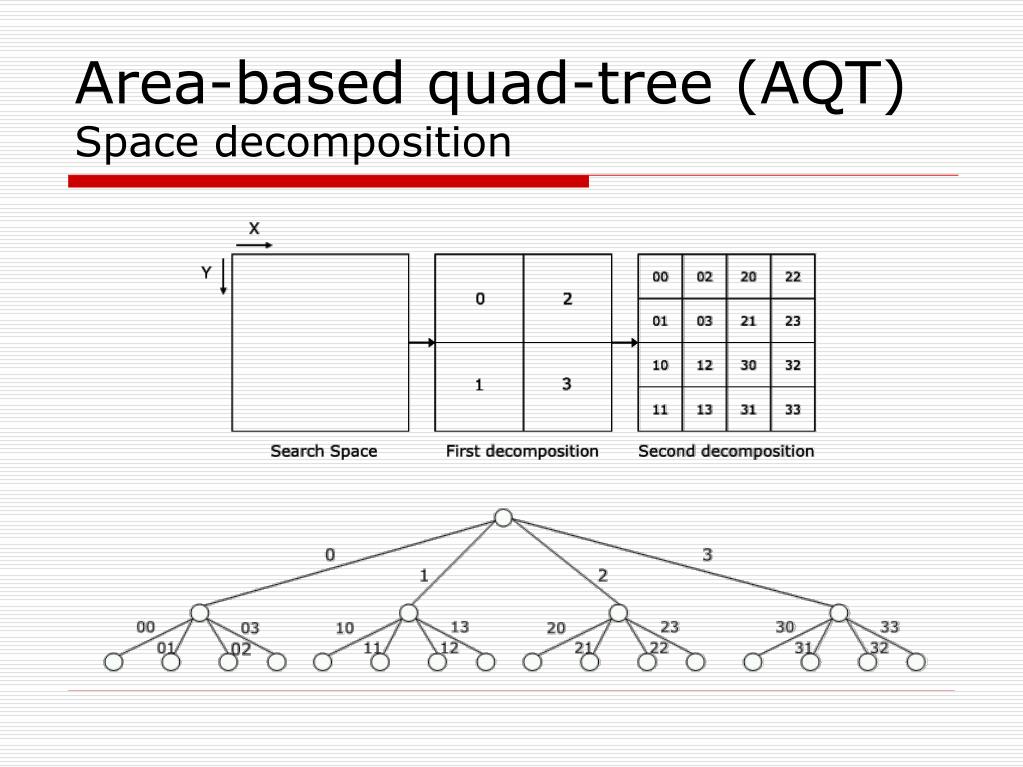

  6. Area-based quad-tree (AQT)Space decomposition

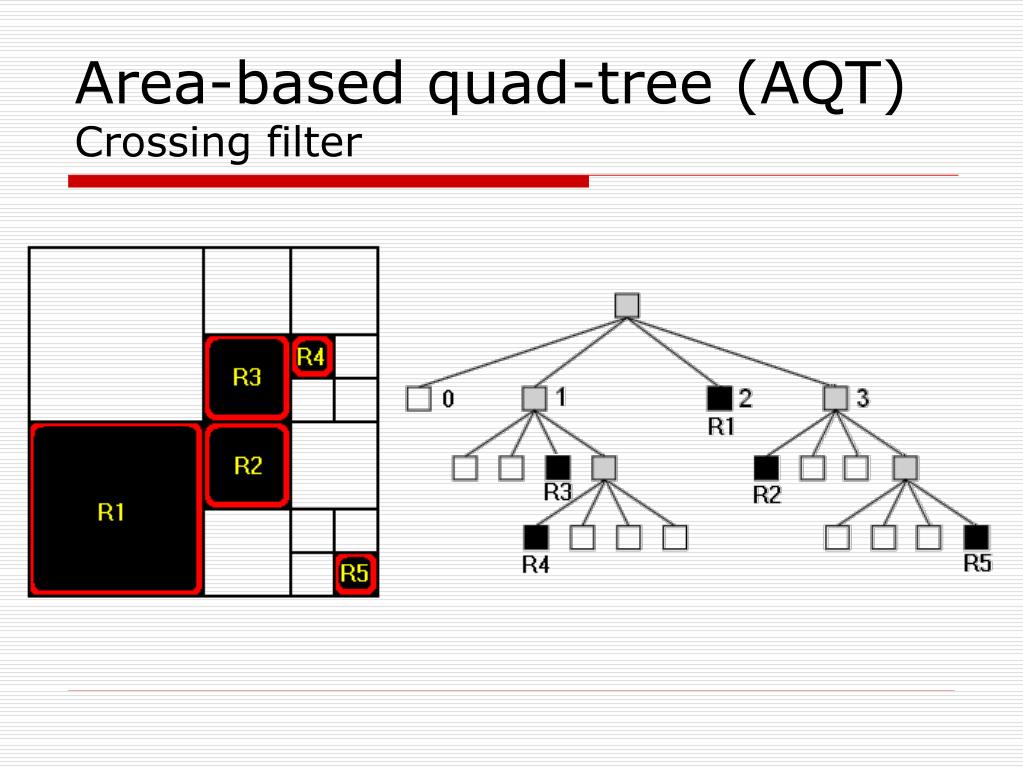

  7. Area-based quad-tree (AQT)Crossing filter A: Search space size=2k*2k F: Filter (Rule) size=2i*2j

  8. Area-based quad-tree (AQT)Crossing filter

  9. Priority-based quad-tree (PQT)Building procedure Rule table Rule in 2D space by Src. & Dst. Prefix

  10. Priority-based quad-tree (PQT)Building procedure Rule in 2D space by Src. & Dst. Prefix The quad-tree by AQT

  11. Priority-based quad-tree (PQT)Building procedure The quad-tree by PQT The quad-tree by AQT Rules with smaller rule number have higher priorities

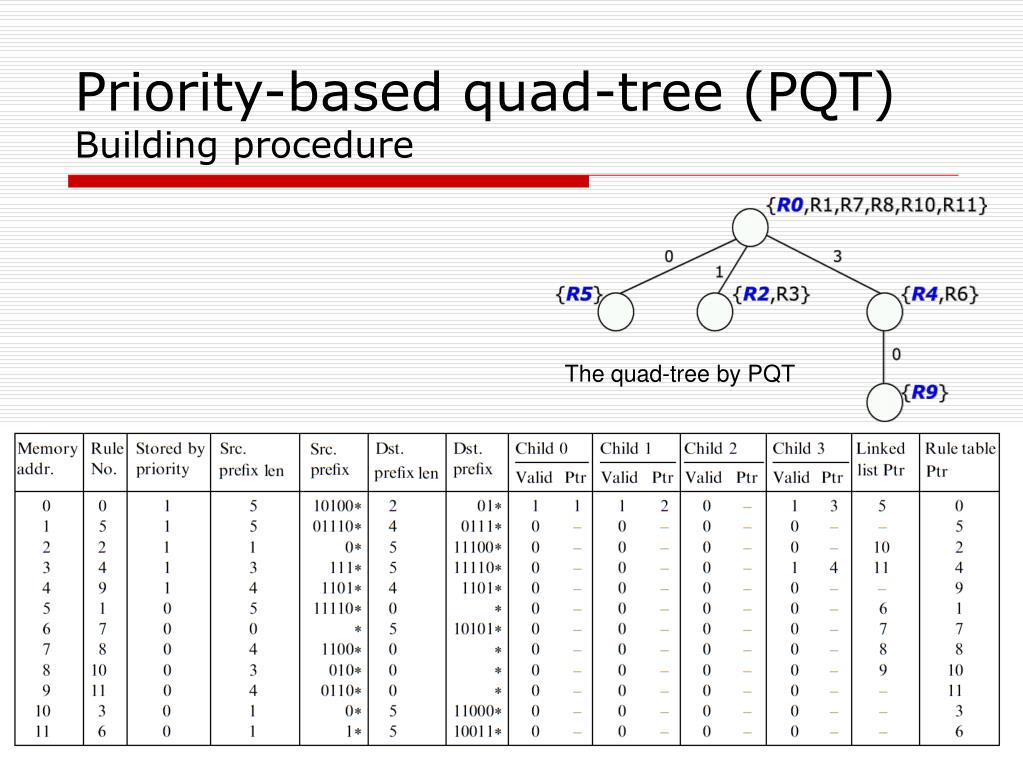

  12. Priority-based quad-tree (PQT)Building procedure The quad-tree by PQT

  13. Priorty-based quad-tree (PQT)Search procedure

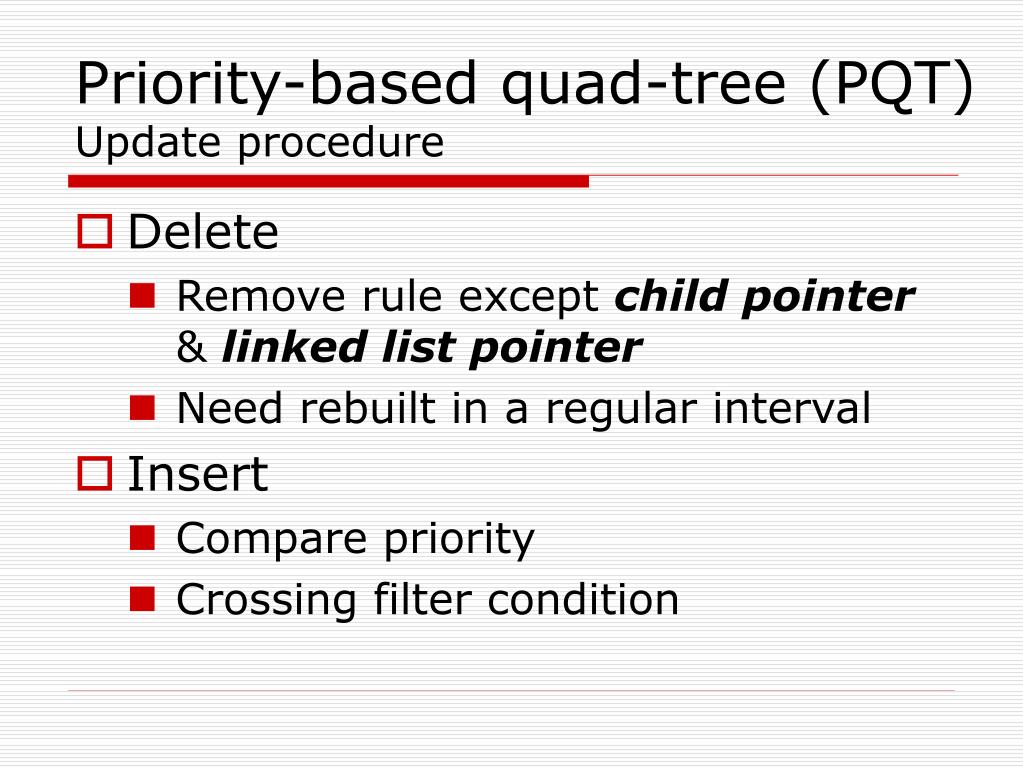

  14. Priority-based quad-tree (PQT)Update procedure • Delete • Remove rule except child pointer & linked list pointer • Need rebuilt in a regular interval • Insert • Compare priority • Crossing filter condition

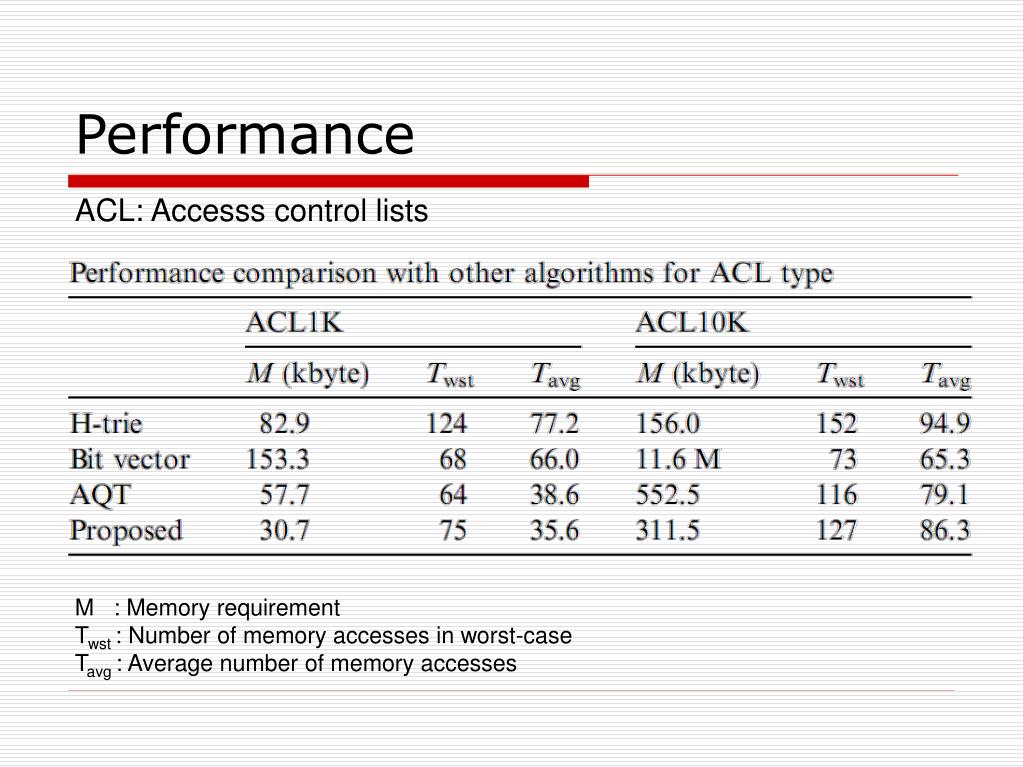

  15. Performance ACL: Accesss control lists M : Memory requirement Twst : Number of memory accesses in worst-case Tavg : Average number of memory accesses

  16. Performance FW: Firewalls M : Memory requirement Twst : Number of memory accesses in worst-case Tavg : Average number of memory accesses

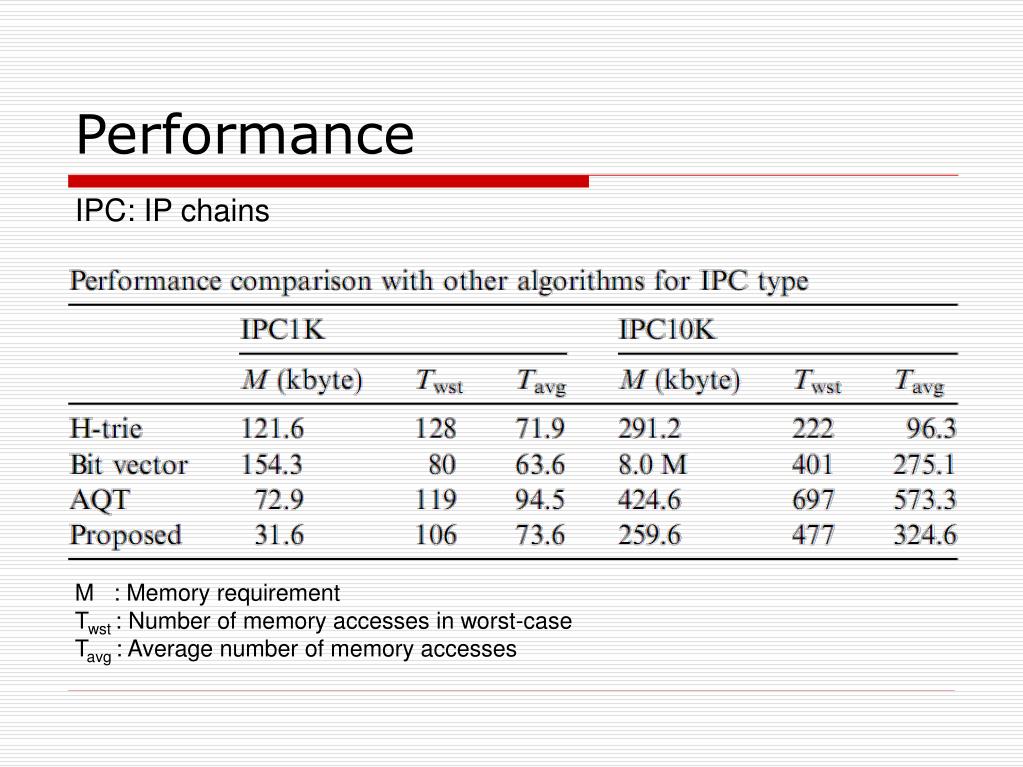

  17. Performance IPC: IP chains M : Memory requirement Twst : Number of memory accesses in worst-case Tavg : Average number of memory accesses
